Article

Status of Aquarius and Salinity Continuity
David M. Le Vine 1,*, Emmanuel P. Dinnat 1,2, Thomas Meissner 3, Frank J. Wentz 3,
Hsun-Ying Kao 4, Gary Lagerloef 4 and Tong Lee 5
 1 NASA/Goddard Space Flight Center, Greenbelt, MD 20771, USA; emmanuel.dinnat@nasa.gov
 2 Chapman University, Orange, CA 92866, USA
 3 Remote Sensing Systems, 444 Tenth Street, Suite 200, Santa Rosa, CA 95401, USA;

   meissner@remss.com (T.M.); frank.wentz@remss.com (F.J.W.)
 4 Earth and Space Research, 2101 Fourth Ave, Suite 1310, Seattle, WA 98121, USA;

   Hkao@esr.org (H.-Y.K.); lager@esr.org (G.L.)
 5 Jet Propulsion Laboratory, 4800 Oak Grove Drive, Pasadena, CA 91109, USA; tlee@jpl.nasa.gov

 * Correspondence: david.m.levine@nasa.gov; Tel.: +1-301-614-5640

 Received: 5 September 2018; Accepted: 18 September 2018; Published: 2 October 2018

 Abstract: Aquarius is an L-band radar/radiometer instrument combination that has been designed
 to measure ocean salinity. It was launched on 10 June 2011 as part of the Aquarius/SAC-D
 observatory. The observatory is a partnership between the United States National Aeronautics and
 Space Agency (NASA), which provided Aquarius, and the Argentinian space agency, Comisiόn
 Nacional de Actividades Espaciales (CONAE), which provided the spacecraft bus, Satelite de
 Aplicaciones Cientificas (SAC-D). The observatory was lost four years later on 7 June 2015 when a
 failure in the power distribution network resulted in the loss of control of the spacecraft. The
 Aquarius Mission formally ended on 31 December 2017. The last major milestone was the release of
 the final version of the salinity retrieval (Version 5). Version 5 meets the mission requirements for
 accuracy, and reflects the continuing progress and understanding developed by the science team
 over the lifetime of the mission. Further progress is possible, and several issues remained
 unresolved at the end of the mission that are relevant to future salinity retrievals. The understanding
 developed with Aquarius is being transferred to radiometer observations over the ocean from
 NASA’s Soil Moisture Active Passive (SMAP) satellite, and salinity from SMAP with accuracy
 approaching that of Aquarius are already being produced.

 Keywords: ocean salinity; microwave remote sensing; remote sensing

1. Introduction
     Aquarius is an L-band radar/radiometer instrument combination that has been designed to
measure ocean salinity. It was launched 10 June 2011 and lost on 7 June 2015, almost four years to the
day later when a failure in the power distribution network resulted in loss of control of the spacecraft.
Mission operations ended soon afterward, and scientific operations (e.g., final algorithm) ended 31
December 2017. Aquarius was unique in that it was the only satellite dedicated solely to remote
sensing of sea surface salinity (SSS). This manuscript reports an overview of the status of the Aquarius
research on mapping the global surface salinity field as of the end of the scientific part of the mission
on 31 December 2017. This overview begins with a short history and description of the mission
(Section 2: Background). This is followed by a brief description of the salinity retrieval algorithm,
Version 5.0, as it existed at the end of the mission (Section 3). A more detailed description of the
algorithm can be found in Meissner, Wentz and Le Vine [1], and in this special issue [2]. Section 4
describes several of the important research issues that remain at end of the mission. This includes
small residual changes in the temporal signal, a dependence on sea surface temperature (SST), and

Remote Sens. 2018, 10, 1585; doi:10.3390/rs10101585                     www.mdpi.com/journal/remotesensing
Status of Aquarius and Salinity Continuity - MDPI
Remote Sens. 2018, 10, 1585                                                                            2 of 20

tuning of the calibration to improve the performance at the cold and warm ends. These “features”
are hidden in Version 5 because they are either corrected empirically (temporal variations and SST-
dependence) or are not manifested over the ocean (e.g., warm end occurs over land/ice). These
features are pointed out here because further progress in improving the remote sensing algorithm
requires a more fundamental understanding of the root cause of these issues. Finally (Section 5), the
paper concludes with an introduction to the work that is continuing on the remote sensing of salinity
from space using the observations of the SMAP L-band radiometer over the ocean.

2. Background
      The Aquarius instrument is an L-band active/passive (radar/radiometer) combination designed
to map surface salinity over the ocean [3]. It was part of the Aquarius/SAC-D observatory, which was
a partnership between the United States National Aeronautics and Space Agency (NASA) and the
Argentine space agency, Comisiόn Nacional de Actividades Espaciales (CONAE). Figure 1 is an artist
drawing of the observatory. Aquarius consisted of three radiometers (the feed horns can be seen in
the figure) arranged to image in pushbroom fashion looking toward the left with the spacecraft
oriented as shown and flying perpendicular to the page (e.g., see Figure 3 in Le Vine et al [3]). A
NASA team from the Goddard Space Flight Center (radiometer) and the Jet Propulsion Laboratory
(radar) built Aquarius. CONAE provided the spacecraft bus, SAC-D, and CONAE and its partners
(Italy, France, and Canada) provided several other instruments [3,4] that are indicated on the Earth-
viewing side of the bus.

      Figure 1. The Aquarius/SAC-D observatory. Aquarius is the feed-reflector assembly to the left. SAC-
      D is the observatory bus to the right, plus several instruments.

     Aquarius was unique among the recent L-band missions, (i.e., also the European Space Agency
Soil Moisture and Ocean Salinity mission, SMOS, and the NASA Soil Moisture Active Passive, SMAP,
mission) in that it focused exclusively on the measurement of sea surface salinity. For example, the
radar was included to help correct for the effect of ocean surface roughness (waves), which is a major
source of uncertainty in the salinity retrieval algorithm [5]. The radiometers were polarimetric
(measured the third Stokes parameter) to provide an in situ measurement of Faraday rotation [6,7]
that can be significant at L-band [8]. Even the orbit was chosen to optimize the retrieval of salinity.
The orbit was sun-synchronous with a ground track close to the day–night terminator (18:00
equatorial crossing, ascending) so that the radiometer beams could look to the nighttime side to avoid
the reflection of L-band radiation from the Sun into the antenna main beam (sun glint). In addition,
the orbit was an exact repeat with a seven-day cycle that enabled Aquarius to view the same
footprints each cycle to facilitate averaging to reduce noise in the measurement. The three
radiometers provided sufficient coverage so that Aquarius mapped the globe completely in each
Status of Aquarius and Salinity Continuity - MDPI
Remote Sens. 2018, 10, 1585                                                                      3 of 20

seven-day cycle with overlap at higher latitude, again to facilitate averaging to meet the accuracy
goal of 0.2 psu (global root mean square (RMS), monthly, and at 150-km spatial resolution [3]). The
radar used the same feeds as the radiometer, but there was only one radar that was cycled among
three feeds. The goal was to have almost simultaneous passive/active looks at the same spot on the
surface.
      Significant attention was paid to the thermal control of the instrument and included both active
and passive elements. As part of the passive control, Aquarius carried a large thermal shield (the
large umbrella-like shade separating Aquarius from the SAC/D spacecraft bus seen in Figure 1) to
mitigate the effects of the Sun. There also was active thermal control to keep the critical parts of the
radiometer at a stable temperature [3]. The requirement was for a variation of the radiometer front
end of less than 0.1 °C per orbit, and the performance achieved on orbit was better than this [9].
      Two other features new on Aquarius were the internal calibration and provisions for
detection/mitigation of radio frequency interference (RFI). The internal calibration included reference
diodes, and was the product of several years of research [10,11]. RFI was known to be a potential
problem based on experience with airborne instruments [12,13], and provisions were made to address
this problem. In particular, rapid sampling (10 ms per sample) and an algorithm to detect and remove
pulses were implemented, because RFI at L-band from air traffic control radar was known to be a
problem [3,14].
      Aquarius released its first salinity map in September 2011 almost one month after it was turned
on (Figure 5 in Le Vine et al [9]), and functioned almost flawlessly and within specification until the
observatory was lost on 7 June 2015. The problem was a failure in the power distribution network in
the spacecraft. A component used in the power switches began to fail early in the mission. Since the
switches were redundant, there was no early impact. Available information suggested a random
failure mode, and that the probability of a failure in both primary and backup switch was small.
However, in June 2015, power to the attitude control system was lost. Both primary and backup units
had failed (the primary unit failed much earlier). Without attitude control, contact with the spacecraft
was lost, and the retrieval of data was not possible. Operations ended soon thereafter, and the science
team focused on consolidating its research for the release of a final version of the salinity retrieval.
Version 5.0, the final Aquarius salinity product, was released in November 2017, and the Aquarius
mission formally ended on 31 December 2017.

3. Results: Aquarius Version 5.0
      This section provides a brief overview of the status of the final version, Version 5.0, of the
Aquarius Project salinity retrieval algorithm. This includes the changes made to the algorithm, an
assessment of its performance, and a list developed by the algorithm team at the end of the mission
of issues that remained to be resolved.

3.1. Changes in the Retrieval Algorithm
     The approach to calibration and the retrieval of salinity has not changed fundamentally since it
was outlined in the pre-launch documentation [2,15,16]. However, changes have been made based
on the actual data and the performance of the hardware on orbit. Each improvement led to better
understanding of the calibration and algorithm, which in turn led to further improvements and
further understanding. When significant changes were made to the retrieval, the data was
reprocessed, and a new version of the salinity product was released to the public. In total, there were
five versions (data releases). The changes are documented in a series of appendices to the pre-launch
algorithm theoretic basis document (ATBD), which were issued with each new version of the
algorithm to describe the changes incorporated in that version [16]. The changes made in the
development of Version 5.0 are:
•     The ancillary sea surface temperature (SST) field was changed from the National Oceanographic
      and Atmospheric Administration (NOAA) Optimally Interpolated (OI) SST to the SST field from
      the Canadian Meteorological Center (CMC);
Status of Aquarius and Salinity Continuity - MDPI
Remote Sens. 2018, 10, 1585                                                                       4 of 20

•     The reference sea surface salinity (SSS) field used in the sensor calibration and in the derivation
      of expected antenna temperature, TA_expected, in the forward algorithm was changed from SSS
      obtained from the Hybrid Coordinate Ocean Model (HYCOM) to the analyzed monthly Scripps
      Argo SSS;
•     The model for the celestial radiation reflected from the surface into the radiometer antenna was
      changed to values derived from fore and aft observations of the SMAP radiometer. The
      advantage of this approach is that it includes the effects of surface roughness;
•     The empirical symmetrization correction that corrects asc/dsc differences [1] was re-derived to
      reflect the improvements that resulted from the improved model for the reflected celestial
      radiation (above).
•     The model for absorption by atmospheric oxygen was changed from Meissner et al [17] to the
      original model [18].
•     The surface roughness correction was updated (i.e., compared to that described in Meissner,
      Wentz and Riciardulli [19]):
      o     The SST dependence was adjusted.
      o     The dependence on significant wave height (SWH) was omitted.
      o     In addition, the correction table for dependence on wind speed and radar backscatter was
            updated, and as a consequence, the initial guess for the SSS field used to derive the final
            wind speed (i.e., “HHH” wind speed) was also updated.
•     Observations at vertical and horizontal polarization are given equal weight in the retrieval of
      salinity (i.e., in the maximum likelihood estimate used in the last step in the retrieval);
•     The L2 files include instantaneous rain rates based on the NOAA rain product, CMORPH
      (Climate Prediction Center Morphing). They are used to filter data for rain in the calibration and
      also for validating the Aquarius salinity versus in situ measurements.
     Since Version 5.0 is the final version of the salinity retrieval for the Aquarius Project, it was
decided to rewrite the ATBD to reflect the algorithm in place for Version 5.0 [1]. The data itself and a
complete set of documents describing the algorithm can be found at the NASA Physical
Oceanography           Distributive        Active          Archive          Center         (PO.DAAC):
https://podaac.jpl.nasa.gov/aquarius. Also, a description of the algorithm in its Version 3 form can be
found in Boutin et al [20]. The NASA PO.DAAC website also contains a historical record of the
documents issued for each version (including evaluation metrics, users guide, and addenda to the
ATBD).

3.2. Evaluation of the Version 5.0 Salinity
      The release of each Aquarius salinity product was accompanied by an evaluation of the product.
The assessment is made by comparing the retrieved salinity with in situ measurements (mostly Argo
floats [21]). In the matchup, Argo data closest to the surface is selected and matched to the nearest
Aqaurius beam center within a search radius of ±3.5 days and 75 km. Then, 11 Aquarius observations
(the data product is one salinity value every 1.44 s) are averaged centered on this point (see Kao et al

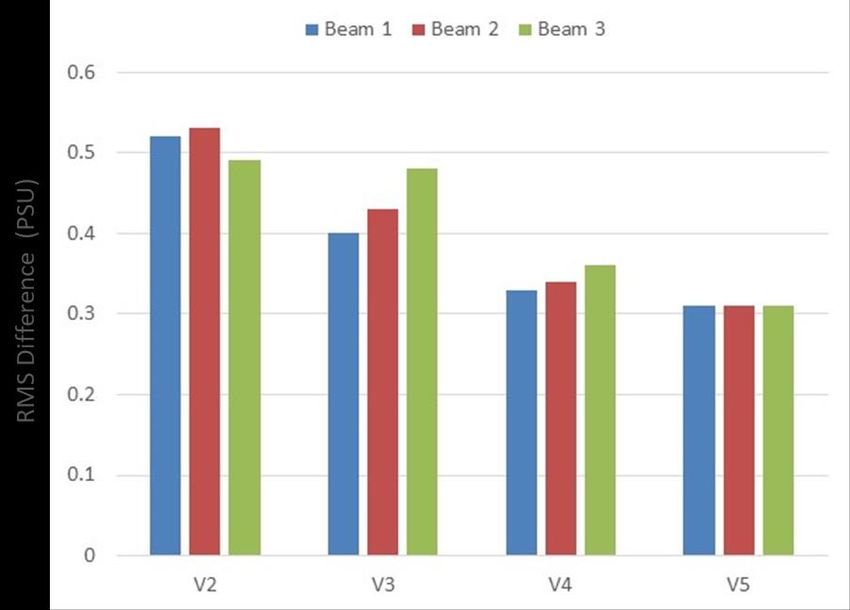

[22] for additional details). Figure 2 shows the RMS difference between the retrieved and in situ
salinity averaged over the entire mission. The three bars represent the three Aquarius beams (beam
1 is the innermost beam), and results are shown for versions 2, 3, 4, and 5. The continuous progress
and improvement in the algorithm since the early phase of the mission is evident in the gradual
decrease in the level of error. The results shown for Version 5 (V5) are for the entire mission, and
consist of individual matchups as described above, with no additional spatial or temporal averaging.
Status of Aquarius and Salinity Continuity - MDPI
Remote Sens. 2018, 10, 1585                                                                                5 of 20

      Figure 2. The root mean square (RMS) difference between Aquarius-retrieved sea surface salinity
      (SSS) and in situ ocean observations. The three bars in each group represent the three Aquarius beams.
      The groups are for different versions of the retrieval algorithm from Version 2 to the final Version 5.
      The data are from Figure 3 in Kao et al [22].

      Figure 3. Aquarius SSS retrieval RMS error estimated with a triple point analysis using Aquarius,
      Hybrid Coordinate Ocean Model (HYCOM), and Argo data. The results shown are for the Aquarius
      middle beam. The dashed line represents the Aquarius mission requirement for monthly maps at 150-
      km spatial resolution. The data are from Table 1 in Kao et al [22]. The version of HYCOM used by the
      Aquarius project is the HYCOM + NCODA Global 1/12° Analysis (GLBA0.08).

     The statistics shown in Figure 2 include “error” in both the Aquarius retrieval and the error of
the in situ measurements. The latter includes sampling error due to the relatively sparse in situ
Status of Aquarius and Salinity Continuity - MDPI
Remote Sens. 2018, 10, 1585                                                                               6 of 20

measurements and because they are not truly measurements at the surface (i.e., within the 1–2 cm
where the microwave signal originates). In general, the discrepancy on the measurement depth
between the satellite and in situ is negligible, but it could be a factor in the case of large precipitation
and low mixing of the ocean upper layer [20]. One way to try to isolate the error in the Aquarius
retrieval from the other sources is to use a triple-point analysis (e.g., see Appendix B in Kao et al
[22]). An example is shown in Figure 3 for beam 2 (the Aquarius middle beam). The data is the same
as used in Figure 2. The dashed line represents the Aquarius mission requirement of an accuracy of
0.2 psu for the global RMS error on a monthly basis and a spatial resolution of 150 km. This triple-
point analysis employs data from Aquarius, Argo [21], and the HYCOM [23] salinity field. The
version of HYCOM used by the Aquarius project is the HYCOM + NCODA Global 1/12° Analysis
(GLBA0.08, see https://hycom.org/data/glba0pt08). These data are not strictly independent. For
example, HYCOM assimilates Argo data, so its SSS are not strictly independent from Argo
measurements. However, HYCOM SSS are also affected by model ocean dynamics, evaporation–
precipitation forcing, and a relaxation of HYCOM SSS toward a seasonal climatology (to prevent
model drift). These factors tend to create some level of independence between HYCOM and Argo.
Aquarius uses Argo during calibration (but not during retrieval). On the other hand, the data
represent single comparisons, whereas the Aquarius requirement is for a monthly map. Since
Aquarius maps the globe in seven days, one can expect four or more measurements in one month,
and consequently, the monthly RMS is likely lower than the 0.17 psu shown in Figure 3 for Version
5.0. Calculations suggest the number is on the order of 0.13 psu (Table 4 in Kao et al [22]).
      Figure 4 is an example of the assessment of Level 3 (L3) data for V5 (L2 data is available in swath
coordinates every 1.44 s, and Level 3 data is averaged into latitude and longitude bins of 1 degree ×
1 degree resolution.) In Figure 4, the data are averaged for the entire mission [22]. The bars in each
group represent different versions of the Aquarius salinity retrieval (V3, V4, and V5), and the groups
show the data averaged spatially with increasing size, from the native one-degree to 10-degree bin
sizes. Figure 4 illustrates two points: (a) the improvement in the retrieval with each new version, and
(b) the impact of spatial averaging on reducing noise. It is evident from Figure 4 that V5.0 Level 3
exceeds the goal of 0.2 psu at 1o x1o and, as expected, improves with further spatial averaging.

      Figure 4. Global average of regional temporal root mean square difference (RMSD) between Aquarius
      Level 3 monthly SSS and monthly Argo gridded maps as a function of the spatial scale for the entire
      mission. The three bars represent Version 3, 4, and 5 retrievals. The Argo data used in the comparison
      are from the gridded product from the Scripps Institute of Oceanography:
      http://apdrc.soest.ucsd.edu/Gridded_fields.html. The data are from Section 10 of Kao et al [22], which
      also contains more detail.
Status of Aquarius and Salinity Continuity - MDPI
Remote Sens. 2018, 10, 1585                                                                      7 of 20

  The root mean square difference (RMSD) with respect to gridded Argo maps not only contains the
errors of the Aquarius Level 3 SSS, but also the sampling and mapping errors of the Argo maps. The
latter was found to be quite significant on 1° × 1° and 3° × 3° scales [24]; for example, the global
average RMSD between two gridded Argo products is 0.1 psu on a 1° × 1° scale.

3.3. Work Remaining to Improve the Salinity Product
     Aquarius Version 5.0 meets and exceeds the mission requirements. However, more can be done
to improve the product. Among the issues identified by the Aquarius Cal/Val and Ocean Salinity
Science Teams that will need to be addressed are:
•     Determining the physical reason for an SST-dependent bias (which is empirically removed in
      Version 5; See Section 4.3 below);
•     Refining the model for the dielectric constant of sea water (i.e., functional dependence on SST
      and SSS), which varies among the two models currently in use, Klein and Swift [25] and Meissner
      and Wentz [26], and also the model being developed at the George Washington University [27];
•     Identifying and correcting a remaining small annual cycle (not due to changes in salinity);
•     Merging Aquarius, SMOS, and SMAP salinity maps into a single product;
•     Improving the theory for the effect of surface roughness on emission and the correction for the
      reflection of signals such as the galactic background;
•     Improving the level of missed detection in the RFI algorithm;
•     Improving the performance in cold water;
•     Addressing regional biases (e.g., North Pacific and southern Indian Ocean);
•     Improving calibration over the full range of expected targets (i.e., cold sky, ocean, and land).
     The advantage of having a very stable instrument is that each improvement in the retrieval
algorithm opens the door to additional possibilities. The manifestation of this can be seen in the
steady improvement from Version 2 to Version 5 that is evident in figures 2–4. Examples are
presented below to illustrate how this process unfolded for Aquarius for three of the issues listed
above (SST-dependent bias, residual annual cycle, and calibration over the full range), and to describe
the status of these issues as it exists in V5.

4. Discussion: Remaining Issues

4.1. Background
     It helps for understanding the issues remaining in V5 to review, very briefly, two aspects of the
salinity retrieval process: calibration (counts to TA) and the algorithm that converts the calibrated
antenna temperature, TA, at the spacecraft to salinity at the surface.

4.1.1. Calibration
     The internal hardware aspect of calibration (e.g., linearity correction, correction for temperature
dependence, loss model, etc.) is based on pre-launch measurements and described in a summary
document prepared for Version 5 [15]. The radiometers include internal reference sources (noise
diodes) that are sampled periodically [11,15,28] and used to compute radiometer gain and offset.
Although the values of the reference loads are measured pre-launch, an on-orbit check is required.
In an ideal case, this should be a one-time check; however, (see “gain drift” below) the Aquarius
radiometers were very good, but not perfect. In addition, largely because the antenna cannot be
measured well enough on the ground, an on-orbit calibration of radiometer bias is necessary. In the
case of Aquarius, the global average antenna temperature (which relies on ancillary salinity and
temperature fields) is used as a reference for these external elements of the calibration, as will be
explained in more detail below.
Status of Aquarius and Salinity Continuity - MDPI
Remote Sens. 2018, 10, 1585                                                                                8 of 20

4.1.2. Retrieval of Salinity
     Figure 5 is a schematic outlining the major steps in the transformation from the calibrated
antenna temperature, TA, to the retrieval of salinity. Details can be found in the Aquarius ATBD,
both the end of mission ATBD [1] and also the pre-launch ATBD and associated addenda [16]. The
addenda were written to update the pre-launch ATBD to make it consistent with the revised
processing each time a new version of the data was released. The end of mission ATBD is a rewrite
of the ATBD to reflect the process in place for Version 5, which is the final Aquarius data set.

      Figure 5. Flow diagram illustrating the steps in the Aquarius salinity retrieval algorithm. The process
      starts at the top with calibrated antenna temperature, TA, from the radiometer and ends with a
      measurement of SSS at the surface.

     The retrieval of salinity consists of the transfer of TA from the spacecraft to the surface, and then
the calculation of surface salinity. Figure 5 illustrates the major steps in going from TA to the
brightness temperature at the surface. These are in order (yellow boxes): off-Earth sources (e.g., the
Sun) are subtracted; a correction is made to account for antenna imperfections; a correction is made
for Faraday rotation (which changes the polarization) and for attenuation and emission from the
atmosphere; then, the brightness temperature is corrected for surface roughness (e.g., waves that are
parameterized as a function of wind and normalized radar cross-section); and finally, the SST is used
with a model for the dielectric constant of sea water to retrieve SSS. The path shown in Figure 5 is
used in two ways: to compute salinity from calibrated TA, and in reverse to compute TA from the
known values of salinity. The latter is called “expected TA” in the Aquarius literature, and is used in
the calibration of the radiometer. In particular, the upward version of the algorithm evaluated over
reference scenes is used to predict the value of antenna temperature that is expected at the radiometer
output. This is compared with the actual value as part of calibration. In essence, calibration consists
of matching what is measured and “expected” TA (called TA_expected). This was done once after
the radiometer was first turned on in orbit to adjust the radiometer bias and set the value of the
reference noise diode. In addition, this was done periodically with the radiometer looking at cold sky
to check for stability [29]. It was also done while looking at the ocean and using a salinity reference
model (e.g., the ocean model HYCOM or a set of in situ observations such as from the Argo floats) to
fine-tune gain and offset (see “drift and bias” below).
Status of Aquarius and Salinity Continuity - MDPI
Remote Sens. 2018, 10, 1585                                                                                    9 of 20

4.2. Example Issue: Drift and Wiggles
      After the initial on-orbit calibration to establish the value for the reference noise diode and bias
[15], the radiometer performance was monitored by comparing the global average TA (over the
ocean) with the TA_expected using surface salinity from HYCOM. In Version 4, some regions with
known issues (e.g., RFI and ice/land contamination) were eliminated to form a more reliable
calibration subset. In Version 5, areas with rain were added to this list, and in addition, the reference
salinity was changed to the Scripps optimally interpolated Argo salinity field [30].

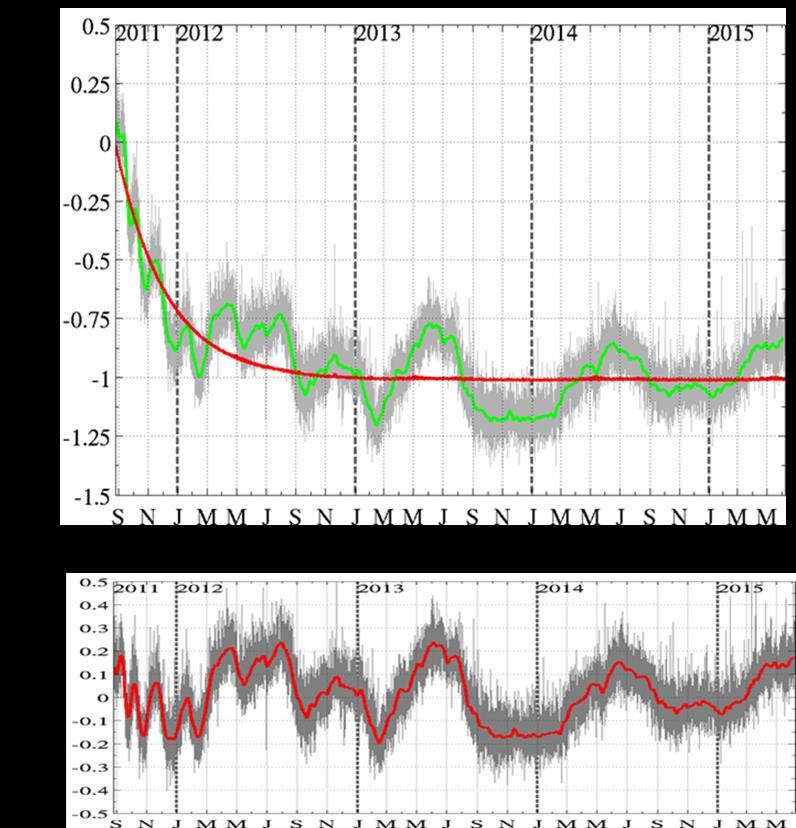

      Figure 6a shows the time history of the difference, TA—TA_expected, as it looked at the end of
the mission [29]. The grey shows the difference per orbit, and the green curve is a seven-day average
(sliding window). Red is an exponential fit to the data. The vertical axis is the difference (Kelvin), and
the abscissa is time (months) since the beginning of data collection (Aquarius was turned on in
August 2011) until the end (June 2015). The total change is small, but this must be considered in the
context of the requirements for measurement of salinity (a sensitivity of about 0.5 K/psu and accuracy
goal of 0.2 psu). There was great concern at the beginning of the mission with the (relatively) rapid
change (i.e., the decrease evident in Figure 6a during the first three months of the mission). However,
the exponential nature of the change soon became clear, and based on the leveling of the change, it
was assumed that some manner of outgassing was the cause. It was decided to model this feature
with an exponential and remove it as part of calibration. The correction was made by adjusting the
temperature of the reference noise diode [31].

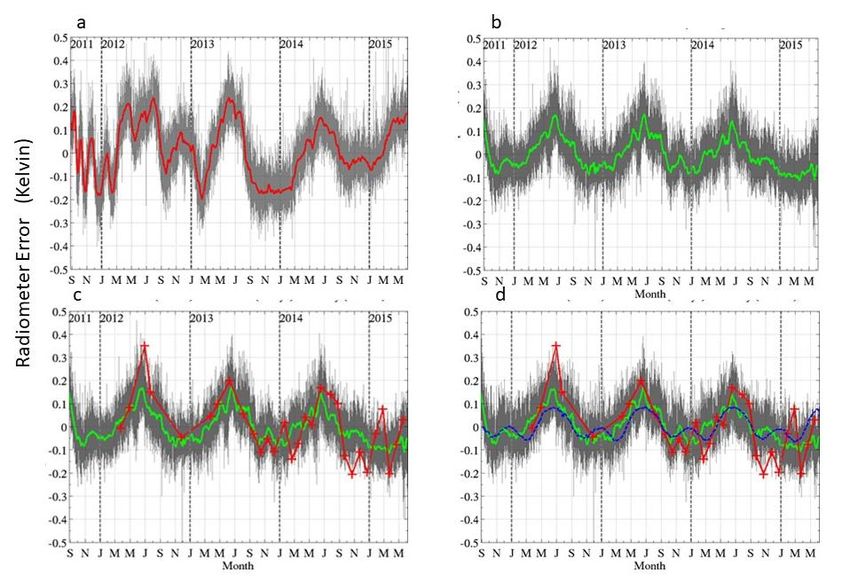

      Figure 6. The difference between observed and expected antenna temperature (TA bias) for beam 2
      and horizontal polarization (a) before and (b) after removing an exponential fit for the temporal drift.
      Grey is the difference per orbit. Green (a) and red (b) are the average of the difference over a seven-
      day period (i.e., global average); red (a) is an exponential fit to the temporal drift (based on figures in
      Dinnat et al [29]).
Status of Aquarius and Salinity Continuity - MDPI
Remote Sens. 2018, 10, 1585                                                                                 10 of 20

      Figure 6b shows the same data after correction for the exponential drift (the scale is the same as
in Figure 6a to make the comparison easier). The irregular “oscillations” around zero were given the
name, “wiggles”, by the Aquarius team for want of a better name. They remained a mystery for some
time. However, around the time that V4 was being prepared, it was discovered that a potential source
for this behavior was an instability in the radiometer backend voltage to the frequency converter [32].
A model for the behavior was developed based entirely on the radiometer hardware, and the model
was used to make a correction for this feature in Version 5 (it was first employed in Version 4).
      Figure 7 shows the corrected difference (beam 1, horizontal polarization). Figure 7a is the same
as Figures 6b and 7b is the residual, TA—TA_expected, after correction for the backend instability.
Again, grey is the difference per orbit, and green is a seven-day average. The instrument-only
correction reduced the “wiggles”, but did not remove them. This correction also dramatically
changed their character. There is a very clear annual cycle in the residual after this correction. The
grey and green curves are data collected in the nominal mode: viewing ocean. The red curve in Figure
7c shows the difference calculated for data collected when looking at cold sky and superimposed on
the data in Figure 7b. The crosses “+” indicate the actual data points. It is evident from Figure 7c that
this behavior is not scene-dependent, and therefore, it is most likely not associated with an error in
the radiative transport model of the ocean used to compute the grey and green curves. The shape of
the curve and, in particular, the small hump between the larger peaks is suggestive of the solar beta
angle (Figures 7 and 8 in Dinnat and Le Vine [33]), which suggests a potential correlation with
instrument temperature. The blue curve in Figure 7d shows the temperature of the reference noise
diode shared by the two polarizations (i.e., correlated noise diode [3]) centered on zero (i.e., mean
value over mission lifetime subtracted). An effort was made to find a connection between
temperature variations and the residual in Figure 7. For example, temperatures were varied in the
radiometer loss model [15], and although changes were observed in TA, it was not possible to
reproduce changes of the order of magnitude that was seen in the data.

      Figure 7. Radiometer residual error, TA—TA_exp, after removing the exponential drift (a) and then
      correcting for the radiometer backend instability (b–d). The data is for the Aquarius outer beam and
      horizontal polarization. Grey is the difference per orbit, and green is a seven-day average. Red in (c,d)
      shows the residual when looking at cold sky superimposed on the data in (b) (with a shift of 0.05 to
      align the curves). Crosses “+” indicate the data points. Blue in (d) shows the temperature of correlated
      noise diode centered on zero.
Remote Sens. 2018, 10, 1585                                                                                11 of 20

     The source of the residual shown in Figure 7 remains unknown. It is corrected empirically in
Version 5. This was done by calculating the difference, TA—TA_expected, and averaging using a
seven-day sliding window (i.e., seven days centered on the current time). This average difference is
treated like a bias and subtracted from TA. This removes the artifact from the retrieval of salinity;
however, the annual signature strongly suggests a physical cause which, if identified, will lead to
better understanding and likely a better salinity product.

4.3. Example Issue: SST Dependence
     During the research leading to release of Aquarius Version 3.0, regional biases were observed in
the error of the salinity retrieval. The bias had a strong zonal behavior, with salty biases noticed in
mid-high latitudes, and fresh bias in the tropics and subtropics (see Section 6 of Addendum III of
[17,34]). The zonal character of those biases suggested a correlation with SST, which was confirmed,
and Version 3 was released with both a nominal version and an option for the removal of an SST-
dependent bias (e.g., see Addendum III in the Aquarius ATBD [16]).
     Figure 8 shows an example of the SST dependence. The vertical axis (ordinate) is the difference
between the retrieved salinity and the value reported by Argo floats, and the abscissa is SST. The grey
are individual differences, and the red curve is the median value. The matchup is with a smoothed
map of Argo values formed by binning the near-surface Argo observations. Notice the fresh bias at
very warm temperatures, which is typical of the tropics and low latitude, and the salty bias, which is
typical at cooler temperatures and higher latitude. The behavior at very cold temperatures is different
and an issue of its own (see below). The data in Figure 8 are from Version 3 of the algorithm. This
choice was made because in versions 4 and 5, empirical adjustments have been made that hide the
extent of the dependence on SST.

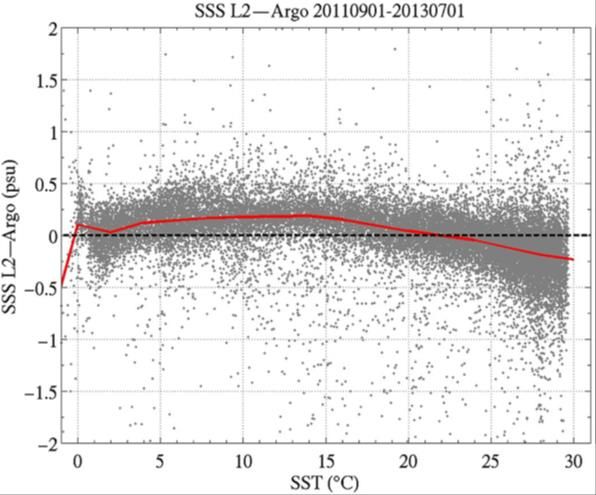

      Figure 8. Salinity error (difference between retrieved SSS and in situ salinity from Argo) as a function
      of sea surface temperature, SST. Grey are the data and red is the median value. (Author’s figure from
      Le Vine et al [4]).

      The reason for the SST dependence of the error is not known, but it is likely associated with the
residual errors in one of the geophysical model functions used in the SSS retrieval algorithm. The
most probable candidates are the model function for the dielectric constant of sea water (which has a
strong dependence on SST) and the model for atmospheric absorption and emission, which has a
latitudinal dependence. A temperature dependence was also included in the empirical model that is
Remote Sens. 2018, 10, 1585                                                                                  12 of 20

employed to correct for the effect of surface roughness on emissivity (e.g., Section 2 of Addendum III
of the Aquarius ATBD [16]), which is somewhat arbitrary and not necessarily physically correct.
      In the research leading to the release of Version 5.0, the model used in previous versions for
attenuation by oxygen was identified as a contributor to this bias. The problem appeared to be with
a modification made to the Liebe model for the effect of oxygen in the calculation of atmospheric
absorption. In Version 5, this modification was abandoned in favor of the original model [18].
      The return to the original Liebe model in Version 5 improved the performance of the algorithm
at high latitude and decreased the SST dependence. The remaining SST bias is removed empirically
in Version 5 by empirically adjusting the temperature dependence in the correction for roughness [1].
In Version 5, an additional temperature dependence is added to the correction of emissivity for
roughness (e.g., Equation (13) in Appendix V of the end of mission ATBD [1]) and adjusted
empirically). As a consequence, Version 5.0 is able to remove the SST-dependent bias to within ±0.1
psu, even in cold water.
      This empirical adjustment of the roughness correction is an effective solution, but it does not
give insight into the physical source of the SST dependence. In particular, it clearly depends on the
model function that is used for the dielectric constant of sea water. This is illustrated in Figure 9,
which shows the dependence of the salinity error on SST when different model functions are used in
the retrieval from Aquarius brightness temperature to SSS. The solid black curve is the Klein–Swift
model function [25], which is used by SMOS. The dashed blue curve is the Meissner–Wentz model
function [26,35], which is used in the retrievals by the Aquarius Project, and the dashed red curve is
the model function reported by Zhou et al. [27], and based on their measurements at 1.413 GHz
[36,37]. The models by Klein and Swift and Meissner and Wentz have been used in the SSS retrievals
by various teams using SMOS, SMAP, and Aquarius brightness temperature. The model by Zhou et
al. is more recent, and has not yet been used in SSS products.

      Figure 9. Salinity error as a function of sea surface temperature, SST, when using three different model
      functions for the dielectric constant of sea water in the retrieval. The three model functions are: Klein–
      Swift [25], Meissner–Wentz [26], and George Washington University [36]. (Author’s figure from Zhou
      et al [36]).

     Figure 9 was obtained by keeping the retrieval algorithm fixed and replacing the dielectric
constant with one of the three model functions. The example in Figure 9 was produced using Version
3 of salinity retrieval, because changes were made in V4 and V5 that empirically corrected for the
SST-dependent bias, and are hard to remove. It is evident that the dependence of error on SST is
different for the three model functions, especially at very low temperatures. It is also clear from Figure
Remote Sens. 2018, 10, 1585                                                                      13 of 20

8 that there is an issue with the retrieval at temperatures near 0 °C (although the data are sparse at
these temperatures), and Figure 9 shows a very different and inconsistent dependence on the model
function that is used in the retrieval at low temperatures. This is an especially important issue because
of the importance of cold water with changing climate (i.e., understanding the effect of melting ice
and the associated in flux of fresh water on ocean circulation) and because cold water is also a region
of decreased sensitivity to changes in salinity (e.g., Figure 2 in Le Vine, Lagerloef and Torrusio [38]).
     As mentioned above, the SST dependence is removed in Aquarius Version 5 by correcting the
model for atmospheric absorption, which reduced the bias, and then empirically removing the
residual bias. The empirical fix is good at removing the SST dependence; however, there are likely
physical causes for this dependence, such as the model function for the dielectric constant of sea
water, which when more fully understood will lead to improved retrievals in the future and lessen
the need for empirical adjustments.

4.4. Example Issue: Whole Range Calibration

4.4.1. Introduction
      The goal of Aquarius is to measure sea surface salinity in the open ocean, and the calibration of
the instrument has been tuned to achieve this goal. There are two calibration scenes that are
sufficiently large and uniform, and sufficiently well-known to be appropriate for this purpose: cold
sky and the ocean itself. Both have been used in the calibration of Aquarius, but after the initial
removal of a bias, the calibration uses only the ocean (e.g., see discussion of drift above). After the
initial post-launch check for bias, the cold sky was used only to look for temporal changes as a check
on stability and adjust the model for the antenna patterns [29].
      In the ideal case, the Aquarius calibration would use two points (e.g., cold sky and ocean) and
be checked at a third (e.g., land). Even better, the calibration would use cold sky and a non-ocean
scene such as land or ice, and then be verified over the ocean. Unfortunately, this is not practical,
because scenes at the warm end (e.g., 250 K which is typical of land and ice at L-band) are generally
not known with sufficient accuracy over a large enough area to be compatible with the Aquarius
footprint (3-dB radius on the order of 100 km [3]). Furthermore, because the brightness temperature
of the open ocean at L-band has a very limited dynamic range, it is possible to have a calibration that
is accurate over the ocean, but not sufficiently accurate at the warm extremes for applications over
land such as the retrieval of soil moisture. This is illustrated in Figure 10, which shows a plot of the
measured Aquarius antenna temperature, TA_meas, against the expected value computed given the
appropriate surface truth (salinity and water temperature for ocean). The data are for the horizontal
polarization and the middle beam, and the dashed line is the Aquarius calibration curve. The insets
show expanded views over the ocean and at cold sky. It is clear that the calibrated operating curve
for the radiometer (dashed line) is well fitted to the ocean data, but that the radiometer is too cold at
the cold end (inset for cold sky, magenta) and is too warm at the warm end (red dots near 250 K). The
data at the warm end at 250 K are from measurements over the United States Department of
Agriculture (USDA) Little River research watershed.
Remote Sens. 2018, 10, 1585                                                                             14 of 20

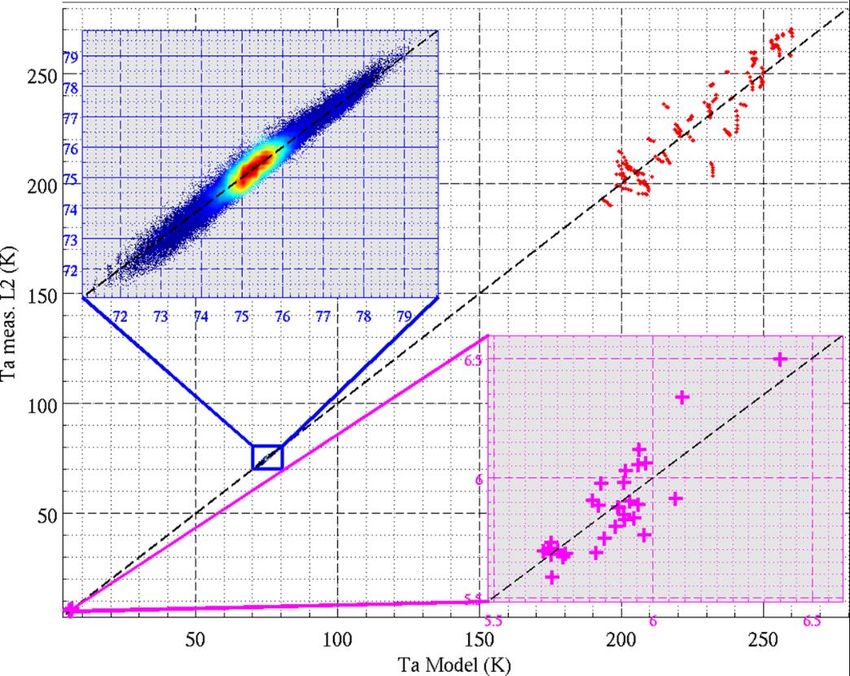

      Figure 10. Aquarius measured antenna temperature, Ta_measured, plotted against the antenna
      temperature predicted with the forward model, Ta_model, for three regimes: cold sky (magenta
      insert), ocean (blue insert), and land (Little River watershed, red dots). The data is for horizontal
      polarization, and the middle beam and the measurements are from V2.0 of the algorithm. (Author’s
      figure from Le Vine et al [4]).

4.4.2. Whole Range Calibration V5.WR
     An initial attempt has been made in Version 5 to provide a better calibration for the full range of
applications by including the cold sky in a two-point (cold sky and ocean) calibration. Essentially,
this amounts to drawing a straight line between these two references, and extending it to warm
brightness temperatures [39]. This calibration is provided as an extension of Version 5, and called
Version 5.WR [40,41].
     The development of Version 5.WR begins with V5, and adds an additional step in which the cold
sky and ocean observations (V5) are used to tune the calibration. The change is a linear transformation
from the original V5 antenna temperatures to the new, V5.WR antenna temperatures: TA_V5.WR = a
TA_V5.0 + b. The large difference in antenna temperature between cold sky (4 K) and ocean (80 K)
helps determine the slope as a function of the target TA in a way that is not possible with only ocean
observations, which have a small dynamic range (e.g., see the insets in Figure 10). The changes have
minimal effect on the data over ocean or the retrieved salinity [40], because the ocean global average
TA is kept unchanged by design.
     The coefficients (a, b) are given in Table I. They were derived from a linear regression between
two points as follows:
•     At the cold end, using the difference between the mean of the TA measured by Aquarius for the
      30 cold sky calibrations and the mean of the corresponding TA_expected for the cold sky look
      computed from radiative transport theory;
•     Over the ocean, using the mean of the TA measured by Aquarius globally for the year 2012
      (filtered for RFI, and with a water fraction of ≥99.9% ) and the mean of the corresponding
      TA_expected.
Remote Sens. 2018, 10, 1585                                                                             15 of 20

                                     Table I. Values for the coefficients (a, b).

                                        V-Pol                                       H-Pol
                               a                      b                       a                  b
         Beam 1         1.003350568406014   −3.592857280825468       1.007405352181248   −6.595668007611077
         Beam 2         1.008337848581688   −9.655610862597533       1.003498234086013   −2.948722716952730
         Beam 3         1.017695610594212   −2.233911609523380       1.001311195384693   −1.075651639210478

      A full evaluation of the whole range calibration, V5.WR, is not complete, largely because of the
lack of reference sites of sufficient size, but a check has been made over the USDA Little Washita and
Little River watersheds, which are instrumented for monitoring soil moisture, as shown in Figure 11.
Due to the large footprint and fixed orbit of Aquarius, it was not possible to use the same scene for
all of the beams. The improvement compared to earlier versions of the algorithm without the whole
range calibration is evident by comparing it with the example in Figure 10. The improvement at the
cold end is significant. The change over land when compared with V5 is an improvement by as much
as 2.2 K (H-pol and outer beam), and generally on the order of 1 K. These changes are small compared
to the uncertainty in the model due to uncertainties in the surface truth (soil moisture) and effect of
vegetation, and the small size of the scene compared to the footprint of the radiometer. Further
validation of the results at the warm end is needed. Due to this, and to avoid confusion with V5, the
version V5.WR has not been listed in the public database; however, it is available to the public upon
request from the PO.DAAC.

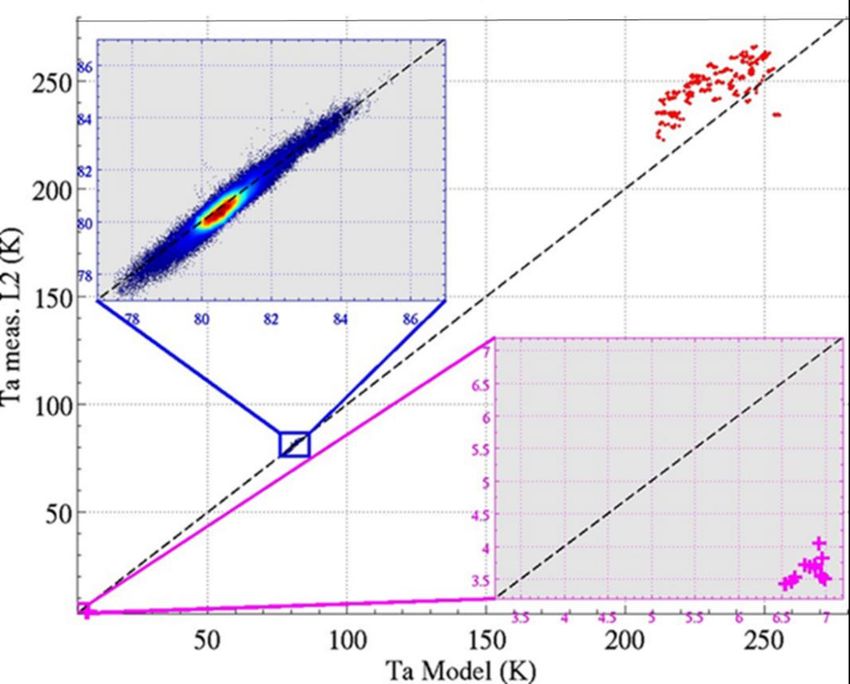

      Figure 11. Aquarius measured antenna temperature, Ta_measured, plotted against the antenna
      temperature predicted with the forward model, Ta_model, for three regimes: cold sky (magenta
      insert), ocean (blue insert), and Little Washita watershed (red dots). The data are for the outer
      Aquarius beam and horizontal polarizations, and Version 5.WR, the final release of the algorithm
      with the full range calibration. Insets are close-ups of ocean and Sky data.

5. Conclusions: Future of SSS Remote Sensing
     Although the Aquarius mission has ended, research on the remote sensing of sea surface salinity
from space by NASA continues by shifting the effort of retrieving SSS to SMAP. This work actually
started several years ago within the Aquarius project. Soon after SMAP was launched, a subset of the
Aquarius science team submitted a proposal to NASA to look at the feasibility of adapting the
Remote Sens. 2018, 10, 1585                                                                         16 of 20

Aquarius salinity retrieval algorithm to retrieve salinity using the SMAP radiometer observations
over ocean. Retrieving salinity from SMAP presented several obvious challenges. (1) The SMAP radar
failed soon after launch, which means that a model function and external source for wind speed are
needed for the roughness correction. (2) The loss and temperature dependence of the SMAP antenna
system are not well-known (compared to Aquarius), which requires addition empirical adjustments
that are not necessary with Aquarius. The objective of this work was to transfer the algorithm and
understanding gained with Aquarius to SMAP data to see if a scientifically meaningful SSS product
could be obtained.
      The work with SMAP data began during the Aquarius project, and initial results have been

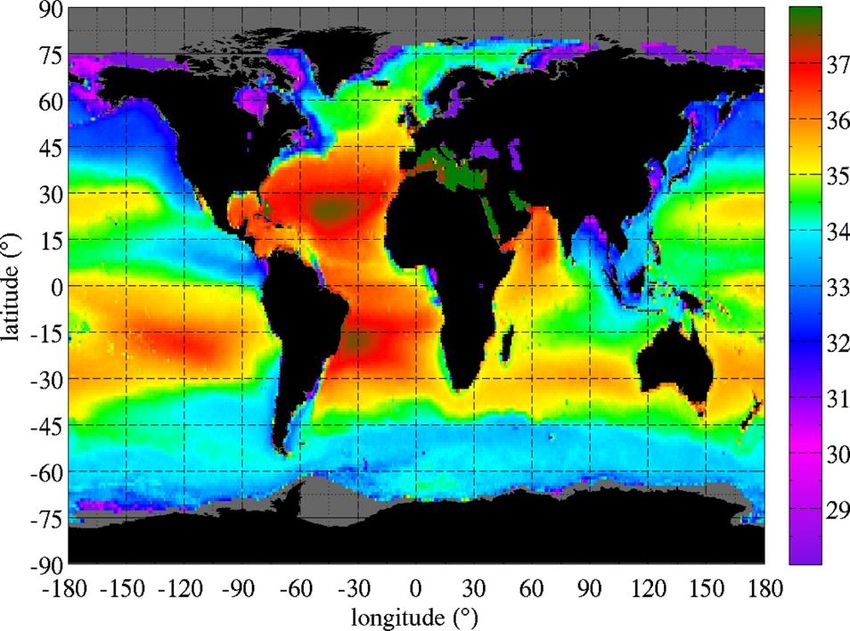

reported [42–44]. Figure 12 is an example. Figure 12a shows the mean salinity field from SMAP data
reported by remote sensing systems [44] from algorithm Version 2 (based on Version 3 of SMAP
Level 1B brightness temperatures) for the two years 2015–2016. The dominant features of the global
surface salinity field are clear (the Atlantic Ocean is saltier than the Pacific; dipole-like structure with
salty mid-latitudes separated by the fresher tropical convergence zone; salty Arabian Sea; fresher
Indian Ocean). However, there is clearly work to be done to improve the overall performance of the

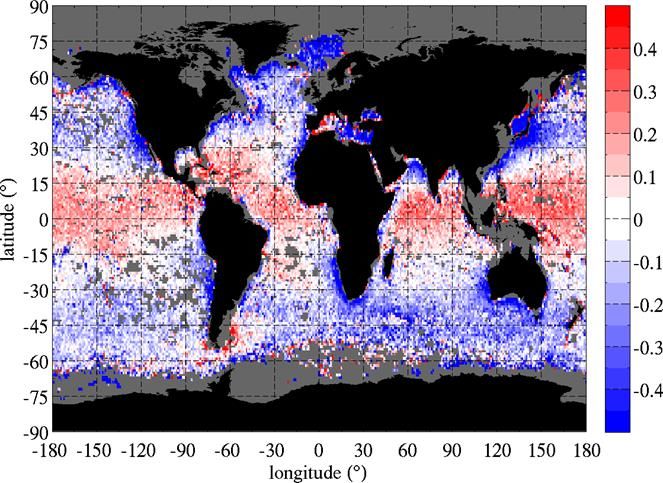

retrieval. This is illustrated in Figure 12b, which shows the salinity error map (the difference between
the retrieved SSS and in situ measurements from Argo). A notable feature is the strong zonal
dependence with salty bias (positive) in the low latitudes and fresh bias (negative) at mid and high
latitudes. Plotting the error as a function of temperature demonstrates an SST dependence that is just
the opposite of that present in Aquarius V5. (The SMAP V2 salinity retrieval uses the same model
function as Aquarius V4, which suggests that this difference is due to something that is specifically
associated with SMAP such as the external wind speed that goes into the roughness correction, or the
loss model for the reflector model, or both.)

                                                    (a)
Remote Sens. 2018, 10, 1585                                                                              17 of 20

                                                       (b)

      Figure 12. Salinity from the Soil Moisture Active Passive (SMAP) satellite: (a) global maps of SSS,
      remote sensing systems, Version 2, two-year average, 2015–2016; (b) salinity error, difference between
      retrieved SSS and in situ from Argo.

      Now that the Aquarius Mission has ended, plans are in place to build upon this structure to form
a NASA salinity continuity project using SMAP data. A new ocean salinity science team is being
formed to work on this data. It will include research at the Jet Propulsion Laboratory and Goddard
Space Flight Center, and a nominal algorithm with processing the responsibility of remote sensing
systems (which was responsible for the Aquarius algorithm). Data will be available at the PO.DAAC,
and there will also be an independent website (https://salinity.oceanscience.org) with information for
the public and links to other data products, similar to what was available for Aquarius.
      An important part of the work on Aquarius was the assessment of the data product. This meant
matching in situ measurements with the retrievals from space, and taking into account the error of
the pointwise in situ measurements to represent the salinity values on Aquarius’ measurement scales.
It is planned to continue this work and cooperate with the effort that is currently underway at the
European Space Agency (ESA) to develop a matchup database to support salinity retrievals of SMOS
[45]. Hopefully, a common database for this purpose can be developed that helps in the evaluation
and eventual merging of the two sources of salinity observations.
      Finally, work is underway to prepare for the future. Aquarius is gone, and SMOS is aging. SMAP
is already nearly four years old. At least two missions with L-band radiometers are under
development in China [46–48], and one of them, the Water Cycle Observation Mission (WCOM), is
scheduled for launch in the near future [47]. Studies are also underway within NASA, at the Jet
Propulsion Laboratory (JPL) and the Goddard Space Flight Center (GSFC), to define the NASA L-
band mission of the future. Designs for broadband sensors including lower frequencies such as P-
band and with and without radar have been reported [49,50]. However, this is preliminary design,
and the optimum choice is far from clear [32]. Nor is it clear that a do-it-all mission that can meet the
future needs of both the soil moisture community (high spatial resolution and short revisit time) and
ocean salinity community (higher sensitivity to address cold water and better spatial resolution to
address coastal regions) can be met with one instrument.
Remote Sens. 2018, 10, 1585                                                                                 18 of 20

Author Contributions: This work reported here was conducted as part of the Aquarius Project. All authors were
members of the Project and/or the associated Science Team and are listed because they contributed substantial
to aspects of the manuscript (as indicated by the references cited). The lead author was responsible for most of
the writing. Editing was a team effort.

Funding: Some of this research was funded by the National Aeronautics and Space Administration grant
number NNX14AR31G.

Acknowledgments: Aquarius was a team effort. The authors wish to acknowledge the contributions of the entire
Aquarius team whose dedication made Aquarius a success and this report possible.

Conflicts of Interest: The authors declare no conflict of interest.

References
1.    Meissner, T.; Wentz, F.; Le Vine, D.M. Aquarius Salinity Retrieval Algorithm: End of Mission Algorithm
      Theoretical Basis Document (ATBD). RSS Tech. Rep. 2017, 120117.
2.    Meissner, T.; Wentz, F.J.; Le Vine, D.M. The Salinity Retrieval Algorithm for the NASA Aquarius Version
      5 and SMAP Version 3 Releases. Remote Sens. 2018, 10, 1121.
3.    Le Vine, D.M.; Lagerloef, G.S.E.; Colomb, F.R.; Yueh, S.H.; Pellerano, F.A. Aquarius: An instrument to
      monitor sea surface salinity from space. IEEE Trans. Geosci. Remote Sens. 2007, 45, 2040–2050.
4.    Le Vine, D.M.; Dinnat, E.P.; Meissner, T.; Yueh, S.H.; Wentz, F.J.; Torrusio, S.E.; Lagerloef, G. Status of
      Aquarius/SAC-D and Aquarius Salinity Retrievals. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens. 2015, 8,
      5401–5415.
5.    Yueh, S.H.; West, R.; Wilson, W.J.; Li, F.K.; Njoku, E.G.; Rahmat-Samii, Y. Error sources and feasibility for
      microwave remote sensing of ocean surface salinity. IEEE Trans. Geosci. Remote Sens. 2001, 39, 1049–1060.
6.    Yueh, S.H. Estimates of Faraday rotation with passive microwave polarimetry for microwave remote
      sensing of Earth surfaces. IEEE Trans. Geosci. Remote Sens. 2000, 38, 2434–2438.
7.    Le Vine, D.M.; Abraham, S.; Utku, C.; Dinnat, E.P. Aquarius third stokes parameter measurements: Initial
      results. IEEE Geosci. Remote Sens. Lett. 2013, 10, 520–524.
8.    Le Vine, D.M.; Abraham, S. The effect of the ionosphere on remote sensing of sea surface salinity from
      space: Absorption and emission at L band. IEEE Trans. Geosci. Remote Sens. 2002, 40, 771–782.
9.    Le Vine, D.M.; Lagerloef, G.S.E.; Ruf, C.; Wentz, F.; Yueh, S.; Piepmeier, J.; Lindstrom, E.; Dinnat, E.
      Aquarius: The instrument and initial results. In Proceedings of the 12th Specialist Meeting on Microwave
      Radiometry and Remote Sensing of the Environment (MicroRad), Rome, Italy, 5–9 March 2012.
10.   Wilson, W.J.; Tanner, A.; Pellerano, F.; Horgan, K. Ultrastable radiometers for future sea surface salinity
      missions. JPL Rep. 2005, D-31794.
11.   Pellerano, F.A.; Piepmeier, J.; Triesky, M.; Horgan, K.; Forgione, J.; Caldwell, J.; Wilson, W.J.; Yueh, S.;
      Spencer, M.; McWatters, D.; et al. The {A}quarius Ocean Salinity Mission High Stability {L-band}
      Radiometer. In Proceedings of the IEEE International Conference on Geoscience and Remote Sensing
      Symposium, Denver, CO, USA, 31 July–4 August 2006; pp. 1681–1684.
12.   Le Vine, D.M. ESTAR experience with RFI at L-band and implications for future passive microwave remote
      sensing from space. In Proceedings of the IEEE International Geoscience and Remote Sensing Symposium,
      Toronto, ON, Canada, 24–28 June 2002; pp. 847–849.
13.   Skou, N.; Misra, S.; Balling, J.E.; Kristensen, S.S.; Sobjaerg, S.S. L-band RFI as experienced during airborne
      campaigns in preparation for SMOS. IEEE Trans. Geosci. Remote Sens. 2010, 48, 1398–1407.
Remote Sens. 2018, 10, 1585                                                                                  19 of 20

14.   Piepmeier, J.R.; Pellerano, F.A.; Freedman, A. Aquarius L-Band Microwave Radiometer: 3 Years of
      Radiometric Performance and Systematic Effects. IEEE J. Sel. Topics Appl. Earth Obs. Remote Sens. 2006, 8,
      5416–5423.
15.   de Matthaeis, P.; Peng, J.; Piepmeier, J.; Le Vine, D. Overview of Aquarius Radiometer Post-Launch
      Measturement Counts to Antenna Temperature Processing for Product Version 5. AQ-014-PS-0029, 2018.
16.   Aquarius Project, “ATBD History. Available online: https://podaac.jpl.nasa.gov/aquarius, December 31, 2017
      (accessed on 1 October 2018).
17.   Meissner, T.; Wentz, F.J.; Scott, J.; Vazquez-Cuervo, J. Sensitivity of Ocean Surface Salinity Measurements
      From Spaceborne L-Band Radiometers to Ancillary Sea Surface Temperature. IEEE Trans. Geosci. Remote
      Sens. 2016, 54, 7105–7111.
18.   Liebe, H.J.; Rosenkranz, P.W.; Hufford, G.A. Atmospheric {60-GHz} oxygen spectrum: New laboratory
      measurements and line parameters. J. Quant. Spectrosc. Radiat. Transf. 1992, 48, 629–643.
19.   Meissner, T.; Wentz, F.J.; Ricciardulli, L. The emission and scattering of L-band microwave radiation from
      rough ocean surfaces and wind speed measurements from the Aquarius sensor. J. Geophys. Res. C Ocean.
      2014, 119, 6499–6522.
20.   Boutin, J.; Chao, Y.; Asher, W.E.; Delcroix, T.; Drucker, R.; Drushka, K.; Kolodziejczyk, N.; Lee, T.; Reul, N.;
      Reverdin, G.; et al. Satellite and In Situ Salinity: Understanding Near-Surface Stratification and
      Subfootprint Variability. Bull. Amer. Meteor. Soc. 2016, 97, 1391–1407, doi:10.1175/BAMS-D-15-00032.1.
21.   Roemmich, D.; Johnson, G.; Riser, S.; Davis, R.; Gilson, J.; Owens, W.B.; Garzoli, S.; Schmid, C.; Ignaszewski,
      M. The Argo Program: Observing the Global Oceans with Profiling Floats. Oceanography 2009, 22, 34–43.
22.   Kao, H.-Y.; Lagerloef, G.; Lee, T.; Melnichenko, O.; Hacker, P. Aquarius Salinity Validation Analysis. AQ-
      014-PS-0016, 28 February 2018.
23.   Chassignet, E.P.; Hurlburt, H.E.; Smedstad, O.M.; Halliwell, G.R.; Hogan, P.J.; Wallcraft, A.J.; Baraille, R.;
      Bleck, R. The HYCOM (HYbrid Coordinate Ocean Model) data assimilative system. J. Mar. Syst. 2007, 65,
      60–83.
24.   Lee, T. Consistency of Aquarius sea surface salinity with Argo products on various spatial and temporal
      scales. Geophys. Res. Lett. 2016, 43, 3857–3864.
25.   Klein, L.A.; Swift, C.T. An improved model for the dielectric constant of sea water at microwave
      frequencies. IEEE J. Ocean. Eng. 1977, AP-25, 104–111.
26.   Meissner, T.; Wentz, F.J. The Emissivity of the Ocean Surface Between 6 and 90 GHz Over a Large Range
      of Wind Speeds and Earth Incidence Angles. IEEE Trans. Geosci. Remote Sens. 2012, 50, 3004–3026.
27.   Zhou, Y.; Lang, R.H.; Dinnat, E.P.; Le Vine, D.M. L-Band Model Function of the Dielectric Constant of
      Seawater. IEEE Trans. Geosci. Remote Sens. 2017, 55, 6964–6974.
28.   Wilson, W.J.; Yueh, S.H.; Dinardo, S.J.; Li, F.K. High-Stability L-Band Radiometer Measurements of
      Saltwater. IEEE Trans. Geosci. Remote Sens. 2004, 42, 1829–1835.
29.   Dinnat, E.P.; Le Vine, D.M.; Piepmeier, J.R.; Brown, S.T.; Hong, L. Aquarius L-band Radiometers
      Calibration Using Cold Sky Observations. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens. 2015, 8, 5433–5449.
30.   Scripps Institution of Oceanography, A. Global gridded NetCDF Argo only dataset produced by optimal
      interpolation.           Available           online:          http://apdrc.soest.ucsd.edu/Gridded_fields.html
      (accessed on 1 October 2018).
31.   Piepmeier, J.R.; Hong, L.; Pellerano, F.A. Aquarius L-Band Microwave Radiometer: 3 Years of Radiometric
      Performance and Systematic Effects. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens. 2015, 8, 5416–5423.
32.   Misra, S. Enabling the Next Generation of Salinity, Sea Surface Temperature and Wind Meaurements from
      Space: Instrument Challenges. In Proceedings of the Global Ocean Salinity and Water Cycle Workshop,
      Woods Hole, MA, USA, 22–26 May 2017.
33.   Dinnat, E.P.; Le Vine, D.M. Impact of sun glint on salinity remote sensing: An example with the aquarius
      radiometer. IEEE Trans. Geosci. Remote Sens. 2008, 46, 3137–3150.
34.   Dinnat, E.P.; Boutin, J.; Yin, X.; Le Vine, D.; Waldteufel, P.; Vergely, J.-L. Comparison of SMOS and
      Aquarius sea surface salinity and analysis of possible causes for the differences. In Proceedings of the 2014
      XXXIth URSI General Assembly and Scientific Symposium (URSI GASS), Beijing, China, 16–23 August
      2014.
35.   Meissner, T.; Wentz, F.J. The complex dielectric constant of pure and sea water from microwave satellite
      observations. IEEE Trans. Geosci. Remote Sens. 2004, 42, 1836–1849.
36.   Lang, R., Zhou, Y.; Dinnat, E.; Le Vine, D. The Dielectric Constant Model Function and Implications for
You can also read
