STATURE TOWER (OFFICE)
A JOINT VENTURE OF
Architectural
Stature Residences
Stature Tower Masterpiece
(Office Building)
Distinguishing itself on the
Ascott Menteng Jakarta city skyline, The
Stature Jakarta is an
(Serviced Apartment)
integrated development
offering luxurious
apartment, office, and
serviced apartment within

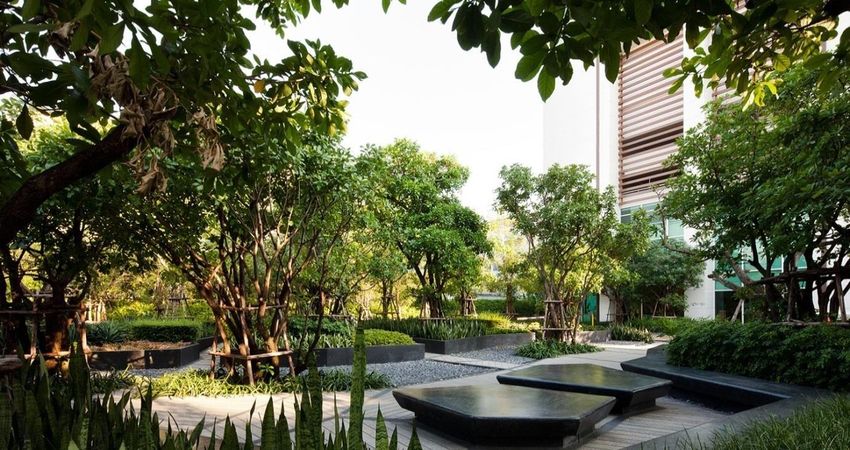

beautifully landscaped
surroundings and
exceptional facilities
offering the very best in
lifestyle and
entertainment
Strategic & desirable
PRIME LOCATION
Both strategic and convenient for business and pleasure, this
landmark location in the heart of Jakarta’s commercial and
lifestyle district makes for the perfect home for the modern 1
Jakarta urbanite. The Stature’s Central location provides easy
access to many of the city’s key landmarks, attractions and 1
amenities. 1
3
2
LEGEND 2 1 1
4
OFFICE BUILDING SCHOOL / COLLEGE 2
4 2
1. Bank Indonesia 1. Kolese Kanisius 3 2
5
2. United Nation 2. Montessori 3
3. MNC FinancialCenter 3
3. Santa Theresia
4. Menara Cakrawala 4 5
4. London School of Public
5. The Plaza Relations 6
6. Menara BCA 6 7
EMBASSY OFFICE HOSPITAL 5 3
1. United States of America 1. RSPAD Gatot Subroto
2. Spain 2. RSIA Bunda Jakarta
3. France 3. RS Abdi Waluyo 4
4. Japan
5. Germany
HOTEL MRT STATION
1. Park Hyatt (2018) Phase 1: Bundaran HI – Lebak Bulus
2. Sari Pan Pacific (2019)
3. Keraton @ The Plaza Phase 2: Bundaran HI – Kampung
4. Grand Hyatt Bandan
5. Pullman Jakarta (Start construction Q4 2018)
6. Hotel Indonesia Kempinski
7. Mandarin Oriental
SITEPLAN
Land area: ±1 hectare
Prestigious location at Kebon Sirih, Menteng

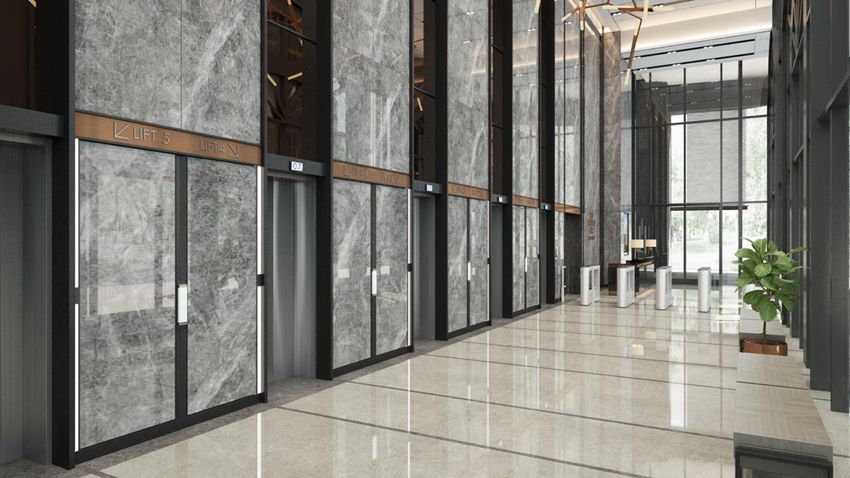

Ground Floor Lift Lobby
Lobby Area at 1st level comes with 8-meter ceiling height
Lobby Area at 1st level comes with 8-meter ceiling height

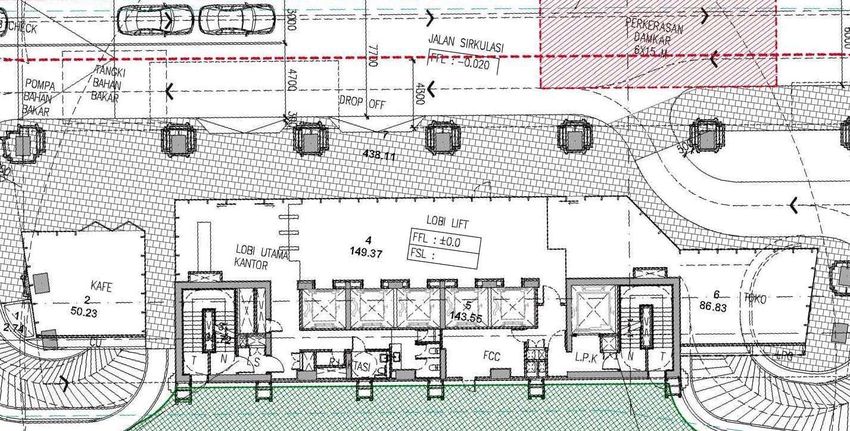

GROUND FLOOR PLAN
TYPICAL FLOOR PLAN
Strata by Floor
L2-L19 Storey
for Level 2-19 only as L20 is an atypical floor.
Average NFA per Floor: 730 sqm
Average SGA per Floor: 840 sqm
Average NFA-to-SGA Ratio: 17%
Note: the demarcation of the NFA-SGA depends on how management intends to sell the office, whether by enbloc, by floor or
by units. Each of these strategy would affect the NFA-SGA calculation.ELEVATION
SPECIFICATIONS (cont’d)
Total GFA / Total SGA GFA: ±18,000 sqm | SGA: ±15.000 sqm
No. of Floors 20 floors (excluding Service Mezzanine & 21st Roof Storey)
Core location Side Core
Core to Window depth 9.6m/ 9.3m/ 11.4m
Typical Floor to Floor Height (2nd to 19th Storey) : 3950mm
Floor to Floor
1st Storey, Mezzanine & 20th Floor Height: 5000mm
Finished Floor to False Ceiling 2950mm
Dead load 2 kN/m2
Live load 3.25 kN/ m2
Floor Loading • People (Live load) : 2.5 kN/ m2
• Partition : 0.75 kN/ m2
Green Tinted Reflective 6mm + 1.52mm PVB + 6mm clear glass
Façade glass system
SC value – 0.46, U Value – 4.90. OTTV: 34 Watt/m2
175 Carpark Lots
No. of parking lots 45 Motorcycle Lots
Not less than 38 Bicycle Lots
Male and Female
Toilets per floor
1 Executive
Pantry Centralized Pantry
Building automation system Centrally monitored building automation systemSPECIFICATIONS
No. of lifts 3 passenger single zone lifts serving 1st storey to 20th storey
1 passenger single zone lifts serving B3 to 20th storey
1 passenger single zone lifts serving B3 to 21th storey
1 fireman’s lift and service lift serving B3 to 21st storey
1 shuttle passenger lift from B3 to 1st storey
Lift Specifications Passenger Lifts
• Avg waiting Time 21.7sec/ 5 mins Handling Capacity 10%
• 1275 Kg Capacity
• 3.5m/s ( Up peak analysis with all 5 passenger lifts serving 1st to 20th storey)
Air-conditioning System Individual VRV AC System to Strata Units
Electrical System 65 Watts/m2 for lighting and general power for Typical Office
Electrical Generator 100% Generator Back-up.
2 nos. x 1250 kVA Generators with not less than 16hr fuel capacity back-up
Computer System Earthing Clean Earth Provided on every floor
Telecommunication 30 pairs per office floor
Security/ Maintenance System Integrated Security Management, Bomb Check, Turnstile System, CCTV & Card-
Access System
Fire Protection System Automatic Fire Sprinkler System, Hydrant & Hose Rack System, Portable Fire
Extinguishers & Fire Alarm System
Sound/ Paging System Public Address System to all Tenanted and Common areasWimberly interiors is the world’s preeminent design consultant for
hospitality, leisure, and entertainment industries. The firm has achieved
this honoured status by adhering to its mission of designing destinations
that lift the spirit. A recent survey taken by readers of Travel + Leisure
and Conde Nast Traveler magazines revealed a common thread
among the world’s best hotel, resorts, and spas: 45 of them were
designed and/or renovated by Wimberly Interiors, more than any other
design firm in the world.
PDW (PT Pandega Desain Weharima/Planning & Development
Workshop) is a design firm which specializes in architecture, master
planning and urban design. Founded by Mohammad Danisworo and a
core team of architects and planners in 2003, PDW is now a 120-staff
strong office that has been a top-ten Indonesian architectural firm for six
years running according to BCI Asia. With emphasis in creating value
through good design, PDW has extensive architectural and masterplan
projects not just in Jakarta and Indonesia, but also internationally in
Dubai, Oman, Vietnam, and Cambodia. PDW also maintains an
extensive network with firms and cosultants in Indonesia and other
countries, including the US, Denmark, Singapore and Australia.SHMA is Thai landscape architectural firm working globally to create a
better environment and promote sustainability through design for a wide
range of international clients. SHMA’s works seek simplicity in design
strategies and approaches that carefully respond to the complexity and
diversity of natural and human ecology comprising climate, topography,
history, culture, and social phenomenon. Recent awards include
international property awards, World Architecture Festival Awards (WAF),
The IFAAPR Award of Excellence and Thai Association of Landscape
Architects (TALA).
T.Y.Lin International (TYLI) is a global, multi-disciplinary infrastructure
services firm. Headquartered in San Francisco, TYLI established its business
in the design of long-span bridges and specialty structures and has since
developed its expertise into a wide spectrum of structural, mechanical,
and electrical engineering. Singapore’s Marina Bay Sands Integrated
Resort and The Interlace condominium are just two of the iconic, award-
winning projects that constitute TYLI’s portfolio.AWARDS & CERTIFICATIONS
CERTIFICATION
Green Building Design
Gold Design RecognitionAfter the completion of
basement level
We are continuing with
GROUND FLOOR
CONSTRUCTION
Main Contractor:
Joint OperationCopy to CW
ESTIMATE HAND OVER
Q3 2021Visit our website & follow us
www.ruangkantorku.com
@erawidiarealty erawidia
081332780827 - 0818799887Copy to CW
