Sense System 48 V
product
price index 2022
list 2022
Buschfeld track systems
The ultimative Buschfeld system – track concept comprises
functionality and optimum lighting.
We have been producing the original track – LightLight –
since 1989.
We focus on preserving, improving and refining what is good.
Our classic lighting system has been further developed and its
functional qualities redefined. As a result of the requirement to
provide digitally controllable lighting, we developed a 48 volt
system in 2017. Its name: Sense System. It offers all the benefits of
digital lighting control via wireless technology.
The design and form of the Buschfeld track remains unchanged
– the inner components have been redeveloped to align with
what the new standard can now offer with a power supply
voltage of 48 V.
The design and size of the components have been reduced to
the maximum, and their functionality optimized. Given that we
use the best LED technologies available on the market, plus
optical Snap filters, we can be sure we are operating at the
highest level with regard to lighting solutions – all in combination
with smart functions that can be combined independent of
which manufacturers we cooperate with.
Sense System – timeless, understated aesthetic quality and
future-oriented technology that harmonizes elegantly with
different styles of architecture.
2 3
note on the price list Sense System
All prices are recommended sales prices + VAT. basic information p. 6
Dimensions are quoted in millimetres, unless otherwise stated. Casambi p. 8
Xicato p. 10
how to order p. 12
System Sets system sets p. 14
They offer combinations of track and luminaires in the form of
highly functional sets (pp. 14 - 19). Here you will find a description wall48 - wall track p. 20
of potential applications, which will enable you to prepare for a pend48 - pendant track p. 26
chat with us to gain a price quote quickly and easily. You are free
ceiling48 - ceiling track p. 36
to adapt the list of articles to suit your individual needs, and add
or exchange track and components as required. Feel free to in48 - recessed track p. 44
contact us, should you require support for your lighting project. freestyler p. 51
Sense System luminaires p. 61
luminaire ninety-five p.64
luminaire fifty p.74
luminaire thirty-five p.88
professional product: linear ligthing p. 98
This price list contains further products which are not part of free-standing luminaire 48 V p. 102
our standard programme. Please note that delivery times and
shipping costs may vary.
Creative Collection p. 105
power supply units p. 111
individual p. 121
rondo48 - ring-shaped luminaire p. 124
freeform48 - custom shapes p. 125
colour - custom colours p. 126
project document p. 128
AGB p. 130
4 5Sense System
Basic Information
Sense System is the most slimline 48 V program the luminaires individually,
single-phase track system of its quality it is possible to realise highly flexible, Applying groups of luminaires
and class. The well-designed track custom-designed lighting solutions to Being able to apply connected lumi-
system offers a number of advantages: suit the space and its use. naires in groups and assigning them
the layout of the track does not depend to perform specific lighting tasks is the
on the power outlets available in the simplest way of defining what smart
space. A wide variety of luminaires can luminaires can offer. The user decides
be applied and positioned practically which luminaire belongs in which group
anywhere along the track. Given the - irrespective of the location on the
option of being able to switch, dim or track, in the building or within the net-
Luminaires work. For example: luminaires applied
Programmable light: the timeless, pure in a dining room or in the kitchen are
aesthetics of digital. Three new lumi- allocated to a designated group. It is
naires have been developed for Sense also possible to connect a luminaire in
System - Thirty-Five, Fifty and Ninety- the dining area with one in the lounge
Five. All three are network-enabled and one in the kitchen to create a spe-
directional spotlights, equipped with cific atmosphere. Simply by touching
innovative electronics, and encased the app on a smartphone or control
Lighting control
in an extremely compact housing. For panel, you can make the luminaires
the first time, the design and type of switch on, off or dim down. Luminaires
luminaires, plus the lighting control can be part of many different groups
chip and the light engine with the dif- of luminaires and be addressed to
ferent lighting features, are fixed firmly perform a range of tasks.
Light engine together to form one complete unit.
Lighting control
Sense System works with lighting
control protocols from Casambi and
Xicato. A Casambi or Xicato com-
patible chip is integrated into every
Sense System luminaire. The resulting
network architecture enables every
luminaire to be controlled individually
and/or in groups. It is also possible to
switch the light on and off via a
conventional light switch.
Light engines
Light engines are the LED equivalent
of a conventional lamp. They comprise
LED chips that are programmed to en-
sure the luminaire delivers the required
colour temperature and beam angle.
The Ninety-Five and Fifty ranges of lu-
minaires designed for application with
Sense System can be equipped with
the Snap system, which allows filters to
be attached easily to change the beam
angle or shift the colour temperature.
Luminaire
Buschfeld track 48 V
International wireless standard
Sense System does not require the Lighting scenarios
luminaires to be connected in a costly Track-mounted luminaires interconnec-
fashion to the building control sys- ted to form a network can be switched
tem via BUS systems. Sense System and dimmed to create a variety of
operates on state-of-the-art, extremely lighting scenarios.. Atmospheres can
user-friendly wireless technology: every be adapted and sensitively aligned to
single luminaire and sensor in the net- Controlling the luminaires suit situational requirements, and then
work operates via a wireless standard. The luminaires can be controlled using saved for future application. Also a
As long as the so-called participants in a variety of devices that we use on a timer function is possible. At the same
the network are within a reasonable dis- daily basis: smartphones, smartwat- time, individual luminaires can be ex-
tance from one another, they are able to ches, tablets or, of course, switches, cluded from a given scenario and can
communicate. push buttons or Xpress. be switched and dimmed on their own.
6 7private set-up
1
1 Function https://buschfeld.de/en/how-it-works/48103
- control of groups of luminaires
- control of lighting scenarios
- integration of sensors into a system
2 - programming of timelines
2 Control
- wireless standard switch
- Casambi Xpress switch/remote control
- other interfaces can be integrated e.g. DALI
- smartphone
- tablet
- smartwatch
The system can be configured using an Apple or Android app
3 Additional benefits
3 - can be used intuitively, no technical know-how required
- uses Casambi Cloud for synchronisation of network data
Fields of application
- private homes
- small-scale projects
luminaire - commercial and large-scale projects (In order to realize unlimited luminaires in one project, several networks can be created
that can be controlled simultaneously. Thanks to a Casambi gateway functionality, the networks can be accessed via remote.)
- DALI controls can also interact with the Sense system via a gateway and be expanded with a wireless solution
Buschfeld track 48 V
Quick reference guide re. Casambi app https://buschfeld.de/en/how-it-works/48112
buschfeld x Casambi
Our quick reference guide provides information to support you when realising your first installation using
this system, or when updating Buschfeld luminaires already installed with Casambi lighting control.
8 9professional set-up
1
Luminaire
Buschfeld track 48 V
5
2
1 Functions
- control of groups of luminaires
- control of lighting scenarios
- dynamic lighting
- sensor technology
- programming of timelines
- determines the conditions for sensors, actuators (recording, forwarding of data)
2 Control
3
- wireless standard switch
- conventional switch with wireless module
- sensors
- apps on mobile devices
- PC-based
Integration External technology 3 Integration
- interfaces to conventional control technologies, if required
- gateway for IP integration and interface to building management systems (BMS)
- interconnection of building zones via Ethernet
2 - interoperable with non-proprietary systems via open API https://buschfeld.de/en/how-it-works/48104
4 Efficiency
- open wireless standard
- 32,000 wireless participants per network
Internal technology - more than 16,000 groups
- over 65,000 scenarios
- can be extended via a gateway, if required
4
5 Additional benefits
- records all operating data for every participant
- data can be used for value-added services
- stand-alone system without master module or cloud server
https://buschfeld.de/en/how-it-works/48104 - beacon technology for realising app-based applications
10 11Sense System 1a system
Is the track system to be surface or
recess-mounted on the wall or ceiling?
how to order
Or is the system to be
pendant-mounted? First decide which
of the four track systems would best
serve your purpose: Wall48, Pend48,
Ceiling48, In48, Tri48 or a Mono48
1a 1b 2 3 individual luminaire.
wall48 pend48 ceiling48 in48 mono48
pend48 mono48 ceiling48
1b freestyler structures
Freestyler enables the creation of lumi-
nous structures in the form of a sphere,
a star, a rectangle or a cylinder.
page 51 ff.
sphere 1500 starry sky
2 colour
The finishes/colours available are
marked in the product list as shown.
Custom colours available on request
alumatt white black page 126 ff.
5 4 3 track layout
Make a rough sketch of how the track
system is to run through the space (e.g.
plan view) and note down the
dimensions. Then select the sections of
track, and the connectors and power
feeds required. Mark in where the
power supply is likely to be.
4 luminaires and control
A variety of luminaires are available for
every track system. Select the
luminaire(s) suitable for the task at hand
and decide what lighting control you
would like: On/Off, Casambi or Xicato
controls. All luminaires are supplied
equipped with LEDs. The required type
of optical light engine can be selected
On / Off according to the features it offers.
wall48 in48 freestyler
https://buschfeld.de/en/how-it-works/48107 page 61 ff.
5 power supply units
You can select between control gear in
a design housing for visible mounting,
or control gear for concealed mounting.
Buschfeld lighting systems are based The sum of the total wattage plus the
on a modular system comprising indivi- length of the track serve as a basis for
dual elements and a choice of options. the choice of control gear. Please refer
Which means you can design your to the recommendations listed in the
lighting to suit individual requirements. tables.
Which and how many elements are
required, and how and where are they page 111 ff.
to be applied?
The following points have been com- 6 All prices are recommended sales prices + VAT.
piled to assist you with your planning.
https://buschfeld.de/en/how-it-works/48101
Dimensions are quoted in millimetres, unless otherwise stated.
12 13System Sets Sense System 48 V System Sets Sense System 48 V
2000 4035
recommended mounting height: recommended
2035
2300 mm - 2700 mm mounting height:
2300 mm - 2700 mm
wall48 track set 1 wall48 track set 2
Set incl. wall track, power supply unit and accessories Set incl. wall track, power supply unit and accessories
- 1 wall track (L = 2000 mm) colour of track - 3 wall tracks (L = 6000 mm) colour of track
- incl. mounting accessories (5 wall clips) - 1 angle connector 90° on inside, conductive,
- power supply unit (Box wall48 I 90) incorporated horizontal in vertical
into a design housing (48 V DC) alumatt - 1 linear connector, conductive alumatt
- The 230 V connection is at the same height as white - power supply unit (Bigbox wall48 I 150) white
the track. incorporated into a design housing (48 V DC).
black - The 230 V connection is at the same height as black
the track.
Design: buschfeld Design
The track set comprises detailed price listing for a complete lighting system plus a The track set comprises detailed price listing for a complete lighting system plus a
set of luminaires of your choice. If you are planning to align track and components to set of luminaires of your choice. If you are planning to align track and components to
your specific lighting design, we are happy to provide you with professional advice. your specific lighting design, we are happy to provide you with professional advice.
Luminaire set 1 Luminaire set 2
Set incl. 2 directional spotlights fifty side S and one wall-mounted luminaire Set incl. 3 directional spotlights fifty side S and 2 wall-mounted luminaires
fifty side L for wall48 fifty side L for wall48
The luminaire set is designed for application on the Wall48 track system. The list of The luminaire set is designed for application on the Wall48 track system. The list of
luminaires defines the following features and quotes the respective price. A choice luminaires defines the following features and quotes the respective price. A choice
of shades for Fifty luminaires can be found in the price list on pages 80/81. If you are of shades for Fifty luminaires can be found in the price list on pages 80/81. If you are
planning to align the luminaires to your specific lighting design, feel free to contact us. planning to align the luminaires to your specific lighting design, feel free to contact us.
- 2 directional spotlights Fifty side S - 3 directional spotlights Fifty side S
- 1 wall-mounted luminaire Fifty side L - 2 wall-mounted luminaires Fifty side L
- lighting control Casambi - lighting control Casambi
- adapter black or light grey - adapter black or light grey
- Light Engine: 3000 K, 720 Lumen, 36° - Light Engine: 3000 K, 720 Lumen, 36°
2201-186
2201-186
14 15System Sets Sense System 48 V System Sets Sense System 48 V
4035 2035
2000
pend48 track set 3 pend48 track set 4
Set incl. pendant track, control gear and accessories Set incl. pendant track, control gear and accessories
- 1 pendant track (L = 2000 mm) colour of track - 3 pendant tracks (L = 6000 mm) colour of track
- 2 cable suspensions - 1 angle connector 90°, conductive, with cord
- power supply unit (Box pend48 I 90) incorporated - 1 linear connector, conductive, with cord
into a design housing (48 V DC) alumatt - 2 cable suspensions alumatt
- recessed canopy white - power supply unit (Bigbox pend48 I 90) white
- lv stranded cable 1500 mm silver transparent incorporated into a design housing (48 V DC)
black - recessed canopy black
- lv stranded cable 1500 mm silver transparent
Design: buschfeld Design
The track set comprises detailed price listing for a complete lighting system plus a The track set comprises detailed price listing for a complete lighting system plus a
set of luminaires of your choice. If you are planning to align track and components to set of luminaires of your choice. If you are planning to align track and components to
your specific lighting design, we are happy to provide you with professional advice. your specific lighting design, we are happy to provide you with professional advice.
Luminaire set 3 Luminaire set 4
Set incl. 3 directional spotlights ninety-five S for pend48 or ceiling48 Set incl. 5 directional spotlights ninety-five S for pend48 or ceiling48
The luminaire set is designed for application on the Pendl48/Ceiling48 track system. The luminaire set is designed for application on the Pendl48/Ceiling48 track system.
The list of luminaires defines the following features and quotes the respective price. The list of luminaires defines the following features and quotes the respective price.
A choice of shades for Ninety-Five S luminaire can be found in the price list on page A choice of shades for Ninety-Five S luminaire can be found in the price list on page
66. If you are planning to align the luminaires to your specific lighting design, feel free 66. If you are planning to align the luminaires to your specific lighting design, feel free
to contact us. to contact us.
- 3 directional spotlights Ninety-Five S - 5 directional spotlights Ninety-Five S
- lighting control Casambi - lighting control Casambi
- adapter black or light grey - adapter black or light grey
- Light Engine: 3000 K, 720 Lumen, 36° - Light Engine: 3000 K, 720 Lumen, 36°
2201-186
2201-186
16 17System Sets Sense System 48 V System Sets Sense System 48 V
2000
4035 2035
ceiling48 track set 5 ceiling48 track set 6
Set incl. ceiling track, power supply unit and accessories Set incl. ceiling tracks, power supply units and accessories
- 1 ceiling track (L = 2000 mm) colour of track - 3 pendant tracks (L = 6000 mm) colour of track
- 1 mounting set standard - 1 angle connector 90°, conductive
- power supply unit (Box pend48 I 90) incorporated - 1 linear connector, conductive
into a design housing (48 V DC) alumatt - 3 mounting sets standard alumatt
- lv stranded cable 1500 mm white - power supply unit (Bigbox pend48 I 90) white
incorporated into a design housing (48 V DC)
black - lv stranded cable 1500 mm black
Design: buschfeld Design
The track set comprises detailed price listing for a complete lighting system plus a The track set comprises detailed price listing for a complete lighting system plus a
set of luminaires of your choice. If you are planning to align track and components to set of luminaires of your choice. If you are planning to align track and components to
your specific lighting design, we are happy to provide you with professional advice. your specific lighting design, we are happy to provide you with professional advice.
Luminaire set 3 Luminaire set 4
Set incl. 3 directional spotlights ninety-five S for pend48 or ceiling48 Set incl. 5 directional spotlights ninety-five S for pend48 or ceiling48
The luminaire set is designed for application on the Pendl48/Ceiling48 track system. The luminaire set is designed for application on the Pendl48/Ceiling48 track system.
The list of luminaires defines the following features and quotes the respective price. The list of luminaires defines the following features and quotes the respective price.
A choice of shades for Ninety-Five S luminaire can be found in the price list on page A choice of shades for Ninety-Five S luminaire can be found in the price list on page
66. If you are planning to align the luminaires to your specific lighting design, feel free 66. If you are planning to align the luminaires to your specific lighting design, feel free
to contact us. to contact us.
- 3 directional spotlights Ninety-Five S - 5 directional spotlights Ninety-Five S
- lighting control Casambi - lighting control Casambi
- Adapter black or light grey - adapter black or light grey
- Light Engine: 3000 K, 720 Lumen, 36° - Light Engine: 3000 K, 720 Lumen, 36°
2201-186
2201-186
18 19Sense System
wall48 wall track
48-90626 w 91430
Bigbox wall I 150, angle connector 90°, on the
white outside, horizontal - vertical,
conductive, white
91504 90010 48-91006 91401 91410
joint connector, picture rod with wall track, white corner connector 90° corner connector 90°
70°-290°, picture hook on the inside, on the outside,
horizontal - slanting horizontal - horizontal, horizontal - horizontal,
conductive conductive, white

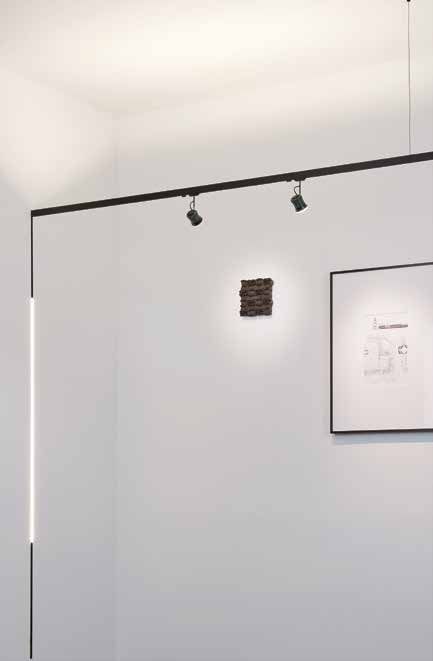

The Wall48 track system combines both
the illumination and hanging of pictures.
The track layout can be designed to
align with the project at hand. Illuminate
your pictures and spaces to meet your
wishes and requirements.
https://buschfeld.de/en/how-it-works/88103
20 21wall48 Sense System 48 V wall48 Sense System 48 V
power feed at end,
facing downwards, article no. power feed central, article no.
left or right facing downwards
L= 0 91102 L= 0 91202
NB: the distance to the ceiling depends on the luminaires applied and the control gear screw contact screw contact
incl. 2 end caps 91107 incl. 2 end caps 91203
L 2000 48 V DC, 12.5 A 48 V DC, 12.5 A
91123 91205
8 8
30
10
12
power feed central, article no. power feed central, article no.
upper section recessed
Please observe the recommended mounting height of the luminaires. https://buschfeld.de/en/how-it-works/88103dm L = 35 91204 L = 35 91212
screw contact screw contact
incl. 2 end caps 91208 incl. 2 end caps 91216
48 V DC, 12.5 A 48 V DC, 12.5 A
91209 91218
Wall track and power feeds
30
10
Design: Hans Buschfeld
wall track article no. power feed at end, article no.
on axis left or right
L = 2000, can be shortened 48-91002 L = 18 91104
incl. mounting accessories screw contact
(5 wall clips) 48-91006 incl. end cap 91105
48 V DC, 12.5 A 48 V DC, 12.5 A
48-91003 91125
LV stranded cable
power feed at end, article no. power feed at end, article no. recessed socket article no. silver transparent, highly flexible, incl. article no.
4 cable end sleeves
top left top right
L = 35 91114 L = 35 91106 socket type: Kaiser 1048-00 90007 2 x 6 mm2, running metre 90500
screw contact screw contact
incl. 2 end caps 91118 incl. 2 end caps 91110 2 x 4 mm2, running metre 90520
48 V DC, 12.5 A 48 V DC, 12.5 A
91121 91119 2 x 2,5 mm , running metre
2
90525
power feed at end, article no. power feed at end, article no.
recessed, left recessed, right
L = 35 91130 L = 35 91122
screw contact screw contact
For flush-mounted socket see 91134 For flush-mounted socket see 91126
accessories, incl. 2 end caps accessories, incl. 2 end caps
2201-186
2201-186
48 V DC, 12.5 A 91136 48 V DC, 12.5 A 91128
22 23wall48 Sense System 48 V wall48 Sense System 48 V
8 kg
10 kg 10 kg
Connectors Accessories
10 kg
linear connector article no. linear connector article no. picture rod with picture article no. additional picture hook article no.
conductive insulating hook for picture rod
L= 0 91302 L= 1 91304 2,6 x 1000 90010 90019
91305 2,6 x 1350 90011
91307 2,6 x 2000 90012
corner connector 90°, corner connector 90°, 8 kg
on the inside, on the outside,
Design: Hans Buschfeld
horizontal - horizontal, article no. horizontal - horizontal, article no. picture cord with article no. additional picture hook article no.
conductive conductive picture hook for picture cord
L= 0 91401 L = 35 91410 1,0 x 1500 90013 90017
mitre cut required on site
91414 90013 b
plastic bolt, black
91416

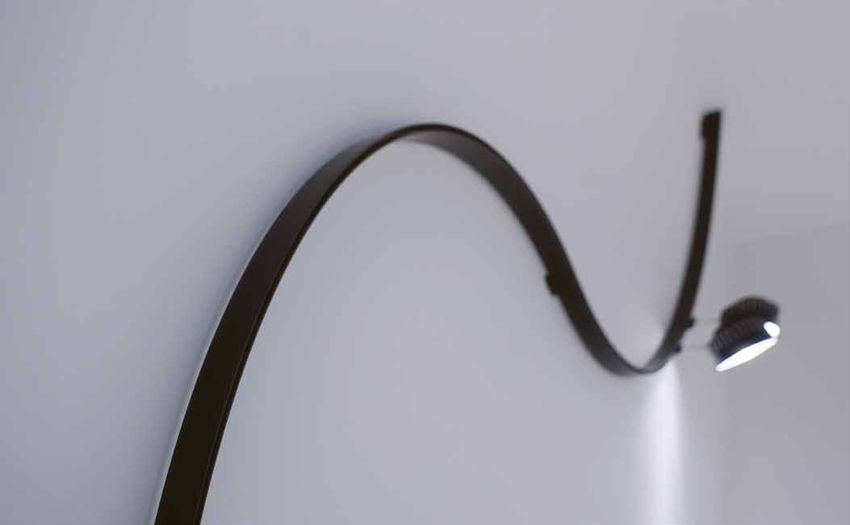

joint connector 80 - 280° joint connector 70 - 290° custom-made: radius custom-made: colour
horizontal - horizontal horizontal - slanting
L= 0 article no. L= 0 article no. Curved upright sections of track, convex or concave All track and shades can be custom made in the colour
mitre cut required on site mitre cut required on site
(min. radius of 500 mm), are also available. (RAL-compliant) of your choice.
e.g. for staircases
v
conductive h h 91502 conductive h
v
91504 Please send us an e-mail with the data applicable for your Please send us an e-mail with information with the layout of
non-conductive h h 95208 non-conductive h 91505 planned track layout to info@buschfeld.de the track, the number of luminaires, choice of colour(s) to:
Further information on page 125. info@buschfeld.de. Further information on page 126.
https://buschfeld.de/en/how-it-works/88114 https://buschfeld.de/en/how-it-works/88107
v
h
v

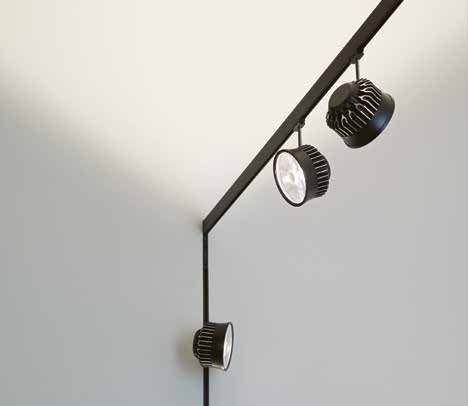

h Luminaires for wall48
angle connector 90°, ninety-five side S
angle connector 90°,
on the inside, on the outside,
horizontal - vertical, article no. horizontal - vertical, article no.
conductive conductive
fifty side S fifty side L
L = 50 91418 L = 50 91426
inner conductor on the inside inner conductor on the outside
91422 91430
luminaires page 61 ff.
2201-186
2201-186
91424 91432
power supply units page 111 ff. thirty-five side S thirty-five side L
24 25Sense System 48-90143
power supply switch
93535
recessed canopy
93517
recessed canopy
pend48 pendant track
MW 150 for power feed rods, for power cable,
white white
91959 w 93604
flat clip, white cable suspension
95232 48-93032 93103 93016 93232 48-93036
angle connector pendant track, linear connector, power feed for angle connector pendant track
90°, conductive, white conductive power feed rods, 90°, conductive, with power feed
white top centre, white white for cable, white
The pendant track system Pend48
is suspended on thin steel cables,
making the stretches of track look
as though they are floating in space.
Given the distance between the track
and the ceiling, indirect lighting can be
applied alongside spotlights.
https://buschfeld.de/en/how-it-works/88104
26 27pend48 Sense System 48 V pend48 Sense System 48 V
100
100
power feed for power article no. power feed for power article no.
cable, top right or left cable, top centre
L = 35 93614 L = 35 93619
screw contact for power cable screw contact for power cable
(order cable separately) 93612 (order cable separately) 93616
incl. 2 end caps incl. 2 end caps
max 500 max 2000
48 V DC, 12.5 A 93613 48 V DC, 12.5 A 93617
55
28 !+
10
L 2000
power feed for power
cable, on axis left or article no. professional product:
right
Please observe the recommended mounting height of the luminaires. https://buschfeld.de/en/how-it-works/88104dm L = 18 91104 Custom colour bronze C31 91129
screw contact for power cable
(order cable separately) 91105
incl. end cap
48 V DC, 12.5 A 91125
Pendant track with power feed for cable
28
10
recessed canopy surface - mounted
Design: Hans Buschfeld
pendant track article no. professional product: article no. for power feed by article no. canopy for power feed article no.
cable by cable
L = 2000, can be shortened 48-93002 L = 3000 48-930423 for LV cable connection or 93510 for LV cable connection or 93500
without cable suspension HV mains connection, HV mains connection,
48 V DC, 12.5 A 48-93032 Custom colour bronze C31 L = 2000 48-93082 cover plate 100 x 100 93517 70 x 73 x 23,5 93537
Custom colour bronze C31 L = 3000 depth 50
48-93042 48-930823 diameter 74 93518 93538
28
flat clip article no. wall or ceiling fastener article no.
10
pendant track article no. professional product: article no. for mounting Pend track flat on walls 91959 a L= 0 93505
with power feed for cable or ceilings. The track can be installed
vertically or horizontally. 91959 w
L = 2000, left or right, can be shortened, 48-93006 L = 3000 48-930463 available in packs of 3
screw contact for power cable 91959 b
(order cable and cable suspension 48-93036 Custom colour bronze C31 L = 2000 48-93086
separately) Custom colour bronze C31 L = 3000
incl. 2 end caps 48-93046 48-930863 https://buschfeld.de/en/products/sense-system/48-91959
48 V DC, 12.5 A
28
LV stranded cable
10
pendant track article no. professional product: article no. silver transparent article no. cable suspension article no.
incl. 4 cable end sleeves
with recessed power feed
L = 2000, left or right, can be shortened, 48-93003 L = 3000 48-930433 2 x 6 mm2, running metre 90500 without power feed 93604
screw contact for power cable L = 1500
max. 2.5 mm2 ! (order cable and cable 48-93039 Custom colour bronze C31 L = 2000 48-93083 2 x 4 mm , running metre
2
90520 can be positioned as required
suspension separately)
2201-186
2201-186
incl. 2 end caps 48-93043 Custom colour bronze C31 L = 3000 48-930833 2 x 2,5 mm2, running metre 90525
48 V DC, 12.5 A continue with power feeds for power feed rods on the next page
28 29pend48 Sense System 48 V pend48 Sense System 48 V
100
100
power feed rod article no. spacer article no.
L = 2000, can be cut into sections 93566 for power feed rods longer than 1 m 93062
L = 1000, can be cut into sections 93567
max 500 max 2000
55
28
!+
10
L 2000
surface - mounted
recessed canopy article no. canopy for power feed article no.
for power feed rods rods
Please observe the recommended mounting height for the luminaires. https://buschfeld.de/en/how-it-works/88104dm for LV with plug-in coupling for power 93525 for LV with plug-in coupling for power 93524
feed rods, cover plate feed rods, 70 x 73 x 23,5
100 x 100 93535 93534
depth 50
diameter 74 93545 93544
Pendant track with power feed for power feed rods
28
10
flat clip article no. wall or ceiling fastener article no.
Design: Hans Buschfeld
pendant track article no. professional product: article no. for mounting Pend track flat on walls 91959 a L= 0 93505
or ceilings. The track can be installed
vertically or horizontally. 91959 w
L = 2000, can be shortened 48-93002 L = 3000 48-930423 available in packs of 3
without cable suspension 91959 b
48 V DC, 12.5 A 48-93032 Custom colour bronze C31 L = 2000 48-93082
48-93042 Custom colour bronze C31 L = 3000 48-930823 https://buschfeld.de/en/products/sense-system/48-91959
28
LV stranded cable
10
pendant track with
power feeds for power article no. professional product: article no. silver transparent article no. cable suspension article no.
incl. 4 cable end sleeves
feed rods
L = 2000, left or right, can be 48-93004 L = 3000 48-930443 2 x 6 mm2, running metre 90500 without power feed 93604
shortened, plug contact for power L = 1500
feed rods, (order power feed rod 48-93034 Custom colour bronze C31 L = 2000 48-93084 2 x 4 mm2, running metre 90520 can be positioned as required
separately), incl. 2 end caps,
48 V DC, 12.5 A 48-93044 Custom colour bronze C31 L = 3000 48-930843 2 x 2,5 mm2, running metre 90525
power feed for power power feed for power
feed rods, article no. feed rods, article no.
top left or right top centre
L = 35 93014 L = 35 93019
plug contact for power feed rod, with plug contact for power feed rod,
(order power feed rod separately) 93012 (order power feed rod separately) 93016
incl. 2 end caps incl. 2 end caps
2201-186
2201-186
48 V DC, 12.5 A 93013 48 V DC, 12.5 A 93017
30 31pend48 Sense System 48 V pend48 Sense System 48 V
Connectors
linear connector, article no. linear connector, article no. cross connector, article no. T - connector, article no.
conductive insulated 3 - way conductive 4 - way conductive
L= 0 93103 L= 0 93102 L = 60 93302 L = 60 93402
with cable suspension (L = 1500) with cable suspension (L = 1500)
Other versions available on request! 93332 Other versions available on request! 93432
93342 93442
45° 45°
Design: Hans Buschfeld
linear connector, article no. linear connector, article no. T - connector 45° left, article no. T - connector 45° right, article no.
conductive insulated 3 - way conductive 3 - way conductive
L= 0 93109 L= 0 93112 L = 60 93902 L = 60 93903
with cable suspension (L = 1500) with cable suspension (L = 1500) with cable suspension (L = 1500) with cable suspension (L = 1500)
Other versions available on request! 93932 Other versions available on request! 93933
93942 93943
60° 60°
angle connector 90°, article no. angle connector 90°, article no. T - connector 60° left, article no. T - connector 60° right, article no.
conductive insulated 3 - way conductive 3 - way conductive
L = 35 93202 L = 35 93205 L = 60 93904 L = 60 93905
with cable suspension (L = 1500) with cable suspension (L = 1500) with cable suspension (L = 1500) with cable suspension (L = 1500)
93232 93235 Other versions available on request! 93934 Other versions available on request! 93935
93242 93245 93944 93945
joint connector 80° - 280°, article no. joint connector 80° - 280°, article no.
conductive non - conductive
L= 0 93206 L= 0 93208
with cable suspension (L = 1500) with cable suspension (L = 1500)
2201-186
2201-186
32 33pend48 Sense System 48 V pend48 Sense System 48 V
Connectors
star - shaped connectors rays article no. star - shaped connectors rays article no. custom - made: custom - made:
horizontal, conductive vertical, non - conductive radius colour
Design: buschfeld Design
Star-shaped connectors 5 93805 Available with 5-12 beams. 5 95705 Curved sections of track, flat or upright (min. radius of 500 mm), All track and shades can be custom made in the colour
are available with 5-12 The track is inserted are also available. (RAL-compliant) of your choice.
6 93806 6 95706
beams. The track is directly onto the con-
inserted directly onto the 7 93807 nector, running parallel. 7 95707 Please send us an e-mail with the data applicable for your Please send us an e-mail with information with the layout of
connector, leading to a The connection is purely planned track layout to info@buschfeld.de the track, the number of luminaires, choice of colour(s) to:
8 93808 8 95708
central point. mechanical. Power feeds Further information on page 125. info@buschfeld.de
The sections of track (the 9 93809 are applied as required. 9 95709 Further information on page 126.
beams) are electrically 10 93810 Please inquire separately. 10 95710 https://buschfeld.de/en/how-it-works/88114 https://buschfeld.de/en/how-it-works/88107
interconnected.
11 93811 11 95711
We are glad to help you 12 93812 12 95712
achieve your design ideas.
https://buschfeld.de/en/how-it-works/88111 https://buschfeld.de/en/how-it-works/88112
Luminaires for pend48
ninety-five S ninety-five fix
fifty S fifty fix
thirty-five S led line
luminaires page 61 ff.
2201-186
2201-186
power supply units page 111 ff.
34 35Sense System
ceiling48
48-90143 48-93032 91959 w
control gear, MW 150, ceiling track, flat clip, white
concealed mounting white
ceiling track
95632 95016 95202 91954
angle connector 90°, power feed central, angle connector 90°, mounting kit mini,
on the inside, top centre, white conductive, white 2 mm, light grey
horizontal - vertical,
conductive, white
91953 95932
mounting kit standard, T - connector 45°,
6 mm, light grey 3 - way conductive,
white
The ceiling tracks Ceiling48 can be
installed either on ceilings or on walls.
Select from three alternatives to
assemble them. Ceilng48 is as interes-
ting for a permanent lighting solution
as it is for a temporary installation.
https://buschfeld.de/en/how-it-works/88105
36 37ceiling48 Sense System 48 V ceiling48 Sense System 48 V
100
100
mounting kit standard 6
28 !+
10 max 250 35 35
Please observe the recommended
mounting height for the luminaires. L 2000
Ceiling track, power feeds and accessories
https://buschfeld.de/en/how-it-works/88105dm
28
10
ceiling track article no. professional product: article no. power feed at end, article no. power feed central, article no.
top left or right top centre
L = 2000, can be shortened 48-93002 L = 3000 48-930423 L = 35 95014 L = 35 95019
48 V DC, 12.5 A with cover plate 100 x 100, with cover plate 100 x 100,
48-93032 Custom colour bronze C31 L = 2000 48-93082 incl. plug and 2 end caps 95012 incl. plug and 2 end caps 95016
Mounting kit to be ordered
Custom colour bronze C31 L = 3000 48 V DC, 12.5 A 48 V DC, 12.5 A
separately. 48-93042 48-930823 95013 95017
28
10
power feed at end,
Design: Hans Buschfeld
ceiling track with power article no. professional product: article no. facing downwards, article no. power feed central, article no.
feed, left or right left or right facing downwards
L = 2000, can be shortened, with 48-95004 L = 3000 48-950443 L= 0 91102 L= 0 91202
power feed, right or left, cover plate screw contact for power cable screw contact for power cable
100 x 100, incl. plug and 2 end caps 48-95034 Custom colour bronze C31 L = 2000 48-95084 (order cable separately) 91107 (order cable separately) 91203
48 V DC, 12.5 A Custom colour bronze C31 L = 3000 incl. 2 end caps incl. 2 end caps
Mounting kit to be ordered 48-95044 48-950843 48 V DC, 12.5 A 91123 48 V DC, 12.5 A 91205
separately.
28
10
ceiling track article no. professional product: article no. power feed at end, article no. professional product:
with recessed power feed on axis left or right
L = 2000, left or right, can be shortened, 48-93003 L = 3000 48-930433 L = 18 91104 Custom colour bronze C31 91129
screw contact for power cable screw contact for power cable
max. 2.5 mm2 ! (order cable separately), 48-93039 Custom colour bronze C31 L = 2000 48-93083 (order cable separately) 91105
incl. 2 end caps, 48 V DC, 12.5 A Custom colour bronze C31 L = 3000 incl. end cap
Mounting kit to be ordered 48-93043 48-930833 48 V DC, 12.5 A 91125
separately.
6 2
mounting kit article no. mounting kit article no. flat clip article no.
standard mini
The track can be mounted vertically or 91953 The track can be mounted vertically or 91954 For mounting track flat on the wall / 91959 a
horizontally. horizontally. ceiling. The track can be mounted
H = 6 mm, available in packs of 2 91953 b H = 2 mm, available in packs of 2 91954 b vertically or horizontally. 91959 w
Available in packs of 3
2201-186
2201-186
https://buschfeld.de/en/produkte/sense-system/48-91953 https://buschfeld.de/en/products/sense-system/48-91954 91959 b https://buschfeld.de/en/products/sense-system/48-91959
38 39ceiling48 Sense System 48 V ceiling48 Sense System 48 V
T - connector, article no. cross connector, article no.
3 - way conductive 4 - way conductive
L = 60 95302 L = 60 95402
Other versions available on request! Other versions available on request!
95332 95432
95342 95442
Connectors
45° 45°
linear connector, article no. linear connector, article no. T - connector 45° left article no. T - connector 45° right article no.
conductive insulated 3 - way conductive 3 - way conductive
L= 0 91302 L= 1 91304 L = 60 95902 L = 60 95903
Other versions available on request! Other versions available on request!
91305 95932 95933
91307 95942 95943
60° 60°
joint connector 80 - 280°, joint connector 70 - 290°,
horizontal - horizontal horizontal - slanting
Design: Hans Buschfeld
L= 0 article no. L= 0 article no. T - connector 60° left article no. T - connector 60° right article no.
mitre cut required on site mitre cut required on site
e.g. in stairwells
3 - way conductive 3 - way conductive
v
conductive h h 91502 conductive h 91504 L = 60 95904 L = 60 95905
v Other versions available Other versions available
non-conductive h h 95208 non-conductive h 91505 on request! 95934 on request! 95935
95944 95945
LV stranded cable
angle connector 90°, article no. angle connector 90°, article no. silver transparent article no.
incl. 4 cable end sleeves
conductive insulated
L = 35 95202 L = 35 95205 2 x 6 mm2, running metre 90500
95232 95235 2 x 4 mm2, running metre 90520
95242 95245 2 x 2,5 mm , running metre
2
90525
v
h
h
v
angle connector 90°, angle connector 90°,
on the inside, on the outside,
horizontal - vertical, article no. horizontal - vertical, article no.
conductive conductive
L = 50, 95602 L = 50, 95702
inner conductor on the inside inner conductor on the outside
solid component 95632 solid component 95732
(no mitre cut required) (no mitre cut required)
2201-186
2201-186
95642 95742
40 41ceiling48 Sense System 48 V ceiling48 Sense System 48 V
star - shaped connectors rays article no. star - shaped connectors rays article no. custom - made: radius custom - made: colour
horizontal, conductive vertical, non - conductive
Design: buschfeld Design
Star-shaped connectors 5 95805 Available with 5-12 beams. 5 95705 Curved sections of track, flat or upright (min. radius of 500 mm), All track and shades can be custom made in the colour
horizontal, conductive The track is inserted are also available. (RAL-compliant) of your choice.
6 95806 6 95706
Available with 5-12 beams. directly onto the con-
The track is inserted di- 7 95807 nector, running parallel. 7 95707 Please send us an e-mail with the data applicable for your Please send us an e-mail with information with the layout of
rectly onto the connector, The connection is purely planned track layout to info@buschfeld.de the track, the number of luminaires, choice of colour(s) to:
8 95808 8 95708
leading to a central point. mechanical. Power feeds Further information on page 125. info@buschfeld.de
The sections of track (the 9 95809 are applied as required. 9 95709 Further information on page 126.
beams) are electrically 10 95810 Please inquire separately. 10 95710
interconnected. https://buschfeld.de/en/how-it-works/88114 https://buschfeld.de/en/how-it-works/88107
11 95811 11 95711
We are glad to help you 12 95812 12 95712
achieve your design ideas.
https://buschfeld.de/en/how-it-works/88111 https://buschfeld.de/en/how-it-works/88112
Luminaires for ceiling48
ninety-five S ninety-five fix
fifty S fifty fix
thirty-five S
luminaires page 61 ff.
2201-186
2201-186
power supply units page 111 ff.
42 43Sense System 98200 48-93032 48-90143 93615
in48 recessed track
drywall profile recessed track, white control gear MW 150, power feed top centre,
concealed mounting white
91957
fastening clip for semi-
recessed mounting
95232 91955 91956
angle connector 90°, fastening clip for flush fastening clip for
conductive, white mounting mounting in shelves
and cupboards
The recessed track In48 compri-
ses ultra-slimline track systems for
recessed mounting on ceilings or
walls. Recessed track applications
need to be planned well in advance,
given that the drywall profile needs
to already have been installed in
the drywall construction. Once the
surface has been plastered and
painted, all that remains visible is a
10 mm wide line.
https://buschfeld.de/en/how-it-works/88106
44 45in48 Sense System 48 V in48 Sense System 48 V
13
18
1
L 2000 L 2000 5
32
46
1,5
13 18
12,5
1
10
46
mounting kit in
119 mounting kit in article no. for semi - recessed article no.
for flush mounting mounting
https://buschfeld.de/en/how-it-works/88106dm kit for flush mounting 91955 special kit for semi-recessed mounting 91957
of in48 track, of in48 track,
supplied in packs of 5 5 mm of the track remain visible
supplied in packs of 5
Drywall profile and accessories
Design: Hans Buschfeld
drywall profiles article no. distance tape article no.
Aluminium profile for flush mounting 98200 required for horizontal 91958
on ceilings or walls, mounting of in48 track
horizontal** and vertical L = 5000
L = 2000, can be shortened
Mounting kit to be ordered
separately.
> 25
13 13
10,5 10
corner element 90° article no. corner element 90°, article no.
40
horizontal - horizontal horizontal - vertical 28
Aluminium profile for flush mounting 98050 Aluminium profile for flush mounting 98055 13 28 1 1
on ceilings or walls on ceilings or walls, for horizontal and/ 55
or vertical mounting 40 1 > 60
13
LV stranded cable
silver transparent article no. mounting kit in article no.
incl. 4 cable end sleeves
for mounting in shelves
2 x 6 mm2, running metre 90500 in48 mounting kit for mounting in 91956
shelves, 1 mm of the track remains
2 x 4 mm , running metre
2
90520 visible, supplied in packs of 2,
NB instructions re. milling!
2201-186
2201-186
2 x 2,5 mm2, running metre 90525
46 47in48 Sense System 48 V in48 Sense System 48 V
drywall profile
55
28
recessed track with power feed recessed track
L 2000
Recessed track with power feed Connectors
28
10
recessed track article no. professional product: article no. linear connector, article no. linear connector, article no.
conductive insulated
L = 2000 48-93002 L = 3000 48-930423 L= 0 91302 L= 1 91304
can be shortened
Custom colour bronze C31 L = 2000
48 V DC, 12.5 A 48-93032 48-93082 91305
Custom colour bronze C31 L = 3000
Mounting kit to be ordered 48-93042 48-930823 91307
separately.
28
10
joint connector 80 - 280°, joint connector 80 - 280°,
Design: Hans Buschfeld
recessed track article no. professional product: article no. horizontal - horizontal, article no. horizontal - horizontal, article no.
with power feed conductive non - conductive
L = 2000, left or right, can be short- 48-93006 L = 3000 48-930463 L= 0 91502 L= 0 95208
ened, screw contact for power cable mitre cut required on site mitre cut required on site
(order cable separately) 48-93036 Custom colour bronze C31 L = 2000 48-93086
incl. 2 end caps, 48 V DC, 12.5 A Custom colour bronze C31 L = 3000
Mounting kit to be ordered 48-93046 48-930863
separately.
28
10
recessed track article no. professional product: article no. angle connector 90°, article no. angle connector 90°, article no.
with recessed power feed conductive isulated
L = 2000, left or right, can be shortened, 48-93003 L = 3000 48-930433 L = 35 95202 L = 35 95205
screw contact for power cable max. 2.5
mm2 ! (order cable separately) 48-93039 Custom colour bronze C31 L = 2000 48-93083 95232 95235
incl. 2 end caps, 48 V DC, 12.5 A
Mounting kit to be ordered 48-93043 Custom colour bronze C31 L = 3000 48-930833 95242 95245
separately.
v
h
v h
angle connector 90°, angle connector 90°,
on the inside, on the outside,
power feed, article no. power feed, article no. horizontal - vertical, article no. horizontal - vertical, article no.
top left or right top centre conductive non - conductive
L = 35 93614 L = 35 93619 L = 50 95602 L = 50 95702
screw contact for power cable screw contact for power cable horizontal-vertical horizontal-vertical
(order cable separately) 93612 (order cable separately) 93616 inner conductor on the inside 95632 inner conductor on the outside 95732
incl. 2 end caps incl. 2 end caps
2201-186
2201-186
48 V DC, 12.5 A 93613 48 V DC, 12.5 A 93617 95642 95742
48 49in48 Sense System 48 V
Luminaires for in48
ninety-five S ninety-five fix
fifty S fifty fix
thirty-five S
led strip
luminaires page 61 ff.
power supply units page 111 ff.
Design: buschfeld Design
freestyler
Using sections of system track, lumi-
nous structures can be created to
enhance a space. The structures
can take the form of a sphere, or
they can be cylindrical or oval. It is
also possible to design star-shaped
structures or geometrical gridlike
forms. System luminaires can then
be added - positioned anywhere
along the track.
2201-186
50 51freestyler Sense System 48 V freestyler Sense System 48 V
blade wheel 1200 x 800 blade wheel 350 x 3300
pendant luminaire pendant luminaire
Ø = 1200 mm, height 800 mm Ø = 350 mm, height 3300 mm
Wheel consisting of a number of sections of track, incl. cable suspensions, power Wheel consisting of a number of sections of track, incl. cable suspensions,
feed with screw contact and cable. power feed with screw contact and cable.
800 Standard: the luminaire modules are locked into place on the outer side of the track, Standard: the luminaire modules are locked into place on the outer side of the
plus luminaires and control gear. Other dimensions for the same price, track, plus luminaires and control gear. Other dimensions for the same price,
if height and diameter do not exceed 2000 mm. if height and diameter do not exceed 4000 mm.
48 V DC, 12.5 A 48 V DC, 12.5 A
Ø 1200
rays colour rays colour
alumatt alumatt
7 white 7 white
black black
alumatt alumatt
3300
8 white 8 white
black black
Design: buschfeld Design
alumatt alumatt
9 white 9 white
black black
alumatt alumatt
10 white 10 white
black black
alumatt alumatt
11 white 11 white
Ø 350
black black
alumatt alumatt
12 white 12 white
black black
2201-186
2201-186
52 53freestyler Sense System 48 V freestyler Sense System 48 V
sphere 1500 sphere 2000
project-related luminaire, sphere-shaped project-related luminaire, sphere-shaped
Ø = 1500 mm Ø = 2000 mm
Sphere consisting of a number of curved sections of track, incl. Sphere consisting of a number of curved sections of track, incl. cable
cable suspensions, power feed with screw contact and cable suspensions, power feed with screw contact and cable standard: the
Standard: the luminaire modules are locked into place on the outer luminaire modules are locked into place on the outer side of the track,
side of the track, plus luminaires and control gear plus luminaires and control gear
48 V DC, 12.5 A 48 V DC, 12.5 A
rays colour rays colour
Ø 1560
alumatt alumatt
7 white 7 white
black black
Ø 2060
alumatt alumatt
8 white 8 white
black black
alumatt alumatt
Design: buschfeld Design
9 white 9 white
black black
alumatt alumatt
10 white 10 white
black black
alumatt alumatt
11 white 11 white
black black
alumatt alumatt
12 white 12 white
black black
2201-186
2201-186
54 55freestyler Sense System 48 V freestyler Sense System 48 V
sphere 2000 x 3000 square
project-related luminaire grid-like matrix structure based on the shape of a square
Ø = 2000 mm, height 3000 mm Each section of the grid structure 900 x 900 mm
Sphere consisting of a number of curved sections of track, incl. cable Rectangle with subdivisions, incl. cable suspension or ceiling adapters,
suspensions, power feed with screw contact and cable power feed with screw contact and cable
Standard: the luminaire modules are locked into place on the outer side Luminaire modules are locked into place on the lower side of the track,
1800
of the track, plus luminaires and control gear plus luminaires and control gear
48 V DC, 12.5 A 48 V DC, 12.5 A
3000
rays colour grid colour
alumatt alumatt
7 white white
2700
black 2:3 black
alumatt alumatt
8 white white
Ø 2060
black 900 black
1800 1:4
alumatt
Design: buschfeld Design
alumatt
9 white white
2:2
black black
alumatt
10 white
black
alumatt
11 white
black
alumatt
12 white
black
2201-186
2201-186
56 57freestyler Sense System 48 V freestyler Sense System 48 V
starry sky starry sky
star-shaped chandelier star-shaped project-related luminaire
Ø = 4000 mm Ø = 4000 mm
Star with a various number of “rays”, incl. cable suspension , power Star with a various number of “rays”, incl. cable suspension, power feed
feed with screw contact and cable with screw contact and cable
Standard: the luminaire modules are locked into place on the lower Standard: the luminaire modules are locked into place on the lower side
side of the track, plus luminaires and control gear of the track, plus luminaires and control gear
Ø 4000 48 V DC, 12.5 A ~ 4000 48 V DC, 12.5 A
rays colour rays colour
alumatt alumatt
7 white white
black black
6+7+9
alumatt
8 white
black
alumatt
Design: buschfeld Design
Starry Sky can be configured to create a variety of fascinating
9 white structures. Star-shaped connectors are available for 5-12 rays.
black Track lengths can be ordered as required. We are glad to help
you achieve your design ideas. Simply send a sketch of your
design to info@buschfeld.de
alumatt
10 white
black
alumatt
11 white
black
alumatt
12 white
black
2201-186
2201-186
58 59luminaires 48 V 60 61
Sense System luminaires
index
ninety-five S ninety-five fix ninety-five side S led line led strip marble48 | tri48 floor
wall48 wall track
pend48 pendant track
ceiling48 ceiling track
in48 recessed track
mono48 individual luminaire
see page 66 | 69 67 68 99 100 102 | 103 see page
light sources 70 - 71 70 - 71 70 - 71 light sources
fifty S fifty fix fifty side S fifty side L
wall48 wall track
pend48 pendant track
ceiling48 ceiling track
in48 recessed track
mono48 individual luminaire
see page 78 | 82 79 80 81 | 83 see page
light sources 84 - 85 84 - 85 84 - 85 84 - 85 light sources
thirty-five S thirty-five side S thirty-five side L
wall48 wall track
pend48 pendant track
ceiling48 ceiling track
in48 recessed track
mono48 individual luminaire
see page 91 | 94 92 93 | 95 see page
light sources 96 96 96 light sources
62 63ninety-five ninety-five
planning and ordering example of how to order
Luminaires
Leuchten Sense System 48 V Leuchten Sense System 48 V
application (spot or downlight)
ninety-five S
Richtstrahler System: pend 48, ceiling48, in48, rondo48, tri48, marble48
ninety-five fix
Downlight System: pend 48, ceiling48, in48
length of luminaire
adapter alignment (e.g. Side 90° for Wall48)
75
~140 Wählen Sie die Art der Lichtsteuerung: Basic on/off, Casambi oder Xicato Controls und Wählen Sie die Art der Lichtsteuerung: Basic on/off, Casambi oder Xicato Controls und
65 95 die gewünschte Lichtfarbe und den Abstrahlwinkel (Seite 70-71). 95 die gewünschte Lichtfarbe und den Abstrahlwinkel (Seite 70-71).
Der Preis versteht sich inkl. Light Engine, diese wird fest mit der Leuchte verbaut. Der Preis versteht sich inkl. Light Engine, diese wird fest mit der Leuchte verbaut.
90° 360° 0° 0°
Lichtsteuerung Leistung Adapter Artikel-Nr. € Euro Lichtsteuerung Leistung Adapter Artikel-Nr. € Euro
Basic on/off 18 W black 48-31100 + ... 349,00 Basic on/off 18 W black 48-30000 + ... 308,00
Lighting control
light grey 48-31110 + ... 349,00 light grey 48-30010 + ... 308,00
hide 48-31150 + ... 349,00
Light Engine 9°/ Snap 2700 K / CRI 95 440
Casambi 20 W black 48-31101 + ... 431,00 Casambi 20 W black 48-30001 + ... 390,00
light grey 48-31111 + ... 431,00 light grey 48-30011 + ... 390,00
Basic on/off
hide 48-31151 + ... 431,00
beam angle / 25°/ 2700 K / CRI 95 441
Xicato Controls 20 W black 48-31102 + ... 469,00 Xicato Controls 20 W black 48-30002 + ... 428,00
light grey 48-31112 + ... 469,00 light grey 48-30012 + ... 428,00
hide 48-31152 + ... 469,00
Casambi
Design: buschfeld Design
colour temperature 36°/ 2700 K / CRI 95 442
Leuchtenschirme Leuchtenschirme
Xicato controls
60
Schirmtyp Farbe Artikel-Nr. € Euro Schirmtyp Farbe Artikel-Nr. € Euro
60 107 107
alumatt 48-2443 a 30,00 alumatt 48-2505 a 30,00
white 48-2443 w white 48-2505 w
black 48-2443 b black 48-2505 b
tube 95 bronze 48-2443 c tube 95 bronze 48-2505 c
9° / Snap 3000 K / CRI 95 450
25° / 3000 K / CRI 95 451
36° / 3000 K / CRI 95 452
2201-186
2201-186
Technische Angaben und Preise entsprechen dem Stand, der zum Zeitpunkt der Erstellung dieser Preisliste aktuell ist. Da die Entwicklungen permanent voranschreiten, sind Änderungen vorbehalten.
66 67
Shades
For our luminaires we offer a range of shades.
These can be selected and ordered as accessories. Luminaires Basic on/off 0
lighting control Casambi 1
Xicato Controls 2
adapter black 0
light grey 1
Light Engines hide 5 NEW
light engines Sense System 48 V light engines Sense System 48 V beam angle (9° with Snap, 25° or 36°)
light engine ninety-five
Lichtmodul für alle ninety-five Leuchten
- Ø = 95 mm
- 1 LED-zentraler Lichtkern mit nur einem Schatten,
light engine ninety-five snap
Lichtmodul mit Snap System für alle ninety-five Leuchten
- Ø = 95 mm
- 1 LED-zentraler Lichtkern mit nur einem Schatten,
colour temperature (2700 K or 3000 K)
dadurch bessere Wahrnehmung von Texturen und Materialtiefe dadurch bessere Wahrnehmung von Texturen und Materialtiefe
- präzise Lichtverteilung mit kleinem Streubereich - präzise Lichtverteilung mit kleinem Streubereich
- CRI > 95 und R9 ≥ 95 - CRI > 95 und R9 ≥ 95
- hervorragende Farbstabilität - hervorragende Farbstabilität
- exzellente Weißwiedergabe - exzellente Weißwiedergabe
- lange Lebensdauer - lange Lebensdauer
- keine UV-/Infrarot-Strahlung - keine UV-/Infrarot-Strahlung
The light engines are housed within the luminaires.
- Energieeffizienzklasse G - Energieeffizienzklasse G
9° Optik mit Magnet zur werkzeuglosen Fixierung verschiedener Filteraufsätze zur
Lichtlenkung sowie zur Änderung der Farbtemperatur. Zusätzlich kann ein Wabenraster
length of luminaire fix, 0 mm 0
zur Blendungsbegrenzung ergänzt werden. Maximale Flexibilität bis zum Zeitpunkt der
Installation. Je nach Ausführung der Filter etwa um 10 % reduzierter Lichtstrom. Die
Kombination verschiedener Filter ist möglich.
Verschiedene Ausführungen finden Sie auf den Folgeseiten.
Kelvin
2700 K
2700 K
Lumen
950
950
Lm/W
59
59
Abstrahlwinkel
25°
36°
Artikel-Nr.
...-441
...-442
Kelvin
2700 K
Lumen
950
Lm/W
59
Abstrahlwinkel
9°
Artikel-Nr.
...-440
see pages 70-71 S, 60 mm 1
Design: buschfeld Design
3000 K 1000 62 9° ...-450
3000 K 1000 62 25° ...-451
3000 K 1000 62 36° ...-452
adapter alignment 0°, fix 0
2201-186
2201-186
0°, flexible 1
Technische Angaben und Preise entsprechen dem Stand, der zum Zeitpunkt der Erstellung dieser Preisliste aktuell ist. Da die Entwicklungen permanent voranschreiten, sind Änderungen vorbehalten.
70 71
90°, side, flexible 2
name of luminaire Thirty-Five 1
Fifty 2
Ninety-Five 3
Accessories
Snap filter only for 9° light engines
Zubehör Sense System 48 V Zubehör Sense System 48 V
48 volts
see pages 72-73
Abstrahlwinkel rund Farbtemperatur - Wechsel
17°
Zubehör für VIVID LED AR111 (12 V) und ninety-five (48 V) mit Snap System Zubehör für VIVID LED AR111 (12 V) und ninety-five (48 V) mit Snap System
25°
Abstrahlwinkel Neadcode Artikel-Nr. € Euro CTO Neadcode Artikel-Nr. € Euro
36° Colour Temperature Orange
17° 03265 439 13,00 Zur Veränderung der Lichtfarbe, um Dimm- 1/4 01153 430 27,00
Zur Erweiterung des Abstrahlwinkels 60° situationen mit warmem Licht zu simulieren,
von 10° auf 17°, 25°, 36° oder 60°. 25° 01145 440 13,00 auch temporär einsetzbar, zum Beispiel für festliche 1/2 01155 431 27,00
Ø 84 mm, T = 3,1 mm Anlässe.
36° 01147 441 13,00 3/4 01157 432 27,00
Ø 84 mm, T = 3,1 mm
60° 01149 442 13,00 Änderungseffekt:
Startlichtfarbe 1/4 CTO 1/2 CTO 3/4 CTO
2700 K 2450 K 2200 K 2000 K
3000 K 2700 K 2400 K 2200 K
Abstrahlwinkel oval Farbverbesserungsfilter
10°x 36°
E1
Zubehör für VIVID LED AR111 (12 V) und ninety-five (48 V) mit Snap System Zubehör für VIVID LED AR111 (12 V) und ninety-five (48 V) mit Snap System
10°x 60°
SORAA VIVID ENHANCE SNAP
Abstrahlwinkel Neadcode Artikel-Nr. € Euro Neadcode Artikel-Nr. € Euro
10° x 36° 01595 444 27,00 03283 450 55,50
Zur Erzeugung asymmetrischer Lichtkegel, insbeson-
dere bei der Beleuchtung länglicher Objekte. Durch 10° x 60° 03261 445 27,00
den ovalen Lichtkegel von nur einem Leuchtmittel pro
Exponat reduziert sich die erforderliche Anzahl der Filter zum Intensivieren von Farben. Erhöht die Leben-
Leuchten. digkeit von warmen Farben (einschließlich Rot, Orange
Ø 84 mm, T = 3,1 mm und Rosa) sowie Grün. Findet Anwendung, wo eine
bunte Farbdarstellung gesucht wird. Lässt den Reich-
tum der Farben noch stärker erscheinen.
Ø 84 mm, T = 3,1 mm
Abstrahlwinkel eckig Klarfilter
CL
Zubehör für VIVID LED AR111 (12 V) und ninety-five (48 V) mit Snap System Zubehör für VIVID LED AR111 (12 V) und ninety-five (48 V) mit Snap System
Zusammen mit Farbfolien oder z.B. Dichroitischen
Abstrahlwinkel Neadcode Artikel-Nr. € Euro Neadcode Artikel-Nr. € Euro
Filtern zu verwenden, um besondere Stimmungen und
Wirkungen zu erzielen.
Ø 84 mm, T = 3,1 mm
Umwandlung des runden 10° Abstrahlwinkels in ein 02185 448 12,50
36° x 36° 01597 451 27,00
Rechteck. Für quadratisch fokussierte Licht-
felder auf Boden oder Wand. Völlig gleichmäßige Aus-
leuchtung der Fläche von der Mitte bis zum Rand. Kein
Lichtabfall an den Kanten.
Ø 84 mm, T = 3,1 mm
48-31151-441
Wabenraster Zielfilter
Zubehör für VIVID LED AR111 (12 V) und ninety-five (48 V) mit Snap System Zubehör für VIVID LED AR111 (12 V) und ninety-five (48 V) mit Snap System
Abschirmwinkel Neadcode Artikel-Nr. € Euro Neadcode Artikel-Nr. € Euro
40° 01151 447 27,00 Mit zwei verdrehbaren Filterscheiben 03257 449 24,50
Zur Blendbegrenzung verschiebt der Filter den Lichtstrahl von
Ø 84 mm, T = 9 mm 0° bis 20°, ohne dabei die Lichtfarbe und
die Form zu verändern.
Ø 84 mm, T = 3,1 mm
2201-186
2201-186
Technische Angaben und Preise entsprechen dem Stand, der zum Zeitpunkt der Erstellung dieser Preisliste aktuell ist. Da die Entwicklungen permanent voranschreiten, sind Änderungen vorbehalten.
72 73
64 65You can also read
