SEMI-INTEGRATED
VANS
OVERCAB
FEEL WELCOME … FEEL ETRUSCO.
JUST DRIVE OFF AND ENJOY EVERY SECOND. EXPERIENCE HOW THE LANDSCAPE CHANGES. WAKE UP TO A NEW VIEW EVERY MORNING. IT´S YOUR TIME TO TRAVEL.

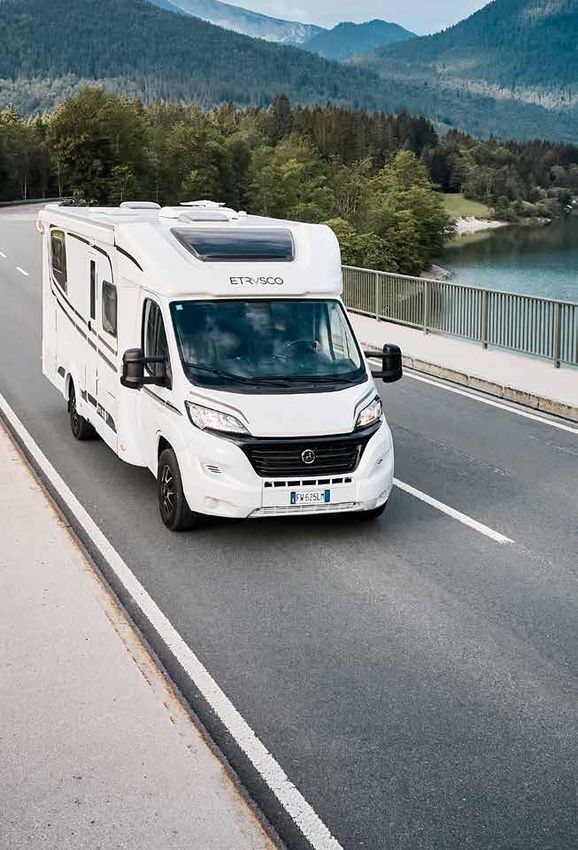

SEMI-INTEGRATED
On the go and at home at the same time.
Ready to conquer the world.
The semi-integrated models from Etrusco:
Versatile and ultimately variable. A top seller
among motorhomes. Everything is included
as standard for your dream holiday.
Feel good and relax: The comfortable lounge,
your own bed, the kitchen, the bathroom,
and a good mood.
2
3
FREEDOM IN ITS MOST
BEAUTIFUL WAY
HIGHLIGHTS
Door with
window
and shelves
Soft-close
systems
in cupboards
and drawers
UPHOLSTERY
Efficient
LED-lights
campania
in the interior
aosta
Spacious garage
with safety locks
and non-slip
mats
emilia
(Option
type X)
4
SEMI-INTEGRATED
T 7400 QBC T 7400 QB T 7400 SBC T 7400 SB
4 4 (5) 4 4 (5)
2 (5) 2 (5) 2 (5) 2 (5)
N 740 cm N 740 cm N 740 cm N 740 cm
3.500 (3.650) 3.500 (3.650) 3.500 (3.650) 3.500 (3.650)
T 7300 SB T 6900 QB T 6900 SB T 6900 DB T 5900 FB
4 (5) 4 4 4 (5) 4
2 (5) 2 (5) 2 (4) 2 (5) 2
N 735 cm N 697 cm N 696 cm N 696 cm N 595 cm
3.500 (3.650) 3.500 (3.650) 3.500 (3.650) 3.500 (3.650) 3.500 (3.650)
5
T 7300 SB
T 7400 QBC
6
A MOBILE LIVING CONCEPT
FOR EXPLORERS BIG AND SMALL.
Enjoy the feel-good atmosphere with
plenty of space for you and all your travel
companions. Style is always at the forefront:
from casual to comfortable. Clean colours
and coordinated materials create a bright
living space. Strong appearance and a
brilliant price-performance ratio.
T 6900 SB
7
SLEEPING
Varied sleeping spaces: Get a great
nights-sleep in the French bed,
double bed or queen-sized bed and
the wake up the next day feeling
refreshed. Right above: A place
to store and hide everything.
8Flexible solutions:
single beds that can be
connected to create a cosy,
cuddly surface. Plus, the
climate-regulating mattresses
ensure a comfortable sleeping
experience.
9KITCHEN
Etrusco makes cooking fun.
The kitchenette: high quality, functional
and ready for everything! Here people eat
and live. The hotspot for social gatherings.
10Do not worry if the
supermarket is not
on your route - the spacious
refrigerator can store
all of your provisions!
1112
T 7400 SB
13SEMI-INTEGRATED
DATA SHEET
T 7400 QBC T 7400 QB
Length / Width / Height cm 740 / 232 / 290 740 / 232 / 290
Internal height cm 210 210
Base engine 2,3 l MJet 2,3 l MJet
Power rating kW (BHP) kW (BHP) 88 (120) 88 (120)
Mass in running order (MIRO) kg 2.998 2.958
Payload kg 502 542
Maximum gross vehicle weight kg 3.500 3.500
Weight upgrade (optional) kg 3.650 (OPT) 3.650 (OPT)
Towing weight 12% braked / unbraked kg 2.000 / 750 2.000 / 750
Tyres 215/70 R 15 CP 215/70 R 15 CP
Wheel base cm 404 404
Homologated seats at 3,500 t max. weight 1) 4 4 / 5 (OPT) 1)
Berths 2 / 5 (OPT) 2 / 5 (OPT)
Bed size overcab / pull-down bed 3) cm 193 x 132 (OPT) 195 x 140/110 (OPT)
Bed size middle bed 3) cm 200x115 (OPT) 210x65 (OPT)
Bed size rear bed 3) cm 190x150 195x150
Fridge / volume freezer l 167 / 29 167 / 29
Water tank incl. boiler (red. Vol.) 2)
/ waste water tank l 116 (20) / 92 122 (20) / 92
Battery / charger Ah/A 95/18 95/18
Power outlets 230 V 5 5
Power outlets 12 V 1 1
USB Socket single / double 2/1 2/1
Heating Combi 6E Combi 6E
Swivelling driver's seat • •
Swivelling passenger seat • •
Storage locker inner dimensions 4)
r in cm 93x90 105x90
l in cm 93x90 65x90
PRICE £ 52.190 52.190
14T 7400 SBC T 7400 SB T 7300 SB T 6900 QB T 6900 SB
740 / 232 / 290 740 / 232 / 290 735 / 232 / 290 697 / 232 / 290 696 / 232 / 290
210 210 210 210 210
2,3 l MJet 2,3 l MJet 2,3 l MJet 2,3 l MJet 2,3 l MJet
88 (120) 88 (120) 88 (120) 88 (120) 88 (120)
2.998 2.963 2.913 2.888 2.883
502 537 587 612 617
3.500 3.500 3.500 3.500 3.500
3.650 (OPT) 3.650 (OPT) 3.650 (OPT) 3.650 (OPT) 3.650 (OPT)
2.000 / 750 2.000 / 750 2.000 / 750 2.000 / 750 2.000 / 750
215/70 R 15 CP 215/70 R 15 CP 215/70 R 15 CP 215/70 R 15 CP 215/70 R 15 CP
404 404 404 404 380
4 4 / 5 (OPT) 1) 4 / 5 (OPT) 1) 4 4
2 / 5 (OPT) 2 / 5 (OPT) 2 / 5 (OPT) 2 / 5 (OPT) 2 / 4 (OPT)
193 x 132 (OPT) 195 x 140/110 (OPT) 195 x 140/110 (OPT) 195 x 140/110 (OPT) 195 x 140/110 (OPT)
200x115 (OPT) 210x65 (OPT) 210x100 (OPT) 210x65/45 (OPT) -
1x205x80 1x210x80 1x205x80 190x150 1x190x80
1x210x80 1x215x80 1x210x80 1x200x80
167 / 29 167 / 29 167 / 29 167 / 29 167 / 29
116 (20) / 92 122 (20) / 92 122 (20) / 92 122 (20) / 92 122 (20) / 92
95/18 95/18 95/18 95/18 95/18
5 5 5 5 5
1 1 1 1 1
2/1 2/1 2/1 2/1 2/1
Combi 6E Combi 6E Combi 6E Combi 6E Combi 6E
• • • • •
• • • • •
93x115 95x110 95x110 75x90 95x110
93x115 (OPT) 75x80 (OPT) 75x80 (OPT) 75x90 75x80 (OPT)
52.190 52.490 52.490 50.890 51.190
Notes p. 38 r = right l = left OPT = optional • = Standard – = not possible
15SEMI-INTEGRATED
DATA SHEET
T 6900 DB T 5900 FB
Length / Width / Height cm 696 / 232 / 290 595 / 232 / 290
Internal height cm 210 195
Base engine 2,3 l MJet 2,3 l MJet
Power rating kW (BHP) kW (BHP) 88 (120) 88 (120)
Mass in running order (MIRO) kg 2.903 2.764
Payload kg 597 736
Maximum gross vehicle weight kg 3.500 3.500
Weight upgrade (optional) kg 3.650 (OPT) 3.650 (OPT)
Towing weight 12% braked / unbraked kg 2.000 / 750 2.000 / 750
Tyres 215/70 R 15 CP 215/70 R 15 CP
Wheel base cm 404 345
Homologated seats at 3,500 t max. weight 1)
4 / 5 (OPT) 1) 4 1)
Berths 2 / 5 (OPT) 2
Bed size overcab / pull-down bed 3)
cm 195 x 140/110 (OPT) -
Bed size middle bed 3)
cm 210x65 (OPT) -
Bed size rear bed 3)
cm 210x140/130 200x135/115
Fridge / volume freezer l 167 / 29 113 / 14
Water tank incl. boiler (red. Vol.) 2)
/ waste water tank l 122 (20) / 92 122 (20) / 92
Battery / charger Ah/A 95/18 95/18
Power outlets 230 V 5 5
Power outlets 12 V 1 1
USB Socket single / double 2/1 2/1
Heating Combi 6E Combi 6E
Swivelling driver's seat • •
Swivelling passenger seat • •
Storage locker inner dimensions 4)
r in cm 65x105 -
l in cm 65x75 (OPT) 65x75
PRICE £ 50.890 47.690
Notes p. 38 r = right l = left OPT = optional • = Standard – = not possible
16DISCOVER
MORE
360°
1718

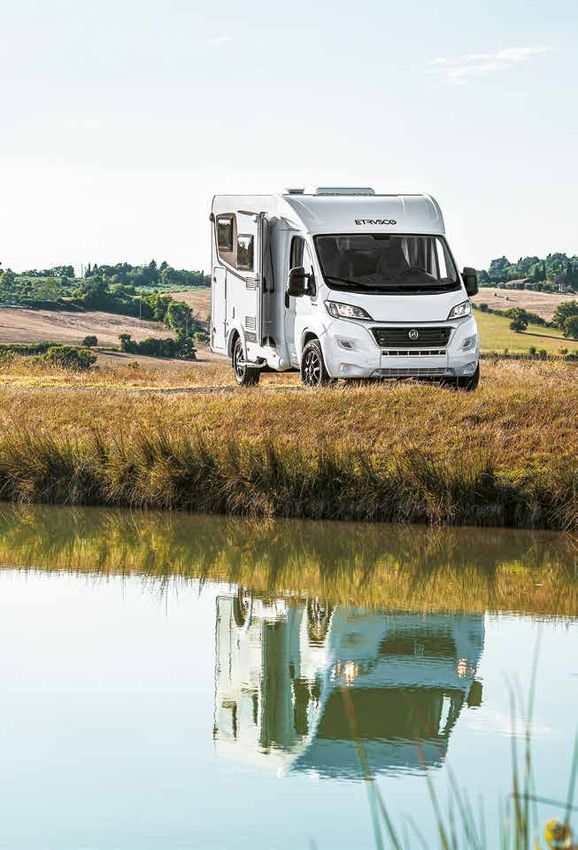

VAN
Holiday anywhere.
The only plan: do not have a fixed plan!
Travel to the most beautiful places
in your Etrusco Van. It is only
2.14 metres wide: no other van
is more agile and compact at the same
time. Enjoy the possibilities
and let desire determine the day.
Ready for departure? Let’s go!
19FREEDOM IN ITS MOST
BEAUTIFUL WAY
HIGHLIGHTS
Practical and
space-saving
bathroom
Soft-close
systems
in cupboards
and drawers
Spacious
refrigerator
UPHOLSTERY
sicilia
Spacious
garage
with safety
emilia
locks (Option
type X)
20V 5900 DB
VAN
V 6600 SB V 5900 DB
4 4
2 2 (3)
N 665 cm N 595 cm
3.500 (3.650) 3.500 (3.650)
2122
V 6600 SB
THE COMPACT SPACE SAVER
The perfect mix of clean design and clever
details. Change between soft and light
colours. A real home-from-home when
travelling. Live generously and sleep
wonderfully. Every centimetre is used
perfectly. Etrusco Vans redefine space.
2324
V 5900 DB
25DISCOVER
MORE
360°
26VAN
DATA SHEET
V 6600 SB V 5900 DB
Length / Width / Height cm 665 / 214 / 271 595 / 214 / 271
Internal Height cm 195 195
Base engine 2,3 l MJet 2,3 l MJet
Power rating kW (BHP) kW (BHP) 88 (120) 88 (120)
Mass in running order (MIRO) kg 2.620 2.550
Payload kg 880 950
Technically permissible total mass kg 3.500 3.500
Possible load (optional) kg 3.650 (OPT) 3.650 (OPT)
Towing weight 12% braked / unbraked 1) kg 2.000 / 750 2.000 / 750
Tyres 215/70 R 15 CP 215/70 R 15 CP
Wheelbase cm 380 345
Homologated seats at 3,500 t max. weight 1) 4 4
Berths 2)
2 2 / 3 (OPT)
Bed size middle bed 4)
cm - 192x65/45
Bed size rear bed 4)
cm 1 x 200 x 70 194 x 140 / 130
1x 195 x 80
200/195 x 194 (OPT)
Fridge / including freezer compartment l 89 / 11 89 / 11
Water tank incl. boiler (red. Vol) 3)/ waste water tank l 116 (20) / 92 116 (20) / 92
Battery charger Ah/A 95/18 95/18
230V sockets 2 (4 OPT) 2 (4 OPT)
12V sockets 1 1
USB socket (double) 1 1
Heater Combi 4 Combi 4
Swivelling driver and passenger seats • •
Dimensions of storage space flap 5)
/ r in cm 70 x 105 65 x 110
storage compartment flap W x H
l in cm 70 x 75 (OPT) 45 x 85 (OPT)
PRICE £ 40.790 38.990
Notes p. 38 r = right l = left OPT = optional • = Standard – = not possible
27OVERCAB
Families are welcome: discover
the world at your own pace.
Enjoy freedom that is full of comfort
and extra space for living.
With the alcove from Etrusco,
always be where life is writing new
stories. Let yourself be surprised
on detours and byways.
For memories that last.
2829
FREEDOM IN ITS MOST
BEAUTIFUL WAY
HIGHLIGHTS
Comfortable cab
through fold-up
overcab bed
Soft-close
systems
in cupboards
and drawers
UPHOLSTERY
Spacious
garage campania
aosta
Comfortable
and spacious
bathroom emilia
(Option
type X)
30A 7300 DB
OVERCAB
A 7300 DB A 6600 BB
4 (6) 4 (6)
6 6
N 725 cm N 670 cm
3.500 (3.650) 3.500 (3.650)
3132
A 6600 BB
AFFORDABLE LUXURY
Impressive and inviting. Enormous space
for freedom. Today here, tomorrow there.
Comfort everywhere. A clean, modern
living area in grey and natural tones conveys
coolness. A mix of materials, as brilliant
as the view. Etrusco Alcove models –
for the most exciting tour group in the world:
your family.
33A 7300 DB
TIME FOR DREAMS.
One above the other in the
bunk beds or next to each
other in the spacious
double bed. Plus, extra
sleeping space above
the cab. Relax and watch
the stars.
34A 6600 BB
35OVERCAB
DATA SHEET
A 7300 DB A 6600 BB
Length / Width / Height cm 725 / 232 / 314 670 / 232 / 314
Internal height cm 210 210
Base engine 2,3 l MJet 2,3 l MJet
Power rating kW (BHP) kW (BHP) 88 (120) 88 (120)
Mass in running order (MIRO) kg 2.976 2.926
Payload kg 524 574
Maximum gross vehicle weight kg 3.500 3.500
Weight upgrade (optional) kg 3.650 (OPT) 3.650 (OPT)
Towing weight 12% braked / unbraked kg 2.000 / 750 2.000 / 750
Tyres 215/70 R 15 CP 215/70 R 15 CP
Wheel base cm 404 404
Homologated seats at 3,500 t max. weight 1)
4 / 6 (OPT) 1)
4 / 6 (OPT) 1)
Berths 6 6
Bed size overcab 3) cm 210x160 210x160
Bed size middle bed 3)
cm 185x100 185x100
Bed size rear bed 3)
cm 210x150/135 1x210x85
1x205x80
Fridge / volume freezer l 167 / 29 167 / 29
Water tank incl. boiler (red. Vol.) 2)
/ waste water tank l 122 (20) / 92 122 (20) / 92
Battery / charger Ah/A 95/18 95/18
Power outlets 230 V 4 4
Power outlets 12 V 1 1
USB Socket single / double 2/1 -/1
Heating Combi 6E Combi 6E
Swivelling driver's seat - -
Swivelling passenger seat - -
Storage locker inner dimensions r in cm 105x120 65x120
l in cm 105x80 (OPT) 60x100 (OPT)
PRICE £ 51.790 49.490
Notes p. 38 r = right l = left OPT = optional • = Standard – = not possible
36DISCOVER
MORE
360°
37NOTES
The technically permissible total weight and the permissible axle loads must not be exceeded.
The mass in running order was determined according to VO (EU) 1230/2012, but taking into account the filling of the
fresh water tank, a full aluminum gas bottle (15 kg) and a cable drum (4 kg).
When specifying prices and technical Data may be subject to misprints and errors.
FOOTNOTES SEMI-INTEGRATED FOOTNOTES VANS FOOTNOTES OVERCAB
1) General information on the 1) General information on the 1) General information on the
permitted number of people: permitted number of people: permitted number of people:
With the installation of factory With the installation of factory With the installation of factory
chassis options, special chassis options, special chassis options, special
equipment and packages, the equipment and packages, the equipment and packages, the
permitted number of people may permitted number of people may permitted number of people may
be reduced or an increase may be be reduced or an increase may be be reduced or an increase may be
necessary (for additional weights, necessary (for additional weights, necessary (for additional weights,
see optional equipment price list). see optional equipment price list). see optional equipment price list).
Approval for more than 4 people 2) When ordering the option “Bed Approval for more than 4 people
is only possible in conjunction conversion in the seating area” for is only possible in conjunction
with a safety package (Overcab the V5900DB, we would like to with a safety package (A models)
models) or ordering a 5th seat. point out that the wardrobe in the or ordering a 5th seat.
2) Capacity of the fresh water tank living room will be replaced by a 2) Capacity of the fresh water tank
in Meaning VO (EU) 1230/2012 side seat including an overhead in Meaning VO (EU) 1230/2012
taking into account the travel locker. taking into account the travel
limitation (valve on the fresh 3) Capacity of the fresh water tank limitation (valve on the fresh
water tank): 20 liters (Vehicle in Meaning VO (EU) 1230/2012 water tank): 20 liters (Vehicle
filling) taking into account the travel filling)
3) Please ask your trading partner limitation (valve on the fresh 3) Please ask your trading partner
for bed dimensions, subject to water tank): 20 liters (Vehicle for bed dimensions, subject to
change filling) change
4) Please ask your trading partner 4) Please ask your trading partner 4) Please ask your trading partner
for dimensions of storage space for bed dimensions, subject to for dimensions of storage space
flap / storage compartment flap, change flap / storage compartment flap,
subject to change 5) Please ask your trading partner subject to change
for dimensions of storage space
flap / storage compartment flap,
subject to changeSTANDARD SPECIFICATION | 2021 |
CHASSIS / BASE VEHICLE CONSTRUCTION
• Fiat Ducato, 2.3 Multi-Jet with 88 kW / • 7 year tightness guarantee*
120 PS, multi-jet direct injection, emission • Outer roof and rear skin made from
standard EURO 6 durable GRP (glass fibre reinforced plastic)
• Diesel tank 75 ltr. •R oof and wall thickness 34 mm,
• Broad gauge chassis floor thickness 41 mm
• Front wheel drive •S ide wall outer skin made of smooth
• Daytime running lights integrated in the aluminum sheet
standard headlights •E legant three-part rear light bracket
• Driver airbag with integrated lights
• ABS, EBD, ESP incl. ASR and hill holder •H igh-quality body door with window
and storage compartments as well as an
• Disc brakes, convection heating, ergonomic handle position inside and
tachometer, power steering, immobiliser, outside (except V 5900 DB / V 6600 SB)
3-point seat belt
•F ly screen door (one-piece)
• Electric windows and central locking in
the cab for semi-integrated vehicles •D ouble-glazed vent window with
blackout blind and fly screen
• Front bumper painted in body color (except toilet room window)
• Fix & Go kit breakdown set •R oof hood in milk plexiglass
• Cup holder in the center console with fly protection
• Comfortable driving characteristics •E lectric step
thanks to rear and front axle stabilisers •G enerous rear garage with lowered frame,
• Steel rims 15“ including wheel covers anti-slip surface, securing eyes and
• Tablet holder and USB socket interior lighting (depending on the model)
• Driver / passenger seat in living area •R ear garage payload up to 150 kg
fabric with double armrests •P anoramic roof light
• Driver / passenger seat rotatable •C lear glass roof light 40 x 40
on Semi-integrated models •M irror with coat hooks and indirect
• Height and tilt adjustment for the driver's illumination
and passenger seat (except Van: optional •C ab sunroof (except Van)
for passenger seat)
• Manual cab air conditioning (except Van)
LIVING/SLEEPING COMFORT
• Traction Plus (except Van)
•E rgonomically shaped upholstery for
• Front passenger airbag (except Van) more seating comfort
• Electric and heated mirrors (except Van) •C osy L-shaped seating group with free-
• Cruise control (except Van) standing, rotatable and swiveling table in
• DAB radio preparation with speakers the T 7400 QB / T 7400 SB
(except Van) • t able top extension (except T 7400 QB /
• Steering wheel remote control for radio T 7400 QBC / T 7400 SBC / T 7400 SB /
(except Van) A 7300 DB / A 6600 BB)
• Radio pre-wiring including speakers •C osy lounge seating group with a free-
(except Van) standing table that folds down on the T
7400 QBC and T 7400 SBC
•H igh quality mattresses with increased
comfort in all beds
*The Etrusco tightness guarantee conditions apply
40• Removable and washable mattress covers ITCHEN / WATER SUPPLY
K
• Generous storage spaces and storage •E rgonomically arranged kitchen
options with a generous work surface
• Ventilated storage cupboards and chests •S pacious drawers with Servo-Soft in the
• Comfortable overcab beds with side kitchen block (depending on the model)
window on the right, 66 cm headroom •T hree-flame cooker with cast iron pan
(A 6600 BB / A 7300 DB) support and glass cover in black (except
•F oldable overcab bed for better access to T 7400 QBC and T 7400 SBC and Van)
the driver's cab (A 6600 BB / A 7300 DB) •L arge round sink made of stainless steel
• Safety nets on the overcab bed with glass cover in black with cover
(except van)
• Tela Sand & White furniture finish
•W ater tank including boiler 122 l,
• Nautic Breeze floor waste water tank 92 l
• Bed conversion single to double bed • 167 l refrigerator with 29 l freezer
(for SB models except V 6600 SB) compartment (113 l refrigerator with 14 l
• Carpet (except Van) freezer compartment in T 5900 FB / V
5900 DB / V 6600 SB)
ON-BOARD TECHNOLOGY • Indirect LED lighting under the worktop
• LED lighting integrated under the • Bin
overhead lockers
• LED living room light BATHROOM
• Indirect LED lighting in the room divider •V
ario-bathroom in the T 6900 SB,
• LED outdoor light T 7300 SB, V5900 DB & V6600 SB
• Powerful, maintenance-free AGM body •S
pacious bathroom with separate shower
battery (95 Ah) opposite in the T 6900 DB / QB, T 7400
• Board control panel with details of all fill SB / QB / QBC / SBC
levels and battery capacities •B
athroom with bench toilet and
• Automatic connection / disconnection integrated shower room in the T 5900 FB
for starter and body batteries as well as •C
assette toilet with electric pump and
refrigerator swivel seat (except T 5900 FB)
• Electric charger for body and vehicle •R
oof hood with integrated insect screen
battery 12 V / 18 A (depending on model)
• CEE external connection for 230 V •L
arge mirror surfaces
with automatic circuit breaker •C
lothes rail in the wet room
• FI circuit breaker •F
lex rail system with 2 hooks
• Power outlet in rear garage (except Van) (except T 6900 SB, T 7300 SB,
A 6600 BB and A 7300 DB)
EATING / GAS SUPPLY
H •S
hower cubicle lining (except Van)
• Gas bottle locker for two 11 kg gas bottles •W
ooden cover on shower floor
(except Van)
• Combi 6E with electric heating element
(semi-integrated models, except Van)
• Combi 4 heating with integrated boiler TEXTILE COMBINATION
in the vans FOR SEMI-INTEGRATED & OVERCAB
• Gas shut-off valves easily accessible •C
ampania (brown)
and centrally located •A
osta (grey)
• Oven (except Van)
TEXTILE COMBINATION FOR VANS
• Sicilia (dark grey / black)
41PACKAGE FOR SEMI-INTEGRATED,
VAN AND OVERCAB
CHASSIS COMFORT CHASSIS COMFORT PACKAGE + 10 KG
PACKAGE Original Fiat 16 "alloy wheels
1,235£
Steering wheel & gear knob in leather
Instrument panel with chrome rings
Dashboard with applications (Techno Trim)
(INCL. 20% VAT)
LED daytime running light strips
Black frame headlights
Gloss black radiator grille
PACKAGES FOR VAN
BASIC PACKAGE BASIC PACKAGE + 24 KG
882£ Panorama roof hood over kitchen 5)
Clear glass roof hood 40 x 40
(INCL. 20% VAT) Shower room cladding *)
Mirror with indirect lighting and coat hooks 6)*)
Wooden slatted shower *)
Captain Chair with covers *)
Additional socket in the overhead locker
above the kitchen block *)
Socket in the garage *)
-
STANDARD FOR SEMI-INTEGRATED,
AND OVERCAB
CHASSIS PACKAGE CHASSIS PACKAGE + 30 KG
2,029£
Manual air conditioning in the drivers cab
Passenger airbag
Electric and heated exterior mirrors *)
(INCL. 20% VAT)
Cruise control
Radio preparation with speakers & DAB antenna *)
Antenna integrated in the exterior mirror
Height-adjustable passenger seat *)
Steering wheel remote control for radio
Traction +
-
STANDARD FOR SEMI-INTEGRATED,
AND OVERCAB
*) Forced option if package is not selected
42EDITIONS
●O
verhead locker door design
in high gloss magnolia
● Emilia textile combination
●D
river seats with embroidered logo
and Type x lettering
● Type X exterior design
43ACCESSORIES | 2021 |
T 7400 QBC
T 7400 SBC
A 6600 BB
V 5900 DB
T 6900 QB
A 7300 DB
T 6900 DB
T 7400 QB
V 6600 SB
T 6900 SB
T 5900 FB
T 7400 SB
T 7300 SB
£ Kg
CHASSIS
FIAT 2.3 l Mjet - 103 kW (140 BHP) - EURO 6 839 - O O O O O O O O O O O O O
FIAT 2.3 l Mjet - 118 kW (160 BHP) - EURO 6
2,649 15.5 O O O O O O O O O O O O O
including start & stop function and booster
Fiat 16 "steel rims for light chassis with wheel
249 16 O O O O O O O O O O O O O
covers
Fiat 16 "alloy wheels 475 10 O O O O O O O O O O O O O
Weight increase to 3,650 kg Fiat
219 - O O O O O O O O O O O O O
(without changing the chassis)
9-speed automatic transmission
(not in conjunction with 120BHP and only
2,779 45 O O O O O O O O O O O O O
in conjunction with Chassis Comfort
Package or 16" aluminum rim) 8)
Eco Pack Start & Stop function incl. booster
(not in conjunction with 120PS, 140BHP 660 0.5 O O O O O O O O O O O O O
optional, 160BHP and 178PS series)
EXTERIOR CONSTRUCTION
Framed window 529 5 O O O O O O O O O – – O O
Design application rear 355 4 O O O O O O O O O – – O O
Design application for alcoves 355 6 – – – – – – – – – – – O O
Sewage tank isolated 140 8 O O O O O O O O O O O O O
2. Exterior storage space flap (size depending
319 3 • • O O O • O O – O O O O
on model)
Rear supports (2 pcs.) 265 6 O O O O O O O O O O O O O
INTERIOR / LIVING ROOM CONSTRUCTION
Bed conversion in the seating area 1) 265 5 O O O O O O – O – – O • •
Bed conversion from single bed
265 5 – – • • • – • – – O – – –
to double bed
Lift-up bed with Clima-Plux elements 1,299 44 O O O O O O O O – – – – –
Electrically height-adjustable queen-size bed 882 30 O O – – – – – – – – – – –
5th seat on the side bench with seat belt
352 15 – O – O O – – O – – – – –
(against the direction of travel) 2 + 3)
Safety package: 2 headrests
and 2 lap belts middle. Seat against the
309 6 – – – – – – – – – – – O O
direction of travel (permissible number
of people results from vehicle weight3)
Carpet chained 229 5 • • • • • • • • • O O • •
44T 7400 QBC
T 7400 SBC
A 6600 BB
V 5900 DB
T 6900 QB
A 7300 DB
T 6900 DB
T 7400 QB
V 6600 SB
T 6900 SB
T 5900 FB
T 7400 SB
T 7300 SB
£ Kg
ON-BOARD TECHNOLOGY
Second AGM body battery 95 Ah 265 27 O O O O O O O O O O O O O
Combi 6 E heater
565 2 – – – – – – – – – O O – –
(with electric immersion heater) V
Electric floor heating in the accessible area 440 6 O O O O O O O O O O O O O
12 V TV pre-cabling including
175 3 O O O O O O O O O O O O O
flat screen holder
Cable preparation for reversing camera 131 1 O O O O O O O O O O O O O
Extractor hood 219 3 O O O O O O O O O – – O O
Cable preparation for solar system 131 2 O O O O O O O O O O O O O
PACKAGES
Basic Package 4) 882 24 • • • • • • • • • O O • •
Chassis Package 2,029 30 • • • • • • • • • O O • •
Chassis Comfort Package 1,235 10 O O O O O O O O O O O O O
Type X T + A 1,059 – O O O O O O O O O – – O O
Type X V 617 – – – – – – – – – – O O – –
OTHERS
Registration documents 165 --- ℗ ℗ ℗ ℗ ℗ ℗ ℗ ℗ ℗ ℗ ℗ ℗ ℗
• Standard equipment O Option ℗ Compulsory - Not possible
1) When ordering the bed conversion option in the seating area of the
V 5900 DB, we point out that the wardrobe in the living room will be replaced
by a side seat including an overhead locker. With the integrated, the bed is accessed via the side bench.
2) Inside storage space flap is omitted when ordering 5th seat on side bench with seat belt.
3) General Note on the permitted number of people: The permitted number of people is adjusted taking into account the total weight.
4) If the Basic Package is not desired, the shower room cladding, mirror with indirect lighting and coat hook and the socket in the overhead locker and
in the garage are mandatory options. The driver's door is also a mandatory option for the integrated
5) Panorama roof hood mounted over the seating area in the T 5900 FB and T 6900 QB layouts.
6) Indirect lighting in the entrance area instead of the cloakroom mirror. T 5900 FB, A 7300 DB, A 6600 BB
7) The Captain Chair without the Basic Package can only be ordered in conjunction with the height adjustment front passenger seat or the Chassis
Package.
8) Combination of 9-speed automatic transmission and Fiat 2.3 Mjet 140 PS only in conjunction with Eco Pack
All prices are non-binding recommended sales prices including VAT ex works.
Prices for special installations only apply to new series production. The specifications for dimensions and weights are approximate values. The dead
weight corresponds to the standard version without special equipment. The specified payload & permitted number of people is reduced when
installing special equipment.
45MODELS | 2021 |
SEMI-INTEGRATED
T 7400 QBC T 7400 QB
232 cm
232 cm
740 cm 740 cm
T 7400 SBC T 7400 SB
232 cm
232 cm
740 cm 740 cm
T 7300 SB T 6900 QB
232 cm
232 cm
735 cm 697 cm
T 6900 SB T 6900 DB
232 cm
232 cm
696 cm 696 cm
T 5900 FB
232 cm
595 cm
46VAN
V 6600 SB V 5900 DB
214 cm
214 cm
665 cm 595 cm
OVERCAB
A 7300 DB A 6600 BB
232 cm
232 cm
725 cm 670 cm
47THANKS TO: Comune di Piombino Comune di Rosignano Lago di Bulera Comune di Volterra Toscana Film Commission
design in motion CREDITS | CONCEPT | DESIGN | PHOTOGRAPHY | Lorenzo Mennonna Studio Subject to technical and design modifications. The images may show alternative designs and optional equipment for which additional costs may arise. They may also show furnishing items (e.g. tableware) which are not included in the retail price and are not sold by Etrusco. Some of the images in this catalogue show preproduction models instead of final standard version vehicles (status as of November 2020). Despite careful editorial control this catalogue may contain errors. The colours shown are subject to the limitations of the printing process and cannot be regarded as binding. Your local retailer will be pleased to give you more information about product modifications which have been made after the printing of this catalogue. If you have any questions please do not hesitate to contact us or your local retailer. Etrusco Tel +49 7561 9097-450 | info@etrusco.com www.etrusco.com
UK
UK - 2020
design in motion
www.etrusco.com
A BRAND OF THE ERWIN HYMER GROUP.You can also read
