Robotics Engineering Notebook - VEX Robotics
Robotics
 Engineering
  Notebook
Team name       TNT
Team number    70145A
Season        Ringmaster
Start date    15/12/2017
End date
Book number   1 (English version)

                                    1
Robotics Engineering Notebook - VEX Robotics
TEAM PHOTOS

➢      Katya (12 y.o., 7th grade) My hobby is robotics and drawing. I spend
a lot of time being engaged in these activities. I like to draw portraits in
fantasy style and fantastic animals.
➢      Artem (13 y.o., 7th grade) I'm engaged in programming and
robotics. I like sports, ride bycicle and play football.
➢      Sasha (11 y.o., 5th grade) Rubik's Cube is my hobby. I have large
collection of Rubik's Cubes: 3x3 Rubik's Cube, Magic Rubik's Cube, Rubik's
Pyramid. My record 3x3 Rubik's Cube is 43 seconds.
➢      Olya (14 y.o., 7th grade) My hobbies are dancing and programming.
And I collect teddy bears and unicorns. I have about 60 toys in my collection at
this moment.

                                                                                   2
Robotics Engineering Notebook - VEX Robotics
PROJECT INFORMATION
Page   Project     development                Date

4      Planning                          15.12.2017
6      Study the rules                   18.12.2017
10     Modeling of the construction      20.12.2017
12     Programming                       22.12.2017
15     Testing                           25.12.2017
16     Modeling of the robot             27.12.2017
20     Programming                       17.01.2018
24     Modification of the robot         20.01.2018
26     Programming                       22.01.2018
28     Testing                           24.01.2018
31     Programming                       03.02.2018
35     Modeling of the robot             05.02.2018
40     Programming                       10.02.2018
43     Operators’ practice               12.02.2018
45     Autonomousperiod debugging        16.02.2018
46     Operators’ practice               19.02.2018
47     Modeling of the robot             21.02.2018
48     Presentation of the project       26.02.2018
50     Imitation of the competition      05.03.2018
52     MOSCOW CHAMPIONSHIP               07.03.2018
62     Modeling of the robot

                                                      3
Robotics Engineering Notebook - VEX Robotics
15.12.2017      “RINGMASTERS” SEASON TIMETABLE 2017/2018
Week       Date          General Tasks                    Job
 0     12.12.2017                              Assembling of the field
 1     18-          Consideration of           Brain storm:
       23.12.2017   season’s timetable.           - Design of the robot
                    Planning of the time          - Field’s situations
                    limits.                           modeling
                                                  -
 2     25-          Consideration of           Brain storm:
       29.12.2017   season’s timetable.           - Design of the robot
                    Planning of the time          - Experiments with
                    limits.                           robot chassis and
                                                      manipulators
 3     08-          Acquaintance with 3D       Programming and testing of
       13.01.2018   Snap CAD soft ware         the robot (Tele-Op regime)

 4     15-          Modeling using 3D Snap     Correction of robot’s
       20.01.2018   CAD. Correction of the     design.
                    aims of the project.       Programming and testing of
                    Correction of the          the robot (Tele-Op regime)
                    timetable based on the
                    progress.
 5     22-          Modeling using 3D Snap     Brain storm:
       27.01.2018   CAD. Consideration of           - Autonomous period
                    possibility to use                 strategy
                    gyroscope.                      - Programming
 6     29.01-       Modeling using 3D Snap     Testing of the robot with
       03.02.2018   CAD. Analysis of robot’s   various levels of battery.
                    presentation               Tele Op practice 60 seconds
                    requirements.              (Artem, Sasha).
                                               Autonomous practice
                                               (Katya, Olya).
 7     05-          Team’s robot               Tele Op practice 30
       10.02.2018   presentation,              seconds(Artem, Sasha).
                    engineering book and       Filling of the practical field
                    robot design               tables (Tele Op regime).
                                               Programming of the
                                               autonomous period (Katya,
                                               Olya).

                                                                                4
Robotics Engineering Notebook - VEX Robotics
8     12-           Team’s robot             Tele Op practice 30 seconds
       17.02.2018    presentation,            (Artem, Sasha). Filling of the
                     engineering book and     practical field tables (Tele
                     robot design             Op regime). Programming
                                              of the autonomous period
                                              (Katya, Olya).

 9     19-           Modeling of              Modeling of different
       24.02.2018    communication with       strategies in Tele Op period
                     experts                  (Artem, Sasha). Tele Op
                                              practice 30 seconds(Artem,
                                              Sasha). Filling of the
                                              practical field tables (Tele
                                              Op regime). Programming
                                              of the autonomous period
                                              (Katya, Olya).

 10    26.02-        Presentation of the      Testing.
       03.03.2018    project to the pupils of
                     the school. Imitation of
                     competitions. Discussion
                     of the best attempts and
                     analysis of problems
                     accrued.

 11    07.03-        COMPETITIONS PROFEST
       09.03.2018    2018 Moscow

DIVISION OF DUTIES IN THE TEAM:

Robot design – all team members.
Engineering book – Olya
3D modeling – Artem, Sasha
Programming – Katya, Olya
Tele Op operators - Artem, Sasha

                                                                               5
Robotics Engineering Notebook - VEX Robotics
18.12.2017                         TASKS:
- studding rules in Russian;
- discussion of the score calculation.

                  CONSIDERATION AND REALIZATION:

   1) STUDING RULES.

                             2            3                  2
                      1             1              1             1

    7

                4                   5                  6
THE AIM OF THE GAME:

1) stacking of the rings onto Low and High Posts (1, 2, 3)
2) emptying of the Starting Pegs (4, 5, 6)
3) emptying of the bonus tray(7).

                                                                     6
Robotics Engineering Notebook - VEX Robotics
2) COMPARING OF THE RULES IN RUSSIAN AND IN ENGLISH

We decided to compare the rules in Russian and in English.

The translation inaccuracy was found in Russian version:

Dimensions of the robot in English version 11”x20”, in Russian version 13”x24”
1” = 2,54 cm
11” = 27,94 cm (rules indicates abt. 280 mm)
20” = 50,8 cm

                                                                                 7
Robotics Engineering Notebook - VEX Robotics
3) SCORE CALCULATION ANALYSIS

                      The ring – plastic object in three colors:
                      -     Blue
                      -     Green
                      -     Red
                      Diameter of the ring – 76 mm
                      Inner diameter – 51 mm
                      Height of the ring – 25 mm

                                    Each VEX IQ Challenge Ringmaster
                                             matchincludes:
                                         Sixty (60) rings:
                                     -   20 of each color
                                     -   15 in Bonus Tray
                                     -   9 on Starting Pegs
                                     -   36 on the field in specified
                                         places.

1. Floor                  2. Low Posts            3. High Posts

4. Bonus Tray       5. Horizontal Posts           6. Starting Pegs

                                                                        8
Robotics Engineering Notebook - VEX Robotics
MODELING OF THE SITUATIONS AT THE AND OF THE MATCH.
Examples of score calculation.

1) A Released Bonus Tray is worth       1)An Emptied Starting Peg is worth
twenty (20) points                      five (5) points.
20 points                               3*5 = 15 points
2)An Emptied Starting Peg is worth      2) A Ring Scored in the Floor Goal is
five (5) points.                        worth one (1) point.
3*5 = 15 points                         1*1=1 points
3)A Ring Scored in the Floor Goal is    3) 4)Rings Scored on a Uniform Post
worth one (1) point.                    are worth double their normal value
6*1=6 points                            (i.e. ten (10) points each)
4)Rings Scored on a Uniform Post are    3*10=30 points
worth double their normal value (i.e.
ten (10) points each)
3*10=30 points
Total score:           71 points                               46 points

                                                                                9
Robotics Engineering Notebook - VEX Robotics
20.12.2017                             TASKS:
-     Discussion of the robot design

                  CONSIDERATION AND REALIZATION:

The results of the team’s brain storm:

                                           According to the rule R2 “Game
                                           guide” the robot-participant of
                                           VEX IQ Challenge Ringmaster must
                                           be equipped with the following
                                           systems:

                                           System 1: moving chassis

                                           Our conclusion:the robot must be
                                           equipped with wheel chassis.

      Olya’s drawing

                                            System 2: controller block and
                                            battery

                                           Our conclusion:
                                           the robot must be equipped with
                                           the original VEX IQ controller
                                           block, battery and motors. The
                                           controller block has to be installed
to provide easy battery change (Katya's note).

      Artem’s drawing

                                                                                  10
System 3: additional
                                                        equipment which
                                                        allows to manipulate
                                                        the objects and
                                                        overcome obstacles.

      Katya’s drawing

                                            Our conclusion:
                                            The robot must be equipped with
                                            a manipulator to empty starting
                                            pegs (3x5=15 points).

                                            The manipulator has to be able to
                                            move up and down to provide
                                            possibility to move rings from
                                            Starting Pegs to final Vertical or
                                            Horizontal Posts.

      Sasha’s drawing
The robot must be equipped with a system allows to collect the rings from the
surface of the field. The system has to include transporting and discharging
facilities.

                                PLANNING.

   1. To create preliminary design of the robot.
   2. To test the first model.

                                                                               11
22.12.2017                    TASKS:
  - to create the prototype
  - to perform testing

                 CONSIDERATION AND REALIZATION:

   1) It was decided to create the
chassis on the basis of previous robot.

The manipulator was designed with the
use of Clawbot IQ scheme.

                                          We are using 4 VEX motors,
                                          2 wheels with rubber tires,
                                          2Omni wheels.

                                                                        12
2) Programming.

Our first prototype has 4 motors:
motor 6 – left motor and motor 12(right motor) are intended for moving of
the robot.

Motor 5 – motor for up and down moving of the scoop.

Motor 10– scoop motor, to pick up the ring with use of scoop from the
vertical holders.

The first test was carried out in Tele Op.

Control:

ChA and ChB (left stick) – moving of the robot
ChD (right stick) – holding of the rings
BtnLDown and BtnRDown – moving of the scoop

Not used:
BtnFDown, BtnEAp, BtnEDown, ChC (right stick).

                                                                        13
The program was created in Robot C for VEX IQ, version 4.55.
 This is our first experience of programming of the Tele Op.

                                                               14

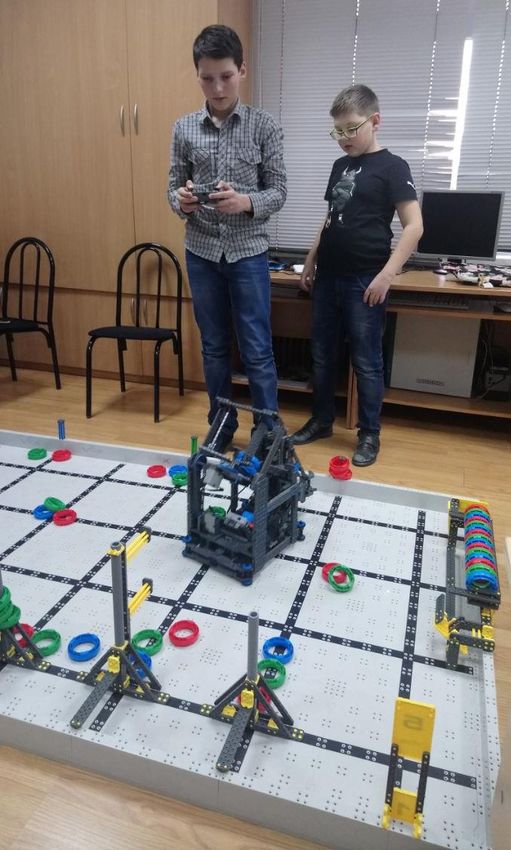

3) Testing of the robot

                                        Testing of the prototype on the
                                        game field shows:

                                        - The chosen control buttons
                                        are not comfortable for the
                                        operator

                                     - The design of the scoop does
                                     not allow to empty theStarting
                                    Pegsand to remove the rings to
                                    the final Vertical or Horizontal
                                    Posts.

                                    The team’s conclusion:
                                    The prototype has to be
                                    changed widely.

Sasha and Artem
started to study Snap CAD
(virtual design tool)

                            PLANNING:
- To create new Robot design
- To study Snap CAD

                                                                          15
27.12.2017                           TASKS:
Creation of the new design considering testing results.

                  CONSIDERATION AND REALIZATION:

1)   Design of the chassis: doubled wheels with rubber tires are installed for
the best friction with the surface of the field. Omni wheels are used as
supporting.

                                            The VEX IQ Controller is installed
                                            under angle for more comfortable
                                            battery replace.

                                            The gyroscope sensor is installed
                                            on the wheels' axis of rotation.

Main characteristics:
wheel's diameter- 6,37 cm., the track (transverse distance between outer
edges of the wheels) – 16.5 cm, the wheels’ base (the distance between the
centers of the front wheel and rear wheel) – 18 cm.

   2) Design of the rotating system (revolver system):

   the revolver is needed for sorting of the rings and for placing them onto
   low and high Posts (vertical and horizontal).

                                            The chain is used for moving of
                                            the revolver system up and down.
                                            The rotation of the revolver is
                                            possible by using of the gear.

                                            The gear ratio is 60/12=5/1 (5:1)

                                                                               16
The maximum number of rings
                                         available to be placed on one holder
                                         of the revolver is 5.

                                         But in aims of safe transportation and
                                         placing into thestacking posts the
                                         number of rings must be not more
                                         than 4.

  It is considered that revolver system will be used for placing of the rings
onto horizontal posts. But it can be used for low vertical posts too if necessary.

As per Artem's idea the revolver will be charged with rings using vertical
conveyor.

3)    Design of the vertical conveyor for collecting of the rings.

                                        The conveyor is constructed with use of
                                     crawler.
                                        To hold the rings on the conveyor 2x1
                                     Offset corner connectors are used.
                                        The motor rotates crawler with use of
                                     star wheels and chain.

                 The second prototype of the robot is ready.

                                                                                  17
We tested the system of rings’ collection by moving the conveyor by
hand.We witnessed that the idea is working! So, we can move further.

   Sasha also suggests to try to design the manipulator to empty the starting
pegs .

4)     Design of the manipulator.

                                                    To empty the starting pegs
                                                the manipulator has been
                                                assembled.

                                                    We used idea of double
                                                action manipulator and the
                                                gears were used to close the
                                                claw   and    lift up    the
                                                manipulator.

     But the claw was not able to hold the rings firmly due to backlash.

                                                    The second idea was to use
                                                elastic elements to hold the
                                                rings.

    The positive aspect is that there are no moving parts in this design.
    The negative moment is the need to position the robot against the
starting pegsvery precisely.

                                                                                18
Testing the design, we faced with
                          problem: even in case of proper position in
                          the robot is not able to grab the rings
                          without strong resistance.

                              To solve this problem, we decided to
                          install shorter rubber elements.

                              As result the rings were picked up
                          successfully but part of them was lost in
                          transportation.

                                   Vertical     moving     of    the
                                 manipulator’s arm.

                                     The length of the manipulator is
                                 27.5 cm.

                                    It was decided that downshift is
                                 required with such a long arm.
                                    The gear ratio is 36/12=3/1
                                 (3:1)
                                    As result the new design was
                                 ready.

                          PLANNING:
- To debug the Tele-Op program
- To test the robot

                                                                    19
17.01.2018                      TASKS:                   Руководство по игре
  - Debug the program                                     В конструкции
                                                         одного робота может
  - Testing of the robot
                                                         быть использовано не
                                                         более     шести      (6)
                                                         интеллектуальных
     CONSIDERATION AND REALIZATION:                      моторов VEX IQ.

  1) Appointment of the motors

   Port           Description            Name        Reverse        Control

              Rotating of the        revolverMotor               BtnUp+
Motor3        revolver drum                                      BtnDown-

              Moving of the          liftMotor       +           Riht stick ChD
Motor4        revolver system up
              and down

              Moving of the        conveyor                      BtnEUp-
Motor5        vertical conveyor to                               BtnEDown+
              pick up the rings

              Moving the arm of      scoopMotor      +           BtnLUp-
Motor10       the manipulator up                                 BtnLDown+
              and down

              Moving of the robot leftMotor                      Left stick ChA
Motor6        (left motor)                                       and ChB;
                                                                 BtnFUp (slow)

              Moving of the robot rightMotor         +           Left stick ChA
Motor12       (right motor)                                      and ChB
                                                                 BtnFUp (slow)

                                                                                    20
2) New program

                 21
3) Testing of the robot

   We have tested the robot in Tele-Op regime first.
   The appointment of the buttons is comfortable for operator as per Sasha’s
opinion. Artem has found the problem of robot's self moving back without
command.
                   The field tactics suggested by Sasha:

   1) Emptying of theblue Starting Peg
   2) Placing of three blue rings onto Low Post#1
   3) Emptying of the green Starting Peg
   4) Placing of three green rings onto final vertical Low Post#2
   5) Emptying of the red Starting Peg
   6) Placing of three red rings onto final vertical Low Post #3
   7) Bonus tray opening

During the first attempts the following was done:

   1) One Starting Pegempted: 5
   2) 3 rings of the same color on the final vertical low holder: 30
   3) Bonus tray empted: 20

      Total score 55

                                                                           22
Operator      Time                           Attempts

                        1         2          3          4         5
Sasha       60 sec.     55        0          55         59        35

Artem       60 sec.     55        55         61         55        31

    Artem has moved 6 rings by hull of the robot into the floor zone at
attempt #3.
    As result he received +6 points (total 61).

              The last attempt was performed in accordance with
                     “Game guide” changing the operators.

  Руководство по игре
   В состав каждой команды входят два Оператора. Операторы не могут
  управлять Роботом больше тридцати пяти (35) секунд общего времени Матча.

Total score is 69 points!
Good job guys!

                        THE TEAM’S CONCLUSION:

 1)     For better placing of the rings onto Low Posts the design of the
 manipulator must be changed

 2)     The program needs to be changed in the aims of automation of
 conveyor and revolver system.

                                                                             23
20.01.2018                         TASKS:
   - Changing of the design of the manipulator.
   - Debug and development of Tele-Op regime program

                 CONSIDERATION AND REALIZATION:

   1) Upgrade of the manipulator
The design was changed by Sasha with use of Snap Cad. The angle bars were
used for better holdingof rings.

                                                                            24
Besides the scoop our team decided to include following changes:
   - The base of revolver is changed

   - The elements holding the rings on conveyor are changed

As result the new design of the claw has been constructed.

                                                                   25
2) Development of the program

                                26
4 tasks were created in the new program:
  1) revolv – control ofrevolverMotor
  2) conv - control of conveyor
  3) Tele-Op - remote control
  4) chuckExitTeleOp – start and stop of Tele-Op

                                                   27
24.01.2018                             TASKS:
   1) Strategy development for Tele-Op period.
   2) Testing of the robot in Tele-Op
   3) Strategy development and creation of the program for the autonomous
      period.

                  CONSIDERATION AND REALIZATION:

    1) Strategy of Tele-Op
     The strategy suggested by Sasha was decided as main:
- emptying of the blue starting peg; placing of three blue rings onto low #1;
- emptying of the green starting peg;
- placing of three green rings onto final vertical low holder #2;
- emptying of the red starting peg;
- placing of three red rings onto final vertical low holder #3;
- bonus tray opening.

   2) Testing of the robot in Tele-Op

Operator Time                                   attempts
                       1           2            3        4            5
Sasha      30 sec.
                       92          105          108       125         129
Artem      30 sec.

                                                                                28
1) 92=2x30+2x5+20+2
  2) 105=3x30+3x5
  3) 108=3x30+3x5+3
  4) 125=3x30+3x5+20
  5) 129=3x30+3x5+20+4

                       THE TEAM’S CONCLUSION:
   Automation of conveyor and revolver on Tele-Op regime allows to receive
more points.

   3) Strategy development and creation of the program for the
      autonomous period.

The first strategy suggested by Olya:
  - Emptying of the blue starting peg
  - Placing of 3 blue rings onto low vertical post #1
  - Collecting of the ring from the field and placing them on to
       horizontalpost.

   The following functions have to be created inside of the program:
   - Moving forward and back
   - Right turn and left turn
   - Scoop up and down
   - Revolver up and down
   - Rotation of the revolver

                                                                             29
Here is the result:

                      30
03.02.2018                  TASKS:
  1) Creation of 3D model of the robot
  2) Training of remote control skills
  3) Creation of autonomous program and testing.

                CONSIDERATION AND REALIZATION:

  1) Creation of 3D model of the robot

                                            Sasha and Artem are going on
                                         work with SnapCad creating 3D
                                         model of our robot.

                                            3D model of chassis was
                                         created today by Artem.

                            ROBOT CHASSIS

                                                                       31
2) The new strategy was suggested by Sasha:

        1)   Emptying of the bluestarting pegs
        2)   Placing of three blue rings onto final vertical low holder #1
        3)   Emptying of the green starting peg
        4)   Placing of three green rings onto final vertical low holder #2
        5)   Collecting of the rings from the field
        6)   Placing of rings onto final horizontal post
        7)   Bonus tray opening

Operator       Time                              attempts
                        1           2            3        4             5
Sasha        30 sec.
                        120         130          125        115         125
Artem        30 sec.

120=2x30+2+5+20+30
130=2x30+2x5+30+40
125=2x30+2x5+20+30+5
115=2x30+20+20+3x5
125=2x30+2x5+20+30+5
The maximum score is 130 points.

                                                                              32
3) Creation of autonomous program and testing.

                                                 33
During the first tests we
                                           recognize that the robot makes
                                           the turns not enough precisely. It
                                           was decided to use gyroscope.
                                               The gyroBot function was
                                           created.
                                              We also applied correct
                                           function for positioning of the
                                           robot with use of field’s side
                                           board.

                                           CONCLUSION: the multiple
                                           attempts      show      unstable
                                           execution of the strategy by the
                                           robot.

                               PLANNING:
- go on creating 3d model;
- to create new strategy for autonomous regime.

                                                                            34
05.02.2018                               TASKS:

1)     Developing of the 3D model.
2)     Remote control skills training.

                      CONSIDERATION AND REALIZATION:

     1) 3D model of the robot’s mechanisms.

            Sasha has finished 3D modeling of the vertical conveyor.

                                                                       35
Meanwhile Artem was modeling revolver mechanism.

                                                   36
Remote control in Tele-Op regime.Artem has suggested to test robot with
new strategy:

                                                                          37
1) Emptying of blue and green starting pegs;
   2) In process of emptying to collect the rings from the field;
   3) Placing of the rings onto low vertical posts;
   4) Placing of the rings onto horizontal posts.

Operator      Time                             Attempts
                       1           2           3        4           5
Sasha      30 sec.
                       120         110         82          105      141
Artem      30 sec.

         120=10+2x30+40+2x5
         110=2x30+30+10+5x2
         82=10+30+20+20+2
         105=30x2+2x5+30+5
         141=2x30+30+40+10+1
         The maximum score – 140+1 points! Great!

        Operator’s training with use of the first strategy:
Operator Time                                Attempts
                     1           2           3           4          5
Sasha    30 sec.
                     129         128         146         115        165
Artem    30 sec.

         129=3x30+20+3x5+4
         128=3x30+20+3x5+3
         146=20+3x30+5x4+15+1
         115=30+20+30+3x5+20

                                                                          38
165=3x30+40+20+15
10.02.2018                     TASKS:
1)   Developing of new autonomous strategy.
2)   Creating of the program and testing.

                 CONSIDERATION AND REALIZATION:
1)   New autonomous regime strategy

1.   To push right button of the bonus tray.
2.   Emptying of the red starting peg
3.   To push left button of the bonus tray.
4.   Placing of the red ring onto low vertical post.

2)   Autonomous regime program.

                                                       39
40
41
12.02.2018                           TASKS:
Training in remote control skills.
                  CONSIDERATION AND REALIZATION:
           The series of attempts:
Strategy                                      Attempts
                     1          2             3        4     5
           1         108        148           155      155   125

           2         155        126           131      120   90

           3         140        128           119      125   130

 1ststrategy:
 108=2x30+10+15+20+3
 155=3x30+30+20+15
 148=3x30+20+15+20+3
 125=30+20+5+30+15+20

 2ndstrategy:
 155=3x30+30+20+15
 126=2x30+20+15+20+1
 131=30x2+20+40+10+1
 90=30+5+20+15+20

 3rd strategy:
 140=3x30+40+10
 128=15+3x30+3+20
 119=20+2x30+20+15+4
 125=20+30+40+15+20
 130=30+30+20+40+10

                                                                   42
New series of attempts:

Strategy                                  Attempts
                      1         2         3        4     5
           1          90        106       134      130   130

           2          128       123       125      131   120

           3          120       110       8        105   141

1st strategy:                 2nd strategy:
90=30+20+5+15+20              128=2x30+30+10+2+8
106=2x30+20+20+15+1           123=2x30+20+3x15+3+30
134=3x30+3x5+20+9             125=2x30+30+10+20+5
130=3x30+20+15+5              131=2x30+30+3x5+20+5+1
                              120=2x30+30+20+10
3rd strategy:
120=10+2x30+40+2x5
110=2x30+30+10+5
82=10+30+20+20+2
105=30x2+2x5+30+5
141=2x30+30+40+10

                                                               43
16.02.2018                     TASKS:

    Debugging of the autonomous regime

                 CONSIDERATION AND REALIZATION:

                                                  44
19.02.2018                         TASKS:
Training in remote control skills.

                 CONSIDERATION AND REALIZATION:
The series of attempts:
Strategy                                    Attempts
                    1          2            3        4     5
1                   129        128          146      115   165

2                   120        110          124      146   106

3                   137        120          110      102   130

1st strategy:
129=3x30+20+3x5+4
128=3x30+20+3x5+3
146=20+3x30+5x4+15+1
115=30+20+30+3x5+20
165=3x30+40+20+15

2nd strategy:
120=2x30+30+20+2x5
110=2x30+2x5+20+20
1242x30+30+2x5+20+4
146=2x30+3x10+2x10+20+15+1
106=2x30+30+15+1

3rd strategy:
137=2x30+40+15+20+2
120=2x30+30+20+10
110=20+30+30+20+10
102=2x30+30+10+2

                                                                 45
130=2x30+40+10+20
21.02.2018                       TASKS:
Creating of the 3D model of the robot.

               CONSIDERATION AND REALIZATION:

                                                46
26.02.2018                           TASKS:
Creating of project presentation.

                  CONSIDERATION AND REALIZATION:
                           Our robot’s capabilities:

                         Emptying of the bonus tray

              Placing of the rings onto low horizontal post with
                            use of revolver system

                                                                   47
Placing of the rings onto low vertical post with use of revolver system

 Placing of the rings onto low vertical post with use of manipulator

                    Emptying of the starting peg

 Collecting of the rings from the field and charging of the revolver.

                                                                          48
05.03.2018                              TASKS:
IMITATION of the competitions.

                        CONSIDERATION AND REALIZATION:

1)   Checking of the robot’s
dimensions.

The robotis in compliance with
requirements     in    starting
position:
Length – 50 cm;
Width – 25.5 cm;
Height 37.2 cm.

2)    We have present our
project in presence of spectators.

    The design of the robot
allows to perform all tasks which
are required for high score:

-      Emptying of the starting
pegs;
-      Collecting of the rings from
the field;
-      Placing of the rings onto
vertical and horizontal post;
-      Emptying of the bonus tray.

All this allows us to choose the tactics in alliance.

                                                         49
3)    We have performed 6 attempts in Tele-Op.

Operators: Artem and Sasha.

Results:
1st attempt – 130 points;
2nd attempt – 110 points;
3rd attempt – 146 points;
4th attempt – 135 points;
5th attempt – 120 points;
6th attempt – 135 points.
Total 806 points.

4)    Autonomous period.

3 attempts were performed.

Programmers: Katya and Olya

Results:
1st attempt – 20 points;
2nd attempt – 55 points;
3rd attempt – 25 points.
                         TEAM’S CONCLUSION:

All main tasks in project development are completed.

                                                       50
Russian VEX IQ Ringmaster Championship
                            07-09 March 2018
                            Moscow, VDNKh

                                Timetable.
                     The 7th of March (Wednesday)
   Time                                Description
10:00-12:00    Test competotions
12:00-13:30    Qualifications
15:00-17:00    Qualifications
17:30-18:00    Volunteers 'and judges' meeting
                      The 8th of March (Thursday)
   Time                                Description
09:00-10:00    Test runs
10:00-13:30    Qualifications
15:00-17:30    Qualifications
17:30-18:00    Volunteers 'and judges' meeting
                       The 9th of March (Friday)
   Time                           Description
09:00-12:00 Qualifications
12:00-15:00 Quarter finals, Semifinals
15:40-16:30 Finals

                                TEST RUNS
   The team had the opportunity to train on the field on 07-08 March. Olya
and Katya have signed the team for the tests preliminary.
   Each team has 5 minutes for test work and training.

                                                                             51
52
After 3 training we decided to
                                          choose the team for alliance and to
                                          perform test run together. We have
                                          chosen team 92601A.
                                          Sasha and Dima are the pupils of the
                                          7th grade of Surgut
                                          Naturally Scientific Lyceum.

It was the best test run with the score 183 point.
    The teams were acting coordinated and clear. Our robots differed from
others in their ability to collect ring from the surface of the field, to remove
rings from starting pegs to vertical and horizontal posts.

                             QUALIFICATIONS
                              The 7th of March
   Match №                Team               Field №               Time
     Q16                 57712A                 F2                 14:55
     Q31                 24393A                 F1                 16:10
     Q40                 33767A                 F2                 16:55

                              The 8th of March
   Match №                Team               Field №               Time
     Q59                 48424A                 F1                 10:54
     Q73                 44397A                 F1                 11:36
     Q96                 69915A                 F2                 12:45
    Q110                 64058D                 F2                 13:27
    Q126                 64058A                 F2                 13:27
    Q143                 81692A                 F1                 15:06
    Q160                 92601A                 F2                 15:57
    Q173                 99444V                 F1                 16:36

                                                                               53
The 9th of March
  Match №            Team               Field №           Time
   Q191             37337A                 F1             10:30
   Q208             64058A                 F2             11:21

                             RESULTS:
Q16 – 112 points
Q31 – 92 points
Q40 – 138 points
Q59 – 86 points
Q73 – 136 poits
Q96 – 116 points
Q110 – 145 points

                                           Karim and Matvey, school
                                           1363, Moscow - our one of
                                           the best alliances. Our
                                           teams discussed the tactics
                                           of the match in advance.
                                           Each team performed its
                                           duties properly.

Q126 – 131 points
Q143 – 151 points
Q160 – 177 points

                                                                     54
In qualification Surgut team, Sasha and Dima, did the job correctly,
without mistakes, same as at test run.

     It was the best result of the alliance of the championship.
Q173 – 107 points
Q191 – 145 points
                               Ivan and Artem, school 1519, Moscow.

Q208 – 117 points (solo match)
The average score of our team: 139.90 points.
Thus, we have won the first position in qualifications.

                                                                       55
FINAL MATCHES.
16 teams have participated in finals.

Rank                      Team                Average score
1                         70145A              136.90
2                         25396U              117.30
3                         66947B              115.80
4                         87994B              109.90
5                         65047A              100.30
6                         57712A              95.70
7                         63082A              90.50
8                         48424A              86.60
9                         92601A              85.60
10                        33767A              85.50
11                        37337A              85.30
12                        81692A              82.80
13                        87994A              75.80
14                        99444V              72.00
15                        64058A              70.20
16                        44397A              69.90

                                                              56
The final alliances were paired in accordance with the rules.
Our team was alliance with team 25396U,
Maksim and Nikolay (coach Maksim Pyanov, school 709, Moscow).

                RESULTS OF FINAL MATCHES.
          Rank                               Final score
          15/16                                  27
          13/14                                  71
          11/12                                  95
           9/10                                  65
            7/8                                  96
            5/6                                 108
            3/4                                 108
            1/2                                 138

            Our team in alliance with team 25396U
   has WON THE CHAMPIONSHIP with the final score 138 points.

                                                                57
AUTONOMOUS PERIOD
    Five teams have participated in this competition. The matches took place
on the 09th of March.

               Time                                    Team
               12:05                                  48006А
               12:10                                  64058А
               12:15                                  70145А
               12:20                                  35615А
               12:25                                  99444V
Our score is 20 points. We emptied bonus tray.

                                INTERVIEW

   Our team has been interviewed by the judge of VEX competitions - Ignatiy
Matsal.
                                               The interview was concerned
                                            with the design of the robot and
                                            engineering book.
                                               We have presented the
                                            design of our robot, our
                                            programs and have told how the
                                            engineering book was created.
                                                 The feedback was positive.

    We have received valuable recommendations concerning development of
our project.

                                                                               58
14.03.2018       MOSCOW CHAMPIONSHIP ROBOT DESIGN ANALYSIS

                                      This robot has parallelepiped shape
                                   and equipped with vertical conveyor.
                                      The inner design is hide behind outer
                                   details. The robot has wheel chassis.
                                   Controller is situated in the aft part.

                                       The robot is collecting the rings into
                                   the hull and hoist them up with use of
                                   vertical conveyor placing the ring onto
                                   high vertical post. There were only
                                   couple robots allow to place the rings
                                   onto high vertical post.

         Positive moments:                      Negative moments:

1. Strong gripping device;             1. Sorting of the ring is not available;
2. The robot has a special device on   2. the rings cannot be placed onto
the bumper to press the buttons of     horizontal posts;
the bonus tray;
3. The design allows to collect big
number of rings from the field;
4. The rings can be placed on the
high vertical post.

                                   This robot is equipped with manipulator
                             to empty the starting pegs. This kind of design
                             was seen very often at the championship.

                               Positive moments:         Negative moments:
                               1. The robot has a      1. Manipulator is not
                               special device on       firm
                               the bumper to press     2. The rings cannot be
                               the buttons of the      placed onto
                               bonus tray              horizontal posts

                                                                                  59
Positive moments:                Negative moments:
2. The robot has manipulator    3. Collecting of the rings from the field
3. The rings can be placed on   is not available
vertical posts                  4. Sorting of the ring is not available;

                                                                            60
19-30.03.2018                       TASKS:
  Modernization of robot’s design.
  Development of new strategy for Tele-Op regime.

                      CONSIDERATION AND REALIZATION

  1) Modernization of robot’s design.

                                              We have assembled one more
                                              robot with use of VEX IQ set
                                              won at the championship.

                                              We have found minor mistake
                                              in the design: the conveyor was
                                              not perpendicular to the field.

                                              The design of conveyor was
                                              changed.

  2) New strategy:
- to start backwards, to make a turn near vertical post # 2 (to push some
rings to one point zone if it is possible);
- moving to the red starting peg collecting rings from the surface of the field
meanwhile;
- emptying of the red starting peg;
- pushing left button of the bonus tray;

                                                                              61
- placing of red rings onto 4th vertical low post;
 - pushing right button of the bonus tray;
 - emptying of the green starting peg;
 - placing of green rings onto 3rd vertical low post;
 - placing of rings onto horizontal post with use of revolver.
 New tactics gives 130 point.

   3) Development      and    testing   of    new
strategy.

   We use two robots for test runs.
   The first robot – operators Sasha and Artem
(30 seconds each one), the second robot –
operator Olya (60 seconds).
   We used printed schemes to fix all changes in
tactics applied.

                                                                 62
63
04-25.04.2018               TASKS:
   Changing of 3D model

                     CONSIDERATION AND REALIZATION

   Sasha and Artem has made changes of 3D model concerning the new
design aspects.

                                                                     64
65
66
You can also read
