Qurzon: A Prototype for a Divide and Conquer Based Quantum
Compiler for Distributed Quantum Systems
Preprint, compiled September 16, 2021
Arnav Das Turbasu Chatterjee Shah Ishmam Mohtashim
Kazi Nazrul University Maulana Abul Kalam Azad University of Technology University of Dhaka
arnav.das88@gmail.com turbasu.chatterjee@gmail.com sishmam51@gmail.com
Abstract
arXiv:2109.07072v1 [quant-ph] 15 Sep 2021
When working with algorithms on quantum devices, quantum memory becomes a crucial bottleneck due to low qubit
count in NISQ era devices. In this context, the concept of ‘divide and compute’, wherein a quantum circuit is broken into
several subcircuits and executed separately, while stitching the results of the circuits via classical post-processing, becomes
a viable option, especially in NISQ era devices. This paper introduces Qurzon, a proposed novel quantum compiler that
incorporates the marriage of techniques of divide and compute with the state-of-the-art algorithms of optimal qubit
placement for executing on real quantum devices. A scheduling algorithm is also introduced within the compiler that can
explore the power of distributed quantum computing while paving the way for quantum parallelism for large algorithms.
Several benchmark circuits have been executed using the compiler, thereby demonstrating the power of the divide and
compute when working with real NISQ-era quantum devices.
1 Introduction cussion. Section 5 depicts our concluding remarks with future
scope.
Quantum Computing is the future promise of computing with
far-reaching impacts in diverse scientific fields [1] [2] [3] [4].
It should deliver speed up in many problems of those fields 2 Background
ranging from machine learning [5] [6] to natural sciences [7].
These absolute speedups will occur when large-scale, universal, The circuit-based quantum computing model is one in which
fault-tolerant quantum computers come into being. Till then, operations are performed by a series of quantum gates that
the challenge of the research community is to utilize currently are always reversible. The quantum gates act on the prepared
available noisy intermediate-scale quantum computers (NISQ) initial qubit states sequentially, transforming the initial states
era devices to their full potential [2]. These NISQ-era devices through unitary transformation into the final state as dictated
are bound by noise levels, limited coherence times of the qubits, by the quantum operations. The final state is then measured to
scalability, etc [8]. Thus, researchers are bound to only using complete the computation procedure. This reversibility property
small-scale quantum computers with limited and differing con- makes it unique from classical computing. All quantum gates
nectivity among qubits of different existing quantum devices. are by-design unitary to ensure reversibility.
For this reason, this paper proposes Qurzon: a divide and con- Currently, the world has functional but small scale and imperfect
quer based quantum compiler. The proposed quantum compiler quantum computers are called Noisy intermediate scale Quan-
attempts to make many exponential size problems tractable using tum Computers (NISQ). Large-scale quantum computation is
current NISQ-era quantum computers by cutting the quantum cir- impossible in NISQ-era quantum computers due to the increase
cuits for those problems to sub-circuits that fit the present device of errors as the number of qubits is scaled up. The error propa-
architectures. Extending that notion, Qurzon also implements gates throughout the circuits as the number of qubits increases
optimal qubit routing for these NISQ-era devices. The nature of till it reaches a point when measurement on quantum computing
NISQ-era devices is that each quantum device is characterized becomes hugely unreliable to the point of being untenable. The
by its inherent qubit connectivity or so-called qubit topology. current research trend is to improve the existing faulty NISQ
Qurzon considers these qubit topologies and implements an devices so that they become viable for usage in the passing time.
optimal qubit routing scheme for the subcircuits formed by the Till the era of fault-tolerant computing starts, NISQ devices are
cut algorithm. the only machines to test and build quantum algorithms.
For this paper, the engineering of Qurzon, a combination of re- Universal fault-tolerant quantum computing (FTQC) [3] [14]
cursive circuit cutting and optimal qubit routing [9], is explained [15] still requires years of research till they are realizable in real
and implemented against existing circuit optimization methods. life. FTQCs are large-scale quantum computers with a minimal
A significant quantitative advantage is shown that makes Qur- error rate and significant coherent time, ensuring a significant
zon the state-of-the-art compiler amongst all existing ones found quantum advantage over classical computing when they arrive.
in literature [10] [11] [12] [13], thus improving on, and paving Till then, NISQ devices are currently the best working model
the way for future work on quantum multiprocessor computing. of quantum computing we have, and all quantum algorithms
The organization of the paper is as follows. A few preliminar- are designed keeping the limitations of NISQ in mind. NISQ-
ies of NISQ-era quantum computation are presented in Section era computers are not changing the world right away, but it
2. Section 3 illustrates the overview of the proposed compiler. is a promise of the quantum advantage that is coming. These
In Section 4, experimental results are exhibited with brief dis- quantum computers have already some real-life applications that
– Qurzon: A Prototype for a Divide and Conquer Based Quantum Compiler for Distributed Quantum Systems 2
(a)
(b) (c)

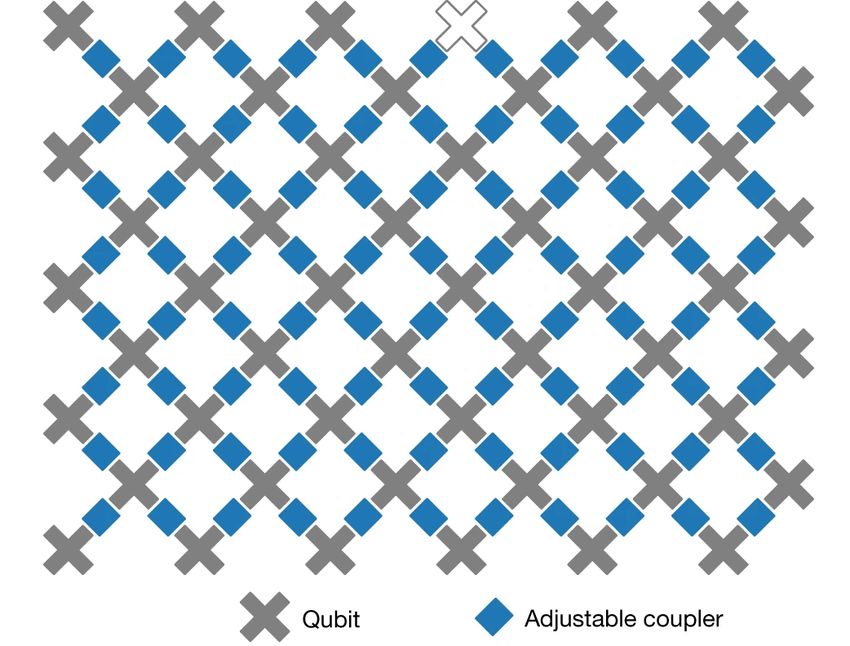

Figure 1: The qubit topology and connectivities of (a) IBM Kolkata: A 27-qubit superconducting qubit quantum computer (b)
Google Sycamore: A 53-qubit superconducting qubit quantum computer (c) An 11-qubit IonQ trapped ion quantum computer.
Note that the IonQ device has full connectivity of all the qubits in its system, but some of these connectivities have high noise
levels.
give somewhat exploratory results for some problems [16] [17] it shows how qubits are connected and this is something that the
[18] and a few quantum supremacy [19] [20] [21] examples have compiler has to consider when transforming circuits to run in
also been shown in recent years. devices. For example, if two qubits are not physically connected,
a CNOT gate cannot be executed between the two qubits. It is
NISQ devices are made of qubits that are erroneous, unstable,
not possible to run any circuit on a real device without rewriting
and have prepared states that decay over short periods [8] [22].
the circuit to match the device topology of the intended device
Even the gate operations are faulty and prone to deviations
to run on. This is part of a process called transpilation. So,
from actual results. Qubit stability error is called decoherence
topology graphs play an important role when designing circuits
whereas gate operation error is known as fidelity. Due to these
for algorithms in the NISQ era. The qubits on IBM hardware
errors, the quantum computing hardware cannot scale. Hence,
are fixed. IBM uses superconducting transmon qubits rather
the term intermediate scale came into being. Each of these
than trapped ion qubits. They don’t move around as trapped-
NISQ-era devices have particular topologies or connectivities
ion qubit hardware. So, IBM Q quantum devices have limited
that acts as a characterization of these devices.
connectivity among the qubits of the device. This property gives
The qubit topology graph of the device represents the qubit rise to the optimal qubit mapping problem as elaborated in the
layout of the hardware. It shows how the physical qubits are subsequent sections.
connected on the real device. The qubit topology for some
Due to noise, the depth and width of quantum circuits are limited.
devices are shown in Figure 1 [23].This graph is important when
The low depth and width of quantum circuits mean that the
a compiler tries to map a circuit to the quantum device because
capabilities of today’s NISQ machines are dependent on the
– Qurzon: A Prototype for a Divide and Conquer Based Quantum Compiler for Distributed Quantum Systems 3
realization of hybrid algorithms. Hybrid algorithms contain
both quantum and classical computing parts. At present all
quantum algorithms follows this generic hybrid structure. The
quantum part is like any quantum algorithm: the initial state is
prepared, followed by unitary quantum gate operations, followed
by measurements of the final states. The final state is measured
by varying the input parameters of the quantum gate operations
through classical post-processing till the results improve to the
desired level.
Larger devices have significantly more noise than smaller ones.
Hence, cutting a large circuit into smaller sub-circuits seems to
be a way to realize better fidelity. Many seemingly intractable
problems for current NISQ-era devices are made possible by di-
viding the humongous problem-specific circuit into manageable
ones that the current architectures can run. This improves [24]
on the design of distributed quantum systems.
In a distributed quantum computing, multiple smaller non-local
quantum devices are connected coherently, with all the nodes
together working as a single large ecosystem of quantum compu-
tation. The number of qubits scales linearly with the number of
interconnected devices. Hence, distributed Quantum Computing
can act as an intermediate solution to the scaling-up problem.
3 Compiler Overview
In the previous sections, we have observed that the NISQ-era
devices are ones with low qubit count and high inherent device
noise. The depth of a circuit is the number of time-steps re-
quired, assuming that gates acting on distinct bits can operate
simultaneously (that is, the depth is the maximum length of a
directed path from the input to the output of the circuit) [25]. For
NISQ-era devices, as the depth of the quantum circuit increases,
the cumulative noise in the circuit also increases. The primary Figure 2: A high level overview of the Qurzon compiler, show-
objective of our proposed compiler architecture is to reduce the ing the different components and workflow
depth of the quantum circuit by employing a recursive circuit
cutting algorithm. This technique drastically reduces the size
of the circuit to be executed. This, however, comes at a cost:
The circuit reconstruction done as of now employs random shot ranges them in a queue. It then takes into account the
sampling, thereby inducing finite sampling noise in the circuits. available quantum devices in the device pool. Once
Qurzon tries to mitigate this noise by employing an optimal cut done, it allocates the subcircuits as jobs to the avail-
level algorithm, which finds the optimal level of recursive circuit able quantum devices based on a greedy algorithm and
cuts where the finite sampling noise is minimized, but maximiz- passes it down to the next stage of the compilation
ing the number of fragmented circuits, for ease of execution. process.

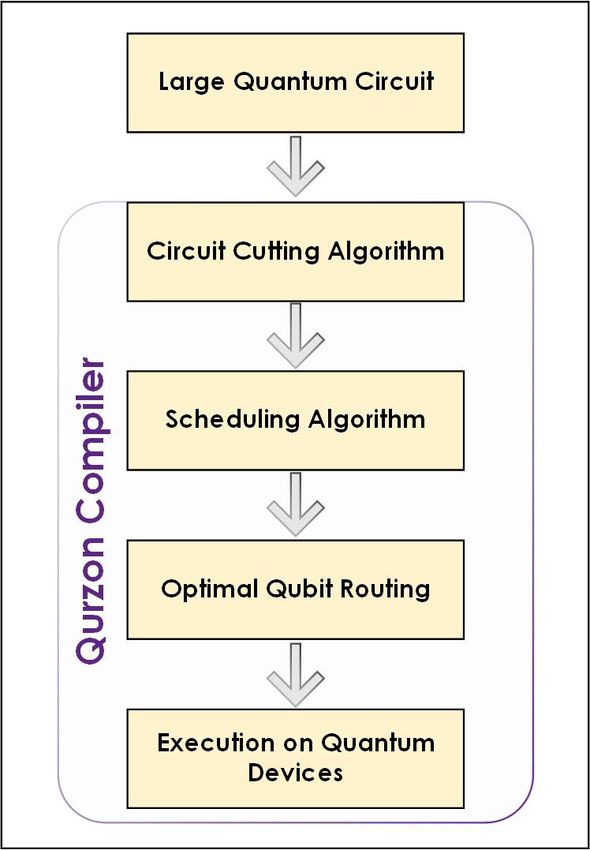

A diagrammatic overview of Qurzon’s components can be
found in Figure 2, which shall be briefly introduced here and 3. Optimal Qubit Routing: Once the scheduling algo-
elaborated on later in the subsequent subsections. rithm zeros in on a target quantum device to run the
subcircuit, the optimal qubit routing algorithm takes
1. Circuit Cutting Algorithm: One of the primary com- into account the current device qubit topology. Once
ponents of the Qurzon is the circuit cutting algorithm. done, it optimally places the quantum gates associated
This takes a large multiqubit (>2) circuit and uses the with the logical qubits of the subcircuit onto the phys-
CutQC [26] algorithm to find the optimal cut. The ical qubits of the device, minimizing the number of
optimal cut finding is done using the Gurobi Solver SWAP gates required in the process.
with a mixed-integer programming formulation of the
circuit’s directed acyclic graph (DAG). This circuit 4. Execution on Quantum Device and Subsequent Re-
cutting is employed recursively in order to break the construction: The circuits placed optimally on the
circuit into multiple parts. Once done, it is passed on quantum devices are then reconstructed using a shot-
to the next part of the compiler. based probabilistic sampling of conditional probabili-
2. Scheduling Algorithm: This part of the algorithm ties. This gives us the final output of the final quantum
takes the cut circuits from the previous step and ar- circuit.– Qurzon: A Prototype for a Divide and Conquer Based Quantum Compiler for Distributed Quantum Systems 4
3.1 Circuit Cutter On inserting RI acting on the nth qubit qn and calculating the
probability:
The theory of circuit cutting has been first proposed in the paper
by Peng et.al. [27]. This section will be containing the mathe-
matical framework for the circuit cutting algorithm, as proposed
by Ayral et. al. [28] and thereafter, will be elaborating on the p(i) = 2m hhΠi | RAa f ter ◦ RBa f ter ◦ RI
|{z} |{z} |{z}
CutQC Algorithm [26] that Qurzon uses. q0 ,...,qn−1 qn+1 ,...,qm−1 qn
◦ RAbe f ore ◦ RBbe f ore | ρ0 ii
Circuit Bipartitioning | {z } | {z }
q0 ,...,qn−1 qn+1 ...qm−1
The calculation is a summary of the calculation presented in
[28]. For further elaboration on this paper, the authors suggest On applying the decomposition of RI as given above:
referring to the original paper. X X 0
p(i) = RI = γαbb
An m qubit quantum circuit can be expressed as a composition
e
α=X,Y,Z bb0 ={0,1}
of superoperators as follows:
× hhΠi | q0 ,...,qn−1 hhΠi | qn+1 ,...,qm−1 RAa f ter RBa f ter | σbα ii qn
0
C = CAa f ter ◦ CBa f ter ◦ CAbe f ore ◦ CBbe f ore × hhσbα | qn RAbe f ore RBbe f ore | ρ0 ii q0 ,...,qn | ρ0 iiqn+1 ,...qm−1
Here, the support of the super operators CAa f ter and CBa f ter is a Therefore, the final expression for the probabilities is given by:
bipartition of the quantum circuit. Similarly, the support of the
superoperators CAbe f ore and CBbe f ore also forms a bipartition of
1 X X bb0 α
the circuit i.e., without loss of generality, one can assume that p(b̂0 . . . b̂m−1 ) = γ̃ p
the support of CAbe f ore refers to the qubits q0 , q1 , . . . , qm−1 and 2 α=X,Y,Z bb0 ∈{0,1} α A
that of CBbe f ore refers to qm , qm+1 , . . . qn . (b̂0 . . . b̂n−1 ; b0 ) × pαb
B (b̂n . . . b̂m−1 )
The final state of the circuit is given by the density matrix:
where, pαA (b̂0 . . . b̂n−1 ; b0 ) ≡ 2n+1 hhΠb̂0 ...b̂n−1 |hhσbα |qn RA |ρ0 iiq0 ...qn ,
0
ρ = C(ρ) = CAa f ter ◦ CBa f ter ◦ CAbe f ore ◦ CBbe f ore (ρ0 ) and,
αb
where ρ0 is the density matrix of the initial state. The prob- pB (b̂n . . . b̂m−1 ) ≡ 2 hhΠb̂n ...b̂m−1 |RB |σα iiqn |ρ0 iiqn+1 ...qm−1 ,
m−n b
ability of measuring a state i with binary representation i = The circuit cutting algorithm automatically locates optimal posi-
(bˆ0 , bˆ1 , . . . bn−1
ˆ ) is given by:
tions to cut a large quantum circuit into smaller sub-circuits. The
p(i) = T r[Πi · ρ] cutting algorithm is processed classically. This technique makes
it possible to simulate quantum algorithms for large problems,
where Πi is the projector on the state i(i = 0, . . . , 2m ). which would be otherwise impossible considering the current
device restrictions with scalability.There are many advantages to
Therefore, circuit cutting. The solution state remains the same even as the
p(i) = T r[Πi · C(ρ) = CA
† a f ter a f ter
◦ C B ◦ CA be f ore be f ore
◦ CB (ρ0 )] number of cuts increases. It is also relevant to tensor network
contraction methods.
as Π†i = Πi . Now if we switch to the Pauli basis, this results in
the expression: 3.2 Scheduling Algorithm
p(i) = 2m hhΠi | RAa f ter ◦ RBa f ter ◦ RAbe f ore ◦ RBbe f ore | ρ0 ii For this work, the scheduling algorithm takes into account the list
of available devices the subcircuits can be executed upon. The
a f ter/be f ore
where RA/B are the Pauli Transfer Matrices (PTM) repre- Scheduler algorithm allots the sub-circuits to different devices
sentation of the superoperators as given by: (depending on their size and availability) while minimizing the
loss of computational power and loss of time by making sure that
1 most of the devices are used. The only function of the scheduler
[Rαβ ] = T r[Pα · C(Pβ )] algorithm is to find the optimal distribution of the sub-circuits
d
over the list of devices. This optimal distribution is attained by
where Pα is a generalised Pauli matrix acting on n qubits. first alloting all the subcircuits to the devices with strictly the
Now, the PTM representation of the Identity superoperator as same number of qubits. Once that is done, devices with most sub
follows: X X circuits allotted to them are selected and some of their associated
0 0
RI = γαbb |σbα iihhσbα |,
e subcircuits are reassigned to the rest of unused devices to reduce
α=X,Y,Z bb ={0,1}
0 the workload on the selected devices. This method of alloting
the subcircuits to devices in an optimal way can be changed in
where |σbα ii are the (real) coordinates in the Pauli basis of the the future depending on other external parameters as well.
density matrix corresponding to the bth eigenvector |ψbα i of Pauli However, the authors of this paper propose using a parallelized
0 0
matrix σα . The e γ tensor is given by e γbb
X =e γYbb = 2δbb0 − 1 and version of this scheduling algorithm that is to be implemented
0
γZbb = 2δbb0 .
e in the future iterations of this research.– Qurzon: A Prototype for a Divide and Conquer Based Quantum Compiler for Distributed Quantum Systems 5
(a) (b) (c)
(d) (e) (f)
Figure 3: Cross-sectional view of the figures plotted from the results. The y-axis represents the difference E − E 0 , where E is the
mean squared error of the circuit without t|keti and E 0 is the mean squared error of the same using t|keti.The x-axis indicates the
size of the input circuit. The circuits used were (a) Grover’s algorithm (b) Approximated quantum fourier transform (AQFT) (c)
Quantum Fourier Transform (QFT) (d) Supremacy Circuit (e) Linear Supremacy Circuit (f) Random Circuit
3.3 Optimal Qubit Routing connectivity of the devices are accounted for. This means that
any two logical qubits that are adjacent may not be physically
As introduced in section 2, NISQ-era devices are inherently sus- adjacent to each other.
ceptible to noise. NISQ devices also have limited qubit connec- A viable solution to the problem of having non-adjacent in-
tivity; this is particularly prevalent not only in superconducting teracting qubits is to insert SWAP gates to exchange it with a
qubit architectures but also in trapped ion systems, as shown in neighbouring qubit, thereby moving it closer to the desired qubit
Figure 1. Although the qubits in the trapped ion systems appear position. As this method introduces new gates into the quantum
to be fully connected, something to keep in mind is that in such circuit, the depth of the circuit increases thereby compromising
architectures, the connectivity between the qubits is also prone the algorithm’s performance. This problem is called the qubit
to noise. This translates to the fact that not all connections have routing problem, wherein two desired qubits are made to inter-
the same fidelity. This limited connectivity in devices gives birth act with one another by minimizing the number of SWAP gates
to the optimal qubit routing problem. necessary to do so. This problem is shown to be equivalent to
The qubit routing problem is fundamental for circuit execution the token-swapping problem and is proven to be at least NP-hard
in NISQ-era devices. The motivation for the problem is to map and possibly PSPACE-complete [29].
a logical qubit, a qubit allocated in the circuit or the algorithm However, efforts have been made to design an exact solution
must translate directly to a physical qubit, a qubit on the actual to the qubit routing problem. Siraichi et al. [29] proposed a
quantum device. In doing so, the quantum circuit must go dynamic programming method, resulting in a complexity that
through transpilation or a source-to-source translater. What is exponential to the number of qubits, and a heuristic solution
this stage does is, taking a quantum circuit into account, the that approximates solutions to small circuits reasonably well.
transpiler decomposes the same into an equivalent circuit with a Zulehner et al. [30] proposed an algorithm that takes into ac-
set of gates that can be run on the quantum device. Something count partitions based on the depth of the circuit and using the
to note is that the set of gates or the gate set is different for every
A* algorithm to search for optimal solutions, specializing in
quantum device. IBM devices. There is considerable literature towards finding
Once the transpiler does its job, a set of gates is left behind to an optimal solution to this problem [31] [32] [33] , but here the
be executed on the device. These include single-qubit as well approach proposed by t|keti has been incorporated in Qurzon
as two-qubit gates. The single-qubit gates aren’t much of a con- as outlined below:
cern since they can be mapped to the individual physical qubits
with ease. However, to execute the two-qubit gates, the qubit– Qurzon: A Prototype for a Divide and Conquer Based Quantum Compiler for Distributed Quantum Systems 6
Optimal Layout Synthesis with t|keti 4.2 Results and Discussions
t|keti [9] [34] [35] is a language-agnostic optimising compiler The results published herein are based on a limited number of
package that manages executable circuits and optimizes for phys- qubits, with limited depth, due to computational power con-
ical qubit layout while also reducing the number of required straints. However, keeping in mind, the prototypical nature of
operations. The system consists of two main components: a this project, the results are sufficient to draw meaningful infer-
powerful optimizing compiler written in C ++, and a lightweight ence, paving the way for future work in the field.
user interface and runtime system written in Python. The python
Interface is used to interact with a wide range of hardware, han- On benchmarking several circuits, namely the Bernstein Vazi-
dle the full cycle of compilation, dispatch and results retrieval. rani algorithm, Grover’s algorithm, the AFQT, the QFT, the
The compilation steps can be controlled via the interface to suit supremacy circuit, the linear supremacy circuit and random cir-
the nature of the quantum circuit being run. t|keti deals with the cuits, through the pipeline proposed in this paper, a general trend
qubit routing problem by using a heuristic method that produces can be seen. The results of these benchmarks can be observed
optimal mapping systems in terms of depth, total gate count, in Figure 3 and 4. The y-axis consists of the difference in the
and low run times. Circuit optimisation is especially pertinent fidelities δF = (E − E 0 ), where E is the mean squared error of
on so-called noisy intermediate-scale quantum (NISQ) devices. the circuit without subjecting it to a qubit mapping algorithm
The longer the computation runs, the more noise builds up. It is and E 0 is the mean squared error of the circuit after t|keti was
specifically designed for NISQ devices, and includes features applied. The x-axis consists of the number of qubits in the input
that minimise the influence of device errors on computation. circuits.
t|keti routing algorithm ensures the compilation of any quantum When the size of the input circuits is small, the δF tends to stay
circuit to any existing device as long as its architecture can benegative. This is because, when circuit size is small and the size
represented as a simple connected graph. The algorithm works of the cut circuits are small, the number of cuts in the circuits
in four parts: decomposing the input circuit into timesteps; ini-are minimal. The cut circuits are then optimally routed using
tial mapping; routing across timesteps; and swap synthesis and the t|keti module. On the control side of these experiments, the
final rewriting based on device architecture constraints. optimal layout synthesis module was not used. It was noted that
at these levels, optimal qubit mapping plays a significant role in
mitigating the finite sampling noise, found as a result of circuit
3.4 Stitching Quantum Circuits Post Execution reconstruction. At large qubit counts, with cut size remaining
constant, the reconstruction noise is great enough to nullify the
Circuit reconstruction/stitching is a classical post processing effects of the qubit mapping.
method that can reconstruct the output of the original circuit.
It reconstructs the probability distribution over measurement This is an important observation because although due to com-
outcomes for the original quantum circuit from probability dis- putational constraints large circuits could not be simulated, a
tributions associated with the sub-circuits. The circuit recon- hypothesis can be reached, and can be explored further in future
struction process has a low computational cost that makes the iterations of this research. The hypothesis is that when large
whole algorithm a practical alternative strategy for large quan- circuits can be made to run through the compiler, with large
tum simulations. enough cut circuit size (say, equal to the size of device register),
qubit routing is to play a pivotal role in mitigating circuit recon-
struction noise, thereby significantly improving the fidelity of
the circuits formed after reconstruction.
4 Experimental Results
4.1 Experimental Setup
The workflow for the "control system" i.e., running the circuits
without using optimal layout synthesis is as follows: The cir-
cuits were generated using the code for the helper function in
Wei Tang’s CutQC paper [26]. Mock backends were taken from
the IBM Qiskit Aer simulator library [36]. The backends used
were Fake Tokyo, Fake Tenerife, Fake Melbourne, Fake Vigo,
Fake Rueschlikon and Fake Poughkeepsie. Noise models for
the respective backends were used and subjected to the schedul-
ing algorithm. The circuit cutter used Gurobi’s mixed integer
programming solver and used 8192 shots for the reconstruction
phase. Once the cut circuits have been run on the respective
backends, they are reconstructed and their fidelities are noted.
For the "experiment workflow" all the steps in the previous para-
graph were done except when using the backends. Herein, the
t|keti backends were used from t|keti IBM extension package.
Here, t|keti implements optimal layout synthesis while running
the cut circuits and uses CutQC’s reconstruction methods and Figure 4: A comparison of the χ error of the CutQC circuits
2
generates the respective fidelities. with and without t|keti for the Bernstein Vazirani algorithm– Qurzon: A Prototype for a Divide and Conquer Based Quantum Compiler for Distributed Quantum Systems 7
Furthermore, the depth of the quantum circuit plays minimal called transpilation and is handled by a piece of software called
impact on the fidelity, with or without the qubit routing scheme. the transpiler. At the hardware level, therefore, the fidelity of
This is due to the depth-agnostic nature of the t|keti algorithm. the circuit is dependent on the types of gates that the circuit
However depth-aware mapping techniques maybe used in future uses. Specifically, at the juxtaposition of logic synthesis and
iterations of this research in order to study the depths therein. execution, the two-qubit gates are responsible [38] [39] [40]
Furthermore, it remains to be seen if the depth can be reduced [41] [42] for the fidelity of the quantum circuits. The two-qubit
effectively by using techniques similar to CutQC [26]. Such to- gates are also the motivation behind the optimal qubit mapping
mography inspired techniques have been implemented by Perlin problem for NISQ-era devices.
et. al. [37] but remains to be studied for general circuits.
The beauty of Qurzon is that due to the circuit cutting techniques,
the number of two-qubit gates in the circuit is highly diminished
Running time of the circuits when the size of the qubit register of the quantum device is small.
The tradeoff, however, lies in the fact that whenever the size
This section attempts to provide a formalism regarding the run- of the qubit register for the cut circuits is low, the time taken
ning times of the circuits on Qurzon, as it stands, in the latest for classical post-processing, exponentially increases. This has
iteration. This formalism is heavily dependent on the CutQC been shown by Tang et. al. in the CutQC paper [26]. Not
algorithm and the availability of quantum devices along with only that, the reconstruction noise after execution for several
classical resources. of these minuscule circuits exceeds the noise induced by these
For this analysis, n quantum subcircuits, post circuit cutting, are two-qubit gates. The authors of this paper, therefore, feel, that
to be considered to be allocated to run on k quantum devices. it is imperative for the reconstruction methodology for these
Instead of queuing the quantum circuits, the authors herein subcircuits to be improved upon such that the probability land-
propose running the circuits parallelly on the quantum devices, scape of large circuits can be calculated effectively, swiftly and
subject to device availability. Let S k denote the kth quantum reliably. This point also remains to be worked on by the authors,
processor, that is available to be used and t(S k ) denote the time in the successive iterations of this project.
taken to run the circuit on the kth quantum processor. Without
loss of generality, it is assumed that n > k. The time taken
for classical post processing is considered as C(S i ) for the ith 5 Conclusion and Future Scope
subcircuit.
This piece of work introduces Qurzon, a novel approach to
The time, therefore, taken for thePclassical post processing of compiling and executing circuits on NISQ era devices. It also
the n subcircuits is given by T c = ni=1 C(S i ). studies the effects of qubit routing on the quantum divide and
compute approach. It is noted that for sufficiently large circuits,
The time taken for the circuits to be executed on the quantum
qubit routing plays a major role in determining the circuit’s
processor be given by T q = max(t(S 1 ), t(S 2 ), . . . , t(S n )). This is
fidelity after being subjected to the cut and execute methodology.
due to Qurzon’s proposed scheduling algorithm that shall allow
Furthermore, this work proposes the use of parallel scheduling
for the parallel execution of these subcircuits.
algorithms for quantum multi-computing. The work proposed
Since n > k, it might be that some subcircuit might require herein is to be extended to include devices from multiple vendors
some wait time before some quantum device is allocated. This such as Google, IBM, Rigetti, Xanadu, IonQ etc. The authors
wait time is characterised by W(S i ) for the ith subcircuit in of this paper are currently investigating methods to cut down
waiting. Note that W(S i ) can be zero, for the circuits that can be circuit depth that is to be integrated in future iterations of this
associated with a P
quantum processor. Hence, the total wait time work.
is given by T w = ni=1 W(S i ).
Therefore, the total time taken for the end to end execution References
of a quantum circuit, that has been divided into n subcircuits
associated with k quantum devices is given by: [1] Michael A. Nielsen and Isaac L. Chuang. Quantum
Computation and Quantum Information: 10th Anniver-
sary Edition. Cambridge University Press, 2010. doi:
T = Tq + Tc + Tw 10.1017/CBO9780511976667.
n n [2] John Preskill. Quantum Computing in the NISQ Era and
Beyond. Quantum, 2:79, 2018.
X X
T = max(t(S 1 ), t(S 2 ), . . . , t(S n )) + C(S i ) + W(S i )
i=1 i=1 [3] Andrew Steane. Quantum computing. Reports on Progress
in Physics, 61(2):117, 1998.
Circuit cutting to reduce multiqubit gates [4] Colin P Williams. Explorations in quantum computing.
Springer Science & Business Media, 2010.
Every quantum circuit consists of unitary operators that operate
over either one qubit or multiple qubits. In most quantum de- [5] Jacob Biamonte, Peter Wittek, Nicola Pancotti, Patrick
vices, multi-qubit gates are decomposed into several two-qubit Rebentrost, Nathan Wiebe, and Seth Lloyd. Quantum
gates in order to be accommodated in the gate-set for a quantum machine learning. Nature, 549(7671):195–202, 2017.
device. The gate-set for a quantum device is defined to be the set [6] Maria Schuld, Ilya Sinayskiy, and Francesco Petruccione.
of operations that a quantum processor is to physically run on An introduction to quantum machine learning. Contempo-
itself, in order to output the results of a circuit. This process is rary Physics, 56(2):172–185, 2015.– Qurzon: A Prototype for a Divide and Conquer Based Quantum Compiler for Distributed Quantum Systems 8
[7] Yudong Cao, Jonathan Romero, Jonathan P Olson, Brooks Foxen, Craig Gidney, Marissa Giustina, Matthew P.
Matthias Degroote, Peter D Johnson, Mária Kieferová, Harrigan, Sean D. Harrington, Jeremy Hilton, Alan Ho,
Ian D Kivlichan, Tim Menke, Borja Peropadre, Nicolas PD Sabrina Hong, Trent Huang, Ashley Huff, William J. Hug-
Sawaya, et al. Quantum chemistry in the age of quan- gins, L. B. Ioffe, Sergei V. Isakov, Justin Iveland, Evan
tum computing. Chemical reviews, 119(19):10856–10915, Jeffrey, Zhang Jiang, Cody Jones, Dvir Kafri, Tanuj Khat-
2019. tar, Seon Kim, Alexei Kitaev, Paul V. Klimov, Alexander N.
[8] Samudra Dasgupta and Travis S Humble. Characteriz- Korotkov, Fedor Kostritsa, David Landhuis, Pavel Laptev,
ing the stability of nisq devices. In 2020 IEEE Interna- Joonho Lee, Kenny Lee, Aditya Locharla, Erik Lucero,
tional Conference on Quantum Computing and Engineer- Orion Martin, Jarrod R. McClean, Trevor McCourt, Matt
ing (QCE), pages 419–429. IEEE, 2020. McEwen, Kevin C. Miao, Masoud Mohseni, Shirin Mon-
tazeri, Wojciech Mruczkiewicz, Ofer Naaman, Matthew
[9] Alexander Cowtan, Silas Dilkes, Ross Duncan, Alexandre Neeley, Charles Neill, Michael Newman, Murphy Yuezhen
Krajenbrink, Will Simmons, and Seyon Sivarajah. On the
Niu, Thomas E. OB́rien, Alex Opremcak, Eric Ostby,
qubit routing problem. arXiv preprint arXiv:1902.08091,
Balint Pato, Andre Petukhov, Nicholas C. Rubin, Daniel
2019.
Sank, Kevin J. Satzinger, Vladimir Shvarts, Yuan Su,
[10] Davide Ferrari, Angela Sara Cacciapuoti, Michele Doug Strain, Marco Szalay, Matthew D. Trevithick, Ben-
Amoretti, and Marcello Caleffi. Compiler design for dis- jamin Villalonga, Theodore White, Z. Jamie Yao, Ping
tributed quantum computing. IEEE Transactions on Quan- Yeh, Juhwan Yoo, Adam Zalcman, Hartmut Neven, Ser-
tum Engineering, 2:1–20, 2021. ISSN 2689-1808. doi: gio Boixo, Vadim Smelyanskiy, Anthony Megrant, Julian
10.1109/tqe.2021.3053921. URL http://dx.doi.org/ Kelly, Yu Chen, S. L. Sondhi, Roderich Moessner, Kostyan-
10.1109/TQE.2021.3053921. tyn Kechedzhi, Vedika Khemani, and Pedram Roushan.
[11] D Ferrari, S Nasturzio, and M Amoretti. A software tool for Observation of time-crystalline eigenstate order on a quan-
mapping and executing distributed quantum computations tum processor, 2021.
on a network simulator. [19] Frank Arute, Kunal Arya, Ryan Babbush, Dave Bacon,
[12] Daniele Cuomo, Marcello Caleffi, and Angela Sara Caccia- Joseph C Bardin, Rami Barends, Rupak Biswas, Sergio
puoti. Towards a distributed quantum computing ecosys- Boixo, Fernando GSL Brandao, David A Buell, et al. Quan-
tem. IET Quantum Communication, 1(1):3–8, Jul 2020. tum supremacy using a programmable superconducting
ISSN 2632-8925. doi: 10.1049/iet-qtc.2020.0002. URL processor. Nature, 574(7779):505–510, 2019.
http://dx.doi.org/10.1049/iet-qtc.2020.0002. [20] Aram W Harrow and Ashley Montanaro. Quantum com-
[13] L Gyongyosi and S Imre. Distributed quantum compu- putational supremacy. Nature, 549(7671):203–209, 2017.
tation for near-term quantum environments. In Quantum [21] Michael J Bremner, Ashley Montanaro, and Dan J Shep-
Information Science, Sensing, and Computation XIII, vol- herd. Achieving quantum supremacy with sparse and noisy
ume 11726, page 117260I. International Society for Optics commuting quantum computations. Quantum, 1:8, 2017.
and Photonics, 2021.
[22] Hasan Yetis and Mehmet Karakoes. Investigation of noise
[14] John Preskill. Fault-tolerant quantum computation. In In- effects for different quantum computing architectures in
troduction to quantum computation and information, pages ibm-q at nisq level. In 2021 25th International Conference
213–269. World Scientific, 1998. on Information Technology (IT), pages 1–4, 2021. doi:
[15] Peter W Shor. Fault-tolerant quantum computation. In Pro- 10.1109/IT51528.2021.9390130.
ceedings of 37th Conference on Foundations of Computer [23] IBM Quantum Experience. URL https:
Science, pages 56–65. IEEE, 1996. //quantum-computing.ibm.com/.
[16] Peter W. Shor. Polynomial-time algorithms for prime fac- [24] Zain H. Saleem, Teague Tomesh, Michael A. Perlin,
torization and discrete logarithms on a quantum computer. Pranav Gokhale, and Martin Suchara. Quantum divide
SIAM Journal on Computing, 26(5):1484–1509, Oct 1997. and conquer for combinatorial optimization and distributed
ISSN 1095-7111. doi: 10.1137/s0097539795293172. URL computing, 2021.
http://dx.doi.org/10.1137/S0097539795293172.
[25] John Preskill. Ph219/cs219 quantum computation 2018-
[17] Aram W. Harrow, Avinatan Hassidim, and Seth Lloyd. 19, Jul 2015. URL http://theory.caltech.edu/
Quantum algorithm for linear systems of equations. Phys- ~preskill/ph219/ph219_2018-19.
ical Review Letters, 103(15), Oct 2009. ISSN 1079-
7114. doi: 10.1103/physrevlett.103.150502. URL http: [26] Wei Tang, Teague Tomesh, Martin Suchara, Jeffrey Larson,
//dx.doi.org/10.1103/PhysRevLett.103.150502. and Margaret Martonosi. CutQC: Using small quantum
computers for large quantum circuit evaluations. In Pro-
[18] Xiao Mi, Matteo Ippoliti, Chris Quintana, Ami Greene, Zi- ceedings of the 26th ACM International Conference on
jun Chen, Jonathan Gross, Frank Arute, Kunal Arya, Juan Architectural Support for Programming Languages and
Atalaya, Ryan Babbush, Joseph C. Bardin, Joao Basso, An- Operating Systems, pages 473–486, 2021.
dreas Bengtsson, Alexander Bilmes, Alexandre Bourassa,
Leon Brill, Michael Broughton, Bob B. Buckley, David A. [27] Tianyi Peng, Aram W Harrow, Maris Ozols, and Xiaodi
Buell, Brian Burkett, Nicholas Bushnell, Benjamin Chiaro, Wu. Simulating large quantum circuits on a small quantum
Roberto Collins, William Courtney, Dripto Debroy, Sean computer. Physical Review Letters, 125(15):150504, 2020.
Demura, Alan R. Derk, Andrew Dunsworth, Daniel Ep- [28] Thomas Ayral, François-Marie Le Régent, Zain Saleem,
pens, Catherine Erickson, Edward Farhi, Austin G. Fowler, Yuri Alexeev, and Martin Suchara. Quantum divide and– Qurzon: A Prototype for a Divide and Conquer Based Quantum Compiler for Distributed Quantum Systems 9
compute: Hardware demonstrations and noisy simulations. Deshmukh, Mohit Deshpande, Delton Ding, Jun Doi,
In 2020 IEEE Computer Society Annual Symposium on Eli M. Dow, Eric Drechsler, Eugene Dumitrescu, Karel Du-
VLSI (ISVLSI), pages 138–140. IEEE, 2020. mon, Ivan Duran, Kareem EL-Safty, Eric Eastman, Grant
[29] Marcos Yukio Siraichi, Vinícius Fernandes dos Santos, Eberle, Amir Ebrahimi, Pieter Eendebak, Daniel Egger,
Sylvain Collange, and Fernando Magno Quintão Pereira. Emilio, Alberto Espiricueta, Mark Everitt, Davide Facoetti,
Qubit allocation. In Proceedings of the 2018 International Farida, Paco Martín Fernández, Samuele Ferracin, Da-
Symposium on Code Generation and Optimization, pages vide Ferrari, Axel Hernández Ferrera, Romain Fouilland,
113–125, 2018. Albert Frisch, Andreas Fuhrer, Bryce Fuller, MELVIN
GEORGE, Julien Gacon, Borja Godoy Gago, Claudio
[30] Alwin Zulehner, Alexandru Paler, and Robert Wille. An Gambella, Jay M. Gambetta, Adhisha Gammanpila, Luis
efficient methodology for mapping quantum circuits to the Garcia, Tanya Garg, Shelly Garion, Tim Gates, Leron Gil,
ibm qx architectures. IEEE Transactions on Computer- Austin Gilliam, Aditya Giridharan, Juan Gomez-Mosquera,
Aided Design of Integrated Circuits and Systems, 38(7): Gonzalo, Salvador de la Puente González, Jesse Gorzinski,
1226–1236, 2018. Ian Gould, Donny Greenberg, Dmitry Grinko, Wen Guan,
[31] Robert Wille, Lukas Burgholzer, and Alwin Zulehner. Map- John A. Gunnels, Harshit Gupta, Naman Gupta, Jakob M.
ping quantum circuits to ibm qx architectures using the Günther, Mikael Haglund, Isabel Haide, Ikko Hamamura,
minimal number of swap and h operations. In 2019 56th Omar Costa Hamido, Frank Harkins, Areeq Hasan, Vojtech
ACM/IEEE Design Automation Conference (DAC), pages Havlicek, Joe Hellmers, Łukasz Herok, Stefan Hillmich,
1–6. IEEE, 2019. Hiroshi Horii, Connor Howington, Shaohan Hu, Wei
[32] Beatrice Nash, Vlad Gheorghiu, and Michele Mosca. Hu, Junye Huang, Rolf Huisman, Haruki Imai, Takashi
Quantum circuit optimizations for nisq architectures. Imamichi, Kazuaki Ishizaki, Ishwor, Raban Iten, Toshi-
Quantum Science and Technology, 5(2):025010, 2020. nari Itoko, Ali Javadi, Ali Javadi-Abhari, Wahaj Javed,
Qian Jianhua, Madhav Jivrajani, Kiran Johns, Scott John-
[33] Bochen Tan and Jason Cong. Optimal layout synthesis
stun, Jonathan-Shoemaker, JosDenmark, JoshDumo, John
for quantum computing. In 2020 IEEE/ACM International
Judge, Tal Kachmann, Akshay Kale, Naoki Kanazawa, Jes-
Conference On Computer Aided Design (ICCAD), pages
sica Kane, Kang-Bae, Annanay Kapila, Anton Karazeev,
1–9. IEEE, 2020.
Paul Kassebaum, Josh Kelso, Scott Kelso, Vismai Khan-
[34] Alexander Cowtan, Will Simmons, and Ross Duncan. A derao, Spencer King, Yuri Kobayashi, Arseny Kovyrshin,
generic compilation strategy for the unitary coupled cluster Rajiv Krishnakumar, Vivek Krishnan, Kevin Krsulich,
ansatz, 2020. Prasad Kumkar, Gawel Kus, Ryan LaRose, Enrique La-
[35] Alexander Cowtan, Silas Dilkes, Ross Duncan, Will Sim- cal, Raphaël Lambert, Haggai Landa, John Lapeyre, Joe
mons, and Seyon Sivarajah. Phase gadget synthesis for Latone, Scott Lawrence, Christina Lee, Gushu Li, Jake
shallow circuits. Electronic Proceedings in Theoreti- Lishman, Dennis Liu, Peng Liu, Yunho Maeng, Saurav
cal Computer Science, 318:213–228, May 2020. ISSN Maheshkar, Kahan Majmudar, Aleksei Malyshev, Mo-
2075-2180. doi: 10.4204/eptcs.318.13. URL http: hamed El Mandouh, Joshua Manela, Manjula, Jakub Mare-
//dx.doi.org/10.4204/EPTCS.318.13. cek, Manoel Marques, Kunal Marwaha, Dmitri Maslov,
Paweł Maszota, Dolph Mathews, Atsushi Matsuo, Farai
[36] MD SAJID ANIS, Héctor Abraham, AduOffei, Rochisha
Mazhandu, Doug McClure, Maureen McElaney, Cameron
Agarwal, Gabriele Agliardi, Merav Aharoni, Ismail Yunus
McGarry, David McKay, Dan McPherson, Srujan Meesala,
Akhalwaya, Gadi Aleksandrowicz, Thomas Alexander,
Dekel Meirom, Corey Mendell, Thomas Metcalfe, Mar-
Matthew Amy, Sashwat Anagolum, Eli Arbel, Abraham
tin Mevissen, Andrew Meyer, Antonio Mezzacapo, Ro-
Asfaw, Anish Athalye, Artur Avkhadiev, Carlos Azaus-
hit Midha, Zlatko Minev, Abby Mitchell, Nikolaj Moll,
tre, PRATHAMESH BHOLE, Abhik Banerjee, Santanu
Alejandro Montanez, Gabriel Monteiro, Michael Duane
Banerjee, Will Bang, Aman Bansal, Panagiotis Barkout-
Mooring, Renier Morales, Niall Moran, David Morcuende,
sos, Ashish Barnawal, George Barron, George S. Barron,
Seif Mostafa, Mario Motta, Romain Moyard, Prakash
Luciano Bello, Yael Ben-Haim, Daniel Bevenius, Dhruv
Murali, Jan Müggenburg, David Nadlinger, Ken Nakan-
Bhatnagar, Arjun Bhobe, Paolo Bianchini, Lev S. Bishop,
ishi, Giacomo Nannicini, Paul Nation, Edwin Navarro,
Carsten Blank, Sorin Bolos, Soham Bopardikar, Samuel
Yehuda Naveh, Scott Wyman Neagle, Patrick Neuweiler,
Bosch, Sebastian Brandhofer, Brandon, Sergey Bravyi,
Aziz Ngoueya, Johan Nicander, Nick-Singstock, Pradeep
Nick Bronn, Bryce-Fuller, David Bucher, Artemiy Burov,
Niroula, Hassi Norlen, NuoWenLei, Lee James O’Riordan,
Fran Cabrera, Padraic Calpin, Lauren Capelluto, Jorge
Oluwatobi Ogunbayo, Pauline Ollitrault, Tamiya Onodera,
Carballo, Ginés Carrascal, Adam Carriker, Ivan Carvalho,
Raul Otaolea, Steven Oud, Dan Padilha, Hanhee Paik,
Adrian Chen, Chun-Fu Chen, Edward Chen, Jielun (Chris)
Soham Pal, Yuchen Pang, Ashish Panigrahi, Vincent R.
Chen, Richard Chen, Franck Chevallier, Rathish Cholara-
Pascuzzi, Simone Perriello, Eric Peterson, Anna Phan,
jan, Jerry M. Chow, Spencer Churchill, Christian Claus,
Francesco Piro, Marco Pistoia, Christophe Piveteau, Ju-
Christian Clauss, Caleb Clothier, Romilly Cocking, Ryan
lia Plewa, Pierre Pocreau, Alejandro Pozas-Kerstjens,
Cocuzzo, Jordan Connor, Filipe Correa, Abigail J. Cross,
Rafał Pracht, Milos Prokop, Viktor Prutyanov, Sumit Puri,
Andrew W. Cross, Simon Cross, Juan Cruz-Benito, Chris
Daniel Puzzuoli, Jesús Pérez, Quintiii, Isha R, Rafey Iqbal
Culver, Antonio D. Córcoles-Gonzales, Navaneeth D, Sean
Rahman, Arun Raja, Roshan Rajeev, Nipun Ramagiri,
Dague, Tareq El Dandachi, Animesh N Dangwal, Jonathan
Anirudh Rao, Rudy Raymond, Oliver Reardon-Smith,
Daniel, Marcus Daniels, Matthieu Dartiailh, Abdón Ro-
Rafael Martín-Cuevas Redondo, Max Reuter, Julia Rice,
dríguez Davila, Faisal Debouni, Anton Dekusar, Amol– Qurzon: A Prototype for a Divide and Conquer Based Quantum Compiler for Distributed Quantum Systems 10
Matt Riedemann, Drew Risinger, Marcello La Rocca, [39] Fei Yan, Philip Krantz, Youngkyu Sung, Morten Kjaer-
Diego M. Rodríguez, RohithKarur, Ben Rosand, Max gaard, Daniel L. Campbell, Terry P. Orlando, Simon
Rossmannek, Mingi Ryu, Tharrmashastha SAPV, Arijit Gustavsson, and William D. Oliver. Tunable coupling
Saha, Abdullah Ash-Saki, Sankalp Sanand, Martin Sand- scheme for implementing high-fidelity two-qubit gates.
berg, Hirmay Sandesara, Ritvik Sapra, Hayk Sargsyan, Phys. Rev. Applied, 10:054062, Nov 2018. doi: 10.1103/
Aniruddha Sarkar, Ninad Sathaye, Bruno Schmitt, Chris PhysRevApplied.10.054062. URL https://link.aps.
Schnabel, Zachary Schoenfeld, Travis L. Scholten, Ed- org/doi/10.1103/PhysRevApplied.10.054062.
die Schoute, Mark Schulterbrandt, Joachim Schwarm, [40] Pranav Mundada, Gengyan Zhang, Thomas Hazard, and
James Seaward, Sergi, Ismael Faro Sertage, Kanav Setia, Andrew Houck. Suppression of qubit crosstalk in a tunable
Freya Shah, Nathan Shammah, Rohan Sharma, Yunong coupling superconducting circuit. Phys. Rev. Applied, 12:
Shi, Jonathan Shoemaker, Adenilton Silva, Andrea Si- 054023, Nov 2019. doi: 10.1103/PhysRevApplied.12.
monetto, Divyanshu Singh, Parmeet Singh, Phatthara- 054023. URL https://link.aps.org/doi/10.1103/
porn Singkanipa, Yukio Siraichi, Siri, Jesús Sistos, Iskan- PhysRevApplied.12.054023.
dar Sitdikov, Seyon Sivarajah, Magnus Berg Sletfjerd-
ing, John A. Smolin, Mathias Soeken, Igor Olegovich [41] X. Li, T. Cai, H. Yan, Z. Wang, X. Pan, Y. Ma, W. Cai,
Sokolov, Igor Sokolov, SooluThomas, Starfish, Dominik J. Han, Z. Hua, X. Han, Y. Wu, H. Zhang, H. Wang,
Steenken, Matt Stypulkoski, Adrien Suau, Shaojun Sun, Yipu Song, Luming Duan, and Luyan Sun. Tunable
Kevin J. Sung, Makoto Suwama, Oskar Słowik, Hitomi coupler for realizing a controlled-phase gate with dy-
Takahashi, Tanvesh Takawale, Ivano Tavernelli, Charles namically decoupled regime in a superconducting circuit.
Taylor, Pete Taylour, Soolu Thomas, Mathieu Tillet, Phys. Rev. Applied, 14:024070, Aug 2020. doi: 10.1103/
Maddy Tod, Miroslav Tomasik, Enrique de la Torre, Juan PhysRevApplied.14.024070. URL https://link.aps.
Luis Sánchez Toural, Kenso Trabing, Matthew Treinish, org/doi/10.1103/PhysRevApplied.14.024070.
Dimitar Trenev, TrishaPe, Felix Truger, Georgios Tsilim- [42] X. Y. Han, T. Q. Cai, X. G. Li, Y. K. Wu, Y. W. Ma,
igkounakis, Davindra Tulsi, Wes Turner, Yotam Vaknin, Y. L. Ma, J. H. Wang, H. Y. Zhang, Y. P. Song, and L. M.
Carmen Recio Valcarce, Francois Varchon, Adish Vartak, Duan. Error analysis in suppression of unwanted qubit
Almudena Carrera Vazquez, Prajjwal Vijaywargiya, Vic- interactions for a parametric gate in a tunable supercon-
tor Villar, Bhargav Vishnu, Desiree Vogt-Lee, Christophe ducting circuit. Phys. Rev. A, 102:022619, Aug 2020. doi:
Vuillot, James Weaver, Johannes Weidenfeller, Rafal 10.1103/PhysRevA.102.022619. URL https://link.
Wieczorek, Jonathan A. Wildstrom, Jessica Wilson, Er- aps.org/doi/10.1103/PhysRevA.102.022619.
ick Winston, WinterSoldier, Jack J. Woehr, Stefan Wo-
erner, Ryan Woo, Christopher J. Wood, Ryan Wood,
Steve Wood, James Wootton, Matt Wright, Bo Yang,
Daniyar Yeralin, Ryota Yonekura, David Yonge-Mallo,
Richard Young, Jessie Yu, Lebin Yu, Christopher Za-
chow, Laura Zdanski, Helena Zhang, Christa Zoufal, aed-
dins ibm, alexzhang13, b63, bartek bartlomiej, bcamor-
rison, brandhsn, catornow, charmerDark, deeplokhande,
dekel.meirom, dime10, ehchen, fanizzamarco, fs1132429,
gadial, galeinston, georgezhou20, georgios ts, gruu, hhorii,
hykavitha, itoko, jliu45, jscott2, klinvill, krutik2966, ma5x,
michelle4654, msuwama, ntgiwsvp, ordmoj, sagar pahwa,
pritamsinha2304, ryancocuzzo, saswati qiskit, septembrr,
sethmerkel, shaashwat, sternparky, strickroman, tigerjack,
tsura crisaldo, vadebayo49, welien, willhbang, yang.luh,
and Mantas Čepulkovskis. Qiskit: An open-source frame-
work for quantum computing, 2021.
[37] Michael A. Perlin, Zain H. Saleem, Martin Suchara, and
James C. Osborn. Quantum circuit cutting with maximum
likelihood tomography, 2021.
[38] Yu Chen, C. Neill, P. Roushan, N. Leung, M. Fang,
R. Barends, J. Kelly, B. Campbell, Z. Chen, B. Chiaro,
A. Dunsworth, E. Jeffrey, A. Megrant, J. Y. Mutus, P. J. J.
O’Malley, C. M. Quintana, D. Sank, A. Vainsencher,
J. Wenner, T. C. White, Michael R. Geller, A. N. Cle-
land, and John M. Martinis. Qubit architecture with high
coherence and fast tunable coupling. Phys. Rev. Lett.,
113:220502, Nov 2014. doi: 10.1103/PhysRevLett.113.
220502. URL https://link.aps.org/doi/10.1103/
PhysRevLett.113.220502.You can also read
