Qubo Wall P/L
Manual 2021
play it smart
Finish
Galvanised finishes Wood (for Qubo 25 P/L and Omnio P/L)
chrome silk Oak, natural Oak, black-brown
Suitable for merchandise supports and structural systems.
Not suitable for large surfaces or for system parts in aluminium.
* on request
Anodised finishes for aluminium Premium white Maple, champagne
natural anodised aluminium black anodised aluminium Glass
Only for aluminium system parts, such as profiles, uprights and frames.
Standard colours (powder-coated)
Glass, clear Glass, satin finish
black steel duro* bright silver duro*
Glass, satin finish, black underside Glass, satin finish, white underside
traffic white duro* bright silver mistral**
* Duro powder-coated surfaces are suitable for all systems, as well as for
merchandise supports subject to heavy abrasion.
**Light silver mistral is the standard colour of the Label products and is not used for
any other systems.
Special colours (powder-coated)
dark bronce forest green
night blue highland green
champagne gold rose bronce
sterling silver duro*
Suitable for all systems – less so for merchandise supports subject
to abrasion.
ISO 9001 / ISO 14001 All dimensions are given in millimetres.
The safety of Visplay products is continuously monitored by external Ito = Length to order
testing institutes, Intertek Germany and UL (Underwriters Laboratories hto = Height to order
Inc.). cto = Colour to order
For electrified systems, the CE marking confirms conformity with the L = Length
relevant directives. A = Axis
H = Height
All processes in our company are subject to a comprehensive T = Depth
management system which corresponds with the ISO 9001 quality
Quick delivery program
standard and the ISO 14001 environment standard.
The following symbols which appear on the left-hand side near the
part number indicate the delivery time for each individual item:
= Delivery time: up to 5 working days ex works Weil am Rhein,
Copyright ©
Germany
= Delivery time: up to 10 working days ex works Weil am Rhein,
All products by Visplay and their names are protected by intellectual Germany
property rights. This protection is valid for the basic system along with All other items on request.
the merchandise supports and accessories. Longer delivery times may occur in the event of exceptionally strong
demand.
In the event of infringement, Visplay reserves the right
to take legal steps. Air freight
Items which are to be dispatched by air must not exceed a total length
• Our general conditions of delivery and sale are valid for all orders. of 3 metres.
• We reserve the right to make technical and formal alterations.
Drawings of wooden and glass shelves
Production drawings of shelves with the 6 digit part number are
available for download in the product area and in the download
centre at www.visplay.com or can be received on request.
Assembly and operating instructions
Special assembly and operating instructions exist for all products by
Visplay in order to guarantee the functions and safety. These
instructions contain important information e.g. maximum weight loads,
assembly dimensions or information on the correct assembly and use.
The respective assembly and operating instructions are included in the
delivery of our systems. A general catalogue is also available on
request for planning purposes. The assembly and operating
instructions are available for download in the product area and in the
download centre at www.visplay.com.
Visplay always tries to respect the rights of third parties. Should it not be stated in individual cases, this is an oversight and will be corrected accordingly.
Qubo Wall P/L Vertical 90 5/2021 (EN)
Qubo Wall P/L
Vertical
Qubo 25 P/L outer wall upright, Qubo 25 P/L wall upright, Qubo wall P/L outer wall upright,
left centre left
power supply at base power supply at base without electrification
Dimensions
1050 1050 1050
1400 1400 1400
1860 1860 1860
2460 2460 2460
272–372 272–372 272–372
Characteristics Nominal voltage = 24 V DC Nominal voltage = 24 V DC Square tube = 25 × 25 mm
Nominal current max. 7 A Nominal current max. 7 A
With two pins on one side to support
Square tube = 25 × 25 mm Square tube = 25 × 25 mm connection tubes.
With two pins on one side to support With two pins on each side to support Steel upright with holes in 175 mm
connection tubes. connection tubes. increments.
Steel upright with integrated power Steel upright with integrated power Max. weight load = 120 kg
rail for electrification of shelves rail for electrification of shelves
with LED lighting, holes in 87,5 mm with LED lighting, holes in 87,5 mm Observe the assembly and
increments. increments. operating instruction
Max. weight load = 120 kg Max. weight load = 2 x 120 kg
Observe the assembly and Observe the assembly and
operating instruction operating instruction
Order number black steel duro black steel duro black steel duro
1860 mm 702-370.26 1860 mm 702-373.26 1860 mm 702-379.26
2460 mm 702-312.26 2460 mm 702-318.26 2460 mm 702-363.26
Powered structures must end with Incl. 2 wall brackets with levelling Incl. 2 wall brackets with levelling
a non-electrified outer upright at the adjustment. adjustment.
right-hand end.
Incl. 2 wall brackets with levelling
adjustment.
5/2021 (EN) 91
Qubo Wall P/L
Vertical
Qubo 25 P/L wall upright, Qubo 25 P/L outer wall upright, Set of connection tubes Assembly tool
centre right
without electrification without electrification
1050 1050
1400 1400
1860 1860
2460 2460 A 650
A 1300
272–372 272–372
Square tube = 25 × 25 mm Square tube = 25 × 25 mm To connect wall uprights For mounting connection tubes.
With two pins on each side to support With two pins on one side to support Observe the assembly and
connection tubes. connection tubes. operating instruction
Steel upright with holes in 87,5 mm Steel upright with holes in 87,5 mm
increments. increments.
Max. weight load = 2 x 120 kg Can also be used as end upright
(outer right-hand end) with electrified
Observe the assembly and wall structures.
operating instruction
Max. weight load = 120 kg
Observe the assembly and
operating instruction
black steel duro black steel duro black steel duro bright silver duro
1860 mm 702-382.26 1860 mm 702-376.26 for axis 650 mm 702-418.26 111-844.12
2460 mm 702-366.26 2460 mm 702-321.26 for axis 1300 mm 702-328.26
Incl. 2 wall brackets with levelling Incl. 2 wall brackets with levelling Set of 2 pieces
adjustment. adjustment.
92 5/2021 (EN)
Qubo Wall P/L
Vertical
End caps 24 V distributor, 8-way Extension cable 24 V Converter 90 W
with switch input without mains cable
ø 7.7 mm
100–240 V
L = 200 mm
NV (24 V)
L = 200 mm
L 800 mm
L 2500 mm
2x
ø 7.7 mm
For powering up to 8 profiles with The total power used by the
max. 2 90 W transformers. connected appliances may
not exceed the converter’s max.
Check the power consumption of
capacity.
electrical appliances!
Connection 220–240 V AC 50–60 Hz
A switch input enables use of a power
Nominal voltage = 24 V / DC SELV
switch.
Up to two 90 W converters can be
Nominal current max. 9.5 A (225 W)
switched in parallel when connected
with the 8-way distributor.
black white black black
991-441.26 138-995.19 800 mm 332-203.18 90 W 704-361.18
2500 mm 138-984.18
Set of 4 pcs.
5/2021 (EN) 93Qubo Wall P/L
Vertical
Switching cable 24 V HV extension cable Four-fold distributor set Mains cable 220–240 V
for eight-fold distributor 220–240V L = 1800 mm
EU
EU
L = 2000 mm
UK
UK
2000
220–240 V
L = 1800 mm
ø 20,2 mm
Switching cable for connection to Extension cable for connection to Four-fold distributor for joining
eight-fold distributor. converter cable on 230 V side. up to 4 converters.
Observe the assembly and
operating instruction
white white white white
138-991.19 2000 mm 332-251.19 EU 704-363.19 EU 138-979.19
UK 704-364.19 UK 138-980.19
94 5/2021 (EN)Qubo Wall P/L
Vertical

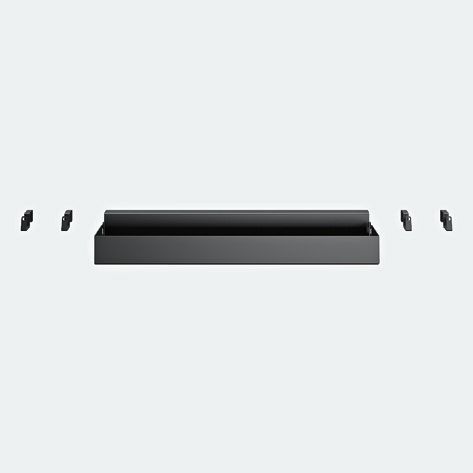

Tray for cables and converters Slip-on shelf brackets Back bar for shelf Back bar with LED lighting for
without electrification shelf
500 270
25 x 25 25 x 25
A 650 A 650
A 1300 A 1300
Attached to bottom connection tube. Are inserted over the connection tube. Is suspended between the uprights. Is suspended between the uprights.
(Tray with converter and cables are
Shelf support bracket 702-758.26 / 07 hidden by wooden shelf panel). Max. weight load = 40 kg Nominal voltage = 24 V DC
with wooden shelf panel 994-016 are Max. weight load = 40 kg - 5 W lamp for 650 mm axis
placed on top. Drawing no. - 10 W lamp for 1300 mm axis
Drawing no. 704-278 Glass shelf 1290 mm Colour temperature: 3000 K /
Observe the assembly and 704-278 Glass shelf 1290 mm 4000 K SDCM3
operating instruction Drawing no.
704-279 Glass shelf 640 mm Colour rendering index: 92
Drawing no. Luminous flux: 1000 lm/m with opal
704-279 Glass shelf 640 mm Drawing no. diffusor
Drawing no. 704-280 Wooden shelf 1290 mm
Max. weight load = 40 kg
704-280 Wooden shelf 1290 mm Drawing no.
704-281 Wooden shelf 640 mm Drawing no.
Drawing no. 704-278 Glass shelf 1290 mm
704-281 Wooden shelf 640 mm
Drawing no.
Observe the assembly and 704-279 Glass shelf 640 mm
operating instruction
Drawing no.
704-280 Wooden shelf 1290 mm
Drawing no.
704-281 Wooden shelf 640 mm
black steel duro black steel duro black steel duro black steel duro
702-757.26 702-758.26 650 mm 704-269.26 650 mm 704-304.26
cto 1300 mm 704-270.26 1300 mm 704-272.26
Set of 2 pieces
Set consisting of 1 converter tray and Indicate colour temperature of 3000 K
4 cable carriers. or 4000 K when placing order.
5/2021 (EN) 95Qubo Wall P/L
Vertical
LED suspension light LED spotlight for powered Single power adapter 24 V Hanging rail 25 × 25 mm
upright or hanging frame for appliances without electrification
with Visplay connectors
640 25 × 25 25 x 25
1300 A 650
98 A 1300
500
ø 55
Is suspended between the uprights. LED-powered light and optical lens. Is For insertion in powered tube Is suspended between the uprights.
inserted into the perforated holes on 25 × 25 mm.
Nominal voltage = 24 V DC the powered upright. Max. weight load = 40 kg
- Lamp 5 W for axis 650 mm Other appliances may only be
- Lamp 10 W for axis 1300 mm Nominal voltage = 24 V DC connected by authorised qualified
Colour temperature: 3000 K / Lamp 7 W, D 55 mm personnel.
4000 K SDCM3 Colour temperature: 2900 K SDCM3
Colour rendering index: 92 Colour rendering index: 80
Luminous flux: 1000 lm/m with opal Luminous flux: approx. 660 lm with The single power adapter may
diffuser optical lens only be used with the systems
Qubo 25 P/L, Qubo Wall P/L and
Reflected beam angle: approx: 40° Multi-Lane.
Swivel range: up to 90° downwards Nominal voltage = 24 V DC
Nominal current max. 4 A
Observe the assembly and
operating instruction
black steel duro black steel duro Black black steel duro
for axis 650 mm 704-412.26 993-447.26 993-823.18 for axis 650 mm 704-273.26
for axis 1300 mm 704-394.26 for axis 1300 mm 704-274.26
Including feed cable 500 mm with
Visplay connectors.
96 5/2021 (EN)Qubo Wall P/L
Vertical
Frontarm 25 × 25 mm Hanging rail 25 × 25 mm Hanging rail 25 × 25 mm Scliss
with a front arm on each side with two front arms on each side
without electrification without electrification
100 x
25 x 25
25 x 25
A 650
625
235
R 20.5
A 1300
400
400
Zum Einhängen auf Tragstange Is suspended between the uprights. Is suspended between the uprights. Prevents scratches on hanging rails
25 × 25 mm and front arms in silk or stainless steel.
Total depth of front arm 187 mm. Total depth of front arm 187 mm.
Max. Belastung = 15 kg To clip into coat hanger hook
Max. weight load = 40 kg Max. weight load = 40 kg (Ø 3.4–3.8 mm).
black steel duro black steel duro black steel duro transparent
180 mm 704-256.26 650 mm 704-275.26 1300 mm 704-276.26 929-449.02
Set of 100 pcs.
5/2021 (EN) 97You can get in touch with us by email or by phone.
Contact details for our offices can be found here:
www.visplay.com/contact
www.visplay.com info@visplay.comYou can also read
