Protein Translocation Through
Artificial Nanopores
Marc Creus
University of Basel
ERBM4 Liège
A WHOLE nano-world to be explored!
Institute of Microtechnology (Neuchâtel) Institute of Chemistry (Neuchâtel)
Dr Urs Staufer Dr Marc Creus
Dr Anpan Han Prof Thomas Ward
Prof Nico de Rooij
First patent application for Coulter Counter: 1949
“You cannot patent a hole!”
US Patent granted: 1953, USPT 2656508
Wallace H. Coulter (1913-1998)
Engineer, Inventor, Entrepreneur, Visionary
Application of Coulter Principle:
Blood-Cell Counter
The complete blood count or “CBC” is
one of the most commonly ordered
diagnostic tests worldwide.
Today, ninety-eight percent of CBCs
are performed on instruments using the
Coulter Principle.
Micro vs Nano
10µm
1nm
(e.g. diametre of
a small protein,
which is
10 000 x smaller
than this small cell)
Since the nano-scale corresponds to the size of
biological macromolecules, nanopores could be
useful in biochemical analyses of proteins.
~5nm
“We have friends in other fields---in biology, for instance. We physicists often look at them and
say, (…) ``You should use more mathematics, like we do.'' They could answer us (…) ``What
you should do in order for us to make more rapid progress is to make the electron microscope
100 times better.''
Richard Feynman, December 29th 1959
“There’s plenty of room at the bottom”
http://www.zyvex.com/nanotech/feynman.html
Structure of DNA
• Genetic data
• Primary structure
– Polymer of A, T, C, G
• Secondary structure
- B helix
– Diameter
2 nm
• Tertiary structure Alberts et al.
Structure of Proteins
• Primary structure
– Polymer of 20 amino acids
• Secondary structure
– α-helix, β-strands, coils
• Tertiary structure
• Quaternary structure
– Multi protein complex, filaments
• Typical diameter: 1 - 20 nm Ovalbumin
Deposition: Stein , Leslie,
1990 PDB: 1OVA
Properties of macromolecules:
• Surface charge: positive, neutral or negative
-DNA (an acid) is usually negatively
charged
Acid (low) pH Basic (high) pH
-Proteins can be basic or acidic
and have different charges
depending on the pH
Alberts et al.
More properties of macromolecules:
Specific interactions
• Proteins are designed for recognition:
antibodies, hormones, enzymes,
structural proteins, toxins, etc…
How can a biochemist make use of
synthetic nanopores?
• Measure size, charge, structural
properties and interactions of
proteins, in real-time and in solution?Process flow chart nanopore fabrication
500 nm SiO2 AZ 1518 both sides KOH etching rinsing
20 nm Si3N4
spin PMMA backside alignment oxidation
optical lithography
20nm
e-beam litho. RIE, stripping chip level PDMS bonding
silicon Si3N4 SiO2
RIE, stripping
PMMA PDMS AZ 1518Wafer-level nanopore fabrication process
PDMS
lp= 20nm
25 nm
Si3N4
SiO2
Si
SiO2

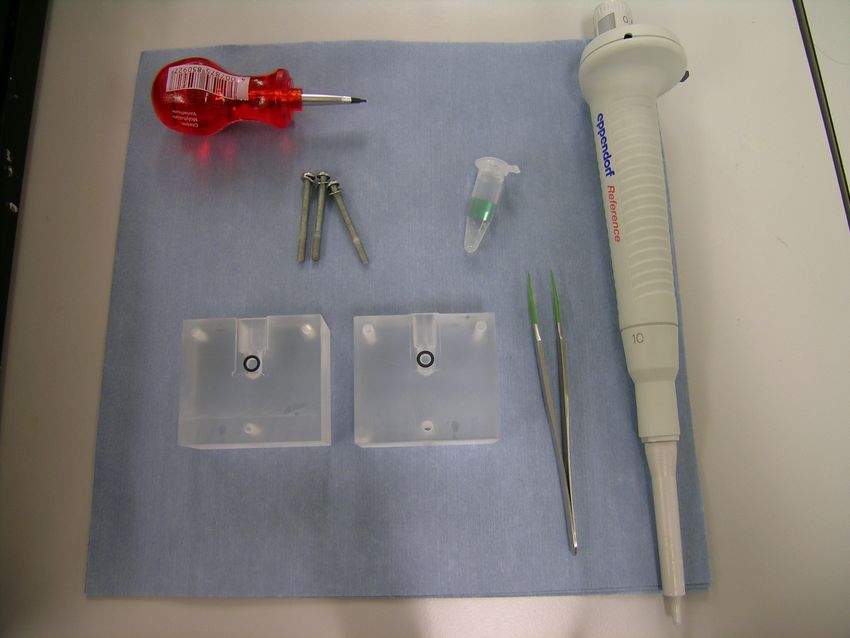

Si3N4Experiment setup
Measured parameters
• Count the numbers of
spikes per minute
– Number of spikes
proportional to
concentration
• Individual spikes
– Duration: ∆t
– Current change: ∆I
∆I
∆tFour different proteins, differing in size and
charge properties
Streptavidin Mut. S27a Human Serum Albumin Ovalbumin Avidin comp. Biotin.
Le Trong et al. 2002 S.Sugio, et al., 1998 Stein , Leslie, 1990 Livnah et al 1993,
PDB: 1N9Y PDB: 1BM0 PDB: 1OVA PDB: 2AVI
Notes Mass (kDa) rstoke (nm) pIisof pIef
Streptavidin (SAV) Recombinant 66 - 6.5
BSA >99% electrophoresis 66 3.5 5.3 4.25
Ovalbumin (OA) Grade VII (>98% elph.) 44 2.7 4.54 4.6
Avidin (AV) Heterogeneous 72/62 - 10.5Translocation by electrophoresis Electrode bias set at 50 mV (or -50mV) pH 6, citrate, 1M KCl, 1 µg BSA/mL Since pore is considerably larger than proteins, at a first approximation we can ignore protein-pore interactions
Protein charge explored by nanopores Valleys (50mV) Peaks (-50mV)
Protein charge explored by nanopores
BSA
BSA is reported to have pI 4.2 in
presence of KCl
(reports that pI is reduced from 5.3
due to binding of Cl-)
Suggests importance of counterions?
Han, Creus, Schürmann,Lindner, Ward, Staufer, Analytical Chemistry (2008) 89:4651-4658Spikes: pH-dependence of shape and duration
BSA
Duration of blockage-events
varies with pH: longer (and
more complex) signals closer
to pI
Fewer, sharp spikes when pH
is distant from pI
Suggests time resolution is a
critical issue
Han, Creus, Schürmann,Lindner, Ward, Staufer, Analytical Chemistry (2008) 89:4651-4658Variety of spikes with complex fine-structure
BSA pH3 BSA pH6 AV pH6 SAV pH5
Han, Creus, Schürmann,Lindner, Ward, Staufer, Analytical Chemistry (2008) 89:4651-4658Time resolution
Our calculations suggest
that at pH8 BSA BSA
BSA
translocates the 20nm pore-
length in about 2µs
Even with 100kHz
bandwidth, practical time
resolution is only 40µs
Very fast translocations will
not be resolved
Can slow down by
measuring with pH close to
pI
Han, Creus, Schürmann,Lindner, Ward, Staufer, Analytical Chemistry (2008) 89:4651-4658Slowing down by pH
r
E I
pH close to pI
pH far from pI
tProtein translocation explored by nanopores
BSA
BSA is reported to have pI 4.2 in
presence of KCl
(reports that pI is reduced from 5.3
due to binding of Cl-)
Very few translocations of BSA at
pH4
Han, Creus, Schürmann,Lindner, Ward, Staufer, Analytical Chemistry (2008) 89:4651-4658Protein diameter measured by nanopores
Pore Protein I (nA) dp (nm) ΔI (nA) dm (nm)
A OA 10.7 21.9 0.21 7.1
B OA 10.8 22.0 0.25 7.5
pH 6, 100mV
OA, BSA, SAV C OA 14.0 26.3 0.23 7.3
D BSA 14.0 26.4 0.31 8.6
E BSA 14.5 26.5 0.27 8.7
F BSA 15.9 28.9 0.31 8.8
dOA = 7.3 nm ± 0.2 nm
dBSA = 8.7 nm ± 0.1 nm
1 nm = 10 hydrogen atoms (10 Å)Quantifying molecules by exploiting
specific interactions of proteins
IgG (hCG)= 4µg/ml
0 2 4 6 8 10 0 2 4 6 8 10
Time (s) Time (s)
0 2 4 6 8 10
Time (s)Interpretation
r
E I
tNanopore bioassays
• The principle of the assay is general & can be applied wherever
two molecules combined give a different signal from signals of
either molecules alone
A+B=C
•
Titrations can be employed for
quantification (e.g. measures of affinity)
Statistical calculations: 1000 counts (C.V. 3.2%)
Counting 1000 proteins in 1ml volumes is not “zeptoM sensitivity”,
due to limitations:
- Time: 500 counts/min (25nM antibody)
- Affinities (for biomolecular interactions)New methods bring surprising outcomes…
• SAV (calculated pI= 6.5) is
apparently very heterogeneous, SAV
with both positively and
negatively-charged tetramers at
any given pH
SDS-PAGE gelSAV apparently pure?
Mass Reconstruction of Streptavidin Wildtype.
Applied Biosystems/ Sciex QTrap Mass Spectrometer:
Electrospray Low Resolution, Positive Ion Mode
Acetonitrile/Water (1:1) + 1%HFo
Avi Sav
16430.0
Sav (theory)= 16423 Da
Sav (found) = 16430 Da
Sav + Ca2+= 16470 Da
Sav + 2x Ca 2+= 16510 Da
Sav + 3x Ca2+ = ~16552 Da
Isoelectric Focusing
Lutter et al. Electrophoresis 2001, 22: 2888-2897New methods bring surprising outcomes… • SAV (calculated pI= 6.5) is apparently very heterogeneous, SAV with both positively and negatively-charged tetramers at any given pH • Charge heterogeneity? • Binding to counterions?
Summary
• Protein sensing using nanopores: label-free, in solution, in
real time
– Exquisitely sensitive: proteins analysed one-by-one
– Diameter precisely determined with 0.2nm reproducibility
– Charge-properties and interactions between proteins can be
measured
– Label-free immunoassays
– Counting just 1000 molecules is required for accuracy, which
could be found in tiny volumesQuestions and outlook
What are the effects of counterions?
What is the significance of the fine-structure of spikes?
Structural/ biophysical properties:
Explore orientation of translocation
Sequence proteins: beyond genomics?
Protein folding (time resolution)
Domain movements (time resolution)
Nanopore Assays:
Protein heterogeneity
Biomolecular interactions & affinities
Paradigm shift (beyond DNA):
Since nanopores are easy to use and informative, they
may become a useful analytical tool for the biochemistAcknowledgements
• Canton de Neuchâtel
• Swiss National Science Fund
• Danish Research Agency
for financial support
• The staff of COMLab & the joint clean-room facility of IMT and
CSEM for their technological support
• Prof. Urs Staufer (now at Delft Technical University)
• Dr Anpan Han (now in Copenhagen)Wafer-level nanopore fabrication process Si3N4 SiO2 Si SiO2 Si3N4
Wafer-level nanopore fabrication process Resist Si3N4 SiO2 Si SiO2 Si3N4
Wafer-level nanopore fabrication process
e-beam exposure
Resist
Si3N4
SiO2
Si
SiO2
Si3N4
Resist
optical lithographyYou can also read
