PRESERVING SECURITY AND PRIVACY: A WIFI ANALYZER APPLICATION BASED ON AUTHENTICATION AND TOR - DIVA
←
→
Page content transcription
If your browser does not render page correctly, please read the page content below
DEGREE PROJECT IN ELECTRONICS AND COMPUTER ENGINEERING, FIRST CYCLE, 15 CREDITS STOCKHOLM, SWEDEN 2020 Preserving Security and Privacy: a WiFi Analyzer Application based on Authentication and Tor ALEXANDRA KOLONIA REBECKA FORSBERG KTH ROYAL INSTITUTE OF TECHNOLOGY SCHOOL OF ELECTRICAL ENGINEERING AND COMPUTER SCIENCE
Abstract
Numerous mobile applications have the potential to collect and share user-
specific information on top of the essential data handling. This is made possible
through poor application design and its improper implementation. The lack
of security and privacy in an application is of main concern since the spread of
sensitive and personal information can cause both physical and emotional harm,
if it is being shared with unauthorized people. This thesis investigates how to
confidentially transfer user information in such a way that the user remains
anonymous and untraceable in a mobile application. In order to achieve that,

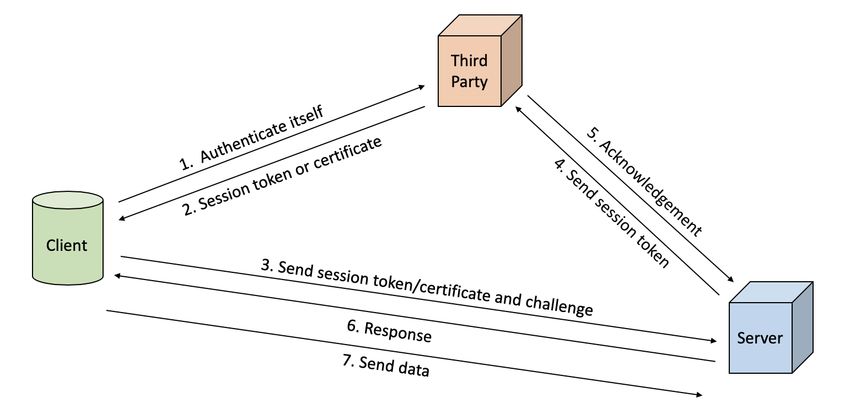

the user will first authenticate itself to a third party, which provides the user
with certificates or random generated tokens. The user can then use this as its
communication credentials towards the server, which will be made through the
Tor network. Further, when the connection is established, the WiFi details are
sent periodically to the server without the user initiating the action.
The results show that it is possible to establish connection, both with random
tokens and certificates. The random tokens took less time to generate compared
to the certificate, however the certificate took less time to verify, which balances
off the whole performance of the system. Moreover, the results show that the
implementation of Tor is working since it is possible for the system to hide the
real IP address, and provide a random IP address instead. However, the com-
munication is slower when Tor is used which is the cost for achieving anonymity
and improving the privacy of the user. Conclusively, this thesis proves that
combining proper implementation and good application design improves the
security in the application thereby protecting the users’ privacy.
Keywords
Network security, Privacy, Anonymity, Onion routing, Tor Organization, Wi-Fi
data collection
i
Sammanfattning
Många mobilapplikationer har möjlighet att samla in och dela användarspecifik
information, utöver den väsentliga datahanteringen. Det här problemet möjligg-
örs genom dålig applikationsdesign och felaktig implementering. Bristen på
säkerhet och integritet i en applikation är därför kritisk, eftersom spridning av
känslig och personlig information kan orsaka både fysisk och emotionell skada,
om den delas med obehöriga personer. Denna avhandling undersöker hur man
konfidentiellt kan överföra användarinformation på ett sätt som tillåter använ-
daren av mobilapplikationen att förbli både anonym och icke spårbar. För att
uppnå detta kommer användaren först att behöva autentisera sig till en tredje
part, vilket förser användaren med slumpmässigt genererade tecken eller med
ett certifikat. Användaren kan sedan använda dessa till att kommunicera med
servern, vilket kommer att göras över ett Tor-nätverk. Slutligen när anslutnin-
gen upprättats, kommer WiFi-detaljerna att skickas över periodvis till servern,
detta sker automatiskt utan att användaren initierar överföringen.
Resultatet visar att det är möjligt att skapa en anslutning både med ett certifikat
eller med slumpmässiga tecken. Att generera de slumpmässiga tecknen tog min-
dre tid jämfört med certifikaten, däremot tog certifikaten mindre tid att verifiera
än tecknen. Detta resulterade i att de båda metoderna hade en jämn prestanda
om man ser över hela systemet. Resultatet visar vidare att det implementerin-
gen av Tor fungerar då det är möjligt för systemet att dölja den verkliga IP-
adressen och att istället tillhandahålla en slumpmässig IP-adress. Kommunika-
tionen genom Tor gör dock systemet långsammare, vilket är kostnaden för att
förbättra användarens integritet och uppnå anonymitet. Sammanfattningsvis
visar denna avhandling att genom att kombinera korrekt implementering och
bra applikationsdesign kan man förbättra säkerheten i applikationen och därmed
skydda användarnas integritet.
Nyckelord
Nätverkssäkerhet, Sekretess, Anonymitet, Lök-routing, Tor Organisation, Wifi-
datainsamling
iiAcknowledgments
We would like to thank our supervisor Cihan Eryonucu at the Royal Institute
of Technology, for his support and encouragement throughout this project. For
his time, effort and patience to always be there and answer questions and to
provide feedback and guidance whenever needed.
Further, we would like to thank our examiner Panagiotis Papadimitratos at
the Royal Institute of Technology, for his guidance and advice to choose the
right topic and for supporting and encouraging us throughout the whole project.
We would also like to thank our family and friends for their support and atten-
tion throughout these last 3 years.
Stockholm, June 2020
Alexandra Kolonia and Rebecka Forsberg
iiiAuthors
Alexandra Kolonia and
Rebecka Forsberg
Information and Communication Technology
KTH Royal Institute of Technology
Place for Project
KTH Royal Institute of Technology
Stockholm, Sweden
Examiner
Panagiotis Papadimitratos
KTH Royal Institute of Technology
Supervisor
Cihan Eryonucu
KTH Royal Institute of Technology
ivContents
List of Figures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii
List of Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix
List of Acronyms and Abbreviations . . . . . . . . . . . . . . . . . . . x
1 Introduction 11
1.1 Background . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1.2 Problem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
1.3 Purpose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
1.4 Goals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
1.5 Research Methodology . . . . . . . . . . . . . . . . . . . . . . . . 14
1.6 Limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
1.7 Structure of the thesis . . . . . . . . . . . . . . . . . . . . . . . . 15
2 Background 16
2.1 Network Security . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2.1.1 Cryptography . . . . . . . . . . . . . . . . . . . . . . . . . 17
2.1.2 Public Key Encryption . . . . . . . . . . . . . . . . . . . . 17
2.1.3 Authentication . . . . . . . . . . . . . . . . . . . . . . . . 18
2.1.4 Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
2.1.5 Security Tokens . . . . . . . . . . . . . . . . . . . . . . . . 19
2.1.6 Transport Layer Security . . . . . . . . . . . . . . . . . . 20
2.2 Privacy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
2.2.1 Anonymity . . . . . . . . . . . . . . . . . . . . . . . . . . 20
2.2.2 Pseudonymity . . . . . . . . . . . . . . . . . . . . . . . . . 20
2.2.3 Unlinkability . . . . . . . . . . . . . . . . . . . . . . . . . 21
2.2.4 Onion routing . . . . . . . . . . . . . . . . . . . . . . . . . 21
2.3 WiFi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
2.3.1 SSID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
2.3.2 BSSID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
2.3.3 Signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
2.3.4 The localization of the user . . . . . . . . . . . . . . . . . 23
2.3.5 The localization of the access points . . . . . . . . . . . . 23
2.4 Related Work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
2.4.1 Participatory sensing . . . . . . . . . . . . . . . . . . . . . 24
2.4.2 Privacy-respecting applications . . . . . . . . . . . . . . . 24
v2.4.3 Privacy policies in mobile application . . . . . . . . . . . 25
2.4.4 RSA Cryptosystem . . . . . . . . . . . . . . . . . . . . . . 25
2.4.5 X.509 Certificates . . . . . . . . . . . . . . . . . . . . . . 25
2.4.6 Tor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
2.4.7 Apps that provide WiFi details . . . . . . . . . . . . . . . 26
2.5 Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
3 Method 28
3.1 Research Process . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
3.1.1 Defining the app which this project is based on . . . . . . 28
3.1.2 Design of the system . . . . . . . . . . . . . . . . . . . . . 28
3.1.3 Authentication . . . . . . . . . . . . . . . . . . . . . . . . 29
3.1.4 Tor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
3.1.5 WiFi Analyzer . . . . . . . . . . . . . . . . . . . . . . . . 32
3.1.6 Evaluation of the implementation . . . . . . . . . . . . . . 32
3.2 Data Collection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
3.3 Experimental Design/Planned Measurements . . . . . . . . . . . 33
3.4 Assessing reliability and validity of the method and data collection 33
3.4.1 Reliability . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
3.4.2 Validity . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
3.5 Planned Data Analysis . . . . . . . . . . . . . . . . . . . . . . . . 34
3.5.1 Data Analysis Techniques . . . . . . . . . . . . . . . . . . 34
3.5.2 Software Tools . . . . . . . . . . . . . . . . . . . . . . . . 34
3.6 Evaluation Framework . . . . . . . . . . . . . . . . . . . . . . . . 34
3.6.1 Collection of data . . . . . . . . . . . . . . . . . . . . . . 34
3.6.2 Evaluation of data . . . . . . . . . . . . . . . . . . . . . . 35
4 Implementation 37
4.1 Selection of the base app . . . . . . . . . . . . . . . . . . . . . . . 37
4.2 System design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
4.3 Authentication . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
4.3.1 Study Review . . . . . . . . . . . . . . . . . . . . . . . . . 38
4.3.2 Implementation . . . . . . . . . . . . . . . . . . . . . . . . 38
4.4 Tor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
4.4.1 Study Review . . . . . . . . . . . . . . . . . . . . . . . . . 49
4.4.2 Implementation . . . . . . . . . . . . . . . . . . . . . . . . 49
4.4.3 Tor integration . . . . . . . . . . . . . . . . . . . . . . . . 50
4.5 Wi-Fi Analyzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
4.5.1 Review . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
4.5.2 Implementation . . . . . . . . . . . . . . . . . . . . . . . . 53
4.6 Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
vi5 Results and Discussion 55
5.1 Authentication . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
5.1.1 Established Connection . . . . . . . . . . . . . . . . . . . 55
5.1.2 Authentication of users . . . . . . . . . . . . . . . . . . . 57
5.1.3 Session Tokens . . . . . . . . . . . . . . . . . . . . . . . . 58
5.1.4 Certificates . . . . . . . . . . . . . . . . . . . . . . . . . . 60
5.2 Tor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
5.2.1 Performance . . . . . . . . . . . . . . . . . . . . . . . . . 62
5.2.2 Anonymity . . . . . . . . . . . . . . . . . . . . . . . . . . 63
5.3 WiFi Analyzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
5.3.1 User Interface . . . . . . . . . . . . . . . . . . . . . . . . . 64
5.3.2 Periodic Request . . . . . . . . . . . . . . . . . . . . . . . 64
5.4 Discussion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
6 Conclusions and Future Work 68
6.1 Conclusions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
6.2 Limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
6.3 Future work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
6.4 Reflections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
References 71
A Raw Data Collected 80
A.1 Raw data from attempt to establish a connection . . . . . . . . . 80
A.2 Raw data for users to be authenticated . . . . . . . . . . . . . . . 81
A.3 Raw data for session token to be verified . . . . . . . . . . . . . . 84
A.4 Raw data for obtaining a new session token . . . . . . . . . . . . 86
A.5 Raw data for obtaining a new certificate . . . . . . . . . . . . . . 86
A.6 Raw data to establish connection with Tor . . . . . . . . . . . . . 87
A.7 Raw data for IP addresses used when running with Tor . . . . . 88
A.8 Raw data for periodic requests times . . . . . . . . . . . . . . . . 88
viiList of Figures
2.1 An image of the onion routing. . . . . . . . . . . . . . . . . . . . 22
2.2 An image of the trilateration illustration. . . . . . . . . . . . . . 23
3.1 An image of the system and the different communication steps
between the parties . . . . . . . . . . . . . . . . . . . . . . . . . . 29
4.1 Message flow between client and third party to register . . . . . . 40
4.2 Message flow between client and third party to login . . . . . . . 41
4.3 Message flow for client and server communication using session
tokens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
4.4 Message flow for client and server communication using certificates 47
5.1 Execution time for attempt to establish a connection over multi-
ple times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
5.2 Execution time for users to be authenticated . . . . . . . . . . . 58
5.3 Execution time for session token to be verified . . . . . . . . . . . 59
5.4 Execution time for obtaining a new session token or a new certificate 60
5.5 Execution time to establish connection with Tor and with SSL
sockets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
5.6 IP addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
5.7 Screenshots of authentication pages . . . . . . . . . . . . . . . . . 65
Note: The figures are created by the authors if nothing else is stated.
viiiList of Tables
3.1 Evaluation framework for the project. . . . . . . . . . . . . . . . 36
5.1 Delays on periodic requests . . . . . . . . . . . . . . . . . . . . . 66
5.2 Summary of the average execution times for each operation . . . 67
Note: The tables are created by the authors if nothing else is stated.
ixList of Acronyms and
Abbreviations
BSSID Basic Service Set-Identifier
CA Certification Authority
CRL Certificate Revocation List
DNS Domain Name System
GUI Graphical User Interface
ITU-T The International Telecommunication Union’s
Telecommunication Standardization Sector
KTH Kungliga Tekniska Högskolan
MCS Mobile Crowd Sensing
OP Onion Proxy
OR Onion Routers
PKI Public Key Infrastructure
PS Participatory Sensing
RSA Rivest–Shamir–Adleman
RSSI Received Signal Strength Indicator
SPPEAR Security and Privacy-Preserving Architecture for
Participatory-Sensing Applications
SSID Service Set-Identifier
SSL Secure Sockets Layer
TCP Transmission Control Protocol
TLS Transport Layer Security
Tor The Onion Router
UDP User Datagram Protocol
xChapter 1
Introduction
More than 70 percent of mobile application suffer from various security vulner-
abilities which can lead to sensitive information being leaked [1]. Such data leak
can cause physical or emotional harm if it is shared with unauthorized people
[2]. Further, these applications can not only store and process sensitive informa-
tion such as Social Security number, Internet banking credentials or passwords
[2], but also access other parts on the phone such as the user’s location, photo
gallery and the contact’s list [3]. Moreover, the cause of the leaked information
is often poor application design or inappropriate implementations [3]. There-
fore, the importance of security and privacy is essential in order to protect the
users and their integrity [1].
1.1 Background
The right for privacy is central in life and protected by laws. Accordingly impor-
tant is the power to control sensitive information, collected and used by others.
As the usage and the dependence on technology are increased, it becomes in-
creasingly difficult to keep sensitive information secret [4].
Different apps are simplifying the lives providing useful functionalities such as
provide service updates on public transportation, real-time GPS-navigation etc.
Most mobile apps are dependent on the internet which allows the developers to
implement them in such a way that massive amount of data can be stored in
databases, be analysed and be shared with third parties [5].
Privacy can be protected using different techniques such as anonymity, pseudo-
nymity, unlinkability and unobservability. Anonymity is achieved by the user
being a part of a larger set of users. The larger the group is, the harder to
identify the individual becomes. Pseudonymity, on the other hand is achieved
through the use of fake names such as identifiers. However, a user is not as
untraceable as when there is an anonymity, since it is the case that sometimes it
11is possible to link the fake identifier to the real person. Also, the users actions
can be observed and linked to the same pseudonym, revealing patterns and thus
identity. Unlinkability is achieved when several objects cannot be linked to-
gether. For example, if two messages are sent in a system, it should not possible
to determine if they are related or not. Finally, unobservability is achieved when
an observer cannot identify if an item of interest actually exists. This means, if
a message is sent, it should not be possible for uninvolved parties to determine
if the message exists or not [6].
The Onion Router (Tor) organization is working towards enhanced privacy and
better information security over the internet. They are using the onion routing
protocol in order to encapsulate messages in many layers not accessible to all
the nodes [7].
Studies have been performed highlighting privacy issue in mobile application,
finding major issues in most mobile applications [8]. More specifically, a re-
search on the privacy policies of apps with similar functionality to the proposed
application, which is described on the problem section, was made and concluded
that user’s information is collected and shared to third parties [9].
"Wifi Analyzer" is an open source application which provides information about
the user’s surrounding WiFi networks, such as strength. The people who have
developed this application are aware of the security and privacy concerns. Af-
ter evaluating the code of the Wifi Analyzer app, it appears that, it does not
communicate with a server [10].
"Orbot" is an open source application which is based on the concept of the
Tor Organisation. The application protects the user’s security and privacy, by
encrypting and hiding the user’s Internet traffic [11].
1.2 Problem
In the recent years, the lack of privacy in communications have been revealed.
Mobile applications can collect and share user information on top of the data
the app requires. Thus, offending the user’s privacy [9]. Numerous scandals [12]
have been widely discussed publicly highlighting the need for better security
to solve the related privacy problems. A short research into the privacy policy
of mobile apps, which analyze WiFi networks, communicate with a server and
require the collection of location data in order to function, concluded that most
store and share user data to third party companies [9]. Progress is made for web
applications in the area of hiding sensitive user data [7], in contrary to native
applications.
Individuals are using internet applications in multiple occasions daily, not only
12at home which they have a stable internet access to their own WiFi but when
they are moving to different locations. It is important then that they are able
to get information about the WiFi spots and the quality of the internet pro-
vided. An application which can provide such information based on the input
of multiple users is necessary. How can such an application be developed and
at the same time preserve the security and privacy of the user?
1.3 Purpose
The aim of the project is to investigate how the user data can be transferred
confidentially and to be untraceable in a native app, using techniques to pro-
tect user’s privacy. Specifically, the application collects information about WiFi
networks and their properties such as speed and provides useful information,
derived from these data, to the user. In order to preserve the user’s privacy,
the integration of the Tor project to the application is implemented. Moreover,
the data is sent to the server on specified times, without the user triggering the
action. The data is digitally signed, and the server should be able to authenti-
cate the client and vice versa to create secure communication. The application
is built on top of the open source project "WiFi Analyzer" [10].
Furthermore, this project aims on developing the ability to conduct a scien-
tific research in the Security and Privacy field and prove relevant knowledge
and understanding. The problem covered in this project demands the ability
to search, collect and evaluate information. In this way the authors strengthen
their confidence when reading academic documents and analyzing the found
material. It is important for the project to be written as a report, in order to
learn how to present a problem, its solution and conclusions and allow for fur-
ther discussion. Additionally, it is necessary to realize the importance of having
a well structured plan and framework as to be able to complete a given task on
time.
Hopefully, the industry can be inspired by the implementation to use simi-
lar techniques in order to protect user’s privacy and reevaluate their current
implementations.
1.4 Goals
The goal of this thesis is to implement the above described mobile application,
which transfers WiFi and user data to a server in a secure and privacy preserv-
ing manner. To achieve this, we add a third party and a server to the system.
The goal have been divided into the following three sub-goals:
131. Improve Graphical User Interface (GUI) for open source application that
provides information about the reachable WiFi.
2. Implement mutual authentication between client and server for security
reasons.
3. Send data from the developed native application to a server through the
Tor network.
1.5 Research Methodology
The project is conducted as an experiment in order to investigate ways to trans-
fer WiFi and user data to a server anonymously and achieve mutual authentica-
tion. There are specific steps that are to be followed, to ensure that this project
follows a natural flow and eventually achieves the intended outcomes. Shortly,
• A continuous literature research of the field is performed.
• Proper tools are selected, based on the research, for the implementation
of the app.
• The application work starts with the implementation of the app, the cod-
ing part, which eliminates the user profile.
• Testing of the functionality of the app follows, focusing on the data trans-
missions. The working assumption is that security vulnerabilities are lim-
ited in order to narrow down the problem to the data transmissions process
and simple authentication.
• Collection of data follows, by using the app in different locations in order
to verify that no sensitive data is being stored.
• The obtained results are analysed to ensure the app works as indented,
e.g. if the user can be traced.
• The conclusions from the experimental data are drawn and the findings
are reported.
The work is being organized using the Agile methodology [13]. The experimental
parts are broken down into shorter time periods, which provides a better un-
derstanding of it. In each period, it is decided the amount of work that should
be done and the work is divided into tasks. This way the definition of complete
is clearer and possible mistakes or bugs are avoided. Both of the students have
equal responsibility for this project, so a traditional method would not work,
since the tasks should be assigned after mutual agreement. Also, both of the
14students are familiar with this method.
1.6 Limitations
Due to limited time, this thesis uses an already existing application for further
development instead of building one from the beginning. Furthermore, the the-
sis does not focus on design but the functionality instead.
1.7 Structure of the thesis
The thesis is organized as follows. In Chapter 2, a comprehensive theoretical
background is presented. This is for example information about network secu-
rity, anonymity and pseudonymity together with related work, for the purpose
of giving the reader a fundamental knowledge in order to proceed to the the-
sis. Further, in Chapter 3, the methodology used in this project is presented.
This includes how the research process was done and how the data collection
was implemented. Additionally, the validity and reliability about the method
is mentioned. In Chapter 4, an precise description of the the implementation is
made and some parts of the code are shown. Furthermore, in Chapter 5, the re-
sults are presented together with an analysis and discussion about the project.
Lastly, in Chapter 6, a conclusions derived from this work are conferred and
reflections and suggestion for future work are made.
15Chapter 2
Background
The purpose of this chapter is to present a detailed description of essential
background in order to give the reader the required knowledge to proceed in
this thesis. Section 2.1 and 2.2 provides the reader with information about
network security and privacy and the fundamentals to achieve them, describing
topics such as cryptography, authentication and anonymity. In section 2.3, WiFi
terms together with ways to calculate the coordinates of a user are described,
followed by section 2.4 where related work is presented. Lastly, the chapter ends
with a short summary.
2.1 Network Security
The information distributed over networks can be sensitive and its leakage can
result in significant costs, such as financial costs or privacy disturbance [14]. Net-
work security is the practise of attaining objectives of preserving the integrity,
availability and confidentiality of information distributed over a network [15].
More specifically, integrity means that the message send over a network should
remain unmodified and in case it has altered the receiver should be able to detect
that it has changed. Confidentiality ensures that the transmitted messages can
be read and understood only by the sender and the receiver. Last, availability
refers to the fact that data and services should be accessible by authorized users
[16].
These goals could be threaten by multiple attacks. The network security at-
tacks are divided into two categories: active and passive. In short, in active
attacks the intruder aims to disturb the network’s operations. This could for
example be accomplished by a denial of services attack, where the intruder
floods the receiver node with requests, in order to occupy the network and pre-
vent legitimate requests to go through. In passive attacks the intruder aims
to gain and possible use information from the system without disturbing the
16system resources [17]. For example, monitoring or eavesdropping, where the
intruder can monitor the network and find information which is not intended
for unauthorized people, without altering the data.
Another important principle in network security which is essential to refer to is
authentication. Authentication identifies the communicating entity and ensures
its claims of identity [18]. One of the most common practise to verify an identity
is by using user names and passwords, due to the ease of implementation and
low cost [16]. However, it has some weaknesses too, for example it is vulnerable
to dictionary and brute force attacks.
2.1.1 Cryptography
Cryptography is the practise of preserving security in a system, by encoding and
decoding messages [19]. The term cryptography is derived from the Greek words
"κρύπτος" and "γραφείν", which mean secret writing [20]. Encryption refers to
the ability of converting data in a way that it is only available to authorized
people [19]. There are two essential components which encryption requires, an
algorithm and a key. In order for two entities to be able to encrypt and decrypt
their message they need to use the same algorithms [20].
2.1.2 Public Key Encryption
Public Key Encryption arises for two main reasons:
1. Symmetric Trust, since the two entities share the same key in order to
encrypt and decrypt messages they need to be extremely sure if they trust
the other entity [21].
2. Key Establishment, in a symmetric encryption scenario the two entities
need to agree on a secret key in advance [21].
Public key encryption allows two entities to employ cryptography to secure data
they send, using a public key and a private key. The public key of the receiver
is used to encrypt the outgoing message whilst the receiver’s private key is used
to decrypt the incoming message [21]. The public key is known to any entity,
whereas the private key is only known to the owner. Moreover, a node can verify
the source of the messages given the public key of the sender [19].
Since keys are publicly known, the possession of a key cannot identify the owner
of it, consequently entities needs to be able to verify their authenticity. As a
result, there exist key distribution mechanisms to ensure a list of keys belongs
to a specific entities. [19]
Public Key Infrastructure
A Public Key Infrastructure (PKI) is a set of programs, procedures, and se-
curity policies which employs public key cryptography and digital certificates
17for secure communications. Furthermore the PKI can identify users, create and
distribute certificates, maintain and revoke certificates, distribute and maintain
encryption keys, and allow encrypted communications. PKI can allow public
key cryptography by distributing public keys and at the same keeping the pri-
vate keys private. For the PKI to operate successfully and ensure security, trust
within this framework is required. [22]
Nominally the components of a PKI are: Certificate authority, Registration
authority, Certificate server, Certificate repository, Certificate validation, Key
recovery Service, Time server, Signing server [22].
Digital Certificates
As mentioned above, there is a need to ensure authenticity of public keys, in
other words, verify that the key belongs to the entity which claims to own it
[19]. As a result "Digital Certificates" have been conceived in order to provide
authenticity of public keys [23]. Since digital certificates are widely used on the
internet and handled by different authorities the format needs to be the same,
thus they usually follow the “X.509” standard [23].
The field included in a digital certificate are: version of the certificate, unique
serial number, algorithm ID, issuer, validity dates, owner, public key, ID of is-
suing authority, id of the owner [22].
Certificate Authority (CA)
Digital certificates require a trusted third party, the Certification Authority
(CA) [23], which will be responsible for the maintenance, issue and sometimes
even the distribution of them [22]. The CA can add its digital signature to the
certificate in order to validate it [23]. Then, the CA will deliver the certificate
to the owner and control it until it expires [22]. If the CA stops trusting an
entity which its certificate is not yet expired then it can revoke the certificate,
by adding it to the Certificate Revocation List (CRL) [22].
2.1.3 Authentication
Authentication is the process of proving the identity of a user or an entity, pre-
venting that way unauthorized entities to access the system [24]. Authentication
is not the same as identification, which is the process of confirming the identity
of an entity, by requesting credentials from the user [24].
There are four major types of authentication:
1. Something you know, cognitive information [25]
2. Something you have, possession of items [25]
3. Something you are, physiological and behavioral attributes [25]
4. Where you are, location information [24]
18This methods of authentication can be combined together in order to enhance
the systems security.
2.1.4 Passwords
A password is a secret sequence of characters [24], which allows the users to
identify themselves aiming to gain access to the resources of a system [25]. If
the password is obtain by an adversary, it can access the system and obtain the
rights the legitimate user have [25].
Passwords need to be securely stored by the system, otherwise passwords can be
retrieved by intruders [24]. For that reason the National Institute of Standards
and Technologies has published a guide on how to store passwords securely [26].
An example of how passwords can be stored is by using a cryptographic hash
function.
Hashing Passwords
When storing a password, instead of saving the original plain text, an one way
function is applied to it and the output is what is stored [27]. That prevents
attackers from obtaining the actual passwords if they manage to get access to
where they are stored [24]. When using an one way hash function, then the
hash code, i.e. the output,is of fixed length irrespective of the actual size of
the password, consequently it provides no information about the length of the
actual password [28]. An competent hashing algorithm can compute the hash
code efficiently, but finding the input that produced the hash code should be
hard [28].
One of the most common hashing algorithm is SHA-256 [24]. SHA-256 is an
algorithm, whose hash function is commonly used in signing certificates and to
ensure data integrity [28]. In short, SHA-256 converts a message with a variable
length to fixed size 256-bit message [28].
Hashing prevents attacker from obtaining the actual passwords, however if two
users in the database have the same password the hash code will be the same.
In order to avoid that a random number, a salt, can be added in end of the
password, so after the hash function is applied, the hash codes will differ. Fur-
thermore, it prevents from knowing if a user uses the same password across
different platforms and increases the difficulty of dictionary attacks [24].
2.1.5 Security Tokens
Security tokens are devices which can identify a user [29]. The type of authen-
tication tokens provide is "something you have" [30]. Tokens can be used to
generate one time passwords which they can only be used once by an entity, i.e.
an attacker will not be able to reuse it to obtain unauthorized access [29]. For
tokens to be useful, the necessary infrastructure needs to exist, for example if
19the token was a smart-card a card reader would be essential [30]. There exist
stand alone tokens, which do not require external devices to evaluate them, such
as the one time password example [30]. In these cases it improves security if
the user can identify itself to the token before obtaining the one time password
[30].
2.1.6 Transport Layer Security
The Transport Layer Security (TLS) protocol, forms a secure connection for two
entities over a network, such as a client and a server [31]. It is widely chosen
in order to provide confidentiality, authenticity, integrity and privacy over the
network [32]. There have been different version of the protocol over the years,
each time aiming to make improvements and eliminate vulnerabilities of previ-
ous releases [32]. Initially the protocol was called Secure Socket Layer and first
version was SSLv2, the newest version today is TLSv1.3 [32].
The protocol is based on two sub-protocols: the handshake protocol and the
record protocol [33]. The handshake protocol, establishes or resumes secure
sessions, by authenticating the server and the client and negotiating the cipher
suite [31]. The authentication is based on public key cryptography and requires
a PKI, digital certificates, private and public keys [34]. The record protocol is re-
sponsible for securing the application data and ensuring the messages’ integrity,
by using the session keys that were created during the handshake protocol [34].
2.2 Privacy
The fundamentals in privacy and applications is to not share information the
user does not want to share. In order to prevent the sharing, anonymity can
be used as well as unlinkability not be able to trace back actions to the user
and to reveal the user’s identity [35]. In the following sections anonymity,
pseudonymity, unlinkability and onion routing will be explained.
2.2.1 Anonymity
Anonymity means that a subject cannot be identified along with other subjects.
Specifically, by subject it is meant a person in a crowd or an item in a group of
similar items [36]. Anonymity is frequently used when an individual wishes to
achieve personal privacy [37].
2.2.2 Pseudonymity
Pseudonymity is when a user uses a substitute for the identity instead of the
real identity as this identity has to remain unknown [36]. However, users can
still be recognised through usernames, user patterns or other identifiers that
could be linked back to them [38].
202.2.3 Unlinkability
Unlinkability, in terms of anonymity, can be divide into three types. The first
is the sender’s anonymity which means that the items sent cannot be traced
back to the sender. The second one is the receiver’s anonymity, in which the
items sent cannot reveal the receiver [39]. Finally there is so-called Relationship
anonymity which means that it is not possible to trace neither the sender nor
receiver of the messages, in short it is not possible to identify the two commu-
nicating parties [40].
In terms of pseudonymity, the level of unlinkability depends on the way pseudo-
nyms are being used. Pseudonyms sometimes can reveal the identity of the
user, in result all his/her actions to be possible to be linked to the user [41].
One-time-use pseudonyms on the other hand are only used once and can be a
random number for example [39]. However, the use of multiple one-time-use
pseudonyms are not totally secure, as it can be semantic or syntactic linkable.
Semantic linkability is when it is possible to predict what the new pseudonym
of a user will be whilst syntactic linkability is when it is possible to link two
one-time pads to the same user, and therefore threaten the anonymity of the
user [42].
2.2.4 Onion routing
The onion routing is a technique to redirect data traffic over public networks in
order to achieve anonymous connections[43]. Therefore, this technique is resis-
tant against cyber attacks such as data analysis and eavesdropping, which can
violate the users privacy, since the user remains anonymous and the data are
encrypted. The onion routing is used through secure socket connections in both
directions [44].
A message in an onion routing network is redirected through three different
nodes called Onion Routers (OR) until it arrives at the final destination [45], as
shown in Figure 2.1. The communication is encrypted in several layers where
the ORs decrypt their corresponding layer. Firstly, the sender encrypt the pack-
age and send it to the first OR as this is the only information the sender knows
about the ORs. Then, the OR decrypts the package and receives information
about which OR the package needs to be forwarded to. This OR decrypts the
next level in order to obtain information about the next OR the package needs
to be forwarded to. Finally, the third and last OR receives the package and
decrypts the corresponding layer in order to obtain information about the final
destination of the package and sends it there. In conclusion, each OR in the
scheme is only aware of their predecessor and successor [46].
21Figure 2.1: An image of the onion routing.
2.3 WiFi
WiFi is a wireless network that allows different devices to exchange information
with each other over the internet. The internet connectivity through WiFi is
established via the connection to a wireless router that allows the device to
interact with the internet. An access point can extend a wireless network,
so basically a router can be an access point. Further, an access point can
for example provide security together with several other functions [47]. The
following information are retrieved from the scanner of the application and are
sent to the server.
2.3.1 SSID
SSID stands for "Service Set-Identifier" and it is the technical term for a wireless
network name. The owner name of the network, needs to be a meaningful name,
to be possible for the an individual to separate it from other networks and
connect to the preferable network[48].
2.3.2 BSSID
BSSID stands for "Basic Service Set-Identifier". Within a WLAN there can be
many access points and in order to separate them from each other it uses an
identifier called BSSID. The identifier used as ID is the MAC address of the
specific access point [49].
222.3.3 Signal
The WiFi signal strength shows how reliable the internet connection is which
in turn shows the amount of internet speed that can be utilized. Further, the
strength can be affected by both the distance to the router and by the surround-
ing materials, such as walls which for instance block the signal. [50]
2.3.4 The localization of the user
To calculate the coordinates of the user, the best result outdoors, is to use GPS
for localization.
2.3.5 The localization of the access points
To calculate the coordinates of the routers, is achieved by the multilateration
algorithm. The multilateration algorithm can locate the router by applying the
algorithm on the distance to users [51]. Sometimes, the multilateration algo-
rithm is called trilateration algorithm, which indicates that the coordinates is
calculated only from three access points [52].
In order to use the multilateration algorithm the distance between the access
point and at least three users need to be measured. Theses distances can be
calculated with Received Signal Strength Indicator (RSSI). When distance d1 ,
d2 and d3 are calculated, the model can be viewed as shown in Figure 2.2, the
users are the center of circles and each circle have a radius of their respective
distance to the access point. Further, the intersections of the three circle show
where the access point is. [53]
Figure 2.2: An image of the trilateration illustration.
23In order to calculate where the user is following equations need to be solved:
(x1 − x)2 + (y1 − y)2 = d21
(x2 − x)2 + (y2 − y)2 = d22
(x3 − x)2 + (y3 − y)2 = d23
These equations can easily be solved through the use of mathematical matrices
which give an unique solution, i.e. the coordinates of the access point [51].
2.4 Related Work
2.4.1 Participatory sensing
In Gisdakis, Giannetsos and Papadimitratos paper "SPPEAR: Security & Priva-
cy-Preserving Architecture for Participatory-Sensing Applications" they talk
about Participatory Sensing (PS) systems which need to be secure in order to
protect the users’ personal data and integrity. They show that their SPPEAR
architecture provides a set of security and privacy properties. Further, they use
Tor for the purpose of maintaining anonymity [54].
Another paper from Gisdakis, Giannetsos and Papadimitratos "Security, Pri-
vacy & Incentive Provision for Mobile Crowd Sensing Systems", which is a follow
up work on the above SPPEAR paper, they talk about the new paradigm of
Mobile Crowd Sensing (MCS). The MCS systems has an openness which makes
the concerns about the privacy and integrity entitled, as the users expects to
share a huge amount of data. Previous works have handled these aspects sep-
arately instead as one unit. Their work builds on finding a holistic solution
that value the security and integrity for the users as they might share personal
data. Additionally, the MCS system at the same time needs to be resistant
against unauthorized users or severs in order to retain the security [55] and
ensure data trustworthiness [56]; a related extension of a cellular authenication
protocol was investigated in [57, 58, 59]; protective mechanisms for registration
were considered in [60].
2.4.2 Privacy-respecting applications
In the paper "Privacy-respecting reward generation and accumulation for partic-
ipatory sensing applications" by Dimitriou, where the importance of maintain-
ing users’ privacy in a mobile application and the challenge to make the users
participate is discussed. Further, he presents a reward system which makes the
users to want to be active and analyses the challenge that follows on how to
reward anonymous users. Moreover, the importance of the use is discussed in
order to be able to both reward the user and at the same time be able to retain
their anonymity [61] requirements were surveyed in [62] and remuneration and
incentives were investigated in [55, 63].
242.4.3 Privacy policies in mobile application
Privacy policies in mobile application can be both long and uninformative and
therefore threaten the decision making process for the user to decide what they
want to share and not. In the paper "Benchmarking Privacy Policies in the
Mobile Application Ecosystem" by Kandil, Akker, Baarsen, Jansen and Vulpen,
they present a Privacy Policy Benchmark Model. The model evaluates the
transparency together with the amount of data, during a data collection in
order to help the users not to share information they do not want to. [64]
2.4.4 RSA Cryptosystem
The RSA (Rivest–Shamir–Adleman) cryptosystem is distributed in many com-
mercial systems and are commonly used for secure data transmission by provid-
ing privacy and assuring authenticity [65].
In RSA cryptosystem there is a pair of keys, an RSA public key and an RSA
private key, which can be used to encrypt and decrypt data [66]. The public
key is viewed as (N, e) and the private key is viewed as (N, d). Where N is
the product of multiplying two large prime numbers p and q and whilst e and
d are two integers that is satisfying ed = 1 mod (p-1)(q-1) [65]. Additionally,
in order to encrypt a message M, the sender need to compute M e mod N = C
with the receiver’s public key whilst the receiver then can decrypt the message
by computing C d mod N = M, with its own private key [65].
2.4.5 X.509 Certificates
X.509 Certificate is a digital certificate that is extensively used in today’s com-
puter security [67]. The International Telecommunication Union’s Telecom-
munication Standardization Sector (ITU-T) states that “Virtually all security
services are dependent upon the identities of the communicating parties being
reliably known, i.e. authentication”. This is critical when it comes to web trans-
actions as it is very important to know the identity of both the sender and the
receiver [19].
TLS can not verify the identities of both sides, only encrypt the Web page
sent between them. Therefore, the X.509 certificate can be used together with
TLS in order to solve this identity problem [19]. The certificate is issued by a
CA that have identified the person as a trustful owner of an encryption key [68].
An encryption key, also called the public key, is part of a key pair where the
other part consists of the decryption key, also called the private key. The public
key is used by the sender to encrypt a message whilst only the corresponding
private key, used by the receiver, can decrypt the message [69]. Furthermore,
the key pairs can be used for authentication. If the sender, in addition uses its
own private key for encryption, the receiver can verify the sender’s identity by
decrypting with the corresponding public key of the sender. Integrity can be
25achieved through the use of digital fingerprints. The fingerprint is a encrypted
message digest that make sure that the message has not been altered [70]. Con-
clusively, confidentiality, integrity and authentication can be improved by the
use of digital certificates [71]. Modern PKIs can also provide privacy protection,
through the use of pseudonyms, e.g., earlier [72, 73] or more recently [74, 75].
2.4.6 Tor
Tor stands for The Onion Router [7] and is a network protocol that implements
the original onion routing method mentioned above, but with a few modifica-
tions in order to achieve better distribution and security. Tor is an open source
network and therefore free to use for anyone who has the software called Onion
Proxy (OP) [76]. The network consists of a huge amount of volunteer routers
from which three routers are chosen to build a scheme for the user. The three
nodes are named entry, middle and exit node [7].
2.4.7 Apps that provide WiFi details
There are several applications related to WiFi on the market today. The WiFi
apps can provide information about the network such as the signal strength
and measure the upload and download speed [77]. They can even shows free
networks on a map and give directions to them, such functionality is provide
by the app "WiFi Map" [78]. Whilst other can provide a comparison between
available networks, show radio frequencies and show the Ethernet address of the
router [79].
There are also apps that are related to WiFi but do not provide the above
information. For example, "Fing" [80] is an app that can show to the users
which devices are using their network. If the network speed is slow the user can
detect if anyone is using the network without permission and in that case shut
them out [79].
"Wifi Analyzer" is an open source app [10] that is used in this project. The
app can show signals strength from the nearby networks and show if the sig-
nals overlaps somewhere, so the network administrator can avoid interference
by using different channels [79].
2.5 Summary
This chapter has presented concepts related to security, privacy and WiFi. In
the security part, a description of cryptography was given, and how it is used
to achieve security. Further, the role of certificates was presented together with
authentication and how passwords are stored in a secure way. In the privacy
section, two types of anonymity were mentioned along with a description on how
this could be achieved with onion routing. Moreover, in the WiFi part, WiFi
26terms were defined together with how it is possible to calculate the coordinates
of an access point. Finally, related work was presented within security and
privacy.
27Chapter 3
Method
This chapter describes the method and every step in this thesis which allow to
replicate the study. In section 3.1 the research process is presented in detail,
followed by a description of the data collection in section 3.2. Further, the test
environment is described in section 3.3 and the reliability and validity methods
comes next in section 3.4. The chapter ends with the planned data analysis and
the evaluation framework in section 3.5 and 3.6 respectively.
3.1 Research Process
This section lists the steps conducted in order to carry out this research.
3.1.1 Defining the app which this project is based on
Upon the decision of the project, an existing app would be enhanced with the
authentication and the communication to a server using Tor features. The
requirements of the app were the following:
• is open source
• is providing WiFi details
• is implemented for android devices
• is lacking the intended features, i.e. the authentication and the communi-
cation with a server
• and is respecting the user’s privacy
3.1.2 Design of the system
Then, a literature study and a revision of knowledge gained from courses rel-
evant to networked system security, privacy and network communication were
28conducted. The main principals of security and privacy were cleared and the
main idea on how to design and implement a system with mutual authentication
and that communicates using Tor was clarified.
The system, i.e. how the project should be implemented was then designed.
In Figure 3.1, the system is shown, more details about it are provided in section
4.2.
Figure 3.1: An image of the system and the different communication steps
between the parties
3.1.3 Authentication
Literature review
A literature review was conducted in order to base the implementation of the
authentication feature on scholarly literature. The sources were found using a
combination of Google Scholar search engine [81] and KTH Library [82]. Key
words such as, "authentication", "password authentication", "network secu-
rity", "SSL", "TLS" were searched.
Implementation
The first feature that was implemented was the authentication. Starting from a
basic implementation in which the client was communicating to the third party
using sockets, was then built up using secure sockets to ensure security and
privacy. Secure sockets, which meant that the communication was based on the
Transport Layer Security, required digital certificates to be issued, distributed
and handled.
Ensuring that the communication was secure, code supporting registration and
authentication was written. First, the user need to register to the third party
29by sending a request with a username and password. If the username does not
exists, the third party responds that the registration was successful, otherwise it
responds that the username already exists. After that, the user should be able
to authenticate and log in, using a username and a password. Since passwords
were used, the next step was to store them safely.
The client was then authenticated to the third party and in order to be able
to be authenticated to the server certificates and tokens were used. The third
party provided to the client a token or a certificate which could be used by the
client to verify that it is an authorized user to the server. The server would
then verify the validity of the token or the certificate with the third party.
Tools and Libraries
The language used to implement the different components in order to achieve
authentication was java [83]. These language was preferred, for the developers
being familiar with it and due to the fact that the app which this project is
based on was written in java. The environment used to write the code was An-
droid Studio [84] for the client and IntelliJ IDEA Community Edition 2019.3.2
[?] for the third party and the server.
Java has its own built library to achieve security [85], which was used in mul-
tiple parts of the implementation. Complimentary to that, the Bouncy Castle
Crypto APIs [86] were used.
Testing
In order to test if the authentication was working as indented, test cases needed
to be defined. For example, what happens if the client does not own the nec-
essary certificates, or if the third party or the server does not own the required
certificates? Does it work properly when all the requirements are fulfilled? What
happens if a user tries to register with a username that already exists, can a
user register if the username has not used before? Is a user logged in if the user
provided valid username and password, and what happens when password is
wrong or user does not exist? Are tokens correctly generated and how long does
it take for the server to authenticate them? Are certificates correctly generated
and how long does it take for the server to authenticate them? What happens if
the user keeps reusing the same token? What happens if the user gets multiple
tokens upon authentication? What happens if the user gets multiple certificates
upon authentication? What happens if the user gets a new token every time
it uses one? What happens if the user gets new certificate every time it uses one?
The tests cases were assessed multiple times, manually by the developers of
the project.
303.1.4 Tor
Study Review
Before, starting implementing the Tor service within the app, it was necessary
to obtain the right knowledge. Thus, multiple scholarly literature, were re-
viewed. The search engines used to find information was again Google Scholar
and KTH Library. An example of the keywords that were searched were "tor",
"onion routing" and "privacy". In addition, projects in GitHub were evaluated,
which were relevant to Tor and previous work on Tor was attempted to be found
on "DiVA portal" [87].
Libraries
There are different libraries which allow Tor to be integrated within an appli-
cation. The ideal characteristics for a library were:
• to be written in Java
• to have good documentation
• to be maintained
The libraries that were taken into consideration were:
• Orchid [88]
• Orbot [11]
• Tor Onion Proxy Library [89]
• Stem [90]
Among these, the most fitting library to the above requirements was the Tor
Onion Proxy Library. It is written in Java, which would allow to simple import
it to the Java application, there were few examples on the repository explaining
how it should be used and it is not completely abandoned, in other words fixes
seem to be taken over a period of time.
Implementation
The Tor feature was implemented by correctly importing the library, ensuring
that configuration has been properly set and using the functions provided by
the library. The strategy was to start from a basic functionality to make sure
that the library works as indented and it has been correctly configured, then
it was enhanced with code which supports the services provided by Tor on the
application.
Testing
The implementation of Tor was tested to ensure that privacy is preserved. Mul-
tiple tests of transmitting data from the client to the server needed to be taken,
to check if Tor works most of the times and data was received by the server.
31Then, the IP address of the source was retrieved by the server and verified that
it is not the real IP address of the client. Moreover the performance of Tor was
evaluated.
3.1.5 WiFi Analyzer
Review
Upon selection of the app, that this project is based on, a more detailed review
of the app needed to be taken. Study was conducted, in order to understand
the exact way of the implementation, that is the structure of the code and the
functions they used to retrieve the WiFi details from the reachable access points.
Implementation
The functionality of the WiFi Analyzer was enhanced by allowing the applica-
tion to send the WiFi details from the reachable access points together with
their location to the server. That needed to be done periodically and without
necessarily the app to be in use. These data could then be used by the server
and be visualized.
Testing
It is assumed that the implementation for the WiFi analyzer is proper and it
can identify the access points and their details. Therefore, this thesis does not
extensively tests if the routers and their details coincides with the reality. It
was tested if the data was sent periodically to the server.
3.1.6 Evaluation of the implementation
In the end, when all the features were implemented and tested, they were merged
together. Follow up testing needed to be conducted to make sure that nothing
stopped functioning after the merge. The same tests, that were defined for each
individual feature were evaluated.
3.2 Data Collection
There was limited data collection. The data collected during the project was
needed to test the functionality of the app. The app was not distributed to the
public so they could test it due to limitations on the time and mostly because
there was no need at this stage since the functionality of the app could be tested
by the developers. Furthermore, no sensitive information was stored.
The data collected was stored locally in the machine where the server was
running and on the android phone that were used for testing. For authenti-
cation data such as usernames and passwords were stored in the authentication
database, where passwords were encrypted. Certificates and session tokens were
issued and was stored locally. The WiFi details that were sent from the client
32You can also read
