PaddleSki Sail Rig Kit | ASSEMBLY

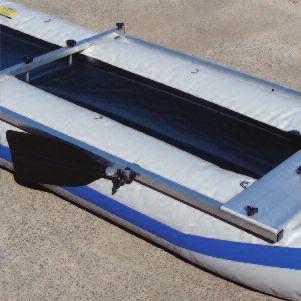

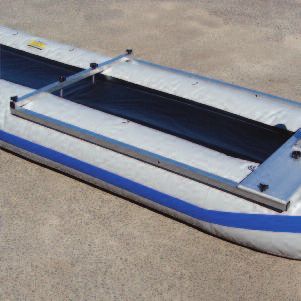

The limited space of Attach the aluminum
this instruction manual tubes that make up the
does not allow us to sides of the frame. Ori-
cover how to sail. We ent the bars so the front
highly recommend pur- hole aligns with the
chasing a manual for mast step bench. Use
sailing like The Hand- the 2½” bolt and
book of Sailing by Bob threaded knob to se-
Bond or Catamaran cure the bar to the
Sailing by Phil Berman. bench. Use the 3” bolts
to attach it to the mid-
dle crossbar.

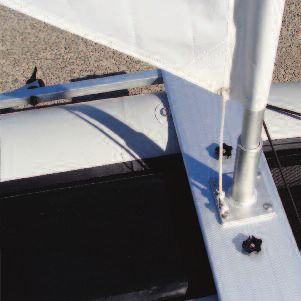

Begin by attaching the Attach the leeboards to
mast step to the mast the frame. Place a
step cross board and metal washer on the
secure using the large bolt, put bolt through
washers and bolts. For frame from inside.
the assembly of the Place a rubber washer,
Sail Rig, boat should be leeboard, rubber
only partially inflated. washer, metal washer
and butterfly nut on
bolt.

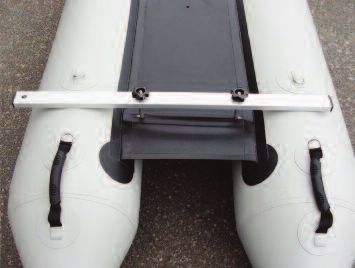

Remove the bow yoke Remove the aft yoke
and replace it with the and replace it with the
mast step cross board steering yoke provided.
(with attached mast The yoke has a hole for
step) and secure the the oar pin. The hole
cross board using the can be placed so you
yoke bolts and knurled can steer right or left
nuts. The loop on the handed depending on
mast step must be fac- your preference.
ing towards the back of
the boat.

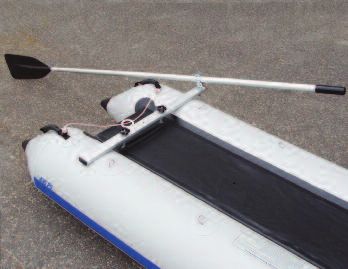

Replace the center Slide the oar pin onto
yoke bar and bolts with the handle section of
the 36½” tube and the the two-part rudder. As-
longer (5”) bolts in- semble the oar and in-
cluded in the kit. If sert the oar pin into its
there is vinyl material hole in the yoke.
wrapped around the
yoke, remove it now, it
is for shipping purposes
only.
1
SeaEagle.com/Instructions
Secure the oar pin un- Place the mast with the
derneath the yoke with sail on it into the mast
the ring. step. Pull the sail down
as far as it will go.

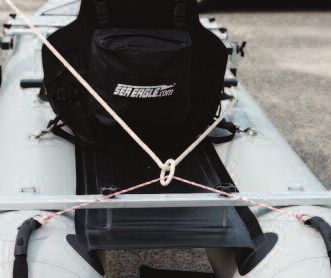

Tie the Sail Ring to the Locate the rope labeled
metal rings of the D- Sail to Mast Step. Tie
ring handles behind the one end to the corner
steering yoke. of the sail and the other
end to the loop in the
base of the mast step
so the sail cannot slide
up the mast during use.
Sail & Rigging CAUTION/WARNING!
Connect the 2 piece The mast that is on
mast by sliding the PaddleSki is not
halves together. Then insulated and could act
carefully slide the mast as an electrical conduc-
into the sail through the tor. Do not install the
opening at the bottom mast near power lines
until it is stopped by the and make sure you are
head cap at the other clear of them in any lo-
end. cation, especially while
on the water.
Insert the batten into Run the main sheet,
the opening near the the longest and thickest
top of the sail. Once it rope, through the grom-
is fully inserted, tie the met in the corner of the
rope to the fitting. sail and tie a knot so it
cannot slip through the
grommet.
2
