P2P Streaming
Spotify
Stefano Ferretti
Dept. Computer Science & Engineering
University of Bologna
Email: s.ferretti@unibo.it
2
Licence
Slide credits: Stefano Ferretti
Part of these slides were collected from different Web sources
(since they were redundant slides, it is difficult to assert which are the real
creators)
Copyright © 2015, Stefano Ferretti, Università di Bologna, Italy
(http://www.cs.unibo.it/sferrett/)
This work is licensed under the Creative Commons Attribution-ShareAlike 3.0
License (CC-BY-SA). To view a copy of this license, visit
http://creativecommons.org/licenses/by-sa/3.0/ or send a letter to Creative
Commons, 543 Howard Street, 5th Floor, San Francisco, California, 94105,
USA.
Media Streaming
● Media content distributed on net and played out
while downloading
– No need for a complete download to begin the playback
● Live media streaming
– Media produced on the go (e.g. live concert, sport match)
– Approximate synchronicity among stream production, download
and playback
● Application contraints, e.g., conferencing requires lower delays than
Internet TV
● On demand streaming
– Content stored in a server and sent upon request
– Features allowed such as pause, fast forward, fast rewind
– Possible to download the stream at a rate higher than
production/playback rate
P2P Media Streaming: Issues ● Bandwidth intensive applications ● Responsiveness requirements ● Churn ● Network capabilities change ● Which overlay topology?
P2P Media Streaming:
Applications
P2P Media Streaming:
Approaches
● Tree based Overlay
– Push Content Delivery
– Single o Multiple Tree
● Mesh-shaped overlay
– Pull content Delivery (swarming)
– Similar to Bittorrent, different approaches to
select chunks

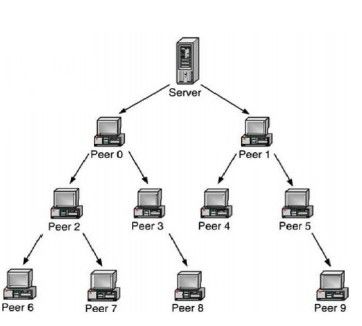

Single Tree Streaming
● Root: server
● Other nodes: peers
● Push based distribution
● Every node receives the stream
from the parent and sends it to
its child nodes
● Advantages
– Simplicity
– Low delay
● Drawbacks
– Low resilience to churn
– Load on internal nodes

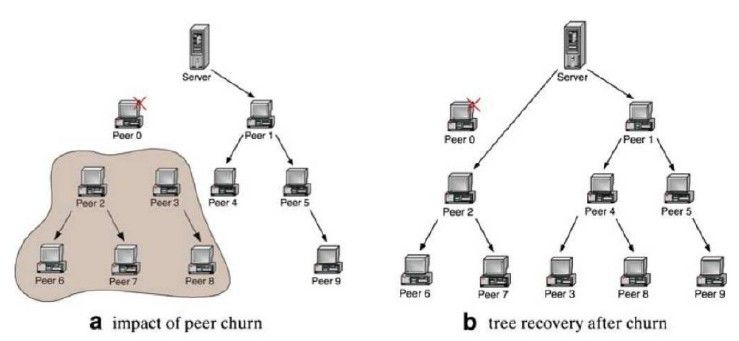

Single Tree Streaming: churn
Mesh based Streaming
● Content divided into chunks
● Nodes organized in a mesh
● Every node asks for specific
chunks (pull based approach)
– As in BitTorrent
● Advantages
– Resilient to churn
– Load balancing
– Simple to implement
● Drawbacks
– No bound on latencies
Multiple Tree based Streaming
● stream divided into sub-
streams
● Each stream associated to
a tree
● Each node is in all trees to
receive the whole content
● Advantages
– Resilient to churn
– Load balancing
● Drawbacks
– No simple algorithmsExample: SplitStream
Basic idea
Split the stream into K stripes (with MDC
coding)
For each stripe create a multicast tree such
that the forest
Contains interior-node-disjoint trees
Respects nodes’ individual bandwidth constraints
Approach
Built on top of Pastry and Scribe (pub/sub)MDC: Multiple Description
coding
Fragments a single media stream
into M substreams (M ≥ 2 )
K packets are enough for decoding (K < M)
Less than K packets can be used to
approximate content
Useful for multimedia (video, audio) but not for
other data
Cf) erasure coding (a Forward Error Correction)
for large data fileSplitStream : Interior-node-
disjoint tree
Each node in a set of trees is interior node
in at most one tree and leaf node in the
other trees.
Each substream is disseminated over a
tree
Each tree is a Scribe multicast tree
S
ID =0x… a ID =1x… d g ID =2x…
b c e f h iP2P Streaming Overlays
Some other papers
Survey
X. Zhang, H. Hassanein, “A survey of peer-to-peer live
video streaming schemes – An algorithmic
perspective”, Computer Networks, Volume 56, Issue
15, 15 October 2012, Pages 3548-3579, ISSN 1389-
1286, http://dx.doi.org/10.1016/j.comnet.2012.06.013
A recent interesting paper that uses gossip
Matos, M.; Schiavoni, V.; Riviere, E.; Felber, P.; Oliveira,
R., "LAYSTREAM: Composing standard gossip protocols
for live video streaming," Peer-to-Peer Computing
(P2P), 14-th IEEE International Conference on , vol.,
no., pp.1,10, 8-12 Sept. 2014
Simulation code: http://www.splay-project.org/laystreamBitTorrent Live
BitTorrent Live
● Ruckert, J.; Knierim, T.; Hausheer, D., "Clubbing with the
peers: A measurement study of BitTorrent live," Peer-to-
Peer Computing (P2P), 14-th IEEE International
Conference on , vol., no., pp.1,10, 8-12 Sept. 2014
● http://live.bittorrent.com/
– The system down for a while as the BTLive
developers are preparing for a mobile version
● “Peer-to-Peer Live Streaming,” Patent 20 130 066 969,
March, 2013. [Online]. Available:
http://www.freepatentsonline.com/y2013/0066969.html
● IEEE P2P 2012 - Bram Cohen - Keynote speech
https://www.youtube.com/watch?v=9_b6n6_yedQBitTorrent Live
● Hybrid streaming overlay that applies
a number of different mechanisms at
the same time
– Use of a tracker for peer discovery
● (bitTorrent)
– Use of sub-streams
● (multi-tree streaming)BitTorrent Live
(1)
club
(2)
(3)
● three stages
– (1) a push injection of video blocks from the streaming
source into the so called clubs
– (2) an in-club controlled flooding
– (3) a push delivery to leaf peers outside the individual clubsBitTorrent Live
● The source divides the video stream into substreams
– Each substream belongs to one club
● Peers are divided into clubs
– Assignment to clubs done by the tracker when a peer joins
– A peer belongs to a fixed number of clubs in that it is an active
contributor. In all other clubs the peer is a leaf node and solely acts
as downloaderBTLive: Club
● Objective of a club is to spread video
blocks of its respective substream as
fast as possible to many nodes that
can then help in the further
distribution processBTLive: Peer
● Download
– Multiple in-club download connections with
members belonging to the same club
– Single out-club download connection within each
of the other clubs
● Upload
– Multiple upload connections to peers within the
same club
– Multiple upload connections to leaf nodes
outside the clubBTLive: Inside the club
● Peers establish a number of upload and download
connections inside their own clubs to help in fastly
spreading blocks of the respective substreams
● Within the club a mesh topology is used
– Peers receive blocks from any of the peers they
have a download connection with
– Push-based mechanism
● No need for asking contents
● Drawback: duplicate block transfers
– Mitigated by use of notifications among
neighbors of novel block arrivalsSpotify
Spotify
● Spotify is a peer-assisted on-demand music
streaming service
● Large catalog of music (over 15 million
tracks)
● Available in more than 32 countries (USA,
Europe, Asia)
● Very popular (over 10 million users)
● ~ 20000 tracks added every day
● ~ 7 * 10⁸ playlistsBusiness Idea
● Lightweight peer-assisted on-demand
streaming
● Fast
– Only ~ 250ms playback latency on average
● Legal
● More convenient than piracy
– Free version with ads
– Premium with extra features and no adsSpotify Tech Team ● Developed in Stockholm ● Team size > 100
The importance of being fast
● How important is speed?
● Increasing latency of Google searches by 100
to 400ms decreased usage by 0.2% to 0.6%
● The decreased usage persists
● Median playback latency in Spotify is 265 ms
● In many latency sensitive applications (e.g.
MOGs) the maximum allowed threshold is
~200 msThe forbidden word
Technical Overview
● Desktop clients on Linux, OS X and Windows
● Smartphone clients on Android, iOS, Palm,
Symbian, Windows Phone
● Also a Web based application
● libspotify on Linux, OS X and Windows
● Sonos, Logitech, Onkyo, and Telia hardware
players
● Mostly in C++, some Objective-C++ and
JavaTechnical Overview
● Proprietary protocol
– Designed for on-demand streaming
● Only spotify can add tracks
● 96-320kbps audio streams
● Streaming from
– Spotify servers
– Peers
– Content Delivery Network (http)Everything is a link
● spotify: URI scheme
● spotify:track:6JEK0CvvjDjjMUBFoXShNZ#0:44
● spotify:user:gkreitz:playlist:4W5L19AvhsGC3
U9xm6lQ9Q
● spotify:search:never+gonna+give+you+up
● New URI schemes not universally supported
● http://open.spotify.com/track/6JEK0CvvjDjjMU
BFoXShNZ#0:44Spotify Protocol
● (Almost) Everything over TCP
● (Almost) Everything encrypted
● Multiplex messages over a single TCP
connection
● Persistent TCP connection to server
while logged inArchitecture
● Spotify uses a hybrid content distribution method,
combining:
– a client-server access model
– a P2P network of clients
● Main advantage: only ~ 8.8% of music data comes
from the spotify servers! The rest is shared among
the peers
– although mobile devices do not participate to the P2P network
● Possible drawbacks:
– playback latency (i.e., the time the user has to wait before the
track starts playing)
– complex designArchitecture
Load Balancing
● To balance the load among its servers, a peer
randomly selects which server to connect to.
● Each server is responsible for a separate and
independent P2P network of clients.
– advantage: does not require to manage inconsistencies
between the servers’ view of the P2P network
– advantage: the architecture scales up nicely (at least in
principle). If more users join Spotify and the servers get
clogged, just add a new server (and a new P2P network)
● To keep the discussion simple, we assume

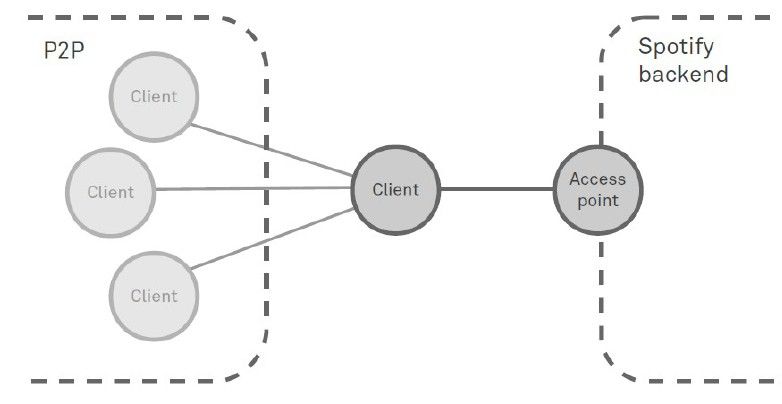

there is only one server.High-level overview
● Client connects to an Access Point (AP) at login
● AP handles authentication and encryption
– Proprietary protocol
● AP demultiplexes requests, forwards to backend
servers
● Gives redundancy and fault-toleranceStorage

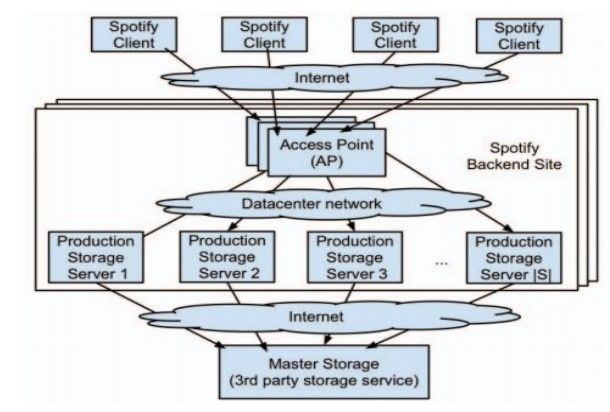

Storage System
● Two-tiered Storage System:
– Production Storage + Master StorageProduction Storage
● Multiple data centers: each client selects its nearest
– Stockholm (Sweden), London (UK), Ashburn (VA)
● A production storage is a cache with fast drive & lots of RAM
● Key-value storage with replication
– Each content replicated on 3 servers
– Use of Cassandra: an open source distributed DBMS
● Each datacenter has it own production storage
– To ensure closeness to the user (latency wise)
● Maintains most popular tracks
● Cache miss → request to the Master Storage
– Clients will experience longer latencyMaster Storage
● Maintain all the tracks
– Slower drives and access
● Works as a DHT but with some redundancy
● Shared among all datacenters
● Tracks are kept in several formatsCommuncating with backend
servers
● Most common backend protocol is HTTP
● Some services need to push information,
e.g. playlistBack End Software
● Comprised of many small services
– Do one task and do it well
– e.g., playlist system, user service, etc
● Python, C++, Java, ScalaP2P Goals ● Easier to scale ● Less servers ● Lass bandwidth ● Better uptime
Spotify P2P network
● Not a piracy network: all tracks are added
by Spotify
● Used on all desktop client (no mobile)
● A track is downloaded from several peersSpotify P2P network
● Spotify uses an unstructured P2P overlay topology.
– network built and maintained by means of trackers (similar to
BitTorrent)
– no super nodes with special maintenance functions (as opposite to
Skype)
– no DHT to find peers/content (as opposite to eDonkey)
– no routing: discovery messages get forwarded to other peers for
one hop at most
● Advantages:
– keeps the protocol simple
– keeps the bandwidth overhead on clients down
– reduces latency
● This is possible because Spotify can leverage on a
centralized and fast backend (as opposite to the
completely distributed P2P networks)P2P Structure
● Edges are formed as needed
● Nodes have fixed maximum degree (60)
● Neighbor eviction (removal) by heuristic
evaluation of utility
● A user only downloads data she needs
● P2P network becomes (weakly) clustered
by interest
● Unaware of network architectureSpotify compared to Bittorrent
● One (well, three) P2P overlay for all tracks
(not per-torrent)
● Does not inform peers about downloaded
blocks
● Downloads blocks in order
● Does not enforce fairness (such as tit-for-
tat)
● Informs peers about urgency of requestLimit resource usage
● Cap number of neighbors
● Cap number of simultaneous uploads
– TCP Congestion Control gives “fairness”
between connections
● Cap cache size
● Mobile clients don’t participate in P2PSharing tracks
● A client cannot upload a track to its peers unless
it has the whole track
– advantage: greatly simplifies the protocol and
keeps the overhead low
● clients do not have to communicate (to their
peers or to the server) what parts of a track
they have
– drawback: reduces the number of peers a
client can download a track from (i.e., slower
downloads)
● tracks are small though (few MB each), so
this has a limited effectCaching
● Player caches tracks it has played
● Default policy is to use 10% of free space
(capped at 10 GB)
● Caches are large (56% are over 5 GB)
● Least Recently Used policy for cache
eviction
● Over 50% of data comes from local cache
● Cached files are served in P2P overlayCaching
● Advantages
– Reduces the chances that a client has to re-
download already played tracks
– Increases the chances that a client can get a
track from the P2P net
● Lower overload on the Spotify server
● Drawback
– Impact on the users' disk
● Caches are large compared to the typical track sizeMusic vs Movies
● Music ● Movies
– Small (5 minutes, 5 – Large (2 hours, 1.5
MB) GB)
– Many plays/session – High bit rate
– Large catalog
– Active users
Main problem: peer Main problem:
discovery download strategyFinding Peers
● There are two ways a client can locate the
peers:
– ask the server (BitTorrent style)
– ask the other peers (Gnutella style)
● Client uses both mechanisms for every
trackFinding Peers (server)
● Server-side tracker (BitTorrent style)
– Only remembers 20 peers per track
● Not all
● Clients do not report to the server the content of their
caches!
– Returns 10 (online) peers to client on query
● Advantages
– Less resources on the server
– Simplifies the implementation of the tracker
● Drawback
– Only a fraction of the peers can be located through the tracker
● Not a big issue, since clients can ask the other peersFinding Peers (P2P)
● Broadcast query in small (2 hops) neighborhood in
overlay (Gnutella style)
– Each client has a set of neighbours in the P2P
network
● Peers the client has previously downloaded a track
before or has previously uploaded a track from
– When the client has to dowload a new track it looks if
its neighbours have it
– The peers can in turn forward this search request to
their neighbours
The process stops at distance 2
●
● Each query has an unique id, to ignore duplicate queriesNeighbor Selection
● A client uploads to at most 4 peers at any given
time
– Helps Spotify behave nicely with concurrent
application streams (e.g., browsing)
● Connections to peers do not get closed after a
download/upload
– Advantage: reduces time to discover new peers
when a new track has to be played
– Drawback: keeping the state required to
maintain a large number of TCP connections to
peers is expensive (in particular for home routers
acting as stateful firewall and NAT devices)Neighbor Selection
● To keep the overhead low, clients impose
both a soft and a hard limit to the number of
concurrent connections to peers (set to 50
and 60 respectively)
– when the soft limit is reached, a client
stops establishing new connections to
other peers (though it still accepts new
connections from other peers)
– when the hard limit is reached, no new
connections are either established or
acceptedNeighbor Selection
● When the soft limit is reached, the client starts
pruning its connections, leaving some space for new
ones.
● To do so, the client computes an utility of each
connected peer by considering, among the other
factors:
– the number of bytes sent (received) from the peer
in the last 60 (respectively 10) minutes
– the number of other peers the peer has helped
discovering in the last 10 minutes
● Peers are sorted by their utility, and the peers with
the least total scores are disconnected.P2P NAT Traversal
● Asks to open ports via UPnP
– Universal Plug and Play (UpnP): set of networking
protocols that permits networked devices to seamlessly
discover each other's presence on the network and
establish functional network services for data sharing,
communications, and entertainment
● Attempt connections in both directions
● High connection failure rate (65%)
● Room for improvementStreaming a track
● A track can be simultaneously downloaded
from the Spotify servers (CDN) and the P2P
Network
● Request first piece from Spotify servers
● Meanwhile, search Peer-to-peer (P2P) for
remainder
● Switch back and forth between Spotify servers
and peers as needed
● Towards end of a track, start prefetching next
oneStreaming a track
● Tracks are split in 16KB chunks
● If both CDN and P2P are used, the client never
downloads from the Spotify CDN more than 15 seconds
ahead of the current playback point
● To select the peers to request the chunks from, the client
sorts them by their expected download times and
greedily requests the most urgent chunk from the top
peer
– Expected download times are computed using the average download
speed received from the peers
– if a peer happens to be too slow, another peer is used
● Upload in the P2P net
– Simultaneous upload to at most 4 peers, due to TCP congestion control
– Serving clients/peers sort by priority and speed → serve top 4 peersStreaming a track
● The client continuously monitors the
playout buffer
– (i.e., the portion of the song that has been
downloaded so far but not already played)
● If the buffer becomes too low (< 3
seconds) the client enters an emergency
mode, where:
– it stops uploading to the other peers
– it uses the Spotify CDN
● this helps in the case the client fails to find a reliable and
fast set of peers to download the chunks fromWhen start playing ?
● Minimize latency while avoiding stutter
– Stutter: interruptions during the playout
● TCP throughput varies
– Sensitive to packet loss
– Bandwidth over wireless mediums vary
● HeuristicsPlay-out Delay
● Non-delay preserving: not drop any frames or slow
down the play-out rate
● Markov chain modeling:
– Considers the experienced throughput and the
buffer size
– 100 simulations of playback of the track while
downloading
● Determine if buffer underrun (cluttering) occurs
– If more than one underrun occurs → waits longer
before playbackUsers Playing a Track
● Around 61% of tracks are played in a predictable
order (i.e., the previous track has finished, or the
user has skipped to the next track)
– playback latency can be reduced by predicting
what is going to be played next.
● The remaining 39% are played in random order
(e.g., the user suddenly changes album, or
playlist)
– predicting what the user is going to play next is
too hard
– Playback latency may be higherPlaying: Random Access
● When tracks are played in an unpredictable (random) order,
fetching them just using the P2P network would negatively
impact the playback delay.
● Why?
– Searching for peers who can serve the track takes time
(mostly because of multiple messages need to be
exchanged with each peer)
– Some peers may have poor upload bandwidth capacity (or
may be busy uploading the track to some other client)
– A new connection to a peer requires some time before start
working at full rate (see next slides)
– P2P connections are unreliable (e.g., may fail at any time)Playing: Random Access
● How to solve the problem?
● Possible solution: use the fast Spotify Content Delivery
Network (CDN)
– Drawback: more weight on the Spotify CDN (higher
monetary cost for Spotify. and possibly to its users too)
● Better solution: use the Spotify CDN asking for the first 15
seconds of the track only.
– Advantage: this buys a lot of time the client can use to
search the peer-to-peer network for peers who can serve
the track.
– Advantage: the Spotify CDN is used just to recover from a
critical situation (in this case, when the user has started
playing a random track)Playing: Sequential Access
● When users listen to tracks in a predictable
order (i.e., a playlist, or an album), the client
has plenty of time to prefetch the next track
before the current one finishes.
● Problem:
– You don’t really know whether the user is
actually going to listen to the next track or
not.
– If the user plays a random track instead of
the predicted one, you end up having
wasted bandwidth resources.Playing: Sequential Access
● Solution: start prefetching the next track only when
the previous track is about to finish, as Spotify has
experimentally observed that:
– When the current track has only 30 seconds left,
the user is going to listen to the following one in
92% of the cases.
– When 10 seconds are left, the percentage rises to
94%
● The final strategy is:
– 30 seconds left: start searching for peers who can
serve the next track
– 10 seconds left: if no peers are found (critical
scenario!), use the Spotify CDNTCP Congestion Window
● RECAP :
– TCP maintains a congestion window (cwnd)
– cwnd is used to avoid network congestion
– A TCP sender can never have more than cwnd
un-acked bytes outstanding
– Additive increase, multiplicative decrease
– RESTART WINDOW (RW): is the size of the cwnd
after a TCP restarts transmission after an idle
period (timeout)TCP Congestion Window
● RECAP :
– RFC 5681 (TCP Congestion Control) says:
● « […] Therefore, a TCP SHOULD set cwnd to no more
than RW before beginning transmission if the TCP has
not sent data in an interval exceeding the
retransmission timeout »
● → when you start sending data after a while, the
transmission starts slowTCP Congestion Window and
Spotify
● Spotify traffic is bursty
● Initial burst is very latency-critical
● Want to avoid needless reduction of
congestion window
● Configure kernels to not follow the RFC
5681 SHOULD (???)
– Dangerous if there are multiple
connectionsSecurity in Spotify P2P Network
● Control access to participate
● Verify integrity of downloaded files
● Data transfered in P2P network is
encrypted
● Usernames are not exposed in P2P
network, all peers assigned pseudonymPlaylist
● Most complex service in Spotify
● Simultaneous writes with automatic
conflict resolution
● Publish-subscribe system to clients
● Changes automatically versioned,
transmits deltas
● Terabyte sizes of dataEvaluation (outdated) ● Collected measurements 23–29 March 2010 ● (Before Facebook integration, local files, ...)
Data Sources
● Mostly minor variations over time
– Better P2P performance on weekends
– P2P most effective at peak hours
● 8.8% from servers
● 35.8% from P2P
● 55.4% from cachesLatency and Stutter
● Median latency: 265 ms
● 75th percentile: 515 ms
● 90th percentile: 1047 ms
● Below 1% of playbacks had stutter
occurrencesFinding peers ● Each mechanism by itself is fairly effective
Traffic
● Measured at socket layer
● Unused data means it was
canceled/duplicateTrack Accesses ● There is no cost per track for users ● What does the usage pattern look like? ● How is that affected by caches and P2P? ● 60% of catalog was accessed ● 88% of track playbacks were within most popular 12% ● 79% of server requests were within the most popular 21%
You can also read
