OUTDOOR KITCHENS & BUILT-IN GRILLS
EVERYTHING FOR YOUR OUTDOOR KITCHEN 02
CONTENT
Built-in grill options
The road to your outdoor kitchen ����������������������04
Built-in grills ������������������������������������������������������06
Accessories �������������������������������������������������������� 12
Oasis™ Modules
Kitchen variants ������������������������������������������������� 14
Modules �������������������������������������������������������������� 16
Built-in components
The built-in components������������������������������������� 18
Facts & Figures
b
h t
Dimensions & Specifications �����������������������������24
03
THE ROAD TO YOUR OUTDOOR KITCHEN
BRING QUALITY OF LIFE
TO YOUR GARDEN
04
1. 2. A
CHOOSE YOUR GRILL HEAD CHOOSE YOUR STRUCTURE Modular Outdoor kitchen
Infinite combination and expansion
options make the Oasis™ outdoor
modules a popular choice for
A B individualists.
More on page 14
B
A suitable grill for your grilling needs Flexible individualist or connoisseur? Built-in components for a
solid / fixed outdoor kitchen
When choosing your built-in grill head, Dependant of your personal
it is important to decide on the desired preferences and expansion plans, you A unique look, Mediterranean flair and
size of the grilling area plus which can choose between the combinable individual design options characterise
grilling methods you need such as Oasis™ outdoor modules (A) or decide the built-in elements for connoisseurs.
rotisserie cooking, smoking and for a brick garden oasis with optional
much more... installation elements (B).
More on page 18
More on page 6
05
BUILT-IN GRILLS
Whether set in a Mediterranean stone
wall or integrated into a luxurious
stainless steel kitchen - a grill head
will become the popular centre of your
outdoor kitchen!
Different models with different
features allow for individual
grilling preferences.
Let yourself be inspired by the
possibilities and get perpared for your
individual outdoor kitchen.
ICON EXPLANATION
This grill model contains the
infrared SIZZLE ZONE™
This product comes with
NAPOLEON’s limited
lifetime warranty
Available as a propane gas model
Available as a natural gas model
06

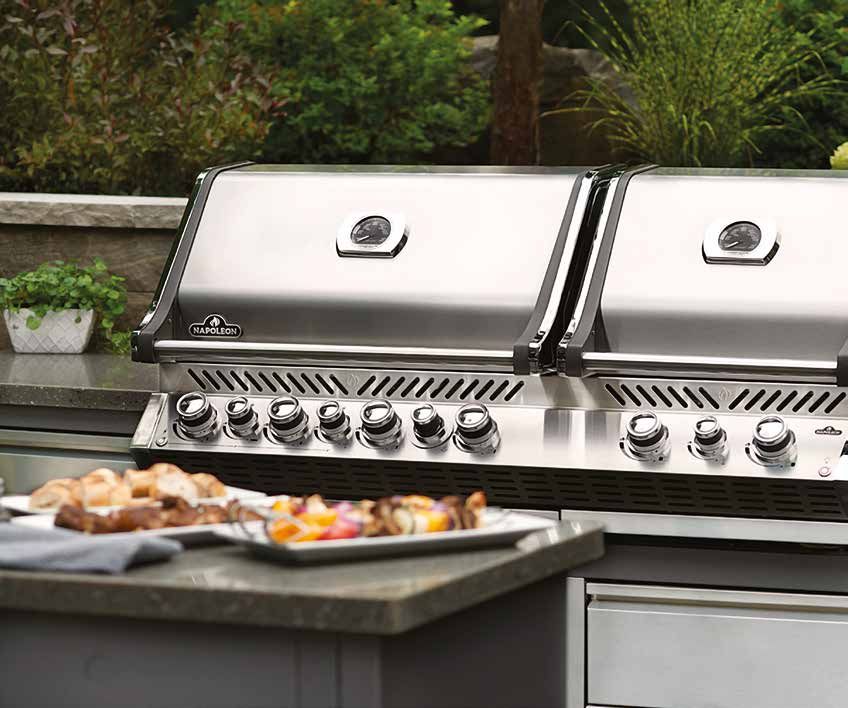

BUILT-IN PRESTIGE PRO™ 825 RBI NAPOLEON’S SPECIAL
33,3 kW | 9 Burners | Total cooking area: 72 cm x 46 cm + 47 cm x 46 cm + Warming Rack BIPRO825RBIPSS-3
1 Two seperate grill areas with 6 Dual SIZZLE ZONE™ area with Stainless 10 Stainless Steel infrared Rear Burner THE INFRARED SIZZLE ZONE™
LIFT-EASE™ Stainless Steel lid for Steel tube burner for better heat distribution for juicy rotisserie dishes
different temperatures and dishes 7 SAFETY GLOW™ colour changing 11 Interior lighting in both grill chambers For the production of infrared heat
2 Warming rack in both grill chambers control knobs NAPOLEON® uses ceramic burners
3 Integrated ACCU-PROBE™ Thermometer 8 Smoker Burner with integrated, easy pull- with thousands of small flame outlets
4 Rotisserie kit with motor included out and refillable smoking tray - the so-called SIZZLE ZONE™.
5 WAVE™ 9,5 mm Stainless Steel grids 9 Electronic ignition + JETFIRE™ ignition The energy of the flames is absorbed
system by the ceramic surace which begins to
2 glow, generating temperatures of over
800°C.
1 1
11
The results:
4 • Allows you to quickly sear and
3 3
caramelize your food
10
• Juicy, tasty dishes and perfectly
5 6 cooked steaks
• Shorter grill time – this saves gas
and money
9 8 7
Integrated smoking tray SIZZLE ZONE™ Area Infrared rear burner SAFETY GLOW™ colour Proximity lighting 9,5 mm WAVE™ grids and
for extra aroma for perfect steaks and rotisserie kit changing control knobs heat distributors from
Stainless Steel 07
BUILT-IN GRILLS
NAPOLEON’S SPECIAL
BUILT-IN PRESTIGE PRO™ 665 RBI
27 kW | 7 Burners | Total cooking area: 94 cm x 46 cm + Warming rack BIPRO665RBPSS-3
INFRARED UPGRADE-KIT 1 LIFT-EASE™ roll top lid with gleaming 5 R otisserie kit with motor included 9 SAFETY GLOW™ colour changing
FOR BIPRO665 AND BIPRO500 chrome accents 6 WAVE™ 9,5 mm Stainless Steel grids control knobs
2 Integrated ACCU-PROBE™ Thermometer 7 Infrared Upgrade-Kit optional available 10 Electronic ignition + JETFIRE™ ignition
With the infrared upgrade kit from 3 Warming rack system
8 Smoker Burner with integrated, easy pull-
NAPOLEON® you can enjoy extremely 4 Integrated interior lighting out and refillable smoking tray 11 S
tainless Steel infrared Rear
juicy dishes - like from the infrared Burner for juicy rotisserie dishes
SIZZLE ZONE™! 12 Also available as natural gas model
Simply follow the conversion manual and
replace a conventional stainless steel 1
4
tube burner of the BIPRO500 and
BIPRO665 with the infrared burner of the
3
upgrade kit. The significantly higher 2
temperatures of the powerful infrared
11 5
burner seal the meat faster, the surface
caramelises to a crispy crust and the 6
grilled food is juicy and flavourful. This
turns every gas barbecue into a unique, 12
extremely hot infrared grill for perfect 7
steaks, crispy roasts and crisp wok
dishes. 10 9 8
Integrated smoking tray Infrared rear burner Space-saving & SAFETY GLOW™ colour 9,5 mm WAVE™ Proximity lighting
for extra aroma and rotisserie kit smooth-running LIFT- changing control knobs Stainless Steel grids
08 EASE™ roll top lid
NAPOLEON’S SPECIAL
BUILT-IN PRESTIGE PRO™ 500 RBI
21,7 kW | 5 Burners | Total cooking area: 71 cm x 46 cm + Warming rack BIPRO500RBPSS-3
1 LIFT-EASE™ roll top lid with gleaming 5 Rotisserie kit with motor included 9 Stainless Steel infrared Rear LIFT-EASE™, WAVE™ & CO
chrome accents 6 WAVE™ 9,5 mm Stainless Steel grids Burner for juicy rotisserie dishes
2 Integrated ACCU-PROBE™ Thermometer 10 Also available as natural gas model NAPOLEON® brings comfort and
7 SAFETY GLOW™ colour changing
3 Warming rack control knobs
refinement to the perfection of
4 Integrated interior lighting barbecuing. The space-saving LIFT-
8 Electronic ignition + JETFIRE™ ignition system
EASE™ roll top lid is designed to slide
backwards particularly smoothly and
1 slimly when opened. This allows you
4 to place your barbecue close to walls
and objects (necessary wall distance
see page 22).
2 3
The well thought-out, wave-shaped
WAVE™ grill grids not only give your
9 5
steak the typical NAPOLEON® branding
6
- their shape also ensures that the heat
is distributed evenly.
10
The JETFIRE ignition system is also
clever: at the touch of a button it ignites
all the desired burners simultaneously.
The gourmet grills from NAPOLEON®
8 7 offer you this and much more.
Infrared rear burner Space-saving & smoo- SAFETY GLOW™ colour 9,5 mm WAVE™ Proximity lighting
and rotisserie kit th-running LIFT-EA- changing control knobs Stainless Steel grids
SE™ roll top lide 09
BUILT-IN GRILLS
NAPOLEON’S SPECIAL
BUILT-IN LEX 605
24,5 kW | 5 Burners | Total cooking area: 85 cm x 46 cm + Warming rack BILEX605RBI
CHARCOAL ON A GAS GRILL 1
Grill lid with interal liner entirely made 4 WAVE™ Stainless Steel grids 7 JETFIRE™ ignition system
from stainless steel
5 SIZZLE ZONE™ for the perfect steak 8 Ceramic infrared rear burner for juicy
Turn your gas grill into a charcoal grill! 2
Integrated ACCU-PROBE™ thermometer rotisserie dishes
6 i-GLOW™ control knobs
Because of the optional charcoal & 3 Warming rack
smoker tray it is now possible to easily
switch between gas and charcoal.
Remove the grids and sear plates from
the grilling chamber and place the cast 1
iron tray on top of the burners. Fill up
the charcoal tray with charcoal and
turn on the burners. Place back the 2
grids inside of the grill and enjoy the 3
nostalgic grilling of charcoal with it’s
8
unique, smoked aroma! 4 5
7 6
Internal SIZZLE ZONE™ Ceramic infrared rear i-GLOW™ control knobs WAVE™ Stainless Steel ACCU-PROBE™
for perfect steaks burner for optional grids thermometer
10 rotisserieNAPOLEON’S SPECIAL
BUILT-IN LEX 485
18,4 kW | 5 Burners | Total cooking area: 68 cm x 46 cm + Warming rack BILEX485RB
1
Grill lid with interal liner entirely made 3 Warming rack 6 JETFIRE™ ignition system LIMITED LIFETIME WARRANTY
from stainless steel
4 WAVE™ Stainless Steel grids 7 Ceramic infrared rear burner for juicy
2 Integrated ACCU-PROBE™ thermometer 5 i-GLOW™ control knobs rotisserie dishes NAPOLEON® products are
characterised by the use of premium
materials, precise processing and high
quality standards. This is why we are
able to grant Napoleon’s Presidents
1 Limited Lifetime Warranty on
numerous grill models such as built-in
grills.
2
The NAPOLEON® Appliance
3 Corporation is certified according to
ISO 9001:2000 and holds the title
7
4 “Canada’s Best Managed Companies”.
Numerous product awards also testify
to its reliable quality.
So you can choose NAPOLEON® with a
secure feeling and benefit from
reliable customer service in case of an
6 5 emergency!
Ceramic infrared rear i-GLOW™ control knobs WAVE™ Stainless Steel ACCU-PROBE™
burner for optional grids Thermometer
rotisserie 11ACCESSORIES
Cover, suitable for respective built-in grills Reversible cast iron griddle
REACH certified, elastic band and With a smooth and a wavy surface, Ideal for
embroidered NAPOLEON logo small-scale food, fried eggs, burgers, seafood
#61826 for BIPRO825, etc. Suitable for all current built-in grill
#61666 for BIPRO665, attachments #56040
#61501 for BIPRO500,
#61606 for BILEX605,
#61486 for BILEX485
The entire range of NAPOLEON® Premium BBQs & Grill accessories
can be found at www.napoleon.com
12Shish Kebab set for rotisserie Rectangular pizza stone
For evenly heated and crispy skewer dishes. Large, rectangular pizza stone suitable for all
stainless steel skewers with a special shape and NAPOLEON® built-in grills. Can also be used in ovens
holder for even rotation #64008 54 x 34,4 x 1,8 cm #70008
Commercial quality rotisserie kit
With 4 stainless steel meat forks, stainless steel
spit rod (hexagonal) and motor with stainless steel
housing, counterweight;
Suitable for BILEX485 and BIPRO500, #69233
Suitable for BILEX605, #69333
Suitable for BIPRO665, #69633
Suitable for BIPRO825, #69533 Leather BBQ gloves (1 pair) BBQ Smoker-Box
Solid leather gloves for protection against heat, Smoker box for refining the food with a delicate or
suitable for charcoal grilling. #62147 intense smokey note. Suits the Rogue, Prestige and
Prestige PRO series grills. #67013
Charcoal / Smoker tray for gas grills PRO digital thermometer
For comfortable charcoal grilling and smoking in With digital display, belt holder and approx. 60 meters
no time. Put the cast iron smoking insert directly range. #70006
on the burner and you can turn your gas grill into
a charcoal grill! #67732

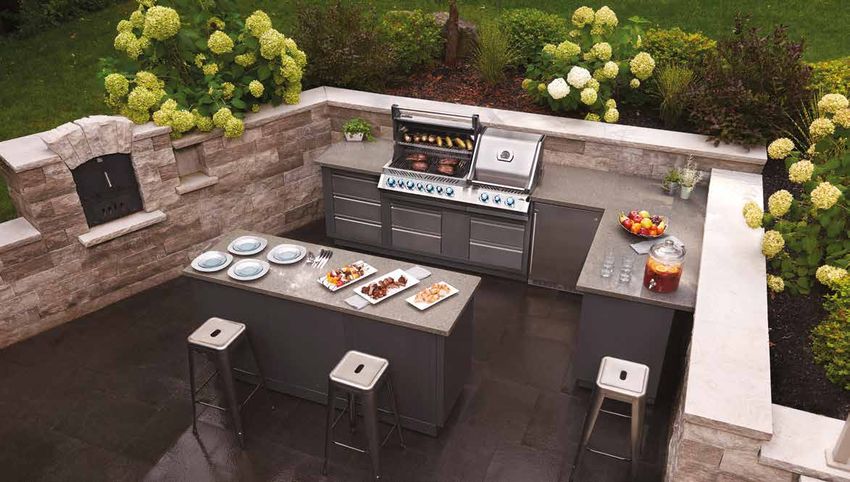

13OASIS™ MODULAR OUTDOOR KITCHENS
The guests are having fun, social
conversations in every corner and the
irresistible smell of grilled food makes
your mouth water. The prerequisite for
such a pleasure is a solid cooking and
barbecue possibility outside. The
modular Oasis™ outdoor kitchens
combine highest quality with pure
barbecue pleasure and can be
combined in an unlimited way. Create
your own individual oasis - we will
show you how!
14BUILT-IN KITCHENS – VARIETY & VARIATION
Countertop not included
Endless combination options allow you to design your very own outdoor
dream! Here we show you some variations of what your outdoor kitchen could
look like... On the following pages you will find all of the modules in detail and
enough space for your first ideas!
BIPRO500
Built-in grill
Countertop not included
option
2 x IM-3DC Base cabinet with IM-UTC
3 drawers on 2 large drawers on Propane tank cabinet
At a 45° angle the Oasis roller glides roller glides with pull out tray
modules nestle around the IM-WDC
built-in grill. This way the Kitchen roll holder Arranged at a 90° angle, this version fits
grill master always has their & Waste bin perfectly against house walls and terraces.
accessories at hand and more The centre of the party is quickly identified!
time for their guests.
IM-UGC500
IM-WDC Base cabinet with IM-UTC
Kitchen roll holder 2 large drawers on Propane tank cabinet
& Waste bin roller glides with pull out tray
BIPRO825 Built-in grill option
including rotisserie kit
Countertop not included
Numerous modules offer storage space
for outdoor equipment and barbecue
accessories. The generous workspace
invites you to grill and enjoy. Ideal for
outdoor enthusiasts & sociable hosts.
IM-WDC IM-UGC825 IM-UTC
IM-UDC Kitchen roll holder Base cabinet for BIPRO825 Propane tank cabinet IM-3DC
Universal cabinet & Waste bin with 4 large drawers on roller glides with pull out tray 3 drawers on roller glides
15GRILL BASE CABINETS & OASIS™ MODULES
From grill head and drawers to gas side
burners - there are no limits to
creativity when designing an Oasis™
outdoor kitchen. The following features
characterise Oasis™ modules:
• Doors and drawers made of high
quality Stainless Steel and therefore
Base Cabinet Base Cabinet Base Cabinet particularly durable
IM-UGC825 IM-UGC665 IM-UGC500
• Body made of galvanized steel with
Suitable for BIPRO825RBI, including 4 Suitable for BIPRO665 and BILEX605, Suitable for BIPRO500 and BILEX485,
drawers on roller glides for storing all including 2 drawers on roller glides including 2 drawers on roller glides powder coating
of your grill accessories with handle bars with handle bars
• Leveling feet for a precise alignment.
Even on uneven terraces and floors
• Pre-punched openings for electrical
and gas installations
• Cash-and-carry design: The modules
are pre-assembled at the factory.
So you only need to connect the
desired modules together.
• Stylish end panels for
side closure.
3 Drawer cabinet 2 Drawer cabinet Universal door cabinet
IM-3DC IM-2DC IM-UDC
3 drawers on roller glides with 2 drawers on roller glides with With spacious interior. Door with
handle bars. Stainless Steel fronts handle bars. Top drawer is “blind” handle bar, hinged on the right or
to integrate the sink, side burner left. Stainless Steel fronts
or ice cube compartment.
Stainless Steel fronts
16Waste drawer cabinet Propane tank cabinet 45° Transition panel Wall spacer panel
IM-WDC IM-UTC IM-45T IM-WSF
Integrated kitchen roll holder in top With pull-out drawer for storing Powder-coated connection panel for Powder-coated panel as a spacer
folding compartiment. Generous and changing gas bottles. Door mounting two modules at a 45° angle. between the wall or wall and the
trash can drawer on roller glides. with handle bar, hinged on the Combine two modules to create a 90° Oasis™ outdoor module or as a
Stainless Steel fronts right or left, Stainless Steel fronts angle cover for gaps
End panel Mid run enclosure kit End of run enclosure kit
IM-CEP IM-FMP IM-FEP
Powder-coated end panel to cover Powder coated mid panel to Powder coated end panel to cover
up pre-punched openings for cover the back of the Napoleon the back and side of the Napoleon
electrical and gas installations on refrigerator when the fridge is refrigerator when the fridge is
the side of cabinets placed in the midst of other placed at the end of other units.
units.
17BUILT-IN COMPONENTS
The warm wind carries the smell of
grilled meat, the timeless side dishes
are already being prepared and the
children flock to the table hungry...
A brick outdoor kitchen with a grill
quickly becomes a popular centre in
your garden. Once you have decided on
the size and shape of your outdoor
kitchen, you will enjoy it for a long time.
Whether natural stone or marble, brick
or slate - the solid outdoor kitchen
oasis radiates both comfort and
elegance.

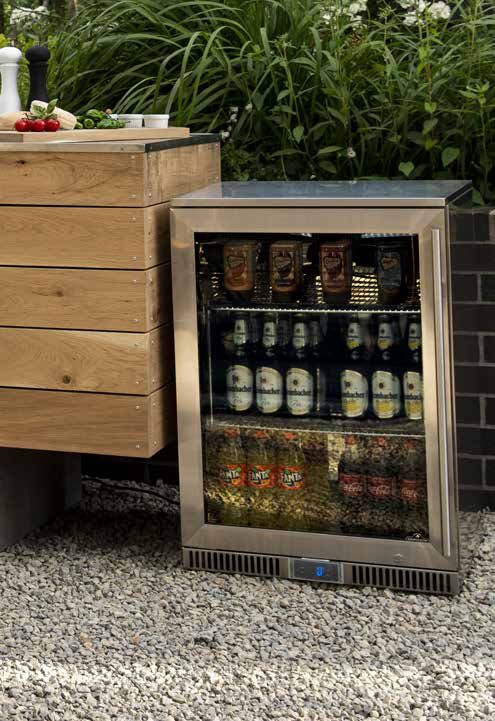

18135L Outdoor Beverage Cooler 210L Outdoor Beverage Cooler
NFR135OLGL / NFR135ORGL NFR210ODGL
Single door Outdoor Beverage cooler Double door Outdoor Beverage cooler
with 135 liters of capacity available as with 210 liters of capacity and an energy
both right- and left opening door version consumption of 1,65 kW/h
Left handed fridge, hinges on the left Functioning at temperatures from -5 up
Right handed fridge, hinges on the right to 40 degrees celsius and has an IP24
Waterproof design
Functioning at temperatures from -5 up
to 40 degrees celsius and has an IP24 (Dimensions: 90 x 86,5 cm)
Waterproof design
(Dimensions: 60 x 86,5 cm)
Wine Shelf for Outdoor Beverage Cooler
NFR-SGL-WINESHLF / NFR-DBL-WINESHLF
• Single fridge set consists of 2 shelves and 8 clips
• Double fridge set consists of 4 shelves and 16 clips
• Chrome plated with no weight limit for single bottle stacking
19BUILT-IN COMPONENTS
SUITABLE ACCESSORIES
It is essential to have the right tools
when preparing to go grilling.
The following tools ensure that you are well
prepared to start grilling.
Heat Resistant Glove
This, single heat-resistant
grill finger glove can be
used on both sides and
therefore suitable for the
right and left hand. With
Built-in door, large 2 built-in doors, small 2 built-in doors, large slip-resistant, stylish
BI-1824-1D BI-3024-2D BI-3624-2D stripes for a secure grip.
(Dimensions: 84,8 x 70,5 cm) Certified according to EN
(Dimensions: 54,6 x 70,5 cm) (Dimensions: 100,0 x 70,5 cm) 388 / EN 40
#62145
Presidents limited
edition 4 piece toolset
Made of stainless
steel and with black
handles; tongs, spatula,
basting brush and
the PRO Chef Knife
#70037
PRO cutting board
with 2 Stainless
Built-in combination with Steel bowls
3 built-in drawers 1 door and 3 drawers For comfortable sli-
BI-1824-3DR BI-3624-1D3DR cing and collecting
meat juices and sliced
(Dimensions: 54,6 x 70,5 cm) (Dimensions: 100,0 x 70,5 cm) vegetables
33 x 46 x 5,5 cm
20 #7001221
DIMENSIONS & SPECIFICATIONS
DIMENSIONS OF BUILT-IN GRILLS & COMPONENTS
Built-in grills BIPRO825RBI BIPRO665RB BIPRO500RB BILEX605RBI BILEX485RB
Dimensions with closed lid and
140 cm x 65 cm x 65 cm 104 cm x 65 cm x 65 cm 82 cm x 65 cm x 61 cm 91 cm x 69 cm x 57 cm 74 cm x 69 cm x 57 cm
without rotisserie kit (w x d x h)
Width: 133,0 cm Width: 96,5 cm Width: 78,1 cm Width: 93,0 cm Width: 75,5 cm
Dimensions of the installation Depth: 52,4 cm
Depth: 52,4 cm Depth: 52,4 cm Depth: 54,5 cm Depth: 54,5 cm
opening in fireproof material Height: 22,5 cm
Height: 22,5 cm Height: 22,5 cm Height: 22,5 cm Height: 22,5 cm
(w x d x h) Wall distance: 12,7 cm
Wall distance: 12,7 cm Wall distance: 12,7 cm Wall distance: 15,2 cm Wall distance: 15,2 cm
bw
h dt
Dimensions of the installation opening in fireproof material w
w (Width) D
escribes the necessary width of the opening for
inserting the built-in grill
d
d (Depth) escribes the necessary depth of the opening for
D
inserting the built-in grill, so that the
grill together with the control panel fits perfectly
h (Height) D
escribes the height of the opening to be created and at the same time how deep the grill sinks
down in the kitchen
22DIMENSIONS OF THE OASIS™ GRILL CABINETS & MODULES
Built-in grills can
be combined with
both built-in
components and
Oasis™ Modules.
Grill cabinets IM-UGC 825 IM-UGC 665 IM-UGC 500
Dimensions (w x d x h) 140,0 cm x 61,0 cm x 88,9 cm 103,0 cm x 61,0 cm x 88,9 cm 88,0 cm x 61,0 cm x 88,9 cm
3 drawer cabinet 2 drawer cabinet Universal cabinet Kitchen roll holder Extendable gas
Module IM-3DC IM-2DC IM-UDC & waste bin IM-WDC bottle holder IM-UTC
Dimensions (w x d x h) 61,0 cm x 61,0 cm x 88,9 cm 61,0 cm x 61,0 cm x 88,9 cm 61,0 cm x 61,0 cm x 88,9 cm 61,0 cm x 61,0 cm x 88,9 cm 61,0 cm x 61,0 cm x 88,9 cm
45° connection Wall spacer End panel Mid run enclosure kit End of run
Module IM-45T IM-WSF IM-CEP IM-FMP enclosure kit IM-FEP
Dimensions (w x d x h) 46,7 cm x 88,9 cm 3,8 cm x 10,2 cm x 88,9 cm 61,0 cm x 5,1 cm x 78,7 cm 61,0 cm x 88,9 cm 61,0 cm x 61,0 cm x 88,9 cm
23DIMENSIONS & SPECIFICATIONS
DIMENSIONS & SPECIFICATIONS
Specifications built-in Width Height Depth
grill attachments BIPRO825RBI BIPRO665RB BIPRO500RB BILEX605RBI BILEX485RB Oasis Modules Item number in cm in cm in cm
LIFT-EASE™ roll top lid • • • 825 Grill base cabinet IM-UGC-825 140,0 88,9 61,0
Stainless Steel internal grill lid liner • • • • •
665/605 Grill base cabinet IM-UGC-665 103,0 88,9 61,0
ACCU PROBE™ Thermometer • • • • •
500/485 Grill base cabinet IM-UGC-500 88,3 88,9 61,0
Total cooking area(‘s) in cm 72 x 46 + 47 x 46 94 x 46 71 x 46 85 x 46 68 x 46
Electronisc ignition for rear burner • • • 3 Drawer cabinet IM-3DC 61,0 88,9 61,0
JETFIRE™ ignition • • • • • 2 Drawer cabinet IM-2DC 61,0 88,9 61,0
Main ceramic infrared burner (SIZZLE ZONE™) 2 Opt. Opt. 1 Universal cabinet IM-UDC 61,0 88,9 61,0
Main Stainless Steel burner 6 5 4 3 4
Kitchen roll & trash can cabinet IM-WDC 61,0 88,9 61,0
Infrared rear burner • • • • •
Gas bottle cabinet IM-UTC 610 88,9 61,0
Integrated smoker tray • •
WAVE™ Stainless Steel grids 7 mm • • 45° Connection IM-45T 46,7 88,9
WAVE™ Stainless Steel grids 9,5 mm • • • Wall spacer IM-WSF 3,8 88,9 10,2
i-GLOW™ control knobs • • End panel IM-CEP 61,0 78,7 5,1
Interior lighting • • •
Mid run enclosure kit IM-FMP 61,0 88,9
SAFETY GLOW™ control knobs • • •
End of run enclosure kit IM-FEP 61,0 78,7 61,0
Removable drip tray • • • • •
Warming rack • • • • •
Natural gas version available • •
Built-in dimensions
Width (in cm) 133,0 96,5 78,1 93,0 75,5
Height (in cm) 22,5 22,5 22,5 22,5 22,5
Depth (in cm) 52,4 52,4 52,4 54,5 54,5
Wall distance (in cm) 12,7 12,7 12,7 15,2 15,2
To be observed: Before you start construction work for your outdoor kitchen, measure the modules exactly. If you wish to connect a module at a 45° angle to the built-in grill attachment immediately
afterwards, please select the 2-part drawer module. Other modules could collide with the control panel of the built-in grill attachment. Please note that the models BIPRO665 and BIPRO825 cannot be
combined at a 45° angle. Place your grill at least 60 cm away from flammable materials. Observe local and national safety regulations as well as the safety instructions in the supplied manual.
Gas hose and pressure regulator for built-in grill are NOT included in the scope of delivery.
24Dimensions Cut-out dimensions
Width Height Depth Width Height Depth
Built-in components Item number in cm in cm in cm in cm in cm in cm
3 built-in drawers, small BI-1824-3DR 54,6 70,5 59,7 47,3 62,9 57,8
2 Built-in doors, small BI-3024-2D 84,8 70,5 9,2 77,5 62,9 7,6
Built-in door & 3 drawers combination BI-3624-1D3DR 100,0 70,5 59,7 92,7 62,9 57,8
2 Built-in doors, large BI-3624-2D 100,0 70,5 9,2 92,7 62,9 7,6
Built-in door, small BI-1824-1D 54,6 70,5 9,2 47,3 62,9 7,6
Please note that the BIPRO825 and
BIPRO665 built-in grills cannot be combined
with Oasis™ modules at a 45° angle.
You should always connect one element in
the same alignment before setting an angle.
25WOLF STEEL (UK) LTD The Old Grain Store Authorised Dealer: 10-12 Home farm Meriden Road, Berkswell CV7 7SL, United Kingdom Phone: 01676 522788 info@napoleongrills.co.uk facebook.com/Napoleongrillsuk napoleon.com Approved by Testing Services to CE standard EN498. All specifications and designs are subject to change without prior notice due to ongoing product improvements. Consult your owner’s manual for complete installation and operating instructions and check all local and national Building Codes and Regulations. Not all features available on all models. Napoleon® is a registered trademark of Wolf Steel Ltd. Images and colors may not be exactly as shown.
You can also read
