New Zealand’s Quietest Heat Pumps
*The MSZ-GE25 & MSZ-GE35 are 19 dB(A) when operating on their lowest fan speed (Quiet Mode), as at 1st May 2009.
COMFORT FOR ALL OF NEW ZEALAND.
Relax in comfort from burning summer days or freezing cold nights with up to four times the energy efficiency of conventional
heating appliances. Mitsubishi Electric cuts your heating costs and your budget.
An extensive feature-rich range ensures there is a model to meet your needs, our contemporary styling will compliment any
interior. All this with the whisper quietness you have come to expect from Mitsubishi Electric.
Everyone deserves a home where they can rely on year round superior comfort and Mitsubishi Electric is able to make that
possible.
Smarter Heating
Whether you’re looking for a new Heat Pump or wanting
to learn how to use your Heat Pump more efficiently
www.smarterheating.co.nz has the answer.
This online site was specifically developed by Mitsubishi
Electric to answer the most common Heat Pump questions
so that consumers can make truly informed decisions.
HOW DO HEAT PUMPS WORK? HEAT PUMPS OFFER MAXIMUM
It’s actually quite simple. ENERGY EFFICIENCY.
Mitsubishi Electric Heat
EECA (Energy Efficiency Conservation Authority) has identified
Pumps work in much the
Heat Pumps as one of the most energy efficient forms of heating
same way as your refrigerator
available in New Zealand. Heat Pumps do not create heat;
except there are two separate,
they simply move available heat from one place to another.
but integral, parts to the
The little electrical energy that is needed is predominantly
system. There is an outdoor
used to run the compressor.
unit housing the compressor
that is similar to the exterior Typically, only
back of your fridge, this 1kW of electrical
extracts freely available heat energy is required
energy from the outside air to “pump” up to
and transfers or ‘’pumps’’ it 4kW of available
back inside your home. The heat energy
result – you feel warm inside. from the outdoor
environment to
During the summer the Heat
a specific area
Pump reverses this operation,
inside the home. In other words, the Heat Pump transfers
extracting heat energy from
a lot more available energy than it actually consumes. With
the air inside your home and
energy efficiencies of up to 400%, this is why Heat Pumps are
pumping it outside. The end
promoted by EECA as one of the most energy efficient forms of
effect - you feel cooler inside!
heating available to New Zealanders. This is often represented
For more information visit: as a COP (Co-efficient Of Performance). The ratio of kW input
www.smarterheating.co.nz to kW output. In the example above the COP would be 4.
1
WHAT FEATURES TO LOOK FOR?
New Zealand’s Quietest Heat Pumps
Sound is measured using a logarithmic measurement known as decibels or dB(A). The normal range
of human hearing begins at approximately 0 decibels – however a sound usually needs to reach 10-
15 dB(A) before it is detected (this is the sound level of someone breathing normally).
The loudness of sound increases by 52% for every additional 6 dB(A) or doubles for every 10 dB(A).
So a Heat Pump that produces 25 dB(A) of sound will be one and half times louder than a Heat Pump
that produces 19 dB(A). An increase a 1 dB(A) equates to an increase in sound intensity of 26%!
Mitsubishi Electric has a long-standing reputation for manufacturing the Quietest Heat Pumps / Air Conditioners available. As
even a small dB(A) increase will impact the sound level you experience, Mitsubishi Electric strives to continuously improve the
sound levels of their Heat Pumps. The Mitsubishi Electric MSZ-GE25VA and MSZ-GE35VA Inverter High Wall indoor units are
New Zealand’s Quietest Heat Pumps at an amazingly low 19 dB(A) on their lowest fan speed (Quiet Mode). Mitsubishi Electric’s
“Quiet Mode” is designed to ensure you receive the comfort levels you desire while experiencing the quietest sound levels
available. We understand that you want to feel the warmth not hear it!
Advanced Energy Efficiency Air Purification
Mitsubishi Electric aims to provide the most energy Sufferers of asthma, hay fever and other allergies will benefit greatly from
efficient Heat Pump Systems by combining high energy our Deluxe Inverter Plasma Duo High Wall models which feature state-of-
efficiency with unique energy saving features. the-art filtration. The washable Plasma Electrode Filter effectively breaks
The MSZ-GE25/35/50, MSZ-GA60, MSZ-FB25/35/50, MFZ-KA25/35 & down dust, smoke and pollen, whilst the washable Ceramic Filter is
SLZ-KA25/35 have all been awarded the ENERGY STAR mark signaling engineered to decompose unpleasant odours and deodorise the air.
that they meet the strict energy efficiency guidelines.
Humidity Regulation
Unique Energy Saving Features As well as causing unpleasant odours, dampness and mould are the main
i-see Sensor contributors to the deterioration of furniture, drapes and chattels.
See MSZ-FB Deluxe High Wall, pages 11-12. The Mitsubishi Electric range has a DRY cycle function, where the indoor
i-save Mode coil acts like a mirror in a bathroom collecting moisture and removing it
See MSZ-GE High Wall, pages 7-8 / MFZ-KA Floor Console, pages 13-14. via the attached condensate drain.
Econo Cool
See MSZ-GE High Wall, pages 7-8 / MSZ-GA High Wall, pages 9-10 / MSZ-FB The Defrost Cycle
Deluxe High Wall, pages 11-12 / MFZ-KA Floor Console, pages 13-14. When the outside temperature drops below zero all heat pumps must
perform a “defrost cycle” to remove ice build up on their outdoor coils.
Inverter Technology for even more Mitsubishi Electric has developed an advanced defrost strategy to enable
more efficient operation in extreme conditions.
Energy Savings
Mitsubishi Electric Heat Pumps utilise a Fuzzy Logic software program, a
Mitsubishi Electric Inverter technology offers even more energy savings by
form of Artificial Intelligence, that typically lasts between 3 to 5 minutes.
matching compressor speed output to your indoor heating or cooling load
This program measures and records temperatures and running times then
conditions. Energy savings of up to 30% are possible when compared to
uses this data to initiate the defrost cycle only when required.
fixed speed. Mitsubishi Electric Inverter models also have the capability
to run above rated capacity for quicker achievement of design controlled
environment conditions under adverse outdoor conditions. 7 Day Timer
Wake up or come home to optimal temperatures
Guaranteed Heating Performance to -15°C whilst conserving energy. The optional 7 Day Timer
The Mitsubishi Electric range guarantees heating performance down to from Mitsubishi Electric allows you to program your
-15°C to ensure adequate heating on even the coldest nights or mornings air conditioning system with up to 8 separate Start/
when you really need it. Stop patterns per day over a 7 day period.
Air Conditioning
From
Heat Pumps 19dBA*
*The MSZ-GE25 & MSZ-GE35 are 19dB(A) when operating on their lowest fan speed (Quiet Mode), as at 1st May 2009.
INVERTER HIGH WALL For details refer page 7 - 10
MSZ-GE / GA SERIES
ENERGY 6.0 6.0 4.5 4.0 4.0 2.5
RATING
6.0 6.0 5.0 4.0 4.0 3.0
MODEL MSZ-GE25 MSZ-GE35 MSZ-GE50 MSZ-GA60 MSZ-GA71 MSZ-GA80
MSZ-GE25/35/50VA
2.5kW 3.5kW 5.0kW 6.0kW 7.1kW 8.1kW
COOL 4.46 EER 3.47 EER 3.05 EER 3.08 EER 2.91 EER 2.53 EER
• Compact Flat Panel Design 19 dB(A)* 19 dB(A)* 28 dB(A)* 32 dB(A)* 33 dB(A)* 33 dB(A)*
• New Zealand’s Quietest at 19 dB(A)**
3.2kW 4.0kW 5.8kW 6.8kW 8.1kW 9.0kW
• “I-save” Mode*** HEAT 4.38 COP 3.88 COP 3.52 COP 3.42 COP 3.24 COP 2.90 COP
• Catechin Filter 19 dB(A)* 19 dB(A)* 28 dB(A)* 32 dB(A)* 33 dB(A)* 33 dB(A)*
• Anti-Allergy Enzyme Filter *Sound Levels rated at lowest fan speed.
**For MSZ-GE25/35VA, as at 1st May 2009.
• Energy-saving “Econo Cool” ***For MSZ-GE25/35/50VA.
****For MSZ-GA60/71/80VA.
• Wide and Long Air Flow****
• Auto Change Over
• Quick-clean Design***
• 24 Hour Timer
• Optional PAR-21MAA 7 Day Wired Wall Timer
• Longer Piping Length
• Guaranteed Heating Performance down to -15°C MSZ-GA60/71/80VA
DELUXE INVERTER HIGH WALL For details refer page 11 - 12
MSZ-FB SERIES
ENERGY 6.0 6.0 5.0
RATING
6.0 6.0 5.5
MODEL MSZ-FB25 MSZ-FB35 MSZ-FB50
MSZ-FB25/35/50VA
2.5kW 3.5kW 5.0kW
COOL 4.76 EER 3.93 EER 3.13 EER
• Compact Flat Panel Design
20 dB(A)* 20 dB(A)* 29 dB(A)*
• Super Quiet Operation at just 20 dB(A)**
3.2kW 4.0kW 6.0kW
• Energy Saving “i-see” Temperature Sensor HEAT 4.89 COP 4.44 COP 3.66 COP
• Long Life Washable Plasma Deodorising Filter 20 dB(A)* 21 dB(A)* 27 dB(A)*
• Long Life Washable Plasma Air Purifying Filter *Sound Levels rated at lowest fan speed.
**For MSZ-FB25VA, as at 1st May 2009.
• Self Cleaning “Ozone Shower”
• Quick Clean Design
• Energy-saving “Econo Cool”
• Auto Change Over
• 24 Hour Timer
• Optional PAR-21MAA 7 Day Wired Wall Timer
• Longer Piping Length
• Guaranteed Heating Performance down to -15°C
3
Guaranteed Air Purification
From All
19dBA 6 Star Energy Rating
MSZ-GE25, MSZ-FB25/35,
MFZ-KA25
INVERTER COMPACT FLOOR CONSOLE For details refer page 13 - 14
MFZ-KA SERIES
ENERGY 6.0 4.5 4.5
RATING
6.0 5.0 4.0
MODEL MSZ-KA25 MSZ-KA35 MSZ-KA50
2.5kW 3.5kW 4.8kW
COOL 4.31 EER 3.21 EER 3.10 EER
MFZ-KA25/35/50VA 22 dB(A)* 23 dB(A)* 32 dB(A)*
3.4kW 4.0kW 6.0kW
• Slim Line Compact Design HEAT 4.07 COP 3.64 COP 3.23 COP
22 dB(A)* 25 dB(A)* 32 dB(A)*
• Quiet Operation: 22 dB(A)**
*Sound Levels rated at lowest fan speed.
• “I-save” Mode **For MFZ-KA25VA, as at 1st May 2009.
• Catechin and Anti-Allergy Enzyme Filters
• Energy-saving “Econo Cool”
• Swing and Auto Modes
• Auto Change Over
• 24 Hour Timer
• Optional PAR-21MAA 7 Day Wired Wall Timer
• Longer Piping Length
• Guaranteed Heating Performance down to -15°C
INVERTER COMPACT CEILING CASSETTE For details refer page 15
SLZ-KA SERIES
ENERGY 6.0 5.0 3.5
RATING
5.0 5.0 4.0
MODEL SLZ-KA25 SLZ-KA35 SLZ-KA50
2.5kW 3.5kW 4.6kW
COOL 3.62 EER 3.30 EER 2.82 EER
SLZ-KA25/35/50VA(L) 28 dB(A)* 29 dB(A)* 30 dB(A)*
• Compact Design 3.0kW 4.0kW 5.0kW
HEAT 3.61 COP 3.64 COP 3.23 COP
• Light Weight Design 28 dB(A)* 29 dB(A)* 30 dB(A)*
• Long-life Filter *Sound Levels rated at lowest fan speed.
**SLZ-KA25/35/50VAL.
• Fresh Air Intake ***SLZ-KA25/35/50VA.
• Smudge-free Airflow
• Auto Change Over
• Auto Vane
• 12 Hour Timer (Wireless)**
• PAR-21MAA 7 Day Wired Wall Timer***
• Longer Piping Length
• Guaranteed Heating Performance down to -15°C
4
Mitsubishi Electric Quality
PAR-21MAA 7 DAY TIMER
Wake up or come home to optimal temperatures whilst conserving energy!
The controller allows your system to be programmed to maintain optimal
temperature levels during the times when you are likely to be in the room.
In the periods where you are unlikely to be there (such as during work
hours or sleep time), the temperature can be set back to a minimum
holding temperature instead of turning the system completely off.
Turning a system on and off typically uses the most energy because the
The new clear and precise
system has to heat a room starting from a very low temperature. By display is easy to understand
maintaining a minimum holding temperature Mitsubishi Electric inverter for any user.
technology saves you energy as the temperature only needs to be raised
by a couple of degrees. Operation Control Function.
Most air conditioning systems come with a 24 hour timer on the remote Limiting the set temperature range of the air conditioning operation.
The setting of the upper and lower limit temperature is possible. This
controller. This means you can only set the system to automatically turn
conserves energy by preventing excessive cooling and heating.
on and then off once within a 24 hour period. This needs to be manually
reactivated each time. The Mitsubishi Electric 7 day timer allows you to Automatic off timer - For turning off the air conditioning operation.
program up to 8 separate Start/Stop patterns per day over a 7 day period. The system can be switched off automatically thereby preventing wasteful
operation. The set time can be changed from 30 minutes to 4 hours at
For example:
30-minute intervals.
• Between 10pm till 6am set temperature to 18°C
• Between 6am and 9am set temperature to 21°C Operation lock - This prevents random modification of settings.
• Between 9am and 5.30pm set temperature to 18°C Two lock functions are available:
1. Lock all buttons.
• Between 5.30pm and 10pm set temperature to 21°C
2. Lock all buttons other than ON/OFF button.
• Between 10pm and 6am set temperature to 18°C
Industry First! Multi-language Display [French] [Russian] [Chinese] [Japanese] [English] [Spanish] [Italian] [German]
The display can be set to 8 different languages.
FEATURES
Energy Saving
DC Inverter Econo Cool
PAM Control AREA Setting more info page 8 / 10
i-see Temperature Sensor i-save
more info page 12 more info page 8 / 14
Comfort
Sound Level at 19dBA Area Setting Vertical Airflow
Auto Vane more info page 14 more info page 14
Wide Airflow Long Airflow
Swing Vertical Vane Swing Horizontal Vane more info page 10 more info page 10
Fresh Air
Plasma Duo Filter System Anti Allergy Enzyme Filter Healthy Catechin Filter
more info page 12
Anti Mold Self Cleaning
Air Cleaning Filter Long Life Filter
Air Cleaning Filter Ozone Shower
Design
Flat Panel Style Compact Size Pure White Finish Glossy White Finish
Convenience
24 Hour Timer on Remote 7 Day Wall Timer Central On/Off Controller M-NET Connection (G50)
Guaranteed Guaranteed Wide Range Cooling
Heating at -15°C Cooling at -10°C Temperature
Auto Change Over Auto Restart
Installation and Maintenance
Easy Installation
Cleaning Free Pipe Reuse Failure Recall Function Quick Clean Body
with Leveling Plate
Easy and Simple Multi Split Connection for
Long Length Piping Self Diagnosis Function
Flare Connection MXZ Series
5
What Heat Pump Will I Need?
HEATING SIZING CHART GUIDE
Use this guide to give you an approximate unit size.
Units should not be purchased without an in-home quote being completed by a qualified Mitsubishi Electric Authorised Dealer. Every home is as
individual as its owner. The key to selecting the right heat pump for heating your home is to choose the correct unit size. Choosing the wrong unit could
cost you more in power consumption. You can use this guide to give you an approximate unit size, but the correct calculation needs to be carried out
by a qualified specialist.
New or Well Insulated House - Guide Only:
Room Size Calculation M-Series Inverter S-Series Inverter
Room Ceiling Room Room kW Deluxe Compact Floor Ceiling
Size Height Volume Size Factor Heating High Wall High Wall Console Cassette
4x3m x 2.4m = 28.8m³ x 55watts per m³ = 1.6 kW MSZ-GE25VA* MSZ-FB25VA* MFZ-KA25VA* SLZ-KA25VA*
4x4m x 2.4m = 38.4m³ x 55watts per m³ = 2.1 kW MSZ-GE25VA* MSZ-FB25VA* MFZ-KA25VA* SLZ-KA25VA*
4x5m x 2.4m = 48.0m³ x 55watts per m³ = 2.6 kW MSZ-GE25VA* MSZ-FB25VA* MFZ-KA25VA* SLZ-KA25VA
5x5m x 2.4m = 60.0m³ x 55watts per m³ = 3.3 kW MSZ-GE25VA MSZ-FB25VA MFZ-KA25VA SLZ-KA35VA
6x5m x 2.4m = 72.0m³ x 55watts per m³ = 4.0 kW MSZ-GE35VA MSZ-FB35VA MFZ-KA35VA SLZ-KA35VA
6x6m x 2.4m = 86.4m³ x 55watts per m³ = 4.7 kW MSZ-GE50VA MSZ-FB50VA MFZ-KA50VA SLZ-KA50VA
6x7m x 2.4m = 100.8m³ x 55watts per m³ = 5.5 kW MSZ-GE50VA MSZ-FB50VA MFZ-KA50VA
7x7m x 2.4m = 117.6m³ x 55watts per m³ = 6.5 kW MSZ-GA60VA
7x8m x 2.4m = 134.4m³ x 55watts per m³ = 7.4 kW MSZ-GA71VA
8x8m x 2.4m = 153.6m³ x 55watts per m³ = 8.4 kW MSZ-GA80VA
Note: * Higher rated unit for application, but can be used.
Cold Damp House or Lots of Glass - Guide Only:
Room Size Calculation M-Series Inverter S-Series Inverter
Room Ceiling Room Room kW Deluxe Compact Floor Ceiling
Size Height Volume Size Factor Heating High Wall High Wall Console Cassette
4x3m x 2.4m = 28.8m³ x 65watts per m³ = 1.9 kW MSZ-GE25VA* MSZ-FB25VA* MFZ-KA25VA* SLZ-KA25VA*
4x4m x 2.4m = 38.4m³ x 65watts per m³ = 2.5 kW MSZ-GE25VA* MSZ-FB25VA* MFZ-KA25VA* SLZ-KA25VA
4x5m x 2.4m = 48.0m³ x 65watts per m³ = 3.1 kW MSZ-GE25VA MSZ-FB25VA MFZ-KA25VA SLZ-KA25VA
5x5m x 2.4m = 60.0m³ x 65watts per m³ = 3.9 kW MSZ-GE35VA MSZ-FB35VA MFZ-KA35VA SLZ-KA35VA
6x5m x 2.4m = 72.0m³ x 65watts per m³ = 4.7 kW MSZ-GE50VA MSZ-FB50VA MFZ-KA50VA SLZ-KA50VA
6x6m x 2.4m = 86.4m³ x 65watts per m³ = 5.6 kW MSZ-GE50VA MSZ-FB50VA MFZ-KA50VA
6x7m x 2.4m = 100.8m³ x 65watts per m³ = 6.5 kW MSZ-GA60VA
7x7m x 2.4m = 117.6m³ x 65watts per m³ = 7.6 kW MSZ-GA71VA
7x8m x 2.4m = 134.4m³ x 65watts per m³ = 8.7 kW MSZ-GA80VA
Note: * Higher rated unit for application, but can be used.
What type of unit is best suited for your environment.
Mitsubishi Electric Heat Pumps / Air Conditioners are manufactured with various indoor unit options: Wall-Mounted, Floor
Console and Ceiling Cassette Types. Each type of indoor unit has features and advantages depending on your own particular
application.
Wall-mounted
Wall-mounted: The most popular residential unit choice. As well as taking up no floor space, this unit
offers extremely quiet operation (19dB(A): MSZ-GE25/35VA), the quietest in the industry.
Compact Floor Console: The floor mounted units are designed with heating applications in mind. They are

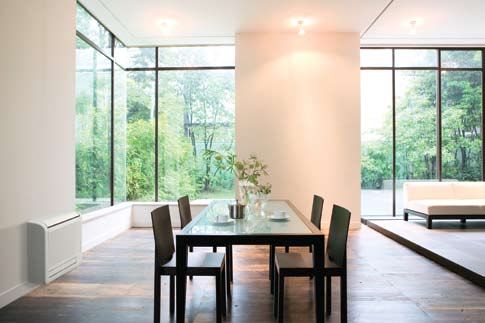

Floor Console
ideal for space heater or gas fire/fireplace replacement. They can be recess mounted into the wall cavity to
give a more shallow profile for hallway installation.
Ceiling Cassette: The ceiling mounted units take up no floor space. These units have four way air direction
Ceiling Cassette
and adjustable air flow patterns. These units are more suited to larger floor areas.
Other types are available, such as Ceiling Concealed (Ducted) and Multi-Split Systems where many indoor
units can be connected to one outdoor. For more information on these please visit: www.mitsubishi-electric.co.nz
iling Concealed
6
Inverter
MSZ-GE Series HIGH WALL
New Zealand’s Quietest Heat Pumps*
Unique Energy Saving Features From
Compact Flat Panel Styling 19dBA*
The new MSZ-GE Series features New Zealand’s two quietest Heat Pumps at just
19 dBA*. Increased energy efficiency across the range combined with new energy
saving features including “i-save” mode and Econo Cool ensure you are provided
the highest level of energy efficiency without compromising on performance or
quality.
The contemporary flat panel styling compliments any interior. The range also
features a Catechin Filter for improved air quality and comfort.
* The MSZ-GE25 & MSZ-GE35 are 19 dB(A) when operating on their lowest fan speed (Quiet Mode), Dimensions (W x D x H): 798 x 232 x 295mm
as at 1st May 2009.
MSZ-GE25VA (MSZ-GE25VA + MUZ-GE25VA)
Cooling Capacity: 2.5 (1.1~3.5) kW
Heating Capacity: 3.2 (1.3~4.5) kW
MSZ-GE35VA (MSZ-GE35VA + MUZ-GE35VA)
Cooling Capacity: 3.5 (1.4~3.9) kW
Heating Capacity: 4.0 (1.4~4.8) kW
MSZ-GE50VA (MSZ-GE50VA + MUZ-GE50VA)
Cooling Capacity: 5.0 (1.4~5.4) kW
Heating Capacity: 5.8 (1.4~7.2) kW
ENERGY STAR is the global mark of energy
efficiency. All models in the MSZ-GE Series have
been awarded the ENERGY STAR signaling that
they meet strict energy efficiency guidelines. You
can rest assured these will provide the highest level of energy
efficiency without compromising on performance or quality.
Features Outdoor Units
Optional*:
HEAT PUMP PAR-21MAA
7 Day Timer
*Requires
GE25, GE35 Optional Horizontal Vane MAC-397IF-E
Joint Lap Rare Earth Magnet DC Fan Motor 24 Hour Timer
MUZ-GE25/35VA MUZ-GE50VA
Optional Optional Optional GE25, GE35 GE50 Grooved Piping
Dimensions (WxDxH) Dimensions (WxDxH)
Infra Red 800 x 285 x 550mm 840 x 330 x 850mm
For further information on these features please go to page 5 or visit: www.mitsubishi-electric.co.nz Remote Controller
7
Guaranteed Air Purification
From
19dBA
MSZ-GE25/35/50
New Zealand’s Quietest Heat Pumps Only
19dB
The new MSZ-GE Series features the two quietest Heat MSZ-GE25/35
Pumps available in New Zealand.
Mitsubishi Electric has introduced a new fan speed rating system. The
new lowest setting is called ‘Quiet Mode’ and is the equivalent to low fan 19dB
speed in the previous MSZ-GA/GB Series. This new rating system has NZ’s
Quietest
allowed Mitsubishi Electric to produce even quieter Heat Pumps; in fact
the MSZ-GE25 and MSZ-GE35 are New Zealand’s Quietest Heat Pumps MODEL MSZ-GE25 MSZ-GE35 MSZ-GE50
at just 19 dB(A) on their lowest fan speed (Quiet Mode).
COOL 19 dB(A) 19 dB(A) 28 dB(A)
This means even on Quiet Mode you can be assured these heat pumps
will not compromise on home comfort. HEAT 19 dB(A) 19 dB(A) 28 dB(A)
Sound Levels rated at lowest fan speed.
Higher Energy Efficiency Auto Change Over Function
The combination of cutting-edge inverter technologies and a highly efficient When the desired temperature is reached, the system automatically
heat exchanger result in remarkable energy efficiency. Compared to its switches between cooling and heating modes. The selected room
predecessor the MSZ-GA/GB Series, the MSZ-GE Series has improved temperature can be maintained without user intervention.
EER and COP ratings across all models. For example, when it’s frosty in the early morning the unit will operate on
The entire MSZ-GE Series have gained the ENERGY STAR Mark showing heating to maintain a set point of 22°C in heating mode. When the sun
that they achieve the highest levels of energy efficiency. You can rest rises the unit can switch to cooling to maintain the 22°C set temperature.
assured the MSZ-GE Series will provide the highest level of energy
efficiency without compromising on performance or quality.
Healthy Catechin Filter
Catechin is a Bioflavonoid that is found in green tea. It has both
antiviral and antioxidant qualities and also offers excellent deodorising
ENERGY 6.0 6.0 4.5 characteristics. Because of these unique properties Mitsubishi Electric has
RATING
6.0 6.0 5.0 incorporated this compound in its filters for all models in the GE Series,
to not only improve air quality but also help prevent the
MODEL MSZ-GE25 MSZ-GE35 MSZ-GE50 spread of airborne bacteria and viruses in the room. The
2.5kW 3.5kW 5.0kW filter can easily be removed and, when washed regularly,
COOL
4.46 EER 3.47 EER 3.05 EER will deodorise effectively for over 10 years.
HEAT
3.2kW 4.0kW 5.8kW
4.38 COP 3.88 COP 3.52 COP
Optional: Anti Allergy Enzyme Filter
To combat allergens, Mitsubishi Electric offers an Anti Allergy Enzyme
Filter with the power to remove harmful microbes such as bacteria*,
Unique Energy Saving Features viruses, dust mites, and pollen. The enzymes destroy any germs caught
in the filter, preventing them from working their way further inside the
“i-save” Mode
system. * Confirmed by the Japan Spinners Inspecting Foundation
With this function, settings including temperature, fan speed, and
airflow direction for both cooling and heating operation can be saved
simultaneously. This function can be used to quickly return to your
preferred settings. The “i-save” mode can be used as an energy saving Pure White, Flat Panel Styling
function. If the stored “i-save” settings are 2-3°C cooler than the normal
The understated, clean lines of the new pure white finished MSZ-GE
temperature setting when activated, the room will be set to the cooler
Series will fit seamlessly into any interior.
temperature. When the room is reoccupied the button can be pressed to
At only 798mm, the compact sizing will 798mm
return to the original settings.
allow a wide range of applications from
Econo Cool small to even larger rooms.
This energy saving function can be selected Econo
in cooling mode. The temperature is Cool
automatically set to 2°C higher, while the Guaranteed Heating Performance to -15°C
airflow is switched to a swing flow. This airflow Not all heat pumps perform when they are needed most. Our range is
pattern feels cooler than constant airflow i-save guaranteed to effectively provide heating on those cold nights or mornings
allowing reduced energy consumption. when you really need it.
8
Inverter
MSZ-GA Series HIGH WALL
Energy Saving Features
Filtration to Improve Air Quality
Wide and Long Airflow
The MSZ-GA Inverter High Wall Series is energy efficient and quiet. The
contemporary flat panel styling compliments any interior. The range features a
Catechin Filter and an Anti Allergy Enzyme Filter for improved air quality and
comfort.
The Wide and Long Airflow modes allow the airflow direction to be adjusted,
ensuring every corner of the room is comfortable.
Dimensions (W x D x H): 1,100 x 258 x 325mm
MSZ-GA60VA (MSZ-GA60VA + MUZ-GA60VA)
Cooling Capacity: 6.0 (0.9~6.7) kW
Heating Capacity: 6.8 (0.9~8.1) kW
MSZ-GA71VA (MSZ-GA71VA + MUZ-GA71VA)
Cooling Capacity: 7.1 (0.9~8.3) kW
Heating Capacity: 8.1 (0.9~9.6) kW
MSZ-GA80VA (MSZ-GA80VA + MUZ-GA80VA)
Cooling Capacity: 8.1 (0.9~8.8) kW
Heating Capacity: 9.0 (0.9~11.1) kW
ENERGY STAR is the global mark of energy
efficiency. The MSZ-GA60VA has been awarded
the ENERGY STAR signaling that it meets strict
energy efficiency guidelines. You can rest
assured this will provide the highest level of energy efficiency
without compromising on performance or quality.
Features Outdoor Units
Optional*:
HEAT PUMP PAR-21MAA
7 Day Timer
*Requires
Standard Standard Horizontal Vane Vertical Vane MAC-397IF-E
24 Hour Timer Optional Optional Optional
MUZ-GA60/71/80VA
Dimensions (WxDxH)
Infra Red 840 x 330 x 850mm
For further information on these features please go to page 5 or visit: www.mitsubishi-electric.co.nz Remote Controller
9Guaranteed Air Purification
MSZ-GA60
Wide and Long Airflow Healthy Catechin Filter
The wide and long airflow modes allow the airflow direction to be adjusted, Catechin is a Bioflavonoid that is found in green tea. It has both
ensuring every corner of the room is comfortable. antiviral and antioxidant qualities and also offers excellent deodorising
These modes are simply activated at the touch of a button on your remote characteristics. Because of these unique properties Mitsubishi Electric has
controller. The long mode extends airflow by 12m to reach even the incorporated this compound in its filters for all models in the GA Series,
furthest point of large living rooms or enables kitchens to be reached in an to not only improve air quality but also help prevent the
open plan environment. spread of airborne bacteria and viruses in the room. The
filter can easily be removed and, when washed regularly,
will deodorise effectively for over 10 years.
Anti Allergy Enzyme Filter
To combat allergens, Mitsubishi Electric offers an Anti Allergy Enzyme
Filter with the power to remove harmful microbes such as bacteria*,
viruses, dust mites, and pollen. The enzymes destroy any germs caught
in the filter, preventing them from working their way further inside the
system.
* Confirmed by the Japan Spinners Inspecting Foundation
Test Numbers JSIF-029220-1/JSIF-029220-2
Energy Saving Features
Econo Cool
Energy Ratings and Sound Levels This energy saving function can be
Econo
selected in cooling mode. The temperature Cool
is automatically set to 2°C higher, while
the airflow is switched to a swing flow.
ENERGY 4.0 4.0 2.5 This airflow pattern feels cooler than
RATING
4.0 4.0 3.0 constant airflow allowing reduced energy
consumption.
MODEL MSZ-GA60 MSZ-GA71 MSZ-GA80
Inverter Technology
6.0kW 7.1kW 8.1kW Inverter systems save energy by using a variable controlled Compressor.
COOL 3.08 EER 2.91 EER 2.53 EER
The output is controlled to only provide the energy required to keep the
32 dB(A)* 33 dB(A)* 33 dB(A)*
room to the set temperature. By reducing the output required less power
is used and this substantially reduces power consumption. Inverter control
6.8kW 8.1kW 9.0kW
HEAT 3.42 COP 3.24 COP 2.90 COP not only saves you money but also keeps you more comfortable.
32 dB(A)* 33 dB(A)* 33 dB(A)*
Inverter Control - Allowing the Maximum Rated Heat
* Sound Level rated at low fan speed.
Output for as long as required
Mitsubishi Electric Inverter Control will allow maximum rated heat output
for as long as required before returning to nominal rated output. This
Auto Change Over Function guarantees comfort conditions in the shortest period of time. This feature
When the desired temperature is reached, the system automatically is most important when the outdoor temperature reduces to below zero.
switches between cooling and heating modes. The selected room
temperature can be maintained without user intervention. Advanced Defrost Strategy to Guarantee Heating
For example, when it’s frosty in the early morning the unit will operate on Performance at -15°C Outdoor Temperatures
heating to maintain a set point of 22°C in heating mode. When the sun When the outside temperature drops below zero all heat pumps must
rises the unit can switch to cooling to maintain the 22°C set temperature. perform a “defrost cycle” to remove ice build up on their outdoor coils.
Mitsubishi Electric has developed an advanced defrost strategy to enable
more efficient operation in extreme conditions.
Guaranteed Heating Performance to -15°C Mitsubishi Electric Heat Pumps utilise a Fuzzy Logic software program, a
Not all heat pumps perform when they are needed most. Our range is form of Artificial Intelligence, that typically lasts between 3 to 5 minutes.
guaranteed to effectively provide heating on those cold nights or mornings This program measures and records temperatures and running times then
when you really need it. uses this data to initiate the defrost cycle only when required.
10Inverter
MSZ-FB Series DELUXE HIGH WALL
Advanced Energy Saving
“i-see Temperature Sensor” The new advanced energy saving
Plasma Duo Filter System “i-see Sensor” searches out
temperature differences and directs
Introducing the state-of-the-art range of Mitsubishi Electric Deluxe Inverter Heat heat where you really need it.
Pumps featuring the “i-see Sensor”. This advanced sensing technology reduces
energy consumption by maintaining air temperature and controlling air movement
to prevent excessive heating and cooling as well as unnecessary operation.
This range is also specifically designed to combat and reduce common household
allergens and unpleasant odours, providing the optimal air quality that is vital for
asthma and allergy sufferers.
Dimensions (W x D x H): 798 x 257 x 295mm
MSZ-FB25VA (MSZ-FB25VA + MUZ-FB25VA)
Cooling Capacity: 2.5 (1.1~3.5) kW
Heating Capacity: 3.2 (1.5~5.5) kW
MSZ-FB35VA (MSZ-FB35VA + MUZ-FB35VA)
Cooling Capacity: 3.5 (1.1~4.1) kW
Heating Capacity: 4.0 (1.5~6.0) kW
MSZ-FB50VA (MSZ-FB50VA + MUZ-FB50VA)
Cooling Capacity: 5.0 (0.8~5.8) kW
Heating Capacity: 6.0 (0.9~7.8) kW
ENERGY STAR is the global mark of energy
efficiency. All models in the MSZ-FB Series have
been awarded the ENERGY STAR signaling that
they meet strict energy efficiency guidelines. You
can rest assured these will provide the highest level of energy
efficiency without compromising on performance or quality.
Ideal for Asthma and Allergy sufferers.
Features Outdoor Units
Optional*:
HEAT PUMP PAR-21MAA
7 Day Timer
*Requires
FB25 Area Setting Vertical MAC-397IF-E
Horizontal 24 Hour Timer
MUZ-FB25/35VA MUZ-FB50VA
Optional Optional Optional FB25, FB35 FB50
Dimensions (WxDxH) Dimensions (WxDxH)
Infra Red 800 x 285 x 550mm 840 x 330 x 850mm
For further information on these features please go to page 5 or visit: www.mitsubishi-electric.co.nz Remote Controller
11Guaranteed Air Purification
From
20dBA
MSZ-FB25/35/50
Unique Energy Saving , Provides Efficient Temperature Control.
Conventional heat pumps can’t measure factors such as radiant heat or cold draughts that can affect room
temperature. Some areas may therefore be warmer or cooler than others.
The advanced “i-see Sensor” measures room temperature at floor level as well at the unit itself, resulting in greater Wide Detection
temperature control. Unlike standard systems, the “i-see Sensor” automatically moves from side to side, searching
out temperature disparities and directing airflow to specific areas where it is really needed.
Wide airflow of 150° from left to right (90° in cooling mode) ensures all corners of the room are kept at the optimal selected temperature. The “i-see
Sensor” controls air temperature and air movement to prevent excessive heating or cooling and unnecessary operation. With “i-see Sensor” you
are ensured total comfort while reducing energy In Cooling Monitoring floor level, At Heating Monitoring floor level,
to eliminate excessive to warm up the room
wastage. cooling. as required.
Cold air tends to drop to floor level, Warm air tends to rise up from the floor
“Area Setting” - for waste-free, energy-saving heating and which is often the cause of over level, which often prevents that zone
cooling. cooling. The i-see Sensor detects this from warming up. The i-see Sensor
In AREA mode, efficient heating or cooling is directed where foot-level temperature and adjusts the detects this foot-level temperature and
it is really needed - the right side, left side or the room as a air outlet temperature to prevent over adjusts the air outlet flow to provide
whole. The sensor can also operate only on the selected side. cooling. optimal temperatures.
The Plasma Duo Filter system keeps the air pure which is ideal for asthma and allergy sufferers.
It has two plasma air purifying functions that work together to remove airborne dirt particles from
micron to nano-size in scale.
Effective Range
Big The size of particle Small The Plasma Electrode unit
Plasma Electrode Unit
Bacteria Bad odours is attached inside this hole.
Pollen A plasma electrode unit is mounted inside the
Formaldehyde
Mold spores product. Electro-discharge is used to generate
Dust ozone & plasma. The combination of ozone &
Filter Plasma Air Purification Plasma Deodorisation plasma and two special filters makes a dynamic
removes function removes function removes
plasma air cleaning function.
Plasma Deodorisation
The Platinum Catalyst Deodorising Filter uses tiny Plasma Air Purification
holes as small as 1 nanometer on a surface of
An Anti-allergen Electric Enzyme Filter utilises
approximately 3,000m² to capture small odour-
the combined power of static electricity charged
laden substances in the air and break them down
in the filter and the plasma generated in the
using ozone generated in the Plasma Electrode Unit
Plasma Electrode Unit to capture bacteria, pollen
and the Platinum Catalyst contained in the filter.
and other allergens in the air, which are then
neutralised with the enzyme in the filter.
Nearly twice the
deodorising speed
compared to
previous model.
Plasma Deodorising Filter mechanism
Plasma Air Purifying Filter mechanism
.
Clean air
3
Platinum 1 Plasma Electrode Unit produces 1 Plasma Electrode Unit produces plasma. Clean air
Catalyst Anti-allergen
ozone. 3
Electric
Deodorising 2 Small particles are charged to negative by
Filter 2 Particles of odour releasing plasma. Enzyme
2
1 1 Filter
substances are absorbed. Plasma
Plasma 3 Small particles charged to negative are 2
Dirty air Electrode 3 Particles of odour releasing collected to the positive side of the Electrode
Dirty air
Unit Unit
substances are decomposed by ELECTRET FILTER and neutralised by enzyme.
ozone.
Self Cleaning “Ozone Shower” Whisper Quiet Operation Only
20dB
To ensure the coil is clean and free from impurities, the indoor coil will Mitsubishi Electric have a long standing reputation for offering MSZ-FB25
be automatically cleaned with Ozone after the unit has been operating some of the quietest models in the industry.
in cooling mode. The Deluxe MSZ-FB range is no exception. At only 20 dB(A) on its lowest
Ozone (O3) is resolved gradually and naturally into oxygen (O2). This fan speed, the MSZ-FB25VA is super quiet. You want to feel the warmth,
creates an extremely efficient cleaning process during which resolving not hear it!
“nascent Oxygen (O)” is produced. The nascent Oxygen strongly oxidises
airborne particles to sterilise and deodorise the air.
O2 + O3 O2 + (O)
Oxygen High Voltage Ozone Oxygen Nascent Oxygen
The consistency of ozone during ozone showering remains within health regulations.
Inside of indoor unit 0.1ppm. Under the upper limit of acceptable range of ozone gas consistency at 20dB
working environment. (Safety limit advised by Japan Society for Occupational Health) In the room 0.01ppm Whisper
or less. Under the averaged consistency of ozone at the beach or forest areas. Quiet
12Inverter
MFZ-KA Series COMPACT FLOOR CONSOLE
Thermostatically Controlled Upper and
Lower Air Outlets
New! Recessable Models Available!
This range is specifically designed to discreetly sit at floor level or can be recessed
into the wall, making them ideal replacements for traditional floor mounted
heating appliances such as night-store heaters.
The slim-line range features independently controllable upper and lower air outlets
ensuring optimum air distribution to guarantee warm feet! A comprehensive
deodorising and air purifying filter system will ensure healthier and cleaner air.
All this is packed in to a compact floor design with the whisper quiet performance
Dimensions (W x D x H): 700 x 200 x 600mm
that you have come to expect from Mitsubishi Electric.
MFZ-KA25VA (MFZ-KA25VA + SUZ-KA25VA)
Cooling Capacity: 2.5 (0.9~3.4) kW
Heating Capacity: 3.4 (0.9~5.1) kW
MFZ-KA35VA (MFZ-KA35VA + SUZ-KA35VA)
Cooling Capacity: 3.5 (0.9~3.9) kW
Heating Capacity: 4.0 (0.9~6.2) kW
MFZ-KA50VA (MFZ-KA50VA + SUZ-KA50VA)
Cooling Capacity: 4.8 (0.9~5.4) kW
Heating Capacity: 6.0 (0.9~7.9) kW
Recessed Models
- MFZ-KA25VA-RC
- MFZ-KA35VA-RC
- MFZ-KA50VA-RC
Features Outdoor Units
Optional*:
HEAT PUMP PAR-21MAA
7 Day Timer
*Requires
KA25 As Standard Filter As Standard Filter Horizontal MAC-397IF-E
Horizontal 24 Hour Timer Optional Optional
SUZ-KA25/35VA SUZ-KA50VA
Optional KA25/35 KA50 With Levelling Plate
Dimensions (WxDxH) Dimensions (WxDxH)
Infra Red 800 x 285 x 550mm 840 x 330 x 850mm
For further information on these features please go to page 5 or visit: www.mitsubishi-electric.co.nz Remote Controller
13Guaranteed Air Purification
From
22dBA
MSZ-KA25/35
Maximum Heat Output, Cleaner and Healthier Air
Optimum Air Distribution The combination of Catechin + Anti-Allergy Enzyme Filters ensure
effective deodorisation, active filtering and the dramatic reduction
Perfect room temperatures at any time are
of common allergens and bacteria. This is the key to cleaner and
achieved through dual top and bottom air
healthier air..
flow with thermostatically controlled vanes
to eliminate cool draughts whilst heating. In addition to the “Catechin Filter” with deodorising effect, the “Anti-
Allergy Enzyme Filter” traps dust
Mitsubishi Electric Inverter Control (unlike other brands) will allow
mites and their droppings, pollen and
maximum rated heat output indefinitely without the need to return to
other allergens on the filter filament,
the nominal rated output. Optimum comfort conditions are guaranteed in Anti-Allergy
then decomposes them with artificial
the shortest period of time. This is vital when outdoor temperatures drop Enzyme Filter
enzymes.*2 What’s more, a sterilising
below freezing point or when the unit is first turned on. Catechin
agent combats bacterial and viral Filter
effects, all in all supporting a cleaner
and healthier air supply.
*2 : Confirmed by the Japan Spinners Inspecting Foundation.
Test numbers 007715-1, 007715-2. / Confirmed by Shinshu University.
“Anti-Allergy Enzyme Filter” mechanism
1. Artificial enzyme catalyst on the
filament traps the allergens.
2. The artificial enzyme catalyst
helps the chemical reaction
with Oxygen and severs the S-S
Unique Energy Saving Features bonds.*3
“i-save” Mode 3. Proteins with severed S-S
bonds are no longer allergen
With this function, settings including temperature, fan speed, and proteins.
airflow direction for both cooling and heating operation can be saved
*3 : Mites and other allergen protein consist of sulphur atoms (S) that have bonded together.
simultaneously. This function can be used to quickly return to your
preferred settings. The “i-save” mode can be used as an energy saving
function. If the stored “i-save” settings are 2-3°C cooler than the normal
temperature setting when activated the room will be set to the cooler Auto Change Over Function
temperature. When the room is reoccupied the button can be pressed to When the desired temperature is reached, the system automatically
return to the original settings. switches between cooling and heating modes. The selected room
temperature can be maintained without user intervention.
Econo Cool
For example, when it’s frosty in the early morning the unit will operate on
This energy saving function can be selected Econo
Cool heating to maintain a set point of 22°C in heating mode. When the sun
in cooling mode. The temperature is
rises the unit can switch to cooling to maintain the 22°C set temperature.
automatically set to 2°C higher, while the
airflow is switched to a swing flow. This airflow
pattern feels cooler than constant airflow i-save
allowing reduced energy consumption. Guaranteed Heating Performance to -15°C
Not all heat pumps perform when they are needed most. Our range is
Only guaranteed to effectively provide heating on those cold nights or mornings
Whisper Quiet Operation 22dB when you really need it.
MFZ-KA25
Mitsubishi Electric have a long standing reputation for offering some of
the quietest models in the industry. The Deluxe MFZ-KA range is no
exception. At only 22 dB(A) on its lowest fan speed, the MFZ-KA25 is Trouble-Free Installation and Maintenance
super quiet. You want to feel the warmth, not hear it! To install the indoor unit, position with our original installation plate
then set the unit in place. Easy levelling work prevents any harm to wall
surfaces. Generous pipe length, up to 30 metres*4, eliminates worries
about outdoor unit distance. Loaded with automatic diagnosis function,
fault recall mode and other sophisticated
Installation Plate
aids, troubleshooting is immediate
22dB though problems are rare.
Whisper *4 : MFZ-KA50VA
Quiet
14Inverter
SLZ-KA Series COMPACT CEILING CASSETTE
The Perfect Size Guaranteed Air Purification
Attractive and Inconspicuous
Choice of Infra Red or Wired SLZ-KA25/35
The SLZ-KA Series is perfect for both residential and small business applications
as it offers energy efficient inverter technology and quiet operation.
The compact size of this range is ideal for installation in offices with ceiling
tiles, while the lightweight design helps to make installation easier and more
convenient.
Dimensions (W x D x H): 570 x 570 x 235 mm
(Grille: 650 x 650 x 20mm)
SLZ-KA25VA (SLZ-KA25VA + SUZ-KA25VA)
Cooling Capacity: 2.5 (0.9~3.2) kW
Heating Capacity: 3.0 (0.9~4.5) kW
SLZ-KA35VA (SLZ-KA35VA + SUZ-KA35VA)
Cooling Capacity: 3.5 (1.0~3.9) kW
Heating Capacity: 4.0 (0.9~5.0) kW
SLZ-KA50VA (SLZ-KA50VA + SUZ-KA50VA)
Cooling Capacity: 4.6 (1.1~5.2) kW
Heating Capacity: 5.0 (0.9~6.5) kW
Choice of controller
SLZ-KA~VAL : Includes Wireless Remote Controller.
SLZ-KA~VA : Includes Wired PAR-21MAA 7 Day Timer.
Features Outdoor Units
SLZ-KA~VA
HEAT PUMP
PAR-21MAA
7 Day Timer
KA50 2,500 Hour Filter
SLZ-KA~VAL
SLZ-KA~VAL SLZ-KA~VA Optional Optional KA25, KA35 KA50
SUZ-KA25/35VA SUZ-KA50VA
Dimensions (WxDxH) Dimensions (WxDxH)
Infra Red 800 x 285 x 550mm 840 x 330 x 850mm
For further information on these features please go to page 5 or visit: www.mitsubishi-electric.co.nz Remote Controller
15Mitsubishi Electric Quality
OPTIONAL AND SPARE PARTS
Filters, Drain Sockets and Quick Clean Kit Timer and Centralised Controllers
Catechin Air Filter / Deodorising Filter PAR-21MAA - 7 Day Wired Wall Timer
(MA Remote Controller)
Part No. Model
E12 D68 100 MSZ-GE25/35/50VA*
The optional wired remote controller (PAR-21MAA*)
has a weekly timer function enabling 8 separate
E12 534 100 MSZ-GA60/71/80VA*
pattern settings throughout a single day.
* Requires MAC-397IF-E adaptor PAR-21MAA
Air Filter
Part No. Model
Part No. Model 69144 MSZ-GE25/35/50VA,
E12 C86 100 MSZ-FB25/35/50VA (left) MSZ-GA60/71/80VA,
MSZ-FB25/35/50VA,
E12 C85 100 MSZ-FB25/35/50VA (right)
MFZ-KA25/35/50VA
(Requires MAC-397IF-E)
Deodorising Filter 69331A MAC-397IF-E
(MA & Contact Terminal Interface)
Part No. Model
MAC-307FT-E MSZ-FB25/35/50VA
MAC-821SC-E
Centralised On/Off Remote Controller
Anti Allergy Enzyme Filter †
An optional Centralised ON/OFF Controller (MAC-
Part No. Model 821SC-E*) can also be incorporated to regulate all
MAC-408FT-E MSZ-GE25/35/50VA connected units in your home (and enabling ON/OFF
MAC-415FT-E MFZ-KA25/35/50VA selection and operation status confirmation from one
MAC-2300FT-E MSZ-GA60/71/80VA single controller). * Requires MAC-397IF-E adaptor MAC-821SC-E
MAC-417FT-E MSZ-FB25/35/50VA Part No. Model
† Can be used for about 1 year if washed regularly 69144 MSZ-GE25/35/50VA,
MSZ-GA60/71/80VA,
MSZ-FB25/35/50VA,
Drain Socket MFZ-KA25/35/50VA,
Part No. Model SLZ-KA25/35/50VA(L)
(Requires MAC-397IF-E)
MAC-811DS MUZ-GA60/70/80VA
69331A MAC-397IF-E
E12 838 704 MUZ-FB25/35/50V
(MA & Contact Terminal Interface)
MAC-851DS SUZ-KA25/35VA
E02 817 704 SUZ-KA50VA AG-150 Central Controller
(With Touch Screen / Web Server Functions)
Quick Clean Kit Mitsubishi Electric can also offer the
Vacuum cleaner attachments for easy cleaning of your heat pump. advanced AG-150 central controller. The
colour touch screen allows user friendly
Part No.
control of the entire air conditioning system.
MAC-093SS-E
The system can also be accessed from a
computer using a web browser. AG-150
* NOTE: Features can be added to the Controller
One (1) filter supplied per pack (Part No.). by installing Software packages to suit
Please order two (2) filters if required your application. These Software Packages
include 365 day Time Scheduling, Auto
Alarming via Email when a fault occurs
and Power Logging for multiple tenancy
applications. The controller also has external
inputs and outputs for Fresh Air Fan Start
up and Fire Shutdown control. All of these
Web Screen Views
MAC-093SS-E DRAIN SOCKET
features give you a very universal controller.
16MSZ-GE / GA SERIES HIGH WALL SPECIFICATIONS
High Wall
TYPE Inverter
Heat Pump
MODEL NAME MSZ-GE25VA MSZ-GE35VA MSZ-GE50VA MSZ-GA60VA MSZ-GA71VA MSZ-GA80VA
MODEL INDOOR UNIT MSZ-GE25VA MSZ-GE35VA MSZ-GE50VA MSZ-GA60VA MSZ-GA71VA MSZ-GA80VA
OUTDOOR UNIT MUZ-GE25VA MUZ-GE35VA MUZ-GE50VA MUZ-GA60VA MUZ-GA71VA MUZ-GA80VA
Rated [kW] 2.5 3.5 5.0 6.0 7.1 8.1
Capacity
Min-Max [kW] 1.1 - 3.5 1.4 - 3.9 1.4 - 5.4 0.9 - 6.7 0.9 - 8.3 0.9 - 8.8
Rated [kW] 0.56 1.01 1.64 1.95 2.44 3.2
Input
Min-Max [kW] 0.21 - 1.15 0.32 - 1.56 0.32 - 2.06 0.4 - 2.35 0.5 - 3.25 0.5 - 4.05
EER (COP) 4.46 3.47 3.05 3.08 2.91 2.53
COOL Star Rating 6.0 6.0 4.5 4.0 4.0 2.5
Sound In (Quiet-SHi*) [dB(A)] 19 / 21 / 29 / 36 / 42 19 / 22 / 30 / 36 / 43 28 / 33 / 38 / 44 / 49 (Low-Hi*) 32 / 40 / 54 (Low-Hi*) 33 / 40 / 54 (Low-Hi*) 33 / 40 / 54
Level Out [dB(A)] 46 47 54 53 53 53
Rated Current (In / Out) [A] 2.9 4.7 7.4 8.83 11 14.3
Max. Current [A] 7.4 8.6 13.0 16 16 16
Air Volume In (SHi*) [L/s] 188.3 211.7 251.7 (Hi*) 287 (Hi*) 287 (Hi*) 287
Rated [kW] 3.2 4.0 5.8 6.8 8.1 9.0
Capacity
Min-Max [kW] 1.3 - 4.5 1.4 - 4.8 1.4 - 7.2 0.9 - 8.1 0.9 - 9.6 0.9 - 11.1
Rated [kW] 0.73 1.03 1.65 1.99 2.5 3.1
Input
Min-Max [kW] 0.26 - 1.20 0.34 - 1.55 0.32 - 2.49 0.4 - 2.8 0.5 -3.2 0.5 - 3.9
COP 4.38 3.88 3.52 3.42 3.24 2.9
HEAT Star Rating 6.0 6.0 5.0 4.0 4.0 3.0
Sound In (Quiet-SHi*) [dB(A)] 19 / 21 / 29 / 36 / 42 19 / 22 / 30 / 36 / 43 28 / 33 / 37 / 43 / 48 (Low-Hi*) 32 / 40 / 54 (Low-Hi*) 33 / 40 / 54 (Low-Hi*) 33 / 40 / 54
Level Out [dB(A)] 48 48 56 55 55 55
Rated Current (In / Out) [A] 3.8 4.8 7.4 8.93 11.2 14.1
Max. Current [A] 7.4 8.6 13.0 16 16 16
Air Volume In (SHi*) [L/s] 191.7 191.7 241.7 (Hi*) 287 (Hi*) 287 (Hi*) 287
Controller Infra Red Remote (Optional: PAR-21MAA) Infra Red Remote (Optional: PAR-21MAA)
Power Supply (Powered from outdoor unit) 230 / Single Phase / 50 Hz 230 / Single Phase / 50 Hz
Dimensions (WxDxH) [mm] 798 x 232 x 295 1,100 x 258 x 325
INDOOR
Weight [kg] 10 16
Dimensions (WxDxH) [mm] 800 x 285 x 550 800 x 285 x 550 840 x 330 x 850 840 x 330 x 850 840 x 330 x 850 840 x 330 x 850
OUTDOOR Weight [kg] 30 30 54 53 58 58
Sound Level [dB(A)] 46 - 48 47 - 48 54 - 56 53 - 55 53 - 55 53 - 55
Diameter (Liquid/Gas) [mm] 6.35 / 9.52 6.35 / 9.52 6.35 / 12.7 6.35 / 15.88 9.52 / 15.88 9.52 / 15.88
EXT. PIPE Max. Length/Height† [m] 20 / 12 20 / 12 30 / 15 30 / 15 30 / 15 30 / 15
Chargeless [m] 7 7 7 7 7 7
OPERATION Cooling [˚C] -10 / +46 -10 / +46 -10 / +46 -10 / +43 -10 / +43 -10 / +43
RANGE Outdoor Heating [˚C] -15 / +24 -25 / +24 -15 / +24 -15 / +24 -15 / +24 -15 / +24
MSZ-FB SERIES DELUXE HIGH WALL SPECIFICATIONS
Deluxe High Wall
TYPE Inverter
Heat Pump
MODEL NAME MSZ-FB25VA MSZ-FB35VA MSZ-FB50VA
MODEL INDOOR UNIT MSZ-FB25VA MSZ-FB35VA MSZ-FB50VA
OUTDOOR UNIT MUZ-FB25VA MUZ-FB35VA MUZ-FB50VA
Rated [kW] 2.5 3.5 5.0 MSZ-GE25/35/50VA
Capacity
Min-Max [kW] 1.1 - 3.5 1.1 - 4.1 0.8 - 5.8
Rated [kW] 0.53 0.89 1.60
Input
Min-Max [kW] 0.26 - 0.97 0.26 - 1.12 0.26 - 2.45
EER (COP) 4.76 3.93 3.13
COOL Star Rating 6.0 6.0 5.0
Sound In (Low-SHi*) [dB(A)] 20 / 29 / 36 / 42 20 / 29 / 36 / 43 29 / 39 / 45 / 52
Level Out [dB(A)] 46 47 54
Rated Current (In / Out) [A] 2.6 4.1 7.1
Max. Current [A] 10 10 16 MSZ-GA60/71/80VA
Air Volume In (SHi*) [L/s] 187 187 247
Rated [kW] 3.2 4.0 6.0
Capacity
Min-Max [kW] 1.5 - 5.5 1.5 - 6.0 0.9 - 7.8
Rated [kW] 0.66 0.90 1.64
Input
Min-Max [kW] 0.48 - 1.90 0.48 - 1.90 0.48 - 2.95
COP 4.89 4.44 3.66
HEAT Star Rating 6.0 6.0 5.5
Sound In (Low-SHi*) [dB(A)] 20 / 29 / 36 / 43 21 / 29 / 36 / 44 27 / 37 / 43 / 50
Level Out [dB(A)] 46 50 56 MSZ-FB25/35/50VA
Rated Current (In / Out) [A] 3.1 4.1 7.3
Max. Current [A] 10 10 16
Air Volume In (SHi*) [L/s] 202 208 247
Controller Infra Red Remote (Optional: PAR-21MAA)
Power Supply (Powered from outdoor unit) 230 / Single Phase / 50 Hz
Dimensions (WxDxH) [mm] 798 x 257 x 295
INDOOR
Weight [kg] 12
Dimensions (WxDxH) [mm] 800 x 285 x 550 800 x 285 x 550 840 x 330 x 850
OUTDOOR Weight [kg] 36 36 55
Sound Level [dB(A)] 46 47 - 50 54 - 56
Diameter (Liquid/Gas) [mm] 6.35 / 9.52 6.35 / 9.52 6.35 / 12.7
EXT. PIPE Max. Length/Height† [m] 20 / 12 20 / 12 30 / 15
Chargeless [m] 7 7 7
OPERATION Cooling [˚C] -10 / +46 -10 / +46 -10 / +46
RANGE Outdoor Heating [˚C] -15 / +24 -15 / +24 -15 / +24
17MFZ-KA SERIES COMPACT FLOOR CONSOLE SPECIFICATIONS
Compact Floor Console
TYPE Inverter
Heat Pump
MODEL NAME MFZ-KA25VA MFZ-KA35VA MFZ-KA50VA
MODEL INDOOR UNIT MFZ-KA25VA MFZ-KA35VA MFZ-KA50VA
OUTDOOR UNIT SUZ-KA25VA SUZ-KA35VA SUZ-KA50VA
Rated [kW] 2.5 3.5 4.8
Capacity
Min-Max [kW] 0.9 - 3.4 0.9 - 3.9 0.9 - 5.4
Rated [kW] 0.58 1.09 1.55
Input
Min-Max [kW] 0.19 - 0.94 0.19 - 1.25 0.19 - 1.98
EER (COP) 4.31 3.21 3.1
COOL Star Rating 6.0 4.5 4.5
MFZ-KA25/35/50VA
Sound In (Low-SHi*) [dB(A)] 22 / 27 / 32 / 37 23 / 28 / 33 / 38 32 / 35 / 39 / 43
Level Out [dB(A)] 46 47 51 - 53
Rated Current (In / Out) [A] 2.80 5.0 7.0
Max. Current [A] 6.4 9.4 16.2
Air Volume In (SHi*) [L/s] 145 152 178
Rated [kW] 3.4 4.0 6.0
Capacity
Min-Max [kW] 0.9 - 5.1 0.9 - 6.2 0.9 - 7.9
Rated [kW] 0.84 1.10 1.86
Input
Min-Max [kW] 0.19 - 1.91 0.19 - 2.24 0.19 - 2.81
COP 4.07 3.64 3.23
HEAT Star Rating 6.0 5.0 4.0
Sound In (Low-SHi*) [dB(A)] 22 / 27 / 32 / 37 25 / 28 / 33 / 38 32 / 35 / 39 / 44
Level Out [dB(A)] 46 48 53 - 55
Rated Current (In / Out) [A] 4.0 5.0 8.5
Max. Current [A] 6.4 9.4 16.2
Air Volume In (SHi*) [L/s] 152 158 197
Controller Infra Red Remote (Optional: PAR-21MAA)
Power Supply (Powered from outdoor unit) 230 / Single Phase / 50 Hz
Dimensions (WxDxH) [mm] 700 x 200 x 600
INDOOR
Weight [kg] 14
Dimensions (WxDxH) [mm] 800 x 285 x 550 800 x 285 x 550 840 x 330 x 850
OUTDOOR Weight [kg] 33 37 53
Sound Level [dB(A)] 46 47 - 48 51 - 55
Diameter (Liquid/Gas) [mm] 6.35 / 9.52 6.35 / 9.52 6.35 / 12.7
EXT. PIPE Max. Length/Height† [m] 20 / 12 20 / 12 30 / 30
Chargeless [m] 7 7 7
OPERATION Cooling [˚C] -10 / +46 -10 / +46 -10 / +43
RANGE Outdoor Heating [˚C] -15 / +24 -15 / +24 -15 / +24
SLZ-KA VA(L) SERIES COMPACT CEILING CASSETTE SPECIFICATIONS
High Wall
TYPE Inverter
Heat Pump
MODEL NAME SLZ-KA25VA(L) SLZ-KA35VA(L) SLZ-KA50VA(L)
MODEL INDOOR UNIT SLZ-KA25VA(L) SLZ-KA35VA(L) SLZ-KA50VA(L)
OUTDOOR UNIT SUZ-KA25VA SUZ-KA35VA SUZ-KA50VA
Rated [kW] 2.5 3.5 4.6
Capacity
Min-Max [kW] 0.9 - 3.2 1.0 - 3.9 1.1 - 5.2
Rated [kW] 0.69 1.06 1.63
Input
Min-Max [kW] 0.25 - 1.00 0.27 - 1.33 0.49 - 2.13
EER (COP) 3.62 3.30 2.82 SLZ-KA25/35/50VA(L)
COOL Star Rating 6.0 5.0 3.5
Sound In (Low-Hi*) [dB(A)] 28 / 31 / 37 29 / 33 / 38 30 / 34 / 39
Level Out [dB(A)] 46 47 51 - 53
Rated Current (In / Out) [A] 3.40 4.90 7.40
Max. Current [A] 8.16 9.18 16.0
Air Volume In (Hi*) [L/s] 167 183 183
Rated [kW] 3.0 4.0 5.0
Capacity
Min-Max [kW] 0.9 - 4.5 0.9 - 5.0 0.9 - 6.5
Rated [kW] 0.83 1.10 1.55
Input
Min-Max [kW] 0.17 - 1.36 0.25 - 1.46 0.39 - 3.36
*Sound Level:
COP 3.61 3.64 3.23
(Quiet-Hi*) Quiet / Low / Medium / High / Super High.
HEAT Star Rating 5.0 5.0 4.0
(Low-SHi*) Low / Medium / High / Super High.
Sound In (Low-Hi*) [dB(A)] 28 / 31 / 37 29 / 33 / 38 30 / 34 / 39
(Low-Hi*) Low / Medium / High.
Level Out [dB(A)] 46 48 53 - 55
(SHi = Super High).
Rated Current (In / Out) [A] 4.0 5.1 7.0
Max. Current [A] 8.16 9.18 16.0
Air Volume In (Hi*) [L/s] 167 183 183 Note:
Controller ~VAL: Infra Red Remote, ~VA: PAR-21MAA Wired Controller 1.Rating Conditions (AS / NZS 3823).
Power Supply (Powered from outdoor unit) 230V / Single Phase / 50 Hz Cooling – Indoor: 27°C DB, 19°C WB. Outdoor: 35°C DB
Dimensions (WxDxH) [mm] 570 x 570 x 235 (Panel: 650 x 650 x 20) Heating – Indoor: 20°C DB Outdoor: 7°C DB, 6°C WB.
INDOOR Refrigerant piping length (one way): 5 m
Weight [kg] 16.5 (Panel: 3)
2.Guaranteed operating range: see specifications table.
Dimensions (WxDxH) [mm] 800 x 285 x 550 800 x 285 x 550 840 x 330 x 850
3.Dry function will not work when the room temperature is
OUTDOOR Weight [kg] 33 37 53 below 13°C
Sound Level [dB(A)] 46 47 - 48 51 - 55
Diameter (Liquid/Gas) [mm] 6.35 / 9.52 6.35 / 9.52 6.35 / 12.7
EXT. PIPE Max. Length/Height† [m] 20 / 12 20 / 12 30 / 30 Colour: Heat pump units shown may not be colour accurate,
please ensure you view an actual unit for colour matching.
Chargeless [m] 7 7 7
† Maximum length is inclusive of height differential. i.e. (20/12)
OPERATION Cooling [˚C] -10 / +46 -10 / +46 -15 / +43 means the pipe can be 12m high and 8m across for a total
RANGE Outdoor Heating [˚C] -15 / +24 -15 / +24 -15 / +24 length of 20m.
18YOUR GUARANTEE OF EXCELLENCE
This emblem is your assurance of the very best in technology and quality as it represents Mitsubishi
Electric’s continuing efforts in making our air conditioners the industry standard. Every Mitsubishi Electric
air conditioner is a product of painstaking research, relentless testing, and a resolute determination to
improve upon vital performance characteristics. As a result, our air conditioners have become more
durable, less costly to operate, quieter, easy on installation and maintenance, and better able to distribute
air evenly throughout any type of interior. This kind of commitment to quality enables our products to
create remarkably pleasant environments that will ultimately make your life more comfortable.
5 YEAR WARRANTY BUYER BEWARE
Mitsubishi Electric Air Conditioners / Heat Pumps come with a full 5 year parts, labour and compressor The brand Mitsubishi Electric is
warranty. Warranty conditions apply. Please be aware of these conditions prior to purchasing this not to be confused with the brand
product. Mitsubishi Heavy Industries. Both
brands may share the 3 red diamonds
but are manufactured in completely
THE BEST QUALITY YOU CAN RELY ON different factories to completely
Our quality assurance program guided by our stringent Quality Policy ensures confidence in all phases of different specifications.
the development process from design and manufacture, to the finished product.
All units line tested Sound test Performance test Endurance test Heat stress test
COMFORT MEETS ECOLOGY
In every phase of air conditioner production, we have the earth in mind.
Six chemical substances we can do without
Mercury, cadmium and lead are among six hazardous substances,
found in some products, restricted or banned by the European
Union as of July 1, 2006. Mitsubishi Electric has developed a system
to ensure quick and early compliance with the EU directive, and we are
introducing a similar system to all our Asian operations as well.
For further information contact:
Certificate Number Certificate Number
49385 EC97J1227
Mitsubishi Electric Shizuoka Works acquired ISO 9001 certification
under Series 9000 of the International Standard Organisation (ISO)
based on a review of quality warranties for the production of air
conditioning equipment. The plant also acquired environmental
management system standard ISO 14001 certification.
Distributed by
Black Diamond Technologies Ltd
AUCKLAND WELLINGTON (HEAD OFFICE) CHRISTCHURCH
Unit 1, 4 Walls Road 1 Parliament Street Suite 2, Level 1, 37 Mandeville Street
PO Box 12-726, Penrose PO Box 30-772, Lower Hutt PO Box 1604, Christchurch
Phone (09) 526 9347, Fax (09) 526 9369 Phone (04) 560 9147, Fax (04) 560 9133 Phone (03) 341 2837, Fax (03) 341 2838
www.mitsubishi-electric.co.nz
New publication effective July 2009. All features and specifications are subject to change and amendment at anytime.
Where specifications are critical to design or pre-build we advise that you seek confirmation of accuracy from our product management team on (04) 560 9100.You can also read
