More Future.
More Technology.
Full Service.
Edition25 Special Models YOUR SOLUTION
Storage, Saw, Edge, Return, CNC, Moulding, Sanding,
Painting, Beam processing, Packing, Software
CAMPAIGN PERIOD
EXTENDED UNTIL
31.05.2019
02 HOMAG Edition25 Content HOMAG Edition25 Content 03
Edition25.
Avail yourself now of our Edition25 we are offering on the occasion of the 25th
HOMAG Treff. Special models. Special prices. Warranty extension.
YOUR SOLUTION
CONTENT [NAV PER CLICK]
06 Storage
12 Saw | intelliDivide | Nesting
28 Edge
34 Return
40 CNC | woodCAD|CAM
58 Moulding
60 Sanding
62 Painting
66 Beam processing
72 Packing
76 Digital | Software | Service
82 Life Cycle Services
05
More Future.
More Technology.
Full Service.
Edition25. Benefit from these advantages:
Avail yourself now of our Edition25 we are offering
More Future: More Technology: Full Service:
on the occasion of the 25th HOMAG Treff.
All Edition25 models All Edition25 models All Edition25 models
Special models. Special prices. Warranty extension. are fully digitalized and include comprehensive get a warranty extension
tapio-ready*. Useful Apps options. Enjoy our from 12 to 24 months and
such as MachineBoard technology boost. include the advantages
(5 years) are already With our Edition25 you of the „WarrantyPlus 24“
included**. Immerse raise your production Service Package. 100%
yourself in the digital performance to a higher reliable planning. Possible
age and use the nearly level. More included! More service cases are hereby
unlimited performance of extras! More on-top! covered. The included
our cloud based sofware inspection will exclusively
solutions. be carried out by certified
personnel. Because you
matter to us!
*Currently available in the EU and Switzerland (Due to the fast pace of the IT-landscape, the compatibility to the tapio platform is
warranted for five years.)
The content of this brochure is not binding for an order. You have to clarify separately all commercial conditions of the Edition25
campaign with your respective contact partner of the HOMAG Group AG.
06 HOMAG Edition25 Storage HOMAG Edition25 Storage 07
More Future. More Technology. Full Service.

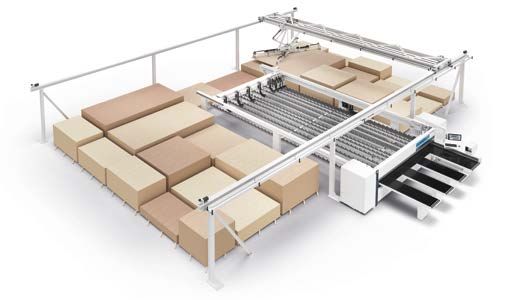

STORETEQ S-200 Edition25
Logistics with appreciable optimization effects. Whether time are measurably saved by using the horizontal storage
a panel spectrum as large as possible, high speed, or full system. The STORETEQ S-200 Edition25 is intelligent
equipment. Transportation routes are optimized, material and logistics with noticeable optimization effects.
CLICK CLICK CLICK
BACK TO START FOR BASIC INFO FOR CONTACT
ALL IN – TECHNOLOGY ALL IN – DIGITAL STORETEQ S-200 EDITION25

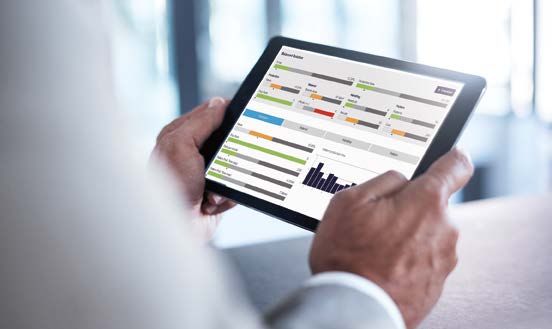

Extended basic equipment for more flexibility, transparency, ··MachineBoard* App (5 years free of charge): Basic machine With additional equipment
and safety: Machine data and status in real time Span width (mm) 5,000 12,000
··ServiceBoard* App: Wireless video diagnosis Frame length (mm) 10,000 50,000
An additional user license is included in your new in real time with the Service Partner
Speed (m/min)
STORETEQ S-200 Edition25! ··DataSave* (25 weeks free of charge): Max. 25% increase in performance by
··2 licenses are already in included in the standard. Automatic saving of machine data Bridge 60
increasing accelerations and speeds
··An additional license comes on top. It enables the process ··MMR professional Carriage 80
planning to access the storage in real time, to permanently Monitoring for production optimization Lifting drive 30
compare stocks etc., and to generate orders for the storage.
*Currently available in the EU and Switzerland (Due to the fast Workpiece length (mm) 2,000 – 4,200 max. 5,600
pace of the IT-landscape, the compatibility to the tapio platform is
Also included in your new STORETEQ S-200 Edition25: Workpiece width (mm) 800 – 2,200 min. 400
warranted for five years.)
··Uninterruptible power supply Workpiece thickness (raw boards) (mm) starting from 12 starting from 3
··Back-up hard disc, incl. safety software package Workpiece thickness (coated) (mm) starting from 8 starting from 3
ALL IN – SERVICE
All further features are up to you – so that your new HOMAG „WarrantyPlus 24“ warranty extension to 24 months Workpiece weight (kg) 250 250
storage system suits you perfectly. or 5,000 operating hours Stack height (mm) 2,100 2,500
··Remote service until 6 p.m. (CET)
··Spare parts (wearing parts excluded)
··Field service incl. travel expenses
··1 inspection incl. travel expenses
* In combination with a HOMAG pressure beam saw or CNC that
offers as linked processing machine Edition25 – „WarrantyPlus 24“ .
08 HOMAG Edition25 Storage HOMAG Edition25 Storage 09
More Future. More Technology. Full Service.

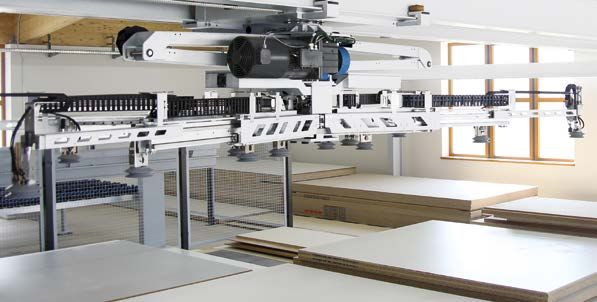

STORETEQ S-500 Edition25
More potential for operating machines. A lot of leeway in storage system offers high efficient logistics for industry and
combining operating machines and in panel variety make the handicraft.
STORETEQ S-500 the icon within the storage systems. This
CLICK CLICK CLICK
BACK TO START FOR BASIC INFO FOR CONTACT
ALL IN – TECHNOLOGY ALL IN – DIGITAL STORETEQ S-500 EDITION25
Extended basic equipment for more flexibility, transparency, ··MachineBoard* App (5 years free of charge): Basic machine With additional equipment
and safety: Machine data and status in real time Span width (mm) 5,000 16,000
··ServiceBoard* App: Wireless video diagnosis Frame length (mm) 10,000 50,000
An additional user license is included in your new in real time with the Service Partner
Speed (m/min)
STORETEQ S-500 Edition25! ··DataSave* (25 weeks free of charge): Max. 35% increase in performance by
··2 licenses are already in included in the standard. Automatic saving of machine data Bridge 60
increasing accelerations and speeds
··An additional license comes on top. It enables the process ··MMR professional Carriage 80
planning to access to the storage in real time, to permanently Monitoring for production optimization Lifting drive 30
compare stocks etc., and to generate orders for the storage.
*Currently available in the EU and Switzerland (Due to the fast Workpiece length (mm) 2,000 – 4,200 max. 5,600
pace of the IT-landscape, the compatibility to the tapio platform is
Also included in your new STORETEQ S-500 Edition25: Workpiece width (mm) 800 – 2,200 min. 400
warranted for five years.)
··Uninterruptible power supply Workpiece thickness (raw boards) (mm) starting from 12 starting from 3
··Back-up hard disc, incl. safety software package Workpiece thickness (coated) (mm) starting from 8 starting from 3
ALL IN – SERVICE
All further features are up to you – so that your new HOMAG „WarrantyPlus 24“ warranty extension to 24 months Workpiece weight (kg) 250 250
storage system suits you perfectly. or 5,000 operating hours Stack height (mm) 2,100 2,500
··Remote service until 6 p.m. (CET)
··Spare parts (wearing parts excluded)
··Field service incl. travel expenses
··1 inspection incl. travel expenses
* In combination with a HOMAG pressure beam saw or CNC that
offers as linked processing machine Edition25 – „WarrantyPlus 24“
Benefit now!
Your price advantage!
16.07.-31.05.2019
LINK HOMAG contact person
12 HOMAG Edition25 Saw HOMAG Edition25 Saw 13
More Future. More Technology. Full Service.
SAWTEQ B-130 Edition25
Top quality at the best possible price: our smallest saw is precise and efficient cutting process. This is due to many
equipped as standard with everything you need for cutting proven HOMAG technologies. Look forward now to your new
single panels and small batches. The SAWTEQ B-130 SAWTEQ B-130 Edition25 single saw – equipped with the
Edition25 panel saw costs hardly any more than a well- bevel cut unit module45 now and up until 05/31/2019 – at a
equipped sliding table saw, while providing a much more special price!
CLICK CLICK CLICK
BACK TO START FOR BASIC INFO FOR CONTACT
ALL IN – TECHNOLOGY ALL IN – DIGITAL SAWTEQ B-130 EDITION25
Enhanced features of the basic machine ··“intelliDivide basic” (6 months free of charge): Saw blade projection (mm) 60
··Bevel cut unit module45 Cutting optimization “on demand”
Cutting length(s) (mm) 3,200
··Two 650 mm wide air cushion tables instead of the standard ··MachineBoard* App (5 years free of charge): Saw carriage speed (m/min) up to 60
500 mm wide tables Machine data and status in real time
··Additional rollers on the edge of the air cushion table ··ServiceBoard* App: Wireless video diagnosis Program fence speed (m/min) up to 60
for particularly gentle positioning of material and greater in real time with the Service Partner Operating software CADmatic 5
operating comfort ··DataSave* (25 weeks free of charge): Monitor 21” TFT flatscreen display
Automatic saving of machine data with touch function
All further features are up to you – so that your new HOMAG ··MMR professional
saw suits you perfectly. Monitoring for production optimization
*Currently available in the EU and Switzerland (Due to the fast
The offer is limited to 45 saws. All details can be found in the
pace of the IT-landscape, the compatibility to the tapio platform is
SAWTEQ B-130 brochure and in the flyer “2x45 – and at the
warranted for five years.)
end you win!”
ALL IN – SERVICE
„WarrantyPlus 24“ warranty extension to 24 months
or 5,000 operating hours
··Remote service until 6 p.m. (CET)
··Spare parts (wearing parts excluded)
··Field service incl. travel expenses
··1 inspection incl. travel expenses
14 HOMAG Edition25 Saw HOMAG Edition25 Saw 15
More Future. More Technology. Full Service.
SAWTEQ B-200 Edition25
The SAWTEQ B-200 Edition25 offers you exactly what you table, the SAWTEQ B-200 Edition25 can also be fed from the
need in a woodworking shop for cutting panels horizontally: rear. This is much more ergonomic, faster and more efficient
plenty of power, precision and flexibility. That’s because this than feeding solely manually from the front. Look forward to
well-equipped saw can easily be upgraded at any time. You your new SAWTEQ B-200 Edition25 single saw – equipped
remain flexible and get a cutting solution that can grow in line with a machine table with air jets and intelliGuide basic now
with your requirements. If equipped with an integrated lifting and up until 05/31/2019 at no extra cost!
CLICK CLICK CLICK
BACK TO START FOR BASIC INFO FOR CONTACT
ALL IN – TECHNOLOGY ALL IN – DIGITAL SAWTEQ B-200 EDITION25
During the run of the special offer, the otherwise freely ··“intelliDivide basic” (6 months free of charge): Saw blade projection (mm) 60 (optional: 80 or 95)
configurable saw comes equipped with the following features Cutting optimization “on demand”
Cutting length(s) (mm) 3,200 / 3,800 / 4,300
at no extra cost: ··MachineBoard* App (5 years free of charge): Saw carriage speed (m/min) up to 80
··intelliGuide basic: a multi-colored LED strip at the cutting Machine data and status in real time
(optional: up to 120)
line guides the operator through the cutting process. This ··ServiceBoard* App: Wireless video diagnosis
Program fence speed (m/min) up to 80
prevents errors and increases efficiency in real time with the Service Partner
··Machine table equipped with air jets: makes handling parts ··DataSave* (25 weeks free of charge): Operating software CADmatic 5
easier and protects the material Automatic saving of machine data Monitor 21” TFT flatscreen display
··MMR professional with touch function
Lifting table feed? Cutting length? Features? All that is up to Monitoring for production optimization
you – so that your new HOMAG saw suits you perfectly. All
*Currently available in the EU and Switzerland (Due to the fast
details can be found in the 2 series brochure.
pace of the IT-landscape, the compatibility to the tapio platform is
warranted for five years.)
ALL IN – SERVICE
„WarrantyPlus 24“ warranty extension to 24 months
or 5,000 operating hours
··Remote service until 6 p.m. (CET)
··Spare parts (wearing parts excluded)
··Field service incl. travel expenses
··1 inspection incl. travel expenses
16 HOMAG Edition25 Saw HOMAG Edition25 Saw 17
More Future. More Technology. Full Service.
SAWTEQ B-300 Edition25
With the SAWTEQ B-300 Edition25, you get a single saw Edition25 is the perfect choice for connection to horizontal
that offers great versatility for cutting processes and, in storage systems, and also convinces with a wide range of
addition, is ready for networked production. No matter optional features. Look forward to you new SAWTEQ B-300
whether the single saw or the single saw with lifting table, Edition25 single saw (optionally with or without lifting table) –
this machine is ideal for batch size 1 production as well as for equipped with dustEx and intelliGuide basic now and up until
smaller series production. What’s more, the SAWTEQ B-300 05/31/2019 – at no extra cost!
CLICK CLICK CLICK
BACK TO START FOR BASIC INFO FOR CONTACT
ALL IN – TECHNOLOGY ALL IN – DIGITAL SAWTEQ B-300 EDITION25
During the run of the special offer, the otherwise freely ··“intelliDivide basic” (6 months free of charge): Saw blade projection (mm) 80 (optional: 95)
configurable saw comes equipped with the following features Cutting optimization “on demand” Cutting length(s) (mm) 3,200 / 3,800 / 4,300 / 5,600
at no extra cost: ··MachineBoard* App (5 years free of charge): Saw carriage speed (m/min) up to 130
··intelliGuide basic: a multi-colored LED strip at the cutting Machine data and status in real time
(optional: up to 150)
line guides the operator through the cutting process. This ··ServiceBoard* App: Wireless video diagnosis Program fence speed (m/min) up to 90
prevents errors and increases efficiency in real time with the Service Partner
··Machine table equipped with air jets and dustEx, the ··DataSave* (25 weeks free of charge): Operating software CADmatic 5
effective extraction solution for optimum surface protection Automatic saving of machine data Monitor 21” TFT flatscreen display
··MMR professional with touch function
Lifting table feed? Cutting length? Features? All that’s up Monitoring for production optimization
to you. Your new HOMAG saw should suit you perfectly. All
*Currently available in the EU and Switzerland (Due to the fast
details can be found in the 3 series brochure.
pace of the IT-landscape, the compatibility to the tapio platform is
warranted for five years.)
ALL IN – SERVICE
„WarrantyPlus 24“ warranty extension to 24 months
or 5,000 operating hours
··Remote service until 6 p.m. (CET)
··Spare parts (wearing parts excluded)
··Field service incl. travel expenses
··1 inspection incl. travel expenses
18 HOMAG Edition25 Saw HOMAG Edition25 Saw 19
More Future. More Technology. Full Service.
SAWTEQ B-400 Edition25
The SAWTEQ B-400 Edition25 is the ideal cutting solution for required high-throughput capability. Look forward to your
growing businesses and for producing medium-sized to large new SAWTEQ B-400 Edition25 single saw (optionally with or
batches. It is the combination of performance, speed and without lifting table) – equipped with dustEx und intelliGuide
reliable technology that makes this panel saw so attractive. basic now and up until 05/31/2019 – at no extra cost!
The 110 mm or 125 mm saw blade projection provides the
CLICK CLICK CLICK
BACK TO START FOR BASIC INFO FOR CONTACT
ALL IN – TECHNOLOGY ALL IN – DIGITAL SAWTEQ B-400 EDITION25
During the run of the special offer, the otherwise freely ··“intelliDivide basic” (6 months free of charge): Saw blade projection (mm) 110 (optional: 125)
configurable saw comes equipped with the following features Cutting optimization “on demand”
Cutting length(s) (mm) 3,200 / 3,800 / 4,300 / 5,600
at no extra cost: ··MachineBoard* App (5 years free of charge): Saw carriage speed (m/min) up to 130
··intelliGuide basic: a multi-colored LED strip at the cutting Machine data and status in real time
(optional: up to 150)
line guides the operator through the cutting process. This ··ServiceBoard* App: Wireless video diagnosis
Program fence speed (m/min) up to 90
prevents errors and increases efficiency in real time with the Service Partner
··Machine table equipped with air jets and dustEx, the ··DataSave* (25 weeks free of charge): Operating software CADmatic 5
effective extraction solution for optimum surface protection Automatic saving of machine data Monitor 21” TFT flatscreen display
··MMR professional with touch function
Lifting table feed? Cutting length? Features? All that’s up Monitoring for production optimization
to you. Your new HOMAG saw should suit you perfectly. All
*Currently available in the EU and Switzerland (Due to the fast
details can be found in the 4 series brochure.
pace of the IT-landscape, the compatibility to the tapio platform is
warranted for five years.)
ALL IN – SERVICE
„WarrantyPlus 24“ warranty extension to 24 months
or 5,000 operating hours
··Remote service until 6 p.m. (CET)
··Spare parts (wearing parts excluded)
··Field service incl. travel expenses
··1 inspection incl. travel expenses20 21
intelliDivide –
Optimization software, too, INTELLIDIVIDE IS FLEXIBLE AND IDEAL FOR TRADE AND
plays an important role in POWERFUL INDUSTRIAL CUSTOMERS
determining the competitiveness How is this possible? intelliDivide Both trade and industry benefit
the “software-as-a-service”
of a woodworking company in its is cloud-based optimization from the new possibilities. With
cutting processes. No wonder, software in the tapio ecosystem, this innovative optimization
as intelligently optimized cutting which can be used directly via solution, small and medium-
optimization option
patterns save a great deal of the Internet. The customer only sized enterprises can increase
time, reduce the consumption requires online access. There their ability to compete on
of material and resources, and is no need to install any special the market because they get
provide for efficient processes. hardware or software locally. The first-rate optimization results
This can be achieved more flexibly cutting data is simply uploaded for their cutting processes
and more independently than ever – and intelliDivide automatically with no investment, update or
with intelliDivide – the “software- starts optimizing, swiftly maintenance costs.
as-a-service” optimization option. calculating a choice of multiple
alternatives in parallel. Furthermore, the costs for
Many customers know from their using intelliDivide are precisely
own experience that a good one These include, for example, calculable and comparatively
to two hours of valuable work a purely waste-based result modest. Costs are based on usage
time are spent every day in the as well as results focusing and are charged on the basis
work preparation department on shortest machine time or of contracts involving either a
on manipulating and correcting simplest handling. The customer monthly or an annual subscription.
optimization results. With decides which optimization result Industrial enterprises with very
intelliDivide, these production best suits his requirements, high optimization volumes are
hours are no longer required downloads the data and starts able to increase their value added
and can be used for other value- the cutting process. “This is significantly with intelliDivide.
adding tasks. possible because intelliDivide This is because the cloud-based
even automatically integrates the optimization software uses
machine configuration, provided higher computing capacities than
that the saw is tapio-ready and any offline solution, enabling it
connected to tapio,” explains Arne to provide users not only with
Mömesheim, Product Manager numerous optimization variants,
at HOMAG Plattenaufteiltechnik but also with a calculation of the
GmbH, adding: “Incidentally, our cutting time based on real usage
new HOMAG saws already come data.
CLICK tapio-ready straight from the
FOR BASIC INFO
factory.”
HOW YOU BENEFIT FROM INTELLIDIVIDE
··You do not require any local hardware or software. intelliDivide works independently of the operating system and
on every mobile or stationary device with internet access, whether desktop computer, smartphone or tablet
··You do not have to worry about maintenance or updates
··intelliDivide automatically and simultaneously calculates multiple alternatives
··The optimization results can be quickly and easily compared
··The costs for intelliDivide are usage-based and precisely calculable
··For more information visit www.tapio.one22 HOMAG Edition25 Nesting HOMAG Edition25 Nesting 23
More Future. More Technology. Full Service.
CENTATEQ N-500 Edition25
The compact nesting machine in gantry design. Our nesting furniture fronts and construction of frame furniture. Various
machines enable cutting-optimized processing and dividing possibilities for the automation of the material handling
of plate-shaped materials. The typical applications of nesting ensure a high time saving and an even more effective work.
are creation of carcass furniture, dividing and refining of
CLICK CLICK CLICK
BACK TO START FOR BASIC INFO FOR CONTACT
ALL IN – TECHNOLOGY ALL IN – DIGITAL CENTATEQ N-500 EDITION25 woodCAD|CAM
Variant 1: stand-alone machine ··MachineBoard* App (5 years free of charge): Working field width (mm/feet) 2,250/7 CENTATEQ N-500 Edition25
with manual handling Machine data and status in real time Working field length (mm/feet) 3,100/10 ··woodCAD|CAM
table size 2.250 x 3.100 mm / 7 x 10 feet ··ServiceBoard* App: Wireless video diagnosis incl. CAD Engine powered
··13,2 kW air-cooled spindle in real time with the Service Partner Working field height (mm/inch) 100/3,94 with Autodesk Technolgy
··Unit interface for C-axis ··DataSave* (25 weeks free of charge): Vacuum capacity (m³/h) 290/345 – 870/1,035 ··woodCAD
··Matrix Pro Plus table segmentation – more efficiency due to Automatic saving of machine data Vacuum capacity (Hz) 50/60
Process add-on
focussed vacuum segmentation ··MMR professional ··woodCAM
··Cut Rite included Monitoring for production optimization
*depending on equipment
module for CENTATEQ N series
··Full software package *Currently available in the EU and Switzerland (Due to the fast
··Includes transfer interface to Cut Rite nesting
pace of the IT-landscape, the compatibility to the tapio platform is
··Maintenance contract for one year
Variant 2: Concept 1 Automatic infeed and outfeed
warranted for five years.)
table size 2.250 x 3.100 mm / 7 x 10 feet
··13,2 kW air-cooled spindle
··Unit interface for C axis ALL IN – SERVICE
··Matrix Pro Plus table segmentation – more efficiency due to „WarrantyPlus 24“ warranty extension to 24 months
focussed vacuum segmentation or 5,000 operating hours
··Cut Rite included ··Remote service until 6 p.m. (CET)
··Full software package ··Spare parts (wearing parts excluded)
··Also as concept 1R, 2, 3R or 3 ··Field service incl. travel expenses
(level of automation: infeed, outfeed, labeling) ··1 inspection incl. travel expenses24 HOMAG Edition25 Nesting HOMAG Edition25 Nesting 25
More Future. More Technology. Full Service.
CENTATEQ N-800 Edition25
The power pack among our nesting solutions. The typical possibilities for the automation of the material handling
applications of nesting are creation of carcass furniture, ensure a high time saving and an even more effective work.
dividing and refining of furniture fronts, construction of Cutting-optimized processing and splitting of plate-shaped
frame furniture and creation of components for the caravan materials is child‘s play with the CENTATEQ N-800 Edition25.
constructions and for the structural facings sector. Various
CLICK CLICK CLICK
BACK TO START FOR BASIC INFO FOR CONTACT
ALL IN – TECHNOLOGY ALL IN – DIGITAL CENTATEQ N-800 EDITION25 woodCAD|CAM
Concept 1: Automatic infeed and outfeed ··MachineBoard* App (5 years free of charge): Working field width (mm/feet) 2,250/7 CENTATEQ N-800 Edition25
table size 2.250 x 3.100 mm / 7 x 10 feet Machine data and status in real time
Working field length (mm/feet) 3,100/10
··woodCAD|CAM
··16 kW liquid-cooled spindle ··ServiceBoard* App: Wireless video diagnosis incl. CAD Engine powered
··Unit interface for C-axis in real time with the Service Partner Working field height (mm/inch) 125/4,92 with Autodesk Technolgy
··Air cushion table function (option) - easy handling of the ··DataSave* (25 weeks free of charge): Vacuum capacity (m³/h) 3 x 290/345 ··woodCAD
board Automatic saving of machine data Process add-on
Vacuum capacity (Hz) 50/60
··Cut Rite included ··MMR professional ··woodCAM
··Full software package Monitoring for production optimization module for CENTATEQ N series
··Also as concept 1R, 2, 3R or 3 *Currently available in the EU and Switzerland (Due to the fast
··Includes transfer interface to Cut Rite nesting
(level of automation: infeed, outfeed, labeling)
pace of the IT-landscape, the compatibility to the tapio platform is
··Maintenance contract for one year
warranted for five years.)
ALL IN – SERVICE
„WarrantyPlus 24“ warranty extension to 24 months
or 5,000 operating hours
··Remote service until 6 p.m. (CET)
··Spare parts (wearing parts excluded)
··Field service incl. travel expenses
··1 inspection incl. travel expensesBenefit now!
Your price advantage!
16.07.-31.05.2019
LINK HOMAG contact person28 HOMAG Edition25 Edge HOMAG Edition25 Edge 29
More Future. More Technology. Full Service.
EDGETEQ S-500 Model 2482 Edition25
This single-sided machine can be used for gluing edges offers processing quality at the highest level as well as high
precisely and perfect finish processing – with a feed speed productivity plus safety. Benefit from the functions, which
of up to 25m/min. The Edition25 package, including basic only HOMAG has to offer.
and additional equipment, digital solutions and service,
CLICK CLICK CLICK
BACK TO START FOR BASIC INFO FOR CONTACT
ALL IN – TECHNOLOGY ALL IN – DIGITAL EDGETEQ S-500 MODEL 2482 EDITION25
The basic machine of this Edition25 model is ··„MachineBoard“* app (free of charge for 5 years): Machine Machine length (mm) 9,365
EDGETEQ S-500 model 2482. It contains the following in data and status in real time
Weight (kg) 4,500
addition to the basic equipment: ··„ServiceBoard“* app: Wireless video diagnostics in real time
··Solid wood package to process strips up to 20 mm ··„DataSave“* (free of charge for 25 weeks): Automatic Feed speed (m/min) 16 – 25
··High gloss package to process workpieces with (e. g. high backup of machine data Edge thickness (mm) 0.3 – 3
gloss) and without a film coating by automatic change ··MMR professional – monitoring to optimize production Workpiece thickness (mm) 8 – 60
··Performance3 package for automatic change between three processes
different radii, including a tracer roller with variable diameter
*Currently available in the EU and Switzerland (Due to the fast
and rolling side tracing on the profile trimming unit FK30
pace of the IT-landscape, the compatibility to the tapio platform is
··Minimum workpiece length of 120 mm for an extended parts warranted for five years.)
range
··Automatic two-slot magazine for easy automatic change
between two different roller edges ALL IN – SERVICE
··Sliding carriage to guide narrow parts safely in transverse „WarrantyPlus 24“ warranty extension up to 24 months
operation starting from the machine acceptance date
··Remote service until 6 pm (CET)
ONLY AVAILABLE AT HOMAG ··Replacement parts (except wearing parts)
··Automatic glue joint scraper fine adjustment ··Field service including travel costs
··Diameter adjustable tracer roller at the profile trimming unit ··One inspection including travel costs
··Rolling side tracing at the profile trimming unit30 HOMAG Edition25 Edge HOMAG Edition25 Edge 31
More Future. More Technology. Full Service.
EDGETEQ S-500 Model 2482 AT Edition25
This single-sided edge banding machine offers the ideal as well as service and digital solutions are the same as in
entry into zero joint technology. It is equipped with the the EDGETEQ S-500 Model 2482 Edtion25 on page 28.
HOMAG zero joint solution airTec, which bonds the edging Your benefit: Processing quality at highest level plus high
to the panel using hot air. Basic and additional equipment productivity and safety.
CLICK CLICK CLICK
BACK TO START FOR BASIC INFO FOR CONTACT
ALL IN – TECHNOLOGY ALL IN – DIGITAL EDGETEQ S-500 MODEL 2482 AT EDITION25
The basic machine of this Edition25 model is ··„MachineBoard“* app (free of charge for 5 years): Machine Machine length (mm) 9,365
EDGETEQ S-500 model 2482. It contains the following in data and status in real time
Weight (kg) 4,550
addition to the basic equipment: ··„ServiceBoard“* app: Wireless video diagnostics in real time
··Solid wood package to process strips up to 20 mm ··„DataSave“* (free of charge for 25 weeks): Automatic Feed speed (m/min) 16 – 25
··High gloss package to process workpieces with (e. g. high backup of machine data Edge thickness (mm) 0.3 – 3
gloss) and without a film coating by automatic change ··MMR professional – monitoring to optimize production Workpiece thickness (mm) 8 – 60
··Performance3 package for automatic change between three processes
different radii, including a tracer roller with variable diameter
*Currently available in the EU and Switzerland (Due to the fast
and rolling side tracing on the profile trimming unit FK30
pace of the IT-landscape, the compatibility to the tapio platform is
··Minimum workpiece length of 120 mm for an extended parts warranted for five years.)
range
··Automatic two-slot magazine for easy automatic change
between two different roller edges ALL IN – SERVICE
··Sliding carriage to guide narrow parts safely in transverse „WarrantyPlus 24“ warranty extension up to 24 months
operation starting from the machine acceptance date
··airTec activation unit: Activation of edges with functional ··Remote service until 6 pm (CET)
layer using hot air in order to bond the edging to the panel ··Replacement parts (except wearing parts)
(zero joint solution) ··Field service including travel costs
··One inspection including travel costs
ONLY AVAILABLE AT HOMAG
··Automatic glue joint scraper fine adjustment
··Diameter adjustable tracer roller at the profile trimming unit
··Rolling side tracing at the profile trimming unitBenefit now!
Your price advantage!
16.07.-31.05.2019
LINK HOMAG contact person34 HOMAG Edition25 Return HOMAG Edition25 Return 35
More Future. More Technology. Full Service.
LOOPTEQ O-200 Edition25
The entry to a comfortable material flow. The will be more efficient, whether batch size 1, batch, or serial
LOOPTEQ O-200 Edition25 is the perfect supplement for production. The LOOPTEQ O-200 Edition25 is excellently
unilateral edge banding machines as essential support for suited for customers with small, narrow, and medium-sized
an economic workpiece return. The production process workpieces.
CLICK CLICK CLICK
BACK TO START FOR BASIC INFO FOR CONTACT
ALL IN – TECHNOLOGY ALL IN – SERVICE LOOPTEQ O-200 EDITION25
Extended basic equipment for a better handling of parts and „WarrantyPlus 24“ warranty extension up to 24 months Workpiece length (mm) 300 – 2,500
more flexibility: starting from the machine acceptance date
Workpiece width (mm) 50 – 1,450
··Remote service until 6 pm (CET)
The belt for turn narrow parts is included in your new ··Replacement parts (except wearing parts) Workpiece size 4-sided processing*
LOOPTEQ O-200 Edition25! ··Field service including travel costs min. workpiece length (mm) 300 x 300
··Short and narrow parts can be slightly turned for crosswise ··1 inspection including travel costs max. workpiece length (mm) 1,450 x 1,450
processing Workpiece thickness (mm) 8 – 60
*In combination with a HOMAG EDGETEQ series that offers as
··The turn of workpieces is triggered at the following part linked processing machine Edition25 – Warranty Plus Workpiece weight, length 700 mm (kg) max. 50
··Length: 50 – 200 mm
··Width: 300 – 800 mm Mass per unit area (kg/m²) max. 25
··Suitable, amongst others, for fronts of drawers Working height (mm) 835 – 960
All further features are up to you – so that your new HOMAG Feed speed (m/min) 8 – 25
return system suits you perfectly.
*Larger workpieces can be returned or even fed out at 4-sided
processing with manual support during crosswise offset and turning.36 HOMAG Edition25 Return HOMAG Edition25 Return 37
More Future. More Technology. Full Service.
LOOPTEQ O-300 Edition25
For a wide spectrum in the material flow. Whether return. It convinces by its high capacity and an especially
handicraft or industrially oriented production. The gentle workpiece handling. The LOOPTEQ O-300 Edition25
LOOPTEQ O-300 Edition25 transports the largest material is best suited for customers with high material variety - from
variety and is indispensable for an economic workpiece small and light up to large and heavy workpieces.
CLICK CLICK CLICK
BACK TO START FOR BASIC INFO FOR CONTACT
ALL IN – TECHNOLOGY ALL IN – SERVICE LOOPTEQ O-300 EDITION25 LOOPTEQ O-300 EDITION25
Extended basic equipment for a better handling of parts and „WarrantyPlus 24“ warranty extension up to 24 months Workpiece length (mm) 300 – 2,500 240 – 2,700
more flexibility: starting from the machine acceptance date
Workpiece width (mm) 60 – 800 60 – 1,000
··Remote service until 6 pm (CET)
The workpiece identification, sensorial is included in your new ··Replacement parts (except wearing parts) Workpiece size
LOOPTEQ O-300 Edition25! ··Field service including travel costs 4-sided processing*
··Recognition of long as well as light small workpieces ··1 inspection including travel costs min. workpiece length (mm) 300 × 80 240 × 80
··Sensitive surfaces are protected max. workpiece length (mm) 2,000 × 800 2,500 × 1,000
*In combination with a HOMAG EDGETEQ series that offers as Workpiece thickness (mm) 8 – 60 8 – 80
linked processing machine Edition25 – „WarrantyPlus 24“
To support especially when handling large workpieces, you Workpiece weight (kg) max. 50 max. 50
also receive the Lowerable roller gibs for a special price -
Mass per unit area (kg/m²) max. 20 max. 20
50% discount on the list price!
Working height (mm) 820 – 980 820 – 980
All further features are up to you – so that your new HOMAG
Feed speed (m/min) 8 – 30 8 – 30
return system suits you perfectly.
*Larger workpieces can be returned or even fed out at 4-sided processing with manual
support during crosswise offset and turning.Benefit now!
Your price advantage!
16.07.-31.05.2019
LINK HOMAG contact person40 HOMAG Edition25 CNC HOMAG Edition25 CNC 41
More Future. More Technology. Full Service.
DRILLTEQ V-200 Edition25
Flexible all-rounder for processing in just 5 m². These energy and money. They are particularly well-suited to
versatile machines can be used for drilling, trimming and just-in-time production for trade businesses and other small
grooving, offering the ideal solution to save you time, space, businesses, and for custom production in large companies.
CLICK CLICK CLICK
BACK TO START FOR BASIC INFO FOR CONTACT
ALL IN – TECHNOLOGY ALL IN – DIGITAL DRILLTEQ V-200 EDITION25 woodCAD|CAM
Part output: 300–400 parts per shift ··MachineBoard* App (5 years free of charge): Workpiece length (mm) 200 – 2,500 / 200 – 3,050 DRILLTEQ V-200 Edition25
··13 vertical high-speed drill spindles including quick-change Machine data and status in real time
Workpiece width (mm) 70 – 850 ··woodCAD|CAM
drill system ··ServiceBoard* App: Wireless video diagnosis Workpiece thickness (mm) 8 – 56
incl. CAD Engine powered
··4 horizontal high-speed drill spindles in the X-direction in real time with the Service Partner with Autodesk Technolgy
··2 horizontal high-speed drill spindles in the Y-direction ··DataSave* (25 weeks free of charge): Total machine weight (kg) ca. 1,580
··woodCAM
··Groove saw in the X direction, Ø 100 mm Automatic saving of machine data module for DRILLTEC V 200
··Tool change spindle, 10 kW, HSK 63 ··MMR professional ··Maintenance contract for one year
··Automatic tool change magazine with four slots Monitoring for production optimization
··Plausibility check *Currently available in the EU and Switzerland (Due to the fast
··Length-dependent processing in the X-direction pace of the IT-landscape, the compatibility to the tapio platform is
··Full software package including barcode software warranted for five years.)
ALL IN – SERVICE
„WarrantyPlus 24“ warranty extension to 24 months
or 5,000 operating hours
··Remote service until 6 p.m. (CET)
··Spare parts (wearing parts excluded)
··Field service incl. travel expenses
··1 inspection incl. travel expenses42 HOMAG Edition25 CNC HOMAG Edition25 CNC 43
More Future. More Technology. Full Service.
DRILLTEQ V-500 Edition25
Dynamic package for powerful processing in an area of less speed and safety during processing. Automate your
than 10 m². The DRILLTEQ V-500 Edition25 offers the next processes with barcode integration or workpiece return. With
generation of compact vertical CNC technology in an area the dowel insertion function, you gain considerably more
of less than 10 m². There are two powerful configurations flexibility in your application fields.
available to choose from. Various software options improve
CLICK CLICK CLICK
BACK TO START FOR BASIC INFO FOR CONTACT
ALL IN – TECHNOLOGY ALL IN – DIGITAL DRILLTEQ V-500 EDITION25 woodCAD|CAM
Part output: 400–600 parts per shift ··MachineBoard* App (5 years free of charge): Workpiece length (mm) 200 – 3,050 DRILLTEQ V-500 Edition25
Machine data and status in real time
Workpiece width (mm) 50 – 1,250 ··woodCAD|CAM
ALL IN – variant 1 (Clamex P) ··ServiceBoard* App: Wireless video diagnosis Workpiece thickness (mm) 8 – 80
incl. CAD Engine powered
··15 vertical high-speed drill spindles including quick-change in real time with the Service Partner with Autodesk Technolgy
drill system ··DataSave* (25 weeks free of charge): Total machine weight (kg) ca. 3,200
··woodCAM
··6 horizontal high-speed drill spindles in the X-direction Automatic saving of machine data module for DRILLTEC V 200
··4 horizontal high-speed drill spindles in the Y-direction ··MMR professional ··Maintenance contract for one year
··Groove saw that can be swiveled 0–90°, with groove/routing Monitoring for production optimization
unit for Clamex P
*Currently available in the EU and Switzerland (Due to the fast
··Tool change spindle, 10 kW, HSK 63 pace of the IT-landscape, the compatibility to the tapio platform is
··Automatic tool change magazine with four slots warranted for five years.)
··Plausibility check
··Length-dependent processing in the X-direction
··Full software package including barcode software optional ALL IN – SERVICE
with doweling unit and workpiece returning system „WarrantyPlus 24“ warranty extension to 24 months
or 5,000 operating hours
ALL IN – variant 2 (Splithead) ··Remote service until 6 p.m. (CET)
··2x10 vertical high-speed drill spindles including quick- ··Spare parts (wearing parts excluded)
change drill system ··Field service incl. travel expenses
··2x6 horizontal high-speed drill spindles in the X-direction ··1 inspection incl. travel expenses
··2x4 horizontal high-speed drill spindles in the Y-direction
··1x groove saw, can be swiveled 0–90°
··Tool change spindle, 10 kW, HSK 63
··Automatic tool change magazine with four slots
··Plausibility check
··Length-dependent processing in the X-direction
··Full software package including barcode software optional
with doweling unit and workpiece returning system44 HOMAG Edition25 CNC HOMAG Edition25 CNC 45
More Future. More Technology. Full Service.
DRILLTEQ H-600 Edition25
The DRILLTEQ H-600 Edition25 has impressed by speed and high processing speeds. The possibility to process two
precision – in workpiece handling as well as in processing. workpieces simultaneously leads to extreme efficiency and
Every drill is executed with an extreme repeat accuracy. the varied connection possibilities of the machine provide
The same applies to routing and grooving operations. The extreme flexibility.
workpiece surfaces are perfectly protected despite extremely
CLICK CLICK CLICK
BACK TO START FOR BASIC INFO FOR CONTACT
ALL IN – TECHNOLOGY ALL IN – DIGITAL DRILLTEQ H-600 EDITION25
Part output: 500–800 parts per shift ··MachineBoard* App (5 years free of charge): Workpiece length (mm) 200 – 3,100
··2x36 vertical high-speed drill spindles including quick- Machine data and status in real time
Workpiece width (mm) 70 – 1,000
change drill system ··ServiceBoard* App: Wireless video diagnosis Workpiece thickness (mm) 8 – 80
··2x8 horizontal high-speed drill spindles in the X-direction in real time with the Service Partner
··2x2 horizontal high-speed drill spindles in the Y-direction ··DataSave* (25 weeks free of charge): Total machine weight (kg) ca. 6,000
··2x groove saw, can be swiveled 0–90° Automatic saving of machine data
··2x ETP 6 kW routing spindle ··MMR professional
··Processing up to 3100 mm Monitoring for production optimization
··Pre-positioning (optional) *Currently available in the EU and Switzerland (Due to the fast
··Processing of different workpieces from the top/bottom pace of the IT-landscape, the compatibility to the tapio platform is
··Full software package including barcode software warranted for five years.)
ALL IN – SERVICE
„WarrantyPlus 24“ warranty extension to 24 months
or 5,000 operating hours
··Remote service until 6 p.m. (CET)
··Spare parts (wearing parts excluded)
··Field service incl. travel expenses
··1 inspection incl. travel expenses46 HOMAG Edition25 CNC HOMAG Edition25 CNC 47
More Future. More Technology. Full Service.
CENTATEQ P-110 Edition25
Freestyle technology with 4- and 5-axis solutions. This series machine. The CENTATEQ P-110 Edition25 includes 4- and
offers high levels of performance and versatility to small 5-axis solutions for the processing of kitchen, office and
and medium-sized carpentry and joinery companies. The solid wood furniture, as well as for the construction of stairs,
new machine concept is based on compact technology, windows and doors.
a reduced installation area and operation directly at the
CLICK CLICK CLICK
BACK TO START FOR BASIC INFO FOR CONTACT
ALL IN – TECHNOLOGY ALL IN – DIGITAL CENTATEQ P-110 EDITION25 woodCAD|CAM
··Equipment packages: DRIVE5CS 12 kW Future and 4-axis ··MachineBoard* App (5 years free of charge): Workpiece length (mm) 3,100 CENTATEQ P-110 Edition25
performance in length M Machine data and status in real time
Workpiece width (mm) 1,550 ··woodCAD|CAM
··Console table with LED setup aid — the quickest and most ··ServiceBoard* App: Wireless video diagnosis Workpiece thickness (mm) 160
incl. CAD Engine powered
flexible way to equip a table with suction units in real time with the Service Partner with Autodesk Technolgy
··Freely accessible from all sides with no additional fences ··DataSave* (25 weeks free of charge): ··woodCAD
··Convenience package with controls for the main functions Automatic saving of machine data Process add-on
directly on the enclosure and zone scanner for safety ··MMR professional ··woodCAM
··Complete software package for programming and simulation Monitoring for production optimization module for CENTATEQ P series
··Complete software package for programming and simulation *Currently available in the EU and Switzerland (Due to the fast
··Maintenance contract for one year
of the machine (Control+)
pace of the IT-landscape, the compatibility to the tapio platform is
warranted for five years.)
ALL IN – SERVICE
„WarrantyPlus 24“ warranty extension to 24 months
or 5,000 operating hours
··Remote service until 6 p.m. (CET)
··Spare parts (wearing parts excluded)
··Field service incl. travel expenses
··1 inspection incl. travel expenses48 HOMAG Edition25 CNC HOMAG Edition25 CNC 49
More Future. More Technology. Full Service.
CENTATEQ P/E-300 Edition25
Creating your perfect and individual machine with attractive You can count on stable moving gantry design construction
Edition25 equipment. The machines of the CENTATEQ P/E- in connection with proven processing units and components.
300 Edition25 series are all-rounders of CNC-processing: Sturdy and reliable technology – see for yourself.
CLICK CLICK CLICK
BACK TO START FOR BASIC INFO FOR CONTACT
ALL IN – TECHNOLOGY ALL IN – DIGITAL CENTATEQ P-300 EDITION25 woodCAD|CAM
··Equipment package DRIVE5C 12 kW Future with linear ··MachineBoard* App (5 years free of charge): Workpiece length (mm) 4,200 CENTATEQ P-300 Edition25
changer Machine data and status in real time Workpiece width (mm) 1,550 ··woodCAD|CAM
··Also available in an E-300 version with powerEdge gluing ··ServiceBoard* App: Wireless video diagnosis Workpiece thickness (mm) 170
incl. CAD Engine powered
technology in real time with the Service Partner with Autodesk Technolgy
··Console table with LED setup aid — the quickest and most ··DataSave* (25 weeks free of charge): ··woodCAD
flexible way to equip a table with suction units Automatic saving of machine data Process add-on
··Convenience package with controls for the main functions ··MMR professional ··woodCAM
directly on the enclosure and zone scanner for safety Monitoring for production optimization module for CENTATEQ P series
··PC87 machine operation and slot assignment *Currently available in the EU and Switzerland (Due to the fast
··Maintenance contract for one year
··Complete software package for programming and simulation pace of the IT-landscape, the compatibility to the tapio platform is
of the machine (Control+) including PC87 software for
warranted for five years.)
machine operation and slot assignment
ALL IN – SERVICE
„WarrantyPlus 24“ warranty extension to 24 months
or 5,000 operating hours
··Remote service until 6 p.m. (CET)
··Spare parts (wearing parts excluded)
··Field service incl. travel expenses
··1 inspection incl. travel expenses50 HOMAG Edition25 CNC HOMAG Edition25 CNC 51
More Future. More Technology. Full Service.
CENTATEQ P/E-310 Edition25
Operation made easy: Working on a CNC machine has never Access to the table is free, no disturbing fences are required
been so easy and convenient. All of the essential functions to the left and right. Fully implemented bumpers combine
are directly in view and mounted directly on the machine. productivity, security and access to the machine.
Thanks to the large window everything is always in view.
CLICK CLICK CLICK
BACK TO START FOR BASIC INFO FOR CONTACT
ALL IN – TECHNOLOGY ALL IN – DIGITAL CENTATEQ P-310 EDITION25 woodCAD|CAM
··Equipment package DRIVE5C 12 kW Future with linear ··MachineBoard* App (5 years free of charge): Workpiece length (mm) 3,300 | 4,200 | 6,000 CENTATEQ P-310 Edition25
changer Machine data and status in real time
Workpiece width (mm) 1,600 ··woodCAD|CAM
··Also available in an E-310 version with powerEdge gluing ··ServiceBoard* App: Wireless video diagnosis Workpiece thickness (mm) 200
incl. CAD Engine powered
technology in real time with the Service Partner with Autodesk Technolgy
··Console table with LED setup aid — the quickest and most ··DataSave* (25 weeks free of charge): ··woodCAD
flexible way to equip a table with suction units Automatic saving of machine data Process add-on
··Convenience package with controls for the main functions ··MMR professional ··woodCAM
directly on the enclosure and zone scanner for safety Monitoring for production optimization module for CENTATEQ P series
··PC87 machine operation and slot assignment *Currently available in the EU and Switzerland (Due to the fast
··Maintenance contract for one year
··Complete software package for programming and simulation pace of the IT-landscape, the compatibility to the tapio platform is
of the machine (Control+) including PC87 software for
warranted for five years.)
machine operation and slot assignment
ALL IN – SERVICE
„WarrantyPlus 24“ warranty extension to 24 months
or 5,000 operating hours
··Remote service until 6 p.m. (CET)
··Spare parts (wearing parts excluded)
··Field service incl. travel expenses
··1 inspection incl. travel expenses52 HOMAG Edition25 CNC HOMAG Edition25 CNC 53
More Future. More Technology. Full Service.
CENTATEQ P/E-500 Edition25
Your choice in CNC machining for demanding production work. Each of these CNC machines is a complete system,
requirements. Stairs, furniture, windows, doors, interior ensuring maximum performance and efficiency to fulfil your
fittings – the machines in our CENTATEQ P/E-500 Edition25 customers‘ individual requirements. Experience the versatility
series provide you with the optimum equipment for all of your and performance of our systems for yourself.
CLICK CLICK CLICK
BACK TO START FOR BASIC INFO FOR CONTACT
ALL IN – TECHNOLOGY ALL IN – DIGITAL CENTATEQ P/E 500 EDITION25 woodCAD|CAM
··Equipment: DRIVE5C+ 15 kW, 18-slot changer, and drilling ··MachineBoard* App (5 years free of charge): Workpiece length (mm) 3,300 – 7,400 CENTATEQ P-500 Edition25
gear V17H4S 0/90° Machine data and status in real time
Workpiece width (mm) 1,900 ··woodCAD|CAM
··Also available in an E-500 version with powerEdge gluing ··ServiceBoard* App: Wireless video diagnosis Workpiece thickness (mm) 200
incl. CAD Engine powered
technology in real time with the Service Partner with Autodesk Technolgy
··For processing up to 1.900 mm ··DataSave* (25 weeks free of charge): ··woodCAD
··Console table with LED setup aid — the quickest and most Automatic saving of machine data Process add-on
flexible way to equip a table with suction units. ··MMR professional ··woodCAM
··Convenience package with controls for the main functions Monitoring for production optimization module for CENTATEQ P series
directly on the enclosure and zone scanner for safety
*Currently available in the EU and Switzerland (Due to the fast
··Maintenance contract for one year
··Complete software package for programming and simulation pace of the IT-landscape, the compatibility to the tapio platform is
of the machine (Control+)
warranted for five years.)
··PC87 machine operation and slot assignment
ALL IN – SERVICE
„WarrantyPlus 24“ warranty extension to 24 months
or 5,000 operating hours
··Remote service until 6 p.m. (CET)
··Spare parts (wearing parts excluded)
··Field service incl. travel expenses
··1 inspection incl. travel expenses54 HOMAG Edition25 woodCAD|CAM HOMAG Edition25 woodCAD|CAM 55
More Future. More Technology. Full Service.
woodCAD|CAM Edition25
Even shorter delivery times? Increasingly individualized design and manufacture. It must allow changes at any
requests? With the woodCAD|CAM 3D software, you can time, in order to react to new requirements during the
stay flexible and deliver your customers the high quality they process. Based on proven CAD/CAM technology, you can
demand. Because a software solution can best support your achieve a work preparation time saving of up to 70% with
work when it covers everything: Planning and presentation, woodCAD|CAM.
CLICK CLICK CLICK
BACK TO START FOR BASIC INFO FOR CONTACT
Features: woodCAD|CAM woodCAD|CAM woodCAD|CAM
··Simple 3D layout planning due to guided architectural DRILLTEQ V Edition25 CENTATEQ P Edition25 CENTATEQ N Edition25
modules ··woodCAD|CAM ··woodCAD|CAM ··woodCAD|CAM
··Integrated module for photo-realistic presentation allows a incl. CAD Engine powered incl. CAD Engine powered incl. CAD Engine powered
realistic presentation of the room with Autodesk Technolgy with Autodesk Technolgy with Autodesk Technolgy
··Flexible shopping cart and direct calculation of ··woodCAM module for ··Add-On woodCAD Process ··Add-On woodCAD Process
manufacturing costs allow a flexible offer preparation DRILLTEQ V 200 ··woodCAM module for ··woodCAM module für
··Speeded-up 3D design due to furniture-specific assistants ··1 year of maintenance CENTATEQ P CENTATEQ N
··Intelligent fitting technology: intelligent handling using ··1 year of maintenance ··Incl. transfer interface to
connector characteristics and automatic adjustment of SchnittProfi(t)- Nesting
fittings in case of design changes ··1 year of maintenance
··Data generation for production at the push of a button, e.g.
part lists, item lists, CNC-data are automatically generated
and tools are automatically allocatedBenefit now!
Your price advantage!
16.07.-31.05.2019
LINK HOMAG contact person58 HOMAG Edition25 Moulding HOMAG Edition25 Moulding 59
More Future. More Technology. Full Service.
MOULDTEQ M-300 Edition25
Prepared for the future. With the MOULDTEQ M-300 engineering. In this way, you get intuitive machine operation
Edition25 the times of the push buttons are over. The planer and maximum quality in one machine and you will be
combines state-of-the-art technology with solid mechanical optimally prepared for the future.
CLICK CLICK CLICK
BACK TO START FOR BASIC INFO FOR CONTACT
ALL IN – TECHNOLOGY ALL IN – DIGITAL MOULDTEQ M-300 EDITION25
··Windows package for leveling on four sides + detaching and ··MachineBoard* App (5 years free of charge): Workpiece width (mm) 10 – 250
profiling the glass fixing rail Machine data and status in real time
Workpiece thickness (mm) 10 – 160
··Optimum surface quality thanks to variable spindle speed ··ServiceBoard* App Wireless video diagnosis
and feed rate in real time with the Service Partner Workpiece length (mm) 300 without gap / 800 with gap
··High level of precision thanks to solid cast iron stand tool ··DataSave* (25 weeks free of charge) Number of spindles 6
clamping system Automatic saving of machine data
Spindle arrangement Bottom, right, left, top, top,
··Rapid tool changes thanks to ProLock® tool clamping ··MMR professional bottom
system Monitoring for production optimization
··Intuitive user guidance with profile preview and tool database *Currently available in the EU and Switzerland (Due to the fast
Feed speed (m/min) 6 – 24
··Automatic positioning of all relevant spindles for better ease pace of the IT-landscape, the compatibility to the tapio platform is
Speed of trimming tool var. 4,000 – 8,000
of use, more speed and ideal replicability (pro min)
warranted for five years.)
··Each spindle with own motor for a better power transmission
ALL IN – SERVICE
„WarrantyPlus 24“ warranty extension to 24 months
or 5,000 operating hours
··Remote service until 6 p.m. (CET)
··Spare parts (wearing parts excluded)
··Field service incl. travel expenses
··1 inspection incl. travel expenses60 HOMAG Edition25 Sanding HOMAG Edition25 Sanding 61
More Future. More Technology. Full Service.
SANDTEQ W-300 Edition25
Calibration, veneer sanding and lacquer sanding including and fulfil every sanding requirement from calibration to high
high gloss. This series offers an all-round solution for small gloss. Drive outputs of up to 30 kW are available to suit your
and medium-sized carpentry and joinery companies. Choose requirements. This series also features automatic unit locking
from seven sanding units for a configuration to suit you for safety and convenience.
CLICK CLICK CLICK
BACK TO START FOR BASIC INFO FOR CONTACT
ALL IN – TECHNOLOGY ALL IN – DIGITAL SANDTEQ W-300 EDITION25
··All functions combined in one machine: calibration, fine ··MachineBoard* App (5 years free of charge): Number of units 2
sanding, transverse sanding, super-finish, interim polishing Machine data and status in real time
Working width (mm/Inch) 1,350/53"
··Can be used universally for veneer, solid wood, timber ··ServiceBoard* App Wireless video diagnosis
materials, paint in real time with the Service Partner Sanding belt width (mm/Inch) 1,370/54"
··MPS 2.0 plus — the magnetic pressure beam system ··DataSave* (25 weeks free of charge) Sanding belt length (mm/Inch) 2,620/103"
··Patented HOMAG X unit Automatic saving of machine data
Workpiece thickness min. – max. 3 – 160/0,125 – 7"
··MMR professional (mm/Inch)
Monitoring for production optimization
Length (mm) 1,665
*Currently available in the EU and Switzerland (Due to the fast
Width (mm) 2,100
pace of the IT-landscape, the compatibility to the tapio platform is
warranted for five years.) Height (mm) 2,020 - 2,415
Weight approx.(kg) 3,000
ALL IN – SERVICE
„WarrantyPlus 24“ warranty extension to 24 months
or 5,000 operating hours
··Remote service until 6 p.m. (CET)
··Spare parts (wearing parts excluded)
··Field service incl. travel expenses
··1 inspection incl. travel expensesYou can also read
