Lely Aircon 10
Wind turbines
Extremely silent and reliable source
of renewable energy
www.lely.com
innovators in agriculture
Enabling an energy-neutral farming sector In the future, dairy farmers will produce more energy than they actually consume. Lely develops products which are technologically superior and capable of improving the social and financial well-being of its customers without the need for subsidies. In addition to the development of products with a proven long life span and lowest possible energy consumption, Lely strives for complete business concepts that enable energy-neutral operations in the farming sector.
Blending with the landscape Small-scale turbines can easily be integrated in the natural agriculture environment, rural properties and businesses. It is an evolution of the country side as it has been for decades. Mast heights are standardized, from 18, 24 up to 30 meters depending on local surroundings. At direct coastal areas a 15 meter mast maybe sufficient. If crane installation is not possible you may obt for a tilt-up tower. Energy generation and consumption closely connected In the Lely philosophy energy generation and energy consumption must be closely connected. Thus waste is avoided in the most effective way as the environmental loop is closed. Our ancestors have already used this principle, for example using windmills to directly grind grain and pump water. We are happy to facilitate the building permit process and provide the necessary documentation for the planning authorities.
Sleep well
The Lely Aircon 10, being virtually inaudible, represents the quietest turbine in the market place.
The turbine is exceptionally silent, even in wind speeds at rated output (> 10 m/s), enabling it to be
located relatively close to urbanisation.
Noise emission curve at 8 m/s wind speed
Sound power level dB(A)
60
50
40
30
20
10
0
10 30 50 70 90 110 130 150 170 190 210 230 250 270 290 310 320 350 370 390
Slant distance from hub (m)
Energy, day and night
Solar and wind energy are efficient and complementary sources of renewable energy. The robust
design and build quality of the turbine ensures operational availability when the wind is blowing. The
turbines are monitored 24/7 through a client internet application. Unlike solar technology, turbine
efficiency does not decline year on year.
Annual production
60000
Approx. annual production (kWh)
50000
40000
30000
20000
10000
Optimized rotor design for ultra-quite
operation and high efficiency
4 5 6 7 8 9 10 11
Wind/rayleigh distribution (m/s)
LELY aircon
No worries
The turbine leading edge technology is sophisticated and comparable to large utility-scale turbines.
Engineering is superior in control, mechanical and safety attributes. The power electronics synchronizes
and delivers a perfectly controlled wave form to the grid. The turbine is certified according the
Microgeneration Certificate Scheme (MCS) and also to EN 50438 for delivery to the grid. Applications
can be single, split or three phase depending on the local grid. The standard warranty is 5 years and
expected serviceable life is more than 20 years.
The strongest and maintenance
friendliest
Where other suppliers put their efforts in megawatt
installations, Lely opts to innovate continuously in the
small-wind segment. As a result the Lely Aircon turbine
is the strongest and maintenance friendly turbine
available. A yearly inspection and simple greasing does
the job. The turbine withstands most harsh conditions –
it is designed according IEC Type Class II A which means
a survival wind speed of 59,5 m/s.

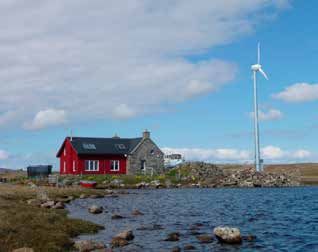

Photo courtesy of Fraser Architecture
LELY AIRCON 10
Rated output (kW) 9,80
Nominal wind speed (m/s) 11
Rotor diameter/area (m/m2) 7,10/39,60
Rotor rotations per minute (rpm) 50-130
Acoustic emission Lp, 60 m (dB(A))* 39,70
Tower height (m)** 10-30
Switching on wind speed (m/s) 3,50
Cut off wind speed (m/s) 25
Survival wind speed (m/s) 59,50
Remote monitoring and diagnostics via the internet S
Hydraulic disk brake, fail safe S
Generator Dynamic Brake S
Active yaw control S
Fully galvanized tower with ladder S
Temperature and vibration sensors for extra protection of the turbine S
Maintenance: yearly visual check and greasing. S
MCS (Micro-generation Certification Scheme) approved S
EN 50438 approved S
Optional control to divert excess energy to water heating O
Optional control to auto stop and re-start when bat flying conditions prevail O
Optional control to auto stop and re-start when shadow flicker conditions prevail O
Tilt-up tower (maximum 18 m) for areas where crane installation is not feasible O
*
Full acoustic report available.
**
The mast height will be chosen depending on local landscape, wind conditions and planning permission.
12
Power output (kW)
10
8
6
4
2
0
4 4,5 5 5,5 6 6,5 7 7,5 8 8,5 9 9,5 10 10,5 11 11,5 12 12,5 13 13,5 14 14,5 15 15,5 16 16,5 17 17,5 18 18,5 19 19,5 20
Hub height – wind speed
