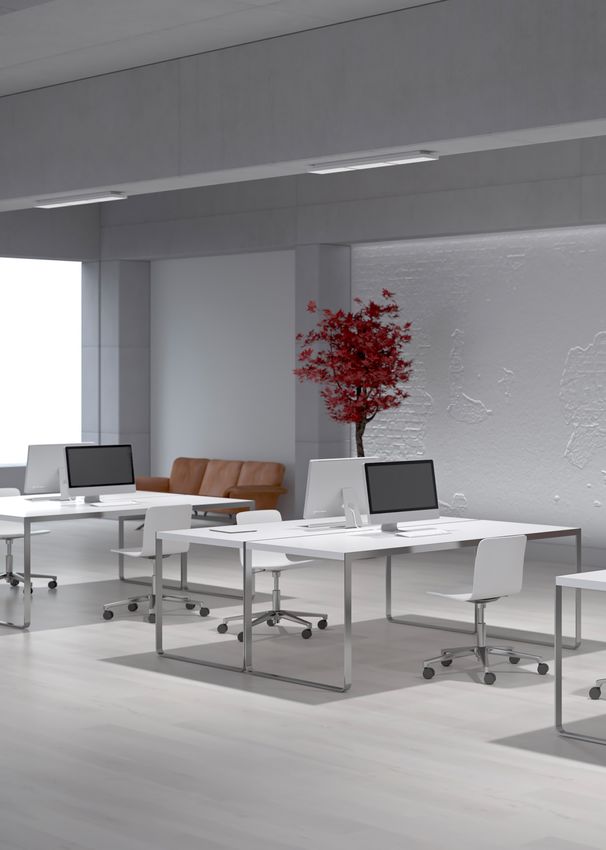

Jilly linear – The versatile light
for modern work
An independent design for effi- efficacy at the same high level.
cient and ergonomic light in The wattage and light distribution
offices enable wide luminaire spacing for
Jilly surface-mounted luminaires economical lighting concepts that
are suitable for the particularly effi- comply to standards. With Jilly sur-
cient, standard-compliant lighting face-mounted luminaires, lighting
of office workplaces – in rooms designers can choose between two
with solid ceilings and also for square sizes and a linear lumin-
uncomplicated modernisation pur- aire. The format and luminous flux
poses. The elegant, flat housing and can thus be adapted to the room
striking anti-dazzle louvres make situation. Many well thought-out
Jilly a design statement that stands details facilitate mounting and
out from conventional office lumin- make installation simple, efficient
aires. Jilly’s lighting technology and safe.
combines a highly efficient lens
system with an anti-dazzle louvre
for visual comfort and luminous
E Technical Region:
220V-240V/50Hz-60Hz
We reserve the right to make technical
Edition: 27.11.2019
Current version under
www.erco.com/jilly-linear-s
2/8
and design changes.
Jilly linear Surface-mounted luminaires Jilly linear Surface-mounted luminaires
4
5
2 Louvres for efficient visual Suitable for office workstations
comfort ERCO develops luminaires with the
A louvre is designed to restrict the specifications of good glare control
view into the luminaire, achieving and high visual comfort. UGR val-
1 efficient visual comfort with an ues are used as support for purely
emission angle of 90°. An anti- norm-referenced lighting. With
3 glare louvre available in black or downlights though this should not
silver enables the luminaire to be carried out using ’blanket’ val-
blend with the material and colour ues, but should be implemented
of the ceiling. according to the individual arrange-
ment of luminaires in the room.
Structure and characteristics 1 ERCO lens system 4 Housing Variants on request
The features described here are typical – Made of optical polymer – White (RAL9002) – Mid-power LEDs: 2700K, 3000K,
of products in this range. Special ver- – Light distributions: extra wide flood – Aluminium profile/polymer, powder- 3500K or 4000K with CRI 92
sions may offer additional or varying or oval wide flood coated – Anti-glare louvre: gold matt, silver
features. A comprehensive description – Ceiling fixture: metal matt, champagne matt or copper
of the features of individual products 2 ERCO LED-module matt-coated and other colours
can be found on our website. – Mid-power LEDs: warm white 5 Control gear – Housing: 10,000 further colours
(3000K) or neutral white (4000K) – Switchable or DALI dimmable Please contact your ERCO consultant.
3 Louvre
– Polymer, black lacquered or alu-
minium vaporised, silver, mirror-
finish
Special characteristics ERCO mid-power LEDs Excellent thermal manage- Switchable
ment
For office workstation light- Efficient lens system EMC-optimised DALI dimmable
ing from UGR 14.0
Design and application: Improved visual comfort Different light colours Easy installation
www.erco.com/jilly-linear-s
E Technical Region:
220V-240V/50Hz-60Hz
We reserve the right to make technical
Edition: 27.11.2019
Current version under
www.erco.com/jilly-linear-s
3/8
E Technical Region:
220V-240V/50Hz-60Hz
We reserve the right to make technical
Edition: 27.11.2019
Current version under
www.erco.com/jilly-linear-s
4/8
and design changes. and design changes.
Jilly linear Surface-mounted luminaires – Luminaire arrangement
Surface-mounted downlights General lighting
Extra wide flood For the uniform illumination of
office workplaces, the luminaire
spacing (d) between two Jilly down-
lights may be up to 1.5 times the
height (h) of the luminaire above
the working plane (rough guide).
Arrangement: d ≤ 1.5 x h
The recommended offset from the
wall is half the luminaire spacing.
Arrangement: a = d / 2
Surface-mounted downlights, General lighting
oval wide flood To achieve high uniformity and
Oval wide flood good facial recognition when
illuminating office workplaces,
the luminaire spacing of Jilly
downlights with oval wide flood
light distribution (d) can be up
to 1.5 times the height (h) of
the luminaire above the working
plane.
Arrangement: d ≤ 1.5 x h
E Technical Region:
220V-240V/50Hz-60Hz
We reserve the right to make technical
Edition: 27.11.2019
Current version under
www.erco.com/jilly-linear-s
5/8
E Technical Region:
220V-240V/50Hz-60Hz
We reserve the right to make technical
Edition: 27.11.2019
Current version under
www.erco.com/jilly-linear-s
6/8
and design changes. and design changes.
Jilly linear Surface-mounted luminaires
Construction size 1106mm
50
121 1106
LED module
Maximum value 36W/6735lm
at 4000K CRI 82
Light colour
2700K CRI 92 * 3500K CRI 92 *
3000K CRI 82 4000K CRI 82
3000K CRI 92 * 4000K CRI 92 *
Light
distribution Surface-mounted Surface-mounted down-
downlights lights oval wide flood
Extra wide flood Oval wide flood
Control
Switchable
DALI
Colour
(housing/louvre) White/Silver 10,000 colours */
Silver
White/Black 10,000 colours */
Black
Accessories * available on request Article numbers and planning data:
