Introduction to Long Term Evolution (LTE) Technology - Scott Johnston Comcast West Division
Introduction to Long Term
Evolution (LTE) Technology

            Scott Johnston
            Comcast West Division

       2013 NW Tech Days and Vendor Show
Introduction to Long Term Evolution (LTE) Technology - Scott Johnston Comcast West Division
Discussion Topics

    1.   Wireless Telephony – A Brief History
    2.   Theory Of Operation – Technical Information
    3.   Introduction To OFDM
    4.   Understanding LTE’s Affect On Our Networks
    5.   High Frequency Ingress And Egress
    6.   Our Affect On LTE Networks
    7.   Troubleshooting LTE interference

2
A Brief History

3
The Cellular Age

    1973 – Motorola produces first production handheld telephone – 30
    minutes of talk time, 10 hours to charge – Dr. Martin Cooper claims
    his vision was inspired by Captain Kirk’s communicator on Star Trek
    1978 – 1G – first generation known as Advanced Mobile Phone
    System (AMPS) launches in America - the service is analog,
    insecure, and can be cloned
    1990 – 2G emerges – CDMA is in use in the United States – SMS
    text messaging becomes widely available – uses circuit switching
    2001 – 3G Networks commercially deploy first by Monet Mobile
    Networks and then by Verizon Wireless – packet switching
    (connectionless) technology
    2007 – 295 million subscribers on 3G networks worldwide
    2008 – US Government auctions off the 700 MHz band – AT&T and
    Verizon win the majority of the spectrum

4
Internet Connectivity and LTE

    2009 – 3G technology is used in MiFi style mobile Internet devices
    2010 – 4G service launches in America
    2013 – LTE Advanced launches in UK – twice as fast as current 4G
    and ten times faster than standard 3G networks -

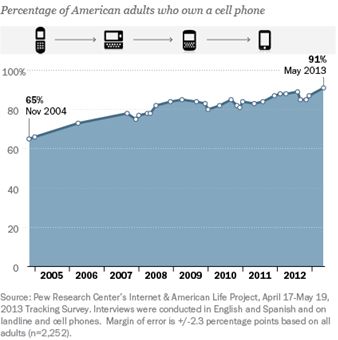

    2013 – 91% of Americans own a cell phone
    Future – Plans include further bandwidth auction allowing LTE
    providers to operate down into the 500 MHz range

5
LTE - Technical Information

    •   LTE Goals – to increase the capacity and speed of wireless
        networks using modern modulation schemes and Internet
        Protocol to reduce latency found in previous cellular standards
    •   LTE Band – 4G networks operate outside of 2G and 3G
        bandwidth – Currently 698-806 MHz (CATV channels 109-123)
    •   LTE Bandwidth – Currently 300Mbits down / 75Mbits up
    •   LTE Downstream uses Orthogonal Frequency Division
        Multiplexing – essentially employing QPSK, 16QAM and 64QAM
        at once
    •   LTE Upstream uses Frequency Division Multiple Access (FDMA)
        where frequency slots are granted to users on QPSK or 16QAM
        channels
    •   Fun Fact – LTE cannot operate when the handset is moving
        faster than 220 MPH

6
Introduction to OFDM

    •   Orthogonal Frequency Division Multiplexing – an advanced
        modulation method capable of delivering more bandwidth with
        less errors
    •   Traditional modulation methods use single carriers to carry
        encoded data

    •   OFDM uses the available spectrum more efficiently transmitting
        many single carriers together

7
Introduction to OFDM (cont…)
    •   Imagine multiple QAMs being transmitted at once “on top” of each
        other

    •   High speed wireless N routers have been using this technology
        for several years - also known as MIMO (multiple in multiple out)
    •   DOCSIS 3.1 will rely on Orthogonal Frequency Division
        Multiplexing to increase capacity compared to traditional channel
        bonding – up to 10Gbps/1Gbps
8
LTE’s Affect On Our Networks
    •   Off-air LTE interference can impact downstream performance in
        several frequency ranges
         • Verizon uses 746-756 MHz for downlink, 777-787 MHz for
           uplink
         • AT&T uses 734-746 MHz for downlink, 704-716 MHz for uplink

    •   Ingress affected CATV channels
         • 109-111, 114-118, 121-123

    •   The effects of LTE ingress can vary based on several factors
         • Distance from LTE cell towers
         • Atmospheric conditions – RF travels farther in the air at night
         • Downlink or Uplink interference? – from the phone or tower?
         • LTE network utilization and OFDM signal power distribution
         • In-home wiring issues in close proximity to LTE use
9
High Frequency Ingress And Egress
     •   Cable is intended to be a closed system however we know off-air
         ingress is a continuous issue in our outside plant and the
         customer premise
          • Often times if there is signal ingress there is also some sort of
             egress
     •   There is a large disconnect between low frequency FCC
         compliance leakage detection and high frequency LTE band
         interference
          • Much of our FCC compliance leakage can be found in the
             customer premise
          • New data provided by Arcom shows that much of the LTE
             band egress comes directly from the cable plant and cannot be
             detected with a standard U/VHF band leakage detector

                    Image courtesy of Arcom Digital
10
High Frequency Ingress And Egress
                 •   In this photo example you can see the
                     FCC U/VHF band Sniffer Sleuth
                     reading 8uV/Meter

                 •   The Arcom Snare is detecting a
                     5500uV/M digital leak in the LTE band

                 •   LTE providers have a keen interest in
                     protecting their frequency bands and
                     have been known to contact cable
                     operators to advise them of LTE band
                     signal leakage

11
Our Affect on LTE Networks
     •   High frequency RF energy can affect LTE cell sites and
         customers near the point of egress

     •   Often times the RF being radiated by our plant is high-level since
         we tilt the outputs of our amplifiers

     •   Unless we are actively monitoring with high frequency digital
         leakage gear we may be totally unaware of the problem we are
         causing for LTE operators

     •   LTE operators have equipment to determine the source of our
         leaks and are ready and willing to advise us of our problems if
         and when our leakage affects LTE services

     •   If LTE band signal leakage is affecting LTE operators the problem
         causing it is most likely affecting our customers too!
12
Troubleshooting LTE Interference
     •   Traditional troubleshooting methods we’re already familiar with
         work here
          • Divide and conquer method
          • Test drop
          • FCC signal leakage detection – not always effective
          • MER/BER/Constellation measurements in known off-air
            ingress bands (~698-806 MHz)
          • Handheld spectrum analyzer detection

     •   There are more advanced methods available as well
          • Arcom QAM Snare Digital Leakage handheld
             • The Snare is a complete solution that essentially samples
                the forward coming out of the head-end while the
                “Navigator” in the vehicle looks for the head-end sample
          • Trilithic Seeker D – truck mounted high-frequency digital
            leakage gear – integrates into existing LAW platform
13
Troubleshooting LTE Interference
     •   Rohde & Schwarz handheld analyzer
          • High-end spectrum analyzer – manual detection with external
            antenna – best when LTE operators report known signal
            leakage to the MSO

     •   Full Band Capture tools
          • Broadcom’s BCM3383 chipset contains a full 1GHz spectrum
            analyzer
          • MSO’s are busy writing software to decode FBC chipsets
              • Comcast has Spectra
              • Other MSO’s are not far behind
          • These software applications will undoubtedly become
            automated to some degree in the future leading us closer to
            affected areas

14
Questions?
