Installation, Operation & Maintenance Manual Energy Storage System (ESS) Storion-SMILE5 (AU) - V02 - AlphaESS
Installation, Operation & Maintenance

              Manual

   Energy Storage System (ESS)

        Storion-SMILE5 (AU)

                                 V02
Installation, Operation & Maintenance Manual Energy Storage System (ESS) Storion-SMILE5 (AU) - V02 - AlphaESS
Installation, Operation & Maintenance Manual Energy Storage System (ESS) Storion-SMILE5 (AU) - V02 - AlphaESS
Introduction            Your Smart Energy

IMPRINT

Germany
Alpha ESS Europe GmbH
Tel.:    +49 (0)6103 459 160-1
E-mail: europe@alpha-ess.de
Web: www.alpha-ess.de
Add: Paul-Ehrlich-Straße 1a
63225 Langen

China
Alpha ESS Co., Ltd.
Tel.: +86 (0)513 806 868 91
E-mail: info@alpha-ess.com
Web: www.alpha-ess.com
Add: JiuHua Road 888, High-Tech Industrial Development Zone
226300 Nantong City, Jiangsu Province

Australia
Alpha ESS Australia Pty. Ltd.
Tel.: +61 1300 968 933
E-mail: australia@alpha-ess.com
Web: www.alpha-ess.com.au
Add: Suite 1, Level 1, 530 Botany Road, Alexandria, NSW, 2015

Italy
Alpha ESS Italy S.r.l.
Tel.: +39 (0)599 239 50
E-mail: info@alpha-ess.it
Web: https://it.alpha-ess.com/
Add: Via Loda,17-41013 Castelfranco Emilia (MO)

Step. 25th 2019

___________________________________________________________________
                                        Alpha ESS Co., Ltd.
                                                                                Page 1
Installation, Operation & Maintenance Manual Energy Storage System (ESS) Storion-SMILE5 (AU) - V02 - AlphaESS
Your Smart Energy                             Introduction

  Copyright Statement

  This manual is under the copyright of Alpha ESS Co., Ltd. with all rights reserved. Please keep the
  manual properly and operate in strict accordance with all safety and operating instructions in this
  manual. Please do not operate the system before reading through the manual.

  Version Information

   Version         Date               Content

                                      Notes are added for better overview purposes. RJ45
   V1.6            02022018
                                      connecting diagram was updated.

                                      Figures changed after firmware version update.
   V1.7            06032018           Figures and installation steps changed after new pre-wired
                                      cable configuration in CB.

   V1.72           14052018           Package parts list modified. Power definition modified.
                                      ADL3000 3-phase connection added.

                                      Daily maintenance content added, installation environment
   V1.74           22092018           requirements and parameters in DS. EMS display indication
                                      modified.

   V1.76           05112018           Differentiation of outdoor and indoor versions.

   V02             25092019           Off-grid application removed; two wirings in the inverter
                                      reduced; ACR meter connection added; color of the inverter
                                      display light modified; new version of the cover drawing
                                      added;
                                      Australian standard split machine wiring modified

  ___________________________________________________________________
                                            Alpha ESS Co., Ltd.
  Page 2
Installation, Operation & Maintenance Manual Energy Storage System (ESS) Storion-SMILE5 (AU) - V02 - AlphaESS
Introduction                                    Your Smart Energy

Content

IMPRINT ................................................................................................................................................. 1
Copyright Statement ............................................................................................................................ 2
Version Information .............................................................................................................................. 2
Content .................................................................................................................................................. 3
    Introduction ...................................................................................................................................... 5
    1.1 System Introduction ................................................................................................................ 5
    1.2 Safety Introduction .................................................................................................................. 6
    1.3 Battery Safety Datasheet......................................................................................................... 8
    1.4 General Precautions ................................................................................................................ 8
    1.5 Parts List................................................................................................................................... 9
    1.6 System Appearance............................................................................................................... 11
    1.7 Liability Limitation ................................................................................................................. 13
    Installation ...................................................................................................................................... 14
    2.1 Installation Site and Environment ........................................................................................ 14
    2.2 Installation .............................................................................................................................. 15
    2.3 Power Meter Wiring ............................................................................................................... 31
    System Operation .......................................................................................................................... 42
    3.1 Switch on ................................................................................................................................ 42
    3.2 Switch off ................................................................................................................................ 42
    3.3 Emergency Procedure ........................................................................................................... 43
    EMS Introduction and Set up ....................................................................................................... 44
    4.1 Function Description ............................................................................................................. 44
    4.2 Introduction ............................................................................................................................ 45
    Online Monitoring .......................................................................................................................... 52
    5.1 System Setup in Monitoring ................................................................................................. 53
    Routine Maintenance .................................................................................................................... 54
    6.1 Maintenance Plan................................................................................................................... 54
    6.2 Notes ....................................................................................................................................... 54

___________________________________________________________________
                                                                Alpha ESS Co., Ltd.
                                                                                                                                                  Page 3
Installation, Operation & Maintenance Manual Energy Storage System (ESS) Storion-SMILE5 (AU) - V02 - AlphaESS
Installation, Operation & Maintenance Manual Energy Storage System (ESS) Storion-SMILE5 (AU) - V02 - AlphaESS
Introduction                   Your Smart Energy

     Introduction

1.1 System Introduction
AlphaESS Storion-SMILE5 (incl. SMILE5-BAT and SMILE-INV) can be applied in DC-coupled systems
(mostly new installation), AC-coupled systems (mostly retrofit) and Hybrid-coupled systems (mostly
retrofit, and PV capacity-increase), as the following schemes show:

                           Figure 1 DC - Coupled Storage System – Scheme

                           Figure 2 AC - Coupled Storage System – Scheme

___________________________________________________________________
                                        Alpha ESS Co., Ltd.
                                                                                           Page 5
Installation, Operation & Maintenance Manual Energy Storage System (ESS) Storion-SMILE5 (AU) - V02 - AlphaESS
Your Smart Energy                              Introduction

                              Figure 3 Hybrid - Coupled Storage System – Scheme

      CAUTION:
  For the AC-/ Hybrid-coupled system, unlike DC, two power meters are to be mounted.
  SMILE5 cannot be used in pure off-grid systems!

  1.2 Safety Introduction
  1.2.1       Manual keeping
  This manual contains important information about operating the system. Before operating, please read
  it very carefully.
  The system should be operated in strict accordance with the description in the manual, otherwise it
  can cause damages or loss to equipment, personnel and property.
  This manual should be kept carefully for maintenance and reparation.

  1.2.2       Operator Requirements
  The operators should get a professional qualification, or trained.
  The operators should be familiar with the whole storage system, including compositions and working
  principles of the system.
  The operators should be familiar with the Product Instruction.
  While maintaining, the maintainer is not allowed to operate any equipment until all the equipment has
  been turned off and fully discharged.

  1.2.3       Protection of Warning Sign
  The warning signs contain important information for the system to operate safely, and it is strictly
  prohibited to torn or damage them. Ensure that the warning signs are always read-able and correct
  placed. The signs must be replaced immediately when damaged.

  ___________________________________________________________________
                                             Alpha ESS Co., Ltd.
  Page 6
Introduction                    Your Smart Energy

                    This sign indicates a hazardous situation which, if not avoided, could result in
                    death or serious injury!

                    This sign shows danger of high voltage and electric shock!

                    The Storion SMILE5 must not be touched or put into service until 5 minutes after
                    it has been switched off or disconnected to prevent an electric shock or injury.

                    This sign shows danger of hot surface!

                    Refer to the operating instructions.

1.2.4        Setting of Warning Sign for Safety
During instruction, maintenance and repair, follow the instructions below to prevent non-specialist
personnel from causing misuse or accident:
        •   Obvious signs should be placed at front switch and rear-level switch to prevent accidents
            caused by false switching.
        •   Warning signs or tapes should be set near operating areas.
        •   The system must be reinstalled after maintenance or operation.

1.2.5        Measuring Equipment
For ensuring the electrical parameters to match requirements, related measuring equipment are
required when the system is being connected or tested.
Ensure that the connection and use matched specification to prevent electric arcs or shocks.

1.2.6        Moisture Protection
It is very likely that moisture may cause damages to the system.
Repair or maintaining activities in wet weather should be avoided or limited.

1.2.7        Operation After Power Failure
The battery system is part of the energy storage system and stores life-threatening high voltage even
when the DC side is switched off. Touching the battery outlets is strictly prohibited. The inverter can
keep a life-threatening voltage even after disconnecting it from the DC and / or AC side. Therefore, for
safety reasons, it must be tested with a properly calibrated voltage tester before an installer works on
the equipment..

___________________________________________________________________
                                           Alpha ESS Co., Ltd.
                                                                                                  Page 7
Your Smart Energy                              Introduction

  1.3 Battery Safety Datasheet
  1.3.1       Hazard Information
  Classification of the hazardous chemical
  Exempt from classification according to Australian WHS regulations.

  Other hazards
  This product is a Lithium Iron Phosphate Battery with certified compliance under the UN
  Recommendations on Transport of Dangerous Goods, Manual of Tests and Criteria, Part III, sub-
  section 38.3. For the battery cell, chemical materials are stored in a hermetically sealed metal case,
  designed to withstand temperatures and pressures encountered during normal use. As a result, during
  normal use, there is no physical danger of ignition or explosion and chemical danger of hazardous
  materials' leakage. However, if exposed to a fire, added mechanical shocks, decomposed, added
  electric stress by misuse, the gas release vent will be operated. The battery cell case will be breached
  at the extreme. Hazardous materials may be released. Moreover, if heated strongly by the surrounding
  fire, acrid or harmful fume may be emitted.

  1.3.2       Safety Datasheet
  For detailed information please refer to the provided battery safety datasheet.

  1.4 General Precautions

           DANGER
   Danger to life due to high voltages of the PV array, battery and electric shock.
   When exposed to sunlight, the PV array generates dangerous DC voltage which will be present in
   the DC conductors and the live components of the inverter. Touching the DC conductors or the live
   components can lead to lethal electric shocks. If you disconnect the DC connectors from the system
   under load, an electric arc may occur leading to electric shock and burns.
        Ø    Do not touch uninsulated cable ends.
        Ø    Do not touch the DC conductors.
        Ø    Do not open the inverter and battery.
        Ø    Do not wipe the system with damp cloth.
        Ø    Have the system installed and commissioned by qualified people with the appropriate
             skills only.
        Ø    Prior to performing any work on the inverter or the battery pack, disconnect the inverter
             from all voltage sources as described in this document.

  ___________________________________________________________________
                                             Alpha ESS Co., Ltd.
  Page 8
Introduction                      Your Smart Energy

       WARNING
 Risk of chemical burns from electrolyte or toxic gases.
 During standard operation, no electrolyte shall leak from the battery pack and no toxic gases shall
 form. Despite careful construction, if the Battery Pack is damaged or a fault occurs, it is possible
 that electrolyte may be leaked or toxic gases formed.
      Ø    Do not install the system in any environment of temperature below -10°C or over 50°C and
           in which humidity is over 85%.
      Ø    Do not touch the system with wet hands.
      Ø    Do not put any heavy objects on top of the system.
      Ø    Do not damage the system with sharp objects.
      Ø    Do not install or operate the system in potentially explosive atmospheres or areas of high
           humidity.
      Ø    Do not mount the inverter and the battery pack in areas containing highly flammable
           materials or gases.
      Ø    If moisture has penetrated the system (e.g. due to a damaged enclosure), do not install or
           operate the system.
      Ø    Do not move the system when it is already connected with battery modules.
      Ø    Secure the system to prevent tipping with restraining straps in your vehicle.
      Ø    The transportation of AlphaESS Storion-SMILE5 must be made by the manufacturer or an
           instructed personal. These instructions shall be recorded and repeated.
      Ø    A certified ABC fire extinguisher with minimum capacity of 2kg must be carried along
           when transporting.
      Ø    It is totally prohibited to smoke in the vehicle as well as close to the vehicle when loading
           and unloading.
      Ø    For the exchange of a battery module, please request for new hazardous goods
           packaging if needed, pack it and let it be picked up by the suppliers.
      Ø    In case of contact with electrolyte, rinse the affected areas immediately with water and
           consult a doctor without delay.

       CAUTION:
 Risk of injury through lifting or dropping the system.
 The inverter and battery are heavy. There is risk of injury if the inverter or battery is lifted incorrectly
 or dropped during transport or when attaching to or removing from the wall.
      Ø    Lifting and transporting the inverter and battery must be carried out by more than 2
           people.

1.5 Parts List
Check the following parts list to ensure it is complete.
AlphaESS delivers a total system separately on site to client, this consists of:

___________________________________________________________________
                                             Alpha ESS Co., Ltd.
                                                                                                        Page 9
Your Smart Energy                             Introduction

                                                SMILE5-INV

                                                                         1x Mounting        10x M6
   8x φ8*60      2x M4 Nuts     4x M6 Nuts         1x Mounting Panel
                                                                           Bracket          Gasket

                   Two AC
                                              1x Meter                        1x
                 Connectors                                                                 1x User
    2x MC4                          (1x SM60A or 1x ADL3000 or 1x         Installation
                 for grid and                                                               Manual
                                             ACR10R)                        Manual
                   backup

                                               SMILE5-BAT

       6xφ8*60             6x M5*10             6x M4*10                2x Mounting Panel

                        2x Power Cable
    6x M6 Gasket                           1x User Manual          Battery Communication Cable
                        (1 black, 1 red)

  ___________________________________________________________________
                                             Alpha ESS Co., Ltd.
  Page 10
Introduction                    Your Smart Energy

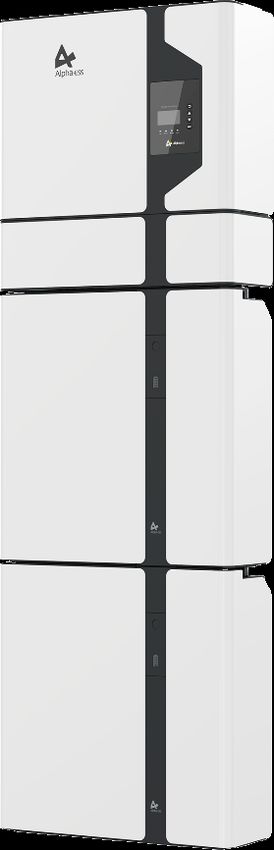

                            1.6 System Appearance
Total height about 182 cm

                                                 Figure 4 Storion-SMILE5 Delivery Scope

                                      Object     Description

                                        1        Hybrid Inverter

                                        2        EMS Display Screen

                                        3        Cable Box (connected to Inverter)

                                        4        SMILE5-BAT (Battery 1)

                                        5        SMILE5-BAT (Battery 2)

                            ___________________________________________________________________
                                                          Alpha ESS Co., Ltd.
                                                                                                          Page 11
Your Smart Energy                            Introduction

  1.6.1       Cable Box Part

                        Figure 5 Inverter without Cable Box Covers– Front View

                           Figure 6 Cable Box Part without Covers – Front View

      Item         Description                            Item          Description
   Dry Contact
                 External Device Control Interface        USB          USB Debug Communication Port
      Relay

       INV       Inverter Debug Communication            DRMS               Power Dispatching Port

      Meter         Meter Communication Port              LAN              Net Wire Connection Port

                                                                           External Expansion Port
      BMS          Battery Communication Port             CAN
                                                                         Or External Dispatching Port

  ___________________________________________________________________
                                           Alpha ESS Co., Ltd.
  Page 12
Introduction                    Your Smart Energy

  Figure 7 Cable Box Part without Covers - Bottom View

                                                          Figure 8 Cable Box Part without Covers -
                                                                           left View

      Object             Description                       Item           Description

     PV1, PV2            PV Connector                      GRID           Terminal Board Grid

                         Battery Connector                             Terminal Board Backup
   BAT +, BAT -                                          BACKUP
                                                                                Load

1.7 Liability Limitation
Any product damage or property loss caused by the following conditions AlphaESS does not assume
any direct or indirect liability.
      •   Product modified, design changed or parts replaced without AlphaESS authorization;
      •   Changes, or attempted repairs and erasing of series number or seals by non AlphaESS
          technician;
      •   System design and installation are not in compliance with standards and regulations;
      •   Failure to comply with the local safety regulations (VDE for DE, SAA for AU);
      •   Transport damage (including painting scratch caused by rubbing inside packaging during
          shipping). A claim should be made directly to shipping or insurance company in this case
          as soon as the container/packaging is unloaded and such damage is identified;
      •   Failure to follow any/all of the user manual, the installation guide and the maintenance
          regulations;
      •   Improper use or misuse of the device;
      •   Insufficient ventilation of the device;
      •   The maintenance procedures relating to the product have not been followed to an
          acceptable standard;
      •   Force majeure (violent or stormy weather, lightning, overvoltage, fire etc.);
      •   Damages caused by any external factors.

___________________________________________________________________
                                          Alpha ESS Co., Ltd.
                                                                                                 Page 13
Your Smart Energy                                Installation

        Installation
  This Manual introduces the basic steps how to install and set up AlphaESS Storion-SMILE5.
  SMILE5-BAT is a sealed component with no access to battery terminals or cell components within the
  module.
  SMILE5-BAT contains a Bi-pole DC isolator, which conforms to IEC 60947. It has been operated in all
  live conductors

     NOTE: please pay attention for unpacking the battery, otherwise components could be
  damaged.

  2.1 Installation Site and Environment
  2.1.1         General
  This SMILE5 energy storage system is outdoor version and can be installed in an outdoor or an indoor
  location.
  When SMILE5 systems are installed in a room, SMILE5 must not be hampered by the structure of the
  building, the furnishings and equipment of the room.
  The Storion SMILE5 is naturally ventilated. The location should therefore be clean, dry and adequately
  ventilated. The mounting location must allow free access to the unit for installation and maintenance
  purposes, and the system panels must not be blocked.
  The following location are not allowed for installation:
          •    habitable rooms;
          •    ceiling cavities or wall cavities;
          •    on roofs that are not specifically considered suitable;
          •    access / exit areas or under stairs / access walkways;
          •    where the freezing point can be reached, such as garages, carports or other places as well
               as wet rooms (environmental category 2);
          •    locations with humidity and condensation over 85%;
          •    places where salty and humid air can penetrate;
          •    seismic areas - additional security measures are required;
          •    sites higher than 3000 meters above sea level;
          •    places with an explosive atmosphere;
          •    locations with direct sunlight or a large change in the ambient temperature;
          •    places with flammable materials or gases or an explosive atmosphere.

  2.1.2         Restricted Locations
  The SMILE5 shall not be installed —
  (a)       in restricted locations as defined for panels in AS / NZS 3000;
  (b)    within 600 mm of any heat source, such as hot water unit, gas heater, air conditioning unit or
  any other appliance.
  (c)       within 600 mm of any exit;
  (d)       within 600 mm of any window or ventilation opening;
  (e)       within 900 mm of access to 240 Vac connections; and
  (f)       within 600 mm of side of other device.

  ___________________________________________________________________
                                               Alpha ESS Co., Ltd.
  Page 14
Installation                    Your Smart Energy

A SMILE5 installed in any corridor, hallway, lobby or the like and leading to an emergency exit shall
ensure sufficient clearance for safe egress of at least 1 meter.
The SMILE5 must also not be installed in potentially explosive atmospheres for gas cylinders that are
heavier than air gases and have a vent clamp in accordance with AS / NZS 3000.

2.1.3       Barrier to habitable rooms
To protect against the spread of fire in living spaces where the SMILE5 is mounted or on surfaces of a
wall or structure in living spaces with a SMILE5 on the other side, the wall or structure shall have a
suitable non-combustible barrier. If the mounting surface itself is not made of a suitable non-
combustible material, a non-combustible barrier can be placed between the SMILE5 and the surface
of a wall or structure.
If the SMILE5 is mounted at a wall or at a distance of 300 mm from the wall or structure separating it
from the habitable space, the distances to other structures or objects must be increased. The following
distances must then remain free:

 (i)     600 mm beside the SMILE5;
 (ii)    1200 mm above the SMILE5; and
 (iii)   600 mm before the SMILE5.
 If the distance between the Storion SMILE5 and
 the ceiling or any object above the system is
 less than 1200 mm, the ceiling or structural
 surface above the system must be made of non-
 combustible material within a radius of 600 mm
 around the system.
 The SMILE5 must be mounted so that the
 highest point is not more than 2.2 m above the
 ground or the platform.

                                                           Figure 9 Limit Distance of Installation to
                                                                      Neighboring Objects

2.2 Installation

                           Figure 10 Unpacking the inverter and battery

 Step 1: Remove the battery and inverter from the packaging box.

___________________________________________________________________
                                           Alpha ESS Co., Ltd.
                                                                                                    Page 15
Your Smart Energy                                   Installation

  2.2.1       Battery Installation

                                        Communication
                                         wiring baffle

      Figure 11 Battery with Lid off - Front View          Figure 12 Battery with Lid off – Side View

   Step 2: Open the front cover of the battery and remove the communication wiring
   cover (each battery has such a cover on the left and right sides of the case.). Set the
   covers aside and close the case.

       NOTE: The front cover of the battery should not be opened more than 90°

                                                                         Battery Cover

                                                                                              Positive Connector

                                                                                              Negative
                                                                                              Connector

                           Figure 13 Disassembly Diagram of Battery Top Cover

   Step 3: If you use more than 1 battery module, they must be interconnected. For all
   other battery modules (battery modules 2-6) you will have to remove the top cover
   (with 2 batteries you must remove the cover of one battery, with 3 batteries the
   covers of 2 batteries, with 4 batteries the covers of 3 batteries etc.) For the new
   version battery please connect the power cables directly.

  ___________________________________________________________________
                                               Alpha ESS Co., Ltd.
  Page 16
Installation                      Your Smart Energy

                     Figure 14 Battery power cable installation diagram

Step 4: Close the battery front cover and connect the power cable at the top, which
are included in the parts list of SMILE5-BAT

                                                                              M5*10 Screws

                         Figure 15 Assemble Battery Mounting Panel

Step 5: Assemble the battery mounting panel on the battery.

___________________________________________________________________
                                       Alpha ESS Co., Ltd.
                                                                                          Page 17
Your Smart Energy                               Installation

                                        Debris Baffle, drill φ8, depth about 70 mm

                               Figure 16 Battery Installation - Drill Holes

   Step 6: Position the battery parallel to the wall and use a Φ8mm drill to drill holes at a
   depth of about 70mm in the wall for subsequent fixation of the mounting plates.

        NOTE: Place a cover (paper, foil, etc.) over the battery while drilling into the wall to
   protect it from dust. In addition, at the place of installation, the slope of the ground on a
   horizontal plane may not exceed 3°.

                                                                                 M6 Gasket
                                                          φ8*60

                         Figure 17 Battery Installation – Mounting on the Wall

   Step 7: Remove the debris baffle and secure the battery to the wall with screws and

  ___________________________________________________________________
                                             Alpha ESS Co., Ltd.
  Page 18
Installation                     Your Smart Energy

gaskets..

                  Figure 18 Battery Installation – Second Battery Installation

Step 8: To assemble the second (and all other) battery, repeat steps 6 and 7,
respectively.

                        Figure 19 Inverter Mounting Panel Installation

Step 9: Remove the inverter mounting plate and bracket and connect them using the
M4 nuts as shown above. Check carefully if everything is tight.

___________________________________________________________________
                                        Alpha ESS Co., Ltd.
                                                                                          Page 19
Your Smart Energy                            Installation

                                                                                  M6 Nuts

                      Figure 20 Inverter Installation - Inverter Mounting Panel

   Step 10: Drill the corresponding holes into the wall with a drill and fix the inverter
   mounting plate with screws on the wall and with the M6 nuts to the mounting plate of
   the battery. The battery assembly is now complete.

  2.2.2      Inverter Installation
   Step 11: Please make AC cables on site.
   Step 12-1: Please follow the AC cable requirements below.

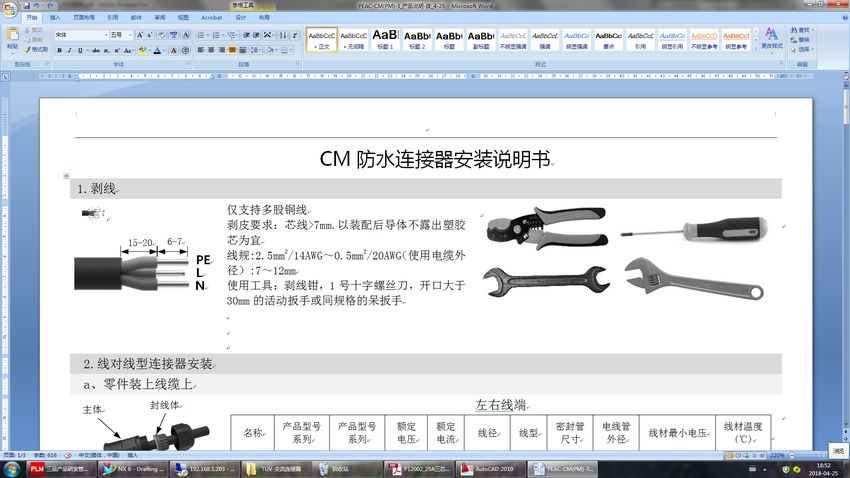

   For backup AC cables the stripping method is as following:

                             Strip the insulation sheath of the three-core AC cable for about.
                             30mm. Strip L, N and PE cables for 6-7mm respectively.

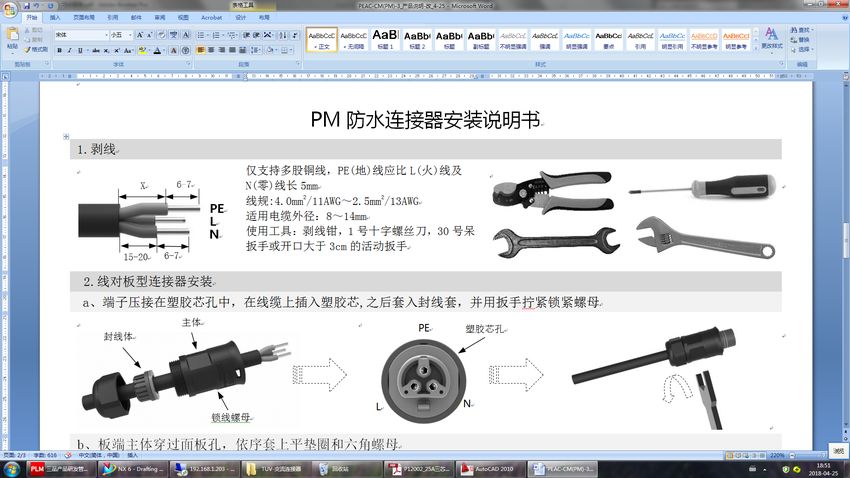

   For grid AC cables the stripping method is as following:

                             Strip the insulation sheath of the three-core AC cablefor about
                             35mm. Cut L and N cable for 5mm. Strip L, N and PE cables 6-
                             7mm for respectively to make sure X-length is 5mm longer than Y-
                             length of L/ N cable.

            Y

  ___________________________________________________________________
                                           Alpha ESS Co., Ltd.
  Page 20
Installation                     Your Smart Energy

           Object                 Description                               Value

              A                External diameter                       8 mm to 14 mm

              B            Conductor cross-section                     2.5 mm² to 4 mm²
                        Stripping length of the insulated
              C                                                         approx.6.5mm
                                   conductors
                                                                 approx. 30 mm (Backup)
                          Stripping length of the outer
              D                                                approx.30mm (Grid L and N)
                            sheath of the AC cable
                                                                 approx.35mm (Grid PE)

   Step 11-2: Assemble the AC connector and connect the conductor to the AC
   connector
   Step 11-3: Ensure that all conductors are securely connected to the AC connector.
   Step 11-4: Plug the AC connector into the jack for the AC connection.
   a. Parts are equipped with cables

                                           Sealing body
                                 Main part

                                                            Lock nut

   b. Crimp the wire according to the position shown, tighten the screw torque0.8±
   0.1N·m.
                  PE
                                                                                    Line male
                                                Insert the cables into
                                                the corresponding
                                                Pin holes and tighten
                  L                             the screws with the
                                                screwdrivers.
Male              N           Female

 c. The plastic core is screwed into the body

 ___________________________________________________________________
                                             Alpha ESS Co., Ltd.
                                                                                                Page 21
Your Smart Energy                             Installation

                Female

                                              Screw the
                                              body onto
                                              the plastic
                                              core                                                  Female

  d. Put the sealing body into the main body groove, and then tighten the lock nut to the main body with
  a wrench. Torque 2.0±0.3 N·m

                                                                                                  Female

                                           Put the sealing
                                           body into the
                                           main body and
                                           lock the lock nut
                                           with a wrench

                            Figure 21 Cable Box Bottom View, Wiring Connectors

  Step 11-5: Connect the Backup and Grid cables in advance according to the connector mode, and
  connect them to the Backup and Grid board connectors in turn.

  ___________________________________________________________________
                                            Alpha ESS Co., Ltd.
  Page 22
Installation                       Your Smart Energy

                        Figure 22 Communication interface of the inverter

Step 12: Take out the communication cable set provided in the accessory parts of one SMILE5-BAT,
cut off one end and crimp a new RJ45 connector. If there are two batteries, you only need to remake
one of battery communication cable on site.

___________________________________________________________________
                                         Alpha ESS Co., Ltd.
                                                                                             Page 23
Your Smart Energy                           Installation

                                  Figure 23 Network Cable Type B

        NOTE: The communication cable is in type B, see Figure 23. Leave the power cables
    and communication cables hang on the outside. Leave the device aside.

                            Figure 24 Inverter Installation on the Wall

   Step 13: Hang the inverter onto the mounting panels, adjust the entire system and
   ensure that the battery and the inverter have been securely hung onto the panels and
   brackets.

  ___________________________________________________________________
                                          Alpha ESS Co., Ltd.
  Page 24
Installation                  Your Smart Energy

                        Figure 25 Wiring the Communication Cable

Step 14: Connect the BAT communication cable of the cable box from Step 12 to the
topmost battery at the right side. Then use the communication cable supplied with
the batteries to connect the batteries to each other via the respective connectors on
the left side. After you have connected all the modules together, close all covers (if
you want to connect further battery modules, you must mount them before closing).

                          Figure 26 Wiring the Battry Power Cable

Step 15: Connect the power cables of the bottom battery from Step 4 to the side
terminals of the top battery. Make sure that red connects to red and black connects to
black.

___________________________________________________________________
                                      Alpha ESS Co., Ltd.
                                                                                         Page 25
Your Smart Energy                           Installation

                        Figure 27 Wiring the Power Cable of the Cable Box

   Step 16: Connect the power cable of the top battery from Step 4 to the terminals of
   the cable box. Make sure that red connects to red and black connects to black.

  ___________________________________________________________________
                                         Alpha ESS Co., Ltd.
  Page 26
Installation            Your Smart Energy

                                                                                       4*MC4

                                      Figure 28 PV Wiring

Step 17: Close the battery covers and connect the PV-MC4 connectors to the system
(connection on both sides). Also, connect all AC cables, the meter communications
cable METER, and the Ethernet cable LAN. Then close the cable box cover.
The installation is now complete.

    NOTE: the RCD unit must be installed. A 100mA RCD device is recommended.

                                    Figure 29 DIP Operation

Step 18: Open the front cover of the last battery and remove the DIP cover. Now set
the DIP switch 2 to "on" mode and close the cover again.

___________________________________________________________________
                                        Alpha ESS Co., Ltd.
                                                                                      Page 27
Your Smart Energy                             Installation

   1. If there is only one BAT, the DIP switch of this BAT must be set following:
              Battery
                            DIP 1         DIP 2          DIP 3           DIP 4   DIP Switch
             Position.

             Battery        OFF            ON            OFF             OFF

   2. If there are two or more than two BATs, the DIP switch of the BATs must be set
   following:
              Battery
                            DIP 1         DIP 2          DIP 3           DIP 4   DIP Switch
             Position.

            Non-bottom
                            OFF           OFF            OFF             OFF
              battery

        Bottom battery      OFF            ON            OFF             OFF

       NOTE: The DIP setting is only changed on the last battery.
   If you connect more than 2 battery modules to the system, please only install the
   additional batteries 3-6 on the side of the system. You can connect up to 6 batteries, 2
   each mounted on top of each other, to the SMILE 5.
   To do this, carry out the individual installation steps as for the first two batteries,
   including the DIP setting on the last module.

                                Figure 30 Increase the Battery Modules

  ___________________________________________________________________
                                            Alpha ESS Co., Ltd.
  Page 28
Installation                Your Smart Energy

    NOTE: Recommended AC circuit breaker rating is 32A.

    NOTE: Installer in Australia or New Zealand must install external cuicult breaker or
switch for PV, backup and grid side.

    NOTE: In Australia and New Zealand, the neutral of backup and grid circuit should
be externally connected on the neutral bar.

2.2.3 Single Line Diagram
The single line diagrams of DC-, AC- and Hybrid-coupled system are as below:

                                Figure 31 DC-coupled system

___________________________________________________________________
                                      Alpha ESS Co., Ltd.
                                                                                           Page 29
Your Smart Energy                  Installation

                         Figure 32 AC-coupled system

                        Figure 33 Hybrid-coupled system

  ___________________________________________________________________
                                Alpha ESS Co., Ltd.
  Page 30
Installation                     Your Smart Energy

2.3 Power Meter Wiring
The electricity meter should be mounted and connected at the grid transition point (feed-in point) so
that it can measure the grid reference and feed-in power. Alpha ESS currently provides 4 different
power meter solutions:
    Ø     ADL-3000: three-/ single-phase meter (with or without CT)
    Ø     SM60A: single-phase meter
    Ø     Backup Box: three-/ single-phase meter (Contain off-grid switching and load
         management)
    Ø     ACR10R: Three-phase CT electric meter
                                Table 1 CT meter ratio and accuracy table

                 Model                          CT ratio                        Accuracy

    ADL3000-N/CT & 300A/5A CT                       60                           0.6 kWh

    ADL3000-N/CT & 400A/5A CT                       80                           0.8 kWh

    ADL3000-N/CT & 400A/1A CT                      400                           4.0 kWh

          ACR10R-200A CT                           200                           2.0 kWh

          ACR10R-120A CT                           120                           1.2 kWh

2.3.1       Meter ADL-3000 (If Applicable)
2.3.1.1 Single-phase in house

ADL-3000 single-phase connection (without CT, without meter plug), if applicable:

                                                   LOAD

                  Figure 34 ADL-3000 single-phase Connect (with CT, without Meter Plug)

    NOTE: Connect the power meter (PIN 7, 8) to the meter port of the cable box (PIN 3, 6)
using the RJ45 cable.

___________________________________________________________________
                                           Alpha ESS Co., Ltd.
                                                                                                Page 31
Your Smart Energy                             Installation

  ADL-3000 single-phase connection (without CT, with meter plug), if applicable:

                                                             LOAD

                  Figure 35 ADL-3000 single-phase Connect (without CT, with Meter plug)

  ADL-3000 single-phase connection (with CT, without meter plug), if applicable:

                                                   LOAD

                  Figure 36 ADL-3000 single-phase Connect (with CT, without Meter plug)

      NOTE: Connect the power meter (PIN 7, 8) to the meter port of the cable box (PIN 3, 6)
  using the RJ45 cable.

  ADL-3000 single-phase connection (with CT, meter plug), if applicable:

                                                  LOAD

                    Figure 37 ADL-3000 single-phase Connect (with CT, with Meter plug)

  ___________________________________________________________________
                                           Alpha ESS Co., Ltd.
  Page 32
Installation                   Your Smart Energy

2.3.1.2 Three-phase in house

ADL-3000 three-phase connection (without CT, without meter plug), if applicable:

               Figure 38 ADL-3000 three-phase Connect (without CT, without Meter plug)

    NOTE: Connect the power meter (PIN 7, 8) to the meter port of the cable box (PIN 3, 6)
using the RJ45 cable.
.

ADL-3000 three-phase connection (without CT, with meter plug), if applicable:

                Figure 39 ADL-3000 three-phase Connect (without CT, with Meter plug)

___________________________________________________________________
                                         Alpha ESS Co., Ltd.
                                                                                         Page 33
Your Smart Energy                                Installation

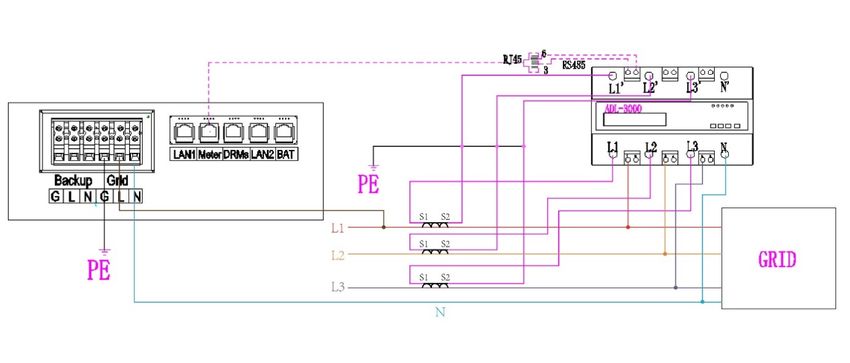

  ADL-3000 three-phase connection (with CT, without meter plug), if applicable:

                      Figure 40 ADL-3000 three-phase Connect (with CT, without Meter plug)

      NOTE: Connect the power meter (PIN 7, 8) to the meter port of the cable box (PIN 3, 6)
  using the RJ45 cable.
  .

  ADL-3000 three-phase connection (with CT, with meter plug), if applicable:

                       Figure 41 ADL-3000 three-phase Connect (with CT, with Meter plug)

        NOTE: To connect the current transformer, connect S1 to L1 and S2 to L1’.
  For AC-/ Hybrid-system, there are two meter needed:
              Option 1: with Meter Plug                     Option 2: without Meter Plug

      Figure 42 Two Meter Connect, with Meter Plug
                                                     Figure 43 Two Meter Connect, without
                                                                  Meter Plug

        NOTE: If the ADL3000 meter with CT is used as a grid meter, the direction of arrow in CT

  ___________________________________________________________________
                                              Alpha ESS Co., Ltd.
  Page 34
Installation                     Your Smart Energy

should point away from the grid to the energy storage system.
If the ADL3000 meter with CT is used as a PV meter in AC- or hybrid-coupled system, the
direction of arrow in CT should point away from the PV inverter to the energy storage system.

2.3.2      Meter SM60A (If Applicable)
2.3.2.1 SM60A connect (with meter plug), if applicable:

                                                    LOAD

                              Figure 44 SM60A connect (with meter plug)

2.3.2.2 SM60A connect(without meter plug), if applicable:

                                                    LOAD

                            Figure 45 SM60A connect (without meter plug)

    NOTE: Connect the power meter (PIN 5, 6) to the meter port of the cable box (PIN 3, 6)
using the RJ45 cable.
For AC/Hybrid system, there are two meter needed:
         Option 1: with Meter Plug                      Option 2: without Meter Plug

 Figure 46 Two Meter Connect, with Meter Plug    Figure 47 Two Meter Connect, without Meter
                                                                     Plug

___________________________________________________________________
                                         Alpha ESS Co., Ltd.
                                                                                              Page 35
Your Smart Energy                            Installation

  2.3.3      ACR10R Meter (if applicable)
  2.3.3.1 ACR10R single-phase connection

                         Figure43 ACR10R single-phase connection (if applicable)

  2.3.3.2 ACR10R three-phase connection

                        Figure 44 CR meter three-phase connection (if applicable)

      NOTE: Connect the power meter (PIN 21, 22) to the meter port of the cable box (PIN 3, 6)
  using the RJ45 cable.
  For AC/Hybrid system, there are two meter needed:

  ___________________________________________________________________
                                           Alpha ESS Co., Ltd.
  Page 36
Installation                                Your Smart Energy

                                         without Meter Plug

                           Figure 48 Two Meter Connect, without Meter Plug

If the ACR10 meter is used as a grid meter, the direction of arrow in CT should point away from the
grid to the energy storage system.
If the ACR10R meter is used as a PV meter in hybrid system, the direction of arrow in CT should point
away from the PV inverter to the energy storage system.

2.3.4        Backup Box (If Applicable)
Backup Box Connect to SMILE5 (single-phase grid in house):

                                                                                            patch cable
                                          COM

                                                                                                                                               patch cable
                                       GRID_L1
                                                    LOAD_L1
                                       PV-INV_L1       AC_L1
                                       GRID_L2        BAK_L1                   LOAD3        LOAD2            LOAD1
                             L         PV-INV_L2    LOAD_L2
                  GRID       N                         AC_L2
                                       GRID_L3                       RCD
                             PE                       BAK_L2
                                       PV-INV_L3    LOAD_L3
                                                       AC_L3         L

                                                                                                                           meter patch cable
                                       GRID_N
        齿

                                                                                                                            for backup box
                                                      BAK_L3         N          AC
                                   L   PV-INV_N                      PE              Storion-S5                        侈
                                                     LOAD_N                                                      PV
        PV    PV-INV       meter                                                      ECO-ES5
                                   N
                                       GRID_PE         AC_N              L            SMILE5
                                       PV-INV_PE      BAK_N              N      BACK
                                                                                            Meter Port
                                                                          PE
                                                                                                         patch cable
                                                                                      Bat
                                        DSP_BackupBox
                       Figure 49 Backup Box Connect to SMILE5 (single phase grid in house)

___________________________________________________________________
                                                   Alpha ESS Co., Ltd.
                                                                                                                                                  Page 37
Your Smart Energy                                  Installation

  2.3.5       Meter setting
  2.3.5.1 SM60A
                                                          There are 3 buttons on the front of the electricity
                                                          meter:

                                                          1. Down arrow: shift button
                                                          2. Up arrow: value adjustion
                                                          3. Enter button / Menu button

   Step 1: Click the “Enter” button to enter the          Step 2: Click the “Enter” button to input the
   menu interface.                                        password. The initial password is 0000. Then
                                                          click the “Enter” button.

   Step 3: You will get into the code interface. Then     Step 4: Please set the meter address by using
   click the “Shift” button to enter the adress           the “Value adjustion” button, the Grid meter (DC,
   interface.                                             AC and Hybrid system) address is set to 003,
                                                          and the PV meter (AC and Hybrid system)
                                                          address is set to 004.

   Step 5: Click the “Enter” button to get back to        Step 6: Click the “Shift” button to save the
   the menu interface. Then click the “Shift” button      setting.
   5 times to enter the save interface.

  ___________________________________________________________________
                                             Alpha ESS Co., Ltd.
  Page 38
Installation                   Your Smart Energy

2.3.5.2 ADL3000
                                                       There are 4 buttons on the front of the electricity
                                                       meter:

                                                       1. Enter button / Energy button
                                                       2. Down arrow / Power button
                                                       3. Up arrow / Voltage & current button
                                                       4. SET button

Step 1: The initial interface of the meter        Step 2: Click the “SET” button to enter the
(normal working mode) is shown above.             password interface

Step 3: Click the "Enter" button to enter the     Step 4: Click the "Enter" button and the
above interface, and press the up and down        password input is completed.
arrow keys to enter the password 0001.

Step 5: Click the “Enter” button again to         Step 6: Click the “Enter” button and press the
enter the address interface                       up and down arrow keys to set the meter
                                                  address. The Grid meter (DC, AC and Hybrid
                                                  system) address is set to 001, the PV meter
                                                  (AC and Hybrid system) address is set to 002.

___________________________________________________________________
                                             Alpha ESS Co., Ltd.
                                                                                                    Page 39
Your Smart Energy                               Installation

   Step 7: Click the "Enter" button and the        Step 8: Click the “SET” button to enter the
   address setting is completed.                   following interface

   Step 9: Click the “SET” button again to
   enter the save interface

                                                   Step 10: Click the “Enter” button to enter the
                                                   following interface, press the up and down
                                                   arrow keys, and set “no” to “YES” to save the
                                                   configuration.
                                                   Step 11: Click the "Enter" button and the
                                                   setting ends.

  2.3.5.3 ACR10R

                                                        There are 5 buttons on the meter's front:

                                                        1. Enter key
                                                        2. Arrow to the right
                                                        3. Up arrow
                                                        4. SET button
                                                        5. FN key (no function)

  ___________________________________________________________________
                                              Alpha ESS Co., Ltd.
  Page 40
Installation                 Your Smart Energy

Step 1: Activate the meter display by pressing     Step 2: Use the arrow keys to select the
any key. Then click the "Set" button.              "SETUP" menu item and confirm your selection
                                                   with the Enter key.

Step 3: Enter the password "0001" and confirm      Step 4: Select the menu item "Comm" in the
the entry by pressing the Enter key.               settings menu to change to the communication
                                                   settings.

Step 5: Set the communication address and communication baud rate in the communication setting
interface. When the meter is used as Grid meter (DC, AC/Hybrid system), the address is set to
“005”. When it is used as the PV meter (AC/Hybrid system), the address is set to “006”. The baud
rate is set to 9600.

___________________________________________________________________
                                         Alpha ESS Co., Ltd.
                                                                                          Page 41
Your Smart Energy                            System Operation

        System Operation

  3.1 Switch on
  When turning on the system, it is very important to follow the order of the following steps to prevent
  damage to the system.
  WARNING: Please check the installation again before turning on the system.

   Step 1: Turn on the external PV switch
   Step 2: Turn on the external grid switch.
   Step 3: If backup load is applied, turn on the external
   Backup switch.
                                                                                              1

      NOTE: the Backup switch is only used when a
                                                                                              2
   backup load is applied.
   Step 4: Open the outer shell of the cable box. Open the
   battery switch cover and turn on the battery switch on
   the cable box.
   Step 5: Press power button on all the batteries until the
   indicator lights turn on.
   Step 6: Close the battery switch cover and the outer
   shell of the cable box.

  3.2 Switch off
  Step 1:         Press the power button on all the batteries, till the lights turn off.
  Step 2:         Open cable box outer shell, open the battery switch cover and turn off the battery
  switch.
  Step 3:         Turn off the external grid switch.

  ___________________________________________________________________
                                               Alpha ESS Co., Ltd.
  Page 42
System Operation                     Your Smart Energy

Step 4:         If backup load is applied, turn off the external backup switch.
Step 5:         Turn off the external PV switch on the cable box.
Step 6:         Close the battery switch cover and the outer shell of cable box.
More information can be found in SMILE5-BAT user manual.

3.3 Emergency Procedure
When the SMILE5 energy storage system appears to be running abnormally you can turn off the grid
connected main switch directly feeding the BESS and turn off all load switches within the BESS, turn
off the battery switch at the same time. To prevent a potentially fatal personal injury, if you want to
repair or open the machine after the power is switched off please measure the voltage at the input
terminals with a suitably calibrated voltage tester.
Before working on this equipment, please confirm that there is no grid electric supply to the BESS!
The upper cover plate cannot be opened until the DC-link capacitance inside the battery modules
discharges completely about 15 minutes later.

3.3.1        Emergency Handling Plan
1. Disconnect the AC breaker.
2. Check the control power supply. If it is OK, return the power supply to find out the reason.
3. Please record every detail related to the fault, so AlphaESS can analyse and solve the fault. Any
operation of equipment during a fault is strictly forbidden, please contact Alpha as soon as possible.
4. As battery cells contains a little Oxygen inside and all cells have got explosion-proof valves,
explosion hardly happens.
5. When the indicator light on the battery shows a red fault, check the fault type through the
communication protocol, and contact our after-sales service personnel for advice.

3.3.2        Hazards
If the battery pack leaks electrolyte, avoid contact with the leaking liquid or gas. If one is exposed to
the leaked substance, immediately perform the actions described below:
Inhalation: Evacuate the contaminated area, and seek medical attention.
Eye contact: Rinse eyes with running water for 5 minutes, and seek medical attention.
Contact with skin: Wash the affected area thoroughly with soap and water, and seek medical attention.
Ingestion: Induce vomiting and seek medical attention.

3.3.3        Fire
If a fire breaks out in the place where the battery pack is installed, perform the following
countermeasures:

Fire extinguishing media
During normal operation no respirator is required. Burning batteries can not be extinguished with a
regular fire extinguisher, this requires special fire extinguishers such as the Novec 1230, the FM-200
or a dioxin extinguisher. If the fire is not from a battery, normal ABC fire extinguishers can be used for
extinguishing.

___________________________________________________________________
                                            Alpha ESS Co., Ltd.
                                                                                                     Page 43
Your Smart Energy                      EMS Introduction and Set up

  Fire -fighting instructions
  1. If fire occurs when charging batteries, if it is safe to do so, disconnect the battery pack circuit
  breaker to shut off the power to charge.
  2. If the battery pack is not on fire yet, extinguish the fire before the battery pack catches fire.
  3. If the battery pack is on fire, do not try to extinguish but evacuate people immediately.

      There may be a possible explosion when batteries are heated above 150°C. When the battery
  pack is burning, it leaks poisonous gases. Do not approach.

  Effective ways to deal with accidents
  Battery in dry environment: Place damaged battery into a segregated place and call local fire
  department or service engineer.
  Battery in wet environment: Stay out of the water and don’t touch anything if any part of the battery,
  inverter, or wiring is submerged.
  Do not use a submerged battery again and contact the service engineer.

        EMS Introduction and Set up

  4.1 Function Description

                                         Figure 50 SMILE5 EMS Interface

            Object         Name                    Description

               A                                   Red: The inverter is in fault.

                                                   Green: The battery is in charging or
               B
                                                   discharging.
                           Indicator LED
               C                                   Green: The inverter is in normal state.

               D                                   Green: The inverter is in communication.

                                                   Return Button: Escape from current
               E
                                                   interface or function.
                         Button Function
                                                   Up button: Move cursor to upside or
               F
                                                   increase value.

  ___________________________________________________________________
                                               Alpha ESS Co., Ltd.
  Page 44
EMS Introduction and Set up                 Your Smart Energy

                                           Down Button: Move cursor to downside or
          G
                                           decrease value.

          H                                ENT Button: Confirm the selection.

                                           Display the information of the inverter in
           I          LCD Screen
                                           this LCD screen.

4.2 Introduction
   This part is suitable for EMS firmware-version 1.01.67 and above.

4.2.1     Main
                                               Main displays the inverter working status and
                                               information, including:
                                                       •      Power: Current PV power
                                                       •      Total: Total power generation.
                                                       •      Battery: Current remaining battery
                                                              power (SOC).
                                                       •      Normal: Current working state of the
                                                              equipment, including Standby.

                                               In the Main interface, press ENT key to enter the
                                               menu’s main interface.
                                               Use the up and down key to select a sub-menu,
                                               press the ENT key to enter the selected sub-
                                               menu, press Return key to return to the previous
                                               layer.

4.2.2     Status

                                             Status menu contains five sub-menus: Solar,
                                             Battery, Grid, UPS and Comm .These display the
                                             relevant information about the current physical or
                                             communication interface respectively.

                                             Grid interface displays the real-time information
                                             on the ultility grid side:
                                             voltage U, current I, frequency F, PInv, PMeterAC,
                                             PMeterDC.

___________________________________________________________________
                                        Alpha ESS Co., Ltd.
                                                                                                  Page 45
Your Smart Energy       EMS Introduction and Set up

                                   Solar interface displays the real-time information
                                   of PV side: voltage U1, current I1, power P1,
                                   voltage U2, current I2 and power P2.

                                   Battery interface displays the real-time information
                                   of battery side: voltage U, current I, power P,
                                   residual capacity of Battery (SOC), the internal
                                   environmental temperature Temp

                                   UPS interface displays the real-time information in
                                   this mode: voltage U, current I, power P,
                                   frequency F

                                   Communication interface displays the real-time
                                   communication situation of BMS, Net, MeterGrid
                                   and MeterDC.

  4.2.3     History
                                     History menu contains seven sub-menus: Grid
                                     Consumption, INV Gen., BAT Gen., PV Gen.,
                                     Grid Charge, PV Charge, Error Logs

                                     Grid Consumption interface displays today’s or
                                     total load consumption from grid

  ___________________________________________________________________
                              Alpha ESS Co., Ltd.
  Page 46
EMS Introduction and Set up             Your Smart Energy

                                    INV Gen. interface displays today’s or total
                                    electricity quantity generated from SMILE5-INV.

                                    Bat Gen. interface displays today’s or total
                                    electricity quantity discharged from the battery.

                                    PV Gen. interface displays today’s or total
                                    electricity quantity generated from the PV-panels.

                                    Grid Charge interface displays today’s or total
                                    electricity quantity battery charging from the grid.

                                    PV Charge interface displays today’s or total
                                    electricity quantity battery charging from the PV-
                                    panels.

                                    Error Logs interface displays the 10 latest fault
                                    records of this device, including the name of the
                                    fault and time of error.

___________________________________________________________________
                             Alpha ESS Co., Ltd.
                                                                                    Page 47
Your Smart Energy                    EMS Introduction and Set up

                                                       Make sure all numbers in the information menu
                                                       are correct.

  4.2.4       Setting
  4.2.4.1 General Setting

                                                         Step 1: Click setting and enter the password.
                                                         The installation's password is a four-digits
                                                         password: 1111, after four-digits password was
                                                         correctly input, you can enter into the main
                                                         Setting interface (administrator permissions).

   Step 2: Click Function to enter function setting.     Step 3: Click Solar to set the Solar relevant
                                                         information.

   Step 4: Set on-grid capacity, storage capacity        Step 5: Click the Battery Function and check
   and number of PV strings (MPPT number).               battery type SMILE5-BAT.

   Step 6: Check SOC Calibration function set No.        Step 7: Check the Battery Ready function set
                                                         No. If you only use the inverter without battery,

  ___________________________________________________________________
                                             Alpha ESS Co., Ltd.
  Page 48
EMS Introduction and Set up                 Your Smart Energy

                                                      please set it Yes.

Step 8: Click the Grid Function to set up             Step 9: Set the Max. Feed in rate value.
relevant parameters about the grid

Step 10: Click Function-System Mode to set            Step 11: Click the mode then set up work
system mode: DC, AC, Hybrid.                          mode.(self-use or force time charge)

Step 12: If you want to use force charge, sett        Step 13: Set the charge and discharge time.
Enable here.

Step 14: Set the UPS Reserve SOC, it means            Step 15: Click Safety in the setting menu. Set
how much battery energy to keep for UPS               safety standard.
function.
                                                      AS4777 for Australia, ARN4105 for Germany,
                                                      CEI0_21 for Italy, G83_2 for Great Britain,
                                                      NRS097_2_1 for South Africa, RD1699 for
                                                      Spain, VDE0216 for 60Hz countries.

___________________________________________________________________
                                            Alpha ESS Co., Ltd.
                                                                                                 Page 49
Your Smart Energy                      EMS Introduction and Set up

   Step 16: If you use CT meter, please set CT           Step 17: If you use UPS function, please set the
   meter enable and the relevant ration                  mute as YES in UPS System interface and the
                                                         relevant Frequency.

   Step 18: Click System in the setting menu. Click      Step19: Click Ethernet to set the IP address.
   Date &Time and set up the date and time.              DHCP mode means that setup IP address is set
                                                         up automatically.
                                                         If you want to set up the IP address manually,
                                                         please choose manual mode.

      NOTE: It is needed to set the following 3 parameters for manual mode:
  IP Address: IP address;
  Subnet Mask: Subnet mask;
  Default Gateway: Default gateway;
  Automatic display one parameter:
  MAC Address: display MAC Address.

            Figure 51 Date&Time Setting Interface               Figure 52 Date&Time Setting Interface

   Step 20: Click Language to set language               Step 21: Make sure all the following number is
                                                         correct.

  4.2.4.2 Additional Function Setting
               If you use Backup box, please set as below:

   Step 1: Click Enable to set yes.                      Step 2: Set the priority of the load,

  ___________________________________________________________________
                                               Alpha ESS Co., Ltd.
  Page 50
EMS Introduction and Set up               Your Smart Energy

                                                     L1>L2>L3

           If external device will dispatch the system, please set as following steps:

 Step 1: Please go to the function menu, choose      Step 2: Please set Modbus enable as yes.
 “ModBus” and press enter.

           If you use cascading function please set as following steps:

 Step 1: Please go to the function menu, choose      Step 2: Please choose “Select” as “Yes” and
 “Parallel” and press enter.                         press enter.

 Step 3: Please choose “Phase” as L1 (master)        Step 4: Please choose “Mode” as “Parallel
 and press enter.                                    mode” and press enter.

Step 5: please repeat Step 1 to 4 to set the other device as L2 (slave) L3 (slave).

___________________________________________________________________
                                           Alpha ESS Co., Ltd.
                                                                                             Page 51
Your Smart Energy                           Online Monitoring

        Online Monitoring
  Installers who haven't registered yet need to click “Register” to visit the registration page. Please refer
  to “AlphaCloud Online Monitoring Webserver Installers User Manual”, which you can get from
  AlphaESS sales and get your personal license number from relevant AlphaESS sales.

                                                          Log in to your installer account and choose
                                                          Storage System Maintenance> "Install new
                                                          system" to register a new system at Alpha
                                                          ESS.

  ___________________________________________________________________
                                              Alpha ESS Co., Ltd.
  Page 52
Online Monitoring                   Your Smart Energy

Enter the system S/N, check code, license, installation date, client name, contact number, contact
address, and click the save button. The red * marks required information for this process. Click the
Browse button to select an attachment you want to add.

5.1 System Setup in Monitoring
Some of the system settings must be carried in the installer monitoring. To do this, follow the steps
below:
Step 1: Please login in the installer account, click the list of storage systems and enter the SN.

5.1.1         Basic Information
Step 2: After selecting the correct system, enter System Setup interface. Enter in the "Basic
Information" and input below information:
- Address,
- Zip code,
- Contact name,
- E-Mail address,
- Currencies and
- Telephone number.

    NOTE: Do not forget to click “Save” button!

5.1.1         Other Information

Step 3: select the "Other Information" submenu and set the following parameter:
- Time zone
- Data upload frequency: SMILE5 has second level data, you can choose it as 10s data if you wish.

___________________________________________________________________
                                            Alpha ESS Co., Ltd.
                                                                                                     Page 53
Your Smart Energy                         Routine Maintenance

        Routine Maintenance

  6.1 Maintenance Plan
      Ø     Check if wire connections are loose.
      Ø     Check if cables are aged/damaged.
      Ø     Check if cable insulating ribbon drops.
      Ø     Check if cable terminal screw loose, any overheat sign.
      Ø     Check if ground connection is well.

  6.1.1       Operating Environment
  (Every half year)
  Carefully observe whether the battery system equipment is ineffective or damaged;
  When the system is running, listen to any part of the system for abnormal noise;
  Check whether the voltage, temperature and other parameters of the battery and other equipment
  parameters are normal during system operation;

  6.1.2       Equipment Cleaning
  (Every six months to one year, depending on the site environment and dust content, etc.)
  Ensure that the ground is clean and tidy, keep the maintenance access route unblocked, and ensure
  that the warning and guiding signs are clear and intact.
  Monitor the temperature of the battery module and clean the battery module if necessary.

  6.1.3       Cable, Terminal and Equipment Inspection
  (Every six months to one year)
      Ø     Check if the cable connections are loose.
      Ø     Check whether the cables are aged / damaged.
      Ø     Check whether the cable tie of the cable has fallen off.
      Ø     Check if the cable terminal screws are loose and the terminal position has any signs of
            overheating.
      Ø     Check whether the management system of the system equipment, monitoring system and
            other related equipment are invalid or damaged.
      Ø     Check that the grounding of the equipment is good and the grounding resistance is less than
            10 ohms.

  6.2 Notes
  After the equipment are out of operation, the following notes should be paid attention to while
  maintaining:
      Ø     Related safety standards and specifications should be followed in operation and
            maintenance.
      Ø     Disconnect all the electrical connections so that the equipment would not be powered on.
      Ø     Wait at least 5 minutes after disconnection, so that the residual voltage of the capacitors
            drops to a safe voltage. Use a multimeter to make sure that the equipment is completely
            discharged.

  ___________________________________________________________________
                                             Alpha ESS Co., Ltd.
  Page 54
You can also read
