Ministry of Mineral Resources

                     Greenland mineral exploration:
                     Projects; Prospects; Potential
                                Chief Geologist Henrik Stendal
                                     PDAC 6 March 2017
Greenland mineral exploration: Projects; Prospects; Potential - Chief Geologist Henrik Stendal PDAC 6 March 2017 - Greenlands minerals authority

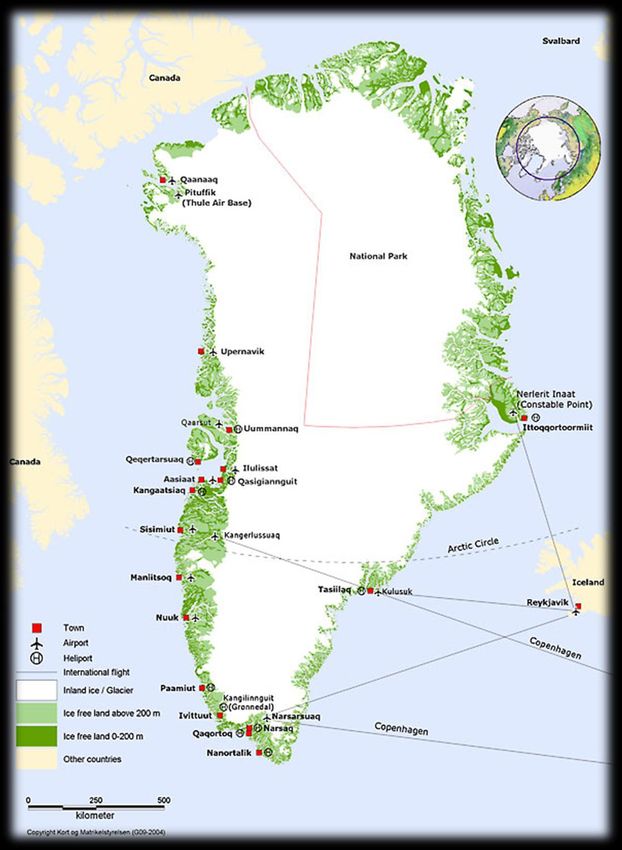

Outline

   Mining projects
   Exploration projects
   Prospects
   Potential regions
   Concluding remarks

                           Tekst skrives ind i sidehoved/sidefod 01-03-2017   2
Greenland mineral exploration: Projects; Prospects; Potential - Chief Geologist Henrik Stendal PDAC 6 March 2017 - Greenlands minerals authority
Mining Projects
                                                Zinc/lead (Citronen Fjord)
                                               Presentation by Ironbark Zinc

              Anorthosite
      (Najaat, ‘White Mountain’)
   Presentation by Hudson Resources

              ?

                                      Rubies/Sapphires (Fiskenæsset; LNSG)
Isukasia (Isua; General Nice Group)
Greenland mineral exploration: Projects; Prospects; Potential - Chief Geologist Henrik Stendal PDAC 6 March 2017 - Greenlands minerals authority
London Mining Greenland A/S
(General Nice Group)
Iron ore project
   Exploitation license signed October 2013
   More than1 billion tonnes of JORC Fe
    resources
   32-33 % Fe will be concentrated up to 70
    % quality iron product
   Project progress uncertain!

                                               01-03- 4
Greenland mineral exploration: Projects; Prospects; Potential - Chief Geologist Henrik Stendal PDAC 6 March 2017 - Greenlands minerals authority

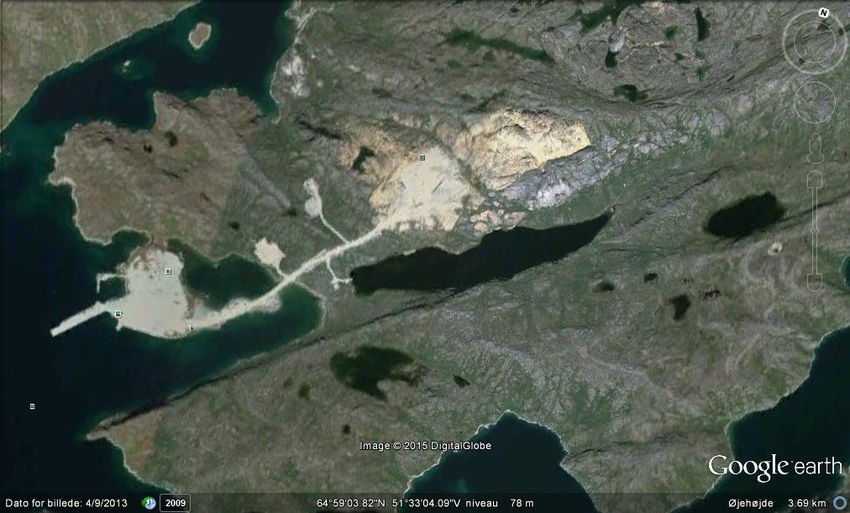

The Aappaluttoq Ruby Project
LNS Greenland GEMS A/S
(Fiskenæsset)
•   Ruby/Sapphire project
•   Exploitation license applied August 2013
•   Exploitation license granted March 2014
•   In this case only a seven months processing period
•   Impact Benefit Agreement signed June 2014
•   Construction commenced in 2015 by True North Gems
•   October 2016 taken over by LNS Greenland GEMS A/S
•   Production starts in 2017

                                            Tekst skrives ind i sidehoved/sidefod 01-03-2017   5
Greenland mineral exploration: Projects; Prospects; Potential - Chief Geologist Henrik Stendal PDAC 6 March 2017 - Greenlands minerals authority
Ruby/Sapphire Resource –
The Aappaluttoq Ruby Project
 Indicated resource: 189,100 t @ 313 g/t corundum (296.5 mio. carats)
 Inferred resource:  77,200 t @ 283 g/t corundum (109.5 mio. carats)
 Amount of near-gem and gem quality: 31.3% ruby and 40.8% sapphire
                                                  Source: True North Gems
Greenland mineral exploration: Projects; Prospects; Potential - Chief Geologist Henrik Stendal PDAC 6 March 2017 - Greenlands minerals authority
Exploration Projects

   Titanium-Vanadium Placer
   (Pituffik Black Sand; Bluejay
     Mining/FinnAust Mining)                                               Zinc-lead
                                                                   (Mestersvig; Ironbark Zinc)

            Zinc, lead, silver
              (Black Angel)                                              PGE + Gold
       Presentation by ARC Mining                               (Skaergaard; Platina Resources)

      Graphite (Akuliaruseq; 21stNorth)                                   Gold-silver
                                                                     (Flammefjeld; 21stNorth)
             Nickel, PGE                  Gold (Storø;
             (Maniitsoq)                   Greenland
Presentation by North American Nickel     Resources)
                                                         Niobium-Tantalum + Zr + REE
Titanium-Vanadium; Anorthosite                           (Motzfeldt Sø; Regency Mines)
     (Fiskenæsset; 21stNorth)
                                                                    Zirconium + REE
              REE + U
      (Kuannerusit /Kvanefjeld)                             (Killavaat Alannguat /Kringlerne)
        Presentation by GMEL                                    Presentation by Tanbreez
              Graphite                                              Gold
             (Amitsoq)                                           (Nalunaq)
    Presentation Alba Resources                          Presentation by ARC Mining
Greenland mineral exploration: Projects; Prospects; Potential - Chief Geologist Henrik Stendal PDAC 6 March 2017 - Greenlands minerals authority
Thule black sand
                                              Pituffik black sands
    province
                                                  Ti – V – (Co)
                                                            Source: John Ferguson

.                                                                                   2
               Source: FinnAust Mining 2016
Greenland mineral exploration: Projects; Prospects; Potential - Chief Geologist Henrik Stendal PDAC 6 March 2017 - Greenlands minerals authority
Graphite

Updated indicated resource of 12.6 Mt grading     Akuliaruseq
6.31% Cg including 2.8 Mt grading 12.00% Cg
based on 2015 drill core sampling. New
resource is >50% larger than historic estimates
and still open at depth (21stNorth 2016)
                                                                     Former mines

                                                                     Areas with graphite
                                                                     occurrences
                                                           Amitsoq
Greenland mineral exploration: Projects; Prospects; Potential - Chief Geologist Henrik Stendal PDAC 6 March 2017 - Greenlands minerals authority
Storø Gold Project
                                                                  (85% ownership)
Former knowledge (Nunaminerals 2012)

Qingaaq prospect          Aappalaartoq prospect
             BD Zone                                           Main Zone (open pitable)
                                                               • 60 x 400 m surface target
                                                                      • Best drill intersect 28 m @ 6.7 g/t Au
                                             BD Zone
                              Deep
                           tidewater
                                                               BD Zone (limited drilling)
                                                               • >1000 m strike length defined at Qingaaq
           Main                                                • >4 km possible strike length
           Zone
                                                               • Best drill intersect: 2 m @ 30 g/t Au

                                                                Hole-ID       From To                    Interval   Au g/t

                                                                DDH15-01      63.00 - 64.25              1.25       6.36

                                                                DDH15-01      65.88 - 66.38              0.50       2.23

                                                                DDH15-02      62.00 - 63.94              1.94       1.51

                                                                DDH15-03      71.00 - 85.03              14.03      4 .11

                                                                Including

                                                                DDH15-03      79.00 - 81.00              2.00       18.20
                       Present knowledge 2015/2016
                       Greenland Resources Inc. new drilling
                       for deep target zone and new inferred    95.000 ounces of gold averaging 3.4 g/t Au in the
                       resource (NI 43-101).                    Inferred Mineral Resource category.
Fiskenæsset
       Anorthosite
      Inferred resource of >500Mt including a low-alkali target resource of >55Mt
       grading: 33.02% Al2O3, 17.57% CaO, 1.04% Fe2O3, 1.52% Na2O and
       0.17% K2O.
      The very high aluminum and exceptionally low alkali content makes the
       anorthosite ideal for production of E-glass fibre glass (21stNorth 2016).
      .

       Sinarsuk Fe-Ti-V
      Titanium-vanadium mineralisation at Sinarsuk is exposed on surface for
       >13 kilometers following a significant aeromagnetic NW-SE striking
       signature.
      Grade/tonnage estimates based on current knowledge indicates a >100Mt
       deposit with a in-situ value in excess of 10 US$bn(21stNorth 2016).

    Map: GEUS – www.greenmin.gl
Niobium – Tantalum + Zr + REE
                    100% owned by Regency Mines plc – the
                    Motzfeldt hosts one of the world’s largest
                    undeveloped multi-element (Niobium
                    (Nb), Tantalum (Ta), Zirconium (Zr) and
                    Rare Earth Elements (REE)) deposits.

                    Motzfeldt has numerous targets including
                    the Aries Target where SRK reported a
                    JORC Inferred Mineral Resource
                    Estimate of 340 mt @ 120 ppm Ta2O5,
                    1850ppm Nb2O5 and 4.600 ppm ZrO2.
                    Mineralisation is believed to be open to
                    the south and east (Regency Mines
                    2017).

            Syenitic alkaline rocks
            (Motzfeldt Sø)

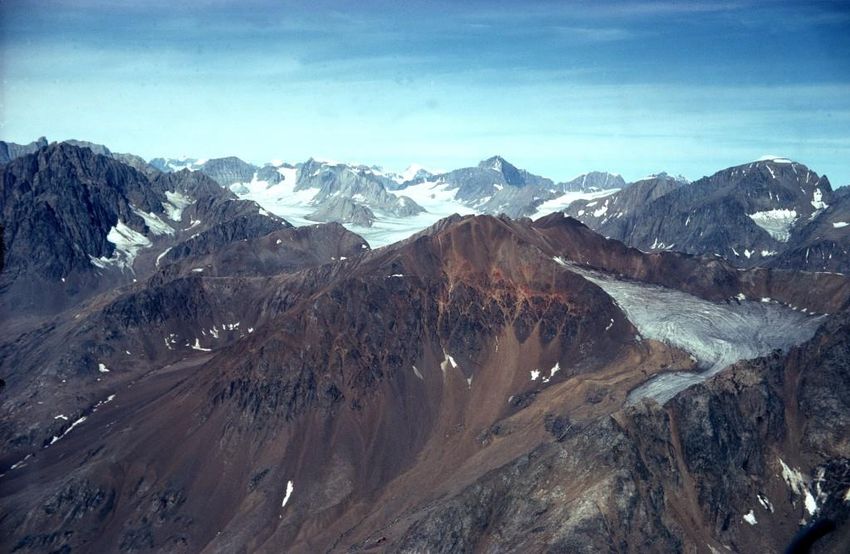

Flammefjeld

Ag-Au-Pb-Zn-Cu vein mineralisation
 Limited exploration work indicates that the
 veins may be traced for several kilometers
 having an average grade of 0.45g/t Au, 135g/t
 Ag, 0.58% Cu, 5.81% Pb and 1.35% Zn.

 The average metal value of Yellow Zone and
 Misty Vein is 285 USD/t (2015 prices) equivalent
 to 6.8 g/t Au.

 Conceptual modelling assuming continuity
 between Yellow Zone and Misty Vein suggest in-
 situ metal value in excess of $3 billion down to
 200 m depth.

                              Source: 21st North, 2015
                                                               30 m

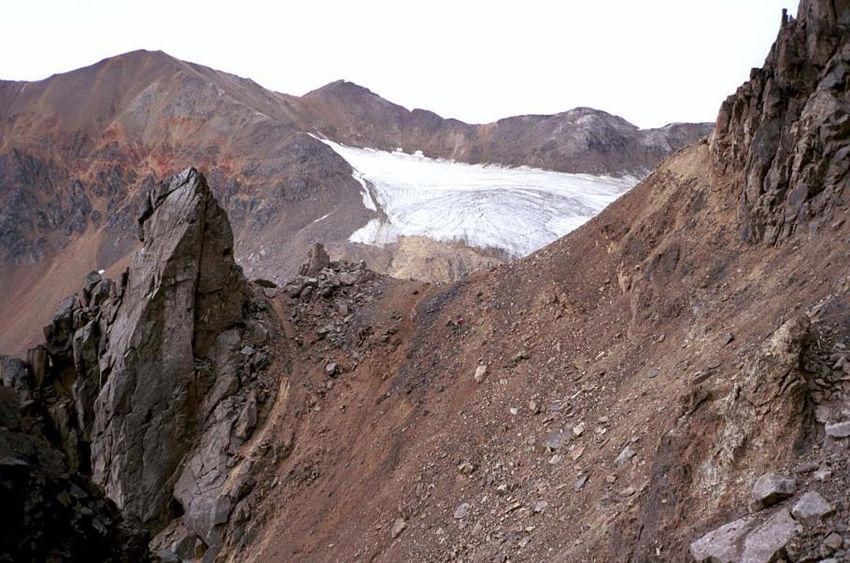

       Misty Vein outcrop looking towards Yellow Zone across
       Flammefjeld Glacier

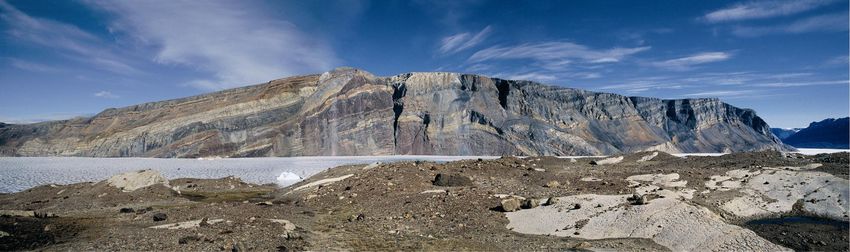

Skaergaard
    gold and palladium reefs
                                           Troels Nielsen, GEUS

JORC code (2012):
203Mt @ 0.88g/t gold & 1.33g/t palladium
(Platina Resources Ltd. 2015)
Blyklippen Mine, Mestersvig

                              15
Mestersvig Zinc-lead

The Mestersvig Base Metal Project in eastern
Greenland comprises three 100% Ironbark owned
exploration licences which contain the historic high-
grade Blyklippen Zinc-Lead Mine and the outcropping
Sortebjerg Zinc-Lead Prospect (www.ironbark.gl).

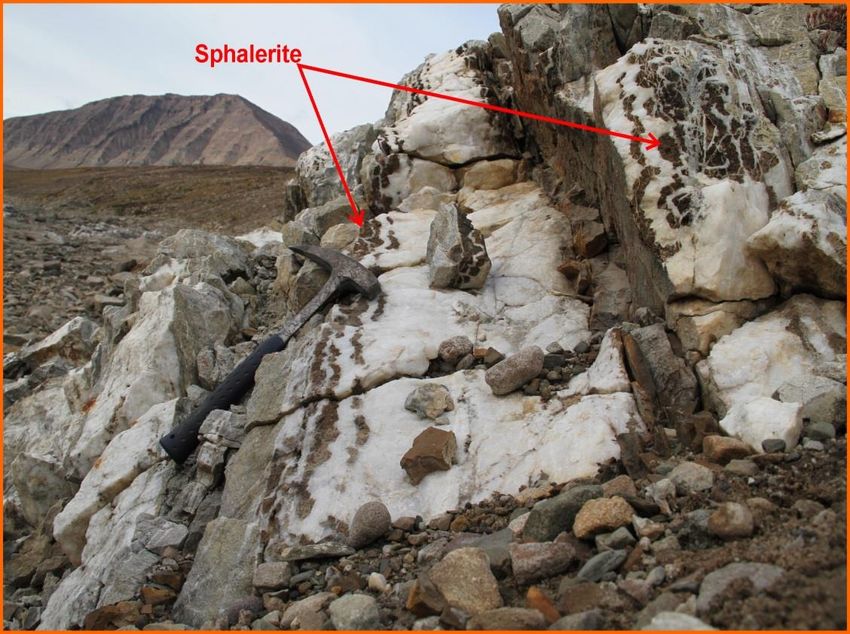

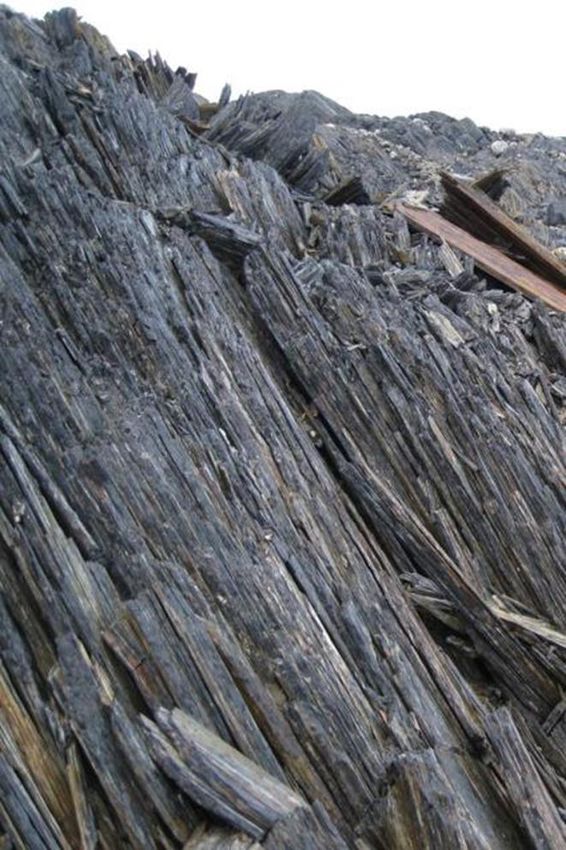

Sortebjerg vein                                         16
Prospects

Banded Iron Formation (BIF)
      (Melville Bugt)

                                                  Tungsten-antimony
                                                      (Ymer Ø)

                                                     Molybdenum
                                                      (Malmbjerg)

       Diamonds (Maniitsoq-
       Kangerlussuaq region)

                     Olivine
                     (Seqi)

                                      Gold
                                 (SE Greenland)
             Titanium-Vanadium
                   (Isortoq)
                                       Gold
                                 (South Greenland)
Banded Iron Formation (BIF)
   Melville Bugt (Thule)

      •   BIF occurs both as banded and
          massive hematite and magnetite.
      •   The BIF is of same age and ore type
          as the St. Mary River BIF on Baffin
          Island.
      •   Assays returned couraging results                Tungsten Ymer Ø
          for all targets defind by geophysical
          anomalies (Nama Report 2012).

                                                  Porphyry Molybdenum Malmbjerg
Diamond Exploration
Garnet Lake

   Kimberlite dyke
   Extracted a total of 1,740 macrodiamonds (>0.85 mm in 3 dimensions)
   >100 carats recovered
   The largest diamond is 2.5 carat
   Colors: Most are colorless, but also pink, grey and amber colored
   Discovered by Hudson Resources Inc.

                              Map: GEUS
Photos by Hudson Resources Inc.

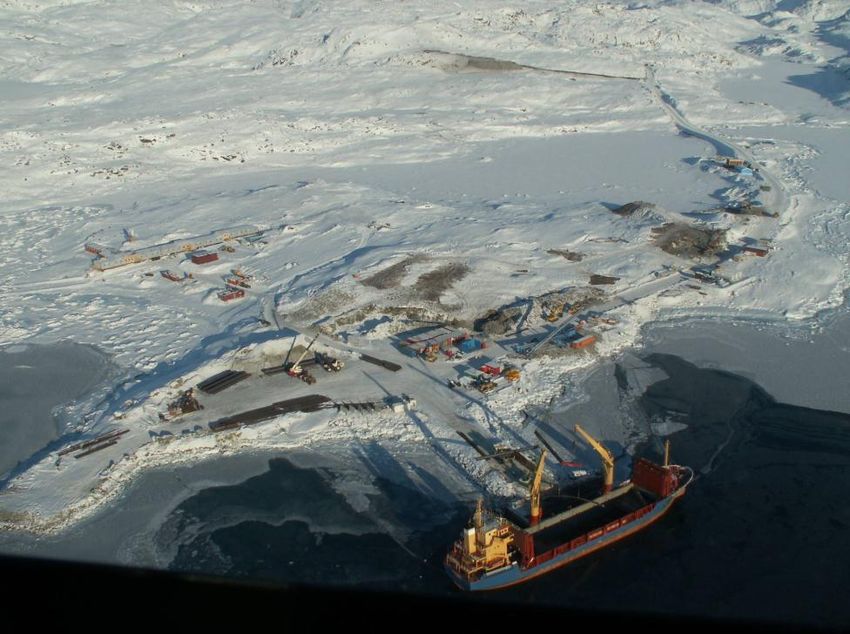

Olivine Mine

                      Close to Nuuk (90 km) and
                      Maniitsoq (82 km)

Nuuk
• Production from August 2005
  – 2009. ~400.000 tons (2009)

• Resource: More than 100 mill.
  tons olivine (Pure forsterite)

• Resource for magnesium –
  magnesite (MgCO3)

                                   The licence will soon be delivered
                                   back . A new licence round will be
                                   announced by the Government of
Seqi Olivine Mine                  Greenland
Magnetite with Ti – V
       Isortoq

                                          Resource          FeO%   TiO2%   V2O5%

                                      1.18 Bt (in-ground)   62.6   19.1    0.32

                 Magnetite ore body

                                                                                   22
South Greenland - gold potential

      Taartoq

                                                      Potential gold field

                             Qoorormuit                  Kutseq

                                            Ippatit

                                          Nalunaq

                                    Lake 410

                 Vagar

                         Nalunaq Gold Mine
Amphibolite Rigde – Vagar - Gold
2013:
Four channel sample profiles
across the Vein 2 gold
mineralised structure all
intersected high grade gold
mineralisation including some
exceptional intervals, yielding
up to 13 metres @ 70.1 g/t
gold (with visible gold identified
in several of the samples).
Rock grab samples from the
same structure have returned
up to 2533 g/t gold, which
constitutes the highest grade
ever to be reported from the
Vagar licence area.

Nunaminerals press release September 18, 2013

                                                Source: Nunaminerals 2013
Tungsten and Molybdenum

                                       Tungsten Ymer Ø

                          Porphyry Molybdenum Malmbjerg
Potential regions
for commodities

       •   Nickel
       •   Gold
       •   Zinc
       •   REE
       •   Niobium – Tantalum
       •   Gemstones
Potential nickel regions
                         Zig-Zag Dal
                         Flood
                         basalts

                                          Noril’sk nickel potential

                                          Three flood basalt regions
                                          ~26.000 km2 flood basalt

                                          Numerous larger magmatic systems
                                          and voluminous sill-dyke swarms
           West
    Greenland                             throughout Greenland
          Flood                           Source: GEUS 2012
basalt province                    East
                              Greenland
                           Flood basalt
                               province

    Maniitsoq       Tasiilaq norites
    norite belt

   Fiskenæsset

     Gardar dykes
                    400 km
Gold (Au)
6                    Greenstone type (Archaean)
                     1.   Nuussuaq (Eqi, Itilliarsuk and Saqqaq)
                     2.   Storø, Qussuk
                     3.   Sermiligarsuk (Tartoq Group)

        1

                     Orogenic type (Palaeoproterozoic)
                7    4. Nalunaq Gold Mine
                     5. Kangerluluk
                     6. Inglefield Land
    2

3           5
        4

                     Magmatic - gabbro
                     7. Skaergaard (+ Pd and Pt)
                                                                   28
Zinc Provinces

        Zinc/lead (North Greenland)

                                                     1600
                                                                      90%          Zn

                                                                            Samples:    12027
                                                                      70%   Minimum:   2.5600
                                                                            Maximum:1786.4300
                                                                            Mean:     80.4638
                                                     800              50%   Geo.Mean: 66.3059
                                                                            Median:   68.0000
                                                                            Mode:     47.0000

                Kangerluarsuk                                         30%
                                                                            Std.Dev.:
                                                                            Std.Err.:
                                                                            Skew:
                                                                            Kurtosis:
                                                                                        68.67
                                                                                       0.6261
                                                                                         7.99
                                                                                        126.2

                  Prospect –
                                                                      10%
                                                        0
                                                            0   500

                 Karrat Group
                    (2015)

                 Zinc/lead/silver
               (Black Angel Mine,
                Maarmorilik, FBC                                                                A data zinc package is
                     Mining)                                                                    available at:
                                                                                                www.greenmin.gl and
                                                                                                www.geus.dk
                                   Zn > 200 ppm

                                  250 km

                Modified from Steenfelt, GEUS 2011
Niobium - Tantalum
Nb-REE (Sarfartoq)
Carbonatite

                            Nb-Ta-REE (Motzfeldt Sø)
                            Syenitic alkaline rocks

Nb-REE (Qeqertaasaq)
Carbonatite
Gemstones
Concluding remarks
The geological environments and the related mineral deposits are in
many ways similar to that found world-wide, meaning that the potential
for new mineral discoveries are good and can sustain mining.

   Two mines will start production in 2017: Ruby/sapphire and feldspar.
   Exploration activity at present: Nickel, zinc, titanium-vanadium, gold,
    graphite, niobium-tantalum and gemstones.
   Future mines(?): Zinc, REE, gold, titanium-vanadium and nickel.

                                                                         Photo: A. Clausen, MIMR
You can also read
