                           INTRODUCTION

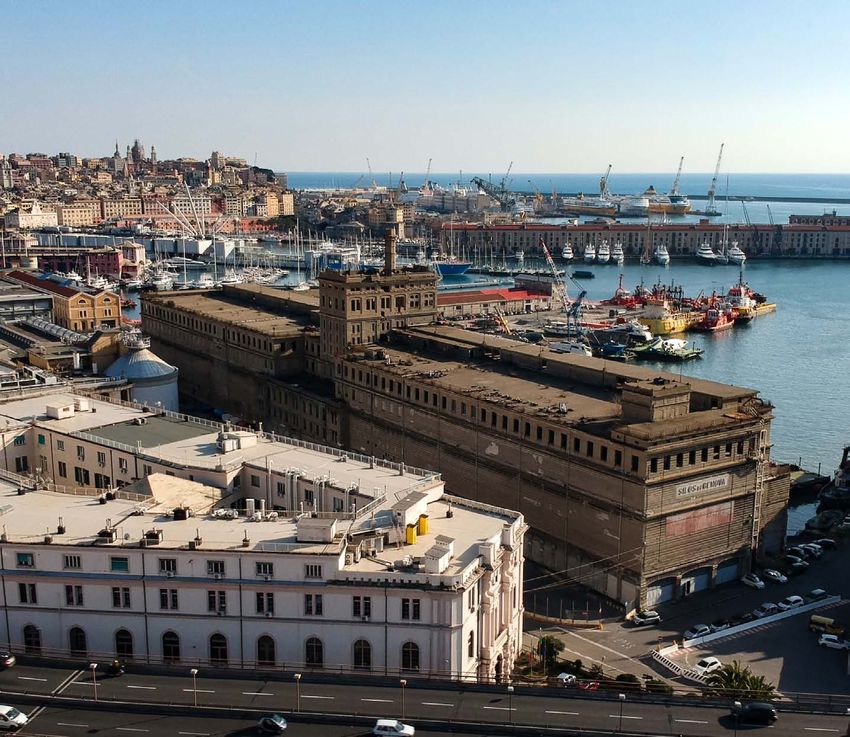

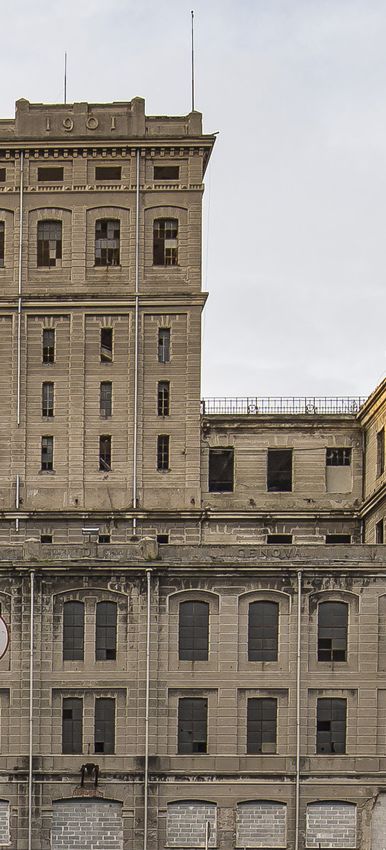

        The Hennebique grain silos is considered one of the most striking
        reinforced-concrete buildings of the 20th century. Strategically
        located on the waterfront of Genoa’s Old Port, it looks the sea and
        the city’s historical centre, the building sits adjacent to Genoa’s
        Cruise and Ferry Terminals and close to Piazza Principe railway
        station.
        In disuse since the 1980s, today these silos have received full
        planning permission for the conversion, preserving the structure’s
        historical and technical features, with the objective of integrating
        the building seamlessly in the highly successful large-scale
        redevelopment of Genoa’s old port. The plan is set to transform
        the building into a multi-service hub, to cater for cruise & tourist
        activities, and to host urban and cultural events.
        The concession of the property will be awarded by the Port
        Authority of the Western Ligurian Sea (Ports of Genoa) via a public
        tender, and will call for the renovation and reuse of the building in
        the context of surrounding urban space (and naturally respecting
        the guidelines regulating the conservation and protection of listed
        buildings). The Hennebique grain silos project represents the final
        step in the completion of the redevelopment of the old port and
        constitutes the central element of a promenade that crosses the
        entire basin of the district.

                                                                                @Mihela Canalis
GENOVA MERAVIGLIOSA rigenerare geNOVA | 2019 - HENNEBIQUE
@Stefano Anzini   @Anotnio Pastorino   @Liguria Digitale
GENOVA MERAVIGLIOSA rigenerare geNOVA | 2019 - HENNEBIQUE
“HENNEBIQUE” SILOS
                                                      Motorway tollbooth
                       URBAN CONTEXT
6                                 DISTANCE

    AIRPORT                                  6.5 km
    MOTORWAY TOLLBOOTH
                                             2.5 km
    PALAZZO DUCALE
                                             1.5 km
    PORTO ANTICO
    - COTTON WAREHOUSE
                                             1.0 km
    - BIGO
    - AQUARIUM

    PALAZZO SAN GIORGIO                      1.0 km
    P. PRINCIPE RAILWAY STATION              0.6 km
    GALATA MUSEUM                            0.5 km
    PUBLIC TRANSPORT                         0.1 km
    CRUISE TERMINAL                          0.1 km
                                                                  N
GENOVA MERAVIGLIOSA rigenerare geNOVA | 2019 - HENNEBIQUE
Principe Station

                                              Prè-Visioni

                                   Galata Museum

Cruise Terminal          HENNEBIQUE
                                       Aquarium

                    Porto Antico
                                                            Palazzo San Giorgio
                                            Bigo
                               e
                        i Coton
                     i D
              agazzin
             M
                                                                           Palazzo Ducale
GENOVA MERAVIGLIOSA rigenerare geNOVA | 2019 - HENNEBIQUE
“HENNEBIQUE” SILOS
                                                   CONTEXT
8
    The Hennebique Silos are set in a highly urbanised          instance, the 17th century Palazzo Reale (Royal Palace)
    context. The building, which represents the final step      Museum, one of a number of magnificent landmarks
    in the completion of the urban redevelopment of the         lining Via Balbi and registered as “Palazzi dei Rolli”, a
    Old Port, close to principal cultural heritage sites and    designated UNESCO World Heritage Site. In addition,
    architectural attractions, has the potential to become      the Hennebique Silos looks onto the Romanesque
    the central key link in the pedestrian promenade that       Commenda di Prè, a magnificent medieval building,
    crosses the entire old port district.                       which today operates as a venue for exhibitions and
                                                                multimedia art installations.
    The building is located adjacent to the Port of Genoa’s
    art deco Cruise Terminal, which ranks as one of the      A two minute stroll takes you to the elegant complex
    leading cruise facilities in the Mediterranean.          which is the Mu.MA (Museums of the Sea and
    In addition, Genoa has successfully capitalised upon     Migration) Hub which brings together the Galata
    its strategic geographical position to operate an        Museo del Mare (Maritime Museum) in Darsena, and
    extensive range of daily scheduled ferry services to     the 16th century Lanterna (the Lighthouse), both
    Sardinia, Sicily, Corsica, Spain, Malta and North Africa.located on Genoa’s waterfront.
    Over 3 million passengers use Genoa’s Cruise and         The neighbouring area features public and private
    Ferry Terminals yearly.                                  residential buildings, shops (located primarily along
                                                             Via Gramsci, Via Prè and Via Balbi), hotels and a
    The Hennebique Silos sits close to Piazza Principe wide selection of privately rented accommodation (in
    railway and underground stations, in an area which particular close to the railway station).
    is well connected to the integrated public transport
    network.
    The surrounding urban fabric is characterised by a
    diversity of uses, consequently the silos building can
    successfully accommodate a wide variety of activities.
    The property is located close to parts of the university
    (the Faculty of Economics in the Darsena area,
    Departments of the Faculty of Arts in Via Balbi) and
    to popular cultural attractions and museums: for

                                                                                                                            @Stefano Anzini
GENOVA MERAVIGLIOSA rigenerare geNOVA | 2019 - HENNEBIQUE
@Anotnio Pastorino   @Mihela Canalis
GENOVA MERAVIGLIOSA rigenerare geNOVA | 2019 - HENNEBIQUE
“HENNEBIQUE” SILOS
                                     THE PAST
10
     The structure of the building, which was conceived and functioned effectively
     as an industrial “machine”, was inspired by the mechanical systems deployed for
     unloading grain; in fact, the first information leaflet on the new plant illustrated
     a schematic diagram of the handling of grain.
     Built between 1899 and 1901, the reinforced-concrete structure came into
     operation in 1901, at that time it consisted of only the central body (where the
     machines for the suction of the grain were installed) and the first two storeys
     of the wings In the following years, two major extensions were built (1911 and
     1929) by the company Ferrobeton, but structural modifications and extensions
     continued until the Second World War. Even the suction machines were replaced
     and a new pier was built over the existing pier, after the war, subsequently
     demolished in 1999.
     The Art Deco building is a striking example of industrial architecture. It remains
     one of the greatest achievements of the engineer Giovanni Antonio Porcheddu,
     holder of the Hennebique patent in Italy, the only manufacturer at the time able
     to handle such complex architectural themes, whilst simultaneously preserving
     the monumental quality sought by the engineers Carissimo, Crotti and De
     Cristoforis.
     Given its exceptional structural characteristics, on 4th April 2007 the Italian
     Ministry of Cultural Heritage and Activities declared the Hennebique Grain
     Silos to be “Site of Historic and Artistic Interest,” and “an important example of
     industrial architecture in Genoa.”
“HENNEBIQUE” SILOS                                        55.00m                                               55.00m

                                                                                     50.00m                                               50.00m

                                                       TODAY
                                                                                     45.00m                                               45.00m

                                                                                     40.00m                                               40.00m

12                                                                                   35.00m                                               35.00m

     Dimensions                                                Internally, much of the space was conceived as a
                                                                                     30.00m                                               30.00m

     The building measures approximately 212 x 39 metres,      grain storage facility. The imposing central tower was
     the core building is 30 metres high, the central body     equipped to unload, process, distribute and store the
                                                                                     25.00m                                               25.00m

     40 metres and the central tower at its highest point is   grain.                20.00m                                               20.00m

     50 metres tall.                                           Layout                15.00m                                               15.00m

                                                               The construction, effectively conceived as a
                                                                                     10.00m                                               10.00m

     Building Classification                                   “building-machine”, is divided into a central body
     A reinforced-concrete construction, built for             primarily dedicated to suction rooms, a tower which
                                                                                     5.00m                                                5.00m

     industrial purposes, of monumental dimensions, over       accommodated grain elevators
                                                                                     0.00m  PROSPETTO
                                                                                               and theOVEST
                                                                                                        two side wings                    0.00m    PRO
     200 metres in length in the longitudinal direction        containing the actual grain silos.
     along Calata Santa Limbania in the Old Port.                                                                        EAST ELEVATION
                                                              Conservation status
     In terms of its composition, the construction presents Operational until the end of the 20th century, the                            55.00m

     a substantially symmetrical central structure, building is now in a state of neglect, even if structurally                           50.00m

     highlighted by the axial position of the chimney, whilst it does not show any significant signs of fragility.
     the details of the façade enhance the engineers’ With reference to the conservation of the structures                                45.00m

     choice to celebrate the spectacular monumental in concrete, the deterioration can be attributed to two                               40.00m

     dimensions of the building, rather than drawing factors: intrinsic characteristics of the material and                               35.00m

     attention merely to the industrial vocation of the environmental conditions.
                                                                                                                                          30.00m

     site (moulded stringers, rusticated, flat arches, bass
     relief etc.). The section of the building overlooking Survey Updated 2018                                                            25.00m

     the sea is divided into six storeys, mostly windowed In 2018, the Western Ligurian Sea Port Authority                                20.00m

     panoramic areas, whilst the section facing inland is commissioned a comprehensive site survey which                                  15.00m

     largely windowless, with the exception of the last two provided detailed data of the state of conservation of
     storeys and the central body.                            the property.
                                                                                                                                          10.00m

                                                                                                                                          5.00m

                                                                                                                                          0.00m    PRO

                                                                                                                         WEST ELEVATION
55.00m

                                                                                                                                                                                                                                                   50.00m

                                                                                                                                                                                                                                                   45.00m

                                                                                                                                                                                                                                                   40.00m

                                                                                                                                                                                                                                                   35.00m

                                                                                                                                                                                                                                                   30.00m

                                                                                                                                                                                                                                                   25.00m

                                                                                                                                                                                                                                                   20.00m

                                                                                                                                                                                                                                                   15.00m

                                                                                                                                                                                                                                                   10.00m

                                                                                                                                                                                                                                                   5.00m

                                                                                                                                                                                                                                                   0.00m             PR

                                                                                                                                                                                                                                 SOUTH ELEVATION

                                                                                                                                                                                                                                                            55.00m

                                                                                      55.00m                                                                                                           55.00m                                               50.00m

                                                                                      50.00m                                                                                                           50.00m                                               45.00m

                                                                                      45.00m                                                                                                           45.00m                                               40.00m

                                                                                      40.00m                                                                                                           40.00m                                               35.00m

                                                                                      35.00m                                                                                                           35.00m                                               30.00m

                                                                                      30.00m                                                                                                           30.00m                                               25.00m

                                                 25.49m         25.37m                                                          25.37m       25.49m
                           25.21                                                                                                                                    25.21
                                                                                      25.00m                                                                                                           25.00m                                               20.00m

                                        20.76m              20.76m           20.89m                             20.89m              20.76m             20.76m
                                                                                      20.00m                                                                                                           20.00m                                               15.00m

  14.83m                                                                              15.00m                                                                                                14.83m     15.00m                                               10.00m

10.17m                                                                                                                                                                                        10.17m
                                                                                      10.00m                                                                                                           10.00m                                               5.00m

                                                                                                                                                                                                                                                                      P
 6.02m                      6.00m                                                                                                                                 6.00m                     6.02m

                                                                                      5.00m                                                                                                            5.00m                                                0.00m

   -0.20m
                   0.71m
                               -0.24m    -0.08                  -0.17m   -0.21m       0.00m    SEZIONE B1-B1'       -0.21m      -0.17m                -0.08     -0.24m
                                                                                                                                                                            0.71m
                                                                                                                                                                                           -0.20m      0.00m    SEZIONE B2-B2'
            ZONA NON
            RILEVABILE
                                                          ZONA NON
                                                          RILEVABILE
                                                                                                                             ZONA NON
                                                                                                                             RILEVABILE
                                                                                                                                                                              ZONA NON
                                                                                                                                                                              RILEVABILE
                                                                                                                                                                                                                                 NORTH ELEVATION
“HENNEBIQUE” SILOS                                                                                            55.00m

                                                                                                                                             50.00m
                                                                                                                                                                                                                                                                                                                         55.00m

                                                                                                                                                                                                                                                                                                                         50.00m

                                                                                                                                             45.00m                                                                                                                                                                      45.00m

                                                                   TODAY                                                                     40.00m                                                                                                                                                                      40.00m

                                                                                                                                             35.00m                                                                                                                                                                      35.00m

14                                                                                                         31.72m                                                                                                        31.72m

     The survey of the architectural structure was carried out                        30.19m

                                                                                                          28.55m
                                                                                                                                             30.00m

                                                                                                                                                                                              20.77m
                                                                                                                                                                                                                           28.55m
                                                                                                                                                                                                                                                                         30.19m

                                                                                                                                                                                                                                                                                                                20.77m
                                                                                                                                                                                                                                                                                                                         30.00m

     using topographic instruments, laser scanners and 360                               25.22m          25.16m
                                                                                                                               DIMENSIONS OF THE                                                                           25.16m                                          25.22m

                                                                                                                                                               212X39
                                                                                                                                             25.00m                                                                                                                                                                      25.00m

     panoramic cameras to capture panoramic images.                                                                                     BUILDING
                                                                                                                                                                  M
                                                                                         20.76m          20.94m                                                                                                           20.94m                                          20.76m

                                                                                                                                             20.00m                                                                                                                                                                      20.00m

     With the aid of the detailed photographs taken, a                                                            16.63m                                                                                         16.63m

     dynamic virtual path was created across the building
                                                                                        15.20m                                      15.34m                                       15.34m                                                                                    15.20m
                                                           14.91m                                                                            15.00m                                                                                                                                                   14.91m             15.00m

     that provides immersive panoramas of the property.   10.52m
                                                                                                                   10.17m
                                                                                                                                             10.00m
                                                                                                                                                                                                                10.17m
                                                                                                                                                                                                                                                                                                       10.52m
                                                                                                                                                                                                                                                                                                                         10.00m

     The plans, facade and sections produced are an important 6.26m

                                                                      ZONA NON
                                                                                                 6.16m   5.94m

                                                                                                                                             5.00m
                                                                                                                                                                                                                           5.94m                     ZONA NON
                                                                                                                                                                                                                                                     RILEVABILE
                                                                                                                                                                                                                                                                       6.16m

                                                                                                                                                                                                                                                                                      ZONA NON
                                                                                                                                                                                                                                                                                                   6.26m

                                                                                                                                                                                                                                                                                                                         5.00m

     source of data of the building that will be made available       RILEVABILE

                                                                                                                                     1.69m                                       1.69m
                                                                                                                                                                                                                                                                                      RILEVABILE

                                                                              0.49m
                                                                                                                                             0.00m    SEZIONE C1-C1'                                                                                                                   0.49m
                                                                                                                                                                                                                                                                                                                         0.00m    SEZIO
     to those who submit an expression of interest in the
                                                            -0.22m                      -0.21m                                                                                                                                                                            -0.21m                    -0.22m

                                                                        ZONA NON                                                ZONA NON                                         ZONA NON                                                                                            ZONA NON
                                                                        RILEVABILE                                              RILEVABILE                                       RILEVABILE                                                                                          RILEVABILE

     concession.                                                                                                            HEIGHT CORE BUILDING             APPROX.
                                                                                                                                                              30 M                                                                           SECTION C2 - C2’
     Structural Study Updated 2018
     In 2018 a structural study was carried out to evaluate the
     building, considering both the minimum necessary and
                                                                                                                                                                                                                                                                                                                         55.00m

     maximum allowed demolition. This study also contains                                                                                                                                                                                                                                                                50.00m

     an assessment of the compliance of the building with                                                                                                                                                                                                                                                                45.00m

     the currently applicable building regulations regarding
                                                                                                                             HEIGHT CENTRAL BODY             APPROX.                                                                                                                                                     40.00m

     seismic requirements. This material will also be made                                                                                                    40 M
     available to companies who submit an expression of                                                                                                                                                                                                                                                                  35.00m

     interest in the concession.                                                                                                                                                                                                                                                                                         30.00m

                                                                                                                                                                                                                25.61m                                        25.39m
                                                                                                                                                                                                                                                                                                                         25.00m

                                                                                                                                                                                                                                   20.61m   20.72m                                  20.63m
                                                                                                                                                                                                                                                                                                                         20.00m

                                                                                                                                                                                                                                                                                                                         15.00m

                                                                                                                            HEIGHT CENTRAL TOWER                OVER                                                                                                                                                     10.00m

                                                                                                                                                                50 M                           6.12m

                                                                                                                                                                                                                                                                                                                         5.00m

                                                                                                                                                                        -0.19m

                                                                                                                                                                                  ZONA NON
                                                                                                                                                                                                       -0.25m

                                                                                                                                                                                                                                                 ZONA NON
                                                                                                                                                                                                                                                                                                                         0.00m    SEZIO
                                                                                                                                                                                  RILEVABILE                                                     RILEVABILE

                                                                                                                                                                                                                                               SECTION D1 - D1’
B1                                 B2                                                                                                                                                                                     C1                                    C2                                                                                                                                                                        D1       D2

                                                                                                                                                                                                                                                                                  8,13m                                                                                                                                                                            8,15m

                                                                                                                                                                                                                                                                                                                                                  H: 13,04m

                                                                                                                                                                                                                                                                                                                          1,73m                                  1,73m                                               1,73m

                                                                                                                                                                                                                                                                                                                                                                                                                                      6,41m
                                                                                                                                                                                                                                                                      H: 3,84m                                                                                                                                                                         H: 4,73m
                                                                                                                                                                                                                                                                                 10,11m                                                                                                                                                                           10,17m

A1                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              A1'
                                                                                                                                                                                                                                                                                                                          10,16m                                 10,17m                                              10,24m
                                                                                                                                                                                                                                                                                                                                                                                                                                                  H: 6,25m

                                                                                                                                                                                                                                                                                                                         H: 6,25m

A2                                                                                                                                                                                                                                                                                       10,16m

                                                                                                                                                                                                                                                                                   H: 6,25m
                                                                                                                                                                                                                                                                                                                                                                                                                         H: 6,25m                        10,23m

                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                A2'
                                                                                                                                                                                                                                                                                                                          10,23m                                 10,16m                                              10,22m

                                                                                                                                                                                                                                                                                                                               H: 6,17m

                                                                                                                                                                                                                                                                                          10,12m                                                                                                                                                         10,17m
                                                                                                                                                                                                                                                                                                                        H: 4,66m

                                                                                                                                                                                                                                                                                                    H: 4,50m
                                                                                                                                                                                                                                                                                   H: 4,50m                                                                                      6,16m
                                                                                                                                                                                                                                                                                                                                                                                                                                                  H: 4,50m
                                                                                                                                                                                                                                                                                                                          10,36m
                                                                                                                                                                                                                                                                                                                                                                                                      H: 8,87m

                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      10,21m                                                                         10,20m
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                               H: 3,85m                          H: 3,84m
                                                                                                     10,16m                                        H: 4,53m                          10,19m                                                               H: 4,41m                        10,24m                     10,50m                                                                                         10,49m                               10,19m             H: 3,85m
                                                                                                                                                                                                                                                                                                                                                                                         H: 3,87m                                                                                                                                                                                                                                       H: 3,85m                    H: 3,84m

                                                                                                                                                                                                                                                                                                                                                                                             10,48m                                                                                                                                                                                                                                                10,20m              10,19m
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                 10,21m                       10,21m           10,22m
                                                                                                                                                                                                                                                                                                                                                                                                                                                              H: 4,64m                                                                10,23m              10,22m
                                                                                                                                                                       10,21m                                                        10,25m   10,27m           10,26m                             10,26m                                     10,48m                     10,48m                                                                                                             10,20m   10,22m            10,22m
                                                                                                                                                          10,19m                                                                                                                                                    H: 4,21m                              H: 4,25m                                                                                                                10,20m
                                                      10,17m   10,18m     10,19m   10,18m   10,18m            H: 4,41m        10,18m                                            H: 4,40m      10,20m           10,39m H: 4,38m

                                                 NON
                                                 RILEVABILE

                                                                                                                   B1'                                B2'                                                                                                                                                                                    C1'                                   C2'                                                                                                                                                                       D1'      D2'                                                 FLOOR PLAN + 11.40

                                                                                                                   B1                                 B2                                                                                                                                                                                     C1                                    C2                                                                                                                                                                        D1       D2
                                                                                                                   B1                                 B2                                                                                                                                                                                     C1                                    C2                                                                                                                                                                        D1       D2
                                                                                                                                                                                                                                                                                 0,14m
                                                                                                                                                                                                                                                                                                                                                                                                                                                                   0,14m

                                                                                                                                                                                                                                                                                 0,63m

                                                                                                                                                                                                                                                                                  4,13m                                                           H: 13,40m                                                                                                        4,16m
                                                                                                                                                                                                                                                                                                                          1,73m                                  1,73m                                               1,73m

                                      H: 5,31m                                                                                        -0,20m                                                               0,90m
                -0,08m                           -0,18m                                                                                                                                                                 H: 5,48m
                                                                                                                                                                                                                                                                                                                                                  H: 13,40m                                                                                            H: 3,79m
                                                                                                                                                                                                                                                                      H: 4,30m
                                                                                                                                                                                                                                                                                 1,64m                                    1,73m                                  1,73m                                               1,73m                                        2,14m

A1                                                                                                                                                                                                                                                                   H: 3,84m
                                                                                                                                                                                                                                                                                 6,10m
                                                                                                                                                                                                                                                                                                                                                                                                                                       6,41m
                                                                                                                                                                                                                                                                                                                                                                                                                                                       H: 3,76m
                                                                                                                                                                                                                                                                                                                                                                                                                                                                  6,11m
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                A1'
A1                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              A1'
                                                                                                                                                                                                                                                                                   H: 4,31m

                                                                                                                                                                                                                                                                                           1,65m            1,69m                    1,69m                           1,69m                                                 1,72m      1,73m

                                                 -0,15m                                                                               -0,16m                                                                                                                                                                                                                                                                        6,35m
                -0,07m                                                                                                                                                                                                                                                                                                                                H: 3,71m
                                      H: 5,36m                                                                                                                                                                                                                                                                                                                       6,23m
                                                                                                                                                                                                                                                                                                                                                                                                                                                   H: 3,83m
                                                                                                                                                                                                                                                                                                                                                                                                                      1,73m

A2                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              A2'
                                                                                                                                                                                                                                                                                                                                                                                                                   H: 3,44m
                                                                                                                                                                                                                                                                                         6,14m                                     6,23m              H: 4,08m                                                                                             6,14m
                                                                                                                                                                                                                                                                                                                                                                     5,95m
                                                                                                                                                                                                                                                                                                                                                                                                                                                       H: 4,35m
                                                                                                                                                                                                                                                                                                                                  H: 4,34m
                                                                                                                                                                                                                                                                                                                                                                        H: 3,85m

A2              -0,08m
                                      H: 5,28m
                                                 -0,07m                                                                               -0,07m
                                                                                                                                                                                                                                                                                                                                    1,69m
                                                                                                                                                                                                                                                                                                                                  H: 3,78m
                                                                                                                                                                                                                                                                                                                                                                      1,69m
                                                                                                                                                                                                                                                                                                                                                                                                                          1,72m                           1,62m
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                A2'
                                                                                                                                                                                                                                                                                   H: 3,82m
                                                                                                                                                                                                                                                                                                    6,20m                          6,23m
                                                                                                                                                                                                                                                                                                                                                                                                                         1,72m
                                                                                                                                                                                                                                                                                                            0,0m
                                                                                                                                                                                                                                                                                                                                                                                                                                                          6,14m

     H: 5,31m
                                                                                                                                                          ZONA                                                                                                                                                                                                        -0,22m                                                                                                                                 -0,21m                            H: 6,15m                                     -0,24m
                -0,08m   ZONA                                                                                                                                                                              -0,21m                             H: 6,07m
                                                                                                                                                          NON
                         NON                                                                                                                                                                                                                                                                                                                                                                                                                                               H :4,06m                               H: 3,82m
                                                                                                                                                          RILEVABILE
                         RILEVABILE
                                                                                                                                                                                                                                                                                                                                                                                                                                            H: 1,92m
                                                                                                                                                                                                                             0,51m                                                                                                                                                                               0,55m                                                                                                             0,52m
                0,71m                                                   6,04m                                                                                                                          6,05m                                                                                                                                                                     6,16m                                                                                                                                                                                                                                 6,18m
                                                                                                                                               H: 3,81m                                                                                                                                                                                                                                                                                 6,18m                                                                                                                         H: 3,82m
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                     6,13m
                                                                                                                                                                                                                                                                                                                                                                                                      H: 8,87m
                                                                                                                         -0,07m
                                                 -0,07m

                                                                                                                                                                                                                                                                                                                                                                      -0,19m                                                                                                                                 -0,21m                            H: 6,23m                                     -0,22m
                                                 -0,21m             H: 6,19m                                                                                                                               -0,20m                              H: 6,17m

                                        6,09m                                                                                     6,04m                                                                                                                                                                                                                                                  H: 3,74m
                                                                    H: 3,82m                                                                                                                                                                      6,09m                                                                                                                                                                             6,09m                                                           6,18m                      H: 3,81m                       6,14m                                                                                         6,12m

                                                                                                                   B1'                                B2'                                                                                                                                                                                    C1'                                   C2'                                                                                                                                                                       D1'      D2'                                                  FLOOR PLAN + 3.00
                                                                                                                   B1'                                B2'                                                                                                                                                                                    C1'                                   C2'                                                                                                                                                                       D1'      D2'
“HENNEBIQUE” SILOS                                                                                       GENERAL INFORMATION

                        THE NEW REDEVELOPMENT PROJECT                                                                          LOT AREA             NUMBER OF STOREYS

16                                                                                                                             APPROX
     The Hennebique Silos is strategically located in the        the Superintendence has introduced ample margin                8,250                      6+1
     heart of the Old Port (pedestrianised area along            for redevelopment and demolition of the building,              SQM
     the Genoese waterfront, overlooking the historic            allowing great planning flexibility, whilst preserving
     city centre, site of the aquarium, conference centre,       and enhancing its value as a fine example of industrial                                (BASEMENT)
     cinema, retail outlets, bars and restaurants etc.) and      archaeology                                                              TOTAL VOLUME
     connected to the city centre.
                                                                                                                                            APPROX
     Given the urban context of the Hennebique Silos, the                                                                                   220,000
     objective is to integrate the property seamlessly in                                                                                     M3
     the highly successful large-scale redevelopment of
     Genoa’s Old Port and to use the building to bridge          USES                                                         INCLUDING THE VOLUME OCCUPIED BY
     the gap between the urban fabric and the cruise and                                                                        THE GRAIN STORE (GRAIN CELLS)
                                                                                                      Tourism
     tourist activities which characterise the area.                                                  Hotels
     Recent changes to legislation have expanded                                                                           EXISTING WALKABLE             GRAIN CELLS
                                                                                                      Residential            SURFACE AREA          (17 M AVERAGE HEIGHT)
     the range of possible alternative uses, to include                                               Student Houses
     residential, tourist, hotels, tertiary, research centres,                                        Social Housing
     retail outlets and corporate functions, with the                                                                          APPROX                    APPROX.
     exclusion of industrial uses.                                                                     Offices                 26,300          +          14,700
     The property owner has allocated 10 million euros for                                                                      SQM                        SMQ
                                                                                                       Shops
     the possible purchase of a section of the building,
                                                                                                                                                    DIVIDED FOR FLOOR
     currently estimated at 4,000 square meters, for
     institutional uses.                                                                              Public Services
                                                                                                                                               =
                                                                                                                                 POTENTIAL TOTAL WALKABLE
                                                                                                                                      SURFACE AREA
     Although it is important to underline that the building
     is subject to restrictions by the Superintendence,
                                                                                                                                              OVER
     nevertheless the guidelines drafted together with                                                                                       41,000
                                                                                                                                              SQM
BASEMENT        FOURTH STOREY

GROUND FLOOR    FIFTH STOREY

FIRST STOREY    SIXTH STOREY

                                KEY

                                      Section to be preserved

                                      Possible demolition area

SECOND STOREY                         Section of the building of historic heritage

                                      The east and west side elevations can be opened
                                      up and connected to the exterior.

THIRD STOREY
“HENNEBIQUE” SILOS
     CONCESSION CONTRACT AWARD PROCEDURE
18
     DATES FOR CALL TO TENDER
          30th March 2019    Call for tender for the concession, with an indication of the
                               deadline for submission of offers (60 days) and a specification of
                               the tender evaluation criteria;

            30th May 2019    Receipt of offers and the publication of an abstract of each offer
                               for public consultation;

                             Evaluation of the offers submitted and presentation of the
                               concession award notice.
     ALL PARTICIPANTS WILL BE SUPPLIED WITH THE FOLLOWING DOCUMENTS:
                             A detailed and comprehensive survey of the entire building;

                             A virtual tour inside the building and interactive panoramic
                               photographs;

                             A structural study and analysis of current static conditions and
                               simulations based on possible demolition works on the building;

                             Min./max. estimate of demolition costs;

                             Building Information Modelling (BIM) of the building;

                             Guidelines of the building already approved by the
                               Superintendence, with an indication of the approved options for
                               construction works on the building.

                                                                                                    @Stefano Anzini
@Stefano Anzini
20

     @Liguria Digitale
@Anotnio Pastorino

 @Stefano Anzini
22

     @Liguria Digitale
CREDITS
LOCATION                                                        WRITTEN BY                                                     TRANSLATION
Genoa, Italy                                                    Federica Alcozer                                               Ports of Genoa
                                                                Angela Imbesi
PROMOTORS                                                       Vittorio Lagomarsino                                           GRAPHIC DESIGN AND IMAGE PROCESSING
Port Authority of the Western Ligurian Sea                                                                                     Simona Franci (Liguria Digitale Spa)
Municipality of Genoa                                           ECONOMIC DATA
Regione Liguria                                                 Laura Ghio                                                     PHOTOGRAPHS
                                                                Luigi Bruzzone                                                 Photographic archive of the Municipality of Genoa
PUBLISHING SUPERVISOR                                                                                                          Photographic archive of the Port Authority of the Western
Paolo Emilio Signorini                                          COMMUNICATIONS AND MARKETING STAFF                             Ligurian Sea
(President of the Port Authority of the Western Ligurian Sea)   Marina Monti                                                   Stefano Anzini
                                                                Cristina De Gregori                                            Fabrizio Biancardi (Liguria Digitale Spa)
EDITED BY                                                       Antonella Rossi                                                Gaia Cambiaggi
Simonetta Cenci                                                                                                                Michela Canalis
(Genoa Councilor for Urban Planning and Government              PROJECT TEAM                                                   Marco Gozzi (Liguria Digitale Spa)
Ownership)                                                      Emilia Ameri, Gabriella Boriello, Angela Burzoni, Anna Maria   Roberto Merlo
Marco Sanguineri                                                Colombo, Giulia Garbarini, Stefano Malaspina, Antonio          Marco Nonveiller
(Secretary General of the Port Authority of the Western         Pastorino, Geronima Pesce, Cesare Torre                        Antonio Pastorino
Ligurian Sea)                                                                                                                  Fabio Polosa
                                                                PROGRAM                                                        Luca Salvetti
PORT AUTHORITY OF THE WESTERN LIGURIAN SEA                      Genova Meravigliosa,
Paolo Emilio Signorini                                          rigenerare geNOVA                                              VIDEO
                                                                                                                               Fabrizio Biancardi (Liguria Digitale Spa)
                                                                CALENDAR                                                       Enrico Martino
HARBOR MASTER - PORT OF GENOA                                   MIPIM 2019, March 12-15                                        Sergio Tani
Admiral Nicola Carlone                                          Cannes, France
                                                                                                                               PRINTING
                                                                PUBLISHING AND PRODUCTION                                      GRAFICHE G7 SAS
                                                                Municipality of Genoa

                                                                EDITORIAL DIRECTION
                                                                Alessandra Ferlenga (Liguria Digitale Spa)

                                                                                                                               © All rights reserved - 2019
You can also read
