GARAGE EQUIPMENT
Recommended for
VOLVO workshops
2 | Wheel Aligner Wheel Aligner | 3
GEOLINER® 678 LIFT
WHEEL ALIGNER
Reference Volvo: SE 25716. 7.0
geoliner® 678 a professional quality aligner with proven
accuracy. Two machines in one! Move the aligner and use
Wireless system provides flexible installation, it in differerent bays. Audit and adjust with the same unit!
usage and mobility options • Fast and easy to use, it provides secure clamping without
touching the rim. This patented technology allows accurate
Hofmann’s professional wheel alignment if the tyres mounted are of a different size, and repeatable results coupled with ease of use and durability.
systems can perform precise complete as it could lead to issues. Results are shown • Easy, intuitive workflow:
Select Vehicle - Measure - Adjust - Print report.
checks in a short time, assessing the toe- in 3D via an intuitive user interface that • Ride Height measurement.
in (even at the maximum steering angle), makes it easier to read the outcome of the • Chassis data as diagonals, track width and wheelbase indicate
caster and camber of wheels. They are also diagnosis. Hofmann’s professional wheel collision damage. Rolling Radius measurement and tyre size
equipped with high-resolution cameras and alignment has always been precise and of mismatch are common contributors to pull problems.
an extended model database so as to make the highest quality, guaranteeing accurate • ADAS info
• EZ-Toe for easy access to make Toe adjustment
alignment easier. What is more, they detect real-time measurements over time. • High speed video camera system.
• Interactive Software - avoid guessing by using this rapid and
reliable system for detecting problems and damage.
• Audit mode quickly identifies if a car needs adjustment.
• Mobility kit
FEATURES of geoliner ®
678 lift
• Only 1,70 m between cameras and turntables. The smallest
footprint for a 3D aligner!
• Alignment readings are ready in less than two minutes!
• Online specs updates
• Online connectivity automatically downloads specifications
170 cm and software updates
• Cloud based printing option
270 cm Added
Space: • Wireless remote display (tablet) supported
1 meter
• 40+ languages
Electrical supply
100-240V 1Ph 50/60Hz
Automatic Advanced
AC400 Lift Tracking Short Bay Dimensions
• Grab the tyre, without We use the most Only 1,70 m between Rolling Radius and
touching the rim advanced camera cameras and turntables Cross Diagonals
• Single fast-action system • The smallest footprint Chassis data as
knob for easy Cameras follow the for a 3D aligner diagonals, track
clamping height of the vehicle • Accomodates 6 m width and wheelbase
• Light, balanced, easy avoiding the need of overall length service indicate collision
to handle adjusting the aligner bays and work area damage. Rolling Radius
• Fits a full range of while moving the lift. • The cabinet can be measurement and
tyres (wheels up to Alignment readings are moved as needed tyre size mismatch are
39”) without need of ready in less than two • Optimize your common contributors to
additional accessories minutes! workshop space pull problems.
• Save 1 meter of space
without compromising
accuracy and speed
4 | Wheel Aligner Wheel Balancer | 5
GEOLINER® 660 LIFT
WHEEL BALANCERS
Reference Volvo: SE 25716. 7.0
geoliner® 660 designed to provide core alignment
functions quickly and easily.
• Software designed together with technicians around the core
Balancing technology at its finest
functions: you never wait for the system
• Intelligent & predictive alignment workflow for your selected
vehicle without unnecessary steps
Hofmann’s professional balancers meet components and prevent tyre treads from
• Compensate, Warn & Alert let’s you perform your work fast all kinds of needs, they help make tyre wearing unevenly. All Hofmann balancers
with professional results rotation uniform at all speeds; in little time, are easy, quick and safe to use and they are
• Rolling Compensation time reduced 35% compared to they eliminate steering wheel vibrations also hard-wearing. They feature the most
previous models which are potentially harmful for mechanic advanced diagnostic solutions available.
• Intelligent shorter procedure for caster swing: 40% faster
than previous models
• Automatic Tracking Camera Beam: you don’t have to spend
time on adjusting the height of the camera beam
• Cabinet position independent from camera beam
• Cloud based printing option: retrieve and print your reports
from any internet connected PC or mobile device
Electrical supply
100-240V 1Ph 50/60Hz FEATURES of geodyna ®
9000P
GEOLINER® 630 TILT Reference Volvo: SE 25716. 7.0
geoliner® 630 can benefit from the Next Generation User
Interface, designed for maximum clarity and accessibility.
• Accurate and repeatable readings in under 2 minutes
• Online connectivity for automatic software and specs updates
• Portable remote display 3D Imaging Match- Bare rim
•
•
Mainstream alignment features
Tilt, wall and fixed beam options
Technology Mounting easyALU™ measurement
• Easy installation and service
• Wireless remote display support with connection to many The 3D image 3D image technology Touch the rim with the The machine recognises
consumer devices technology is an performs an accurate gauge arm to enter the at once if there is a
• Improved installation flexibility with camera beam and printer exceptional suite of radial run-out rim dimensions and rim only and performs
shelf connected by up to 50m long ethernet cable tools for advanced measurement of automatically select the a high quality and
• No need for RCP bar for easier and faster service data collection and the wheel assembly weight balancing mode. accurate measurement
analysis. It involves and rim. The wheel of bead seat run-out.
five high-resolution assembly roundness Using the real low
laser cameras, one of is maximized point of the wheel’s
which is displaceable, by the match- bead seats, it ensures
scanning the complete mounting procedure, the most effective
rim and tyre profile. guaranteeing the match-mounting, shape
minimization of shape vibrations correction
vibrations. and driving comfort.
Electrical supply
100-240V 1Ph 50/60Hz
6 | Wheel Balancer Wheel Balancer | 7

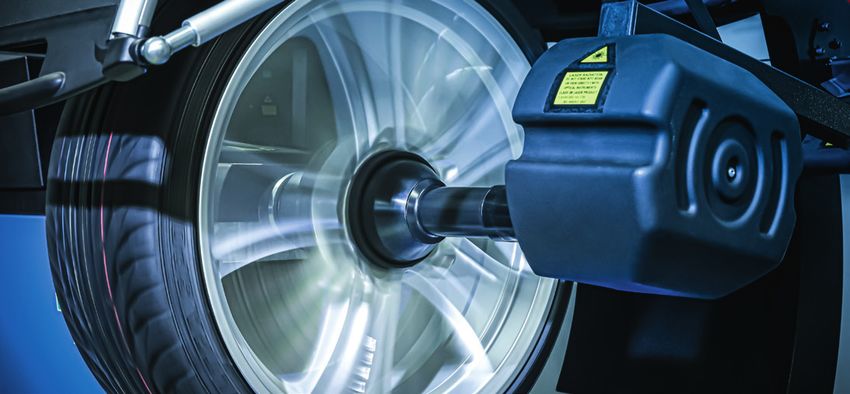

GEODYNA® 9000P Reference Volvo: SE 25717. 7.0 GEODYNA® 8200P Reference Volvo: SE 25717. 7.0
Wheel diagnostics made easy - completely automatic Wheel balancer with touchscreen monitor
with diagnostics features • VPM measurement technology for uncompromised accuracy
• Power Clamp™, unique torque-controlled wheel clamping
• Offset and diameter acquisition via laser scanner
• Five hi-res 3D imaging technology cameras scan the entire
• Rim width acquisition via Smart Sonar™
wheel and rim profile including tread surface, sidewall, bead
• Automatic selection of balancing mode and weight position
seat and rim flange
• Stop-in-Position: touch the display and the wheel goes to
• VPM measurement technology for uncompromised accuracy
weight-placement position
• Power Clamp™, unique torque-controlled wheel clamping
• easyWEIGHT™, a laser spot shows exactly where to place
• Automatic acquisition of rim diameter, rim width and offset
the weight
• Automatic selection of balancing mode and weight position
• The telescopic wheel guard allows the installation against
• Automatic detection of number and position of spokes
the wall
• Radial and lateral run-out combined with unbalance
• Bright rim illumination thanks to iLED™
measurement in a single fast measuring run
• Split weight mode, weight minimization and optimization
• Tyre pull effect (tyre conicity)
• Network: printing capability, compatible with asanetwork
• Tread depth and wear analysis
• Tyre wear-out prediction
• Alignment pre-checking
• All diagnostic results in brilliant 3D colour maps
Electrical supply
100-240V 1Ph 50/60Hz
GEODYNA® 7700P Reference Volvo: SE 25717. 7.0
Electrical supply
Wheel balancer with geoTOUCH™ display
100-240V 1Ph 50/60Hz
• VPM measurement technology for uncompromised accuracy
• geoTOUCH™ display
• Power Clamp™, unique torque-controlled wheel clamping
• Offset and rim diameter acquisition via geodata® gauge arm
• Rim width acquisition via Smart Sonar™
• Pre-selection of balancing mode via easyALU™
• Stop-in-Position: touch the display and the wheel goes to
weight-placement position
• easyWEIGHT™, a laser spot shows exactly where to place the
weight
• Bright rim illumination thanks to iLED™
• Split weight mode, weight minimization and optimization
• The telescopic wheel guard allows installation against the wall
• Network: printing capability, compatible with asanetwork
Electrical supply
100-240V 1Ph 50/60Hz
8 | Wheel Balancer Tyre Changers | 9
GEODYNA® 7340L
TYRE CHANGERS
Reference Volvo: SE 25717. 7.0
Car wheel balancer with geoTOUCH™ display
• VPM measurement technology for uncompromised accuracy
•
•
geoTOUCH™ display
Power Clamp™, unique torque-controlled wheel clamping smartSpeed™
• easyWEIGHT™, a laser spot shows exactly where to place the
weight
• Offset and diameter acquisition via 2D SAPE smartSpeed™ - continously in control of FAST - This technology automatically
• Rim width acquisition via Smart Sonar™ the mount/demount conditions selects the maximum speed possible:
• Pre-selection of balancing mode via easyALU™ smartSpeed™ is the innovative technology chuck rotation up to 20 rpm; up to 30% of
• QuickBAL™: short start-stop cycle: 4.5 seconds (15” rim)
• Stop-in-Position: touch the display and the wheel goes to
applied to Tyre Changers that optimizes the time saving
weight-placement position torque and maximizes the rotation speed.
• Split weight mode, weight minimization and optimization EASY TO USE - Operators simply have
• Two users with rapid switch function SAFE - No damage in terms of “overstress to press the pedal and smartSpeed™
• Network: wifi connectivity, printing capability, compatible with the tyre bead” continuous control of the automatically sets the maximum speed
asanetwork
chuck torque avoiding to exceed 1.200 Nm possible (from 7 rpm to 20 rpm)
Electrical supply
100-240V 1Ph 50/60Hz FEATURES of monty ®
quadriga
GEODYNA® 7100 Reference Volvo: SE 25717. 7.0
Car wheel balancer with LED display
• Small footprint
• Semi-automatic input of offset and rim diameter via 2D SAPE
• Manual input of rim width
•
•
Conspicuous and intuitive LED display
Imbalance minimisation and optimisation programs
Fully automatic Leverless tool Centre clamp Wheel lift
• VPM measurement technique for uncompromised accuracy
• QuickBAL™ for reduced measurement time: mounting and The leverless tool The centre-clamp The ergonomic wheel
• Short start-stop cycle time: 6.5 seconds (15" rim) demounting procedures supersedes the design has numerous lift reduces fatigue
• Measuring speed < 100 rpm are performed simply conventional tyre lever. benefits: most on the operator and
• Wheel guard through an ergonomic It pulls the bead over important is the increases productivity.
• Clamping of wheel on integrated flange with quick nut joystick. the rim edge, being as drastically reduced risk
gentle to the tyre as can of damage and that
be and and reducing the there are no restrictions
effort of the operator. of the turntables with
clamping jaws, while
automatic locking of
the wheel provides
fast, safe and correct
clamping of the wheel.
Electrical supply
100-240V 1Ph 50/60Hz
10 | Tyre Changers Tyre Changers | 11

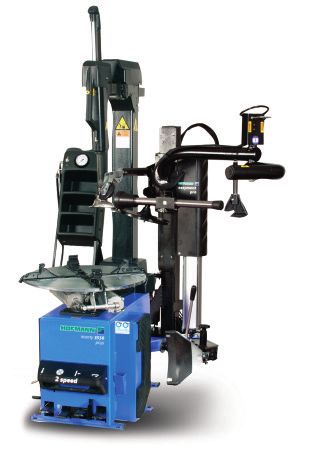

MONTY® QUADRIGA Reference Volvo: SE 25718. 7.0 MONTY® 8700B Reference Volvo: SE 25718. 7. 0
Automatic tyre changer with dynamic bead breaking The tyre changer for low-profile, UHP and
• Thanks to dynamic procedures and controlled power, all run-flat tyres
tyre changing operations are accomplished efficiently by
preserving tyres and rims and reducing operator effort. • powerMONT™ the innovative, fast and easy to use leverless
• Non-contact detection of rim contour by a laser scanner. mount/demount system
• Automatic control of mounting and demounting tools from the • smartSpeed™ the exclusive self-adjustable speed system with
control console. before up to 20 rpm that provides the optimum torque/speed
• Thanks to the lift, lift the wheels are positioned on the combination to the chuck
clamping flange automatically, accurately and say instead • Dynamic bead breaker with two disks, the solution of choice
without operator effort. for RFT and UHP tyres. Precise, ergonomic and effortless
• Hydraulic clamping of wheel on the clamping flange via quick- • Manual center post clamping system
clamping nut. • PBD330, Pneumatic Bead Depressor for convenient
• Rotating bead breaker discs gently follow the rim contour demounting of hard sidewall tyres
when breaking tyre beads. • High rigidity for safe handling of high performance tyres
• Tools specially designed for gentle handling of tyre and rim. • Pedal-controlled inflator
• The control console is located at an ideal level for convenient • Mirror to control operation on the lower bead
control and monitoring of the individual work steps.
Electrical supply
100-240V 1Ph 50/60Hz
Electrical supply OPTIONAL:
100-240V 1Ph 50/60Hz EAA0377G29A WHEEL LIFT
MONTY® 8800S Reference Volvo: SE 25718. 7.0 MONTY® 3550 Reference Volvo: SE 25718. 7. 0
The tyre changer of choice for high volume tyre shops Pneumatic tilt back post tyre changer
• Excellent with low-profile, UHP and run-flat tyres, high for wheels up to 26" diameter
performing with tyres with high aspect ratio too
• powerMONT™ the innovative, fast and easy to use leverless • Top-side bead seating kit
mount/demount system • Certified by wdk for gentle and user-friendly mounting and
• quickLOK™ automatic center post clamping system demounting of UHP and run-flat tyres in line
• smartSpeed™ the exclusive self-adjustable speed system • With pneumatic mounting tool easymont® pro and "plus" kit
up to 20 rpm that provides the optimum torque/speed for handling of UHP and run-flat tyre systems
combination to the chuck • Mounting head vertically and laterally adjustable in spaced-
• Optimum bead breaker system: the most performing solution apart position relative to the rim
for any tyre’s types: Dynamic bead breaker with two disks, the • Inverter technology for two turntable speeds optimises torque
solution of choice for RFT and UHP tyres. Precise, ergonomic and speed depending on the requirements of mounting and
and effortless - On floor bead breaker, the fastest solution for demounting operations
tyres with high aspect ratio • Bead breaker blade supported in 3 joints
• PBD330, Pneumatic Bead Depressor for convenient • Bead breaker adjustable in 2 ranges
demounting of hard sidewall tyres • Pneumatic tool lock and pneumatic tool approach
• High rigidity for a safe handling of high performance tyres • Quick-inflating valve
• Pedal-controlled inflator • Pneumatic tilt back post, pneumatically locked in working
• Mirror to control operation on the lower bead position and pneumatically tilted forwards/backwards
Electrical supply • Double-acting bead breaker cylinder
100-240V 1Ph 50/60Hz • Self-centring four-jaw turntable
INCLUDED: Electrical supply
EAA0377G29A WHEEL LIFT 100-240V 1Ph 50/60Hz
Cod.: xxx · 07/2021
hofmann-equipment.com
Snap-on Total Shop Solutions offers a wide
range of garage equipment solutions for
www.hofmann-equipment.com/en/distributor workshops, garages, car dealers and tyre
Part of the machines is illustrated with optional extras shops, thanks to the specific solutions
which are available at extra cost. Technical and visual provided by its portfolio of premium brands.
modifications reserved.
You can also read
