The Electrovert Electra is an advanced,
precision engineered wave soldering system designed
for high-mass and high-volume manufacturers.
Technology + Performance + Reliability
Electra
Electra:
Electra’s proven
performance has provided
the electronics assembly
industry with world-class
soldering results. The
Electra system is designed
with computerized, closed-
loop controls that deliver
the required accuracy and
repeatability for demanding
production environments. Proven Performance, World-Class Results
The Electra is the most advanced wave soldering system available.
• Originally launched in 1996, the Electra has outperformed and outlasted all
competitive soldering systems.
• Process control, process capability, and process flexibility are all competitive
advantages to Electrovert wave soldering.
• All-in-one touchscreen PC with Windows 10 (64 bit) based operating system. The
PC is mounted on an articulating arm.
• Intuitive graphical user interface that makes set-up and operation easy.
• Data logging of all critical machine parameters and trending are standard in the
machine software.
• The ethernet based I/O system is common across all Electrovert wave, reflow and
cleaning products (commonality of spare parts).
• The Electra is UL Listed for Factory Automation as standard.
• All Electrovert systems are made in the USA.
Electra
Features and Options:
Wave Solder Nozzles Solder Module
• DwellMax Plus provides excellent • All Electrovert wave systems have a
topside hole fill and throughput. lifetime warranty on the solder pot
Ideal for high thermal mass boards. casting (applies to original owner)
• DwellFlex 4.0 provides process • See the specifications section for the
flexibility with an on-the-fly comprehensive list of features for every
DwellMax Plus adjustable wave contact length. soldering process and application
At maximum offers the most • For N2 soldering applications, the
contact length in the industry for available features include:
high thermal mass circuit boards
• N2 boundary soldering
and at minimum is ideal for low
(inerts at the waves)
mass wave circuit boards.
• Short N2 tunnel (inerts the entire
Lead Free Applications Rolled out Solder pot solder module area and wave)
DwellFlex 4.0 Adjustable • All Electrovert waves are lead • Full N2 tunnel (inerts all preheat
Wave Contact Nozzle
free qualified and optimized as sections, the entire solder module
standard and at the waves)
Fluxer Types • Integrated fume extraction into
• ServoSpray spray fluxer back hood
(single head or dual head) Accessibility
• ServoJet jetted spray fluxer (avalable • A single rear door allows complete
in single head, dual head, OA types access to all modules from the rear
and with selective fluxing features) of machine
Optional Dual Head • ServoSonic ultrasonic type • Integrated pull-out step across entire
ServoJet
spray fluxer front of machine
Front step with storage
Preheat Conveyor
• All preheaters are wired with quick • Single continuous finger type conveyor
connect plugs and can be moved through the entire length of machine
to any position or location • No limitation on board length
• The IsoThermal convection preheat (min and max)
utilizes heat on intake technology. • Robust conveyor design capable of
IsoThermal Convection The heating uniformity is very 100 lbs (43.4 kg) evenly distributed
Preheat (ICP) throughout the conveyor length
effective and efficient across the
entire heating area.

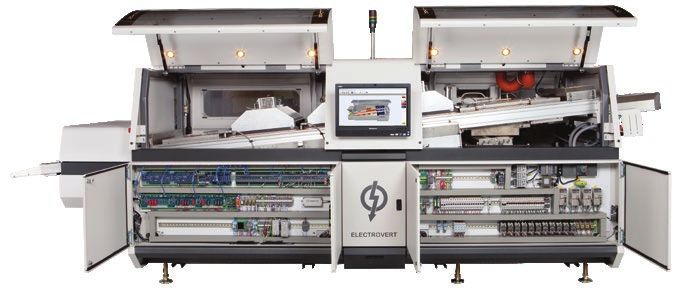

View from back with rear door open.ELECTRA SPECIFICATIONS
Feature Electra (EC-4)
Alloy Type Lead Free (Qualified and Optimized) S
Process S 20” (508 mm)
Process Width Maximum PCB Width
O 24” (610 mm)
S 187.9” (4.77 m)
Machine Length Length of machine with rail guides (Load/Unload)
Physical O 213.1” (5.4 m)
Characteristics Maximum Load Weight 100 lb (45 kg)
Conveyor
Motorized Width S
IR Platen S
Preheat Type IsoThermal Forced Convection S
Fast Response IR O
Preheat
S (Qty. 2) at 4’ (1.2 m)
Bottom
Preheat Length O (Qty. 4) at 8’ (2.4 m)
Top O (Qty. 3) at 6’ (1.8 m)
S Air
Soldering Environment Environment
O N2
Main Wave UltraFill Air S
Chip Wave S
Dual/Adjustable Wave
DwellMax Plus O
Contact Length
DwellFlex 4.0 O
Melonite Coated, Stainless Steel S
Nozzle Material
Titanium O
Solder
UltraFill N2 (Boundary Type) O
N2 Soldering Short Tunnel (Inerts entire solder pot area) O
Full Tunnel (Inerts entire solder pot and ALL preheat areas) O
S 12.7 mm
Wave Height
Wave O Up to 25 mm
ExactaWave (Automatic wave height control) O
Casting Lifetime Warranty on Solder Pot Casting S
HMP High Melting Point Capability (Special Warranty Applies) RFQ
ServoSpray S
ServoJet O
OA ServoJet O
Fluxer Types and
Fluxer ServoSonic O
Options
Flux Spray Start/Delay S (ServoSpray/ServoSonic)
Precision Selective Fluxing (includes flux spray start/delay) S (ServoJet)
Dual Flux Capability ServoSpray/ServoJet
Windows 10 - 64 bit S
Software and Controls
Operating System Ethernet Based I/O S
UL UL Listed for Factory Automation Equipment S
Factory based R&D and Software Engineering,
Country of Origin Made in USA Camdenton, MO USA
Manufacturing/Assembly and Applications Support
O = Optional; S = Standard; RFQ = Request Factory Quote
Process Knowledge and Support
At ITW EAE, we deliver world-class products, performance, and unparalleled service and support programs.
With the Electra comes the proficiency of our Electrovert process experts that allows us to solve real-world
applications issues. Knowledge in Process for superior performance.
