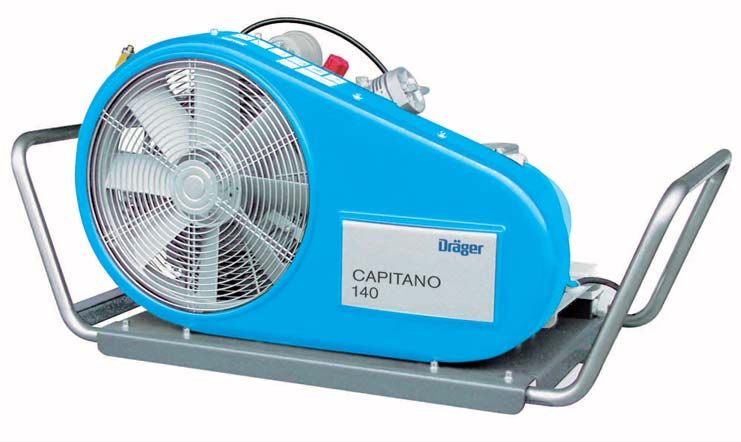

Dräger CAPITANO 140 The true capabilities of the Dräger CAPITANO 140 mobile compressor become apparent during professional operations at sea. ST-1339-2003 The Dräger CAPITANO 140 is a member COMPRESSOR BLOCK: INNOVATIVE of the Dräger Profi-Line II, a family of MATERIALS FOR MAXIMUM DURABILITY mobile breathing air compressors for The extremely heavy duty engines are professional use that offer reliability, designed for both short-term and durability and high output. continuous operation. The three-stage construction and the use of virtually Ships and submersibles are the ideal indestructible industrial roller bearings platform for the Dräger CAPITANO 140, guarantee a long service life. The ST-772-2004 as an extra large oil reservoir in the maintenance-free low pressure oil pump crankcase allows operation even when the ensures reliable lubrication and longer oil vessel tilts by up to 30°. The output of the change intervals. The vibration-reducing Dräger CAPITANO 140: compact compressor is 140 l/min. construction of the motor mounting plate Sturdy, compact and lightweight guarantees quiet compressor operation for professional operations. SIMPLE AND SAFE OPERATION and self-restretching of the v-belt. The You will be impressed by how little space compressor block and drive motor are the Dräger CAPITANO 140 requires, mounted on a stable crash frame, while and by the fact that it can be easily the blend of stainless steel and Kevlar transported by one person. Pictograms used in the frame and filling connection make operation easy for the user. What ensures optimum protection against is more, completely safe handling is corrosion under even the toughest guaranteed because all moving parts – environmental conditions. like the drive belt and fan – are protected against access.
02 | DRÄGER CAPITANO 140 The Dräger CAPITANO 140 is equipped The compressor is equipped with: Patented filter system for ultra-pure with a micronic suction filter, stainless – 1 international filling connection breathing air steel intercoolers and after coolers, an (not approved in Germany) The filter system guarantees ultra-pure intermediate sorter and intermediate – 1 filling valve PN 200 bar (or 300 bar) breathing air conforming to the stringent pressure safety valves. The compressor is with automatic venting and pressure breathing air standard DIN EN 12021. driven by a v-belt. gauge with 1 m filling tube – R 5/8” threaded connection The optional units with electric motor are conforming to DIN 477 supplied with a motor protection cable and connection cable. An additional plug Cost-effective operation is ensured thanks is provided for units with 230 V/50 Hz and to the filter cartridges of the Triplex® P21 400 V/50 Hz. filter system (or optional Super-Triplex® An extensive range of accessories means P31) which allow the filter to be used until that the compressors can be configured it is completely saturated. according to the customer’s specific requirements. Filling tube with filling valve Handle Fan ST-772-2004
DRÄGER CAPITANO 140 | 03 TECHNICAL DATA Dräger CAPITANO 140 Type operating pressure Drive motor F.A.D. Rotation Engine Filter system Dimensions Weight max. 330 bar2) l/min speed min.-1 kW TRIPLEX® (L x W x H) cm kg Capitano 140-B Petrol engine 140 1300 4.0 P21 115 x 59 x 55 95 4-stroke Capitano 140-E 3-phase 140 1300 3.0 P21 115 x 59 x 55 102 1) Units can also be switched to PN 200 / 300 bar ORDER INFORMATION Dräger CAPITANO 140 Dräger CAPITANO 140-E-PN 225 bar 65 31 098 Dräger CAPITANO 140-E-PN 330 bar 65 31 099 Dräger CAPITANO 140-E-PN 225/330 bar 65 31 100 Dräger CAPITANO 140-B-PN 225 bar 65 31 101 Dräger CAPITANO 140-B-PN 330 bar 65 31 102 Dräger CAPITANO 140-B-PN 225/330 bar 65 31 103 Woher übernehmen?
