DISCOVER
2021 | Ecocapsule® CATALOGUE
YOUR
w w w.ecocapsule.sk
NEW
FREEDOM
1
BEAUTIFUL, SELF-SUSTAINABLE
AND MOBILE MICRO-HOME.

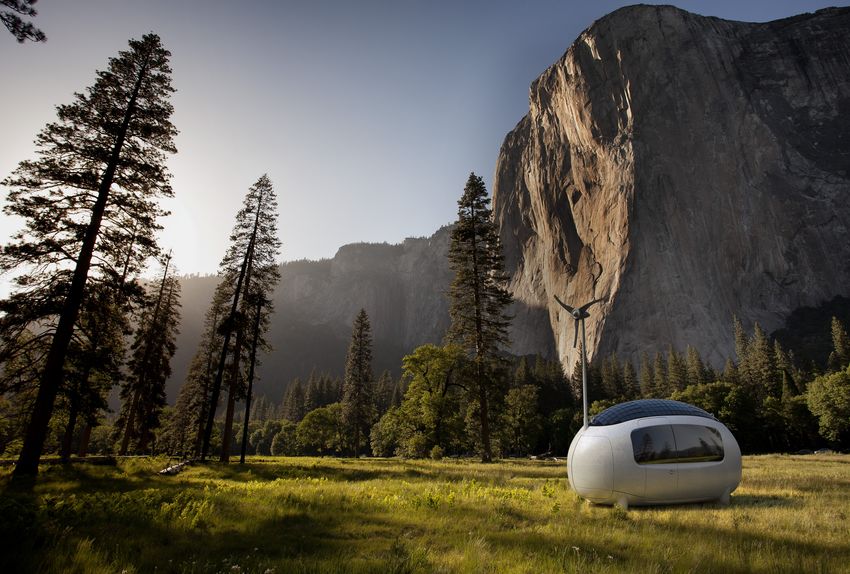

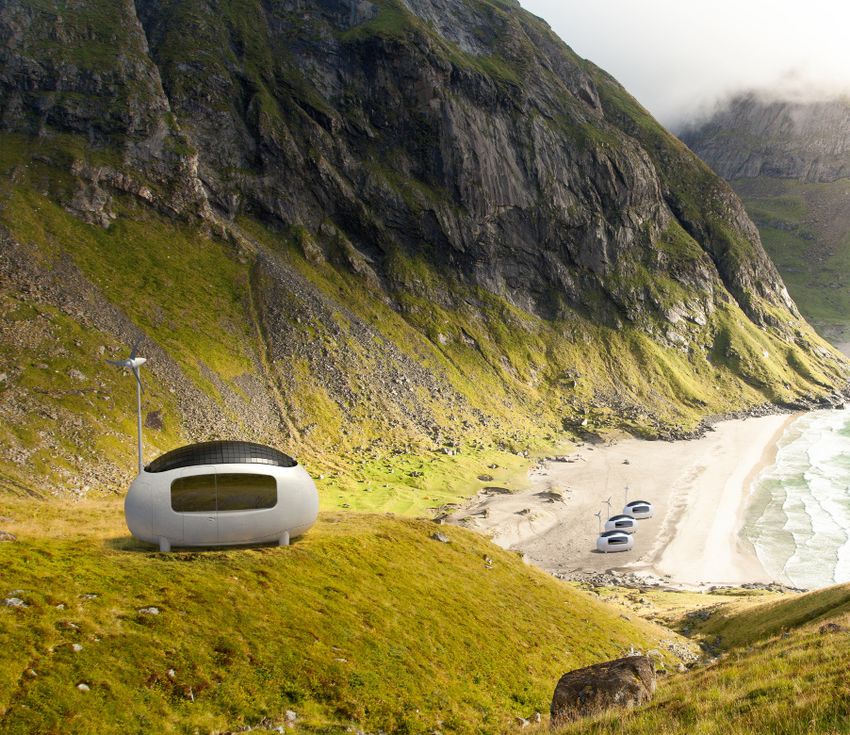

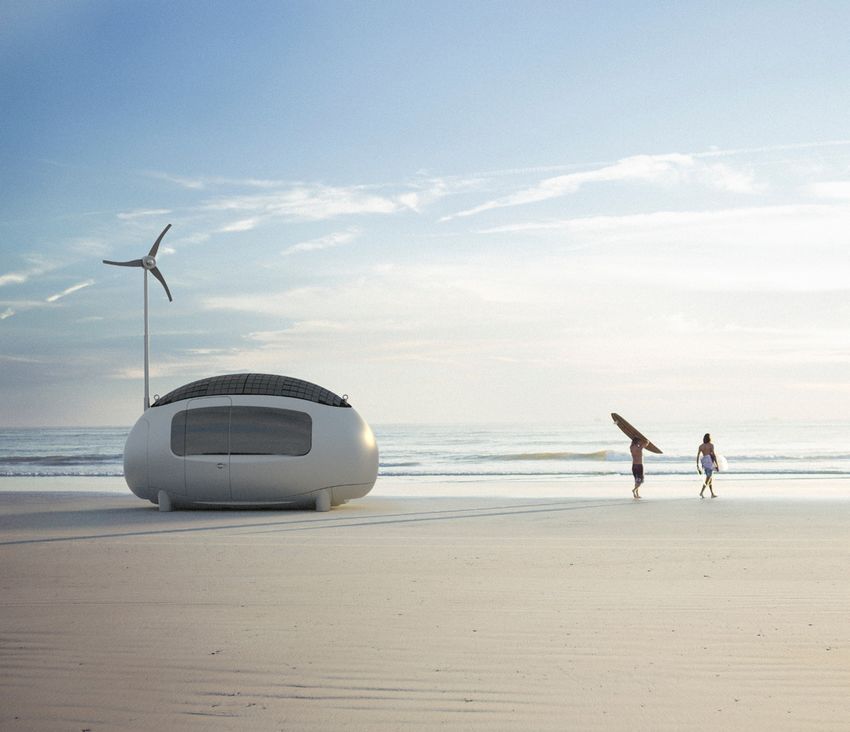

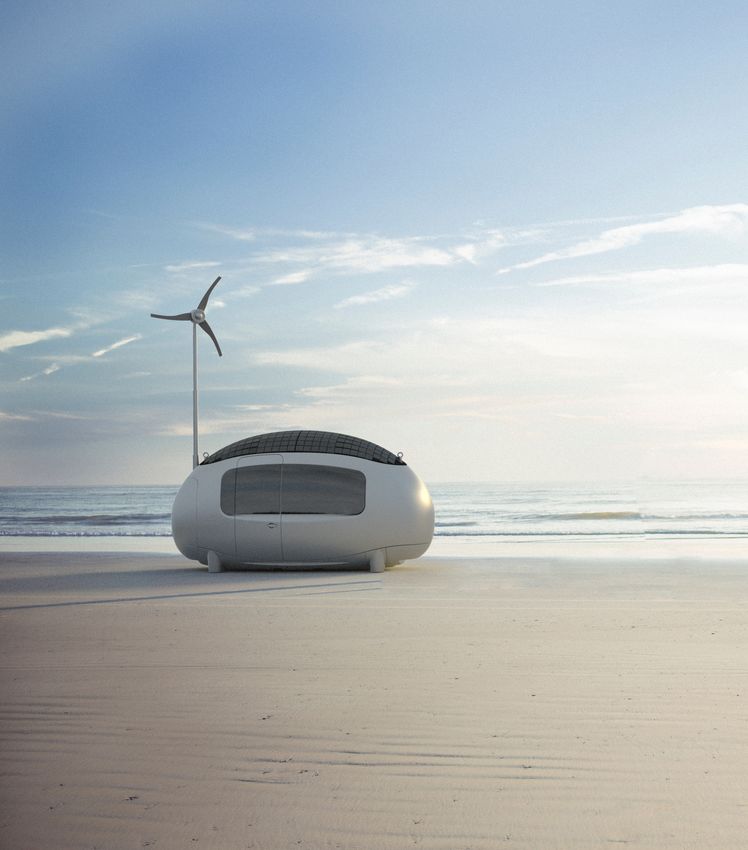

Ecocapsule® is a smart, self-sustainable
micro-unit which utilizes solar and wind
energy. It allows people to live in remote
places out of reach of infrastructure, while
retaining a high level of comfort. It can be
used as a cottage, pop-up hotel, mobile office,
research station, or anything you want it to be.
2 2018
2021 | ECOCAPSULE® CATALOGUE
Soňa Pohlová Tomaš Žáček
“Imagine a warm mountain cabin in the great outdoors. A beach
cabana on a remote island. A quiet studio in the countryside.
A futuristic pod near your house. Ecocapsule® is your opportunity
to get away and enjoy an authentic off-grid lifestyle”.
Tomáš Žáček & Soňa Pohlová, founders
3 2021
2018 | ECOCAPSULE® CATALOGUE
TABLE
OF CONTENTS
STORY 5
MEET ECOCAPSULE 7
FEATURES 15
FAQ 17
SMART HOME 19
LET’S GET TECHNICAL 21
SERIES & PRICING 24
SPACE BY ECOCAPSULE 25
CONTACT
CONTACT 27
4
2021 | Ecocapsule® CATALOGUE STORY THE
the The story of Ecocapsule® has begun in the year 2009,
story
when our architectural studio Nice Architects participated
in the Andes Sprout Society Idea Competition to design
a small housing unit for an artist.
A massive amount of inquiries In 2014, the development of
persuaded us to develop technology has allowed us to
this project further. Yet, the finish the Ecocapsule® prototype
technology in 2009 was not equipped with systems necessary
ready for a truly independent for longer time of independence.
house. Within the next five years, In 2018, we have released the
we had have been working on first Ecocapsule® series on the
the technological and product market. Last year we launched
design of Ecocapsule® in order to variable SPACE by Ecocapsule.
come out with the best possible
product.
01/ 2018
START OF FIRST SERIES
2009 — 2013 PRODUCTION 05/2019
DEVELOPMENT 07/ 2015 02/ 2017 (50 PCS) ICONIC DESIGN FESTIVAL
EXPO MILANO SEED INVESTMENT NYCXDESIGN
REDESIGN
NEW YORK, TIMES SQUARE
05/2020
05/ 2015 06/ 2017 2018 LAUNCH OF
2009 FIRST EXPO ASTANA ROUND B SPACE BY ECOCAPSULE
FIRST PROTOTYPE INVESTMENT
CONCEPT
6 2021
2018 | ECOCAPSULE® CATALOGUE
2021 | Ecocapsule® CATALOGUE
ECOCAPSULE ®
MEET
7
meet
Ecocapsule®
Ecocapsule® is powered by a dual system of energy
production, which – in connection with high–capacity
batteries – ensures energetic self–sufficiency even in
the case of a temporary lack of sources. Ecocapsule®
also has an electric plug, enabling to charge the
batteries from an external electric source if needed.
SOLAR POWER
WIND POWER
RAINWATER
HARVESTING
EXTENDED
OFF–GRID STAY
8 2021 | ECOCAPSULE® CATALOGUE
2018
meet
Ecocapsule®
SUSTAINABILITY
2021 | Ecocapsule® CATALOGUE
Ecocapsule® as a company strongly believes in sustainability. We
offer a mid-term housing alternative that fully utilizes the latest
technological innovative solutions, enables people to connect with
nature in harmony, and at the same time minimizes negative impact
on the environment.
9
meet
Ecocapsule®
LOW ENERGY
CONSUMPTION
The spheroid shape of Ecocapsule® is designed to maximize the collection of rainwater
and dew. The water filters consequently ensure the transformation of water from any
natural source into clean water. The design of the outer shell minimizes energy loss.
Hollow walls filled with highly efficient thermal insulation protect inhabitants from
harsh weather.
10 2021
2018 | ECOCAPSULE® CATALOGUEMEET
ECOCAPSULE®
EASY MOBILITY TRANSPORTABLE
BY HELICOPTER
Ecocapsule® is optimized for easy transportation.
It can fit into a standard shipping container and
therefore can be easily shipped globally with
the lowest shipping fees possible. The custom -
designed trailer enables the transportation of the
Ecocapsule® with a passenger car, allowing you
to move it anywhere.
FORKLIFT LOADING
CUSTOM DESIGNED TRAILER
EASILY PLACED
ON PONTOON
TRANSPORTABLE BY TRUCK
11 2021
2019 | ECOCAPSULE® CATALOGUE
2018MEET
MEET
ECOCAPSULE®
ECOCAPSULE®
FLOORPLAN
mm ft
mm/8,20
mm
mmft
mm
mm/5,24
2497
2497
1600
16001600
2500
1275
1276
13001275
1276mm
mmft
mm/4,26
370
370 mm
mm 2200
2200
2200 mm
mmft
mm/7,21
1296
1296mm
mm
STORAGE
885
SPACE
885 mm
mm
TOILET
TOILET FOLDABLE
FOLDABLEBED
BED
422
422 mm
TOILET
419
mm
419 mm
SPACE
STORAGE
VERTICAL
SPACE
STORAGE
VERTICAL
1061
1061mm
mm FOLDING LINEN
mm
VERTICAL
STORAGE BED CLOSET
SPACE
mm ft
mm/15,42
mm
1201
1201mm
mm 800
800mm
mm
STORAGE
STORAGESPACE
SPACE
TECHNICAL
4670
4670
537
65
249
125
545
537 mm
65 mm
249 mm
125 mm
545 mm
ROOM
mm
498
498mm
mm
mm
mm
mm
mm
4700
KITCHENETTE STORAGE
STORAGESPACE
SPACE
KITCHENETTE
KITCHENETTE
STORAGE
SPACE
347
347 mm
FOLDING
FOLDABLE
FOLDABLETABLE
TABLE
TABLE
mm
DOOR
DOOR
DOOR
1650
1650
1650 mm
mm ft
mm/5,41
12
12 2020
2021
2018
2019| |ECOCAPSULE®
2019 ECOCAPSULE®CATALOGUE
CATALOGUEmeet
Ecocapsule®
LED Stripe Light
Cabinets
Cabinets
Folding Bed
Tap
Folding Table
Cabinets
CROSS-SECTION VIEW
13 2021
2018 | ECOCAPSULE® CATALOGUEmeet
Ecocapsule® STYLISH MINIMALIST
DESIGN In its compact space, Ecocapsule® features everything you
need. A fully functional kitchen, a living room space, and
a comfortable bed. Ecocapsule® is comfortable, practical, and
minimal.
14 2018 | Ecocapsule® CATALOGUEFEATURES
15 2019 | ECOCAPSULE® CATALOGUE
2018
2021features
Shell Water Unit
The body is made from a fiberglass Water comes from two sources - it is collected as
shell (with a low amount of styrene) rainwater and can also be supplied from another
overlaid on a steel framework. natural source, such as a stream or lake. Due to
an extremely efficient pre-filtration system and UV
Insulation LED lamp, Ecocapsule® is able to clean the water.
The shell features locked high- capacity
thermal insulation (ecologic polyurethane Ecocapsule® comes with three tanks for water and
foam). Ecocapsule® liquids - Harvested Water Tank (96 L), Grey Water
is designed for outside temperatures Tank (96 L), and Black Water Tank (24 L). The
from -5°C to +40°C / from 23°F to 104°F. Harvested Water Tank contains rainwater, dew, or
water from other natural sources, which needs to
Wind Turbine be filtered into clean water. The Grey Water Tank
Low-noise wind turbine on telescopic contains waste water from the shower and sinks.
pole, braced. Installed power output The Black Water Tank contains urine.
750 W.
Waterless Separating Toilet
Solar Panels
High-efficiency solar panels on the roof, Ecocapsule® features a waterless, separating
installed power output 880 W. In order toilet. With the help of bacteria, the waste can be
to provide maximum performance, the purified and after the composting process, can be
solar panels must be properly cared for discharged into the nature. The toilet has its own
(e.g. kept clean from dust or snow). ventilation and an openable window.
Batteries HVAC
Ecocapsule® features Ecocapsule® features a specially customised HVAC unit,
a 9.7 kWh battery pack. which provides heating, ventilation, and air conditioning.
16 2021 | ECOCAPSULE® CATALOGUE
2018FREQUENTLY
ASKED
QUESTIONS
2021 | Ecocapsule® CATALOGUE
17 2018 | ECOCAPSULE® CATALOGUEfaq
Can I really put Where can I see an
Ecocapsule® anywhere? Ecocapsule® live?
Ecocapsule® does not require Please, visit www.ecocapsule.sk
a building permit but you may need and follow our social media profiles
permission from the landowner or for more information on current
relevant authority, depending on showrooms and exhibitions.
where you choose to locate it. We
recommend you to check with your
local authority and/or check your
What kind of toilet does
country’s or region’s regulations Ecocapsule® use?
in this respect.
Ecocapsule® features
a waterless separating toilet.
How should I maintain
Ecocapsule®?
You just need to change the water filters
(every 3-24 months) and batteries (every
10-15 years). Otherwise maintain your
Can I connect Ecocapsule®
to an external power and water supply?
Ecocapsule® as you would maintain a
normal house. Yes, of course. In most locations external sources of
water and electricity will not be necessary, however,
you can use Ecocapsule® connected to grids as
well. Ecocapsule® has the best possible shape for
What is the lifetime collecting rainwater and minimizing thermal losses.
of Ecocapsule®? Ecocapsule® is also capable of efficient power
If properly cared for, Ecocapsule® will last generation (up to 1.63 kWh installed power)
for dozens of years. It is tailored for short– and storage (9.7 kWh battery pack as default
term to midterm living. option).
18 2018
2021 | ECOCAPSULE® CATALOGUEECOCAPSULE®
SMART HOME
2021 | Ecocapsule® CATALOGUE
19 2018 | ECOCAPSULE® CATALOGUESMART HOME
APP
ULTIMATE
CONTROL
power and
battery state
lights
climate control
floor
leveling water and liquid state
country localization
in app
to-do
checklist
notifications
and warnings
20 2018 | ECOCAPSULE® CATALOGUE
20212021 | Ecocapsule® CATALOGUE
LET’S GET
TECHNICAL
21let’s get
technical
BASIC INFORMATION WATER SYSTEM
exterior length 4.70 m/15.41 ft waterless separating toilet
exterior width 2.20 m/7.21 ft harvested water tank 96 l/25.3 gal
exterior height (turbine down) 2.50 m / 8.20 ft grey water tank 96 l/25.3 gal
exterior height (turbine pole extended) 4.50 m/14.76 ft black water tank 24 l/6.3 gal
weight (empty tanks, with batteries) 2000 kg/4409 lb UV LED lamp desinfection
weight (full tanks, with batteries) 2220 kg/4894 lb fluid level sensors
weight with trailer and full tanks 2700 kg/5952 lb mechanical filters
gross floor area 8.2 m /88.2 ft
2 2
boiler
net floor area 6.3 m2 /67.8 ft2 automatic water pumps
sleeping capacity up to 2 persons rainwater inlet with distribution system + filters
openable windows 2
fixed windows 2
doors 1 ELECTRICAL SYSTEM
wind turbine with maximum peak power 750 W
custom photovoltaic system with peak installed power 880 W
CONSTRUCTION
LFP batteries with nominal capacity 9.7 kWh
fiberglass shell
central switch
steel frame
smart home unit
high capacity thermal insulation
AC/DC inverter
EXTERIOR FEATURES
four retractable legs HVAC UNIT
UV protected car paint exterior Cooling power 970W
triple glazed windows Heating power 1050W
external storage Air volume intake 130m3/h
entry door with a window Grade of filtration F7
entry door handle with a key Recuperation efficiency 86 %
Coolant R134a
22 2021
2018 | ECOCAPSULE® CATALOGUElet’s get
technical INTERIOR FEATURES, MATERIALS BATHROOM FEATURES
A/C unit with a heat strip natural light
LED lights with RGB spectrum sink
mosquito nets - windows, doors faucet
durable PVC floor, customization options available ventilation
fiberglass walls and ceilling under sink storage
handcrafted German light plywood cabinetry (laminated or lacquered) waterless separating toilet
wardrobe forced and natural ventilation
fire extinguisher
electrical socket 110/230V OPTIONAL PAID EXTRA FEATURES
multifunctional hardware controller hand washing bag
fridge 20 l
biodegradable cosmetics
upholstered walls
KITCHEN FEATURES battery pack extension
upper and lower laminated cabinetry exterior compostable bin
laminate folding table eco detergents
flatware organizer black water treatment tablets
LED light extra set of filters
laminated backsplash
laminated countertop
electrical cooktop
lightweight faucet
stainless steel sink
bin
BEDROOM FEATURES
foldable bed for 2 people
pillows with custom textile design
bedspread with custom textile design
reading LED lights
high quality mattress
overbed storage
window curtains
23 2018 | ECOCAPSULE® CATALOGUE
2021SERIES & PRICE SPACE by ECOCAPSULE 24 2018 | ECOCAPSULE® CATALOGUE
SERIES
& PRICE
Ecocapsule® is designed with measurements to provide its most effective mobility (on the road, for container).
But if you would prefer Ecocapsule® of bigger capacity, we offer you SPACE by Ecocapsule® - an additional
separated room of the same size and design. In combination with Ecocapsule® they provide accomodation
for 4-5 people. Additionally, due to its variability, SPACE by Ecocapsule® can be optionally customized to
a home-office, doctor’s office, sales place, and more. For more information please ask us for a Customization
brochure.
25 2018 | ECOCAPSULE® CATALOGUESERIES
& PRICE
ORIGINAL SPACE by
SERIES ECOCAPSULE
Sale: worldwide Sale: worldwide
Delivery: 4 months from placing a binding order Delivery: 4-5 months, depending on desired
customization
PRICE: €79,900 PLUS SHIPPING
PRICE: FROM €49,900
26 2018 | ECOCAPSULE® CATALOGUE
2021CONTACT
Sales & distribution director:
Bohuslav Pisár
e-mail: pisar@ecocapsule.sk
www: www.ecocapsule.sk
Facebook: www.facebook.com/ecocapsule.sk
Instagram: www.instagram.com/ecocapsule.sk
Youtube: https://goo.gl/QWFPaG
Address:
Ecocapsule s.r.o.
Žltá 22/g
85107 Bratislava
Slovak Republic
EUROPE
DISCLAIMER
The information contained in this catalogue is to be used only as a guide to assist with product selection. Ecocapsule s.r.o. makes every
effort to maintain the accuracy and quality of the information provided in this catalogue. However, Ecocapsule s.r.o. cannot guarantee and
assumes no legal liability or responsibility for the accuracy or completeness of the information provided. The product and specifications set
forth in this catalogue are subject to change without notice and Ecocapsule s.r.o. disclaims any and all liability for such changes.
The information contained herein is provided without warranties of any kind, either express or implied, and Ecocapsule s.r.o. disclaims any
and all liability for typographical, printing, or production errors or changes affecting the products and/or the specifications contained herein.
It is the responsibility of the customer to thoroughly analyze all aspects of the customers’ proposed application for the products. Due to the
diversity of possible applications of Ecocapsule, the customer is solely responsible for making the final selection of the product to be used
and to assure that all performance, safety and warning requirements of the application are satisfied. The copyright of all content on this
catalogue is owned by Ecocapsule s.r.o. No part of this catalogue may be changed, reproduced, stored in or transmitted on any website
or medium without the prior written permission of Ecocapsule s.r.o.
2018
2021 | ECOCAPSULE® CATALOGUEYou can also read
