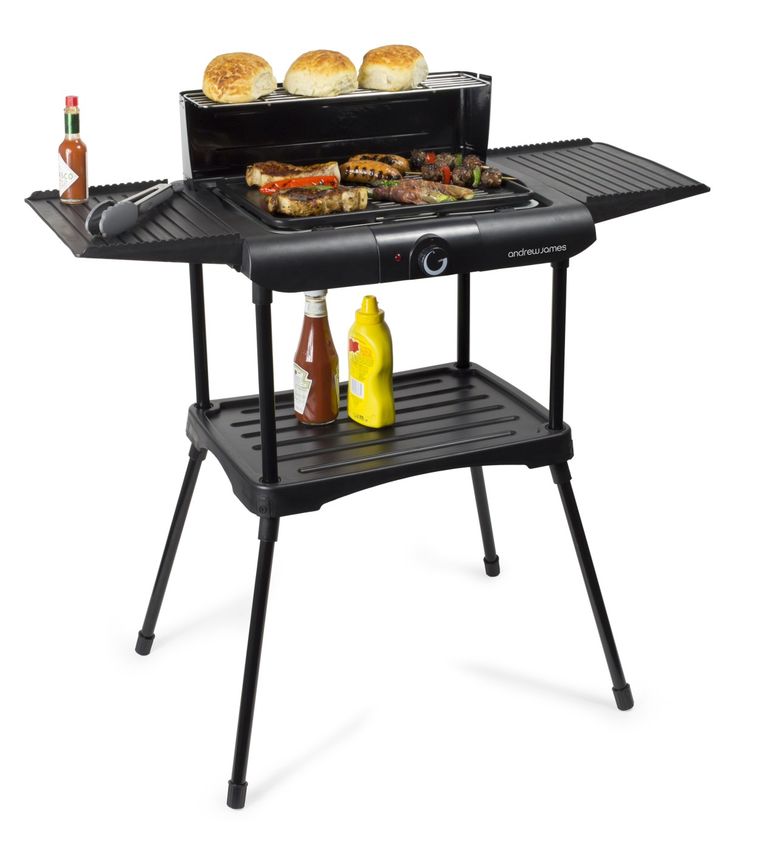

Deluxe BBQ
Please read the manual fully before using the appliance and keep the
manual safe for future reference.
1
General safety instructions domestic use only. Industrial
When using any electrical or commercial use will void
appliance, basic safety the warranty. The supplier
precautions should always cannot be held responsible
be followed, including: for injury or damage if the
appliance has been used for
This appliance can be used anything other than its
by children aged from 8 intended use. Incorrect
years and above and operation and use can
persons with reduced damage the appliance and
physical, sensory or mental cause injury to the user.
capabilities or lack of
experience and knowledge if Do not use the appliance if it
they have been given has been dropped or
supervision or instruction damaged in any way. If the
concerning use of the unit has been damaged take
appliance in a safe way and the unit for examination and
understand the hazards or repair by an authorised
involved. Children shall not service agent.
play with the appliance. Do not immerse or expose
Cleaning and user the assembly, plug or the
maintenance shall not be power cord in water or any
made by children unless other liquid for any reason.
they are older than 8 and If the supply cord is
supervised. Keep the damaged, it must be
appliance and its cord out of replaced by the
reach of children less than 8 manufacturer or by
years old. someone who is suitably
Always ensure the voltage qualified to avoid a potential
on the rating label hazard.
corresponds to the voltage Do not let the cord hang
in your home. over the edge of a table or
Check the power cord and counter. Ensure that the
plug regularly for any cord is not in a position
damage. If the cord or the where it can be pulled or
plug is damaged, it must be tripped over accidentally.
replaced by a qualified Do not allow the cord to
electrician or a service repair touch hot surfaces and do
centre. If in doubt please not place the cord near hot
contact our customer gas, electric burners or in a
service team. heated oven.
The appliance is intended for
2 If an extension cable is current not exceeding 30
required, it must have an mA.
earth conductor. To avoid The appliance should be
overheating the extension connected to a socket-outlet
cable should be rated no less that has an earth contact
than 13A and be fully (for class 1 appliances).
unwound before use.
Ensure that the extension
Appliance specific safety
cord is equal to or greater instructions
than the power consumption
of the appliance to avoid WARNING
overheating of the appliance
and extension cord. Do not The correct amount of water
use any other appliance on must be added to the reflector
the extension cord. Do not tray before use in order to
place the extension cord in a prevent overheating.
position where it can be
pulled on by children or Caution: Monitor the water
animals or be tripped over. level during use.
Always operate the
appliance on a smooth, even Warning!
appliance
This electrical
contains a heating
and stable surface. Do not function. Surfaces other
place the unit on a hot than the grill rack can
surface. develop high temperatures
Always remove the plug of that may be perceived
the appliance safely. Do not differently by different
pull on the appliances cord people. Use with CAUTION.
to remove the appliance When operating, only touch
plug from the electrical the product at the intended
socket. handles and gripping
Never handle or operate the surfaces and use heat
appliance with wet hands. resistant gloves. Allow the
The supply cord should be
product to cool down before
regularly examined for signs contacting surfaces other
of damage, if the cord is than intended gripping
damaged the appliance must surfaces.
not be used. Warning! Never cover the
The appliance must be
appliance or grill rack by a
supplied through a residual solid or flexible material
current device (RCD) having such as an aluminium tray,
a rated residual operating foil or other heat resistant
material. Covering the grill
3rack would prevent the heat tested for outdoor use.
from dissipating and may Always ensure the appliance
result in the appliance is used on a flat, stable and
overheating. heat proof surface.
Caution; The appliance gets The appliance is designed
hot during use, always make for grilling standard BBQ
sure you use the appliance food only.
in a safe area and do not
touch the grill rack, heating · Do not use the appliance
element or housing to near combustible materials
prevent possible injury. (e.g. near flammable gases
or spray cans).
Caution: Never use charcoal
or similar fuels on the · Do not expose the appliance
electric grill. to rain or other damp
conditions.
Be aware of hot surfaces.
Use suitable utensils and · Do not allow people under
heat resistant gloves. Keep the influence of drugs or
children and bystanders alcohol to use the appliance.
away from the cooking area. · Always be cautious of fat
Ensure the appliance is splashing when grilling meat
placed on a level surface. as there could be a risk of
burning.
Keep the manual in a safe
place. If the appliance is · Do not use any plastic
passed onto a third party utensils when cooking with
ensure that the manual is the appliance.
kept with the appliance. Do not place any items on
Do not use any accessories the grill rack except for food
that are not recommended items to be cooked.
by the manufacturer. The appliance must never
Always ensure the be used under a running
thermostat is correctly extractor fan or hanging
inserted into the appliance. wall cupboards.
The BBQ is fitted with a Ensure the product has
safety switch, if the cooled down before making
thermostat is removed from any adjustments, moving
the appliance the heating the appliance, cleaning or
element will automatically leaving the appliance
switch off. unattended after use.
This appliance has been
4Appliance components parts
Component Qty Component Qty
1. Lower legs 4 7. Aluminium reflector tray 1
2. Connecters 4 8. Side trays 2
3. Lower tray 1 9. Heating element 1
4. Upper legs 4 10. Grill 1
5. Nuts and Bolts
11. Wind shield 1
(Not pictured)
6. Base rack 1 12. Warming shelf 1
5Assembling the appliance
Unpack all the components.
Take the lower legs (1) and insert one connecter (2) onto the top of each leg.
Make sure the connecter is pushed all the way down. Also make sure that
the thick end of the connector is pointing down towards the ground, and the
‘elbow’ is pointing in.
Inset the legs, with the connecters on them, into the lower tray (3).
Screw the connecters (4) to the lower tray (3) using the nuts and bolts
provided (5).
Take the upper legs (4) and insert them into the lower tray (3). Then insert
the base rack (6) onto the top of the upper legs.
Insert the aluminium reflector tray (7) into the base rack. Before use make
sure to fill the reflector with water between the minimum and the maximum
levels.
Insert each side tray (8) into the base tray by clipping it into the holes.
Insert the heating element (9) into the base tray. The thermostat will fit into
the gap at the front of the base.
Add the metal grill (10) to the top of the heating element. Line up the pattern
on the bottom of the metal grill to the heating element’s coils.
Take the wind shield (11) and clip it into the four holes on the back of the
base tray.
Take the warming shelf (12) and insert it into the holes in the wind shelf.
*If you wish to just use the BBQ without the lower tray follow steps 6-11, ensuring
that the BBQ is rested on a flat, secure and heat resistant surface.
Caution: Never use the appliance without water in the reflector
tray, always ensure that the water level is between the
minimum and maximum marks.
Caution: When adding water to the reflector tray, always make
sure the water does not come into contact with the heating
element.
6Operational instructions
Ensure that the water level in the aluminium reflector tray is between the
minimum and maximum marks. Water is required to reflect heat and
minimise the amount of smoke produced during the cooking process.
Switch the appliance on and set the temperature using the control dial. The
appliance will heat up automatically until the selected temperature is
reached. The element will then switch off until the heat falls below the
selected temperature upon which the element will switch on again. This
ensures that a constant temperature is maintained. The indicator light will
be lit whenever the element is heating and the grill will turn off when the
element stops.
The grill rack can be placed at various heights by placing it in one of the
three holes located on the base rack.
Power consumption depends on the thermostat setting. For lengthy grilling
it is advisable to set the temperature to high as “MAX”.
When you have finished grilling turn the control dial to “MIN” and take the
plug out of the mains socket. The appliance will now cool down.
Do not move the appliance until it has fully cooled down.
Grilling
The appliance can be used to grill food such as sausages, meat, fish and vegetables
etc. always ensure that the food is placed directly onto the grill rack. Do not cover
the grill rack with materials such as aluminium foil or transparent film.
Always ensure that the food is thoroughly cooked before consuming.
Cleaning
Before cleaning always remove the plug from the socket and let the
appliance cool down completely.
Remove the heating element and thermostat from the base of the plastic
cooking element.
7 Never immerse the plug, power cable, heating element or the thermostat in
any liquids. These parts must be wiped with a dry cloth.
Never immerse the plug, power cable, heating element or the thermostat in
any liquids.
These parts must only be wiped with a dry cloth.
The grill rack can be cleaned with a soft brush.
Tip: After grilling let the grill rack cool down and then cover it with damp tea towels
and let it soak for 30-60 minutes.
In order to ensure that the unit works correctly it may be necessary to remove lime
scale deposits from the water tray.
Storage
After use, clean the product as above and store in a dry, secure location. Do not
expose the appliance to rain or other damp conditions.
Troubleshooting
If the indicator light fails to come on, this is normally due to the heating element
being incorrectly inserted into the base rack. Insert the heating element correctly
and turn the appliance on again.
Caution! Repairs carried out by an unauthorised person may cause damage to the
product and injury to persons.
We reserve the right to make modifications to the structure or design of the unit in
the interests of further technical developments.
8UK and EU Guarantee shipped back to the customer.
Your new Andrew James product If you wish to return your item for a
comes with a 24 month guarantee full refund, you have the right to do
and a 2 year fixed warranty, effective so within the first 7 days. For our
from receipt confirmation. Your returns policy please go to :
receipt or order number is required
www.andrewjamesworldwide.com
as proof of purchase date so it is
imperative that you keep it safe. This Customers are responsible for any
guarantee only applies if the item has taxes applied to our products when
been used solely for the use they are shipped outside of the EU.
intended, and all instructions have All of our prices are inclusive of VAT.
been followed accordingly. Please
Once a product has been returned to
note this product is only for domestic
us, we will aim to repair or replace it
use only and is not for commercial
within 30 days of receipt.
use.
The guarantee does not cover any
Abuse of your product will invalidate
defect arising from improper use,
the guarantee. Returned goods can
damage, build-up of lime scale or
only be accepted if repackaged
repair attempts made by third-
properly within the original colour
parties. Also, the guarantee does not
product box, and presented with the
cover normal wear and tear of
original receipt of sale/order number.
individual parts.
This does not affect your statutory
rights. Electrical Information
Returned products must be cleaned Always ensure the voltage on the
and returned to us in as close to rating label corresponds to the power
delivery condition as possible. supply where the product is being
used.
If your product develops a problem
within the first 12 months of the WARNING! This product must be
fixed warranty, we will pay all connected to an earthed electrical
shipping costs to have it returned to power supply. The green/yellow
conductor in the supply cord must be
us. After 12 months the customer will
connected to the Earth terminal in the
be liable for the cost of returning the plug. The power supply must have an
product to us. We will then pay to Earth connection.
have the repaired/replaced item
9Precautions should be followed for mental pollution and reduces the
safe cable management and demand for raw materials.
connection to the power supply. Local authorities, retailers and
If a new mains plug needs to be fitted collection organisations may provide
follow the fitting instructions supplied for separate collection of electrical
with good quality BS1363A plugs. If in products, batteries and packaging.
doubt
consult a qualified electrician or Contact Details
appliance repair agent.
Andrew James UK Ltd
Safely dispose of the old plug.
Lighthouse View
Connect the brown lead to the live ter Spectrum Business Park
minal “L” in the new plug. Seaham, Durham
Connect the blue lead to the neutral SR7 7TT UK
“N” terminal.
Customer Service / Technical Support
Connect the green/yellow lead to the
Telephone: 0844 335 8464
earth “E” terminal.
Email:
Recommended fuse: 13 A. customerservices@andrewjamesworld
wide.com
If an extension cable is required, it must
have an earth conductor. To avoid
overheating the extension cable should Web:
be rated no less than 13A and be fully www.andrewjamesworldwide.com
unwound before use. Twitter: @andrewjamesltd
Do not attempt to modify electrical Facebook: Andrew James
plugs or sockets or attempt to make an
alternative connection to the electrical
supply. Pour la version française de ce notice
veuillez visiter notre site:
Disposal of The Appliance www.andrewjamesworldwide.com
Waste Electrical & Electronic Bitte
dieser
finden Sie die deutsche Version
Bedienungsanleitung auf
Equipment (WEEE) Waste & Recycling unserer
Disposal of Electrical and Electronic www.andrewjamesworldwide.com
Waste
Non-household waste. This product Copyright Andrew James
must not be disposed of together with
ordinary household waste. AJ000302 (2017-02)
Separate collection of used products,
batteries and packaging allows the
recovery and recycling of materials. Re-
use of materials helps prevent environ
1011
12
You can also read
