DAPHINETTE PORTATILE /TOMMASO CIMINI

DAPHINETTE PORTATILE
/TOMMASO CIMINI

DAPHINETTE PORTATILE
/TOMMASO CIMINI
The small version of Lumina’s iconic Daphine lamp now comes in a rechargeable wireless version,
the Daphinette Portatile.

It’s a compact free-standing lamp that is highly versatile thanks to its key features:
- adjustable arm and diffuser enabling the light beam to be off-centred and directed;
- compact base ensuring stability and housing the rechargeable battery;
- advanced touch technology for lighting control (fully dimmable).

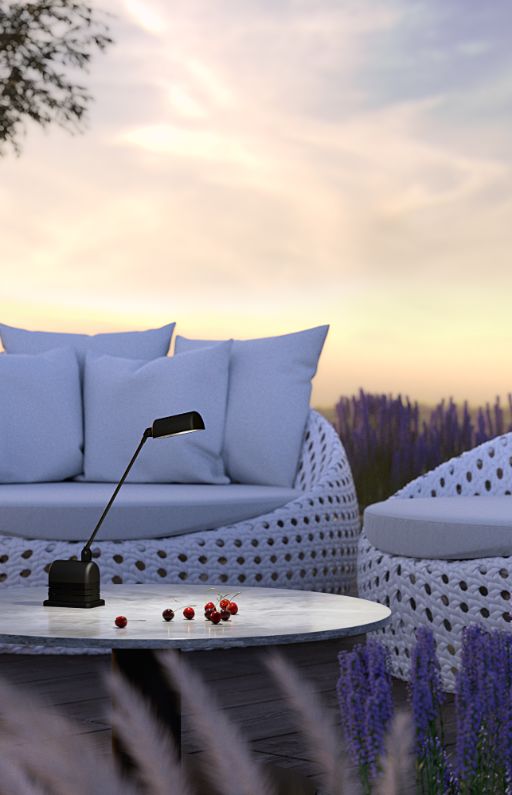

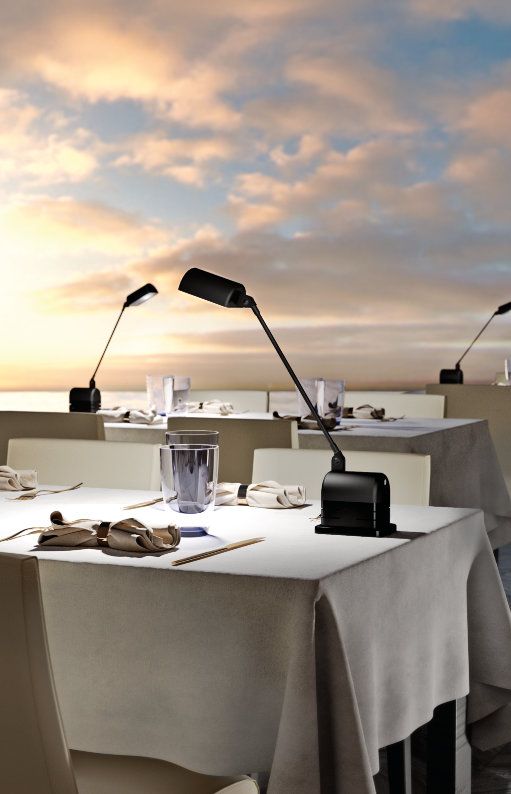

Unique qualities that make the Daphinette Portatile ideal for both domestic spaces (eg. living
room, studio, bedroom) and contract and retail spaces (eg. restaurants and stores) and
anywhere else requiring a wireless lamp that’s amply adjustable and with high luminous quality.

And last but not least, aesthetically impeccable.

2              © Lumina 2020             Tommaso Cimini                      Daphinette Portatile

© Lumina 2020   Tommaso Cimini   Daphinette Portatile   3

4   © Lumina 2020   Tommaso Cimini   Daphinette Portatile

© Lumina 2020   Tommaso Cimini   Daphinette Portatile   5

The Daphinette Portatile’s light is controlled by a touch dimmer on the back of the base: a short
first touch switches on, a second touch dims to 25% intensity and a third touch switches off.
With the lamp on, the light can be dimmed to the desired intensity by keeping the finger on the
touch sensor.

The Daphinette Portatile has a 2.5W COB LED with 2700K or 3000K (warm white light) and an
excellent Colour Rendering Index (CRI) (>90%), making colours look extremely natural.

The lamp comes with the standard finishes (soft-touch black, matt white, brushed nickel) and
special finish, metallized bronze.

6              © Lumina 2020            Tommaso Cimini                       Daphinette Portatile

© Lumina 2020   Tommaso Cimini   Daphinette Portatile   7

8   © Lumina 2020   Tommaso Cimini   Daphinette Portatile

© Lumina 2020   Tommaso Cimini   Daphinette Portatile   9

Despite the necessary modification of its proportions, the Daphinette Portatile reprises the
unmistakeable structure of the Daphine and perfectly embodies the insight of its designer,
Tommaso Cimini: “Lots of light, not much lamp”.

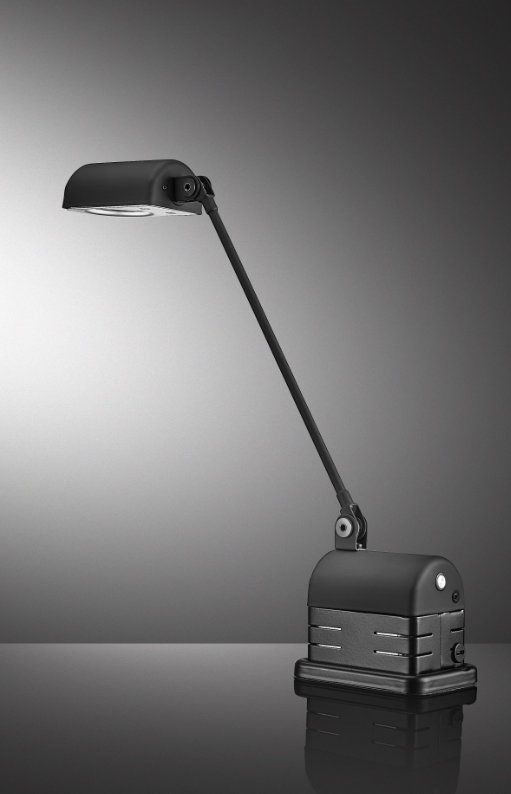

It has three elements: the base, recalling the original transformer, in which the battery is housed; the
25 cm arm with its ample range of manoeuvre; the unmistakeable semi-cylindrical 8-hole diffuser,
which emits a high-quality beam of LED light.

The compact and stable base has a battery providing an autonomy of up to 24 hours at minimum
power and over 6 hours at maximum. The base also has touch controls for on/off and dimming and
a USB-C port for recharging.

The proportions of the Daphinette Portatile’s 25 cm arm are specially designed to facilitate moving
the lamp and to optimize use of light (by avoiding glare). It can be tilted backwards or forwards
through a total of 180°, thus providing maximum off-centring of the light beam, giving the user plenty
of flexibility and increasing the surface area illuminated.

The diffuser, the signature element of the entire Daphine family, rotates through 360°, as well as
being adjustable up and down. This means maximum freedom in directing the light beam.

10             © Lumina 2020             Tommaso Cimini                        Daphinette Portatile

Light source LED (CRI>90)

                                    Adjustable stem

                                    Touch sensor

                                    Charging/Dimming circuit

                                    Li-ion rechargeable batteries

                                    Circuit case

                                    USB-C charging circuit

                                    Metal ballast

                                    Protection pad

© Lumina 2020   Tommaso Cimini   Daphinette Portatile        11

12   © Lumina 2020   Tommaso Cimini   Daphinette Portatile

© Lumina 2020   Tommaso Cimini   Daphinette Portatile   13

TECHNICAL DETAILS
Daphinette Portatile
Tommaso Cimini | 1978

     CRI       CCT

    >90 3000K           A++

Battery table lamp made of steel and aluminium with an adjustable,
pivoting arm. The head can rotate 360°.
The light source is a 2,5 W LED, controlled by a touch sensor on the base.

Finishing

Standard                               Special
                                                                                          200°
           Black soft-touch                  Metallic bronze
           09P01ST00                         09P29MT00                                                             360°
                                                                                   25                  8
           Matt white
           09P02OP00
                                                                                                           180°
           Brushed nickel
           09P4400                                                           8

All RAL coating and galvanic finishes available upon request                     9,5

Light emission
•   Light emission:           diffuse
•   Light direction:          downlight
•   Light source:             LED board                                                Operating time: 6h (100%
•   Source flux:              240 lm                                                   power) - 22h (25% power)
•   Emitted flux:             194 lm                                             Autosaving mode time (in addition
•   Efficacy:                 80 lm/W                                            to operating time): 2h (15% power)
•   CCT:                      3000 K                                                   Batteries : 2 x 18650
•   CRI index:                >90                                                      rechargeable LI-ION cells
•   Lifetime:                 >50000h L70 @ 25ºC                                    Charging Time (0-100 %) : 5h

Electric facts
•   Source power:             2,5 W
•   Power absorbtion:         2,5 W
•   Stand-by absorbtion:      < 0,1 W
•   Dimmability:              internal touch dimmer
•   Energy class:             A++

Technical data
•   Enviroment:               indoor
•   Placement:                table/desk
•   Net weight:               1,2 Kg
•   Certifications:           CE
•   Suggested ambient:        25 ºC
•   Maximum ambient T:        40 ºC
•   Insulation class:         III
•   Protection class:         IP20

Packaging
•   Material:                 cardboard box
•   Dimensions:               21 x 21 x 27 (cm)
•   Volume:                   0,012 m³
•   Gross weight:             3 Kg (with USB-C wallmount adapter)

14                     © Lumina 2020              Tommaso Cimini                        Daphinette Portatile

Daphinette Portatile
Tommaso Cimini | 1978

     CRI       CCT

    >90 2700K           A++

Battery table lamp made of steel and aluminium with an adjustable,
pivoting arm. The head can rotate 360°.
The light source is a 2,5 W LED, controlled by a touch sensor on the base.

Finishing

Standard                              Special
                                                                                                200°
           Black soft-touch                  Metallic bronze
           09P01STK27                        09P29MTK27                                                                  360°
                                                                                         25                  8
           Matt white
           09P02OPK27
                                                                                                                 180°
           Brushed nickel
           09P44K27                                                                8

All RAL coating and galvanic finishes available upon request                           9,5

Light emission
•   Light emission:           diffuse
•   Light direction:          downlight
•   Light source:             LED board                                                      Operating time: 6h (100%
•   Source flux:              233 lm                                                         power) - 22h (25% power)
•   Emitted flux:             186 lm                                                   Autosaving mode time (in addition
•   Efficacy:                 80 lm/W                                                  to operating time): 2h (15% power)
•   CCT:                      2700 K                                                         Batteries : 2 x 18650
•   CRI index:                >90                                                            rechargeable LI-ION cells
•   Lifetime:                 >50000h L70 @ 25ºC                                          Charging Time (0-100 %) : 5h

Electric facts
•   Source power:             2,5 W
•   Power absorbtion:         2,5 W
•   Stand-by absorbtion:      < 0,1 W
•   Dimmability:              internal touch dimmer
•   Energy class:             A++

Technical data
•   Enviroment:               indoor
•   Placement:                table/desk
•   Net weight:               1,2 Kg
•   Certifications:           CE
•   Suggested ambient:        25 ºC
•   Maximum ambient T:        40 ºC
•   Insulation class:         III
•   Protection class:         IP20

Packaging
•   Material:                 cardboard box
•   Dimensions:               21 x 21 x 27 (cm)
•   Volume:                   0,012 m³
•   Gross weight:             3 Kg (with USB-C wallmount adapter)

© Lumina 2020                      Tommaso Cimini                            Daphinette Portatile                15
