DiagnosticLink 8.13 Features Service Diagnostics & Tools Daimler Trucks
8.13 Release Features Summary :
• Full support added for DD15TCO Engines (PAR 42Q –HDES2020-GATS2.0 (ACM3+MCM21T+CPC5)) for the
MY2021 ECU software release
• Support added for 43N Par, 49X Western Star vehicle launch
Service Diagnostics & Tools Daimler Trucks 2
8.13 Release Features Summary (Contd)
• Support Included for 43N PAR
• Support Identification of 49X western star model using the VIN decoding
• Included the TS manual for 49X western star model support
• Diagnostic Panel updates covered
• Snow Plow Lightening panel
• Windshield Heating panel
• Snow doors panel
• Update MSF switch mapping / translation file for 43N
• Enhancements/changes added for CTP project updates (42D - FOTA)
• Turn off CTP workshop mode panel
• CTP Initialization panel should only consider Vin Original (Change released in 8.12Sp1)
• Initialize CTP panel change to allow Cummins units
• CTP Activation Status does not dynamically update in "Initialize CTP" panel, for CTPs with variant App_0005 or
higher
Service Diagnostics & Tools Daimler Trucks 3
8.13 Release Features Summary (Contd)
• Enhancements added for the Guided Diagnostic work
• Support added to send updated fault code list to the Techlane on request(Change released in 8.12Sp2)
• TL API updated to send the device type, equipment type and transmission type to serve or download correct ADF
file for troubleshooting
• Advanced Diagnostic Editor enhancements
• Allow parameters to be monitored and used for comparison statements in ADE (ADE side change)
• Hide Stage Names in Guided Diagnostics
• ADE WithinCondition “instruments of different types” error message is unhelpful
• Enhancements added for the CHEC tool support
• Support CHEC parameter part number data for non-par based programming (Change released in 8.12Sp2)
• Indication of CHEC settings could use refinement
Service Diagnostics & Tools Daimler Trucks 4
8.13 Release Features Summary (Contd)
• General Chassis side and Power train support enhancements
• Modernize the "Set Odometer" function for P4 platform vehicles
• Improvements to help enter part number based parameters
• Addressed the write VIN issue experienced for SRRR01T and SRRL01T ecus (Change released in 8.12sp1)
• IPM and Virtual Technician panels are missing map images
• Expand MDEG ATS serial number entry for SCR replacement and DPF Ash Accumulator panels
• Cylinder Cutoff Performance panel updates to allow user to set Thermal management mode before performing the
test
• Included the PLV counter panel for HDEP Euro V support (40W )
• Added the SCR ADS Self Check panel for ACM3 use for Manufacturing users
Service Diagnostics & Tools Daimler Trucks 5
8.13 Release Features Summary (Contd)
• Customer driven enhancements
• Allow VIN based Decoding to identify the truck models connected
• Share Siteminder login for troubleshooting manual download
• Expand warning options for users to select which TS manual will not get banner warnings
• Cannot clearly display wiring schematics from the tool
• Update to the DT12 Transmission Learn procedure to make Learn Clutch option a default
• Add option or feature to display the hidden ECU password during creation/changes
• RDF01T Data not getting Unpacked and saved when the unit is downloaded
• Record the usage of package programming operations used for programming the powertrain controllers
• Record data from Maintenance System in summary log files
• Extended support for EMobilty Project
• Included addition Ecuinfo files to support development work (BMS units)
• Added updated to eCPC ecuinfo file to support writing parameters
Service Diagnostics & Tools Daimler Trucks 6
Share Siteminder login with troubleshooting download
• In previous versions, the login
process to download
troubleshooting material was
completely separate from the login
process used to download
unit/programming data from the
server.
• For 8.13, the login process is
unified. The user only have to login
once during the use of the tool.
• If the user logs in to download
troubleshooting material, they
would not need to subsequently log
in again when downloading
unit/programming data. And vice
versa.
Service Diagnostics & Tools
Daimler Trucks 7
Configure which troubleshooting will trigger a banner warning
• It was reported that some users only have
access to certain troubleshooting manuals.
• For example, there are users who are not
permitted to access troubleshooting material for
the DT12 transmission.
• For 8.13, we allow configuration of the banner
warning indicating when a manual is missing or
out of date. A user can permanently select to
opt out of warnings for a specific
troubleshooting manual. If desired, all warnings
can be turned off.

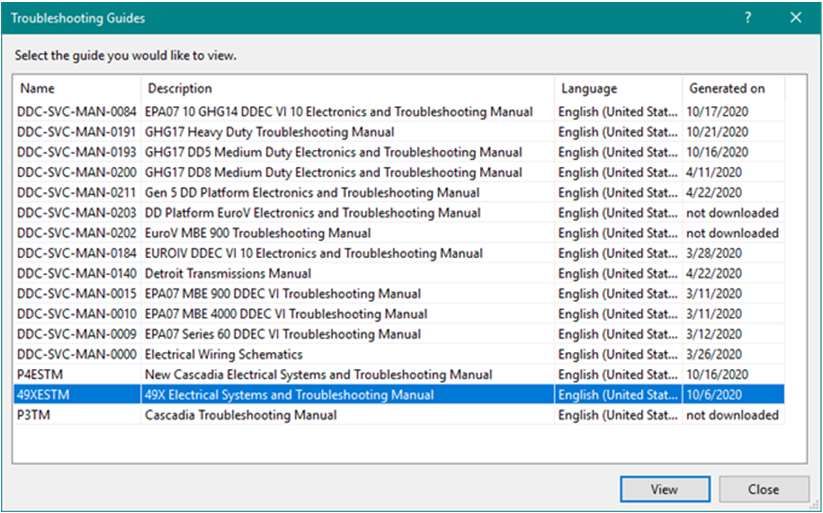

• The “Troubleshooting Guides” dialog will now
list all manuals. The user is therefore free to
download a manual at any time, even when a
warning is not shown and they do not already
have the content.
Service Diagnostics & Tools
Daimler Trucks 8
Parameter error “DiagService refused” needs clarity
• For various reasons, writing parameters to an ECU might fail.
• When this happens, the CAESAR system (upon which
DiagnosticLink is based) does not – by default – provide a
descriptive reason for the failure. The error in former versions
would be simply “DiagManager 06067:DiagService
refused”.
• This is unfortunate because the meaning of the error – the
‘negative response code’ - is usually important when an
engineer is trying to diagnose the cause of the issue. The
reason may also be useful to a technician.
• Following the model of VEPS, for 8.13 we have implemented a
custom way of reporting the negative response code in the
tool.
• The example here shows the additional content “Security
access denied (NRC $33)”; this is a more meaningful reason
for failure.
Service Diagnostics & Tools
Daimler Trucks 9
Indication of CHEC settings could use refinement
• DiagnosticLink 8.12SP2 introduced the indication
of the presence of CHEC settings in the user
interface.
• It was noted that there were a couple of
refinements to be made to clarify the status of
these settings.
• The “Select operation” page of Program Device will
now indicate which types of CHEC parameters are
provided (part number and/or name/value pair).
• This indication is probably not very useful to a
technician but would be useful to the diagnostics or
development team to clarify the status of a unit.
• We also indicate that these are proposed settings
which may not yet have been programmed to an
ECU.
Service Diagnostics & Tools
Daimler Trucks 10Include 49X troubleshooting material for download
• DiagnosticLink 8.13 includes the ability to download
Western Star 49X troubleshooting material.
• Once the content is downloaded, fault linking is supported
from faults that are reported by chassis devices.
• When showing linked content, the troubleshooting view will
indicate the source of the content, e.g. “49X Electrical
Systems and Troubleshooting Manual”
Service Diagnostics & Tools
Daimler Trucks 11Include 49X troubleshooting material for download (cont.)
• The tool now has the ability to view the
“internal” detected or derived vehicle
type.
• This might be necessary if the tool is
not linking to the correct
troubleshooting manual. The derived
vehicle type determines which manual
we link to.
• This used to be shown in the header
bar directly but has been replaced by
the more detailed information.
• Tooltips (mouse hover) are provided
for both the VIN derived information
and the detected equipment types.
Complete VIN derived information
Detected equipment types
Service Diagnostics & Tools
Daimler Trucks 12IPM and Virtual Technician panels are missing map images
• Mapping API has been updated to use
Microsoft Bing maps
• Map can now be zoomed using mouse
scroll wheel
• IPM panel shows reported location of
device
• Virtual Technician panel will show reported
location and previous 15 locations stored
in device
Service Diagnostics & Tools
Daimler Trucks 13Decode Vin information to support identification
• The tool now allows more detailed
detection of the connected truck
• Decoding details are imported from the
service manuals and can be updated
with more models easily in the future
• Necessary as an intermediary step
towards detection of models as the
trucks become more complicated and
similar in electronics
Service Diagnostics & Tools
Daimler Trucks 14Additional Changes
Record usage of package programming operation to Reservoir
• Program Device operations using the package programming feature will have a tag added to the event
data sent to the server for later reporting and viewing
Send updated fault list to TechLane on request
• At request of TechLane website (clicking button) DiagnosticLink will send a refreshed list of fault
information to the server
Send device and equipment type to TechLane
• As part of the fault information we will now include additional information to help filter the diagnostics
offered to the technician
Service Diagnostics & Tools
Daimler Trucks 15Modernize the Set Odometer function for P4 platform vehicles
• Ability to set CPC and Instrument
Cluster odometer with one operation
• Ability to sync CPC to instrument
cluster or vice versa
Service Diagnostics & Tools
Daimler Trucks 16XP 276 Snow Doors
• Support XP 276 Snow Doors
Service Diagnostics & Tools
Daimler Trucks 17Turn Off CTP Workshop Mode
• This Panel to allows technicians to turn
off CTP Workshop Mode
Service Diagnostics & Tools
Daimler Trucks 18Improvements that could help enter part number based parameters
• The tool now provides the ability to filter
the dropdown list by typing into the text
portion of the combo box.
• Each character typed will narrow the
search results.
Service Diagnostics & Tools
Daimler Trucks 19Added option to display the hidden ECU password during
creation/changes
• The new password textbox allows you
to see what has been typed.
• As soon as the first character is
entered, the Show Password button is
displayed. Click the button to see the
hidden text.
• This feature has been added to
Configure Passwords, Authentication
dialog, DDEC DataPages Password, and
Enter Password for protection lists.
Service Diagnostics & Tools

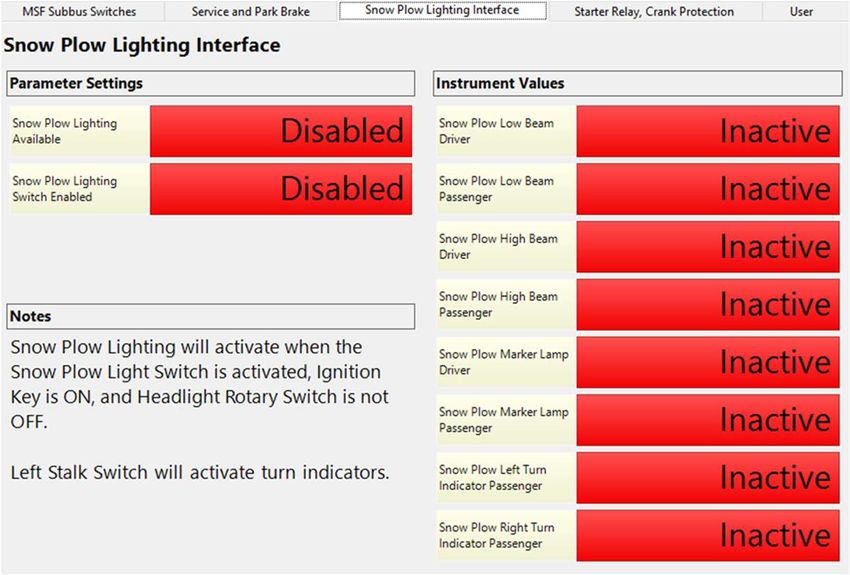

Daimler Trucks 20XP 074 Snow Plow Lighting Interface
• New diagnostic panel for the Snow Plow
Lighting Interface.
Service Diagnostics & Tools

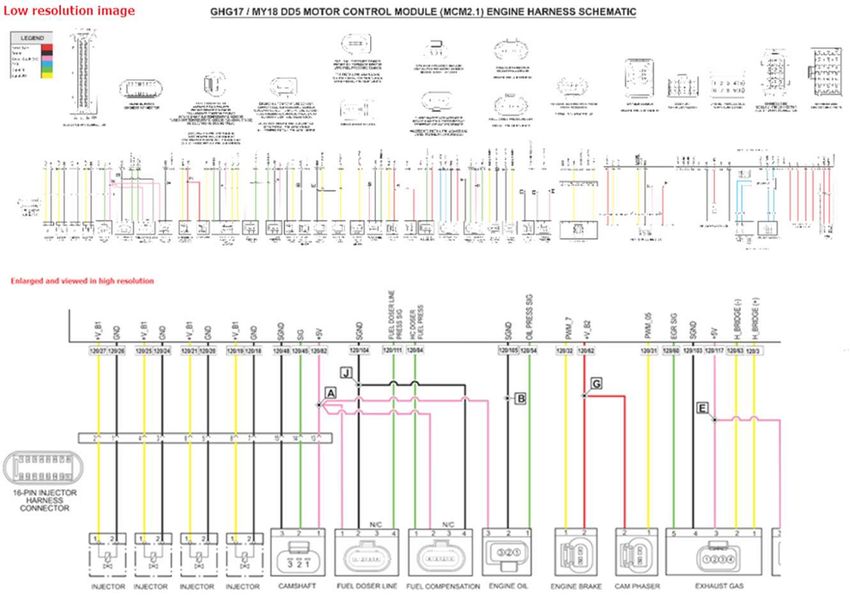

Daimler Trucks 21Display wiring schematics from the tool clearly
• Modifications made to resolve
complaints that the graphics/ images in
Electrical Wiring Schematics
Troubleshooting manual were not
clearly loaded
• The images can now be clicked on,
opened and viewed in a new window,
and enlarged and saved locally in high
resolution
Service Diagnostics & Tools
Daimler Trucks 22DT12 Transmission Learn Procedure
• Updated the “Transmission Learn
Procedure” panel to list “Learn Clutch
Only” as the default learn type , instead
of “Learn Transmission and Clutch”
• Concern raised was that, if the clutch
portion fails, during the clutch and
transmission learn, the truck could
exhibit a no crank condition and can
lead to unnecessary diagnostics and
wasted time
Service Diagnostics & Tools

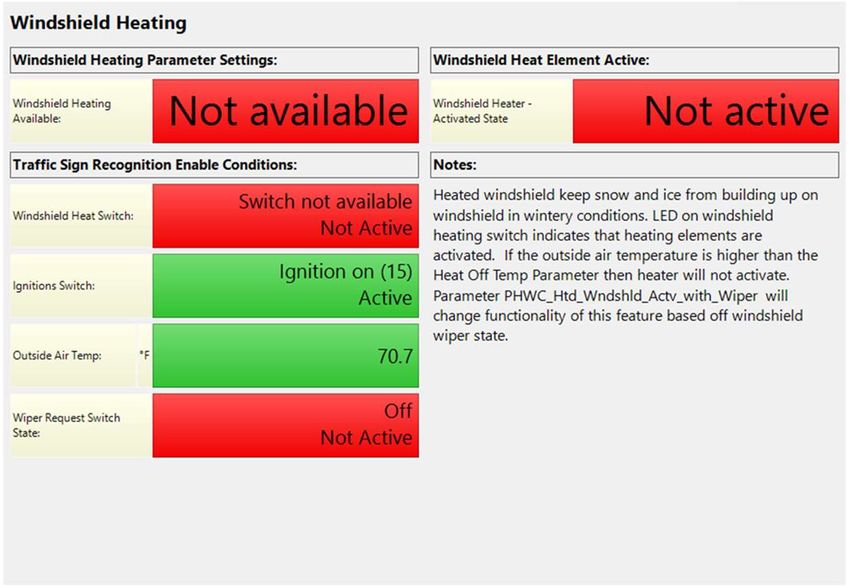

Daimler Trucks 23Windshield Heating Panel
• New diagnostic panel for the Windshield
Heating feature, for the 49X (Western
Star) new vehicle launch
Service Diagnostics & Tools
Daimler Trucks 24Windshield Heating Panel
• New diagnostic panel for the Brake Hold
feature
Service Diagnostics & Tools
Daimler Trucks 25You can also read
