MISRA C coding standard for
software quality
Course on "Quality and
Certification"
University of Florence
Department of Mathematics and Informatics
Florence, Italy
The background for the MISRA-C - 1
Programmers make mistakes
With the syntax of C it is relatively easy to
make typing mistakes that lead to valid code.
– E.g., type “=” (assignment) instead of “==”
– Or an extra semi-column in an “if(expression);“
The philosophy of C is to assume that the
programmers know what they are doing
– particularly weak for “type checking” e.g., store a
floating-point number in an integer that is used to
represent a true/false value.
AA 2019-2020 Quality and Certification
The background for the MISRA-C - 1
Compiler doesn’t do what the programmer expects
– a programmer can assume one thing about the meaning
of a construct, while the compiler can interpret it
quite differently
– C undefined behaviours
The compiler contains errors
– They may, for example, not comply with the language
standard in certain situations, or they may simply
contain “bugs”
Run-time errors
– C is generally poor in providing run-time checking e.g.,
divide by zero, overflow, etc.
AA 2019-2020 Quality and Certification
We try an example…
auth_overflow.c : bad SW coding…
What is the
«REAL PROBLEM»?
AA 2019-2020 Quality and Certification
AA 2019-2020 Quality and Certification
Avoid the problems!
Roughly 80% of software defects when using
the C or C++ language, are attributable to the
incorrect usage of 20% of the language
constructs
If the usage of the language
can be restricted to avoid
this subset that is known to
be problematic, then
– the quality of the ensuing
software is going to greatly
increase
AA 2019-2020 Quality and CertificationKeep it simple! It is easy to write code that is difficult to read Prevent developers from writing “clever” code – Especially in safety-critical contexts! Write code that is: – easy to understand – easy to maintain – easy to test AA 2019-2020 Quality and Certification
What is a Coding Standard
Coding Standards can be composed of:
– Common sense rules
Eg: Don’t mix signed and unsigned types
– Reduced language subset
Eg: Ensure that «goto» or «malloc» is not used
– Style guidelines
Eg: Ensure that the “tab” character is not used
– Naming conventions
Eg: Ensure that all public functions start with _
– Quality & complexity metrics
Eg: Ensure that all functions have a low cyclomatic complexity

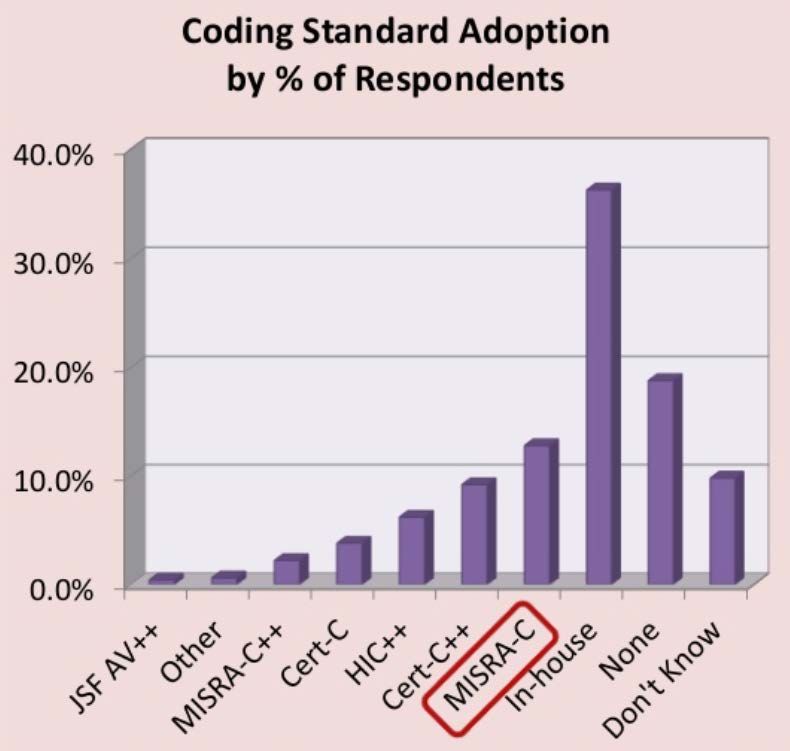

AA 2019-2020 Quality and CertificationWhich coding standard?
VDC Research White
Paper, 2011.
Surveyed 600
developers of
systems and
embedded sw
AA 2019-2020 Quality and CertificationMISRA
Motor Industry Software Reliability
Association
– manufacturers, component suppliers and
engineering consultancies
Their goal:
– promote best practice and assist in developing
safety-related electronic systems in road vehicles
and other embedded systems.
AA 2019-2020 Quality and CertificationMISRA-C: Myths and Legends Does Not – Find bugs – Define style or metric guidelines – Stop developers writing code – Say the rules must be followed all the time Does – Require controlled deviations – Require style and metrics be applied – Force developers to think AA 2019-2020 Quality and Certification
MISRA-C a bit of history
MISRA-C:1998 (aka MISRA-C1)
– “Guidelines for the use of the C language in vehicle
based software”
– Compatible with ISO/IEC 9899:1990 (aka C90)
MISRA-C:2004(aka MISRA-C2)
– “Guidelines for the use of the C language in critical
systems”
– Remains compatible with ISO/IEC 9899:1990 (aka
C90)
MISRA C:2012 (aka MISRA-C3)
– “Guidelines for the use of the C language in critical
systems”
– Adds compatibility with ISO/IEC 9899:1999 (aka C99)
AA 2019-2020 Quality and CertificationMISRA-C –The 2012 Edition
Published early 2013
159 Guidelines in total
– 16 Directives
• 9 Required
• 7 Advisory
– 143 Rules
• 10 Mandatory
• 101 Required
• 32 Advisory
Includes a compliance and deviation
policy.
AA 2019-2020 Quality and CertificationDirectives - What is a Directive?
A directive is a guideline for which it is NOT
possible to provide the full description necessary
to perform a check for compliance.
– Additional information, such as might be provided in
design documents or requirement specifications, is
required in order to be able to perform the check.
► In other words, rules whose compliance is more
open to interpretation, or relates to process or
procedural matters.
Note: Compliance is still required – just as for
the Rules.
AA 2019-2020 Quality and CertificationDirective example – 1 (Required)
Directive: Run-time failures shall be minimized.
Rationale
– The C language was designed to provide very limited built-in
run-time checking. This places the burden on the
programmer...
What does this mean?
– Techniques to avoid run-time failures should be planned and
documented, for example in design standards, test plans
and code review checklists.
– Dynamic checks should be added wherever there is a
potential for errors to occur
Problem areas
– arithmetic errors (e.g., divide by 0), array bound errors,
function parameters, pointer arithmetic/de-referencing
AA 2019-2020 Quality and CertificationDirective example – 2 (Required)
Directive. The validity of values passed to library
functions shall be checked.
Rationale
– The C standard does not require the standard library
to check the validity of parameters passed to them.
What does this mean?
– Dynamic checks should be added wherever there is a
potential for errors to occur
Problem areas
– Libraries ctype.h, math.h, and string.h (and others!)
AA 2019-2020 Quality and CertificationDirective examples – 3 (Advisory) Sections of code should not be “commented out” – Use #if or #ifdef instead: Why? AA 2019-2020 Quality and Certification
Directive examples – 3 (Advisory)
Sections of code should not be “commented
out”
– Use #if or #ifdef instead:
– C does not support nested comments, it is
dangerous to comment large portions of code.
#ifdef FLAG
/* These lines will be "commented out"
if FLAG is undefined */
#endif
Still risky – leaving #ifdefs in code after they’ve outlived
their usefulness
AA 2019-2020 Quality and CertificationDirective examples – 4 (Required) Dynamic memory allocation shall not be used ► This is a severe problem, everyone usually does malloc… ► Reasons: AA 2019-2020 Quality and Certification
Directive examples – 4 (Required) Dynamic memory allocation shall not be used AA 2019-2020 Quality and Certification
Directive examples - 5 (Required) Assembly language shall be encapsulated and isolated AA 2019-2020 Quality and Certification
Directive examples - 6 (Advisory) typedefs that indicate size and signedness should be used in place of the basic numerical types AA 2019-2020 Quality and Certification
Other directive examples (Required) All source files shall compile without any compilation errors All code shall be traceable to documented requirements AA 2019-2020 Quality and Certification
Rules are about…
1. The Standard C environment
2. Unused code
3. Comments
4. Character sets and lexical conventions
5. Identifiers
6. Types
7. Literals and constants
8. Declarations and definitions
9. Initialization
10. The essential type model
11. Pointer type conversion
12. Expressions
13. Side effects
14. Control statement expressions
15. Control flow
16. Switch statements
17. Functions
18. Pointers and arrays
19. Overlapping storage
20. Preprocessing directives
21. Standard libraries
22. Resources
AA 2019-2020 Quality and CertificationRequired rule example – standard C
environment
There shall be no occurrence of undefined or
critical unspecified behavior.
Explanation:
– unspecified: must compile correctly, but compiler
writer has some freedom – e.g. order of evaluation
a = f(b) + g(b);
x = b[i] + i++;
– undefined: programming errors for which compiler not
obliged to provide error messages – e.g. overflow when
adding int values
Relying on such behavior limits portability
AA 2019-2020 Quality and CertificationRequired rule example – unused code
A project shall not contain unreachable code
– This refers to code that can be identified at compile time
as unreachable. May indicate an error in the program’s
logic.
– The reachability problem may be “undecidable”! But many
cases of unreachable code are easy to detect. A compiler is
permitted to remove any unreachable code but it does not
have to do so.
switch(event) {
case A: do_a();
break;
do_more(); /* unreachable */
...
AA 2019-2020 Quality and Certification… cont.
► Example: see standard MISRA-C pag. 48
rule 2.1
AA 2019-2020 Quality and CertificationRequired rule example – comments The character sequences /* // shall not be used within a comment Exception: the sequence // is permitted within a // comment AA 2019-2020 Quality and Certification
Required rule example - Identifiers
An identifier declared in an inner scope shall
not hide an identifier declared in an outer
scope.
Example:
int16_t i;
{
int16_t i; /* This is a different variable */
/* This is not compliant */
i = 3; /* To which i this refers ?*/
}
AA 2019-2020 Quality and CertificationRequired rule example – Literal and
constants
The lowercase character «l» shall not be used
in a literal suffix
– Rationale: use L, avoid confusion with l, 1
AA 2019-2020 Quality and CertificationRequired Rule example – Declarations
and definitions
When an array with external linkage is
declared, its size should be explicitly
specified.
extern int array1[10];
extern int array2[]; /* Not compliant */
extern int array3[] = {0, 10, 15};
AA 2019-2020 Quality and CertificationRequired rule example - Expressions The right hand operand of a shift operator shall lie in the range zero to one less than the width in bits of the essential type of the left hand operand. AA 2019-2020 Quality and Certification
Advisory rule example – Side Effects A full expression containing an increment (++) or decrement (--) operator should have no other potential side effects other than that caused by the increment or decrement operator. A function call is considered to be a side effect for the purpose of this rule Can impair readability of the code and raise undefined behaviour AA 2019-2020 Quality and Certification
Advisory rule example - Control flow
A function should have a single point of exit at
the end
– A function should never have more than one return
statement
– For readability + predicting side effects in place
(if a function has multiple exit points interspersed
with statements that produced persistent side
effects)
AA 2019-2020 Quality and CertificationRequired rule example - Functions Functions shall not call themselves, either directly or indirectly AA 2019-2020 Quality and Certification
Mandatory rule example - Functions A function shall not be declared implicitly AA 2019-2020 Quality and Certification
Required rule example – Pointers and
arrays
The address of an object with automatic storage
shall not be copied to another object that
persists after the first object has ceased to
exist.
AA 2019-2020 Quality and CertificationRequired rule example – Pointers and
arrays
Conversions shall not be performed between a
pointer to a function and any other type.
– Pointer to a function shall only be converted into or
from a pointer to a function with a compatible type.
– Problem is that undefined behavior is raised
AA 2019-2020 Quality and CertificationMandatory rule example – overlapping
storage
An object shall not be assigned or copied to an
overlapping object
(there are some exceptions to this rule…)
AA 2019-2020 Quality and CertificationRequired rule – Standard libraries The memory allocation and deallocation functions of shall not be used. AA 2019-2020 Quality and Certification
Required rules - Resources
22.1 All resources obtained dynamically by
means of Standard Library functions shall be
explicitly released.
– Malloc, calloc, realloc, fopen
22.3 The same file shall not be open for read
and write access at the same time on different
streams
– The standard does not specify the behaviour if a
file is read and written via different streams.
AA 2019-2020 Quality and CertificationAA 2019-2020 Quality and Certification
MISRA-C compliance
Goal: check that no rules have been broken
– Use one or more static checking tools that are
available commercially
• BTW, over time engineers will tend to alter their habits and write
compliant code
– Where a rule cannot be checked by a tool, then a
manual review will be required.
– Sample tools: Understand++, Clockworks, LDRA,
MATLAB Polyspace
AA 2019-2020 Quality and CertificationMISRA-C compliance matrix Produce a compliance matrix – it lists each rule – indicates how it is to be checked AA 2019-2020 Quality and Certification
Deviation procedure
Strict adherence to all rules is unlikely
Sometimes it may be necessary to deviate
from the rules given in MISRA-C document
– e.g. source code written to interface with the
microprocessor hardware will inevitably require
the use of proprietary extensions to the language
The use of a deviation must be justified on the
basis of both necessity and safety
AA 2019-2020 Quality and CertificationDeviation procedure Deviations associated with individual situations are admissible: Project Deviation: a permitted relaxation of rule requirements to be applied in specified circumstances. Usually agreed at the start of a project. Specific Deviation: defined for a specific instance of a rule violation in a single file and. Typically raised in response to circumstances which arise during the development process. AA 2019-2020 Quality and Certification
Project Deviation Request
The software developer should submit a written
Project Deviation Request and agreement with the
customer, including:
– Details of the deviation, i.e. the rule that is being
violated
– Circumstances in which the need for the deviation
arises
– Potential consequences which may result from the
deviation
– Justification for the deviation
– A demonstration of how safety is assured
► Analogous for Specific deviations
AA 2019-2020 Quality and CertificationAdopting the MISRA-C subset –
summary
In order to develop code that adheres to
the subset the following steps need to be
taken:
– Produce a compliance matrix which states
how each rule is enforced
– Produce a deviation procedure
– Formalize the working practices within the
quality management system
AA 2019-2020 Quality and CertificationYou can also read
