Concept Paper – Hybrid Thorium Reactor (HTR)
         TransPower – University of Michigan – General Atomics – Boeing

Project Overview
    Transportation Power, Inc. (“TransPower”) and the University of Michigan (“UM”),
supported by Boeing and General Atomics (GA), seek seed funding to perform an initial
feasibility study of a novel Hybrid Thorium Reactor (HTR), which UM computations suggest
can generate enormous net power density (NPD) – up to 500 MW/cm of reactor length. The
hybrid reactor uses a fusion reaction to generate neutrons that drive a fission reaction in which
they transmute Thorium-232 into Uranium- 233, whose fission produces substantial energy. The
proposed research will focus on developing three essential components of the reactor and power
generation system: (1) a containment mechanism for the fusion plasma based upon innovative
Gasdynamic Mirror (GDM) technology; (2) a solid or liquid thorium shell engineered to
optimize energy production and heat removal, preventing excessive heat buildup; and (3) a heat
transfer mechanism for converting the enormous heat energy produced by the fission reaction to
usable electric power.

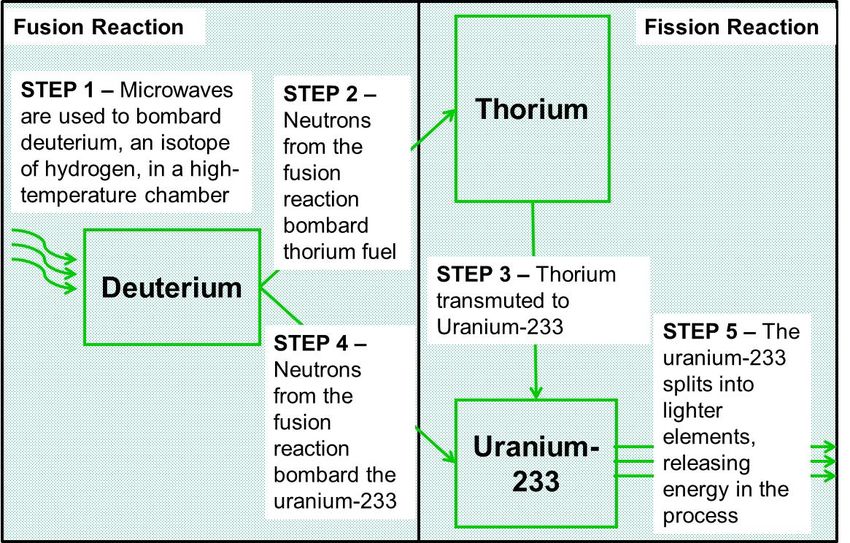

Figure 1. Illustration of Hybrid Thorium Reactor process.

    The feasibility of producing energy via the thorium cycle has been established for decades,
and working thorium reactors have been built. China, India, and other nations are racing to
develop new generations of thorium reactors because such devices, if perfected, will have
numerous major advantages over conventional light water reactors that use enriched uranium or
plutonium as fuels, which have been the standard since the 1950s. Chief among these are the
amazing safety advantages of thorium, based on its atomic stability. Unlike enriched uranium or
plutonium, thorium will not “go critical;” the thorium cycle requires an external neutron source

                                               1
Concept Paper – Hybrid Thorium Reactor (HTR)
         TransPower – University of Michigan – General Atomics – Boeing

and it shuts down if the supply of neutrons is interrupted. This results in the following
advantages:
        • Thorium reactors cannot produce meltdowns, a present danger with every
            light water reactor in operation around the world.
        • Thorium produces less than 1% of the hazardous nuclear wastes produced by
            today’s light water reactors; in fact thorium reactors can be used to destroy
            much of the light water reactor nuclear wastes currently stockpiled.
        • Thorium cannot be used to produce nuclear weapons, so the risk of nuclear
            weapons proliferation that presently haunts the nuclear industry can be
            eliminated if thorium is adopted as the new standard nuclear fuel.
        • Since the thorium reaction is inherently stable, thorium reactors will not
            require many of the expensive safety features or the level of monitoring
            required by conventional light-water reactors, making them far less expensive
            to build and operate.
    In addition to these advantages, thorium is a naturally-occurring element, unlike plutonium,
and is more plentiful than uranium. Proven thorium reserves could meet global energy needs for
at least the next 10,000 years. For these reasons, there has recently been a surge of public
interest in thorium, particular on the internet. Brooklyn-based Motherboard TV recently
produced an extremely favorable documentary on thorium, The Thorium Dream, which can be
viewed at http://www.motherboard.tv/2011/11/9/motherboard-tv-the-thorium-dream.
    The proposed HTR energy system is a critical innovation because it provides a practical,
cost-effective means of generating the neutrons required to sustain the thorium fission cycle.
This neutron production is achieved with nuclear fusion, but with a type of fusion far easier to
achieve than using fusion alone to produce usable energy. Use of fusion alone for cost-effective
power generation remains an elusive goal because fusion must achieve ten times energy
breakeven to be economical on its own. By contrast, when used solely to produce sufficient
neutron flux to sustain thorium fission, the fusion
reaction needs to achieve only one-tenth or less of
energy breakeven. This is much closer to present-
day capabilities. A prototype GDM (Figure 2)
successfully generated plasma at NASA’s
Marshall Space Flight Center in the late 1990s,
and Russian physicists have successfully operated
a GDM as a neutron source. Although further
research is needed, confidence is high that the
GDM can produce the neutrons required to
sustain effective thorium fission reactions.           Fig 2. Prototype GDM.
    Combining an efficient neutron-generating source such as GDM-fusion with the thorium
fission cycle could literally change the world with the energy production and applications that
would be enabled. HTR reactors could provide an inexpensive source of clean energy without
dependence on fossil fuels or emissions of carbon or criteria pollutants. If the theoretical power
density level of 500 MW/cm could be realized, a single reactor the size of a football stadium
could meet all of U.S. electricity needs. Achieving even just a fraction of this power density
would represent a marked improvement over conventional light water reactors, whose power
densities range from just 5 to 25 MW/cm (Figure 3). Compact low-power (1 to 1,000 kW) HTR

                                                2
Concept Paper – Hybrid Thorium Reactor (HTR)
          TransPower – University of Michigan – General Atomics – Boeing

generators could be produced for a variety of stationary and potentially even mobile power
applications. The U.S. could become the world’s leading exporter of energy instead of its
leading importer, shifting the balance of trade and reinvigorating our economy.

Figure 3. Hybrid thorium power density as compared with conventional nuclear reactors.

    In addition to these applications and the many benefits already described, HTR generators
could potentially revolutionize the design of long-distance aircraft and spacecraft; in fact molten
salt reactors that could use thorium as a fuel were evaluated by the U.S. Government for use in
strategic bombers in the 1950s, before ballistic missiles made such exotic airplanes unnecessary.
While a longer term prospect than using HTR for terrestrial energy, new spacecraft using
lightweight HTR reactors could someday replace the chemically-fueled rockets used since the
days of Sputnik. By greatly reducing the amount of fuel required to achieve orbital altitudes or
escape velocity, HTR technology would enable use of reusable, single stage, airplane-like
vehicles that could use standard runways. This would greatly reduce the cost of space flight and
enable large numbers of people to participate in space travel.

Technical Description
    The GDM (Figure 4), located on the axis of a cylindrically shaped reaction chamber, can
provide containment for either a deuterium or deuterium-tritium plasma at the temperature and
density necessary for the required neutron flux. Accelerators provide an alternative means for
generating neutrons, but the GDM requires several times less energy per neutron. The GDM is
also attractive because it operates continuously; other fusion approaches, such as tokamaks or

                                                3
Concept Paper – Hybrid Thorium Reactor (HTR)
         TransPower – University of Michigan – General Atomics – Boeing

laser detonation, provide pulsed output. In addition, the GDM
is linear and less susceptible to plasma instabilities than other
magnetic containment mechanisms.
     The fission reaction is what produces the huge energy
output, only a small amount of which must be used to heat the
fusion plasma. The reaction takes place in a solid or liquid
thorium shell that surrounds the GDM, while the magnets that
generate the containment field are external to the thorium
shell. As discussed previously, the thorium cycle cannot
sustain a chain reaction and requires an external source of
neutrons to maintain it, so a reactor doesn’t need control rods
and other costly safety features, and produces a much higher
net power density. Ironically, the need for an external neutron
source is a principal reason the thorium cycle has not seen
wider use. In the case of the HTR, this becomes a major
safety and cost attribute.
     While the hybrid reactor theoretically provides enormous
amounts of power, converting the reactor heat energy into
usable energy remains a major engineering challenge. This is
one of the key focus areas of TransPower’s proposed research
– along with validating and perfecting the GDM fusion device
and updating the designs of thorium fission reactors. Figure 4. GDM & thorium shell.
Maintaining a solid thorium shell requires limiting its
temperature to around 3,500 deg K, which would require
circulation of a coolant at an extremely high rate. Maintaining the thorium in a liquid state
would enable temperatures to be raised to about 4,400 deg. K, and the liquid thorium itself could
potentially be used to transfer heat from the reactor.

Proposed Research
    The proposed HTR initial stage research can be divided into four principal tasks:
    Task 1: Project Management (TransPower Lead) – This work will include the following: (1)
coordination of all project tasks; (2) technical and financial reporting; (3) maintenance of the
project Work Breakdown Structure (WBS) and cost data base; (4) business planning and private
capital-raising; and (5) marketing communications, including maintenance of the project website.
    Task 2: Reactor Design And Development (University of Michigan Lead) – Proposed
research will consist of fuller analysis and definition of the reactor, resulting in a conceptual
design and cost estimate. It will include the following: (1) determination of requirements for the
GDM; (2) analysis of reaction rates and selection of optimal fusion reactants; (3) optimization of
the composition of the thorium blanket and power distribution within the blanket; (4) calculation
of the time required for steady-state energy production based on creation and destruction rates
for U233; (5) analysis of modifications to the neutron energy spectrum that will occur in the
blanket; and (6) analysis of shielding requirements based on radiation flux and heat decay rate.
Once sufficient funds are available, the research will include experimental research using the
GDM at Marshall Space Flight Center in Phase II studies.

                                                4
Concept Paper – Hybrid Thorium Reactor (HTR)
         TransPower – University of Michigan – General Atomics – Boeing

    Task 3: Energy Conversion System Design And Development (TransPower Lead, with
General Atomics Support) – Proposed research will consist of: (1) analysis of heat transfer
requirements including choice of coolant, calculation of mass flow rate, and determination of
size, shape, number and density of cooling channels; (2) conceptual design of devices for
generating electric power, (3) choice of conducting fluid and conversion of coolant thermal
energy to conducting fluid kinetic energy; (4) analysis of potential terrestrial and space
applications.
    Task 4: Applications Analysis (Boeing Lead) – Proposed research will consist of: (1)
identification potential civilian and military applications for HTR, including potential aviation
and space applications; (2) development of HTR-based aircraft, spacecraft, and propulsion
system concepts; (3) systems engineering support for HTR reactor design efforts; and (4)
preliminary system cost estimates and technology roadmaps.
    Successful completion of these tasks would establish the foundation for future phases of
development, currently envisioned as proceeding along these lines: Phase II – an experimental
one-year effort to test the GDM and measure neutron production; Phase III – a two-year effort to
develop a detailed design of the prototype reactor; Phase IV – construction and testing of a
prototype reactor; and Phase V – construction of operational reactors for initial terrestrial
applications. Collectively, it is expected that Phases I through IV could be completed within the
next 8-10 years, potentially enabling operational reactors to be built and in operation by the end
of this decade.

Team Experience and Capabilities
    TransPower recognizes that the HTR is a challenging concept whose full-scale development
could rival the scope of past national initiatives such as Project Apollo and the Manhattan
Project. Accordingly, TransPower has assembled a world-class team that brings together the
requisite scientific and engineering capabilities. TransPower Project Manager Dr. Mark Stull,
Chief Scientist Dr. James Burns, and VP Advanced Technologies Dr. Paul Scott have more than
a century of combined experience in energy, transportation, and aerospace research, and
TransPower CEO Michael Simon managed key NASA advanced transportation studies in the
1980s and 1990s prior to becoming a successful entrepreneur. The University of Michigan’s
efforts will be led by Dr. Terry Kamash, a world renowned expert in nuclear engineering for 40
years and one of the world’s foremost authorities on hybrid nuclear technology. Under Dr.
Kammash’s guidance, UM has already developed a working GDM and performed the
calculations that have suggested the tremendous potential of hybrid nuclear power based on the
thorium cycle. General Atomics’ efforts will be led by Dr. Leo Holland, director of advanced
programs in GA’s Energy and Electromagnetic Systems Group, which conducts world-leading
R&D in both fusion and fission, including maintenance of the National Fusion Center and its
tokamak reactor in La Jolla, CA. Boeing’s contributions will be led by Thomas Kessler, a
manager with more than 30 years experience in advanced spacecraft design. As a company,
Boeing’s combination of experience in aerospace, commercial aircraft design, and energy
systems in unrivaled.

                                                5
You can also read
