CNC CATALOG | 2021
“Cutting, Engraving, Etching. Whatever
the material and shop size, a LAGUNA
machine will save you time and money.”
As experienced specialists, we support our customers and
partners around the country with products, solutions and
services in the CNC machine industry. We are at home in their
markets and know the technological challenges of tomorrow.
We are therefore continuously developing innovative,
sustainable and useful solutions for their individual needs.
CONTENTS Standard IQ | 6
IQ Pro | 7
Swift Series | 8
Swift with Vacume Table | 9
Swift MT | 10
SmartShop® M | 11
SmartShop® 2 | 12
Smartshop® 4th Axis Turner | 13
SmartShop® 2 SUV | 14
SmartShop® MT | 15

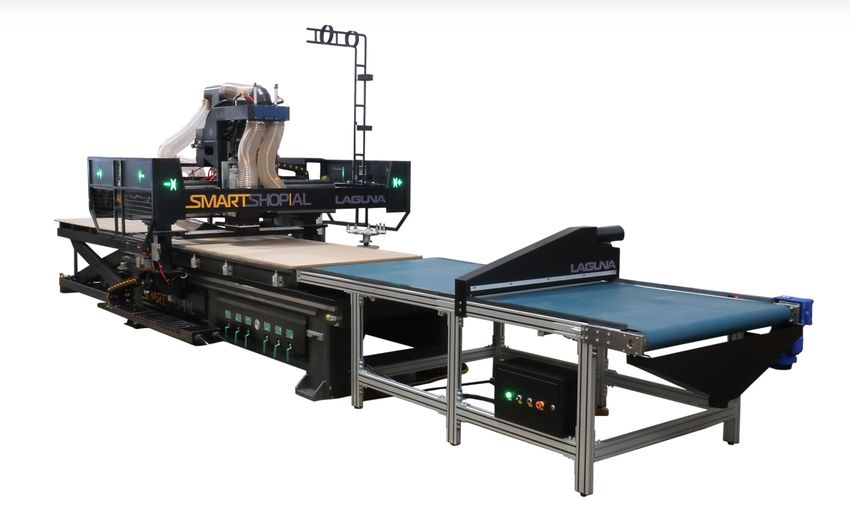

SmartShop® Auto Loader | 16
SmartShop® 3 | 17
SmartShop® 3+2 (5 Axis) | 18
SmartShop® 5 Axis | 19
SmartShop® J | 20
SmartShop® Composite Fabricator 16 | 21

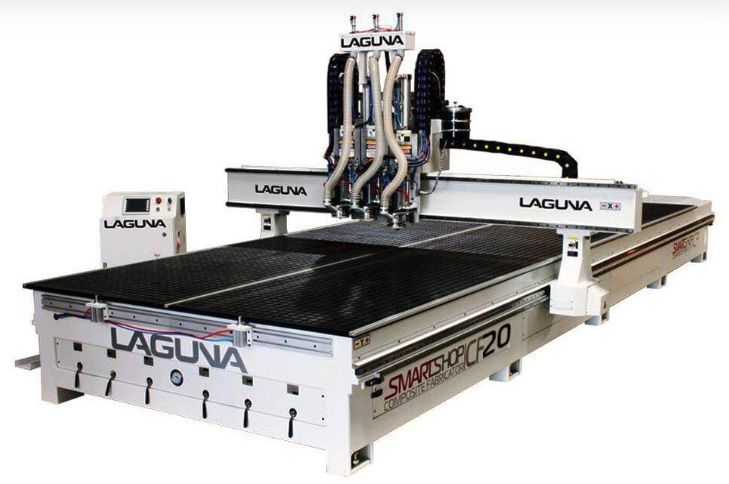

SmartShop® Composite Fabricator 20 | 22
SmartShop® Laser MX | 24
SmartShop® Laser EX | 25
SmartShop® EXC Laser | 26
SmartShop® LCB Laser | 27
Fiber Marker OM | 29
Fiber Marker EM | 30
Air Dust Collectors | 32
Bandit Edge Banders | 34
SuperMax Superbrush Sanders | 36
CNC ROUTERS
5
Standard iQ
Laguna’s iQ bench top CNC router is ideal for
prototyping and smaller production runs. It features
a work envelope of 24" x 36" and includes an
industrial-grade, liquid-cooled electrospindle.
Despite its smaller footprint, it has the same
accuracy and cut quality of much larger CNC
machines and woodworking routers.
• Spindle: 3HP Industrial Single phase Continuous
Duty Liquid-Cooled
• Spindle RPM: 6,000 – 24,000 RPM
• Controller: Hand Held
• Ball Screw: On All Axis
3HP Spindle Handheld Controller Heavy-Duty Frame
ACCESSORIES RECOMMENDED
Maglube Misting System
If you work with aluminum
regularly, the Maglube Coolant
system is the best way to extend
tooling life, increase edge quality
and performance.
Cold Gun Mister
This quiet Cold Gun produces cold
air at 20°F from compressed air to
extend tool life, stop burning, and
reduce wheel loading.
4TH Axis Turning
The 4th Axis attachment allows
you to easily engrave or etch
cylindrical objects.
C-Flux: 2HP Cyclone Dust Collector
6 For more information Contact your Account Manager or Call 1.800.234.1976

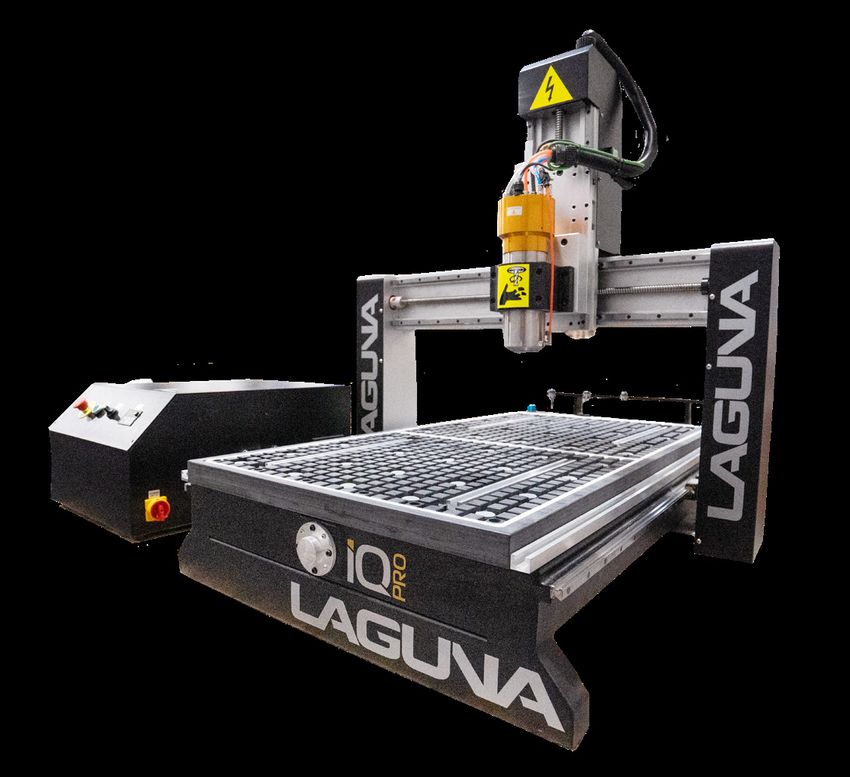

iQ Pro
The Laguna IQ PRO WITH ATC has enhanced
the best-selling IQ CNC with an advanced
handheld control that allows for tool path
previewing, 5 position automatic tool changer
& vacuum table.
• 3HP Industrial single phase continuous
duty Liquid-cooled spindle
• 5 Position automatic tool changer
• 6,000 RPM – 24,000 RPM spindle
• Handheld controller
• Vacuum table
• 10" gantry
• Availible in 2x4
Vacuum Table 5 Position ATC Dual Drive Motors
ACCESSORIES RECOMMENDED
Laser Attachment
This laser attachment turns your
CNC machine into a powerful laser
cutting, engraving, and etching
machine for various materials.
4TH Axis Turning
The 4th Axis attachment allows you
to easily engrave or etch cylindrical
objects.
Maglube Misting System
If you work with aluminum
regularly, the Maglube Coolant
system is the best way to extend
tooling life, increase edge quality
and performance.
C-FLUX: 2HP Cyclone Dust Collector
For more information Contact your Account Manager or Call 1.800.234.1976 7
Swift
The Swift CNC routers were made with
craftsmen looking for a budget-friendly CNC
router in mind. Efficient and affordable, the
Swift CNC routers don’t sacrifice quality for
price. 4th axis rotary option available.
• 3HP Liquid cooled electro spindle
• 6,000 – 24,000 RPM Spindle
• Handheld Controller
• 7 ½˝ Gantry Height
• T-Slot Table Complete
• Ball Screw on Z Axis
• Double helical rack drive on X & Y Axis
• Available in 4x4, 4x8 and 5x10
4th Axis Ready Handheld Controller One-Piece Frame
ACCESSORIES RECOMMENDED
Cold Gun Mister
This quiet Cold Gun produces cold
air at 20°F from compressed air to
extend tool life, stop burning, and
reduce wheel loading.
4TH Axis Turning
The 4th Axis attachment allows you
to easily engrave or etch cylindrical
objects.
C-FLUX: 3HP Cyclone Dust Collector
8 For more information Contact your Account Manager or Call 1.800.234.1976
Swift With
Vacuum Table
The Laguna Swift Vacuum CNC Router
features a work envelope of 4' x 4', 4' x 8', 5' x
10'. It also includes an industrial-grade liquid
cooled electrospindle. The Swift vacuum
features a 4-zone (4' x 4' table) or 6-zone
(4' x 8’/5' x 10') vacuum phenolic table to
hold down your parts.
• 3HP Water Cooled Electrospindle
(ER-20 Collet)
• 6,000 – 24,000 RPM Spindle
• Vacuum Table
• Hand Held Controller
• Gantry Height: 7.5 inches
• Ball Screw on Z Axis
• Double helical rack drive on X & Y axis
4th Axis Ready Handheld Controller One-Piece Frame
ACCESSORIES RECOMMENDED
Cold Gun Mister
This quiet Cold Gun produces cold
air at 20°F from compressed air to
extend tool life, stop burning, and
reduce wheel loading.
4TH Axis Turning
The 4th Axis attachment allows you
to easily engrave or etch cylindrical
objects.
C-FLUX: 3HP Cyclone Dust Collector
For more information Contact your Account Manager or Call 1.800.234.1976 9
Swift MT
The Laguna MT Has Everything You Need To
Handle Your Routing, Cutting And, Creasing
Operations. With The Laguna Vision System,
You Can Quickly Find Registration Marks To
Identify Parts And Adjust The Cutting Path,
Giving You Perfect Cutouts In Printed Shapes.
• 3HP Liquid-Cooled Industrial Spindle
• LAGUNA Vision System
• Tangential Knife System
• One-Piece Welded All-Steel Frame
• 4 to 6-Zone Phenolic Vacuum Table
• Helical Rack and Pinion On X and Y Axis
• Ground Ball Screw On Z Axis
• 7in Gantry Clearance
4th Axis Ready Handheld Controller One-Piece Frame
ACCESSORIES RECOMMENDED
COLD GUN MISTER
This quiet Cold Gun produces cold
air at 20°F from compressed air to
extend tool life, stop burning, and
reduce wheel loading.
4TH Axis Turning
The 4th Axis attachment allows
you to easily engrave or etch
cylindrical objects.
C-FLUX 3: 3HP Cyclone Dust Collector
10 For more information Contact your Account Manager or Call 1.800.234.1976SmartShop® M

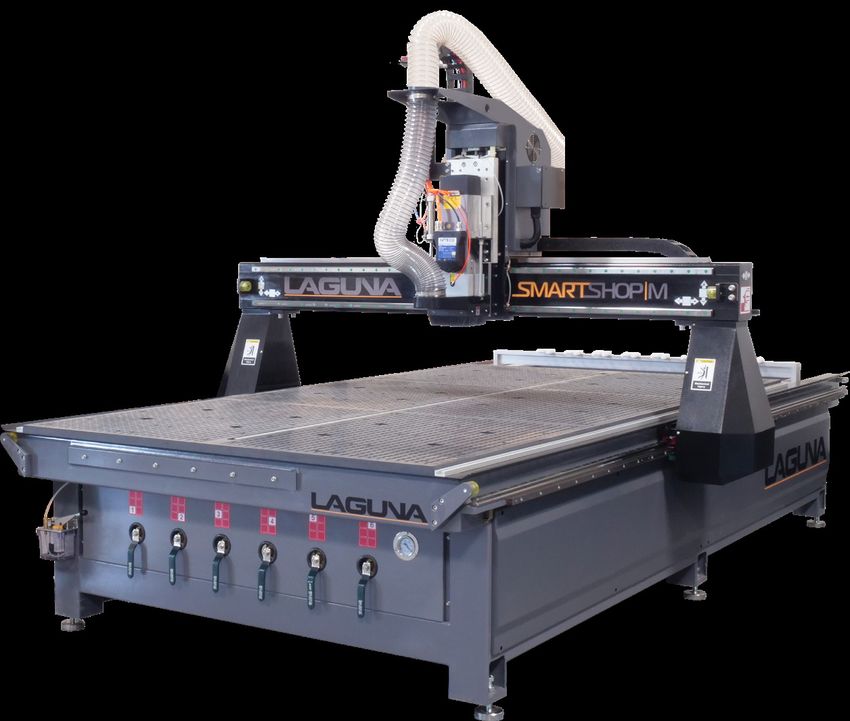

The Best Value CNC Router available on the market,
The SmartShop® M offers the capabilities of a
full-scale, high priced CNC Router without the price
point.
• Air-cooled Italian-Made 5.5HP Hiteco Spindle
• 8 Position Automatic Tool Changing System
• 4 to 6 Zone Vacuum Table
• HiWin Linear Guide Rails
• Heavy-duty one-piece all-steel frame
• Allows expansion for 4th Axis Turner
Vacuum Table 8 Position ATC Direct Drive Motors
ACCESSORIES RECOMMENDED
Maglube Misting System
If you work with aluminum
regularly, the Maglube Coolant
system is the best way to extend
tooling life, increase edge quality
and performance.
Cold Gun Mister
This quiet Cold Gun produces cold
air at 20°F from compressed air to
extend tool life, stop burning, and
reduce wheel loading.
4TH Axis Turning
The 4th Axis attachment allows
you to easily engrave or etch
cylindrical objects.
C-Flux 3: 3HP Cyclone Dust Collector
For more information Contact your Account Manager or Call 1.800.234.1976 11SmartShop® 2
The Smartshop® 2 is the workhorse
of businesses all around the world.
Featuring three standard work table
options, two spindle options and several
customizations with accessories to be
added. The SmartShop® 2 will increase
your production exponentially.
• B&R Industrial controller with touch
screen commands
• 12HP HSD Spindle
• Japanese made helical
rack-and-pinion on X and Y axes
• German ball screw on Z axis
• Precision Linear HiWin Guide Rails
• Heavy-duty one-piece all-steel frame
• Available in 4x4, 4x8, 5x10
• All Steel gantry
• Allows expansion for 4th Axis Turner
Pop-up Pins 12HP HSD Spindle B&R Automation 8 Position ATC
ACCESSORIES RECOMMENDED
Maglube Misting System
If you work with aluminum
regularly, the Maglube Coolant
system is the best way to extend
tooling life, increase edge quality
and performance.
COLD GUN MISTER
This quiet Cold Gun produces cold
air at 20°F from compressed air to
extend tool life, stop burning, and
reduce wheel loading.
4TH Axis Turning
The 4th Axis attachment allows
you to easily engrave or etch
cylindrical objects.
C-Flux 3: 3HP Cyclone Dust Collector
12 For more information Contact your Account Manager or Call 1.800.234.1976SmartShop®
4th Axis Turner
The SmartShop® 4th Axis Turner based
on the best selling SmartShop® 2 platform
offers accurate and reliable turning for all
of your contoured wood parts. Whether it
be architectural mill work, fluted columns,
or rife stocks the SmartShop® 4th axis is a
one stop solution.
• B&R Industrial controller with touch
screen commands
• 12HP HSD Spindle
• Japanese made helical
rack-and-pinion on X and Y axes
• German ball screw on Z axis
• Precision Linear HiWin Guide Rails
• Heavy-duty one-piece all-steel frame
• Available in 4x4, 4x8, 5x10
• All Steel gantry
Pop-up Pins 12HP HSD Spindle B&R Automation
ACCESSORIES RECOMMENDED
Maglube Misting System
If you work with aluminum
regularly, the Maglube Coolant
system is the best way to extend
tooling life, increase edge quality
and performance.
COLD GUN MISTER
This quiet Cold Gun produces cold
air at 20°F from compressed air to
extend tool life, stop burning, and
reduce wheel loading.
C-Flux 3: 3HP Cyclone Dust Collector
For more information Contact your Account Manager or Call 1.800.234.1976 13SmartShop® 2 SUV
Based on the robust and reliable platform
of the Smart Shop® 2, proven in hundreds
of applications over the past 10 years, the
SmartShop® 2 SUV offers a host of new features
and enhanced performance.
• B&R Servo drive motors
• B&R Industrial controller with
touch screen commands
• 12HP HSD Spindle
• Japanese made helical
rack-and-pinion on X and Y axes
• One Piece Tubular Steel Frame
• Cut speeds up to 1000 ipm
• 1,600in/min Rapid Travel
• Servo Drive System For X, Y, Z, and A
• Allows expansion for 4th Axis Turner
Welded Steel Frame 8 Position ATC 12HP HSD Spindle
ACCESSORIES RECOMMENDED
Maglube Misting System
If you work with aluminum
regularly, the Maglube Coolant
system is the best way to extend
tooling life, increase edge quality
and performance.
COLD GUN MISTER
This quiet Cold Gun produces cold
air at 20°F from compressed air to
extend tool life, stop burning, and
reduce wheel loading.
4TH Axis Turning
The 4th Axis attachment allows
you to easily engrave or etch
cylindrical objects.
C-Flux 3: 3HP Cyclone Dust Collector
14 For more information Contact your Account Manager or Call 1.800.234.1976SmartShop ® MT
The Laguna SmartShop ® MT is the most
versatile router platform ever created. With an
extended gantry and extra-large tool plate, the
machine can be configured to meet multiple
production needs in a single machine.
• Z Axis Lead Screw Drive System
• 6-Zone Phenolic Grid Table with
Embedded T-Slots
• One Piece Tubular Steel Frame
• Centralized Lubrication System
• 12 HP HSD Air-Cooled Spindle
• LAGUNA Vision System
• Tangential Knife System
• 10HP Vacuum Pump
• Centralized Lubrication
• WinCNC Controller
• Add up to three tool devices
MATERIAL VERSATILITY
LEATHER CARPET GASKETS ALUMINUM VENEERS FOAM ACRYLIC RUBBER CARDBOARD CHLOROPLAST FOAM BOARD PVC
OPTIONAL FEATURES
Laguna Vision Oscillating Tangential Saw Tangential Knife System
Modular Optical Recognition System for A powerful oscillation motor moves the Our knife system allows you to choose
multi-functional flatbed machines for blade quickly while an actuator rotates from many different blade types: Drag,
industrial usage in exact-outline digital the blade in each direction, allowing Kiss Cut, Spear, and many more.
finishing processes. precise cutting.
For more information Contact your Account Manager or Call 1.800.234.1976 15SmartShop®
Auto Loader
The All New Automatic Loading and Unloading
machine complete with clean sweep technology
is a game changer for those shops looking to
produce the maximum number of orders with
quick and reliable delivery times.
Primarily designed for the panel processing
sector, the SmartShop AL also excels at
machining plastic and non-ferrous metals.
• 12HP HSD Spindle
• HSD 5×5 L Shape Drill Block
• 8 Position Rotary Tool Changer
• 850w Yaskawa Servos
Welded Steel Frame Vacuum Table 12HP HSD Spindle
ACCESSORIES RECOMMENDED
Maglube Misting System
If you work with aluminum
regularly, the Maglube Coolant
system is the best way to extend
tooling life, increase edge quality
and performance.
Cold Gun Mister
This quiet Cold Gun produces cold
air at 20°F from compressed air to
extend tool life, stop burning, and
reduce wheel loading.
C-Flux 3: 3HP Cyclone Dust Collector
16 For more information Contact your Account Manager or Call 1.800.234.1976SmartShop® 3
Developed with the highest-quality
components from Industry leaders
Fanuc and HSD, the Smartshop® 3
was developed for those customers
demanding the highest possible
throughput and productivity. The heavy-
duty fixed table design saves valuable
floor space while allowing for a high rate
of material removal and sheet processing
under continuous duty conditions. With
the optional 16HP 4 bearing spindle, the
Smartshop 3 can machine ferrous metals
making it the most versatile CNC in the
industry.
• FANUC Oi-MF Controls Systems
• 1,500 watt FANUC Servo package
• 12HP HSD Spindle
• HSK-63F tool holders
• 8 Pos. rotary auto-tool changing system
• 4’x4’, 4’x8’,5×10’, 5’x12’, Custom Sizes
• 12˝ Gantry clearance
• 12˝ Z-travel
• Cut speeds up to 1,600ipm
• Rapid travel up to 2,500ipm
Pop-up Pins FANUC Control FANUC Servos Vacuum Table
ACCESSORIES RECOMMENDED
Maglube Misting System
If you work with aluminum
regularly, the Maglube Coolant
system is the best way to extend
tooling life, increase edge quality
and performance.
Cold Gun Mister
This quiet Cold Gun produces cold
air at 20°F from compressed air to
extend tool life, stop burning, and
reduce wheel loading.
4TH Axis Turning
The 4th Axis attachment allows
you to easily engrave or etch
cylindrical objects.
C-Flux 3: 3HP Cyclone Dust Collector
For more information Contact your Account Manager or Call 1.800.234.1976 17SmartShop® 3 +2
The Laguna SmartShop® 3+2 Axis CNC
Machine gives you the added benefit of
multiple cutting angles and compound
machining within a solid, compact platform. A
heavy one piece steel frame is matched with
an industry leading FANUC industrial control.
Depending on your application, customer can
choose from several 5-axis head options from
HSD to fit their specific needs.
5-Axis Head 8 Position ATC FANUC Control
FEATURES SPECIFICATIONS
• 5 to 1 Shimpo planetary Gear boxes on the • Factory-provided advanced technical and applications
X & Y Axes, helical rack and pinion design support, onsite machine installation and training
enhances accuracy and rigidity • Compact design saves valuable floor space
• FEA-engineered, heavy, wall, all-steel bridge, • Full 3D capacity with helical interpolation
vertical columns, and table support base • Standard table sizes: 3×8, 5×10, 5×12, 6×10 and 6×12
• Smart design allows for easy and unrestricted • Laguna universal vacuum table: pod-ready
access to all sides of the machine • One-piece welded tubular steel frame
• 12HP HSD electrospindle – 24,000 rpm
• Standard 8-position, dynamic automatic
rotary tool changer • HSK-63F spindle taper or ISO-30
• Table sizes available up to 6×20
• FANUC OI-MF industrial control with FANUC
• Cutting speeds up to 1,000 IPM
1,500-watt servo package
• Rapid travel up to 2,500 IPM
• 12, 24 and 36 gantry clearance options • Adjustable pop-up pins
• Laguna full 1-year warranty
• FANUC controller 2-year warranty
18 For more information Contact your Account Manager or Call 1.800.234.1976SmartShop® 5 Axis
The Laguna SmartShop® 5 Axis CNC Machine
gives you the added benefit of multiple cutting
angles and compound machining within a
solid, compact platform. A heavy one piece
steel frame is matched with an industry
leading FANUC industrial control. Depending
on your application, customer can choose
from several 5-axis head options from HSD to
fit their specific needs.
5-Axis Head 8 Position ATC FANUC Control
FEATURES SPECIFICATIONS
• 5 to 1 Shimpo planetary Gear boxes on the • Factory-provided advanced technical and applications
X & Y Axes, helical rack and pinion design support, onsite machine installation and training
enhances accuracy and rigidity • Compact design saves valuable floor space
• FEA-engineered, heavy, wall, all-steel bridge, • Full 3D capacity with helical interpolation
vertical columns, and table support base • Standard table sizes: 4×8, 5×10, 5×12, 6×10 and 6×12
• Smart design allows for easy and unrestricted • Laguna universal vacuum table: pod-ready
access to all sides of the machine • One-piece welded tubular steel frame
• 12HP HSD electrospindle – 24,000 rpm
• Standard 8-position, dynamic automatic
rotary tool changer • HSK-63F spindle taper or ISO-30
• Table sizes available up to 6×20
• FANUC OI-MF industrial control with FANUC
• Cutting speeds up to 1,000 IPM
1,500-watt servo package
• Rapid travel up to 2,500 IPM
• 12, 24 and 36 gantry clearance options • Adjustable pop-up pins
• Laguna full 1-year warranty
• FANUC controller 2-year warranty
For more information Contact your Account Manager or Call 1.800.234.1976 19SmartShop® J
The newest model in the SmartShop lineup,
the J is able to precisely and consistently route
several types of standard joints. From classic
mortise and tenon joinery to lockset and hinge
mortising, the J comes with a 4.5HP air-cooled
spindle, Delta Servo Motors and Drivers,
a central lubrication system, pneumatic
positioning pop-up pins, and a DSP handheld
control system.
FEATURES SPECIFICATIONS
• Strengthened Steel Structure • 4ft or 8ft Capacity
• 4.5HP Air Cooling Spindle • 2-Zone Work Station
• 6in of Z-Axis Travel
• 5HP Delta Inverter
• Max Trenon 1.5in
• DSP Control System
• 4.5HP Air Cooled Spindle
• 750w Delta Servo Motor And Driver • DSP Handheld Controller
• Bakelite Table • Delta Servo Motors
• Lubrication System • Pneumatic Hold Down
• Pneumatic Pop Up Pins • 3-Axis Interpolation
• UL Cable And Electric Components
20 For more information Contact your Account Manager or Call 1.800.234.1976SmartShop®
Composite
Fabricator 16
The SmartShop® Composite Fabricator is
specifically designed for cutting Aluminum
Composite Panel (ACP) or Aluminum
Composite Material (ACM). ACM is a widely
used term describing flat panels that consist
of a non-aluminum core bond between two
aluminum sheets. Aluminum sheets can be
coated with PVDF or polyester paint. ACPs
are frequently used for external cladding of
buildings (building facades), for insulation and
for signage. Laguna has fabricated the perfect
machine to conquer this material.
FEATURES SPECIFICATIONS
• Huge machining area 5' x 16' —1500mm x • Huge machining area 5' X 16' —1500mm x 4800mm
4800mm *Custom sizes available *Custom sizes available
• Unique Pressure “Shoe” design for optimum depth
• Unique Pressure “Shoe” design for optimum
accuracy- even if the panel is not completely flat
depth accuracy- even if the panel is not
• Helical Rack and Pinon drives on X and Y axes. Ball
completely flat screw on Z axes
• Helical Rack and Pinon drives on X and Y • 1,2 and 3 spindle design. Also available with ATC
axes. Ball screw on Z axes spindle
• 1,2 and 3 spindle design. Also available with • (3) 6HP Italian HSD spindles shown on machine
ATC spindle. below
• B&R Industrial Controller with Touch Screen
• (3) 6HP Italian HSD spindles shown on
Controls
machine below
• Planetary Gear Boxes on all 3 axes
• 6 Zone Vacuum Table
• (2) 10HP Vacuum Pumps
For more information Contact your Account Manager or Call 1.800.234.1976 21SmartShop®
Composite
Fabricator 20
The SmartShop Composite Fabricator is
specifically designed for cutting Aluminum
Composite Panel (ACP) or Aluminum
Composite Material (ACM). ACM is a widely
used term describing flat panels that consist
of a non-aluminum core bond between two
aluminum sheets. Aluminum sheets can be
coated with PVDF or polyester paint. ACPs
are frequently used for external cladding of
buildings (building facades), for insulation and
for signage. Laguna has fabricated the perfect
machine to conquer this material.
FEATURES SPECIFICATIONS
• Huge machining area 6’ x 20' —2000mm x • Huge machining area 6’X20' —2000mm x 6000mm
6000mm *Custom sizes available. *Custom sizes available
• Unique Pressure “Shoe” design for optimum depth
• Unique Pressure “Shoe” design for optimum
accuracy- even if the panel is not completely flat
depth accuracy- even if the panel is not
• Helical Rack and Pinon drives on X and Y axes. Ball
completely flat. screw on Z axes
• Helical Rack and Pinon drives on X and Y • 1,2 and 3 spindle design. Also available with ATC
axes. Ball screw on Z axes. spindle
• 1,2 and 3 spindle design. Also available with • (3) 6HP Italian HSD spindles shown on the machine
ATC spindle. below
• B&R Industrial Controller with Touch Screen
• (3) 6HP Italian HSD spindles shown on the
Controls
machine below.
• Planetary Gear Boxes on all 3 axes
• 6 Zone Vacuum Table
• (2) 10HP Vacuum Pumps
22 For more information Contact your Account Manager or Call 1.800.234.1976LASER SERIES For more information Contact your Account Manager or Call 1.800.234.1976 23
SmartShop®
MX Laser
The Laguna SmartShop® Laser MX comes
equipped with a RECI laser tube offering
high output power with incredible resolution.
Convenient WIFI controls, automatic
focusing, precision linear guide rails, and
more features come together to create a
user-friendly CO2 laser cutter capable of
incredible power and fine detail.
• Reci Laser Tube 100W
• Table Dimensions 36˝ x 24˝
• Dimensions: 55˝L x 53.5˝W x 42˝H
• Lift Table: Up to 7˝
• Honeycomb Table Included
• Knife Table Included
• WiFi Enabled
100W Laser Head WiFi Enabled Control Panel
ACCESSORIES RECOMMENDED
3-JAW CHUCK ATTACHMENT
The Rotary Chuck attachment
allows you to easily engrave or etch
cylindrical shaped objects.
4 WHEEL ROLLER ATTACHMENT
The Rotary Roller attachment can
quickly and easily adjust to size for a
wide variety of products.
LIGHTBURN SOFTWARE
A powerful program that allows you
to perform laser cutting engraving
operations with support for drawing
different shapes and text.
E-FLUX 1: Fume Extractor/Air Cleaner
24 For more information Contact your Account Manager or Call 1.800.234.1976SmartShop®
EX Laser
The Laguna SmartShop® Laser EX is a
powerful CO2 laser cutter and engraver that
comes packed with user-friendly features
to make operation a breeze. The EX comes
with a specialized linear guide rail system
for increased accuracy and longevity, an
automatic focusing head and more. With a
150W laser tube packed inside, this machine
has no trouble with thick acrylic or other
materials.
• Reci Laser Tube 150W
• Table Dimensions: 36" x 51"
• Lift Table: Up to 7"
• Honeycomb Table Included
• Knife Table Included
• WiFi Enabled
150W Laser Head WiFi Enabled Laser Alignment
ACCESSORIES RECOMMENDED
3-JAW CHUCK ATTACHMENT
The Rotary Chuck attachment
allows you to easily engrave or etch
cylindrical shaped objects.
4 WHEEL ROLLER ATTACHMENT
The Rotary Roller attachment can
quickly and easily adjust to size for a
wide variety of products.
LIGHTBURN SOFTWARE
A powerful program that allows you
to perform laser cutting engraving
operations with support for drawing
different shapes and text.
E-FLUX 1: Fume Extractor/Air Cleaner
For more information Contact your Account Manager or Call 1.800.234.1976 25SmartShop®
EXC Laser
The Laguna SmartShop® Laser|EX-C is a
powerful CO2 laser cutter and engraver that
comes packed with user-friendly features to
make operation a breeze. The EX-C comes
with a specialized Camera System that is
designed to read registration marks and
triangulate where the prints are on the
material. With a 150W laser tube packed
inside, this machine has no trouble with thick
acrylic or other materials.
• Optical Recognition System
• Reci Laser Tube 150W
• Chiller, Compressor & Exhaust Fan
Included
• Laptop & Light Burn Software Included
• Honeycomb Table Included
• Knife Table Included
• 2-Day Installation Included
150W Laser Head WiFi Enabled Laser Alignment
ACCESSORIES RECOMMENDED
3-JAW CHUCK ATTACHMENT
The Rotary Chuck attachment
allows you to easily engrave or etch
cylindrical shaped objects.
4 WHEEL ROLLER ATTACHMENT
The Rotary Roller attachment can
quickly and easily adjust to size for a
wide variety of products.
LIGHTBURN SOFTWARE
A powerful program that allows you
to perform laser cutting engraving
operations with support for drawing
different shapes and text.
E-FLUX 1: Fume Extractor/Air Cleaner
26 For more information Contact your Account Manager or Call 1.800.234.1976SmartShop®
LCB Laser
The Laguna SmartShop® LCB Laser is a
powerful CO2 laser cutter and engraver that
comes packed with user-friendly features to
make operation a breeze. The LCB comes
with a specialized linear guide rail system
for increased accuracy and longevity. With a
150W laser tube packed inside, this machine
has no trouble with thick acrylic or other
materials.
• Reci Laser Tube 150W
• Wifi Enabled
• Precision Drive Motors
• HiWin Linear Guide Rails
• American Photonics Optics
• Japanese Electric Components
150W Laser Head WiFi Enabled Control Panel
ACCESSORIES RECOMMENDED
LIGHTBURN SOFTWARE
A powerful program that allows you
to perform laser cutting engraving
operations with support for drawing
different shapes and text.
E-FLUX 1: Fume Extractor/Air Cleaner
For more information Contact your Account Manager or Call 1.800.234.1976 27FIBER MARKER 28 For more information Contact your Account Manager or Call 1.800.234.1976
Fiber Marker OM
Laguna Fiber laser marking machines are a
new generation laser marking system made
with the newest laser technology, designed
for permanently marking and engraving
metal as well as industrial polymers.
• 20,30 and 50W Options
• 110x110mm Lens
• Laser Wavelength: 1064nm
• Up to 10,000mm/s Marking Speed
• Resolution: 0.001mm
• Repositioning Precision: 0.003mm
• Air cooling system
50w Fiber marking head WiFi Enabled Control Panel
ACCESSORIES RECOMMENDED
ROTARY WORKTABLE OPTIONAL
The rotary axis allows you to mark
around a contoured work surface.
E-FLUX 1: Fume Extractor/Air Cleaner
For more information Contact your Account Manager or Call 1.800.234.1976 29Fiber Marker EM
Laguna Fiber laser marking machines are a
new generation laser marking system made
with the newest laser technology, designed
for permanently marking and engraving
metal as well as industrial polymers.
• Laser type: Raycus Q-Switch / JPT MOPA
• Laser Wavelength: 1064nm
• Max speed: 10000nm/s
• Resolution: 0.001mm
• Repositioning Precision: 0.003mm
• Air cooling system
• Average Power Output: 20W/30W/50W
50w Fiber marking head WiFi Enabled Control Panel
ACCESSORIES RECOMMENDED
ROTARY WORKTABLE OPTIONAL
The rotary axis allows you to mark
around a contoured work surface.
E-FLUX 1: Fume Extractor/Air Cleaner
30 For more information Contact your Account Manager or Call 1.800.234.1976DUST COLLECTORS For more information Contact your Account Manager or Call 1.800.234.1976 31
B|FLUX C|FLUX P|FLUX
1HP 1.5HP, 2HP, 3HP 1.5HP, 2HP, 3HP
1 PHASE | 1 PHASE | 1 PHASE | 115V |
110V 110/220V HEPA
T|FLUX T|FLUX X|FLUX
5HP 10HP 10HP
1 PHASE | 220V 1 PHASE | 220V 3 PHASE | 220V
Laguna Fan Design The Golden Triangle Smart Sensor LED Cyclone Remote
Nothing is more critical than Cyclones are designed to put Alu Control & Smart Sensors High frequency remote
the fan: Its design and quality the maximum amount of dust (show when the drum is full does not require line-of-sight.
are paramount to obtain directly into drum without ever and when filter needs cleaning).
maximum performance. passing through the fan. *
Available only on P|FLUX
32 For more information Contact your Account Manager or Call 1.800.234.1976EDGE BANDERS For more information Contact your Account Manager or Call 1.800.234.1976 33
BANDIT 2/3
• End Trim
• Top & Bottom Trim
• Buffing
• Hot Melt Glue System
• 2mm Capacity
BANDIT 4
• Dual Motor End Trim
• Top & Bottom Trim
• Buffing & Scraping
• Quick Melt Glue System
• 3mm Capacity
BANDIT 5
• Pre-Mill
• Corner Rounding
• Dual Motor End Time
• Top & Bottom Trim
• Buffing & Scraping
34 For more information Contact your Account Manager or Call 1.800.234.1976SUPERBRUSH SANDERS For more information Contact your Account Manager or Call 1.800.234.1976 35
SuperBrush
Laguna SuperBrush™ offers a wide variety
of sanders to meet the many needs of any
woodworking shop. Our goal is to provide
an excellent priced machine yielding an
incredible return on investment by creating
faster output, reduced rework, and greater
product consistency. Available in both single
and double brush heads.
• Precision height adjustment
• Bristle Contact Gauge included
• Greater surface consistency
• Single Head 0-15 FPM, Double Head
0-30 FPM
• Infinitely variable brush speed and
conveyor feed rate
• Quickly change brush heads
• Fully adjustable tension rollers
Feed Conveyor Main Drive Motor Feed Rate Control
BRUSH OPTIONS APPLICATIONS
• Clean Reclaimed Wood • Primer Sanding
• Wood Sanding • Scuff Sanding
• Raw Wood Sanding • Profile Sanding
• Break Sharp Edges • Straight-Lining
• Blend Out Defects • Deburring
Flap Brush Open Wire Brush
• Sealer Sanding • Soft Grain
• Decorative Finishing • Radius Edges
• Oxidation Removal • Polishing
• Base Coat Sanding • Graining
• Surface Texturing • Buffing
Nylon Brush Dense Wire Brush
36 For more information Contact your Account Manager or Call 1.800.234.1976Stay Connected with LAGUNA
Laguna Tools Laguna Training Laguna Owners Group
Use our main website as a State-of-the-art training facilities in This diverse and knowledge-rich
launching pad to learn all there is to California and South Carolina offer woodworking and CNC forum allows
know about the Laguna System. application-based learning experiences you to tap into the insight and
for new and existing users. experience of other Laguna users.
www.lagunatools.com lagunatools.com/training lagunatools.com/owners-group
Facebook Laguna YouTube Instagram
Connect with us to get the latest in A video channel dedicated to product Get inspiration, how-tos, and more from
product news and applications, or to and application content, helping you your fellow tradesmen in the Instagram
see how others are using their tools. get the most out of your investment. community.
facebook.com/lagunatools https://www.youtube.com/c/LagunaToolsOfficial/featured instagram.com/lagunatools
Software Training
Our objective is to ensure that Laguna customers have all
of the tools necessary to bring their ideas to reality. We
offer in-house and online software training sessions for
VCarve, Aspire and RhinoCAM customers.
• Importing & Toolpathing 3D models in VCARVE/ASPIRE
• IQ Rotary Applications - Job Setup
• ‘Z’ Zero - Top of the material or bottom?
• Sketchup to Vectric V-Carve Pro cabinet tutorial
For more information Contact your Account Manager or Call 1.800.234.1976 37CNC Limited Warranty
New CNC machines sold by Laguna Tools carry a one-year user alignment, adjustment, tuning and machine settings
warranty effective from the date of shipping. Laguna Tools are not covered by this warranty. It is the responsibility of the
guarantees all new machine sold to be free of manufacturers’ user to understand basic woodworking machinery settings
defective workmanship, parts, and materials. We will repair and procedures and to properly maintain the equipment in
or replace without charge, any parts determined by Laguna accordance with the standards provided by the manufacturer.
Tools, Inc. to be a manufacturer’s defect. We require that the
defective item/part is determined to be damaged due to lack Parts under warranty are shipped at Laguna Tools, Inc.’s
of maintenance, cleaning or misuse/abuse, the customer cost either by common carrier, FEDEX ground service or a
will be responsible for the cost to replace the item/part, plus similar method. Technical support to install replacement
all related shipping charges. This limited warranty does not parts is primarily provided by phone, fax, e-mail or Laguna
apply to natural disasters, acts of terrorism, normal wear and Tools Customer Support Website. The labor required to install
tear, product failure due to lack of maintenance or cleaning, replacement parts is the responsibility of the user. Laguna
damage caused by accident, neglect, lack of or inadequate dust Tools is not responsible for damage or loss caused by a freight
collection, misuse/abuse or damage caused where repair or company or other circumstances not in our control. All claims
alterations have been made or attempted by others. for loss or damaged goods must be notified to Laguna Tools
within twenty-four hours of delivery.
Laguna Tools, Inc. is not responsible for additional tools or
modifications sold or performed (other than from/by Laguna Please contact our Customer Service Department for more
Tools, Inc.) on any Laguna Tools, Inc. woodworking machine. information. Only NEW machines sold to the original owner are
Warranty maybe voided upon the addition of such described covered by this warranty. For warranty repair information, call
tools and/or modifications, determined on a case-by-case 1-800-332-4094. Copyright 2013 Laguna Tools, Inc. **Warning
basis. Software purchased through Laguna Tools, Inc., is – no portion of these materials may be reproduced without
not covered under this warranty and all technical support written approval from Laguna Tools, Inc.
must be managed through the software provider. Normal
Join the Laguna Family
Registering online is a fast, simple
way to put additional advantages of
Laguna ownership to work.
• Create a record of your purchase in
case tools are lost or stolen.
• Tool registration speeds up servicing
and/or repair processing.
• Receive updates and sneak peeks of
new tools and accessories.
• Access videos for demos and tips to
help you get the most out of
your investment.
Enjoy all the benefits of online tool
registration by visiting:
lagunatools.com/policies/warranty
If you are having trouble registering your product please contact customerservicelagunatools.com
38 For more information Contact your Account Manager or Call 1.800.234.19767291 Heil Ave, Huntington Beach, CA 92647 Tel: 800.234.1976 E-mail: customerservice@lagunatools.com lagunatools.com Stay Connected with Laguna. For more information Contact your Account Manager or Call 1.800.234.1976 39
You can also read
