CHEMICAL PROCESS EQUIPMENT BUILT TO STAND THE TEST OF TIME
CHEMICAL
SOLUTIONS
PUMPS
ALMATEC ANSIMAG SEALLESS BLACKMER ATLAS COPCO
E-SERIES AODD PUMP MAGNETIC DRIVE PUMP SLIDING VANE PUMP DHS VSD+
• Flows up to 210 GPM • Flows up to 1,470 GPM • Flows up to 2,200 GPM • Dry screw vacuum pumps for the
• Pressures up to 100 psi • Pressures up to 225 psi • Pressures up to 200 psi chemical industry
• Temperatures up to 248°F • Temperature range of -20°F to 250°F • Viscosity up to 21,000 cP • Reliable and contaminant-free
• Three sizes from 1/4” up to 3” • Meets exacting ASME / ANSI B73.3 • Temperatures up to 500°F extraction of chemicals & vapors
• Max suction lift: 31.2’ wet / 16.4’ dry and ISO 2858 chemical process • Cast iron, ductile iron and stainless • Pumping speed: 38-118 ACFM
• Max capacities of 0.9 to 35 m³/h pump standards steel options available • Ultimate vacuum: 29.9 in-HgV

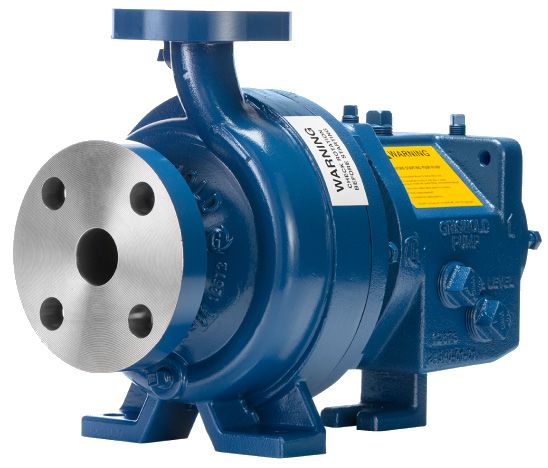

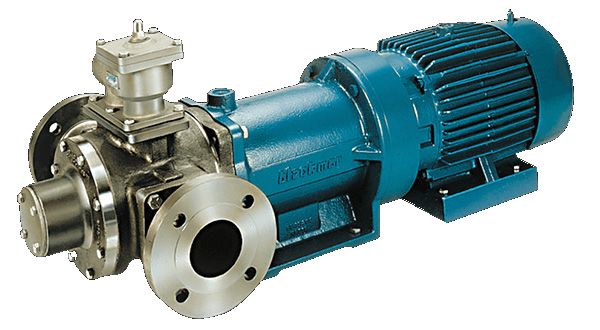

BLACKMER FINISH THOMPSON GOULDS NPE GRISWOLD
INTERNAL GEAR PUMP ULTRACHEM MAG DRIVE PUMP SERIES PUMP 811 ANSI PUMP
• Flows up to 500 GPM • Flows up to 1,450 GPM • Flows up to 175 GPM • Flows up to 7,000 GPM
• Pressures up to 200 psi • Pressures up to 136 psi • Up to 150 ft head / 125 psi • Pressures up to 390 psi
• Viscosity up to 431,000 SSU • Viscosity up to 200 cP • 316L stainless steel construction • Temperatures up to 500°F
• Temperatures up to 650°F • Temperatures up to 250°F • High efficiency enclosed impeller • ANSI part interchangeability
• Available in port sizes from • ANSI, ISO/DIN Dimensional • Standard John Crane mechanical • Alloy 20, ductile iron, 316 stainless
1-1/2” NPT to 6” ANSI flanges ETFE-lined ductile iron seal design steel and CD4MCu options
LIQUIFLO PULSATRON T-MAG WILDEN
GEAR PUMP METERING PUMP MAG DRIVE PUMP DIAPHRAGM PUMP
• Flows up to 50 GPM • Flows up to 600 GPD • Flows up to 215 GPM • Flows up to 320 GPM
• Pressures up to 350 psi • Pressures up to 300 psi • Pressures up to 56 psi • Pressures up to 125 psi
• Temperatures up to 500°F • Accuracy +/- 3% at max capacity • 8 horsepower ratings available • Sizes available from 1/4” to 4”
• 316 stainless steel or Alloy-C • Fin cooled enclosed solenoid • BSP thread, socket weld union and • Max suction lift: 31.1’ wet / 25’ dry
• NPT/BSPT, ANSI 150# flanged and • Models: A Plus, C, C Plus, E, E-DC, threaded flat face flange connections • ADS options: Pro-Flo, Pro-Flo Shift,
DIN PN16 flanged connections E Plus, HV, MP and T7 Series • Heat dissipation technology design Accu-Flo and Turbo-Flo
PROCESS EQUIPMENT & HOSE
CONTINENTAL CONTINENTAL CONTINENTAL GLIDETECH PTFE
CHEM ONE FABCHEM CONTI CHEM SUPERIOR BIOTECH CHEM
• For the transfer of a variety of • Handles majority of common • Universal hose with seamless • Suction and delivery hose for a
industrial chemicals in pressure, industrial chemicals in pressure, transparent FEP lining of Teflon variety of chemicals and solvents
gravity flow and/or suction service gravity flow and suction service resistant to all common chemicals • 1/2” to 3” I.D. options available
• 3/4” to 4” I.D. options available • 1/2” to 4” I.D. options available • 1/2” to 2” I.D. options available • Black conductive PTFE tube
• Mod XLPE tube / EPDM cover • UHMWPE tube / EPDM cover • FEP non-conductive tube conforms • Consistent 235 psi rating
• Temperature range: -40°F to 250°F • Consistent 200 psi rating to FDA and USP Class V standards • Temperature range: -40°F to 302°F
NOVAFLEX 4200BE / 4201BE NOVAFLEX 4600CF NOVAFLEX 4700CU UNI-CHEM / UNI-FLON
EPDM CHEMICAL SUCTION FEP CHEMICAL TRANSFER UHMW CHEMICAL S & D CHEMICAL COMPOSITE HOSE
• Medium duty hose designed to meet • For the transfer of products that • Designed for almost every common • For use in petroleum, chemical and
the general needs of the industry require a hose tube with the highest chemical used in the industry today oil transfer, petrochemical vapor
• 1” to 4” I.D. options available level of chemical resistance • 3/4” to 6” I.D. options available recovery and tank truck delivery
• EPDM tube and cover construction • 1/2” to 3” I.D options available • UHMW tube / EPDM cover • 1” to 10” I.D. options available
• Consistent 150 psi rating • FEP Teflon-type tube / EPDM cover • Pressures up to 250 psi • Externally crimped dry seal fittings
• Temperature range: -30°F to 225°F • Pressures up to 500 psi • 4705CU Crush & Kink available • Temperature range: -40°F to 250°F
FILTER TECHNOLOGY FLEX-A-SEAL SHARPE STANDARD XCHANGE
BAG FILTER HOUSINGS MECHANICAL SEAL PORTABLE MIXER HEAT EXCHANGER
• Flows from 35 GPM to 400 GPM • Pressures up to 1,200 psi • Tank sizes up to 5,000 gallons • Up to 30,000 GPM
• 3/4” to 4” NPT or flange connection • Speeds up to 10,000 SFPM • Viscosities up to 15,000 cP • Pressures up to 450 psi
• Housing materials in carbon, • Temperatures up to 800°F • Clamp, plate or flange mounted • Heat transfer area 50,000 SQ FT
aluminum and stainless steel • Single cartridge, dual cartridge, split • Direct drive, gear drive, thrifty • Temperatures from -31°F to 338°F
• Models: #4-6, #4-12, #8-15, #8-30, cartridge and welded metal bellows and USDA approved stainless steel • Double wall protection and free flow
#D-815, #D-830, #8815, #8830 • Multiple elastomer options models available clog resistant options available
Our Chemical
LINE CARD
Pump Manufacturers Hose & Fittings Filtration Process
Custom Chemical Solutions
ENGINEERING, DESIGN & BUILD SERVICES
Need a custom skid or chemical system? Our experienced
Engineering team will guide you through the process and offer
*Not all products available in all locations* solutions guaranteed to meet your needs.
Wisconsin Corporate Illinois Branch Indiana Branch Michigan Branch Ohio Branch
21365 Gateway Court 960 Oak Creek Drive 8104 Woodland Drive 41304 Concept Drive 4891 Van Epps Road
Brookfield, WI 53045 Lombard, IL 60148 Indianapolis, IN 46278 Plymouth, MI 48170 Brooklyn Heights, OH 44131
(262) 784-3340 (630) 782-6834 (317) 875-6900 (248) 476-7782 (216) 739-1600
