Automatic Building Extraction from Google Earth
Images under Complex Backgrounds Based on Deep
Instance Segmentation Network
Qi Wen 1, Kaiyu Jiang 2, Wei Wang 1, Qingjie Liu 2, 4,*, Qing Guo 3, Lingling Li 1 and Ping Wang 1
1 National Disaster Reduction Center of China, Beijing 100124, China; whistlewen@aliyun.com (Q.W.);
wangwei@ndrcc.gov.cn (W.W.); lilingling@ndrcc.gov.cn (L.L.); wangping@ndrcc.gov.cn (P.W.)
2 School of Computer Science and Engineering, Beihang University, Beijing 100191, China;
kyjiang@buaa.edu.cn
3 The People’s Insurance Company of China, Beijing 100022, China; guoqing@picc.com.cn
4 The State Key Laboratory of Virtual Reality of Technology and Systems, Beihang University, Beijing
100191, China;
* Correspondence: qingjie.liu@buaa.edu.cn; Tel.: +86-010-82316719
Received: 11 December 2018; Accepted: 13 January 2019; Published: 15 January 2019
Abstract: Building damage accounts for a high percentage of post-natural disaster assessment.
Extracting buildings from optical remote sensing images is of great significance for natural disaster
reduction and assessment. Traditional methods mainly are semi-automatic methods which require
human-computer interaction or rely on purely human interpretation. In this paper, inspired by the
recently developed deep learning techniques, we propose an improved Mask Region Convolutional
Neural Network (Mask R-CNN) method that can detect the rotated bounding boxes of buildings
and segment them from very complex backgrounds, simultaneously. The proposed method has two
major improvements, making it very suitable to perform building extraction task. Firstly, instead of
predicting horizontal rectangle bounding boxes of objects like many other detectors do, we intend
to obtain the minimum enclosing rectangles of buildings by adding a new term: the principal
directions of the rectangles θ. Secondly, a new layer by integrating advantages of both atrous
convolution and inception block is designed and inserted into the segmentation branch of the Mask
R-CNN to make the branch to learn more representative features. We test the proposed method on
a newly collected large Google Earth remote sensing dataset with diverse buildings and very
complex backgrounds. Experiments demonstrate that it can obtain promising results.
Keywords: building extraction; deep learning; Mask R-CNN; rotation bounding box; receptive field
block; instance segmentation
1. Introduction
During the last 10 years, many countries in the world have suffered from natural disasters, which
are increasing in frequency and intensity and brought huge loss in exposure of persons and assets [1].
Disaster loss assessment can provide technical support and decision-making basis for disaster relief
and post-disaster reconstruction. Loss from building damage always accounts for a high percentage
of all losses especially in typhoon, earthquake, flood, and geological disasters, so loss assessment of
building damage is obviously an essential work of the whole loss assessment. Remote sensing images
have played an important role in building damage assessment for their characteristics of wide
coverage, high resolution and high time efficiency [2,3]. Building footprint vector data can provide
basic information of buildings, such as outline, area, shape. It can be used to assess the damage
condition of each building and calculate the total number of damaged buildings in a disaster
region [4].
Sensors. 2019, 19, 333; doi:10.3390/s19020333 www.mdpi.com/journal/remotesensing
Sensors 2019, 19, 333 2 of 16
How to extract building footprint from pre-disaster high resolution remote sensing images is a
key problem which has brought much attention from both academia and industry for decades. In
consideration of feature extraction, the classical methods of building footprint extraction from remote
sensing images can be summed up into two categories: bottom-up data-driven methods and
top-down model-driven methods [5]. The bottom-up data-driven methods mainly consider the
low-level features such as lines, corners, regional textures, shadows, and height differences from
remote sensing images, and assemble them under some rules to identity building targets. The
top-down model-driven methods start from the semantic model and prior knowledge of the whole
building targets, use some high level global features, and guide the optimization of element
extraction, image segmentation, spatial relationship modeling, contour curve evolution to be close to
the building targets. The accuracy and efficiency of these two methods are usually difficult to meet
the practical application requirements of remote sensing building extraction.
Recent years, the deep learning methods, represented by Convolutional Neural Network (CNN)
and Recurrent Neural Network (RNN), have been gradually dominating the fields of artificial
intelligence [6]. The progress in deep learning has greatly promoted the developments of image
classification (AlexNet [7], Visual Geometry Group Network (VGG) [8], GoogleNet [9], Residual
Network (ResNet) [10]), image semantic segmentation (Fully Convolutional Network (FCN) [11],
U-Net [12]), object detection (Region Convolutional Neural Network (R-CNN) [13], Fast R-CNN [14],
Faster R-CNN [15], Region Fully Convolutional Network (R-FCN) [16], You Only Look Once
(YOLO) [17], Single Shot Multibox Detector (SSD) [18]), and some other classical computer vision
problems. These great achievements have inspired researchers in remote sensing community to apply
deep learning techniques to building extraction. A straightforward strategy is adapting these
algorithms to building extraction task. For instance, Vakalopoulou et al. [19] presented one of the first
deep learning based building extraction methods, in which a small patch was fed into AlexNet and
Support Vector Machine (SVM) assembling classifier to detect buildings, then the pixel-wise
classification result was refined by Markov Random Filed (MRF). They achieved 90% average
correctness in Quickbird, Worldview images. In [20], a 3-layer hierarchically fused fully
convolutional network (HF-FCN) was developed to test on Massachusetts Buildings Dataset [21] and
achieved 91% average recall rate, which was based on FCN, truncated the 6th, 7th fully connected
layers and 5th pooling layer, fused multi-level convolution, upper sampling layers and formed a
cascaded segment network. Zhang et al. [22] developed a CNN based building detection method.
They employed a multi-scale saliency map to locate building-up areas, and combined with sliding
window to obtain the candidate patches classified by CNN. A promising result of 89% detection
precision was achieved on Google Earth remote sensing images with a spatial resolution of 0.26 m. A
network structure, which adopted the SegNet [23] like encoder-decoder pair style and incorporated
the up-sampling and densification operations into deconvolution layers, is proposed and achieved
95.62% building segmentation precision in ISPRS 2D Semantic Labelling Challenge [24]. A
patch-based CNN classification network is proposed and has an accuracy of building segmentation
exceeding that of previous similar work in Massachusetts Buildings Dataset and Abu Dhabi Dataset,
which uses a Global Average Pooling layer instead of the full connection layer and uses the super
pixel division (SLIC) for post-processing [25]. A multi-constraint fully convolutional networks
(MC–FCNs) is proposed and achieves a 97% total accuracy of building segmentation in New Zealand
aerial remote sensing images, which adopts the basic structure of a fully skip connected U-Net and
adds a multi-layer constraint between each feature map layer and the corresponding multi-scale true
value annotation data, increasing the expression ability of the middle layer [26]. Based on the
architecture of U-Net, the Res-U-Net segmentation network is established, which uses residual units
instead of plain neural units as basic blocks, and the guided filter is then adopted as subsequent step
to fine-tune the building extraction result. The segmentation accuracy of the building on the ISPRS
2D Semantic Labelling Challenge dataset is superior to 97% [27]. In general, the existing work of deep
learning method for building extraction from high-resolution remote sensing images is mainly based
on semantic segmentation, and the work on target detection and image classification method is few.
The main idea is to improve the context information by adding the multi-layer features to the FCN
Sensors 2019, 19, 333 3 of 16
framework, and to improve the ability to adapt to the complex background of remote sensing images
and the small building targets.
Semantic segmentation under complex geospatial backgrounds is likely to result in edge
connection among closely adjacent buildings, which is unfavorable for subsequent edge extraction
and outline fitting owing to edge confusion of buildings. Mask R-CNN [28], a pioneer work in
instance segmentation which is a task predicting bounding boxes and segmentation masks
simultaneously, have achieved significant improvement. In this work, segmentation is carried out
based on detection result, making it especially suitable to deal with outline extraction of densely
distributed small buildings. A newly defined Rotation Bounding Box (RBB), which involves angle
regression, is incorporated into Faster R-CNN framework, and this method forces the detection
networks to learn the correct orientation angle of ship targets according to angle-related IoU and
angle-related loss function [29]. Meanwhile, a novel Receptive Field Block (RFB) module, which
makes use of multi-branch pooling with varying kernels and atrous convolution layers to simulate
RFs of different sizes in human visual system, is developed to strengthen the deep features learned
from lightweight CNN detection models [30]. In this paper, we incorporate the RBB and RFB into the
RPN stage and segmentation branches of Mask R-CNN framework, respectively. This improvement
can provide a denser bounding box, and furtherly promote the accuracy of mask prediction owing
to better adaptation to multi-scale building targets.
The main contributions of this paper include:
1. Different from previous FCN-based methods, instance segmentation framework is applied into
building detection and segmentation, which can better deal with closely adjacent small buildings
and some other tough problems.
2. We adapt rotatable anchors into the RPN stage of Mask R-CNN framework, which regress a
minimum area bounding rectangle (MABR) likely rotation bounding box and eliminate
redundant background pixels around buildings.
3. We use several RFB modules to boost the segmentation branch of Mask R-CNN framework,
which can better accommodate to multi-scale building targets by parallel connecting
multi-branch receptive fields with varying eccentricities.
Experiments based on a newly collected large building outline dataset show that our method,
improved from Mask R-CNN framework, has a state-of-the-art performance in joint building
detection and rooftop segmentation task.
The remainder of this paper is organized as follows: Section 2 presents the details of building
extraction method; Section 3 describes the experimental results in Google Earth remote sensing
dataset; Section 4 is a discussion of our method and some possible plan of improvements; Section 5
presents our concluding remarks.
2. Methods of Building Extraction from Remote Sensing Images
Similar to Mask R-CNN, our method mainly consists of four parts. Firstly, rotation anchors are
introduced into RPN stage since we intend to predict the minimum area bounding rectangle of
buildings. Secondly, the feature maps of ROIs are rotated anticlockwise into horizontal rectangles
and are then processed by ROI Align. Thirdly, the regression branch revises the coordinate of
bounding box, the classification branch predicts the corresponding classification scores, and the
segmentation branch produces corresponding object masks through several RFB modules. Finally,
the bounding box and mask are rotated clockwise by the regressed angle as the instance segmentation
results. The losses of the three branches are computed and summed to form a multitask loss.
Figure 1 illustrates the schematic architecture of the proposed method.
Sensors 2019, 19, 333 4 of 16
Figure 1. Schematic architecture of the proposed method.
2.1. Rotation Region Proposal Network
Feature map from backbone is fed into rotation region proposal network. In the learning stage,
the rotation bounding box is defined as the ground truth of each building sample for detection.
Rotation proposals are formulated by adding angle parameter, and are generated by traversing every
composition of ratio, scale and angle. In the prediction stage, the feature maps of rotation detection
bounding boxes generated by rotation RPN are rotated anticlockwise to horizontal rectangles by the
regressed angle. Then after ROI Align, they are transferred to the multi-branch network.
2.1.1. Rotation Bounding Box
The refined outline of each building is regarded as the ground truth data, which is necessary for
segmentation task. However, for the detection purpose, the ground truth is the minimum area
bounding rectangle (MABR) of buildings. Unlike traditional horizontal bounding rectangle, MABR
is a dense bounding box, which has the minimum area among all of the bounding rectangles and
normally is inclined from horizontal axis. Figure 2 illustrates the outline and the minimum area
bounding rectangle of buildings. So 5 parameters, i.e., ( x, y, w, h, ) are used to represent the
rotation bounding box, where ( x, y ) represent the center coordinate of bounding box, ( w, h)
represent the length of the short side and the long side of the bounding box respectively, and the
angle between the long side of MABR and x-axis rotated from counterclockwise direction is
represented as parameter . is constrained within the interval [−π/4, 3π/4) to ensure the
uniqueness of MABR. Figure 3 presents angle parameter of rotation bounding box.

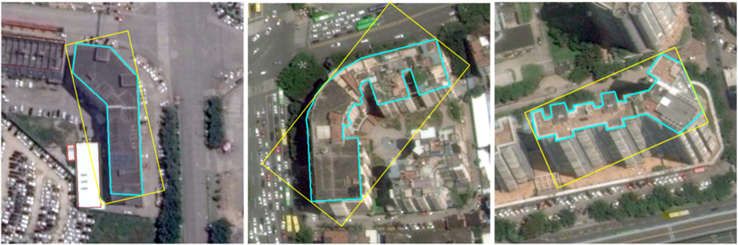

Figure 2. Outline and the minimum area bounding rectangle (MABR) of buildings. Blue lines are the
outlines of the buildings and yellow lines are their MABR.
Sensors 2019, 19, 333 5 of 16
y
(x,y)
x
Figure 3. Angle parameter of rotation bounding box.
2.1.2. Rotation Anchor
In order to match the rotation bounding box, rotation anchors are designed by adding rotation
angle to traditional anchor parameters. Buildings account for different functions, such as factory and
residence. Factory buildings, housings for urban and rural residents, office buildings are likely to
have distinct aspect ratios. According to statistics of a large amount of building samples, we set the
aspect ratios as {1:2, 1:3, 1:5, 1:7}. Six scales, i.e., {8, 16, 32, 64, 128, 256}, are kept to fit in the scale
variation of buildings. In addition, we adopt six orientations {−π/6, 0, π/6, π/3, π/2, 2π/3} to adjust
anchors to match angle changes of buildings. 144 rotation anchors (4 aspect ratios, 6 scales, 6
orientations) will be created for each pixel on the feature map, 720 outputs (5 × 144) for the reg layer
and 384 score outputs (2 × 144) for the cls layer.
2.1.3. Leveling ROIs
The rotation ROIs output from the RPN stage always have a certain angle against horizontal axis
represented by parameter . The feature map of ROI is rotated by the angle anticlockwise
around its center into a horizontal rectangle of the same size by bilinear interpolation. The
transformed coordinates can be calculated as follows:
x cos sin x x x
y sin
cos y y y
(1)
where ( x, y ) represent the center coordinate of bounding box, ( x, y) represent the coordinate
of pixel in original ROI feature map, ( x, y) represent the coordinate of pixel in transformed ROI
feature map. Then we use the ROI Align to process the horizontal feature maps of ROIs and transfer
the resulting fixed-size feature maps to the following multi-branch prediction network.
2.2. Multi-Branch Prediction Network
Multi-branch prediction network has three branches: two branches perform classification and
bounding-box regression respectively, the third branch performs segmentation and generates masks.
The segmentation branch is reconfigured with Receptive Field Block modules to obtain finer masks
by integrating advantages of inception block and atrous convolution. Then, the regressed
bounding-box and the predicted mask are simultaneously rotated to their original angle obtained
from RPN stage. In this way, we can obtain the final instance segmentation results of buildings.
Sensors 2019, 19, 333 6 of 16
2.2.1. Receptive Field Block
The scales of buildings vary significantly, ranging from a dozen of pixels to thousands of pixels.
To better handle scale viability problem, a new architecture named Receptive Field Block is built
upon the structure of Inception-ResNet module [31] by replacing the filter concatenation stage of
Inception V4 module with residual connection and stacking atrous convolution of different kernel
sizes and sampling rates. Figure 4 shows the architecture of a RFB module. The 1 × 1 atrous
convolution with rate 1, 3 × 3 atrous convolution with rate 3 and 3 × 3 atrous convolution with rate
5 are inserted into a paralleled three-branch structure respectively, and the feature maps extracted
for different sampling rates are further concatenated and followed by a 1 × 1 convolution. The output
of the filter is then residual added with the output of pre-stage layer by a shortcut channel. Each
branch of the three-branch structure consists of a 1 × 1 convolution layer to decrease the number of
channels in the feature map plus an n × n convolution layer.
ReLU
+
11 Conv
Concatenation
11 Conv, rate=1 3 3 Conv, rate=3 3 3 Conv, rate=5
11 Conv 3 3 Conv 5 5 Conv shotcut
11 Conv 1 1 Conv
Previous layer
Figure 4. Structure of Receptive Field Block.
2.2.2. RFB Stacked Segmentation Network Branch
We replaced each convolution layer of the original segmentation branch of Mask R-CNN with
the RFB module, and then activated with sigmoid function, as shown in Figure 5. Two RFB modules
connected in sequence can enlarge the receptive field and avoid time-consuming. Accumulating more
RBF blocks would slightly improve the performance. However, when attaching more than three
blocks, it will lead to unstable accuracy and make training more difficult. The output map of this
branch is the mask of building target.
RFB RFB Sigmoid
Figure 5. Pipeline of Receptive Field Block (RFB) modules stacked network.
2.2.3. Inverse Rotation of Mask
The bounding box regression branch only revises the coordinates of horizontal rectangles, i.e.,
( x, y, w, h) . The angle generated from the Rotation RPN stage is adopted as the final angle
parameter. The horizontal rectangle is rotated clockwise by the angle as the final rotation
bounding box. The m ×m mask output predicted from the segmentation branch is first rotated
clockwise by the angle, and then is resized to the size of final bounding box and binarized at a
threshold of 0.5.
Sensors 2019, 19, 333 7 of 16
2.3. Loss Function
The positive labels are assigned to the anchors as follows: (i) the anchor/anchors with the highest
IoU overlap with a ground-truth box; (ii) an anchor which has an IoU overlap higher than 0.8 and an
angular separation less than 10 degrees with the ground-truth box. The Negative label is assigned to
the anchor following two conditions: (i) an anchor has an IoU overlap less than 0.2; (ii) an anchor has
an IoU overlap higher than 0.8 but has an angular separation higher than 10 degrees. Other anchors
without positive or negative labels are not considered during training.
We follow the multi-task loss of Mask R-CNN which is defined as follow to train our method:
1 1 1
L ( pi* , pi , ti* , ti , si* , si ) L cls ( pi* , pi ) pL *
i box (ti* , ti ) L mask
*
( s(2)
i , si )
N cls i N box i N mask i
where pi* represents the ground-truth label of the object, pi is the predicted probability
distribution of anchor i being an object of different classes, t i* is the vector representing the
coordinate offset of ground-truth box and positive anchors, ti represents the offset of the predicted
five parameterized coordinate vector and that of ground-truth box, s i* is the matrix of ground-truth
binary mask, si represents the predicted mask of the object. The hyper-parameter and in
Equation 2 controls the balance between the three task losses.
Lcls ( p * , p ) log p * p (3)
Lbox (ti* , ti ) smoothL1 (ti* ti ) (4)
0.5 x 2 , if x 1
smoothL1 ( x) (5)
x 0.5, otherwise
Lmask (s * , s )= ( s * log( s ) (1 s * ) log(1 s )) (6)
The regression mode for 5 coordinate parameters of rotational bounding box is defined as follow:
t x ( x xa ) / wa , t y ( y y a ) / ha ,
tw log(w / wa ), th log(h / ha ),
(7)
t a k
t x* ( x * xa ) / wa , t *y ( y * ya ) / ha ,
t w* log( w * / wa ), t h* log( h * / ha ), (8)
t* * a k
where x , y , w and h denote the box’s center coordinates and its width and height. Variables
x , xa and x * are for the predicted box, anchor box, and ground-truth box respectively; the same
*
is for y , w , h and . The parameter k Z to keep t and t in the range [−π/4, 3π/4).
3. Results
3.1. Data and Research Area
To assess the performance of the proposed method and facilitate future researches, we collected
a large volume of images from Google Earth in Fujian province, China, as shown in Figure 6. Diverse
regions including urbans, towns, and villages are selected to cover different kinds of buildings.
Several examples are shown in Figure 7, from which we can see almost all types of buildings from
Sensors 2019, 19, 333 8 of 16
village to urban, from small rural housing to villa and high-rise apartment, from L shape to U shape
are included in our dataset, providing us plenty of samples for training the models. 86 typical regions
of spatial resolution 0.26 m are selected, with the image size ranging from 1000 × 1000 to 10,000 ×
10,000 pixels. After obtain the images, 5 students major in Geography and surveying science were
asked to label the buildings with polygon vector using ArcGIS 10.2 manually. The polygon vectors
fit to the outlines of building footprints, as shown in Figure 7. Because deep learning models can only
learn parameters from fixed-size images with numerical labels, we crop the images into 500 × 500,
and map the vector boundaries into bounding boxes. Finally, we have 2000 images and about 84,366
buildings in total. We split the dataset equally into two parts, one for training and the other one
for testing.

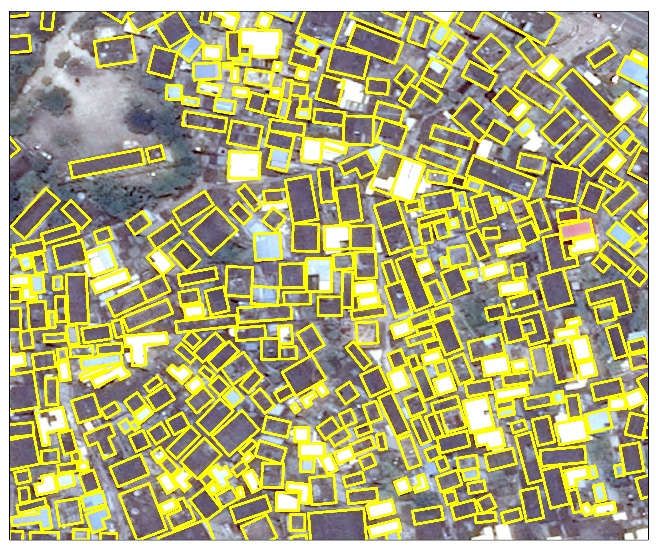

Figure 6. Typical regions of building samples in Fujian province of China. Images from Fujian
province were collected and annotated manually to form the building outline dataset.
Sensors 2019, 19, 333 9 of 16

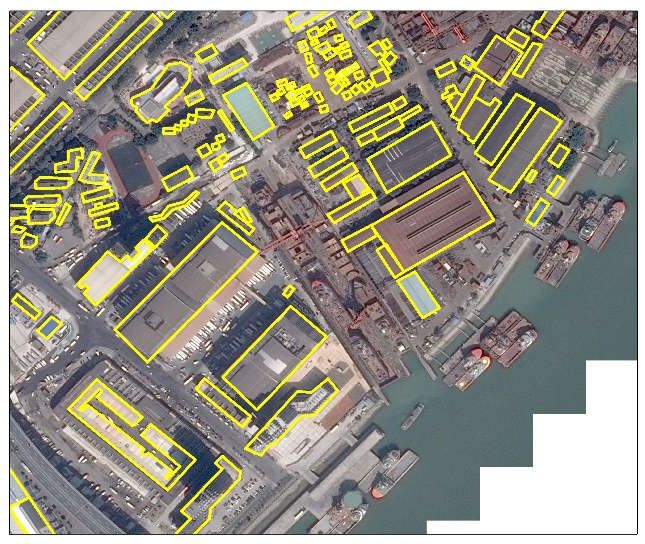

Figure 7. Building samples in our dataset. A variety of buildings with different shapes and
architectural structures and functions are selected.
3.2. Implementation Details
The model is built upon Mask R-CNN framework. We use PyTorch to implement the proposed
method and train it with Adam optimizer. The backbone of the model is ResNet-101 which was
pre-trained on ImageNet dataset. The learning rate was initialized with 0.001 and decayed in every
25 k iterations. It will converge in 80 k iterations. Other hyperparameters such as weight decay and
momentum were set as 0.0001 and 0.9 as recommended. At inference time, 500 proposals are
generated for predicting buildings and refine their locations. The top 100 predictions with the highest
scores are sent to the segmentation task branch and obtain their masks. All experiments including
training and testing of models are conducted on a single 1080Ti GPU with 12 GigaByte memory
on board.
3.3. Evaluation of Detection Task
Building detection from very complex backgrounds is an important task. Detecting objects from
images has been a hot research topic in computer vision community. And lots of deep learning based
methods have been proposed in recent years. Most of these methods can be categorized into two
groups: two-stage methods and one stage methods. Two-stage methods has an RPN network that
Sensors 2019, 19, 333 10 of 16
generates candidate regions potentially containing objects and a followed network classifies these
regions into different object categories and predicts their fine coordinates, simultaneously. The
representative method is the Faster R-CNN and its variants. While one stage methods directly predict
the classification score and coordinates of the objects from the feature maps without an RPN stage.
Thus, one stage methods are faster than two-stage methods in inference however have poor
performance in detecting and locating objects. In this work, we compare our method with Mask
R-CNN and Faster R-CNN since they obtain the state-of-the-art results. Two different networks
VGG [9] and ResNet101 [10] are utilized as a backbones of the Faster R-CNN. The proposed and Mask
R-CNN are not configured with VGG network because Mask R-CNN and the proposed method are
actually built upon Faster R-CNN, thus it is unnecessary to repeat the VGG configuration again. We
use mean average precession (mAP) to evaluate the performance of the proposed method. The results
are listed in Table 1. A few examples are shown in Figure 8.
From Table 1 we can see that Faster R-CNN configured with ResNet101 outperforms its VGG
version significantly, indicating powerful ability of residual networks. ResNets have been utilized
widely in various computer vision tasks and demonstrate superior performance than other shallower
networks, such as VGG nets. Thus, in the following experiments we also believe in ResNets and
employ ResNet101 which is probability the most widely used residual network as backbone of the
proposed method. Mask R-CNN-ResNet101 obtains similar results to Faster R-CNN-ResNet101.
They are actually the same model if only the detection task is considered. The proposed method
improves the results with help of the rotation anchors. The reason behind this maybe that the rotated
anchors provide more information of target characteristics (i.e., rotation angle) than normal anchors,
so they are more suitable for capturing features of rotated objects. They have a higher possibility of
filtering out pixels of distractive backgrounds than normal anchors which leads to better results.
From Figure 8 it can be observed that Faster R-CNN configured with VGG miss detect buildings
at most. The image in the first row is a very challenging one. There are many buildings locating
closely and are very hard to distinguish from each other. Faster R-CNN-VGG miss many buildings,
while Mask R-CNN-ResNet101 and the proposed method obtain the best results though there are
still many missing buildings. The rotated bounding boxes fit bounding footprints well, as can be seen
from the last column of Figure 8.Sensors 2019, 19, 333 11 of 16
(a) (b) (c) (d)

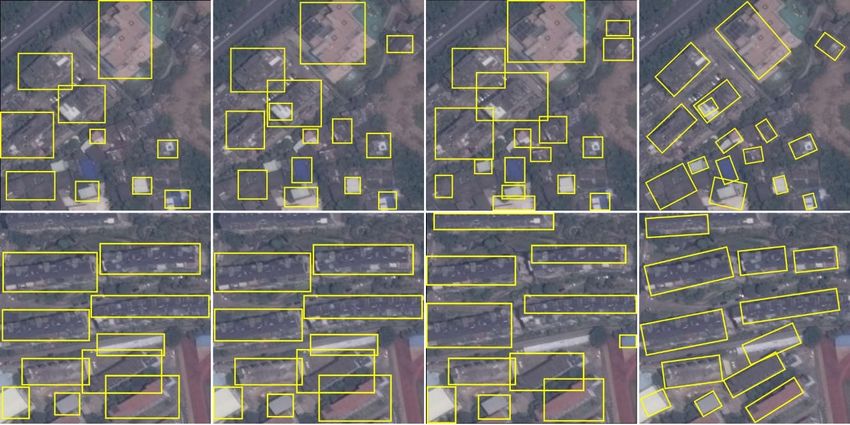

Figure 8. Comparison with other methods. (a) Faster R-CNN-VGG; (b) Faster R-CNN-ResNet101;
(c) Mask R-CNN-ResNet101; (d) the proposed method.Sensors 2019, 19, 333 12 of 16
Table 1. Comparisons with Faster R-CNN and Mask R-CNN on the Fujian dataset in terms of
detection task.
Method mAP
Faster R-CNN-VGG 0.6958
Faster R-CNN-ResNet101 0.8976
Mask R-CNN-ResNet101 0.8996
Proposed 0.9063
3.4. Evaluation of Segmentation Task
Segmenting buildings from their surrounding backgrounds also known as building extraction.
In this subsection, we compare our method with segmentation branch of Mask R-CNN. Three
indicators including precision, recall and F1 score are used to evaluate the performance of the
proposed method. We report them in Table 2 and shown some examples of the segmentation results
in Figure 9.
From Table 2 we can see that the proposed method outperforms the Mask R-CNN-ResNet101 in
terms of all of the three indicators. One should know that the Fujian dataset is very challenging. Many
of the buildings are hard to distinguish from surroundings due to the poor quality of the Google
Earth images. The RFB block [30] inspired by the mechanism of the human visual systems plays a
central role in improving the performance of the segmentation. One possible explanation may be that
the atrous convolution enlarges the receptive fields and combinations of different radius and rates
enable extractions of more powerful features. This can be read from Figure 9, from which we can see
the proposed method successfully segment some indistinguishable buildings from backgrounds
which are missed by Mask R-CNN-ResNet101, as can be seen from the second and forth columns
of Figure 9.
Mask R-CNN produce instance level segmentation results, which means different instances of
the same category are annotated with distinct pixel-level labels, as indicated by the different colors
of Figure 9. Instance segmentation is extremely useful when buildings close to each other with
adjacent boundaries or even share with the same wall. General segmentation methods such as
U-Net-style networks [32] cannot distinguish different instances. Thus, for adjacent buildings they
could generate one big mask for several buildings. Mask R-CNN provides a good solution to this
by segmenting buildings in their bounding boxes. This can also help to improve accuracy of
segmentation and provide a fine outline of buildings. We demonstrate that the results could be
further boosted by inserting the RFB blocks.
Table 2 Comparisons of the proposed method and Mask R-CNN-ResNet101 on the Fujian Dataset in
terms of precession, recall, and F1-score.
Method Precision Recall F1-score
Mask R-CNN-ResNet101 0.8627 0.8951 0.8786
Proposed 0.8720 0.9041 0.8878Sensors 2019, 19, 333 13 of 16
Figure 9. Building segmentation results. The first row shows results obtained by the Mask
R-CNN-ResNet101, and the second row is the results of our method. Regions within yellow dashed
lines are buildings successfully segmented by our method while missed by the Mask
R-CNN-ResNet101. The green dashed lines indicate results obtained by the Mask R-CNN-ResNet101
while missed by our method. Red dashed lines are the results missed by both methods. As can been
seen, our method obtains results better than Mask R-CNN-RnsNet101 in most case.
4. Discussion
Our proposed method has achieved improved performance for building extraction and
segmentation tasks in terms of quantitative indicators, especially on building detection. However, we
believe the performance could further be improved from the following aspects.
1. More and diversity building samples. Deep neural networks are data hungry models, requiring
a huge volume of training samples. Although we have labeled thousands of buildings to train
our network, providing more samples will further boost the performance. In addition, buildings
have diversity sizes, structures. For instance, factory buildings and residential houses possess
distinctly different features. Even residential houses, buildings from city and village are with
different sizes, aspect ratio and shapes. To detect them all, samples should cover as many
instances as possible. Moreover, complex backgrounds could be distractions to the detector,
especially there are objects with similar appearance, such as vehicle, ships, roads, and so on. An
example is shown in Figure 10. It is better to label a certain amount of buildings under complex
backgrounds.
2. Refine rotated angle of bounding box. In this work, the value of a rotated angle is regressed from
the RPN stage. Since there is only one category i.e., buildings to be detected, ROIs generated by
the RPN network should be close to that of detection branch, thus we use angles from the RPN
as the final rotation angles. However, we believed that, similar to bounding boxes regression
they can be further refined by the second stage. In future, we will focus on two solutions. The
first one is designing a new branch and adding it after the second stage to refine the rotated
angle. The new branch will accept the rotated mask as input and predict the angle. The second
one is transforming the vertical ROIs generated by RPN to the second stage. The vertical ROIs
consist of rotation information thus can be used to infer the angle value. Since ROI Align is
applied in the RPN stage, we will obtain more accurate angles.
3. Network compression. Mask R-CNN framework has a huge number of parameters, which will
consume large amount of computation resource and lead to decrease in inference time. In recent
years, with the rapid development of mobile device and the demand for real-time computation,
researchers have attempted to compress the size of the deep models while maintaining their
performance. These methods resolve the network compression problem from three aspects:
designing light network, network pruning and kernel sparsity. Both the backbone of the Mask
R-CNN and the proposed method are based on residual network, which could be pruned toSensors 2019, 19, 333 14 of 16
produce a lighter backbone. In addition to this, some inborn light networks such as ShuffleNet
[33], CornerNet [34] can be used to design the proposed method.
(a) (b)
Figure 10. Various Building samples under complex backgrounds. (a) Building samples under
complex background. There are streets, trees, bare land around these buildings, and the buildings are
closely located to each other. (b) Building samples which are easily confused with ships in the same
image. The ships have similar size, texture and shape to buildings.
Building extraction is still an open problem requiring more research efforts. In the future, we
will plan to design and train specific network aiming at detecting closely located small buildings,
large scale buildings, buildings with special shapes and under confusing backgrounds.
5. Conclusions
In this paper, we propose an automatic building extraction method based on improved Mask
R-CNN framework, which detect the rotated bounding boxes of buildings and segment them from
very complex backgrounds, simultaneously. The rotation anchor with inclined angle is used to
regress the rotation bounding box of buildings in the RPN stage. Then, after rotation anticlockwise
and ROI Align, feature maps are transferred to the multi-branch prediction network. In addition, RFB
modules are inserted to the segmentation branch to handle multi-scale variability, and other branches
output the classification scores and horizontal rectangle coordinate. Finally, the mask and rectangle
bounding box are rotated clockwise by the inclined angle as the final instance segmentation result.
Experiment results on a newly collected large Google Earth remote sensing dataset with diverse
buildings under complex backgrounds show that our method can achieve promising results. The
future work can be focused on samples annotation, improvement, and compression of network
structure to promote the performance of our method.
Author Contributions: Q.W. and Q.L. designed the method and experiments, and wrote the paper; K.J.
performed the experiments; W.W. and Q.G. analyzed the experiment results; L.L. and P.W. prepared for the
collected google earth dataset.
Funding: This research was funded by National Natural Science Foundation of China (grant number: 41871283
and 61601011); National Key Research and Development Program (2016YFC0803109); Open-end fund of the joint
lab of the National Disaster Reduction Center of China & PICC Property and Casualty Company Limited.
Acknowledgment: The authors would like to thank anonymous reviewers and academic editors for their
constructive comments and helpful suggestions.
Conflicts of Interest: The authors declare no conflict of interest.Sensors 2019, 19, 333 15 of 16
References
1. UNISDR UNO. Sendai framework for disaster risk reduction 2015–2030. In Proceedings of the 3rd United
Nations World Conference on DRR, Sendai, Japan, 14–18 March 2015.
2. Chiroiu, L. Damage assessment of the 2003 Bam, Iran, earthquake using Ikonos imagery. Earthq. Spectra
2005, 21, S219–S224.
3. Corbane, C.; Saito, K.; Dell’Oro, L.; Bjorgo, E.; Gill, S.P.D.; Piard, B.E.; Huyck, C.K.; Kemper, T.; Lemoine,
G.; Spence, R.; et al. A comprehensive analysis of building damage in the 12 January 2010 Mw7 Haiti
Earthquake using high-resolution satellite and aerial imagery. Photogramm. Eng. Remote Sens. 2011, 77,
997–1009.
4. Fan, Y.; Wen, Q.; Wang, W.; Wang, P.; Li, L.; Zhang, P. Quantifying Disaster Physical Damage Using
Remote Sensing Data—A Technical Work Flow and Case Study of the 2014 Ludian Earthquake in China.
Int. J. Disaster Risk Sci. 2017, 8, 471–488.
5. Wang, J.; Qin, Q.; Ye, X.; Wang, J.; Yang, X.; Qin, X. A Survey of Building Extraction Methods from Optical
High Resolution Remote Sensing Imagery. Remote Sens. Technol. Appl. 2016, 31, 653–662.
6. LeCun, Y.; Bengio, Y.; Hinton, G.E. Deep learning. Nature 2015, 521, 436–444.
7. Krizhevsky, A.; Sutskever, I.; Hinton, G.E. ImageNet classification with deep convolutional neural
networks. Adv. Neural Inf. Process. Syst. 2012, 25, 1097–1105.
8. Simonyan, K.; Zisserman, A. Very deep convolutional networks for large-scale image recognition. arXiv
2014, arXiv: 1409.1556.
9. Szegedy, C.; Liu, W.; Jia, Y.; Sermanet, P.; Reed, S.; Anguelov, D.; Erhan, D.; Vanhoucke, V.; Rabinovich, A.
Going deeper with convolutions. In Proceedings of the IEEE Conference on Computer Vision and Pattern
Recognition, Boston, MA, USA, 7–12 June 2015; pp. 1–9.
10. He, K.; Zhang, X.; Ren, S.; Sun, J. Deep residual learning for image recognition. In Proceedings of the IEEE
Conference on Computer Vision and Pattern Recognition, Las Vegas, NV, USA, 27–30 June 2016; pp.
770–778.
11. Long, J.; Shelhamer, E.; Darrell, T. Fully convolutional networks for semantic segmentation. In Proceedings
of the IEEE Conference on Computer Vision and Pattern Recognition, Boston, MA, USA, 7–12 June 2015;
pp. 3431–3440.
12. Ronneberger, O.; Fischer, P.; Brox, T. U-Net: Convolutional Networks for Biomedical Image Segmentation.
In Proceedings of the International Conference on Medical Image Computing and Computer-Assisted
Intervention, Boston, MA, USA, 14–18 September 2015; pp. 234–241.
13. Girshick, R.; Donahue, J.; Darrell, T.; Malik, J. Rich feature hierarchies for accurate object detection and
semantic segmentation. In Proceedings of the IEEE Conference on Computer Vision and Pattern
Recognition, Washington, DC, USA, 23–28 June 2014; pp. 580–587.
14. Girshick, R. Fast R-CNN. In Proceedings of the International Conference on Computer Vision, Santiago,
Chile, 13–16 December 2015; pp. 1440–1448.
15. Ren, S.; He, K.; Girshick, R.; Sun, J. Faster R-CNN: Towards Real-Time Object Detection with Region
Proposal Networks. IEEE Trans. Pattern Anal. Mach. Intell. 2016, 39, 1137–1149.
16. Dai, J.; Li, Y.; He, K.; Sun, J. R-FCN: Object Detection via Region-based Fully Convolutional Networks.
In Proceedings of the Advances in Neural Information Processing Systems, Barcelona, Spain, 5–10
December 2016; pp. 379–387.
17. Redmon, J.; Divvala, S.; Girshick, R.; Farhadi, A. You Only Look Once: Unified, Real-Time Object Detection.
In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Las Vegas, NV, USA,
27–30 June 2015; pp. 779–788.
18. Liu, W.; Anguelov, D.; Erhan, D.; Szegedy, C.; Reed, S.; Fu, Ch.; Berg, A.C. SSD: Single shot multibox
detector. In Proceedings of the European Conference on Computer Vision, Amsterdam, The Netherlands,
11–14 October 2016; Springer: Cham, Switzerland, pp. 21–37.
19. Vakalopoulou, M.; Karantzalos, K.; Komodakis, N.; Paragios, N. Building detection in very high resolution
multispectral data with deep learning features. In Proceedings of the IEEE International Geoscience and
Remote Sensing Symposium, Milan, Italy, 26–31 July 2015; pp. 1873–1876.
20. Zuo, T.; Feng, J.; Chen, X. HF-FCN: Hierarchically Fused Fully Convolutional Network for Robust Building
Extraction. In Proceedings of the Asian Conference on Computer Vision, Taipei, Taiwan, 20–24 November
2016; Springer: Cham, Switzerland, 2016; pp. 291–302.Sensors 2019, 19, 333 16 of 16
21. Mnih, V.; Hinton, G.E. Learning to label aerial images from noisy data. In Proceedings of the International
Conference on Machine Learning, Edinburgh, Scotland, 26 June–1 July 2012; pp. 567–574.
22. Zhang, Q.; Liu, Q.; Liu, X.; Wang, W. CNN based suburban building detection using monocular
high-resolution google earth images. In Proceedings of the IEEE International Geoscience and Remote
Sensing Symposium, Beijing, China, 10–15 July 2016; pp. 661–664.
23. Badrinarayanan, V.; Kendall, A.; Cipoll, R. Segnet: A deep convolutional encoder-decoder architecture for
image segmentation. IEEE Trans. Pattern Anal. Mach. Intell. 2017, 39, 2481–2495.
24. Chen, K.; Fu, K.; Gao, X.; Yan, M.; Sun, X.; Zhang, H. Building extraction from remote sensing images with
deep learning in a supervised manner. In Proceedings of the IEEE International Geoscience and Remote
Sensing Symposium, Fort Worth, TX, USA, 23–28 July 2017; pp. 1672–1675.
25. Alshehhi, R.; Marpu, P.R.; Woon, W.L.; Mura, M.D. Simultaneous extraction of roads and buildings in
remote sensing imagery with convolutional neural networks. ISPRS J. Photogramm. Remote Sens. 2017, 130,
139–149.
26. Wu, G.; Shao, X.; Guo, Z.; Chen, Q.; Yuan, W.; Shi, X.; Xu, Y.; Shibasaki, R. Automatic Building
Segmentation of Aerial Imagery UsingMulti-Constraint Fully Convolutional Networks. Remote Sens. 2018,
10, 407.
27. Xu, Y.; Wu, L.; Xie, Z.; Chen, Z. Building Extraction in Very High Resolution Remote Sensing Imagery
Using Deep Learning and Guided Filters. Remote Sens. 2018, 10, 144.
28. He, K.; Gkioxari, G.; Doll´ar, P.; Girshick, R. Mask R-CNN. In Proceedings of the IEEE International
Conference on Computer Vision, Venice, Italy, 22–29 October 2017; pp. 2980–2988.
29. Yang, X.; Sun, H.; Fu, K.; Yang, J.; Sun, X.; Yan, M.; Guo, Z. Automatic Ship Detection of Remote Sensing
Images from Google Earth in Complex Scenes Based on Multi-Scale Rotation Dense Feature Pyramid
Networks. Remote Sens. 2018, 10, 132.
30. Liu, S.; Huang, D.; Wang, Y. Receptive Field Block Net for Accurate and Fast Object Detection.
In Proceedings of the European Conference on Computer Vision (ECCV), Munich, Germany, 8–14
September 2018; pp. 385-400.
31. Szegedy, C.; Ioffe, S.; Vanhoucke, V.; Alemi, A. Inception-v4, inception-resnet and the impact of residual
connections on learning. In Proceedings of the Thirty-First AAAI Conference on Artificial Intelligence, San
Francisco, CA, USA, 4–5 February 2017; pp. 4278–4284.
32. Zhang, Z.; Liu, Q.; Wang, Y. Road Extraction by Deep Residual U-Net. IEEE Geosci. Remote Sens. Lett. 2018,
15, 749–753.
33. Zhang, X.; Zhou, X.; Lin, M.; Sun, J. ShuffleNet: An Extremely Efficient Convolutional Neural Network for
Mobile Devices. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Salt
Lake City, UT, USA, 18–22 June 2018; pp. 6848–6856.
34. Law, H.; Deng, J. CornerNet: Detecting Objects as Paired Keypoints. In Proceedings of the European
Conference on Computer Vision, Munich, Germany, 8–14 September 2018; pp. 765–781.
© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC BY) license (http://creativecommons.org/licenses/by/4.0/).You can also read
