AND UPDATES SERIALIZATION, TRENDS - Lars Olsen Lundbeck, Ottiliavej 9, 2500 Valby, Copenhagen, Denmark Thursday 21 September 2017
SERIALIZATION, TRENDS
    AND UPDATES

Lars Olsen
Lundbeck, Ottiliavej 9, 2500 Valby,
Copenhagen, Denmark
Thursday 21 September 2017
AND UPDATES SERIALIZATION, TRENDS - Lars Olsen Lundbeck, Ottiliavej 9, 2500 Valby, Copenhagen, Denmark Thursday 21 September 2017
Biography
Mr. Lars Olsen
• Global Technology Partner, NNE
• Dept. Global Best Practise, 2165
• +25 years experience within Pharmaceutical Packaging
• Production, Management, Project handling, GMP and Consulting
• e-mail: lao@nne.com
• Phone: +45 30757362
AND UPDATES SERIALIZATION, TRENDS - Lars Olsen Lundbeck, Ottiliavej 9, 2500 Valby, Copenhagen, Denmark Thursday 21 September 2017
Safety Features? Old news……
AND UPDATES SERIALIZATION, TRENDS - Lars Olsen Lundbeck, Ottiliavej 9, 2500 Valby, Copenhagen, Denmark Thursday 21 September 2017
“Serialization”
                                             Like driving a Car
   Serialization is the number plate, but you need a lot more in order to drive
– A car to put the number plate on

– Insurance

– Driver instructor

– Drivers licence

– Roads & Signs

– A map to find your way

– Regulations & Laws

– Traffic Police

– Maintenance & Car dealers

  I.e.: You’ll need more than a number plate to drive
AND UPDATES SERIALIZATION, TRENDS - Lars Olsen Lundbeck, Ottiliavej 9, 2500 Valby, Copenhagen, Denmark Thursday 21 September 2017
Stakeholders
                         Economical fraud                                              Fake- or substandard products
                          (Taxation/Reimbursement)                                                 (Counterfeit)
• Healthcare economy                                                       • General worries regarding population health due to
                                                                             substandard medication
  I.e.                                                                         I.e.
         •   California (The exempted e-pedigree law)                           • EU/US/Canada/Brazil/Russia/Argentina/China……
         •   Turkey (Serialization 2009 / Aggregation 2011)                     • WHO
         •   Belgium (Sequential stickers)                                      • And the rest of the world..
         •   Italy (Bolini stickers)
         •   Greece
         •   Other countries and states with similar problems where
             suspicions of fraud are aimed at the pharmacist /
             distribution and industry                                   Problems to be solved in the same way as the EU four step
                                                                         approach in the Falsified Medicine Directive. Focus on secure
Problem to be solved by coding on secondary- and tertiary                supply chain (GDP/GSP), Internet sales, API/Excipients GMP and
packaging level with unique marking. Registration, aggregation,          Delegated Act on Safety Features. Added with , “Fast reaction on
Pedigree and supply chain reporting/Track & Trace                        batch recall”. Currently many individual initiatives.

                                         Connecting     Pharmaceutical     Knowledge                                                 ispe.org
AND UPDATES SERIALIZATION, TRENDS - Lars Olsen Lundbeck, Ottiliavej 9, 2500 Valby, Copenhagen, Denmark Thursday 21 September 2017
Stakeholders
                External Stakeholders                                                  Internal Stakeholders
                   (purchasing organizations)                                                 (Brand protection)
 • Safe medication and usage, patients safety and                   • Protect your brands and creating precedence for new
       inventory management                                               industry standards and competitive parameter
I.e.                                                               I.e.
   •   HDA guideline (North American Distribution Association)        • Pfizer, Amgen, Biogen, Sanofi, Lilly, AstraZeneca……and
   •   AMGROS (Purchasing org. hospitals in Denmark)                      many more.
   •   CII (Confederacy of India Industries)
   •   Veteran Hospital and Clinics (US)                           Securing trustworthiness of a brand so it’s easy to do “damage
   •   DOD (Department Of Defence, US)                             control” in case of forensic investigations on incidents. Typical
                                                                   done by covert coding but also done with semi-covert and overt
   •   The Technical Barcode Committee (Canada)
                                                                   options on all packaging levels. There are many different
   •   And similar General Purchasing Organisation                 technologies available on the marked (+40) some high cost, low
                                                                   security others low cost, high security.
Registration of treatment and linking medication to individual
patients at hospitalization or clinics by intensively use of       ISO 12931 ”Performance criteria for authentication solutions for anti-
Automated Identifier on primary- secondary and tertiary pack       counterfeiting in the field of material goods” , However not yet referenced in
levels. Unique marking, RFID, QR and similar are in scope          pharma- and device legislation.

                                    Connecting    Pharmaceutical     Knowledge                                                               ispe.org
AND UPDATES SERIALIZATION, TRENDS - Lars Olsen Lundbeck, Ottiliavej 9, 2500 Valby, Copenhagen, Denmark Thursday 21 September 2017
Summary
Global requirements will cover +80% of the pharmaceutical marked by 2019.
Global requirements are growing fast in complexity and scope
Standardisation of formats and data continues but diversity will continue to exist
Strategy, Operational and Technology flexibility are needed to fulfil requirements in a timely manner

 Base Start                    Step 1                                                                         Step 4
                                                                Step 2                 Step 3
Local Coding               Global Coding                                                                 Track & Trace /
                                                        GTIN + Batch variable    Serial Number for
                                                                                                        Reporting based on
(e.g. NHRN)                 (e.g. GTIN)                 data in 2D Data matrix    authentication
                                                                                                           Aggregation

Markets start with initial requirement that changes over time
Data reporting requirements are often not clear, hence ‘default’ becomes Unit Level Tracking

“Pharmaceutical Packaging Performance Excellence are a competitive cost differentiator which are being challenged
by Serialization”

                                   Connecting   Pharmaceutical     Knowledge                                  ispe.org
AND UPDATES SERIALIZATION, TRENDS - Lars Olsen Lundbeck, Ottiliavej 9, 2500 Valby, Copenhagen, Denmark Thursday 21 September 2017
Summary Overview
                                                                                          +80% of marked by 2019

              2017                         2018                            2019                    2020             2021   2022   2023

         Europe

          Denmark
                          Coding                                                          2)
                                                                        European Union
         France                                                          09.FEB.2019

         Italy

         Belgium           Serialization                                                           Can wait until
                                                                                                      2025

         Greece

         Turkey 1)

1) Serialization,    2) Serialization, ATD and        3) Serialization and reporting by
    Aggregation,      reporting by law, Aggregation      law, Aggregation by business.
  reporting by law            by business.
AND UPDATES SERIALIZATION, TRENDS - Lars Olsen Lundbeck, Ottiliavej 9, 2500 Valby, Copenhagen, Denmark Thursday 21 September 2017
EFPIA                              Product- and Data-Flow End-to-End With the EFPIA concept

 Pharma Manufacturer                    Wholesaler                   Wholesaler   Pharmacist/ Hospital            Patient

                       Product Flow

   Unique                                                                                                Verification
 Serialization
                                                     Verification                                        Dispensing

                     2D Data
                Matrix on 2°pack

                                                       Product
                        Data Transfer                Serialization
                                                      Database
   9
AND UPDATES SERIALIZATION, TRENDS - Lars Olsen Lundbeck, Ottiliavej 9, 2500 Valby, Copenhagen, Denmark Thursday 21 September 2017
Summary Overview
                                                                                                   +80% of marked by 2019

              2017                               2018                               2019                    2020                 2021               2022    2023

           Asia

         China1)

         India 1)                                      Domestically                      Serialization
                                                        distribution                                                      1)
                                                                                                Pakistan           Pakistan

         Australia                                                                             Australia                                                              Australia
            Serialization.
          NBA products only
                                                                                                                                               Ramp up
          Japan                                                                                                                Japan                       Japan
             Coding.                                                                                                              Coding.                     Coding.
          Special products                                                                                                      All products                All products

          Philippines                   Malaysia
              Coding                           Pilot
             Voluntary

                     Taiwan             Taiwan                                    Taiwan
              “Track and Trace”               Coding                                    Serialization
                        2)
          South Korea

1) Serialization,        2) Serialization, ATD and             3) Serialization and reporting by
    Aggregation,          reporting by law, Aggregation           law, Aggregation by business.
  reporting by law                by business.
Summary Overview
                                                                                                   +80% of marked by 2019

               2017                             2018                                 2019                      2020                           2021      2022          2023

North / South America

        Serialization Grace
         proposed by FDA
                                                                     US                                                            US
                                                         Serialization 27.NOV.2018                              Serialization,    27.NOV.2020
ATD by US Pharmacopeia                                                                                         Aggregation by
      compliance                                                                                                 business                                                    1)
         US                        US                                                                 US                                                                 US
Lot Tracking       E-Lot Tracking 27.NOV.2017                                     Serialization,     27.NOV.2019
                                                                                                                                                                         27.NOV.2023
                                                                                 Aggregation by
                                                                                   business
         Canada                                                                                                         Canada
                Coding.                                                                                                 Adaption of US FDA
         Voluntary Serialization                                                                                        Guidelines expected
                    3)              Scope update by positive list
         Argentina

                                                                                                                                                          1)
         Brazil                            Brazil                             Brazil                                                                 Brazil
          Pilot starts                      Pilot ends                        Pilot concluded                                                          Full rollout

                                                           Mexico
                                                       Serialization,
                                                     Consultation paper

1) Serialization,        2) Serialization, ATD and            3) Serialization and reporting by
    Aggregation,          reporting by law, Aggregation          law, Aggregation by business.
  reporting by law                by business.
Summary Overview
                                                                                                         +80% of marked by 2019

                 2017                             2018                                    2019                             2020                          2021   2022   2023

      Middle East
                                 Expected development in 2 – 3 years                                  2)
             Saudi Arabia                                                                 Saudi Arabia
                 12.MAR.2017
 Serialization

                                    Oman                                 Oman
                                   31.DEC.2017                           31.DEC.2018                                               2)
                         Coding                          Serialization                                                        GCC
                                                                                                                              +2020
                                    UAE                                                   UAE
                                   31.DEC.2017                                                                      Expected to develop into a new GCC
                          Coding                  Expected development    Serialization                               standard, adapted by other Arab
                                                      in 2 – 3 years                                                              markets
                                    Qatar                                                 Qatar
                                   31.DEC.2017
                         Coding                                           Serialization

                               Migration period
                     Jordan                                   Jordan                                                 Jordan
                      01.JUN.2017                               30.JUN.2018                                           Start 2020
            Coding                                   Coding                                                Serialization

                     Libya                                   Lebanon
                                                              01.JUN.2018
          Coding      01.JUN.2017                 Coding
                                                                                                      1)
         Egypt                                            Egypt                                   Egypt
Coding                                       Serialization 30.JUN.2018                            30.JUN.2019

1) Serialization,        2) Serialization, ATD and             3) Serialization and reporting by
    Aggregation,          reporting by law, Aggregation           law, Aggregation by business.
  reporting by law                by business.
Summary Overview
                                                                                           +80% of marked by 2019

                  2017                         2018                            2019                          2020     2021   2022   2023

            RoW

                                  MoH may align with EU
           Ukraine                                                             European Union
                On hold
Serialization

                    1)
           Russia                          Russia                          Russia                        Russia
           01.JAN.2017                    01.JAN.2018                     01.JAN.2019                   01.JAN.2020
Voluntary pilot                   Product group 1                 Product group 2               Product group 3
   initiated

 1) Serialization,        2) Serialization, ATD and        3) Serialization and reporting by
     Aggregation,          reporting by law, Aggregation      law, Aggregation by business.
   reporting by law                by business.
Anti-tampering Device (ATD)
                                  General Requirements

Purpose of ATD features:

“Tamper verification features should provide an indication that the outer
packaging of a finished product has been opened or tampered with (i.e. indicating
a possible adulteration or entry of falsified medicinal products into the legitimate
supply chain). Tamper verification features limit the ability to replace the contents
of genuine packs.”

Source: EN 16679:2014 (soon an ISO standard)
Categories of ATD features
Folding boxes closed with glue
Specially constructed folding boxes
Sealing labels and tapes
Film wrappers
Sleeves
Breakable or tear-away closure
Display blister pack
Flexible packaging
Blow-fill-and-seal-container (BFS)
New and emerging technologies

Don’t forget Shipper Boxes and Pallets….. USP c1083 and so on…
Things to consider
• What needs to be Reported and what has to be Authenticated, and how, where, when?

• How will Commissioning, Decommissioning and Recommissioning be done and by
  whom?

• Know your SKU’s and exact market demands in details

• Know your Supply Caine stakeholders and your Partners business and needs

• Make a business strategy which goes beyond the “Number plate”, get it mandated and
  stick to it, but be prepared to change over time

• Scope for robustness and justify the upfront CAPEX invest
The challenge
Number of SKU’s increasing
OEE decreasing
Flexibility decrees
High CAPX
Increased OPEX
Operator / Technician / Support knowledge
Extra work routines on all levels
Supplier dependences
System maintenance
Hyper care
Rooting ownership in organisation
The challenge
The challenge
                                                Assembly 96.5%
                                                                                            Check weigher
Piston rod                                                                                     99.5%
  99.5%

                   Assembly
                     98%
                                                                             Cartoner 98%        Label dispenser &   Cellophane
                                                                                                   Printer 97.5%     wrap 99%     Case packing
                                Buffer 99.5%                                                                                        (manual)
                                                                                                                                     98.5%

                                                                 Radom 99%
                     Labeling
                      99.5%

   Syringe 98.5%                                 Stopper
                                                  99%

               Example:

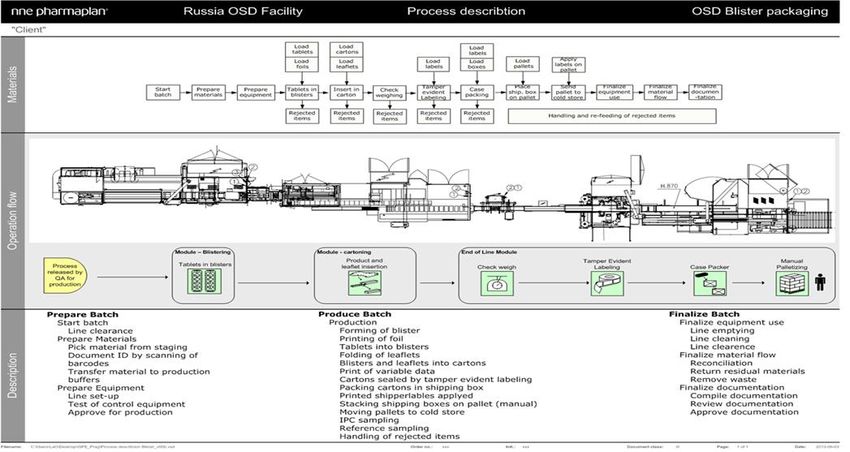

               •   35 meter long syringe packaging line with 13 sub-processes
               •   Combined efficiency calculated according to DIN 8743 ~ 83%
               •   In reality much lower…..
               •   Add extra complexity from Serialization, Anti-tampering Device, Aggregation, Track &
                   Trace, ePedigree, China EDMC and many others we’ll have a further potential OEE
                   drop of 8 – 12%
Industry Benchmark Data

Baseline, Relative Production Output (%)   X%
                                                    T0
                                                                                                                                                 1-5% Δ from T0
                                                                                                                     Return to stable output
                                                                 ~ 10%                Recovery Phase

                                                                 ~ 25%

                                                                 Start up; Output Reduced Relative to T0
                                                                                                                                 Low Impact
                                                                                                                                 Medium Impact
                                                                                                                                 High Impact
                                                                                                                                                     High Impact

                                                                                                                                                     Medium Impact

                                                                                                                                                     Low Impact

                                           0%
                                                0   2    4   6   4   6   8   10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 52

                                                Line down/Set up                        Relative Duration (Weeks)
Technology trends

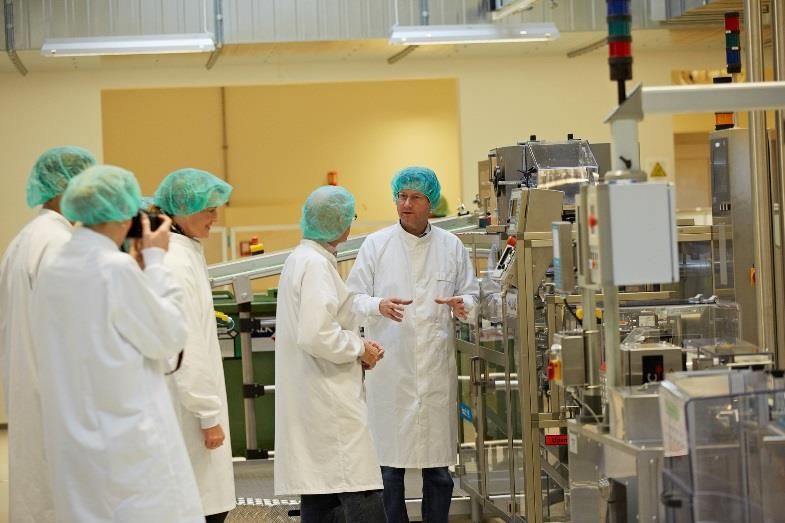

White Line
The world first true White Line was introduced by Optima/Eli Lilly in 1994/96 to fulfil Small batch size (15 min. video exist)

MediSeal introduced the second line 20 years later

White Line concept have been successfully utilized by ALK since mid-90’s on order sizes up to 2.000 units with proven cost
benefit. Also in combination with Bright Stock configurable sales boxes by TT-label and Robot labelling to accommodate many
formats

                                    Connecting    Pharmaceutical   Knowledge                                            ispe.org
Technology trends

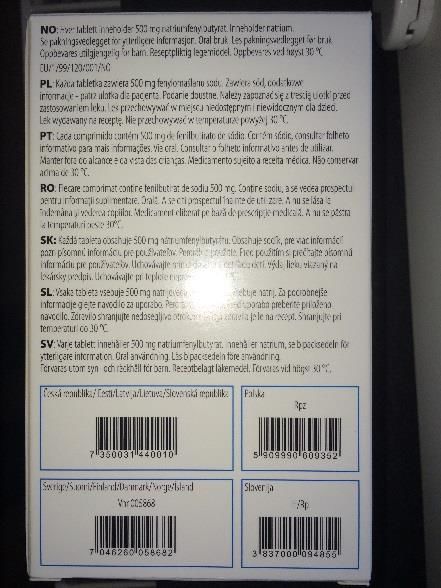

Multi Country packs
Multi Country packs are a familiar concept in the Pharmaceutical packaging world in order to optimize batch volume

Multi-packs are stored in central warehouses and Pick & Pack performed when order enters

Modern Serialization will challenge this concept to some degree

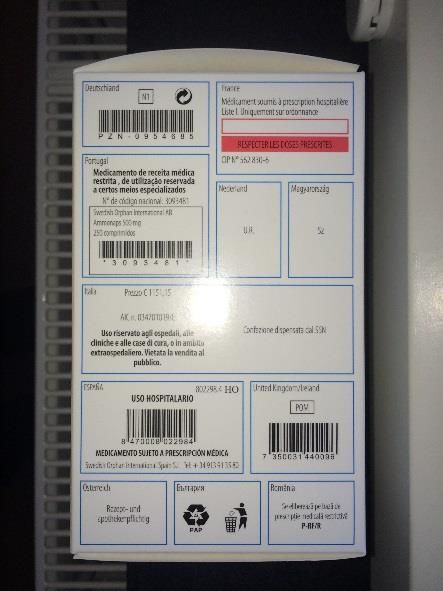

Example here covers 17 individual markets in one presentation

                                   Connecting   Pharmaceutical   Knowledge                                           ispe.org
Technology trends
Other on-demand trends
BIB/BOB. Original developed by AZ and Harro. Now offered as standard solution for

POD. For repack of Bright Stock

Print on demand for local small batch execution. Many variances

Robot labelling if many formats in small batch sizes

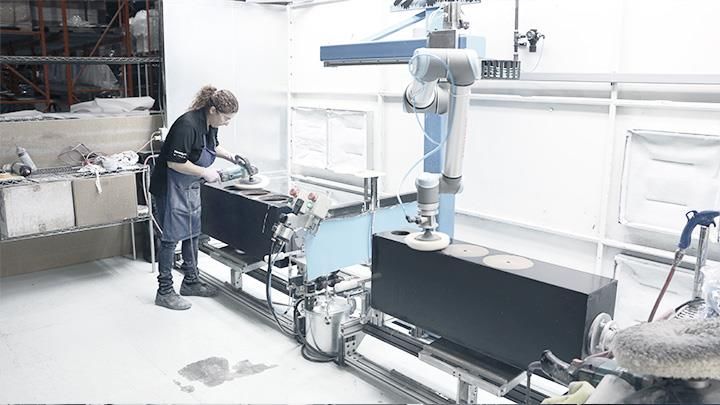

Robot packaging and Co-bots for product handling for HSE mitigations and repeatable reliable execution and quality

                                   Connecting   Pharmaceutical   Knowledge                                       ispe.org
Trends
There are no doubt that Pharmaceutical Packaging are challenged by demands to be more cost effective

This is based on markets trends headed by increased competitiveness, smaller batch sizes, costumer centricity, diversity in local legislations (S/N),
increase demands for reimbursement favouritism (local production), supply chain lead-times, drug shortage (stock-out mitigations), new drugs and many
more

Packaging Delivers: 2015 Pharma Packaging Trends

4 Major Trends In Pharmaceutical Packaging 2017

Pharmaceutical Packaging and Labeling 2016 Trend Report

#1: Use standard platforms and equipment for all three segments in the same way that large Pharma are using it towards tablet production
#2: Design for simplicity and standard equipment (DFM)
#3: Do not utilize White line and Print on Demand unless super-small batches (
25
“Hello World” May 2006

I love deadlines. I like the whooshing sound they make as they fly by.
    26
Douglas Adams (Hitchhikers Guide to the Galaxy)
You can also read
