Aerostack2: A Software Framework for Developing Multi-robot Aerial
Systems
Miguel Fernandez-Cortizas1∗ , Martin Molina1,2 , Pedro Arias-Perez1 ,
Rafael Perez-Segui1 , David Perez-Saura1 , Pascual Campoy1
1
Computer Vision and Aerial Robotics Group (CVAR), Centre for Automation and Robotics (C.A.R.),
Universidad Politécnica de Madrid (UPM-CSIC), 28006 Madrid, Spain
2
Department of Artificial Intelligence
arXiv:2303.18237v1 [cs.RO] 31 Mar 2023
Universidad Politécnica de Madrid (UPM), 28040 Madrid, Spain
∗
To whom correspondence should be addressed; E-mail: miguel.fernandez.cortizas@upm.es
Abstract— In recent years, the robotics community has To address these challenges, this paper proposes a collabo-
witnessed the development of several software stacks for rative framework for aerial robotics that brings together users
ground and articulated robots, such as Navigation2 and and developers to work towards a common goal. Building
MoveIt. However, the same level of collaboration and
standardization is yet to be achieved in the field of aerial on the work of others, we aim to enhance research in aerial
robotics, where each research group has developed their own robotics and accelerate their application in industry fields.
frameworks. This work presents Aerostack2, a framework for This paper presents an overview of our proposed framework
the development of autonomous aerial robotics systems that and discusses its potential impact in the field.
aims to address the lack of standardization and fragmentation The presented software framework Aerostack2 is an evo-
of efforts in the field. Built on ROS 2 middleware and featuring
an efficient modular software architecture and multi-robot lution of a former one called Aerostack [3] which was
orientation, Aerostack2 is a versatile and platform-independent developed and successfully used in our research lab for more
environment that covers a wide range of robot capabilities than six years, not only for research purposes, but also for
for autonomous operation. Its major contributions include industrial projects and international robotics competitions
providing a logical level for specifying missions, reusing like MBZIRC 2020 or IMAV 2017.
components and sub-systems for aerial robotics, and enabling
the development of complete control architectures. All major Our framework, presented in this paper, incorporates im-
contributions have been tested in simulation and real flights portant changes and improvements to enable more efficient
with multiple heterogeneous swarms. Aerostack2 is open and effective robotic systems. Specifically, the framework
source and community oriented, democratizing the access to operates using ROS 2 (Robotics Operating System 2 [4]), a
its technology by autonomous drone systems developers. widely used middleware for robotics that provides valuable
Source code: tools to create modular and distributed robotic systems. Ad-
https://github.com/aerostack2/aerostack2 ditionally, the framework is built on a more efficient modular
Documentation: software architecture and enables multi-robot orientation.
https://aerostack2.github.io/ Moreover, the framework aims to foster community creation
within the ROS 2 ecosystem, as seen in other widely used
I. I NTRODUCTION software frameworks in the Robotics Community.
In recent years, the robotics community has witnessed Contributions
the development of several software stacks focused on the Compared to other existing solutions in the drone sector,
control and guidance of ground robots and articulated robots. Aerostack2 is an original tool mainly because of the follow-
Navigation2 [1] and MoveIt [2] are two examples of such that ing characteristics:
have gained widespread adoption. However, the same level • Platform Independence. Aerostack2 is a general en-
of collaboration and standardization has not been observed vironment, not dedicated to specific aerial platforms,
in the field of aerial robotics. Research groups have tended so it can be used with different types of drones. For
to develop their own frameworks, resulting in isolated efforts example, Aerostack has been used on drones with
that are difficult to integrate. Pixhawk controllers or with commercial platforms (e.g.,
Furthermore, even when frameworks have been developed, DJI).
they often have a narrow focus, such as low-level control, • Versatility. Aerostack2 covers a wide range of robot
which limits their usefulness in more comprehensive appli- capabilities for autonomous operation with different
cations. This fragmentation of efforts can make it challenging types of mechanism related to flight control, spatial
to take advantage of the strengths of each framework in a localization, aerial navigation planning methods, forms
common application. of communication between drones, etc.
• Easy mission specification. Aerostack2 provides a log- TABLE I: Comparison of revelant low-level control sys-
ical level that helps developers formulate the tasks to tems.
be done by autonomous aerial robots. Compared to Flight Controller Open Source Simulation Rate Input
the level provided by ROS2 programming, this logical Pixhawk/PX4 OSH, OSS SITL, HITL 3
level abstracts details (e.g., using the notion of robot Ardupilot OSS SITL, HITL 3
Paparazzi OSH, OSS SITL, HITL 3
behaviors) and simplifies the specification of missions. Crazyflie OSH, OSS SITL, HITL 3

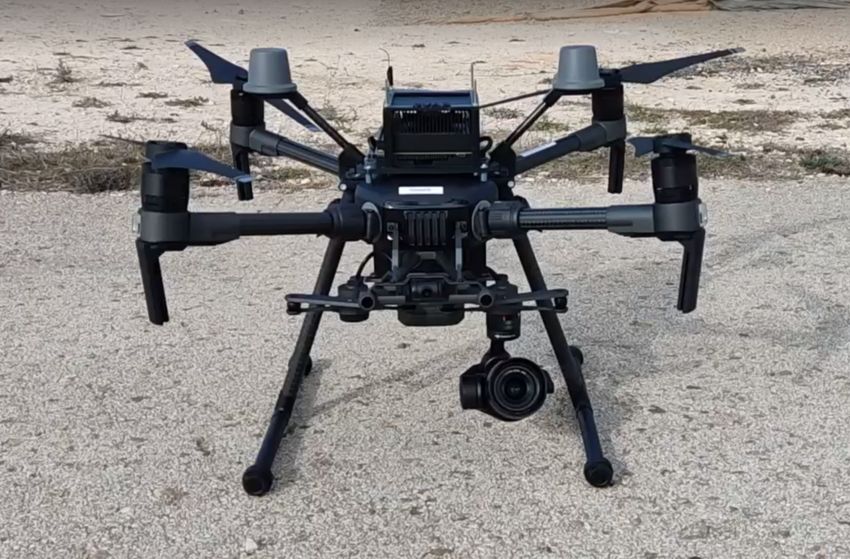

In addition, an existing robotic system developed using DJI Matrice Propietary HITL 3
Aerostack2 may be used by operators to formulate aerial Parrot Propietary SITL 7
misions with the help of mission specification tools Skydio Propietary - 7
(e.g., user interfaces, behavior trees, etc.). OSH: Open Source Hardware, OSS: Open Source Software, SITL:
Software In The Loop, HITL: Hardware In The Loop.
• Simplify the engineering process in aerial robots sys-
tems. Aerostack2 provides pre-programmed components
that provide autonomous operation capabilities, encap-
sulating specialized algorithms (computer vision, sensor in our research laboratory using ROS. The experience in its
data fusion, automatic planning, motion controllers, use and the development of successive versions has been an
etc.). These components are designed in a general and important antecedent for the creation of the new framework
adaptable way to be used in the construction of multiple presented in this paper.
aerial robots. Individual Aerostack2 components (e.g., a AerialCore [6] is an aerial system built using ROS Noetic
flight motion controller) can be reused to build specific and meant to be executed entirely onboard. It can be
aerial robotic applications. In this case, the developer deployed on any multi-rotor vehicle, given it is equipped
does not use the complete framework, but only sepa- with a PX4-compatible flight controller, for both indoor and
rate components for specific functionalities. Component outdoor. It supports multi-robot experiments using Nimbro
reuse may be done at different levels of granularity (e.g., network communication and provides both: agile flying and
simple algorithms, complex robot behaviors, etc.). For robust control.
example, a developer who designs a new algorithm for Agilicious [7] is a co-designed hardware and software
a certain aerial robot capability (e.g., a flight motion framework tailored to autonomous and agile quadrotor
controller) may test such an algorithm by reusing a flight, which has been developed and used since 2016 at
partial architecture provided by Aerostack2. the Robotics and Perception Group (RPG) of the University
• Open-source. The Aerostack2 environment is open of Zurich. It is completely open-source and open-hardware
source and free of charge, which facilitates universal and supports both model-based and neural network-based
access to this technology by autonomous drone devel- controllers. Also, it provides high thrust-to-weight and
opers. Aerostack is offered with a BSD-3-Clause license torque-to-inertia ratios for agility, onboard vision sensors,
that allows free distribution and modification of the GPU-accelerated compute hardware for real-time perception
software. and neural-network inference, a real-time flight controller,
and a versatile software stack.
II. R ELATED W ORK KumarRobotics flight stack [8] allows a quadrotor to
There are numerous flight systems of different nature navigate autonomously in cluttered and GPS-denied
that allow UAVs to fly. A common division in the literature environments. It consists of a set of modules that work
is between low-level control systems, typically the flight together to allow fast autonomous navigation of an aerial
controller, and high-level control systems, flight, or aerial robot through an unknown environment. The system has
stacks. been designed so that all sensing and computation occurs
Low-level control systems vary from open source hardware onboard the robot. Once the robot has been launched, there
(OSH) and open source software (OSS) to proprietary is no human interaction necessary for the robot to navigate
commercial controllers. In 2018 Ebeid et al. presented a to the goal.
survey of open-source hardware and software comparing CrazyChoir [9] is a ROS 2 toolbox that allows users to run
their main features [5]. Table I shows a comparison of simulations and experiments on swarms of Crazyflie nano-
relevant flight controllers. quadrotors. CrazyChoiR implements several tools to model
swarms of Crazyflie nano-quadrotors and to run distributed,
Several high-level control systems has been published in complex tasks both in simulation and experiments.
the recent years. Table II compares existing aerial stacks with UAV Abstraction Layer (UAL) [10] is a software layer to
the proposed solution of this publication. abstract users of unmanned aerial vehicles from the specific
Aerostack [3] is a software framework that helps hardware of the platform and the autopilot interfaces. Its
developers design and build the complete control architecture main objective is to simplify the development and testing
of aerial robotic systems, integrating multiple heterogeneous of higher-level algorithms in aerial robotics by trying to
computational solutions (e.g., computer vision algorithms, standardize and simplify the interfaces with unmanned aerial
motion controllers, self-localization and mapping methods, vehicles. Unmanned aerial vehicle abstraction layer supports
motion planning algorithms, etc.). Aerostack was developed operation with PX4 and DJI autopilots (among others),
TABLE II: Comparison of relevant open-sourced high level control systems.
Soft.
Open Tested Middle- Multi- Rate Multi- Multi- Plugin
Flight Stack Modular last
Source in ware frame output agent platform oriented
update
Aerostack [3] 3 3 S,RL,RO ROS 10/2021 7 3 3 3 7
AerialCore [6] 3 3 S,RL,RO ROS 03/2023 3 3 3 7 3
Agilicius [7] 3 3 S,RL ROS 03/2023 7 3 7 7 7
KumarRobotics [8] 3 7 S,RL,RO ROS 12/2022 7 3 7 3 7
CrazyChoir [9] 3 7 S,RL ROS 2 02/2023 7 3 3 7 7
UAL [10] 3 7 S,RL,RO ROS 12/2022 3 7 7 3 7
XTDrone [11] 3 3 S ROS 03/2023 7 3 7 7 7
RotorS [12] 3 3 S ROS 07/2021 7 3 7 7 7
GAAS [13] 3 3 S ROS 10/2021 7 7 7 7 7
Aerostack2 (Ours) 3 3 S,RL,RO ROS 2 03/2023 3 3 3 3 3
S: Simulation, RL: real experiments in the lab, RO: real experiments outside the lab.
which are current leading manufacturers. Besides, unmanned uses ROS 2 as middleware, compared to ROS used by the
aerial vehicle abstraction layer can work seamlessly with rest; (5) six systems have undergone an update in the last
simulated or real platforms and provides calls to issue six months; (6) only two, AerialCore and UAL, support
standard commands such as taking off, landing or pose, and references in different frames; (7) seven of the systems
velocity controls. support acro control of the aircraft; (8) three systems have a
XTDrone [11] is a UAV simulation platform based on PX4, multi-agent approach; (9) three other systems support more
ROS, and Gazebo. XTDrone supports mulitrotors (including than one different flight platform; and (10) only AerialCore
quadrotors and hexarotors), fixed wings, VTOLs (including has an architecture oriented towards the use of plugins.
quadplanes, tailsitters, and tiltrotors), and other unmanned
systems (such as UGVs, USVs, and robotic arms). It is III. A S TACK OF S OFTWARE C OMPONENTS FOR A ERIAL
convenient to deploy the algorithm to real UAVs after ROBOTICS
testing and debugging on the simulation platform. Aerostack2 framework is organized in the form of a
RotorS [12] is a modular Micro Aerial Vehicle (MAV) software stack with components distributed in different hi-
simulation framework, which allows a quick start to perform erarchical layers, as can be seen in Fig. 1. Components are
research on MAVs. The simulator was designed in a modular organized hierarchically in several layers in such a way that
way so that different controllers and state estimators can components at one layer may use components of the lower
be used interchangeably, while incorporating new MAVs layers (corresponding to less complex functionalities) but
is reduced to a few steps. The provided controllers can they do not use components of the higher layers. The layers
be adapted to a custom vehicle by simply changing a are the following (from bottom to top):
parameter file. Different controllers and state estimators • Middelware. At the lowest level is the software that
can be compared with the provided evaluation framework. supports the Aerostack2 environment, which consists of
All components were designed to be analogous to their the Linux operating system and ROS (Robot Operating
real-world counterparts. This allows the usage of the same System), as well as general software libraries (e.g.
controllers and state estimators, including their parameters, OpenCV).
in the simulation as on the real MAV. • Inter-process communication. It includes components to
Generalized Autonomy Aviation System (GAAS) [13] is facilitate communication between processes that operate
an open-source program designed for fully autonomous concurrently. These are message types for information
VTOL and drones. GAAS provides a fully autonomous exchange that define data structures (specific to aerial
flight platform based on lidar, HD-map relocalization, path robotics) that are common to facilitate process interop-
planning, and other modules for aircraft. In contrast to the erability.
autopilot technology previously available only for consumer- • Interfaces with platforms and sensors. These are com-
grade drones, GAAS aims for robust fully autonomous ponents that serve as interfaces with multiple kinds
flight for human-carrying and can be easily combined with of aerial platforms and sensors. Aerostack2 has sev-
national air traffic control. The whole framework is loosely eral interfaces that allow operating with both physical
coupled, so you can customize your own modules and easily platforms (e.g., with Pixhawk or with DJI platforms)
add them to GAAS. and simulated platforms (e.g., using simulated drones
with the Gazebo environment) besides different types of
Of the nine high-level control systems analyzed, it is sensor (e.g., USB cameras, RealSense depth camera).
observed that (1) all of them are open source; (2) six have • Basic robotics functions. Aerostack2 includes a set of
a modular structure; (3) four systems have been tested in a software components that implement specialized algo-
non-laboratory environment, two on a real robot and three rithms corresponding to essential aerial robotics func-
only in simulation; (4) only one of the systems, CrazyChoir, tions for autonomous operation such as state estimation,
Fig. 1: Overview of the software components provided by the Aerostack2 environment.
motion control, and other basic functions (e.g., emer- state estimator) for building a particular application. The
gency handling, etc.). following sections describe in more detail each layer of the
• Behaviors. This level includes a set of components software stack.
corresponding to different robot behaviors provided by
Aerostack2 for autonomous operation. Each component
encapsulates the algorithms used to implement a partic- A. Interprocess communication
ular behavior (e.g., take off, hover, generate trajectory, In order to organize each robot control architecture
etc.) together with mechanisms for execution monitor- with multiple interacting processes operating concurrently,
ing to facilitate the specification of mission plans. Aerostack2 has a standard data channel that is shared among
• Mission control. This level includes components that the processes. To facilitate process interoperability, the con-
facilitate the specification of missions for autonomous tent of the data channel follows conventions defined by stan-
drone operation. For example, behavior trees can be dards that are applicable to aerial robotics. These standards
used to indicate and visualize with a hierarchical graph- are defined with respect to data structures and common
ical structure the tasks performed by the drone. On the names for communication mechanisms between processes
other hand, Aerostack2 also provides an API (applica- (e.g., ROS 2 topics, services, and actions). Our framework
tion programming interface) that allows one to specify follows some standards that have been defined by the ROS 2
missions in a flexible way using the Python language. community for aerial robots, and others (e.g., more specific
Additionally, Aerostack2 provides tools for the user to message types or names of ROS 2 topics, services, and
monitor and manually control the mission execution. actions) have been defined specifically in Aerostack2. Table
• Applications. The top level corresponds to the specific III illustrates some of the ROS topics used by Aerostack2
applications built with the components of the lower together with standard names and standard message types.
levels. Aerostack2 has examples of applications that can The content of the standard data channel is distributed in
serve developers as a reference and guide on how to the following main groups:
build drones that operate autonomously. In addition to • Sensor measurements. Sensor measurements are values
applications with real drones, Aerostack2 has multiple corresponding to direct measurements recorded by sen-
applications in simulated environments with varying sors. This includes, for example, images from cameras,
degrees of complexity to facilitate the learning of this data from IMU, data from GPS, etc.
technology. • Actuator commands. These messages correspond to
It is important to note that this modular organization of commands that are directly understandable aerial plat-
components is open to be used at any layer. This means forms, such as thrust or, depending on the platform,
that developers who use Aerostack2 may use directly the values about the desired localization.
top-level components but also may use separately any • Self localization. These values correspond to the robot
intermediate layer or other individual component (e.g., the localization in the environment together with kinematic
values (e.g., speed) as they are believed by the robot. as controlling a mounted arm or manipulating a different
These values may be obtained, for example, by fusing sensor. To address this, Aerostack2 incorporates the Sensor
sensor measurements with the help of extended Kalman abstraction class, which simplifies the management of
filters (EKF). external sensors. It should be noted that the Aerostack2
• Motion reference. These messages are motion values framework is fully compatible with all ROS 2 drivers,
that should be considered as goals by motion con- enabling easy integration with previous community efforts.
trollers. This includes, for example, desired values for
pose, speed, trajectory, etc.
• Others: multi-robot communication messages, alert C. Basic Robotic Functions
messages corresponding to emergency situations, The Aerostack2 platform encompasses a collection of soft-
operation mode of the aerial platform, etc. ware components that perform fundamental robotic functions
in aerial robotics. These components correspond to functions
such as motion control, state estimation, and other essential
B. Platforms and sensors interfaces functions (e.g., emergency handling, etc.) that support the
The common data channel presented in the previous autonomous operation of various types of aerial robots.
section includes sensor and actuator data represented in a
generic way that is independent of the physical platform
used. This makes it possible to make part of the control
architecture independent of the different platforms to be
used, which facilitates the reuse of its components. The way
to connect the architecture with each platform is through
the construction of interfaces between the platform and the
communication channel.
Aerostack2 incorporates a Platform abstraction class re-
sponsible for managing the capabilities associated with the
direct integration of various aerial platforms into the frame-
work. This abstraction facilitates the integration of new
platforms into the framework by providing guidance on
integration steps, overloading functions of the Platform class, Fig. 3: General scheme of how a basic robotic function is
and ensuring compatibility with the entire framework. implemented in Aerostack2.
In general, Aerostack2 components are designed to be
general and reusable with alternative algorithms that are
implemented in the form of plug-ins and are selected based
on each particular situation and aerial robotic application.
But this way of structuring the components gains full
sense when talking about basic robotic functions due to
the importance of these modules within the functioning of
the entire system. In this architecture, the basic functions
Fig. 2: Aerial platform scheme. are managed by a function manager, which is responsible
for loading the plugins with each concrete algorithm (e.g.,
The proposed framework’s interaction with the Platform a PID controller) and managing how they interact within
interface facilitates the integration of both physical and the rest of the framework. The plugin selector can also
simulated interfaces, without requiring the rest of the frame- provide meta-control features, such as plugin replacement,
work to distinguish between the two. This feature is a plugin bypass (which occurs when the motion reference
fundamental pillar that strengthens the sim2real capabilities can be directly handled by the aerial platform), whereas the
of the framework. input and output adapters, adjusts the input or output of the
The responsibility of this interface is to gather sensor function plugin to the rest of the Aerostack2 framework. In
measurements from the aircraft and transmit them to the Fig. 2 an schema of the architecture of a basic function is
Communication Layer. Additionally, it is tasked with described.
receiving actuator commands and other requests from the
various layers of the Aerostack2 framework and relaying Specifically, the two core functions of the framework are
them to the aircraft in a platform-specific manner. the following, the connection of which can be shown in
Fig. 4:
Moreover, there may be instances where additional sensors • Motion Control: This module listens to the motion
or actuators are required for a specific application, such reference commands generated from the top-level layers
ROS topic name Message type Description
Actuator command for the multirotor specifying x, y, and
motion_reference/pose geometry_msgs/PoseStamped
z (m: meters) and roll, pitch and yaw (rad: radians).
Actuator command for the multirotor specifying vx, vy
motion_reference/twist geometry_msgs/TwistStamped and vz (m/s: meters per seconds) and roll rate, pitch rate
and yaw rate (rad/s: radians per seconds).
Reference trajectory point specifying x, y and z (m:
meters), vx, vy and vz (m/s: meters per seconds), ax,
motion_reference/trajectory as2_msgs/TrajectoryPoint
ay, and az (m/s²: meters per seconds squared) and yaw
angle (rad: radians).
Raw image data received from camera (a general cam-
sensor_measurement/camera sensor_msgs/Image
era).
sensor_measurement/imu sensor_msgs/Imu Inertial Measurement Unit data.
sensor_measurement/gps sensor_msgs/NavSatFix GPS (Global Positioning System) coordinates.
TABLE III: Example ROS topics and messages used by Aerostack2 for interprocess communication.
and converts them into actuator command signals that approaching forbidden areas. There are multiple agents
will be followed by the concrete aerial platform. In- that can trigger these emergencies, and depending on the
side this module, the controllers process the references severity of the emergency, the module corresponding to a
to generate control signals. The Controller Manager low-level layer will handle it. For example, if the severity
is responsible for ensuring a suitable combination of is low, the controller may be able to handle it, but if it is
motion references, which have to be preprocessed with severe, the aerial platform itself should act.
the current working plugin preferences (e.g. the motion
references shall be expressed in the reference frame in
D. Behaviors
which the controller expects), but also to adequate the
actuation command signals and post-processing them Aerostack2 uses a specialized type of component, called
for aerial platform desired format. Moreover, the plugin behavior, which provides a logical layer to formulate mission
selector has the capability to load multiple controllers plans in a uniform and more simplified way (compared to
in the form of plugins, being able to be aware of the direct use of state estimators and actuator controllers).
the operation of each one and making the appropriate Each behavior corresponds to a specific robot skill related,
selection. for example, to flight motion, such as taking off, landing,
• State Estimator: This module combines the information hovering and following a path, or other abilities (e.g., video
received from different sensors to estimate the state recording, communication with other agents, etc.).
of the aircraft, where the state refers to the position Using behaviors, a mission plan is expressed as a
and speed of each aircraft over time. This module can controlled sequence of activations (or deactivations) of
load multiple state estimation algorithms in the form of multiple behaviors that may operate concurrently. Each
plugins. The State Estimator Manager is responsible for behavior activation initiates the execution of a particular
generating the transformation trees (TF trees) that will task described with certain parameters (e.g., following a
be used by the rest of the framework. In addition, it is particular path described with a list of waypoints). The
aware of the available plugins and is able to make the result of each behavior execution is described in terms of
selection based on the environment. In addition, it is success or failure, which is useful to determine the next
aware of the available plugins and is able to make the step to be done during the mission.
selection based on the environment.
We distinguish between two types of robot behaviors,
according to execution goals1 : (1) goal-based behaviors that
are defined to reach a final state or attain a goal (for example,
in an aerial robot, the behavior taking off), and (2) recurrent
behaviors that perform an activity recurrently or maintain
a desired state (for example, a behavior for visual marker
recognition).
The notion of behavior in robotics has been used in
the behavior-based paradigm [15] [16] (which mainly
Fig. 4: General scheme of basic robotics functions connec- corresponds to reactive behaviors) and in behavior-based
tion in Aerostack2. systems [17] (with both reactive and deliberative behaviors).
In particular, a behavior in Aerostack2 may correspond
In this category of components, there are also other not only to reactive behaviors (e.g., hovering) but also to
components, such as emergency handlers, that implement 1 This division is also mentioned in the literature of robotics. For example,
emergency procedures to react quickly in the presence these two categories have been distinguished using the terms servo, for
of unexpected situations, such as battery discharge or recurrent behaviors, and ballistic for goal-based behaviors [14].
skills similar to mental abilities that use complex internal assumptions to operate correctly (e.g., a behavior
representations (e.g., generating a trajectory to reach a for visual marker recognition checks that the lighting
destination). assumptions in the environment are satisfied). Execution
monitoring also detects when the execution has reached
a prefixed goal or when there is a failure in the
execution. For example, in the case of a task to follow
a certain path, a failure can be detected if the robot
does not arrive at the destination point in a maximum
expected time or if the robot moves in the opposite
direction to the direction that is expected to follow
towards the destination point.
Each software component that implements a behavior
encapsulates the details of the algorithms used to execute
the task, providing a uniform interface that is common for
all behaviors. This interface is used to control the execution
of the behavior with the following basic services: start,
pause, resume and stop. In addition, a service called
modify is used to change parameters of a behavior without
the need to stop its execution. The behavior interface is also
used to inform about the execution of the behavior with two
separate outputs: the execution state of the behavior (e.g.,
idle, running, or paused), and a periodic feedback during the
execution of behavior.
The manner in which the behaviors have been
Fig. 5: Characteristics of the robot behavior used in implemented is fully consistent with the standard ROS
Aerostack2 to implement robot skills following a distributed 2 actions. Each behavior is linked to its own ROS2 action,
and modular approach. with added functionalities that enable actions to be paused,
resumed, or even have their goals modified during execution.
The software components that implement behaviors in
the Aerostack2 framework are specialized modules for E. Mission control and supervision
robust plan execution following a distributed organization Aerostack2 provides several mechanisms that help devel-
that facilitates maintainability and flexibility to add new opers specify a mission plan and supervise its execution.
behaviors in the future. Each behavior provides the following The developer can write a mission plan to specify the set
two main types of functions (Fig. 5): of tasks that a robot must perform on a particular mission.
The specification of mission plans can be formulated in the
• Task refinement. Robot behaviors execute tasks that form of robot behaviors. In this way, the user can specify
cannot be executed directly by actuators because the mission more easily by indicating complex tasks that the
they are formulated in an abstract terminology as robot executes autonomously (e.g., following a certain path).
it is used to specify mission plans by the user. One of the solutions provided by Aerostack2 to specify
Robot behaviors refine these tasks into more detailed missions is a Python API (Application Programming
operations (e.g., references to controllers, etc.). This Interface). This is a convenient method for users familiar
is done in an adaptive way in continuous interaction with computer programming languages and provides high
with the environment (e.g., waiting a certain amount flexibility for formulating plans with complex control
of time to complete each step or selecting the most regimes. Aerostack2 provides an API with a set of functions
appropriate method according to the current situation to activate/deactivate behaviors or to directly send command
of the environment). through motion reference messages. The next piece of code
shows a simple example of a mission written in Python
• Execution monitoring. Each robot behavior observes using the API provided by Aerostack2.
and assesses how each task is executed (e.g., by
contrasting observations with expectations), which As an alternative to the Python API, the developer
is very important to facilitate a robust operation. In may use other mechanisms to specify mission plans. For
contrast to other centralized approaches, Aerostack2 example, mission plans may be formulated using behavior
distributes execution monitoring into behaviors. For trees [18]. The modularity and hierarchical of behavior
example, each behavior checks locally whether the trees are useful during the mission plan design but also
current situation of the environment satisfies the during mission execution thanks to a graphically monitoring.
Aerostack2 incorporates custom behavior tree nodes that
can activate and deactivate robot behaviors. Fig. 6 shows a
mission sketched in a behavior tree.
1 import rclpy
2 from as2_python_api.drone_interface import
DroneInterface
3
4 rclpy.init()
5
6 # Initialize drone interface
7 drone_interface = DroneInterface("drone_sim_0")
8
9 # Arm and change into offboard mode
10 drone_interface.arm()
11 drone_interface.offboard()
12
13 # Take Off
14 drone_interface.takeoff(height=3.0, speed=1.0) Fig. 6: Mission plan defined via a behavior tree.
15
16 # Go To
17 drone_interface.go_to(0, 5, 3, speed=1.0)
18
commands, which allows one to check the system behavior
19 # Follow Path
20 drone_interface.follow_path( or take the controll when the autonomous logic fails.
21 [5, 0, 3], In this category of components, Aerostack2 also provides
22 [5, 5, 3], a graphical user interface for using the software framework
23 [0, 0, 3],
24 speed=1.0) through a web-based application. This type of tool is very
25 convenient to facilitate rapid planning of a mission for one or
26 # Land several drones using graphical resources (e.g., a geographic
27 drone_interface.land(speed=0.5)
28
map and graphical references), which can be done online
29 # Exit or offline, allowing repeatability of missions, as shown in
30 drone_interface.shutdown() Fig. 8. This user interface is also useful to show graphically
31 rclpy.shutdown()
32 exit(0) details of the mision execution, allowing its monitoring and
modification in real time.
Listing 1: Python Mission Example
It is important to note that, using these previous methods
to specify mission plans, the developer has to take into
account additional operational aspects to coordinate the
execution considering the relationships between concurrent
behaviors (e.g., incompatibility or dependency). Such
coordination mechanisms may be difficult to design
and implement in complex autonomous robots. In these
situations, additional solutions can be used based on
automatic coordination of behaviors [19]. Fig. 7: Aerostack2 Web-GUI system overview
In addition to the tools mentioned for the specification The schematic of this interface is shown in Fig. 7, where
of the mission plan, Aerostack2 also provides other tools many users can connect through different devices and com-
to monitor execution. This includes two user interface tools municate with the agents through the network. This architec-
that use information related to basic aerial robotic functions: ture provides the ability to plan and supervise missions from
(1) an alphanumeric viewer to monitor the state of specific different devices, making the system robust and powerful to
variables (e.g., sensor measurements, values corresponding use. In addition, since it is a web interface, it can be used
to state estimation, references for controllers) and (2) an from any device, increasing its accessibility.
interface for keyboard teleoperation which can be used by
the user to operate manually an aerial robot with the help of
the keyboard.
The alphanumeric viewer is a powerful tool to have a
overview of the system’s operation, being very useful for
research and development of framework modules.
While the keyboard teleoperation is usefull tool to manip-
ulate the dron in a simple way, sending position and speed
Fig. 8: Aerostack2 Web-GUI Mission Planning view.
IV. E XPERIMENTS & D ISCUSSION The UAVs used for this experiment were two Bitcraze
This section presents some experiments that show the Crazyflie 2.1 with IR markers for mocap localization. Due
capabilities of Aerostack2 performing drone swarming mis- to the limited payload of these micro-UAVs, the computing
sions. was performed by the ground station computer.
A. Sim2Real
This experiment studies the ease of moving from an
experiment performed in a simulation environment to the
real world. In this scenario, two drones have to cross two
gates in a coordinated way.
The simulation was performed using Gazebo Ignition. The
mission was planned using the python API of Aerostack2.
For this mission just the basic behaviors are used: platform
behaviors for offboarding and arming, and motion behaviors
for taking off, flying, and landing. The localization of the
drones and the gates are provided by the ground truth of the
simulator, and for control, a PID controller with trajectory
references is used.

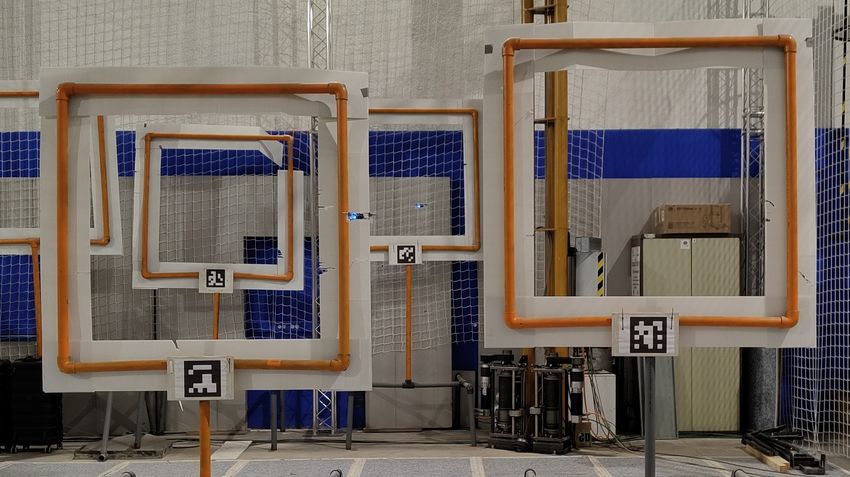

Fig. 10: Gate crossing real environment.
(a) Simulation (b) Real
Fig. 9: Gate crossing simulation environment.
Fig. 11: Trajectories performed by the drones during the gate
The real experiment was carried out in the CAR Robotics crossing experiments.
Arena, an area of 60 m2 with a surrounding safety net. An
Optitrack motion capture system (mocap) system provides Table IV shows a comparison between the components
the position of drones and gates within the capture area. used in simulation and real experiments. This shows that it
Module Simulation Real
Mission Control Python API Python API
Behaviors MB, PB, TGB MB, PB, TGB
State Estimation Ground Truth Motion Capture System
Motion Control PID controller PID controller
Platforms Gazebo Simulator Crazyflie
TABLE IV: Comparison between Aerostack2 modules used
in simulation and real experiments. (MB) Motion behaviors,
(PB) Platform behaviors, (TGB) Trajectory Generator behav-
ior.
is only needed to change the platform and the state estimation
component (in this case, a plugin inside of it) to translate the

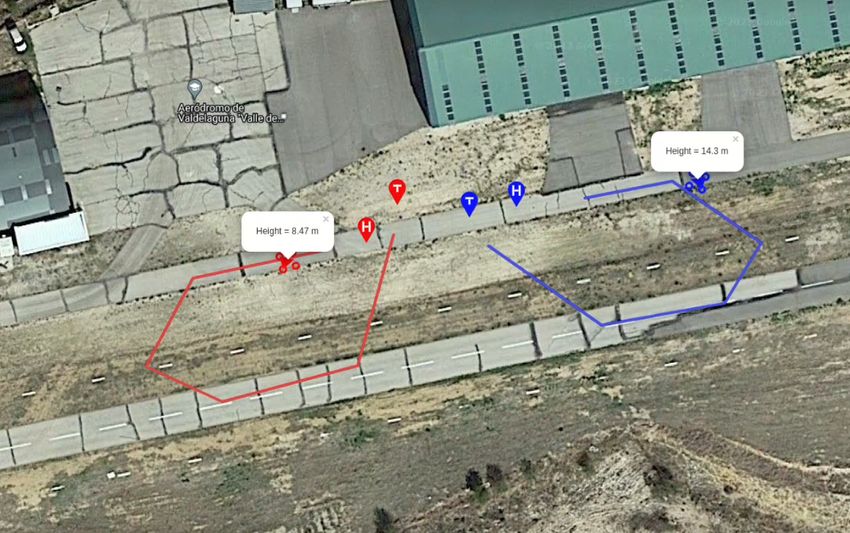

experiment from simulation to the real world. Fig. 13: Screen of the UI web monitoring the swarm during
B. Heterogeneous swarm an outdoor flight. DJI M210 in red and Pixhawk F450 in
blue.
Module Component
Mission Control Web GUI
Behaviors MB, PB the mission and controlling the drones. The computing was
State Estimation GPS performed onboard the drones, each drone having an instance
Motion Control PID controller of Aerostack2, and they communicated their position to
Platforms DJI matrice, PX4
the ground station for monitoring, allowing a high level of
TABLE V: Aerostack2 modules used in Gate crossing sim- autonomy.
ulation experiment. (MB) Motion behaviors, (PB) Platform
C. Use cases
behaviors.
Aerostack2 has been used for several applications:
• Wind turbine inspection: in the context of an industrial
In this experiment, two different platforms are used at
the same time to perform a cooperative mission. These project that aims to increase the autonomy of drones
platforms, shown in Fig. 12, were: in wind turbine inspection, some experiments have
been carried out. Fig. 14 shows a drone controlled
• Pixhawk F450: autopilot PX4 Pixhawk 4 mini on DJI
by Aerostack2 in a simulated environment following
F450 frame with Nvidia Jetson Xavier NX for onboard
the movement of the wind turbine during inspection.
computing, GPS, and Rangefinder as an altimeter.
Subsequently, this simulated wind turbine was used to
• DJI M210: DJI Matrice 210 RTK v2 with Nvidia Jetson
give references to a real drone during a flight to simulate
AGX Xavier for onboard computing.
an inspection in the real world, as shown in Fig. 15. This
shows the capability of Aerostack2 to be used to mix
real-world flying with simulated information.
(a) Pixhawk F450 (b) DJI M210
Fig. 12: Aerial platform used during the heterogeneous
swarm experiment.
This scenario represents the use of a swarm consisting Fig. 14: Wind turbine inspection in simulation.
of two drones to perform a simple aerial inspection. The
mission was planned using the Web GUI, generating a path • Photovoltaic plant inspection: as part of the devel-
of GPS waypoints for both drones from an aerial image of opment of an industrial project, the simulation of an
the flying area. Once the mission was generated, both drones inspection of a photovoltaic plant was performed with
took off at the same time, and each one traveled along the a swarm of drones. This simulation was made using
path, landing when they finished. Gazebo and the photorealistic simulator Flightmare
In this case, the use of two different models of drones [20]. The mission was planned with the Web GUI,
does not make a difference for Aerostack2 when planning defining the limits of the inspection area. Then, a pathusing wifi communication, and with a segmentation
color algorithm, passing through several gates, achiev-
ing the record of the highest number of gates passed by
all participants. Fig. 17a shows the drone during this
competition.
• Package delivery: IMAV’22 also proposes a package
delivery challenge consisting of flying a UAV carrying
a package and delivering it to a certain place. The
maximum weight of the UAV with the payload was 5
kg. This involved the construction of an ad hoc drone
using a Pixhawk autopilot on a F450 frame with a
Fig. 15: Wind turbine simulated inspection in a real envi- package delivery device. In this scenario, Aerostack2
ronment. References from a simulated moving wind turbine was able to plan the mission with the Web GUI and
(left) were used to move a real drone (right). fly the drone in an outdoor environment using GPS
references, as shown in Fig. 17b.

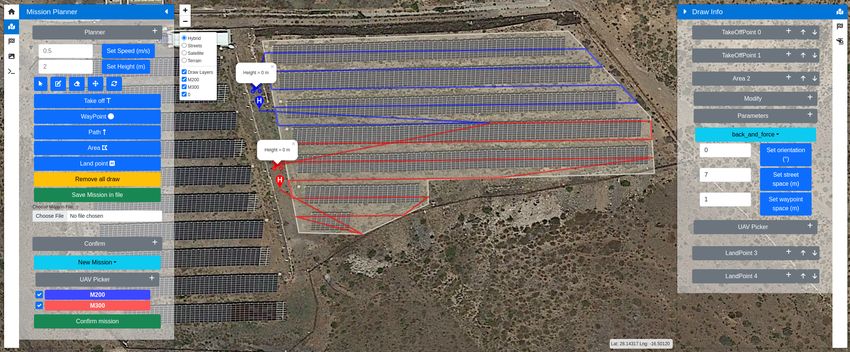

(a) Web GUI mission monitoring
(a) AI nanocopter

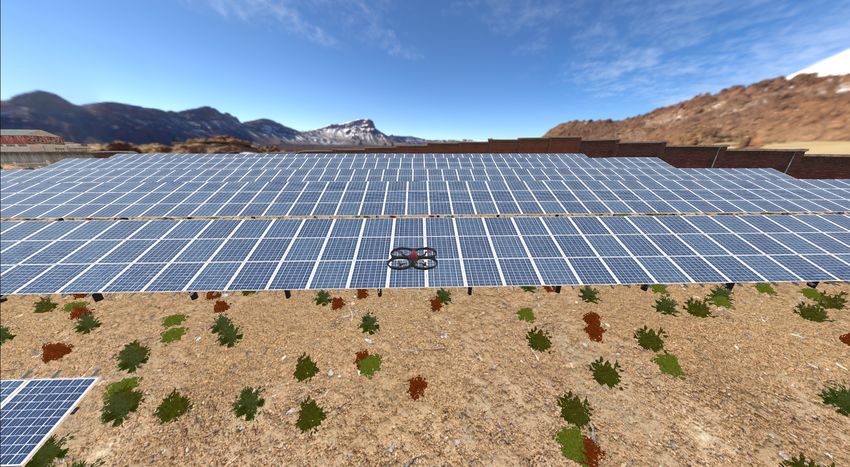

(b) Simulation environment

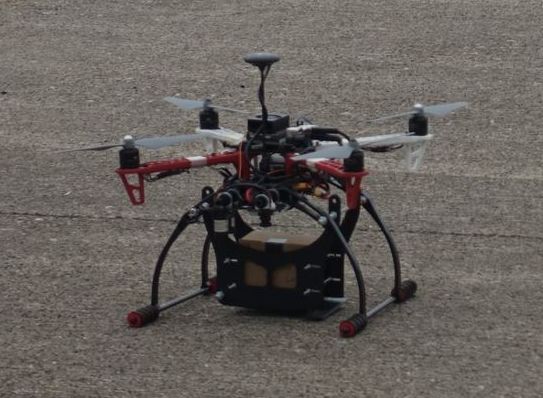

(b) Package delivery
Fig. 17: Using Aerostack2 during IMAV’22 in different chal-
lenges: AI nanocopter (left) and Package Delivery (right).

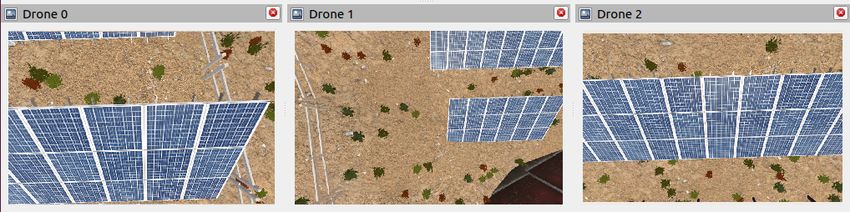

(c) Camera view from the drones
• Maritime Operation: MBZIRC’23 competition pro-

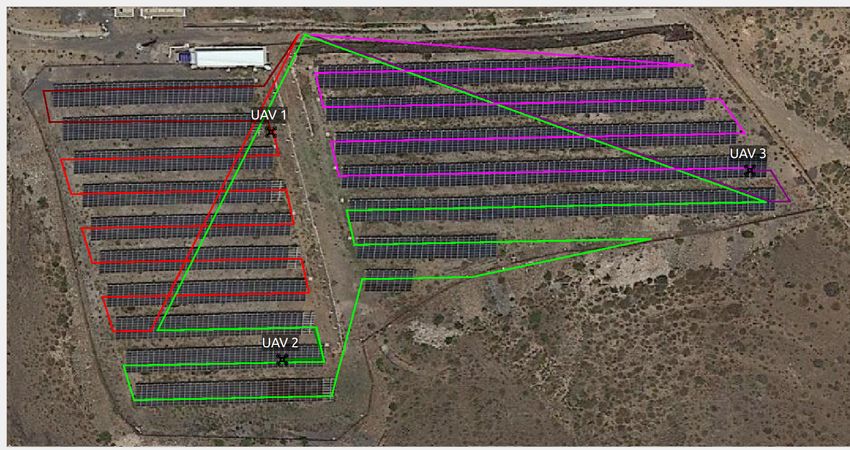

Fig. 16: Photovoltaic plant swarm simulated inspection.
poses a maritime operation of search and evidence
collection. This challenge consists of several drones
searching for a specific boat in a vast maritime area,
planning algorithm generates the path over the lines of coordinated with an unmanned surface vehicle (USV)
panels that must be taken to inspect the area based on to take some packages from this boat. The main diffi-
the desired distance between survey points. After this, culties of this scenario were the absolute lack of GPS
another algorithm is responsible for dividing the route signal, the communication distances, and the coordi-
into each path that each drone must follow [21]. This nated maneuvers required to transport the packages.
shows that Aerostack2 can be used for the development For this phase, the scenario was recreated in a realistic
of industrial projects using a swarm of drones. Fig. 16 simulation environment made on Gazebo. Aerostack2
shows images taken during this experiment. served as the framework for the trials of this competi-
• Gate crossing: AI Nanocopter Challenge within tion, showing the capabilities to fly several coordinated
IMAV’22 consists of flying one Bitcraze Crazyflie drone drones, using custom localization and communication
inside a small arena populated with obstacles and drone algorithms, and implement neural networks for object
racing gates. Aerostack2 was able to pilot the UAV detection, as shown in Fig. 18.R EFERENCES
[1] Steve Macenski, Francisco Martı́n, Ruffin White, and Jonatan
Ginés Clavero. The marathon 2: A navigation system. In 2020
IEEE/RSJ International Conference on Intelligent Robots and Systems
(IROS), 2020.
[2] David Coleman, Ioan Sucan, Sachin Chitta, and Nikolaus Correll.
Reducing the barrier to entry of complex robotic software: a moveit!
case study, 2014.
[3] Jose Luis Sanchez-Lopez, Ramón A Suárez Fernández, Hriday Bavle,
Carlos Sampedro, Martin Molina, Jesus Pestana, and Pascual Campoy.
Aerostack: An architecture and open-source software framework for
aerial robotics. In 2016 International Conference on Unmanned
Aircraft Systems (ICUAS), pages 332–341. IEEE, 2016.
[4] Steven Macenski, Tully Foote, Brian Gerkey, Chris Lalancette, and
William Woodall. Robot operating system 2: Design, architecture,
Fig. 18: Maritime operation in MBZRIC’23 competition. and uses in the wild. Science Robotics, 7(66):eabm6074, 2022.
[5] Emad Ebeid, Martin Skriver, Kristian Husum Terkildsen, Kjeld Jensen,
and Ulrik Pagh Schultz. A survey of open-source uav flight controllers
and flight simulators. Microprocessors and Microsystems, 61:11–20,
The use of Aerostack2 in these applications shows the 2018.
[6] Tomas Baca, Matej Petrlik, Matous Vrba, Vojtech Spurny, Robert
capability of this framework to be used in very different Penicka, Daniel Hert, and Martin Saska. The mrs uav system: Pushing
scenarios, with completely different requirements. the frontiers of reproducible research, real-world deployment, and
education with autonomous unmanned aerial vehicles. Journal of
Intelligent & Robotic Systems, 102(1):26, 2021.
V. C ONCLUSIONS AND F UTURE W ORK [7] Philipp Foehn, Elia Kaufmann, Angel Romero, Robert Penicka, Sihao
Sun, Leonard Bauersfeld, Thomas Laengle, Giovanni Cioffi, Yunlong
This paper has presented an innovative Open Source Song, Antonio Loquercio, et al. Agilicious: Open-source and open-
hardware agile quadrotor for vision-based flight. Science Robotics,
framework for the development of aerial robot systems. The 7(67):eabl6259, 2022.
framework’s key capabilities, including multirobot orienta- [8] Kartik Mohta, Michael Watterson, Yash Mulgaonkar, Sikang Liu,
tion, platform independence, versatility, and modularity, have Chao Qu, Anurag Makineni, Kelsey Saulnier, Ke Sun, Alex Zhu,
Jeffrey Delmerico, Dinesh Thakur, Konstantinos Karydis, Nikolay
been demonstrated through a series of experiments conducted Atanasov, Giuseppe Loianno, Davide Scaramuzza, Kostas Daniilidis,
in diverse scenarios, both in simulation and in the real world. Camillo Jose Taylor, and Vijay Kumar. Fast, autonomous flight in
Future work will involve the continued development of gps-denied and cluttered environments. Journal of Field Robotics,
35(1):101–120, 2018.
new behaviors, metacontrol capabilities, and the expansion [9] Lorenzo Pichierri, Andrea Testa, and Giuseppe Notarstefano. Crazy-
of the number of behaviors, controllers, state estimators, and choir: Flying swarms of crazyflie quadrotors in ros 2. arXiv preprint
platforms supported by the system through collaboration with arXiv:2302.00716, 2023.
[10] Fran Real, Arturo Torres-González, Pablo Ramón Soria, Jesús Capitán,
the aerial robotics community. and Anibal Ollero. Unmanned aerial vehicle abstraction layer: An
abstraction layer to operate unmanned aerial vehicles. International
Journal of Advanced Robotic Systems, 17(4):1–13, 2020.
ACKNOWLEDGMENTS [11] Kun Xiao, Shaochang Tan, Guohui Wang, Xueyan An, Xiang Wang,
and Xiangke Wang. Xtdrone: A customizable multi-rotor uavs sim-
Funding. This work has been supported by the project ulation platform. In 2020 4th International Conference on Robotics
COPILOT ref. Y2020\EMT6368 ”Control, Monitoring and and Automation Sciences (ICRAS), pages 55–61. IEEE, 2020.
[12] Fadri Furrer, Michael Burri, Markus Achtelik, and Roland Siegwart.
Operation of Photovoltaic Solar Power Plants by means of Robot Operating System (ROS): The Complete Reference (Volume
synergic integration of Drones, IoT and advanced communi- 1), chapter RotorS—A Modular Gazebo MAV Simulator Framework,
cation technologies”, funded by Madrid Government under pages 595–625. Springer International Publishing, Cham, 2016.
[13] Generalized autonomy aviation system.
the R&D Synergic Projects Program. [14] Joseph L. Jones. Robot Programming: A Practical Guide to Behavior-
We acknowledge the support of the European Union Based Robotics. McGraw-Hill, 2002.
through the Horizon Europe Project No. 101070254 CORE- [15] Rodney Brooks. A robust layered control system for a mobile robot.
IEEE journal on robotics and automation, 2(1):14–23, 1986.
SENSE. [16] Ronald C Arkin. Behavior-based robotics. MIT press, 1998.
This work has also been supported by the project [17] François Michaud and Monica Nicolescu. Behavior-based systems.
INSERTION ref. ID2021-127648OBC32, ”UAV Perception, Springer handbook of robotics, pages 307–328, 2016.
[18] Michele Colledanchise and Petter Ögren. Behavior Trees in Robotics
Control and Operation in Harsh Environments”, funded by and AI. CRC Press, jul 2018.
the Spanish Ministry of Science and Innovation under the [19] Martin Molina and Pablo Santamaria. Behavior coordination for self-
program ”Projects for Knowledge Generating”. The work adaptive robots using constraint-based configuration. arXiv preprint
arXiv:2103.13128, 2021.
of the third author is supported by the Grant FPU20/07198 [20] Yunlong Song, Selim Naji, Elia Kaufmann, Antonio Loquercio, and
of the Spanish Ministry for Universities. The work of the Davide Scaramuzza. Flightmare: A flexible quadrotor simulator. In
fifth author is supported by the Spanish Ministry of Science Conference on Robot Learning, 2020.
[21] Marco Andrés Luna, Mohammad Sadeq Ale Isaac, Ahmed Refaat
and Innovation under its Program for Technical Assistants Ragab, Pascual Campoy, Pablo Flores Peña, and Martin Molina. Fast
PTA2021-020671. multi-uav path planning for optimal area coverage in aerial sensing
Data and Materials. All materials are open-source applications. Sensors, 22(6):2297, 2022.
accesible at https://github.com/aerostack2/
aerostack2 under BSD-3-Clause license.You can also read
