2021 AMBER GUIDE
BRILLIANCE WILDLIFE LIGHTING
CERTIFIED PRODUCTS AND
PRODUCTS UNDER REVIEW
WHY AMBER? Female sea turtles have always laid their eggs on beaches. Before the population of coastal cities, they used moonlight that reflected off of the ocean to navigate. Now that these areas are highly populated, many female turtles are deterred from coming ashore to lay their eggs by the bright lights that decorate beachside homes, hotels, and businesses. When they do come ashore to lay their eggs, many female sea turtles, much like their hatchlings, often are unable to find their way to the ocean. This results in a rapidly decreasing sea turtle population. In support of our mission, Brilliance strives to ensure that our products never harm animals. One of the ways we live out this mission is by producing Amber LED lights. The wavelength of the Amber lights are virtually invisible to sea turtles, making them a practical, beautiful, and safe alternative for coastal areas. Brilliance LED lamps are patented under D735369, D735370, D735371, D735372, D735373. Brilliance LED® is a registered trademark. “A Higher Light Form®” is a registered trademark of Brilliance LED. © 2021 Brilliance LED®, LLC. All Rights Reserved. Product images are for illustration purposes only. Actual products may vary. All products, product specifications,and data are subject to change without notice to improve reliability, function, design, or otherwise. All product variations may not be available and in stock; some are available only via special order and are subject to special order terms, conditions, and minimum order quantities. Call 800-867-2108 for availability.
TABLE OF CONTENTS
Micro G4 Amber 4
MR8 Amber 5
MR11 Amber 6
AR11 Amber 7
MR16 Amber 8
PAR36 Amber 9
Amber Strip Light 10
Amber Light Bar 11
Bryce Hanging Down Light 12

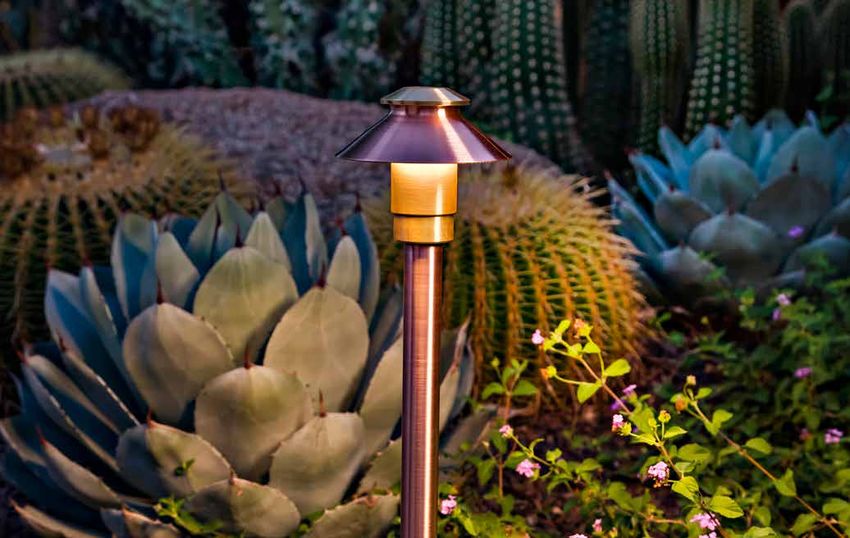

Sequoia Path Light 14

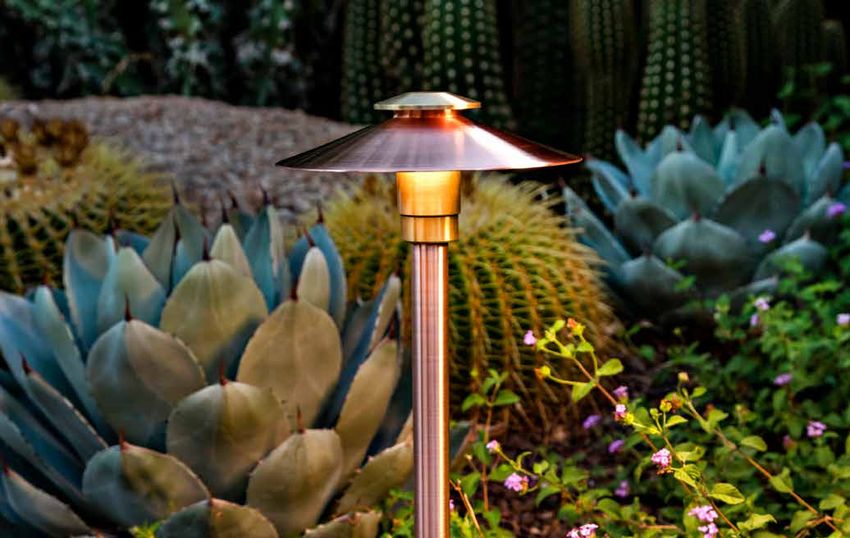

Zion Path Light 16
Cascades Step Light 18
Tee Wall Washer 20
Surface Mount Wall Wash 21
Redwood Path Light 22
Everglades Area Light 24
Aquabeam26
Adjustable Aquabeam 27
90 Lumen Mini Beam in Amber 28
Wildlife Lighting Certified Products 29
Under Review When Program Resumes 30
ABOUT THE WILDLIFE LIGHTING PROGRAM
The Florida Fish and Wildlife Conservation Commission and the U.S. Fish and Wildlife
Service have teamed up to develop the Wildlife Lighting Certification Program.
This program is designed to educate the public, building industries, and government
officials on minimizing artificial light impacts to wildlife by identifying proper lighting
methods and using appropriate lighting fixtures, lamps, and shields. For more
information, visit myfwc.com.
MICRO G4 AMBER
0.47”
(12mm)
DESCRIPTION
The Brilliance Micro G4 Bi-Pin is a sub-compact
LED that utilizes a Samsung chipset and features
Brilliance’s multi-directional beam pattern.
This Micro G4 Bi-Pin is energy efficient and water
resistant, designed specifically for landscape retrofit 1.3”
applications, and ideal for pathway lighting fixtures. (32mm)
FEATURES
• Ceramic technology
• Dimmable with Brilliance Dimmer and most
magnetic transformers
• UL Listed & FCC compliant
MICRO G4 SPECS Part Number: BRI-MICRO-G4-AMBER
Wattage 1.2
Color Amber
Operating Range 10-14 VAC/DC
Input Voltage 12 VAC/DC
Replaces 10W Halogen
CRI 85
IP 65
Lamp Life (hours) 35,000
Warranty (years) 5
WILDLIFE LIGHTING CERTIFICATION PROGRAM
Certification Number: 2018-036
Certification Requirements: Must be installed in a low
mounted, downward directed and shielded fixture
4
MR8 AMBER
DESCRIPTION 1.0”
The Brilliance MR8 Bi-Pin is designed to better (25mm)
fit into standard, low voltage, MR8 fixtures and
have a longer lamp life. These LEDs are thermally
engineered to operate in enclosed fixtures and
provide added security by automatically cooling
down, and reducing lumen output when exposed to
extreme heat (air temperatures above 125�F). There 1.25”
is no color shift when lumen output is reduced. (32mm)
FEATURES
• Gen 5 earth tone colored housing
• Dimmable with Brilliance Dimmer and most
magnetic transformers
• Enhanced ESD (Electro-Static Discharge)
protection (IEC-61000-4-2)
• Heat overload protection technology
• Fully potted PC board Part Number: MR8-AMBER-30
• UL Listed & FCC compliant
MR8 SPECS
Wattage 1.5
Beam Spread 30�
Color Amber
Operating Range 8-25 VAC/DC
Replaces 10W Halogen
CRI 85
IP 61
Lamp Life (hours) 50,000
Warranty (years) 5
WILDLIFE LIGHTING CERTIFICATION PROGRAM
Certification Number: 2018-036
Certification Requirements: Must be installed in a low
mounted, downward directed and shielded fixture
5
MR11 AMBER
DESCRIPTION 1.38”
The Brilliance MR11 Bi-Pin is designed to better (35mm)
fit into standard, low voltage, MR11 fixtures and
have a longer lamp life. These LEDs are thermally
engineered to operate in enclosed fixtures and
provide added security by automatically cooling
down, and reducing lumen output when exposed to
extreme heat (air temperatures above 125�F). There 1.58”
is no color shift when lumen output is reduced. (40mm)
FEATURES
• Gen 5 earth tone colored housing
• Dimmable with Brilliance Dimmer and most
magnetic transformers
• Enhanced ESD (Electro-Static Discharge)
protection (IEC-61000-4-2)
• Heat overload protection technology Part Number: MR11-2-AMBER-15
• Fully potted PC board MR11-2-AMBER-30
• UL Listed & FCC compliant
MR11 SPECS
Wattage 2
Beam Spread 15�, 30�
Color Amber
Operating Range 8-25 VAC/DC
Replaces 20W Halogen
CRI 85
IP 61
Lamp Life (hours) 50,000
Warranty (years) 5
WILDLIFE LIGHTING CERTIFICATION PROGRAM
Certification Number: 2018-036
Certification Requirements: Must be installed in a low
mounted, downward directed and shielded fixture
6
AR11 AMBER
DESCRIPTION 1.38”
The Brilliance AR11 DCB is designed to better (35mm)
fit into standard, low voltage, AR11 fixtures and
have a longer lamp life. These LEDs are thermally
engineered to operate in enclosed fixtures and
provide added security by automatically cooling
down, and reducing lumen output when exposed to
extreme heat (air temperatures above 125�F). There 1.68”
is no color shift when lumen output is reduced. (42.7mm)
FEATURES
• Gen 5 earth tone colored housing
• Dimmable with Brilliance Dimmer and most
magnetic transformers
• Enhanced ESD (Electro-Static Discharge)
protection (IEC-61000-4-2)
• Heat overload protection technology Part Number: AR11-2-AMBER-30
• Fully potted PC board
• UL Listed & FCC compliant
AR11 SPECS
Wattage 2
Beam Spread 30�
Color Amber
Operating Range 8-25 VAC/DC
Replaces 20W Halogen
CRI 85
IP 61
Lamp Life (hours) 50,000
Warranty (years) 5
WILDLIFE LIGHTING CERTIFICATION PROGRAM
Certification Number: 2018-036
Certification Requirements: Must be installed in a low
mounted, downward directed and shielded fixture
7
MR16 AMBER
DESCRIPTION 1.95”
(49.5mm)
The Brilliance MR16 Bi-Pin is designed to better
fit into standard, low voltage, MR16 fixtures and
have a longer lamp life. These LEDs are thermally
engineered to operate in enclosed fixtures and
provide added security by automatically cooling
down, and reducing lumen output when exposed to
extreme heat (air temperatures above 125�F). There 1.99”
(50.5mm)
is no color shift when lumen output is reduced.
FEATURES
• Gen 5 earth tone colored housing
• Dimmable with Brilliance Dimmer and most
magnetic transformers
• Enhanced ESD (Electro-Static Discharge)
protection (IEC-61000-4-2)
• Heat overload protection technology Part Number: MR16-X-AMBER-XX
• Fully potted PC board
Wattage Beam spread
• UL Listed & FCC compliant
MR16 SPECS
Wattage 4, 5
Beam Spread 15�, 30�, 60�
Color Amber
Operating Range 8-25 VAC/DC
Replaces 20W, 35W, 50W Halogen
CRI 85
IP 61
Lamp Life (hours) 50,000
Warranty (years) 5
WILDLIFE LIGHTING CERTIFICATION PROGRAM
Certification Number: 2018-036
Certification Requirements: Must be installed in a low
mounted, downward directed and shielded fixture
8
PAR36 AMBER
DESCRIPTION 4.37”
The Brilliance PAR36 lamp is designed to better (111mm)
fit into standard, low voltage, PAR36 fixtures and
have a longer lamp life. These LEDs are thermally
engineered to operate in enclosed fixtures and
provide added security by automatically cooling
down, and reducing lumen output when exposed to
2.29”
extreme heat (air temperatures above 125�F). There
(58mm)
is no color shift when lumen output is reduced.
FEATURES
• Gen 5 earth tone colored housing
• Dimmable with Brilliance Dimmer and most
magnetic transformers Part Number: PAR36-X-AMBER-XX
• Enhanced ESD (Electro-Static Discharge)
Wattage Beam spread
protection (IEC-61000-4-2)
• Heat overload protection technology
• Fully potted PC board
• UL Listed & FCC compliant
PAR36 SPECS
Wattage 7, 11, 15
Beam Spread 15�, 30�, 60�
Color Amber
Operating Range 8-25 VAC/DC
Replaces 20W, 35W, 50W Halogen
CRI 85
IP 68
Lamp Life (hours) 50,000
Warranty (years) 5
WILDLIFE LIGHTING CERTIFICATION PROGRAM
Certification Number: 2018-036
Certification Requirements: Must be installed in a low
mounted, downward directed and shielded fixture
9
AMBER STRIP LIGHT
DESCRIPTION
The Brilliance AC flexible Strip Light is rated for
outdoor use. The LEDs on this Strip Light are
encased in non-yellowing material. Brilliance Strip
Light provides great accent lighting for stairs,
railings, and overhangs, plus it installs easily.
Incorporate it to a new project or connect it directly
to an existing 8 to 16 VAC landscape lighting
system.
FEATURES
• Dimmable with most magnetic transformers
Part Number: BRI-SL3-AMBER-82
BRI-SL3-AMBER-32
•Recommended max. length per power feed is
40 feet
•Available in 82.25 ft reels (25 meters) or 32.8 ft half
reels (10 meters)
•UL Listed
NEC® Article 411.5 (B): Lighting systems shall be installed not less
than 3m (10ft) horizontally from the nearest edge of the water,
unless permitted by Article 680.
STRIP LIGHT SPECS
Wattage 1.8 per meter
Color Amber
Operating Range 8-16 VAC/DC
CRI 80
IP 65
Lamp Life (hours) 35,000
Warranty (years) 3
30 cm
13.5 mm
(0.531”) Example
6 mm
without end
(0.236”)
connections
BACK
✂
✂
✂
✂
CUT MARK
WILDLIFE LIGHTING CERTIFICATION PROGRAM
Certification Number: 2018-036
Certification Requirements: Must be installed in a low
mounted, downward directed and shielded fixture
10AMBER LIGHT BAR
DESCRIPTION
The Light Bar is easy to install and its rugged construction
and anodized aluminum rail makes it a great fit for high-
traffic areas. Light Bars are dimmable with most magnetic
transformers and the frosted design offers contiunous light.
Optional light bar shields in Copper or Stainless Steel are
available.
NEC® Article 411.5 (B): Lighting systems shall be installed not less than 3m
(10ft) horizontally from the nearest edge of the water, unless permitted by
Article 680.
ATTENTION: Operating voltage range is 8-18 Volts AC/DC
Part Number: BRI-LB-LED-AMBER-S
LIGHT BAR BRI-LB-LED-AMBER-M
Size Small Medium
Wattage 1.5 2.5
Optional Light Bar Shield
Length (inches) 5.125” 9.0” Part Number: LBS-S-C
Color Amber Amber LBS-S-SS
LBS-M-C
Operating Range 8-18 VAC 8-18 VAC
LBS-M-SS
CRI 85 85
IP 65 65 Optional Mounting Bracket Bar
Warranty (years) 5 5 Part Number: BRI-MB-LED-S
BRI-MB-LED-M
SMALL SMALL
5.125” 5.125”
UM MEDIUM
9.00” 9.00”
RGE
12.875” 12.875”
WILDLIFE LIGHTING CERTIFICATION PROGRAM
Certification Number: 2019-270
Certification Requirements: Must be installed with the approved integrated Amber LED;
Must be installed in a low, shielded location and directing the light downward and away
from the beach; If used in a fixture, the fixture must meet the FWC Lighting Guidelines
for the appropriate fixture type

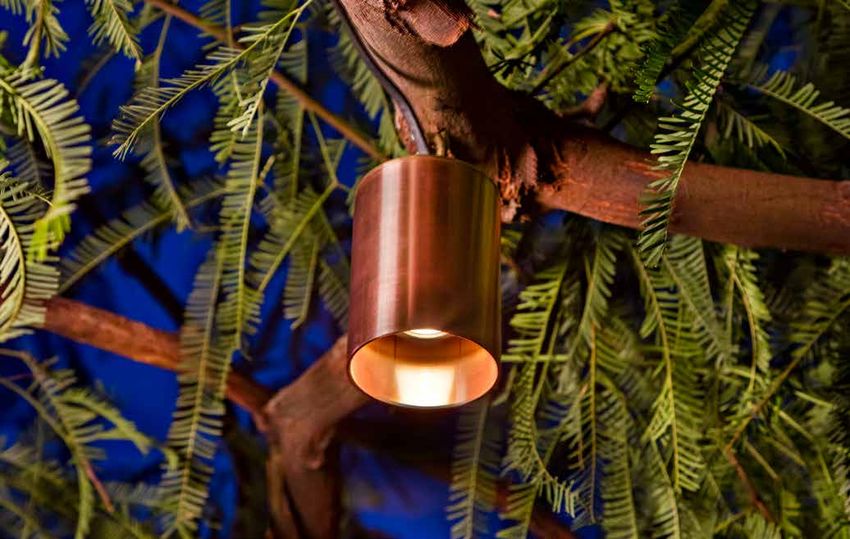

11BRYCE Hanging Down Light for AR11 or MR16
DESCRIPTION Part Number: BRYCE-HDL-AR11-CU-NL
The Bryce Hanging Down Light works with AR11 or MR16 -AR11-BR-NL
Amber lamps. -AR11-BR-BLK-NL
-MR16-CU-NL
-MR16-BR-NL
BRYCE HANGING DOWN LIGHT -MR16-BR-BLK-NL
Use Downlighting Techniques in Trees or
Architecture by Hanging on a Chain or Cable
Includes LightingShrink Professional Crimp and Heat
Shrink Cable Connector
Lamp AR11 in Amber or MR16 in Amber
(not included) 2.25”
Finish Brass, Copper, or Black Brass (Cerakote®)
1.19”
3.09”
3.5”
Frosted
Brass (BR) Copper (CU) Black Brass + Cerakote®
(BR-BLK)
WILDLIFE LIGHTING CERTIFICATION PROGRAM
Certification Number: 2019-269
Certification Requirements: Amber LED; Must be installed below structures;
Allowed on the ground floor only, unless on the landward side of the structure;
Additional shielding may be necessary if visible from the beach
12Application picture shown as BRYCE-HDL-AR11-CU (not in Amber).
INSTALLING THE FIXTURE
1. Unscrew the fixture body from the base.
2. Install the lamp in the socket.
3. Reinstall the fixture body.
HANGING THE FIXTURE
• IMPORTANT: DO NOT INSTALL ON OR NEAR ANY HIGH VOLTAGE POWER LINES
1. Hang the fixture from a secure stainless steel eye bolt, with or without a chain.
2. Create a drip loop with the wire by bending the wire to a slope one inch below the fixture cap.
WILDLIFE LIGHTING CERTIFICATION PROGRAM
Certification Number: 2019-269
Certification Requirements: Amber LED; Must be installed below structures;
Allowed on the ground floor only, unless on the landward side of the structure;
Additional shielding may be necessary if visible from the beach
13SEQUOIA G4 Bi-Pin 7” Path Light
DESCRIPTION Part Number: SEQUOIA-PL-7-G4-CU-A-NL
The Sequoia 7” Path Light comes complete with a fully -CU-F-NL
adjustable reflector top. It is available in a standard 18” -BR-A-NL
fixed stem or a 17” to 28” adjustable stem. -BR-F-NL
-BR-BLK-A-NL
-BR-BLK-F-NL
SEQUOIA PATH LIGHT
Use Path, area, and garden accent lighting
Lamp Beacon G4 Bi-Pin in Amber
(not included)
Includes ABS Mounting Stake, LightingShrink
Professional Crimp, and Heat Shrink Cable
Connector
Finish Brass, Copper, or Black Brass (Cerakote®)
Brass (BR) Copper (CU) Black Brass + Cerakote®
(BR-BLK)
22” Total22” Total
18” Stem18” Stem 28” Max28” Max
17” Min17” Min
7.00” 7.00” 7.00” 7.00”
Fixed Stem Option (F) Adjustable Stem Option (A)
WILDLIFE LIGHTING CERTIFICATION PROGRAM
Certification Number: 2019-268
Certification Requirements: Amber LED; Must be downward directed;
Maximum mounting height of 24” from the ground; Additional shielding may
be necessary if visible from the beach
14Application picture shown as SEQUOIA-PL-7-G4-CU-F (not in Amber).
INSTALLING THE LAMP
1. Loosen the threaded jam nut toward the stem.
2. Unscrew the lid from the stem.
3. Install the Beacon G4 Bi-Pin into the socket.
4. Screw the lid onto the stem.
5. Adjust the threaded ring until the desired light pattern is achieved.
INSTALLING THE GROUND STAKE
1. Dig a hole in the ground approximately 4” wide by 10” deep. When working with soft soil, use a rubber mallet
to drive the stake into the ground.
2. Lay the power cable from the fixture into the slotted relief on the stake.
3. Screw the fixture into the stake.
4. Use a level to ensure the top of the spike is level with the ground
ADJUSTING THE FIXTURE
1. Turn the threaded ring counter clockwise to loosen the lid.
2. Find the right light pattern by moving the lid up and down on the stem.
3. Turn the threaded ring clockwise to lock the lid into the desired position.
4. For adjustable stem models, adjust the stem length by loosening the set screw, finding the desired length, and
tightening the set screw to hold it in place.
WILDLIFE LIGHTING CERTIFICATION PROGRAM
Certification Number: 2019-268
Certification Requirements: Amber LED; Must be downward directed;
Maximum mounting height of 24” from the ground; Additional shielding may
be necessary if visible from the beach
15ZION G4 Bi-Pin 4” Path Light
DESCRIPTION Part Number: ZION-PL-4-G4-CU-A-NL
The Zion 4” Path Light comes complete with a fully -CU-F-NL
adjustable reflector top. It is available in a standard 18” -BR-A-NL
fixed stem or a 17” to 28” adjustable stem. -BR-F-NL
-BR-BLK-A-NL
-BR-BLK-F-NL
ZION PATH LIGHT
Use Path, area, and garden accent lighting
Lamp Beacon G4 Bi-Pin in Amber
(not included)
Includes ABS Mounting Stake, LightingShrink
Professional Crimp, and Heat Shrink Cable
Connector
Finish Brass, Copper, or Black Brass (Cerakote®)
Brass (BR) Copper (CU) Black Brass + Cerakote®
(BR-BLK)
22” Total
18” Stem 28” Max
17” Min
4.0” 4.0”
Fixed Stem Option (F) Adjustable Stem Option (A)
WILDLIFE LIGHTING CERTIFICATION PROGRAM
Certification Number: 2019-267
Certification Requirements: Amber LED; Must be downward directed;
Maximum mounting height of 24” from the ground; Additional shielding may
be necessary if visible from the beach
16Application picture shown as ZION-PL-4-G4-CU-F (not in Amber).
INSTALLING THE LAMP
1. Unscrew the threaded ring toward the stem.
2. Unscrew the lid from the stem.
3. Install the Beacon G4 Bi-Pin into the socket.
4. Screw the lid onto the stem.
5. Adjust the threaded ring until the desired light pattern is achieved.
INSTALLING THE GROUND STAKE
1. Dig a hole in the ground approximately 4” wide by 10” deep. When working with soft soil, use a rubber mallet
to drive the stake into the ground.
2. Lay the power cable from the fixture into the slotted relief on the stake.
3. Screw the fixture into the stake.
4. Use a level to ensure the top of the spike is level with the ground
ADJUSTING THE FIXTURE
1. Turn the threaded ring counter clockwise to loosen the lid.
2. Find the right light pattern by moving the lid up and down on the stem.
3. Turn the threaded ring clockwise to lock the lid into the desired position.
4. For adjustable stem models, adjust the stem length by loosening the set screw, finding the desired length, and
tightening the set screw to hold it in place.
WILDLIFE LIGHTING CERTIFICATION PROGRAM
Certification Number: 2019-267
Certification Requirements: Amber LED; Must be downward directed;
Maximum mounting height of 24” from the ground; Additional shielding may
be necessary if visible from the beach
17CASCADES Step Light
DESCRIPTION Part Number: CASCADES-SL-7.5LB-AMBER-AL-BLK
The Cascades Step Light casts the right amount of indirect -BR-BLK
light for visual interest, as well as safety. -BR
CASCADES STEP LIGHT
Use Areas with elevation changes or dark sky
requirements
Step, deck or hardscape applications, and
over most existing recessed step lights
Lamp 1.5W, Amber, Integrated 7.5” Light Bar
Includes LightingShrink Professional Crimp and
Heat Shrink Cable Connector
Finish Anodized Black Aluminum, Brass*, or Black
Brass (Cerakote®)*
3.0”
.875”
Anodized Black Brass (BR) Black Brass + Cerakote®
Aluminium Special Order (BR-BLK)
Special Order
8.25”
UNDER REVIEW FOR WILDLIFE LIGHTING CERTIFICATION PROGRAM
Light Source (Amber Light Bar) approved under Certification Number 2019-270
The Wildlife Lighting Certification Program has been suspended since 2020
due to COVID-19 and remains closed at the time of this publication. This item
has been submitted to be reviewed when the program resumes.
18Application picture shown as CASCADES-SL-7.5LB-AL-BLK (not in Amber).
INSTALLING THE FIXTURE
1. Separate the two pieces of the fixture by removing the two screws from both sides of the faceplate.
2. If mounting in masonry, concerete, or sheetrock, install the wall anchors.
3. Use the provided cable connectors to connect the lead wires to the transformer main line.
4. Slide the cables into the conduit and mount the back plate onto the wall with the provided screws.
5. Screw the faceplate onto the fixture.
UNDER REVIEW FOR WILDLIFE LIGHTING CERTIFICATION PROGRAM
Light Source (Amber Light Bar) approved under Certification Number 2019-270
The Wildlife Lighting Certification Program has been suspended since 2020
due to COVID-19 and remains closed at the time of this publication. This item
has been submitted to be reviewed when the program resumes.
19TEE WALL WASHER
DESCRIPTION
The Tee Wall Washer Light comes complete with a
one-piece stainless-steel ground stake, glare shield and
integrated LED. For ease of installation, the power cable 4 3
comes zip tied to the ground stake.
TEE WALL WASHER
Use Up Lighting/Back Lighting & Grazing
Low Profile Pathway Lighting
Lamp Integrated Small Light Bar
1.5W, Amber, 180°
1.03
Includes LightingShrink Professional Crimp, and
Heat Shrink Cable Connectors B
Finish Brass, Copper, or Black Brass (Cerakote®)
PART NUMBER: TEE-WALL-WASHER-AMBER-BRASS
-COPPER
-BRASS-BLK 5.35”
.58”
Copper (CU)
Brass (BR) Black Brass + Cerakote®
(BR-BLK)
.22”
INSTALLING THE FIXTURE
1. Dig a hole in the ground approximately 1” wide by 1.5”
4” deep.
2. Insert the built-in stake into the hole and aim the
fixture in the desired direction and angle. 1.25”
A
3. For soft soil, gently push the stake into the ground.
4. Lay the power cable from the fixture into the existing
cable trench and use the LightingShrink cable
.50”
connector to join the fixture cable to the main cable.
UNDER REVIEW FOR WILDLIFE LIGHTING CERTIFICATION PROGRAM
Light Source (Amber Light Bar) approved under Certification Number 2019-270
The Wildlife Lighting Certification Program has been suspended since 2020
due to COVID-19 and remains closed at the time of this publication. This item
has been submitted to be reviewed when the program resumes.
4 3
20SURFACE MOUNT
WALL WASH
DESCRIPTION
The Surface Mount Wall Wash gently spreads light
through its integrated LED light bar. It comes in 2 sizes
(small and medium) to meet any wall or hardscape
lighting requirement.
SURFACE MOUNT WALL WASH
Use Areas with Elevation Changes or Dark Sky
Requirements
Deck, Step, & Hardscape Applications
9.5”
Lamp Small 1.5W, Amber Light Bar 1.06”
Medium 2.5W, Amber Light Bar
Includes Integrated Light Bar, LightingShrink
1.5”
Professional Crimp, and Heat Shrink
Cable Connector
Finish Brass, Copper, or Black Brass (Cerakote®)
1.06”
PART NUMBER:
SURFACE-MOUNT-WALL-WASH-SMALL-AMBER-COPPER
5.63”
-SMALL-AMBER-BRASS
-SMALL-AMBER-BRASS-BLK
-MEDIUM-AMBER-COPPER
-MEDIUM-AMBER-BRASS
-MEDIUM-AMBER-BRASS-BLK
9.5”
1.06”
Copper (CU)
1.5”
Brass (BR) Black Brass + Cerakote®
(BR-BLK)
INSTALLING THE FIXTURE
1. Separate the two-piece fixture by removing the two machine screws from the top of the body.
2. Install the wall anchors, if mounting in masonry, concrete, or sheetrock.
3. Use the provided cable connectors to connect the lead wires to the transformer main line. 1.06”
4. Slide the cables into the conduit and mount the back plate onto the wall with the provided screws.
5. Screw the glare hood onto the fixture.
5.63”
UNDER REVIEW FOR WILDLIFE LIGHTING CERTIFICATION PROGRAM
Light Source (Amber Light Bar) approved under Certification Number 2019-270
The Wildlife Lighting Certification Program has been suspended since 2020
due to COVID-19 and remains closed at the time of this publication. This item
has been submitted to be reviewed when the program resumes.
21REDWOOD G4 Path Light
DESCRIPTION Part Number:
The Redwood Path Light comes complete with a frosted REDWOOD-PL-G4-BR-18-CU-STEM-NL
glass window that can rotate 360 degrees and locks in with -18-BR-STEM-NL
a set screw. -18-BR-BLK-STEM-NL
All Blackened Brass:
-BR-BLK-18-BR-BLK-STEM-NL
REDWOOD PATH LIGHT
Use Path, area, and garden accent lighting
Lamp Micro G4 Bi-Pin in Amber
(not included)
Includes ABS Mounting Stake, LightingShrink
A
B
Professional Crimp, and Heat Shrink Cable
Connector
Finish Brass, Copper, or Black Brass (Cerakote®)
1 3.75” 1.5”
DATE
NAME
CJ
ENG APPR.
CHECKED
DRAWN
.01
DIMENSIONS ARE IN INCHES
UNLESS OTHERWISE SPECIFIED:
TWO PLACE DECIMAL
ANGULAR: MACH .5
FRACTIONAL 1/32
TOLERANCES:
2
19.7”
3
Brass (BR) Copper (CU) Black Brass + Cerakote®
(BR-BLK)
UNDER REVIEW FOR WILDLIFE LIGHTING CERTIFICATION PROGRAM
Light Source (Micro G4 Amber) approved under Certification Number 2018-036
The Wildlife Lighting Certification Program has been suspended since 2020
4
due to COVID-19 and remains closed at the time of this publication. This item
has been submitted to be reviewed when the program resumes.

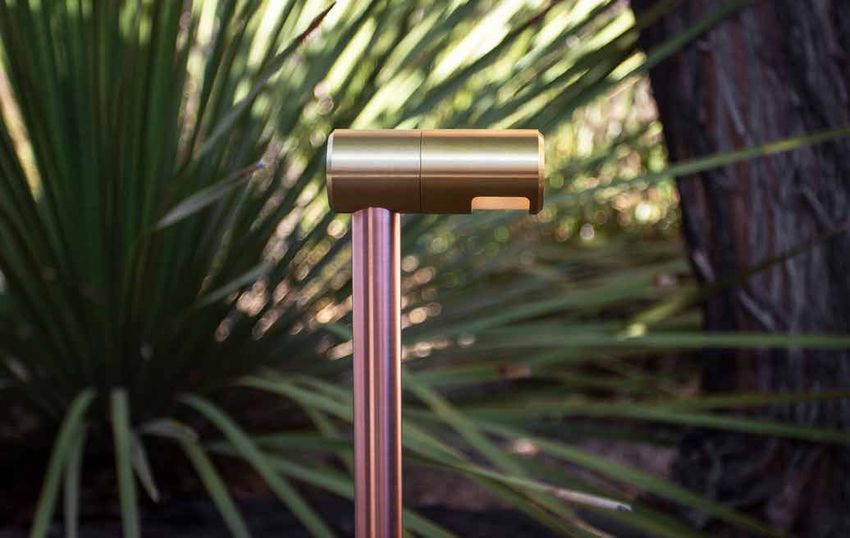

22Application picture shown as REDWOOD-PL-G4-BR-18-CU-STEM (not in Amber).
INSTALLING THE LAMP
1. Loosen the set screw for the lens.
2. Remove the brass cap.
3. Install the G4 Wafer into the socket.
4. Place the brass cap back on the fixture body.
5. When using a Micro G4 or Beacon G4, you can adjust the window in the direction light is desired.
INSTALLING THE GROUND STAKE
1. Dig a hole in the ground approximately 4” wide by 10” deep. When working with soft soil, use a rubber mallet
to drive the stake into the ground.
2. Lay the power cable from the fixture into the slotted relief on the stake.
3. Screw the fixture into the stake.
4. Use a level to ensure the top of the spike is level with the ground.
UNDER REVIEW FOR WILDLIFE LIGHTING CERTIFICATION PROGRAM
Light Source (Micro G4 Amber) approved under Certification Number 2018-036
The Wildlife Lighting Certification Program has been suspended since 2020
due to COVID-19 and remains closed at the time of this publication. This item
has been submitted to be reviewed when the program resumes.
23EVERGLADES G4 BI-PIN AREA LIGHT
DESCRIPTION Part Number:
The Everglades is an area light that serves as a low-profile EVERGLADES-UP-G4-BR
indicator. Pair with the optional Deck Mount accessory -BR-BLK
as a base for flat surfaces like boating docks and deck
applications.
EVERGLADES AREA LIGHT
Use Pathways & Walkways
Dock & Deck Applications
Lamp Micro G4 Bi-Pin in Amber
(included)
Includes Micro G4 Bi-Pin in Amber, ABS Mounting
Stake, LightingShrink Professional Crimp,
and Heat Shrink Cable Connector 1.5
Finish Brass or Black Brass (Cerakote®)
Everglades shown with
Deck Mount accessory
Brass (BR) Black Brass + Cerakote®
(BR-BLK)
3.63
1.5
4.50
UNDER REVIEW FOR WILDLIFE LIGHTING CERTIFICATION PROGRAM
Light Source (Micro G4 Amber) approved under Certification Number 2018-036
The Wildlife Lighting Certification Program has been suspended since 2020
due to COVID-19 and remains closed at the time of this publication. This item
3.63 when the program resumes.
has been submitted to be reviewed
24

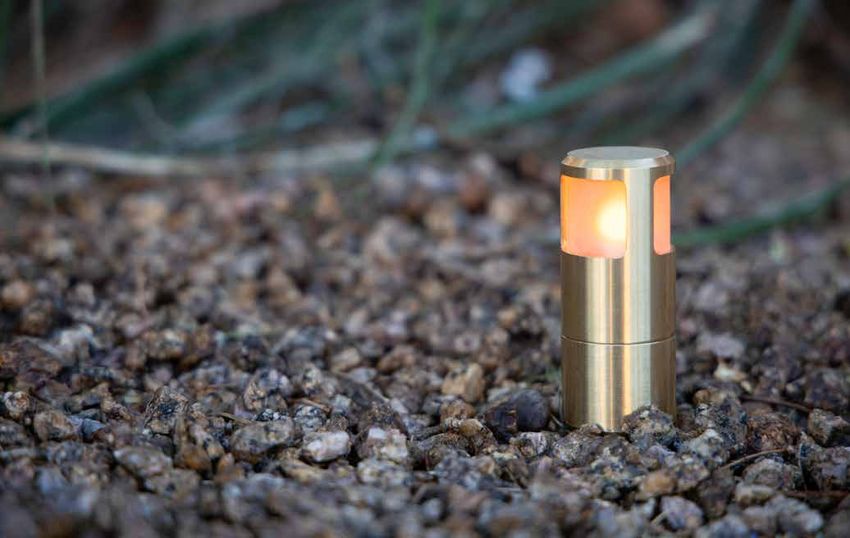

4.50Application picture shown as EVERGLADES-UP-G4-BR (includes lamp in Amber).
INSTALLING THE LAMP
1. Pull the assembly top off of the fixture base.
2. Install the lamp into the socket
3. Press the assembly top into fixture.
INSTALLING THE GROUND STAKE
1. Dig a hole in the ground approximately 4” wide by 10” deep. When working with soft soil, use a rubber mallet
to drive the stake into the ground.
2. Lay the power cable from the fixture into the slotted relief on the stake.
3. Screw the fixture into the stake.
4. Use a level to ensure the top of the spike is level with the ground, or put a level on the stem of the fixture.
INSTALLING ON DECK APPLICATIONS
1. Use the Brilliance Deck Mount.
2. Use three #10 x 3” round head stainless steel deck screws to mount the Deck Mount to wood or composite
deck material.
UNDER REVIEW FOR WILDLIFE LIGHTING CERTIFICATION PROGRAM
Light Source (Micro G4 Amber) approved under Certification Number 2018-036
The Wildlife Lighting Certification Program has been suspended since 2020
due to COVID-19 and remains closed at the time of this publication. This item
has been submitted to be reviewed when the program resumes.
25AQUABEAM
DESCRIPTION
The AquaBeam is designed specifically for high lumen
output and superior color rendition for extremely wet
or underwater applications. It is fully potted, fabricated
from precision machined aluminum, and coated to resist
abrasion and corrosion in the harshest environments.
FEATURES
• Designed for fully submersible or heavy irrigation
applications
• Dimmable with most magnetic transformers
• Environmentally friendly & energy efficient
• Includes 25ft lead
Part Number: AQUABEAM-XX-AMBER
AQUABEAM
Wattage
Wattage 5 10
Beam Spread 45° 45°
Color Amber Amber 3”
(76.2mm)
Operating Range 8-18 VAC/DC 8-18 VAC/DC
3”
(76.2mm)
CRI 83 83
IP 68 68
3”
Lamp Life (hours) 50,000 50,000 (76.2mm)
Warranty (years) 5 5
3”
(76.2mm)
3”
(76.2mm)
*Note: Corrosive chemicals in the water of ponds and fountains as well as natural
hard water and salt water could affect the appearance of the coating, but will
not impact functionality of the product. For this reason, Brilliance
3” LED makes no
1.7”
warranty or guarantee for change in appearance when(76.2mm)
this product is used in (43.2mm)
water, as it is designed to be used.
NEC® Article 411.5 (B): Lighting systems shall be installed not less than 3m (10ft)
horizontally from the nearest edge of the water, unless permitted by Article 680.
UNDER REVIEW FOR WILDLIFE LIGHTING CERTIFICATION PROGRAM
The Wildlife Lighting Certification Program has been suspended since 2020
due to COVID-19 and remains closed at the time of this publication. This item
has been submitted to be reviewed when the program resumes.
26ADJUSTABLE AQUABEAM
DESCRIPTION
The Adjustable AquaBeam is designed specifically for high
lumen output and superior color rendition for extremely
wet or underwater applications. It is fully potted and
fabricated from precision machined C464 Naval Brass.
FEATURES
• Designed for fully submersible applications
• Dimmable with most magnetic transformers
• Environmentally friendly & energy efficient
• Offers vertical & horizontal adjustment
• Includes 25ft lead & 316 Stainless Steel bracket
(marine grade)
ADJUSTABLE AQUABEAM Part Number: ADJ-AQUABEAM-XX-AMBER
Wattage 5 10 Wattage
Beam Spread 45° 45°
Color Amber Amber
Operating Range 8-18 VAC/DC 8-18 VAC/DC
CRI 83 83
IP 68 68
Lamp Life (hours) 50,000 50,000
Warranty (years) 5 5 3.0
3.5
*Note: Corrosive chemicals in the water of ponds and fountains as well as natural
hard water and salt water could affect the appearance of the coating, but will
not impact functionality of the product. For this reason, Brilliance LED makes no
warranty or guarantee for change in appearance when this product is used in
water, as it is designed to be used.
NEC® Article 411.5 (B): Lighting systems shall be installed not less than 3m (10ft)
horizontally from the nearest edge of the water, unless permitted by Article 680.
1.875
UNDER REVIEW FOR WILDLIFE LIGHTING CERTIFICATION PROGRAM
The Wildlife Lighting Certification Program has been suspended since 2020
due to COVID-19 and remains closed at the time of this publication. This item
has been submitted to be reviewed when the program resumes.
27MINI BEAM IN AMBER
DESCRIPTION
The Mini Beam is the perfect lamp to bring light to hard-
to-reach places, whether under water, in a water feature,
under stairs, stone walls, stone lanterns, or any small space.
This directional product solves the issue of fitting a fixture
and a lamp into a small area.
FEATURES
• 12ft lead wire
• All-in-one lamp and fixture
• Water safe
Part Number: MINI-BEAM-AMBER-90
MINI BEAM
Lumens 90
Wattage 1.5
Beam Spread 36°
Color Amber
Operating Range 12 VAC/DC
1.5”
(38mm)
CRI 80
IP 68
Lamp Life (hours) 30,000
1.25”
Warranty (years) 3 (31.75mm)
*Note: Corrosive chemicals in the water of ponds and fountains as well as natural
hard water and salt water could affect the appearance of the coating, but will
not impact functionality of the product. For this reason, Brilliance LED makes no
warranty or guarantee for change in appearance when this product is used in
water, as it is designed to be used.
NEC® Article 411.5 (B): Lighting systems shall be installed not less than 3m (10ft)
horizontally from the nearest edge of the water, unless permitted by Article 680.
UNDER REVIEW FOR WILDLIFE LIGHTING CERTIFICATION PROGRAM
The Wildlife Lighting Certification Program has been suspended since 2020
due to COVID-19 and remains closed at the time of this publication. This item
has been submitted to be reviewed when the program resumes.
28WILDLIFE LIGHTING
CERTIFIED PRODUCTS
Product Certification Product Category Installation Requirements
Number
Micro G4 2018-036 Certified Bulbs • Must be installed in a low mounted, downward
Amber directed and shielded fixture
MR8 Amber 2018-036 Certified Bulbs • Must be installed in a low mounted, downward
directed and shielded fixture
MR11 Amber 2018-036 Certified Bulbs • Must be installed in a low mounted, downward
directed and shielded fixture
AR11 Amber 2018-036 Certified Bulbs • Must be installed in a low mounted, downward
directed and shielded fixture
MR16 Amber 2018-036 Certified Bulbs • Must be installed in a low mounted, downward
directed and shielded fixture
PAR36 2018-036 Certified Bulbs • Must be installed in a low mounted, downward
Amber directed and shielded fixture
Amber Strip 2018-036 Bullet/Tape/Bullet LED Lights • Must be installed with the approved integrated
Light Amber LED
• Must be installed in a low, shielded location and
directing the light downward and away from the
beach
Amber Light 2019-270 Bullet/Tape/Bullet LED Lights • Must be installed with the approved integrated
Bar Amber LED
• Must be installed in a low, shielded location and
directing the light downward and away from the
beach
• If used in a fixture, the fixture must meet the FWC
Lighting Guidelines for the appropriate fixture type
Bryce 2019-269 Certified Ceiling Mount Fixtures • Amber LED
Hanging • Must be installed below structures
Down Light • Allowed on the ground floor only, unless on the
landward side of the structure
• Additional shielding may be necessary if visible
from the beach
Sequoia Path 2019-268 Certified Walkway Lighting • Amber LED
Light • Must be downward directed
• Maximum mounting height of 24” from the ground
• Additional shielding may be necessary if visible
from the beach
Zion Path 2019-267 Certified Walkway Lighting • Amber LED
Light • Must be downward directed
• Maximum mounting height of 24” from the ground
• Additional shielding may be necessary if visible
from the beach
29UNDER REVIEW WHEN THE
PROGRAM RESUMES
The Wildlife Lighting Certification Program has been suspended since 2020 due to COVID-19 and remains closed as
of the time of this publication. The following items have been submitted to Wildlife Lighting Certification Program
to be reviewed when the program resumes.
Product Status Light Source Light Source Approved Under
Certification Number
Cascades Step Light Under Review Amber Light Bar 2019-270
in Amber
Tee Wall Washer Under Review Amber Light Bar 2019-270
in Amber
Surface Mount Wall Wash Under Review Amber Light Bar 2019-270
in Amber
Redwood Path Light Under Review Micro G4 Amber 2018-036
with Micro G4 Amber
Everglades Area Light Under Review Micro G4 Amber 2018-036
with Micro G4 Amber
90 Lumen Mini Beam Under Review Integrated into Fixture N/A
in Amber
Aquabeam Under Review Integrated into Fixture N/A
in Amber
Adjustable Aquabeam Under Review Integrated into Fixture N/A
in Amber
30AMBER GUIDE
For authorized distributors near you that
offer Brilliance products, visit:
www.brillianceled.com/purchase
Please email product orders to:
orders@brillianceled.com
For sales representatives in your area, visit:
www.brillianceled.com/contact
AG202105BrillianceLED.com 7202 E Cave Creek Rd, Suite 3A phone: 800.867.2108 P.O. Box 2281 Carefree, AZ 85377 fax: 480.575.0078
You can also read
