WIDE S31 NEOLINE - COMPACT SIZE | ANTI-GLARE CPL FILTER - CCTV

NEOLINE
WIDE S31

   COMPACT SIZE | ANTI-GLARE CPL FILTER

COMPACT SIZE

NEOLINE WIDE S31 is a little bigger than a matchbox, so it will not attract attention, for example,
in a parking lot.

FullHD 1920x1080 (30fps)

        REC

HIGH QUALITY VIDEO

High quality and detailing of video in NEOLINE Wide S31 is provided by a powerful processor from
Novatek and SONY sensor. This technical base allows the NEOLINE Wide S31 to shoot video with Full HD
resolution 1920 * 1080 at 30 frames per second, receiving a quality, detailed picture.

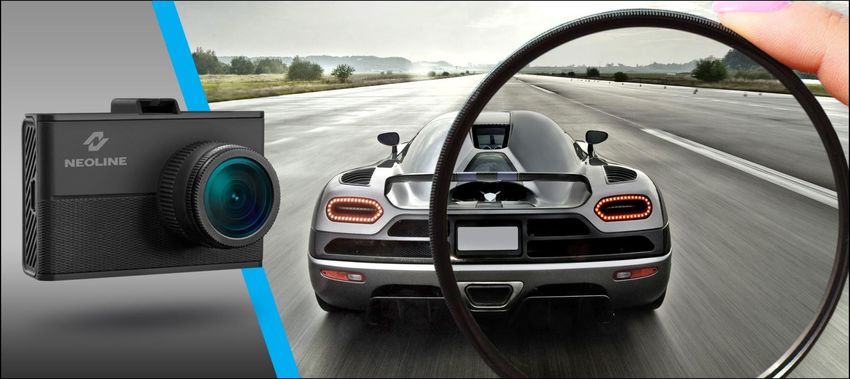

CPL-FILTER

A detachable anti-glare CPL filter is installed over the NEOLINE Wide S31 lens. It serves to reduce the amount
of sun glare and reflections of interior items from the windshield on video recordings. Also, the anti -glare CPL
filter significantly improves the contrast of the image.

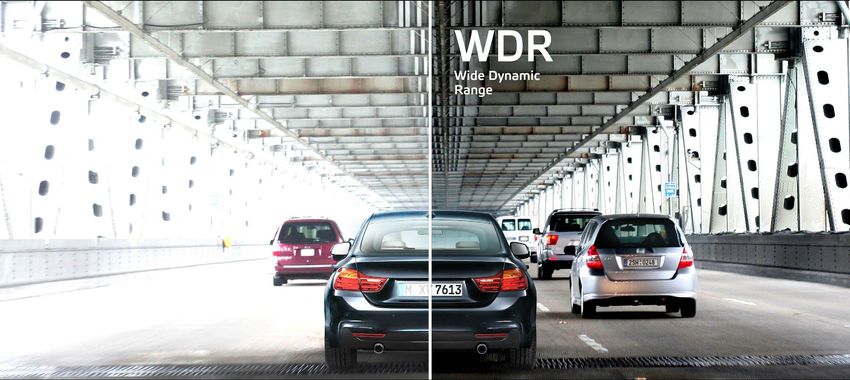

IMPROVED VIDEO QUALITY

NEOLINE Wide S31 is equipped with the function of the extended dynamic range WDR, providing a balanced
image by color and light in difficult conditions: with backlighting and intensive changing lighting. This is
especially important when entering and leaving the tunnel, in bright direct sunlight, etc. Thanks to the WDR
function in the NEOLINE Wide S31, the video quality remains at a high level even in the most difficult
conditions.

140°

WIDE VIEW ANGLE

Due to the wide viewing angle of 140 ° NEOLINE Wide S31 covers all 5 lanes of the roadway, without distorting
the picture. The DVR will record everything that happens on the road.

PROTECTION FROM COMPLICATED WEATHER CONDITIONS

NEOLINE Wide S31 is equipped with a supercapacitor, not a standard battery. The supercapacitor is much more resistant to high
temperatures and has a long service life. Thanks to the supercapacitor many typical problems of DVRs are solved: overheating,
explosion of the battery, loss of "last" files.

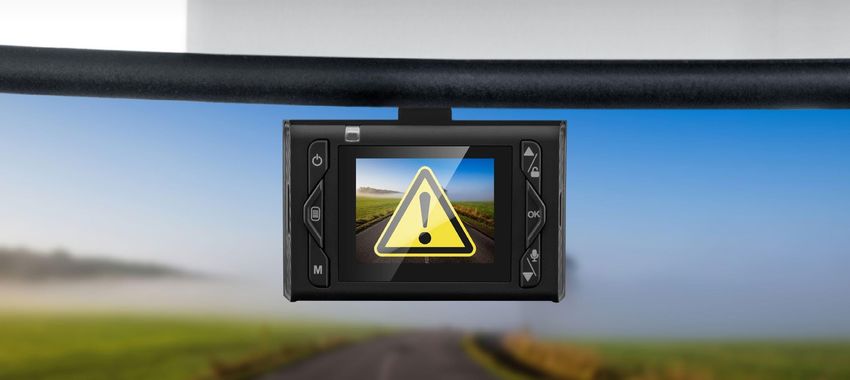

ALERT SYSTEM FOR STOPPED RECORDING

In order to prevent the absence of a record in the NEOLINE Wide S31, the stop recording function is
provided. The DVR provides a special sound signal.

MOTION SENSOR

The compact dimensions of the NEOLINE Wide S31 allow it to be used almost unnoticed in the parking lot or at
night in the yard for recording extreme events. The built-in motion sensor activates recording when objects appear
in front of the camera.

EXTENDED EQUIPMENT

The NEOLINE Wide S31 comes with a charger with 2 USB connectors, one of which can be used to recharge
mobile devices, and two mounts: standard with a suction cup and 3M-adhesive tape.

ТЕCHNICAL CHARACTERISTICS NEOLINE WIDE S31
•   Camera Resolution:                        Full HD 1920*1080 (30 s/s)
•   Viewing angle:                            140°
•   Display size:                             1.5 inches
•   Capacitor                                 yes
•   CPL-filter                                yes
•   WDR                                       yes
•   Video recording format:                   MOV/H.264, WDR
•   Built-in microphone / speaker             yes
•   G-sensor                                  yes
•   Motion sensor                             yes
•   Cyclic recording:                         1/2/3 min
•   Continuous recording                      yes
•   Auto power off                            yes
•   Date/time stamp                           yes
•   State number stamp                        yes
•   Memory card support                       MicroSD 8GB – 64GB (Class 10)
•   Temperature regime, С °                   exploitation: -10/+60;
                                               storage: -20/+70
•   Input power:                              DC 12/24V
•   Input voltage:                            DC 5V/1.5A
•   Dimensions:                               65 x 19 x 42 mm
•   Weight:                                   58 g

    EQUIPMENT:
• Neoline W ide S 31
• Mounting on the glass with suction cup
 • Mounting on glass with 3M -adhesive tape
• C a r c ha rge r wit h 2 U SB -poc ket s
• Co rd m ini- U SB
• User manual
• Warranty card

NEOLINE
                   WIDE S31

www.neoline.com . support@neoline.com
