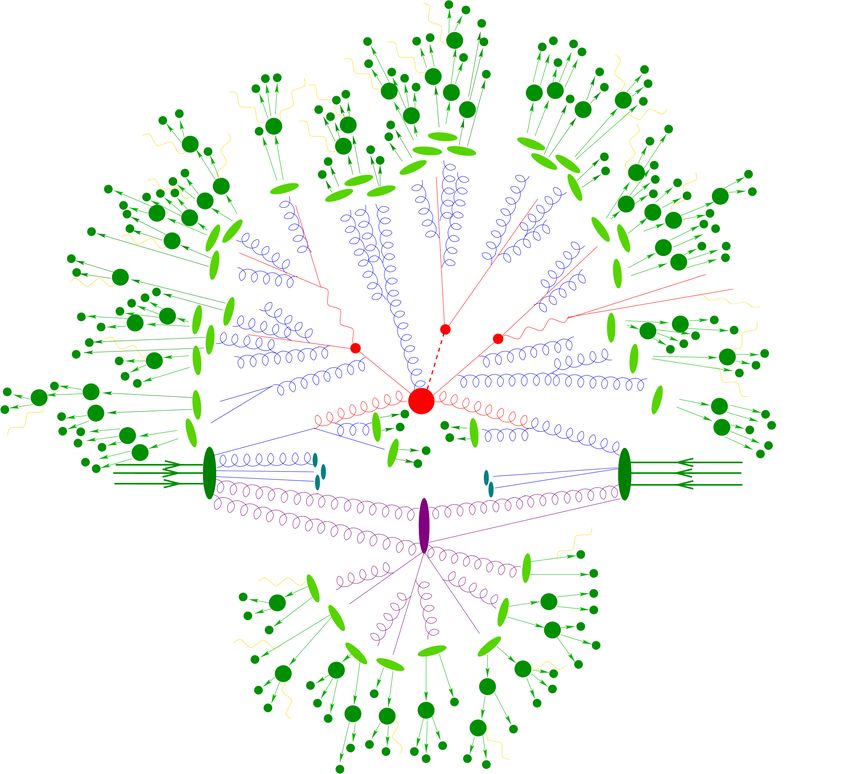

Ultra Legacy Monte Carlo
Production: GEN overview
Saptaparna Bhattacharya, Alexander Grohsjean, and Gurpreet Singh Chahal
for the CMS GEN group
Outline of the talk
Overview of GEN specific improvements in the UL campaign
UL Monte Carlo production
How to find my missing samples?
MC production model in CMS
Toolbox for analyzers
Toolbox for MC contacts
Feedback?
SMP General Meeting !2 Saptaparna Bhattacharya
Overview of GEN specific improvements in the
UL campaign
SMP General Meeting !3 Saptaparna Bhattacharya
Generators in use in the UL campaign
• Large fraction of UL events produced at NLO (~50%) and NNLO (~14%)*
• A wide spate of generators used and are tailored to facilitate the physics program in CMS
• Using POWHEG for NLO generation allows one to circumvent the deleterious effect of negatively weighted
events
• Parton shower modeling in 99% of cases done with Pythia
madgraph powheg
pythiaOnly amcatnloFXFX
12.9% powheg pythiaOnly
madgraphMLM powhegMiNNLO
amcatnloFXFX 22.3% madgraphMLM
7.68%
28.2%
amcatnlo sherpa
evtgen unknown
4.94% unknown madgraph
powhegMiNNLO evtgen+pythia
3.79% mcfm amcatnlo
62.9% 14.7% 0.0421%
4% 2.0 0.879% mcfm
2.8 2. 6% 1.11%
2. 15%
1.79% 81
%
1.79%
0.736% 13.8% 11.9%
0.631%
Usage of MC generators categorized by sample (left) and events (right) for UL16
campaign based on sampling of 9M events
*refers specifically to UL16
SMP General Meeting !4 Saptaparna Bhattacharya
Ingredients in the UL campaign: GEN overview
Preparation of GEN UL campaign started in 2019 (introduced by Qiang Li and Efe Yazgan)
MC production in UL16, 17 and 18 documented in GitBook
GEN campaigns (X = 16, 17, 18): In UL16 50% luminosity split between APV and non-APV
RunIISummer20UL{X}GEN: Pythia-only requests (pythia fragment needs to be specified)
RunIISummer20UL{X}wmLHEGEN: Matrix element + parton shower requests (production with gridpacks)
RunIISummer20UL{X}pLHE: Matrix element (proceeds through privately produced LHE) + parton shower
request
Standard positive-definite NNPDF3.1 PDF NNLO set (with CP5 tune) is the default
325500 is also
positive definite
CP5 is the default tune (CPX tunes documented here, CP2 and CP3 tunes may be used for LO/NLO
PDFs in the matrix element)
SMP General Meeting !5 Saptaparna Bhattacharya
Version of event generators: Madgraph
• Madgraph version > 2.6.X recommended for UL production (strict inequality in version required since GEN and
SIM steps separate in UL campaign)
• Features gridpack read-only feature and the use multithreading
• Includes bias-reweighting features at LO and NLO
• Details in Olivier’s talk
• Improved cluster support
• Magraph 2.6.5 is currently in the master of the genproductions repository
• Detailed validation of both Madgraph 2.6.1 and 2.6.5 performed by the GEN Validation team (S. Bhattacharya,
J. Choi, A. Grohsjean, G. Kole) in 2018-2019
• Validation suite includes the validation of kinematic distribution, PDF weights, BSM weights (associated with
coupling reweighing or mass reweighting) at both LO and NLO
• During the course of Run II data analysis, bugs in Madgraph found by the GEN team and analyzers
• Examples of such bugs include incorrect computation of cross section (MG 5.2.3.3)
• Twiki page to collect user-based feedback of buggy samples, inconsistent settings: https://twiki.cern.ch/twiki/
bin/view/CMS/MCKnownIssues
• This page is consistently maintained and includes solutions to the reported bugs

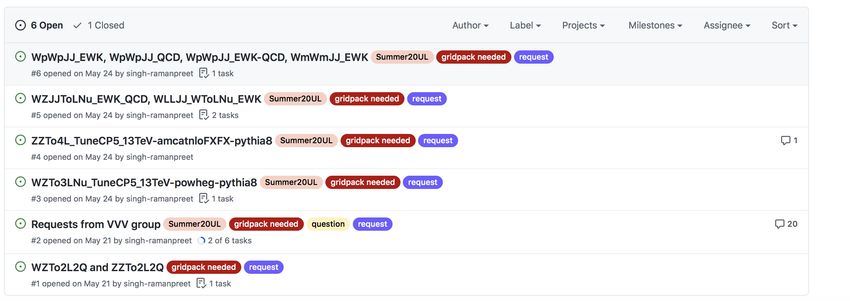

• Gridpacks for processes with known bugs have been reproduced for the UL campaign
SMP General Meeting !6 Saptaparna Bhattacharya
Version of event generators: Pythia
• Pythia version 8.2.4.0 used
• Includes the dipole recoil option essential for Vector Boson Scattering topologies

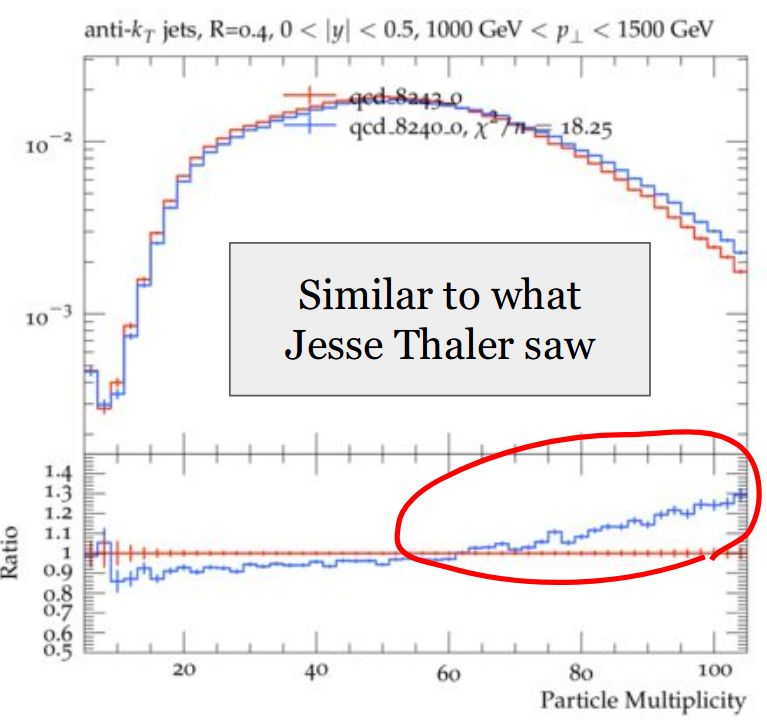

• UL campaign uses a version of Pythia where the unexpectedly large particle multiplicity bug
was fixed (detailed description on slide 29)
• To specify relevant PDF sets include (included in the default fragment)
• Parton shower weights incorporated as
SMP General Meeting !7 Saptaparna Bhattacharya
Version of event generators:
POWEG, Sherpa and HERWIG
• POWHEG V2 35.8 fb-1 (13 TeV)
• Often used in conjunction with JHU GEN for samples
dσ [pb GeV-1]
CMS e/ µ +jets Data
1 particle level Sys ⊕ stat
Stat
• Sherpa 2.2.11 + OpenLoops 2.1.0 POWHEG P8
• Available in CMSSW_11_3_0_pre4, CMSSW_10_2_26 & SHERPA CS
dp (th)
10−1 POWHEG H++
CMSSW_10_6_21; CMSSW_9_3_19; CMSSW_7_1_47
T
MG5 P8 [FxFx]
• Comparison between Sherpa (Catani-Seymour) and
other generators studied for TOP-17-002
10−2
• First look at multi jet production in Sherpa will be
discussed in the GEN meeting on July 12th
10−3
• HERWIG7
Theory
• Available since CMSSW_9_3_14 1.4
Data
• Supersedes HERWIG++ 1.2 p (t ) [GeV]
• Tuned with CH3
T h
1
• Matching at NLO for angular ordered and dipole shower
• Implementation of aMC@NLO and POWHEG-“type” 0.8
matching schemes 0 100 200 300 400 500 600 700 800
p (t ) [GeV]
T h
SMP General Meeting !8 Saptaparna Bhattacharya
UL Monte Carlo production SMP General Meeting !9 Saptaparna Bhattacharya
MC production in the wider context
Release and Production Plan until Mid 2022
Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec Jan Feb Mar Apr May Jun Jul
2021 2022
CMSSW_11_3_0 CMSSW_12_0_0 CMSSW_12_1_0 CMSSW_12_2_0 CMSSW_12_3_0 ?
● Geant4 10.7 ● DD4HEP ● Stable POG code ● Datataking release
● GPU ● Stable DPG code ● POG samples (PAG ?) ● POG and PAG samples
● PF calib. sample ● L1T: LLP; HLT: 1st menu ● Trigger: final menu
● L1 Trigger (w/o LLP)
Use final COM energy (13.6?) here
sqrt(s)=14 TeV by default
LHC beams
MWGR #6
Commissioning: pp-Collisions:
MWGR #5
MWGR #3
MWGR #4
14-16 Apr
CRUZET
9-11 Jun
● Midweek GR ● Feb: Beam commissioning
CRAFT
● Cosmics ● Apr: Ramp-up / first collisons
● LHC beams ● May: Physics
Run-3 DPG and trigger samples (CMSSW_11_X) Run-3 Trigger, DPG, POG, PAG samples (CMSSW_12_0) Run-3 analysis
Custom-Nano
(JME)
Legacy Legacy
NanoAODv9 NanoAODv10
Re-MiniAOD Re-MiniAOD
U-Legacy ReReco for B-parking
on all Legacy AOD using 12_0 or 12_1
Run-2 Legacy MC 16/17/18 (Summer20UL)
Run-2 Legacy: Run-3 Preparation Phase-2 Preparation
● Produce ~50 Billion MC events in 2021 ● GPU and Scouting ● HLT-TDR
● Re-NanoAOD (target every 3 months) ● Detectors, conditions and trigger ● Snowmass
● Custom-NanoAOD: establish for JME ● Skims
● Re-MiniAODv2 and v3 ● Code freeze and calibrations
● High-precision calibration and SF ● Analysis preparation
● Re-reco of B-parking and HIN PD in 10_6 (tbc)
XC meeting Friday 30 April [indico], follow-up XC on 9-July
https://indico.cern.ch/event/1048959/ PPD, 17 June 2021 4
SMP General Meeting !10 Saptaparna BhattacharyaGlobal CPU usage
https://dmytro.web.cern.ch/dmytro/cmsprodmon/
CPUs currently swamped with UL samples
SMP General Meeting !11 Saptaparna BhattacharyaUL event generation status by PAG
EVENTS
10G
8G
6G
4G
2G
G H V M O G E M O D S P S U P
B2 BP BT EG EX HI JM LU MU PP PP SM SU TA TO
Generated: Monday, July 5th, 2021, 00:29
Last update: Sunday, July 4th, 2021, 23:17
For input: RunIISummer20UL16GENAPV, RunIISummer20UL16wmLHEGENAPV, RunIISummer20UL16wmLHEGEN, RunIISummer20UL16pLHEGEN, RunIISummer20UL16GEN, RunIISummer20UL16pLHEGENA

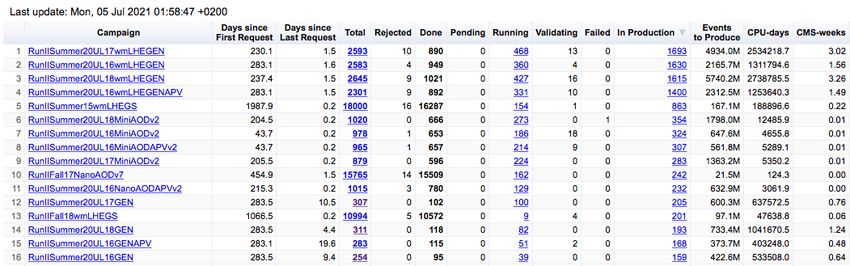

SMP General Meeting !12 Saptaparna BhattacharyaSamples in production: priority
submitted done
EVENTS
10G
Block 3 Block 2 Block 1
100M
1M
10k
Low High
100
1
0 1 2 3 4 5 6 7 8 9 0 1 2 3 5 6 7 8 9 0 1 2 4 5 6 3 4 5 6 3 0 1 2 3 4 5 6 7 8 1 2 2 0
5 00 500 500 500 500 500 500 500 500 500 501 501 501 501 501 501 501 501 501 502 502 502 502 502 502 000 000 000 000 002 000 000 000 000 000 000 000 000 000 001 001 200 000
8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 9 9 9 9 9 11 11 11 11 11 11 11 11 11 11 11 11 12
• Block 0 (130k and higher): strictly for PnR / CompOps
• Block 1: 1-2 months (saturated currently)
similar
• Block 1 (120k,121k,122k): HLT-TDR, premix libraries and
• Block 1 (113k): classical mixing - Run3Winter21 Campaigns
• Block
Generated: Thursday, July2:
1st, ~2
2021, months
08:52
• Block 1 (111k): re-NanoAOD
Last update: Thursday, July 1st, 2021, 08:24
• Block 1 (110k): High-priority requests (only via JIRA)
Block 3: > 6 months (mostly for legacy production) •
For input: RunIISummer20UL18MiniAOD, RunIISummer20UL17MiniAOD, RunIISummer20UL16MiniAOD, RunIISummer20UL16MiniAODAPV
• Block 2 (90k): UL20 PAG requests (higher priority)
• Block 3 (85k): UL20 PAG requests (lower priority)
SMP General Meeting !13 Saptaparna BhattacharyaHow to find my missing samples? SMP General Meeting !14 Saptaparna Bhattacharya
How to find your sample in production
Status of MC production can be found on McM

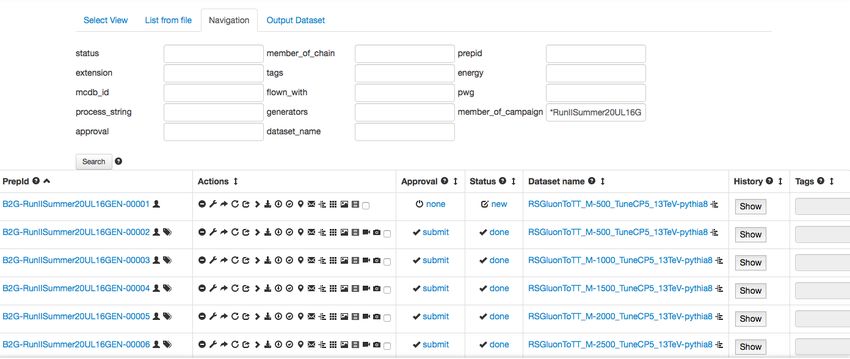

Detailed status available to indicate where the sample is in the production chain
SMP General Meeting !15 Saptaparna BhattacharyaHow to find your sample in production

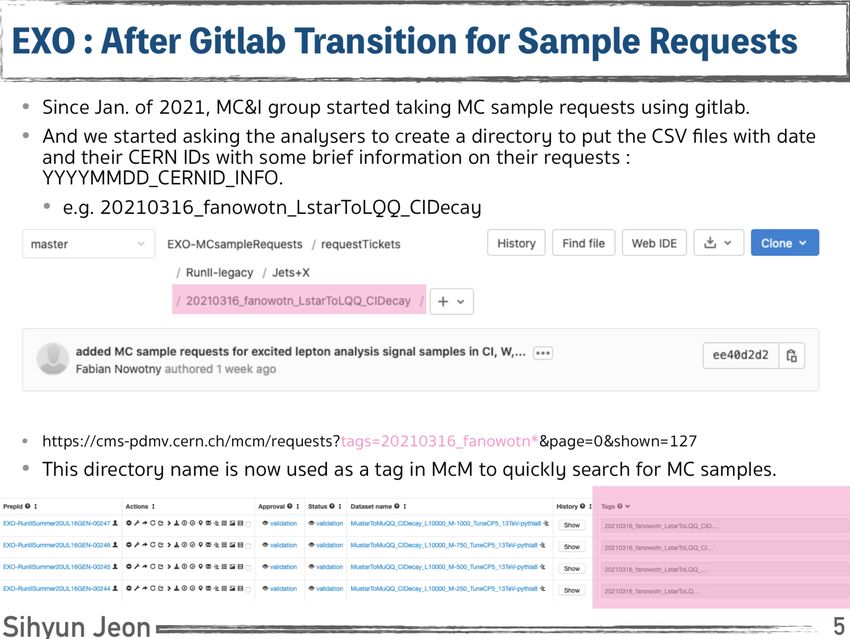

EXO MC team (Sihyun Jeon, Michael Krohn, Kai Wei, Jay Vora, Ram Krishna Sharma,
Young Wan Kim, and Matthew Decaro) have put together documentation: https://exo-
mc-and-i.gitbook.io/exo-mc-and-interpretation/others/finding-prepids-in-mcm
SMP General Meeting !16 Saptaparna BhattacharyaMonitoring using computing tools
The status can also be gathered from the cmsprodmon tools
Some inconsistencies expected with McM
McM tracks every step of production while cmsprodmon tracks requests submitted
(one-to-one correspondence for campaigns with a single step, does not hold true for
multi-step campaigns)
SMP General Meeting !17 Saptaparna BhattacharyaUL sample status tracking using GrASP
GrASP is a lite version of McM
Facilitates identification of same or similar samples requested by the PAGs
Only samples that are “tagged” (tags added by production managers) in McM can be
tracked with GrASP
SMP General Meeting !18 Saptaparna BhattacharyaUL sample status tracking using GrASP
Only SMP specific search
Clicking on RunIISummer20UL*GEN can be performed too
SMP General Meeting !19 Saptaparna BhattacharyaMC production model in CMS
Tools for interested parties
SMP General Meeting !20 Saptaparna BhattacharyaModel of MC production in CMS
In CMS, Monte Carlo production proceeds via a bottom-up approach driven by
analyzers
Production managers start the • While this is primarily how
production of samples sample production is
handled in EXO, in TOP
large fraction samples are
cloned from previous
Generator conveners critically examine
campaigns
the tickets (while looking for common
pitfalls) and if all tests pass, the
requests are approved
• Currently handled by the
Top Modeling Group
MC contacts then inject samples into McM and make
tickets and present them at the Monte Carlo
coordination meeting
Analyzers reach out to MC contacts for guidance on
sample production and in some cases MC contacts
assist with gridpack production
Analyzers identify MC samples needed for a particular analysis
SMP General Meeting !21 Saptaparna BhattacharyaToolbox for analyzers
Regular tutorials are organized by GEN on
various event generators: https://
indico.cern.ch/event/962610/
Tutorials on MG5, POWHEG, HERWIG,
Sherpa, RIVET

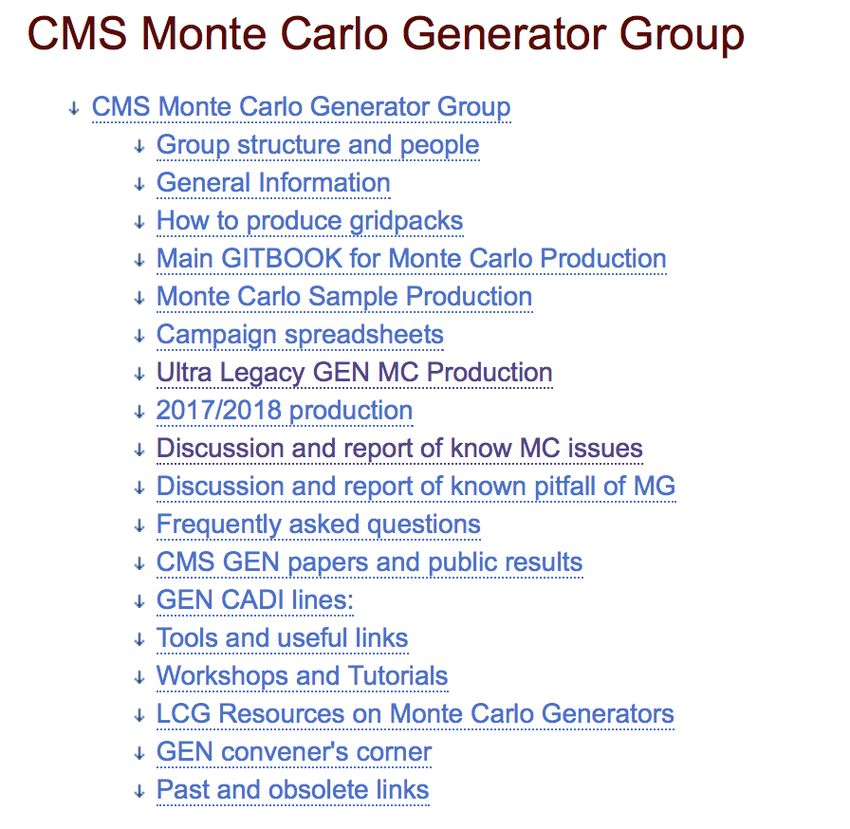

GEN Twiki maintained regularly

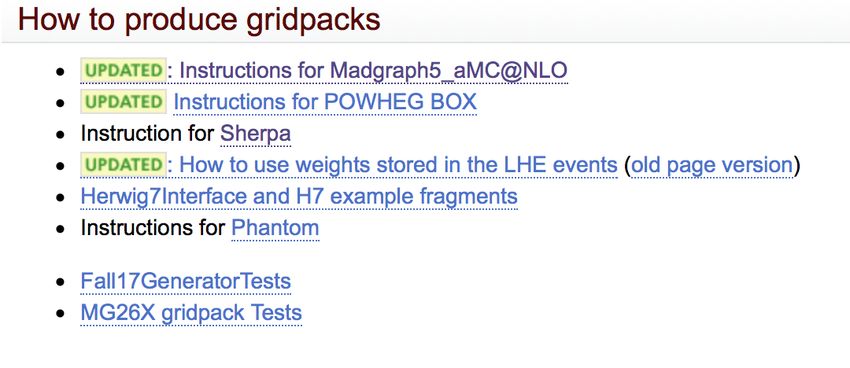

Examples of cards for LO and NLO
production included in the twiki
SMP General Meeting !22 Saptaparna BhattacharyaToolbox for analyzers
Information on MC
campaigns, monitoring
submitted samples can
be found on gitbook
SMP General Meeting !23 Saptaparna BhattacharyaAnalysis specific monitoring tools
In the VVV analysis group, where a huge number of MC samples are in use due to a large array of final states,

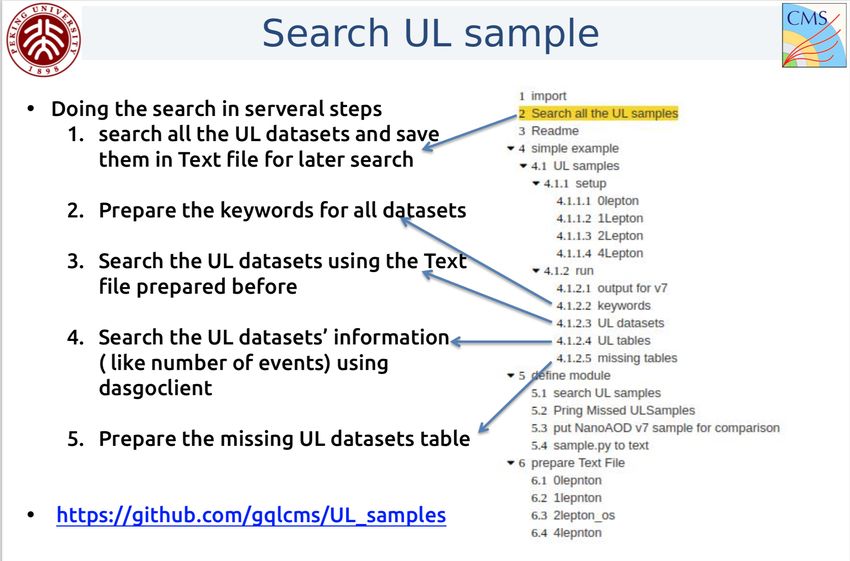

Qilong Guo has developed a UL sample monitoring framework: https://test-qiguo.web.cern.ch/test-qiguo/
VVV/UL_samples/0Lepton/16/NanoAOD_v7_2016_missied.png
SMP General Meeting !24 Saptaparna BhattacharyaToolbox for MC contacts
GEN meetings held on Mondays
at 14:00 CERN can generally be
instructive for GEN contacts
Useful information can also be
found here: https://cms-
pdmv.gitbook.io/project/
mccontact
Preferred dataset naming
conventions included in the
gitbook
Pertinent information can
be found in each google
doc that is discussed
during Monte Carlo
Coordination meetings
SMP General Meeting !25 Saptaparna BhattacharyaHow MC production is handled in SMP
Sample requests in SMP handled via GitHub issues: https://github.com/SMP-GEN-
Coordination
SMP General Meeting !26 Saptaparna BhattacharyaConclusion
Contacting GEN: best way to contact GEN is through the GEN hypernews: hn-cms-
generators@cern.ch
Contacting production managers through PREPOPS hypernews: hn-cms-prep-
ops@cern.ch
SMP MC contacts can be contacted via GitHub: https://github.com/SMP-GEN-
Coordination
Feedback?
SMP General Meeting !27 Saptaparna BhattacharyaAdditional Material SMP General Meeting !28 Saptaparna Bhattacharya
Pythia 8 bug in UL MC production
• P8 bug noticed by J. Thaler in 8.240:
◦ unexpected swap of color tags to recoiler in some branchings
◦ unexpectedly large strings can be pulled between a
central radiation and beam remnant
◦ first evaluation of impact by Steve
▪ no significant changes to jet shapes, kinematics,
properties, ....
▪ particle multiplicity per jet shifted to higher values
• patch to P8.240 from Steve already merged
◦ thanks to Sanghyun for very quick validation
• preparing with PCGT to check impact on CPx tunes
• will provide test release and MC campaign to quantify impact
and define production strategy
◦ ping relevant groups to prepare requests when ready
https://indico.cern.ch/event/920855/contributions/3905388/attachments/2059238/3454050/GEN_Summary_CMSWeek_20200617.pdf
SMP General Meeting !29 Saptaparna BhattacharyaHow MC production is handled in PAGs: EXO SMP General Meeting !30 Saptaparna Bhattacharya
To include
•GEN improvements in UL campaign:
•How to look up information on sample production and at what stage of the
production a particular sample is in
•Introduction to GrASP (for identification of similar samples requested by other
PAGS)
•A few words (or slide) dedicated to the CMS bottom-up approach when it comes
to MC needs
•toolbox for analyzers, who to contact if samples are missing etc.
•toolbox for gencontacts and common pitfalls to watch out for: like starting from the
latest version of cards when requesting analyzers to make gridpacks. Common
card settings that are usually telltale signs of an old card.
•A brief slide about pre-legacy.
SMP General Meeting !31 Saptaparna BhattacharyaYou can also read
