Lecture series Chemicals in the Environment

Treatment of Contaminated Water by
   Constructed Wetlands: an old
       Technology revisited

            Hermann J. Heipieper
     Department of Environmental Biotechnology
 Helmholtz Centre for Environmental Research – UFZ
                 Leipzig, Germany

                              Leipzig, 16 October 2012
Treatment of Contaminated Water by Constructed Wetlands: an old Technology revisited
Constructed Wetlands for
      Sewage and Wastewater treatment

                   Sewage Irrigation Fields
Were used in Europe for the treatment of domestic sewage since the
end of the 19th century and were substituted by modern waste water
             treatment plants after the second world war
Treatment of Contaminated Water by Constructed Wetlands: an old Technology revisited
Renaissance of Constructed Wetlands
Treatment of Contaminated Water by Constructed Wetlands: an old Technology revisited
Renaissance of Constructed Wetlands

                 Parking areas along the
                  German Autobahnen

                           „Hundertwasserhaus“ in
                                   Vienna
Treatment of Contaminated Water by Constructed Wetlands: an old Technology revisited
Comparison of constructed wetlands with other
              wastewater treatment technologies

       Trickling Filter               Fixed Bed Reactor

Activated Sludge Systems               Constructed Wetlands
Treatment of Contaminated Water by Constructed Wetlands: an old Technology revisited
Comparison of investment and running costs of constructed wetlands and 3
                            other wastewater treatment technologies

Costs / PE (€)
 Investment

                  4 PE       8 PE          20 PE   50 PE
                          Treatment Plant Size
                                                                                Trickling Filter
                                                                                Fixed Bed Reactor
                                                                                Activated Sludge Systems
                                                                                Constructed Wetlands
Running Costs
/ PE*year (€)

                  4 PE      8 PE          20 PE    50 PE
                         Treatment Plant Size
PE = Population equivalent or unit per capita loading is the number expressing the sum of the
pollution load produced during 24 hours by industrial facilities as the pollution load in household
sewage produced by one person. One PE unit equals to 54 grams of Biochemical Oxygen Demand
(BOD) per 24 hours
Treatment of Contaminated Water by Constructed Wetlands: an old Technology revisited
What are the chemical,
     physical and
 biological processes
 in planted systems?
Treatment of Contaminated Water by Constructed Wetlands: an old Technology revisited
Wetlands in nature and for
          wastewater treatment

    Sun                          phytovolatilization
                                    Plants

       volatilization

                                                 phytoaccumulation

                ☺☺
contaminants
                  ☺☺                               adsorption
     ☺☺         biodegradation           ☺☺         filtration
Rhizosphere                      microorganisms
Treatment of Contaminated Water by Constructed Wetlands: an old Technology revisited
Constructed Wetlands (CWs):

Role of plants
   Input of organic compounds
   and O2 into the rhizosphere
   uptake, assimilation                                                       aerobic zone
   accumulation and metabo-
   lisation of inorganic ions         Micro-          rhizodeposition products
                                      organisms
Role of soil matrix                                        SRB
                                             Corg. + SO42- → CO2 + S2-       anaerobic zone
   adsorption, ion exchange
                                                       S2- + Me2+ → MeS↓
   filtration, surface for biofilms
Role of microorganisms                                   Sediment
   degradation/transformation of organic and inorganic compounds

         In the rhizosphere, density and diversity of microorganisms is
             10 to 100-times higher than in the surrounding bulk soil
Treatment of Contaminated Water by Constructed Wetlands: an old Technology revisited
The rhizospheric effect

                  Aerobic conditions
                  S- + 2 O2 = SO42-
                    rhizospheric
                        effects

                Anaerobic conditions
                S- + metals (e.g. FeS)
                  black precipitation
CWs with their macro- and micro-gradients

          macro- and microgradients

Page 11
Mosaic structure of aerobic and anaerobic
            micro-niches in the root zones

                         Helophytes

       Electron acceptor              Electron donor
           (oxygen)             (rhizodeposition products,
                                      root exudates)

The actual parameters (rH, oxygen concentration etc.) do not reflect the
actual net flow of oxygen and rhizodeposition products!

Influencing factors:   Plant species
                       Climatic conditions (sun, temperature)
                       Water composition (organics, electron acceptors, pH,
                       buffer capacity)
                       Hydraulic conditions (stagnant or flowing pore water)
Aerenchyma of helophytes
                 e.g. Juncus effusus

                                                    biologie.tu-dresden.de

With the help of these air-filled cavities in their stems, which allows
exchange of gases between the shoot and the root, helophytes are
able to provide their submerged hypoxic roots with oxygen
Catabolic activity in the rhizosphere

                                                Plants provide the rhizosphere with organic
                                                compounds such as: alcohols, organic acids,
                                                sugars, amino acids
Courtesy of Alvaro Gonzalias

                                                • supply carbon source
                                                • stimulate bacterial degradation

                                               Transport of oxygen to the roots allows aerobic
                                               degradation

                                     Activities only with active photosynthesis
Bioremediation space

      Nutrients, electron acceptors                                     O2

                                                                 Micro/macro geography
                       Microorganisms

Adapted from: de Lorenzo V., Curr. Opin. Biotechnol. 2008. 19:579-589
Sensors for
                            T, rH, O2

Water jacket

          T=6 °C

               Magnetic
                stirrer
   Laboratory system for
   measuring the oxygen input

                                        9
1.6

              Max. Oxygen Release Rate [mg h -1 plantlet -1 ]
                                                                1.4
                                                                                     TyphaT.
                                                                                          latifolia
                                                                                             latifolia
                                                                1.2
                                                                                          J.effusus
                                                                                     Juncus  effusus
                                                                 1

                                                                0.8

                                                                0.6

                                                                0.4

                                                                0.2

                                                                 0
                                                                  -300   -200     -100         0         100

                                                                                Eh [mV]
Maximum oxygen release rates of individual experiments with several plantlets
of T. latifolia and J. effusus depending on the corresponding redox potential

  (Wießner et al. 2002. Int. J. Phytorem. 4, 1-15)
Oxic-anoxic interfaces and gradients

                             O2-gradients

Capillary fringe in soils                       Root zone of plants

                               Microbial mats
Wastewater Treatment in Constructed Wetlands

 Advantages                            Disadvantages
 • low initial costs                 • sensitive system
 • low running costs               • high demand on ground
 • provision of habitats       • seasonal fluctuations
 • construction with local   • need of biological research
   materials
Challenges of Wetland Research at the UFZ

Hygienisation
(UBZ, UBT)

Generation of
climate-relevant
gases
(ANA, BOPHY, HDG, MET)
                                                     Technology
C and S sequestration                                development
(ANA, CATHYD)                                          together
                                                       with UBZ
Removal of recalcitrants
of low concentration       UBZ - Langenreichenbach
– pharmaceuticals …
(ANA, UBZ, ECOTOX, GWS)

 Costs (Root mat filter    UBZ - Langenreichenbach

 technology)
Investigations
              in the
    CW Pilot Plants
in Leuna and Bitterfeld

  Zhongbing Chen, Eva Seeger, Mareike
    Braeckevelt, Shubiao Wu, Oksana
          Voloshchenko et al.

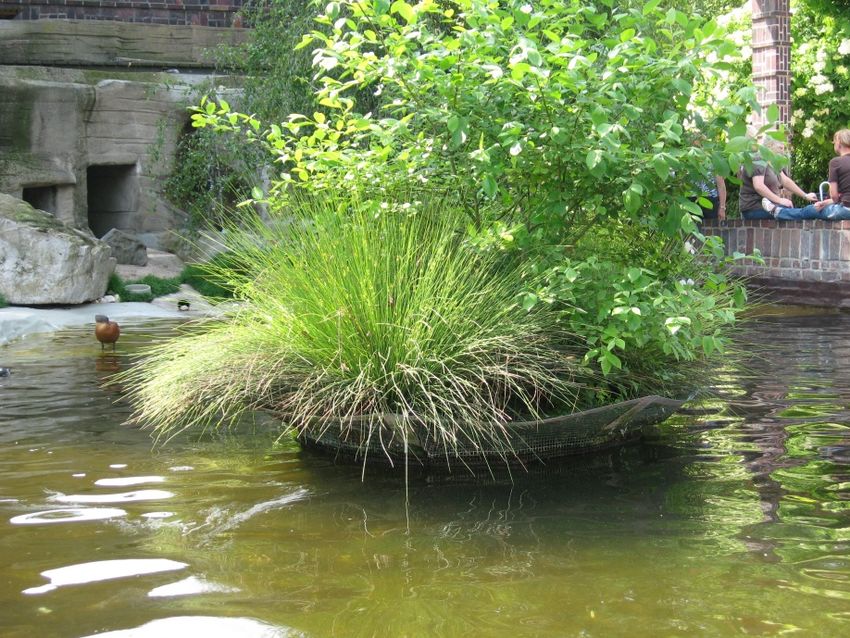

Types of ponds/constructed wetlands

                                A
                                                        D

                                B

                                                        E
                                C

A: pond with floating plants
B: pond with submersed water plants
C: pond with emersed waster plants    different intensities
D: CW, horizontal subsurface-flow     of wastewater to air
E: CW, vertical flow                   and root contact!
                                                              3

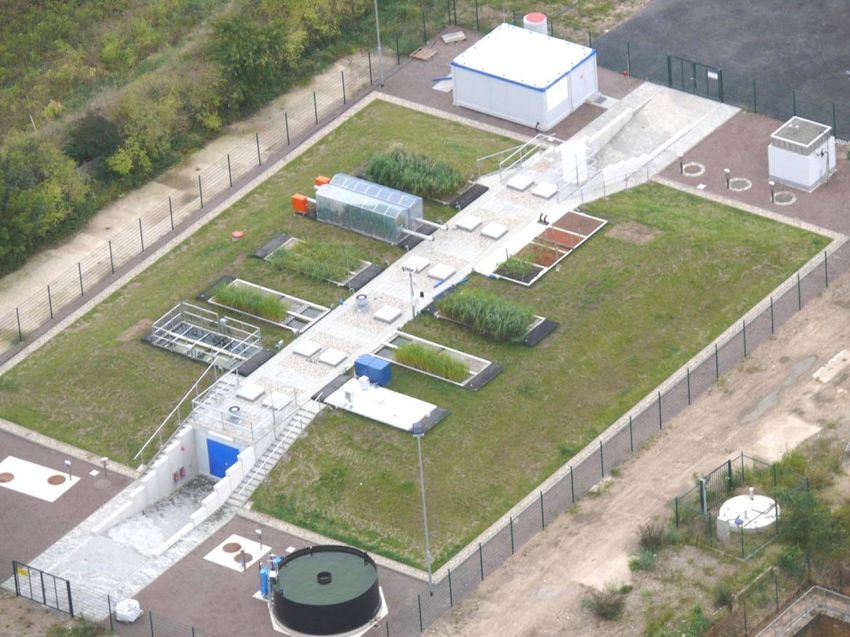

Constructed Wetlands for treatment
          contaminated groundwater in Leuna

                               phytovolatilization

                    deep                                         volatilization
                 groundwater
 unsaturated
saturated zone                                                      oxic

  anoxic                       anoxic
                                                           O2
 groundwater                                         locally
     flow                                             oxic      .
                                                                mO2 ~ 10 g m-2 d-1
Constructed Wetlands for treatment
        contaminated groundwater in Leuna

                                                            Phragmites australis

                                                        m
                                                   5
                                     M. Kästner, 2007

                                                  1.1 m

SEITE        CITE Programmtag 2010
Degradation of Benzene in the
                                                  Pilot Plant Leuna

                              A1
                                             A6
                         A2                                    A3
                  A5
                                                        A1
                                                A2
                                              A4

                25,000

                20,000
Benzol [µg/l]

                15,000
                                                                                                            •   (A1) horizontal flow planted
                10,000                                                                                          and unplanted soil filters
                 5,000                                                                                      •   Benzene degradation only
                    0
                                                                                                                occurs in the planted soil
                    2.5.09         12.5.09   22.5.09           1.6.09     11.6.09       21.6.09    1.7.09       filter
                                                           Date
                               Outflow unplanted soil filter        Outflow planted soil filter   Inflow
Mass balance

                                                              87.8%
benzene

              85.7%                  88.8%
                                                                       9.1%
                                               8.1%
                        11.2%                                          2.1%
                      3.1%                     3.1%
                                                                      24.2%
                                                                       1.0%
          43.5%      18.0%           56.5%             37.3%
MTBE

                                                                      32.3%
                     38.5%    5.0% Plant root mat
                                           38.5%
                                                       6.2%
          worst-case scenario    best-case scenario     data-based scenario

                  Microbial degradation

                                           }
                  Surface volatilization
                  Phytovolatilization
                  Accumulation,                Plant uptake
                  Phytodegradation
                                                                              Seeger et al. 2011,
                                                                              EST 45, 8467-8474
Mass balance
                                                              87.8%

benzene
              85.7%                   88.8%
                                                                       9.1%
                                                8.1%
                        11.2%                                          2.1%
                       3.1%                     3.1%
                                                                       1.0%

                                                                      24.2%
          43.5%      18.0%            56.5%            37.3%
MTBE

                                                                      32.3%
                     38.5%    5.0%             38.5%
                                                       6.2%

                                     Plant root mat
          worst-case scenario    best-case scenario     data-based scenario

                  Microbial degradation

                                           }
                  Surface volatilization
                  Phytovolatilization                                         Seeger et al. 2011,
                  Accumulation,                Plant uptake                   EST 45, 8467-8474
                  Phytodegradation
Mass balance
                                                                 87.8%

     benzene
                   85.7%                  88.8%
                                                                          9.1%
                                                   8.1%
                           11.2%                                          2.1%
                           3.1%                    3.1%
                                                                          1.0%

                                                                         24.2%
               43.5%     18.0%            56.5%           37.3%
     MTBE

                                                                         32.3%
                         38.5%    5.0%            38.5%
                                                          6.2%

                                         Plant root mat
               worst-case scenario   best-case scenario   data-based scenario
- very low emissions of biodegradable volatile compounds (benzene)
              Microbial degradation
- high emissions of hardly     degradable compounds (MTBE)

                                             }
              Surface volatilization
              Phytovolatilization
                                                                                 Seeger et al. 2011,
              Accumulation,            Plant uptake                              EST 45, 8467-8474
              Phytodegradation
Nitrogen transformation processes

CWs have favorable
conditions
for partial nitrification and
anammox

                                Canfield et al. 2010. Science. 330:192-196
Investigations
                 in the
        CW Pilot Plant
 in Langereichenbach

Otoniel Carranza, Monika Möder, Jaime Nivala,
         Luciana Schultze-Nobre et al.

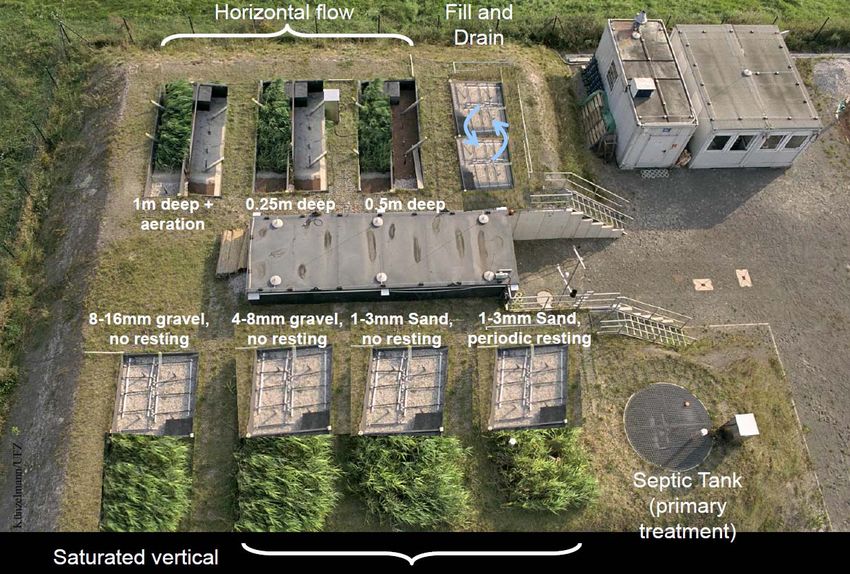

UBZ ecotechnology research facility
           “Langenreichenbach”

     Modified from Headley et al. (2011)
                                           Test TEST
                                                TES11
Selected substances
 Substance                     Use            Log        inlet         Structures
                                              Kow      (µg L-1)
Galaxolide    Personal care product           5.7     4.27 ± 4.42

Tonalide      Personal care product           5.7     0.48 ± 0.47

Triclosan     Personal care product           4.76    1.59 ± 0.46

Carbamazepi   Pharmaceutical                  2.45   11.85 ± 12.06
ne
Caffeine      Pharmaceutical                  0.16   31.77 ± 30.02

Ibuprofen     Pharmaceutical                  3.97   30.96 ± 10.13

Diclofenac    Pharmaceutical                  4.5     9.55 ± 3.47

Naproxen      Pharmaceutical                  3.18    3.17 ± 0.87

Ketoprofen    Pharmaceutical                  3.12    4.90 ± 1.06

Techn.        Phenolic estrogenic disruptor   4.5     5.52 ± 2.47
Nonylphenol   chemical
Bisphenol A   Phenolic estrogenic disruptor   3.64
                                                            Test TEST
                                                      6.63 ± 7.11
              chemical                                              TES
                                                              Carranza, O. et al. 2012
Sampling approach
                                                                            75.0 %

                                                                   50.0 %

                                                          25.0 %

                                                   12.5 %

12.5 cm
                                                                                     50.0 cm

             Modified from Hijosa-Valsero et al. (2010)
                                                                            Test TEST
                                                                                 TES
Analytical procedure
        SPE
                             Multicomponent GC-MS for the quantification of pharmaceuticals
     1. Filtration

                           Neutral
  2. pH conditioning
                             Galaxolide
                             Tonalide
  3. Extract sample          Caffeine
  through cartridge          Carbamazepine

 4. Drying cartridges      + derivatization
                             Ibuprofen
5. Elution with Methanol     Naproxen
                             Triclosan
                             Bisphenol A
                             Ketoprofen
6. Evaporation to 1 mL
                             Diclofenac
                             Techn. Nonylphenol
 7. Cleanup if needed                                                  Test TEST
                                                                     Carranza, O.TES
                                                                                  et al.132012
Overall removal efficiencies
                                            0.16
3.12
                                     3.18
3.97
                               4.5
  5.7
                            2.45
       4.5
                            4.76
3.64
                      5.7

                                        Test O.TEST
                                      Carranza, et al. 2012
                                               TES
POF III:   Controlling Chemicals’ Fate
Investigations
                 in the
    Planted Fixed Bed
        Reactors
                  PFR
    Zhongbing Chen, Arndt Wiessner, Uwe
Kappelmeyer, Paula Martinez, Luciana Schultze-
      Nobre, Vianey Marín Cevada et al.
UFZ - Phytotechnicum
Linking water and soil research:
Multiphasic process analysis in Planted Fixed-
             Bed Reactors (PFR)
Experimental tools: Macro-gradient free test system
       for simulating root-near processes

e.g.:
- Routes and interrelations of
  C, N and S transformations
- Sulphur immobilization
  stability
- Toxicity effects
- Toluene degradation

  (Planted Fixed Bed Reactor - PFR)
                                        (Kappelmeyer, U. et al. 2002)
Planted Fixed Bed
Reactors PFR
Planted Fixed Bed Reactor with Juncus effusus

                                                                        200

                                                                        150

                                 Oxygen (µg/L) / Redox Potential (mV)
                                                                        100

                                                                         50

                                                                          0

                                                                               04.07.05

                                                                                          05.07.05

                                                                                                     06.07.05

                                                                                                                07.07.05

                                                                                                                             08.07.05

                                                                                                                                               09.07.05

                                                                                                                                                          10.07.05

                                                                                                                                                                     11.07.05

                                                                                                                                                                                12.07.05
                                                                         -50

                                                                        -100

                                                                        -150

                                                                        -200
 Diurnal oscillation
  of O2 availability                                                    -250
                                                                                                                Redox [mV]              Oxygen [µg /L]

Wießner et al. 2005. Water Res. 39:248-256.
Is the catabolic activity of bacteria changing
  according to oxygen and redox fluctuations?

                                     z
                                    z z         z
                                               z z
                                           z
                                          zz          z
                                                     zz

Courtesy of Dr. Marcell Nikolausz
PFR 5 and 6 planted with Juncus effusus
     PFR 6                    PFR 5

                 Benzoate
                    +
                 Toluene
Toluene concetration (mg/L)
       27
         .A

                       0
                           5
                               10
                                    15
                                          20
                                               25
                                                     30
                                                                   35

           pr
             .
       2.
             M
              ai
                   .
                                                          R6 In
                                                          R5 In

       7.
             M
              ai
                   .
       12
         .M
                                                          R6 Out
                                                          R5 Out

           ai
                   .
       17
         .M
           ai
                   .
       22
         .M
           ai
                   .
       27
         .M

Date
           ai
                   .
        1.
             Ju
                n.

        6.
             Ju
                n.
       11
         .J
           un
              .
       16
         .J
           un
              .
                                                                        PFR 5 and 6 planted with Juncus effusus
PFR 5   Deltaproteobacteria
        "Bacteroidia"
        "Planctomycetacia"
                               Illumina sequences
        Holophagae             16S rRNA gene (V5-V6)
        Chloroplast
        Subdivision3
        Chlamydiae
        "Sphingobacteria"
        Clostridia
                               Proteobacteria (70-80%)
        Actinobacteria
        Alphaproteobacteria
                               • Most abundant phylum:
        Gammaproteobacteria
        Betaproteobacteria
                               • Some diversity differences
                               between the two PFRs
PFR 6    Deltaproteobacteria
         "Bacteroidia"
         "Planctomycetacia"
         Holophagae
         Chloroplast
         Subdivision3
         Chlamydiae
         "Sphingobacteria"
         Clostridia
         Actinobacteria
         Alphaproteobacteria
         Gammaproteobacteria
         Betaproteobacteria
Possible Target enzymes in PFR

                                  TOL (Xylene monooxygenase) Baldwin et al.2003

                                    TOD (Ring hydroxylating dioxygenase) Baldwin et al., 2003

                                                              Benzyl-succinate synthase
                                                                                         COO-
                                       PHE (Phenol hydroxylases)CHBaldwin
                                                                   3      et al., 2003
                                                                     bssA
                                                                                         CH

                                       TMO (Toluene monooxygenase) Hendrickx et al., CH
                                                                                     2006
                                                                                       2
                                                                                         COO-

                                                            BssA (Benzyl-succinate synthase)
                                                            Howard Junca, personal
                                                            communication

Adapted from Kahng et al., 2001
CATABOLIC ARRAY

                                                             Tol plasmid-like
                                                              Xylene MO
                                                             bcrA T. aromatica

                                                                Catechol-2,3-
                                                               bssA
                                                                dioxygenase G4
                                                            B. Magnetospirillum
                                                               vietnamensis     sp.
                                                               TS6
                                                             Catechol-2,3-
                                                             dioxygenase

                                                              Soluble diiron MO

Vilchez-Vargas et al. 2012. Environ. Microbiol. in press.
The catabolic array indicates that monooxygenation
seems to be the predominant mechanism for aerobic
toluene degradation in PFRs

Only in PFR 6, the anaerobic toluene degradation
seems to have a significant contribution

     How can we confirm these results?....

          ...the old fashion way: Isolation
AEROBIC ISOLATES

Pseudomonas sp. AET-5-01             CH3                 CH2OH

 Isolated from PFR5
                                   (Baldwin BR., et al., 2003)

                                  CH3             CH3

 Ralstonia pickettii AET-6-14
  Isolated from PFR6
                                                      OH
                                 (Hendrickx B., et al., 2006a,b)

                                  CH3              CH3
                                                          OH
Pseudomonas sp. AET-6-18                                   H
                                                           H
Isolated from PFR6                                        OH
                                (Hendrickx B., et al., 2006a,b)
Screening with degenerate primers using cDNA
                       as template

     Note: The cDNA was prepared using the reverse primer of each primer pair
     because with hexamer primers we couldn’t detect get any PCR product

     BssA (benzylsuccinate synthase)                  Most of the DNA bssA
                          -357                        clones were very

                          -357
                          -134

                          -134
      256
      247

                           -79
      247
      256

mV

                           -79
                           -14

                           R6
                          -14
                            87
      45

      R5
      45

                           87

                                             C+
      75
      75

                                                      closely related to

                                             C-
                                                      Magnetospirillum sp.
                                                      TS-6 (around 90 from
                                                      93 clones)

         RT+        RT-    RT+        RT-

               R5                R6          C+:T aromatica
Where do we go from here?
UBT papers:
POF III: Controlling Chemicals’ Fate (CCF)
      Towards eco-compatible chemicals:
       Managing ecosystem chemodynamics
Linking water and soil research:
    Multiphasic process analysis in Planted Fixed-
                 Bed Reactors (PFR)
Temporal Fluctuations   Microbial Adaptations                Microbial Community & Catabolism
- Metagenomics          - Lipidomics (UBT)                   - Metagenomics (UBT, HZI)
  (UBT, HZI)            - Transcript Analysis (UBT)          - Protein SIP (PROTEOM)
                                                             - 2D Isotope Fractionation (ISOBIO)
                                                             - Physiology (UBT)
                                                             - Isolation (UBT)

         Pollutant
     e.g. toluene as a
     model compound;
     pharmaceuticals,                                                        rhizospheric
    health care products                                                         effects
                                          Wießner et al. 2005.
                                          Water Res.
Investigations planned with the planted fixed-bed
reactors (PFR) within Workpackage 2 of CCF (POF3)

Degradation of a pollutants such as toluene or e.g. ibuprofen or
paracetamol in at least two PFRs.
Elucidation of the microbiota responsible for the degradation under
aerobic and anaerobic conditions.
Analysis of two-dimensional isotope fractionation in order to elucidate
the catabolic pathways.

Detection of the catabolic genes responsible for the degradation. This
will be done by metagenomic and clone library techniques as well as by
applying a catabolic gene array developed by the HZI.

The expression of these catabolic genes will be systematically analyzed
under seasonal (winter-spring-summer-autumn) as well as diurnal (day-
night) cycles.

Addition of the compounds in form of the 13C-labelled stable isotopes.
Monitoring of the development of microbial and catabolic diversity by
protein-based stable isotope probing (protein SIP).
Potential pharmaceuticals to
      be investigated

                Paracetamol

                 Ibuprofen
More technical activities
Future Research Questions for CWs

Effect of filter material additives    gravel, + activated carbon, + ferric iron
Performance efficiency of CW types     gravel filter system vs. plant mat
Integ. Contaminant massbalance         microbial degradation, plant uptake, emission
Technical approach                     for promoting removal efficiency

                   Filter material
                   additives:         Plant mat without gravel       Mass balance incl. emission
Constructed wetland efficiencies - Benzene

                   Comparison of wetland type: planted gravel filter vs. plant mat

                                                                       planted filter bed
                                                                       plant mat

                           100

                            80                                                                Plant mat without gravel
residual load [%-inflow]

                            60
       benzene

                            40

                            20

                             0

                            1.6.07   1.10.07   1.2.08   1.6.08   1.10.08   1.2.09    1.6.09

              Seeger et al. 2011, Environ. Poll. 159, 3769-3776
Nitrogen transformation processes
                               N2
                                                 NH4+

Tools:                                                    [NH2OH]
Isotope fractionation,
                                        S0
FISH, qPCR
                                                                       NO

                               N 2O

                                    NO                         NO2-
                                         NO2-                                NH4+
                                                NO3-
CWs have favorable conditions                                         H 2S
for partial nitrification and anammox                   Corg
Removal mechanisms of pathogenic germs in CWs
                 Hygienisation

                    Protozoa
                    Bacteriophages
                    Bdellevibrio
                    Plants
                                      lawrence-throughthevisor.blogspot.com

Main future applications of CWs will be the treatment of
domestic sewage in countries such as China, India,
Vietnam, etc.

                                     EU project: Water4crops
Acknowledgements
Peter Kuschk
Arndt Wiessner
Uwe Kappelmeyer
Jochen A. Müller
Matthias Kästner
Paula Martínez Lavanchy
Zhongbing Chen
Vianey Marín Cevada
Luciana Schultze Nobre
Mareike Braeckevelt
Eva M. Seeger
Alexander Al-Dahoodi
Helga Fazekas
Otoniel Carranza
Jaime Nivala
                          ANA/UBT   and many more colleagues!
Fabio Kraft
Anja Taubert
Ilja Iwlew
Claudia Pietsch
Kerstin Puschendorf
Ines Mäusezahl
Kerstin Ethner
Ivonne Nijenhuis          ISOBIO
Jana Seifert              PROTEOM
Monika Möder              ANA

                 Thank you for your attention!
You can also read
