TOWARDS AN ENERGY SECURE AND CARBON NEUTRAL CAPE TOWN - Resilient Cities Network
#03: Transitioning to Sustainable Energy
Thursday, 25 February 2021| 07.00 AM EST – 12.00PM GMT – 08.00 PM SIN/KUL time

TOWARDS AN ENERGY
SECURE AND CARBON
NEUTRAL CAPE TOWN
 LEILA MAHOMED WEIDEMAN
 DIRECTOR SUSTAINABLE ENERGY MARKETS

Note the presentations are organized for the purpose of knowledge sharing and do not necessarily represent the views of the o rganizers
                                                                                                                                          1
TOWARDS AN ENERGY SECURE AND CARBON NEUTRAL CAPE TOWN - Resilient Cities Network
CONTEXT OF CAPE TOWN

                       2
TOWARDS AN ENERGY SECURE AND CARBON NEUTRAL CAPE TOWN - Resilient Cities Network

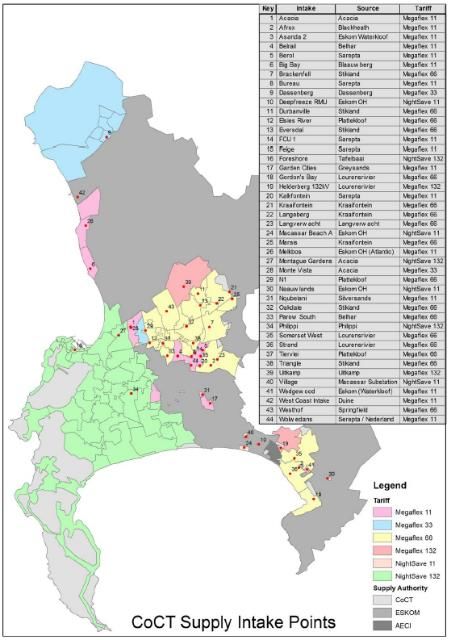

CITY OF CAPE TOWN SUPPLY AREA – GEOGRAPHIC LOCATION
                           City of Cape Town
                            Currently purchases 99%+ of its electricity from Eskom for onward sale to
                             consumers in the City’s grid.
                            44 Energy Intake points

                            10 TWh consumption per year

                               (10 x 1000 000 MWh)
                            1650 MW combined maximum demand

                           Eskom supplies approximately 25% of the metro’s electricity directly to City
                           ratepayers (grey areas)

                          THE DISTRIBUTION OF
                          CCT RESIDENTIAL ELEC.
                          DEMAND OVER TIME

                                                                                                      3
TOWARDS AN ENERGY SECURE AND CARBON NEUTRAL CAPE TOWN - Resilient Cities Network
WHY THE URGENCY?
  ENERGY INSECURITY AND
  HIGH CARBON FOOTPRINT
• National generation fleet owned and
  operated by Eskom is increasingly
  unreliable and expensive
• For a variety of reasons national
  demand regularly exceeds national
  supply
• Cape Town and the rest of the country
  are forced to shed load on a rotational
  basis
• National grid electricity cost is set to
  rise well above inflation to cover the
  cost of replacing power stations at end
  of life
• Fossil fuel (primarily coal) fired
  generation will continue to be a
  significant complement in the national
  energy mix
                                             4
TOWARDS AN ENERGY SECURE AND CARBON NEUTRAL CAPE TOWN - Resilient Cities Network
ENERGY SECURE - CARBON NEUTRAL FUTURE FOR CAPE TOWN
                                                     PLANNING AND RESEARCH:
        Energy Planning; Carbon Neutral Modelling & Planning; Feasibility Studies; Data Management; Policy Dev
                                                                                                                             Price diversity (lower
                                                                                                                              cost of bulk electricity
     1. Large Scale I PP                                                       Enhanced Embedded                              purchases)
     Procurement                                                                                   2. Small Scale I PP
                                                                               Generation
                                                                                                   procurement               Move towards
                                                                                                   3. 1-10MW City-            increased City
                                    Roll out of I ndependent                                       Owned Generation           resiliency wrt energy
                                    Power Producers (I PPs)                                        4.
TOWARDS AN ENERGY SECURE AND CARBON NEUTRAL CAPE TOWN - Resilient Cities Network

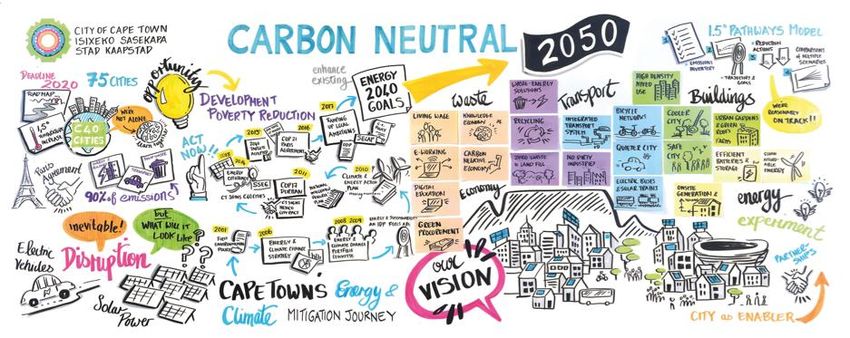

GETTING TO NET ZERO CARBON IN THE CITY OF CAPE TOWN

                                 Cape Town’s climate change vision is to become a city
•   Climate Change Strategy      that is climate resilient, resource efficient and carbon
•   Climate Change Action Plan
                                 neutral, in order to enable inclusive economic and social
•   Carbon Neutral 2050 Goal
                                 development and environmental sustainability.
TOWARDS AN ENERGY SECURE AND CARBON NEUTRAL CAPE TOWN - Resilient Cities Network
LARGE SCALE PROCUREMENT FROM IPPS
   In 2018 after several attempts since 2015 to engage
    national government to provide a S34 Determination       To   meet      energy  diversification
    (an allocation under the IRP) ito the Electricity        objectives, renewable energy targets
    Regulation Act, the City took The National Minister of
                                                             and our carbon neutral by 2050
    Energy and the National Energy Regulator to court.
                                                             commitment        would      require
   The IPP court case (heard on the 11/12 May 2020) was     significant    purchasing    and
    intended to pave the way for the purchase of at least    importation      of     renewable
    300 MW of power from IPPs by the City (and open the
                                                             electricity  from    Independent
    doors for other SA municipalities).
                                                             Power Producers (IPPs) outside of
   On the 08th of May 2020 the Ministry released draft      City boundaries.
    regulations enabling municipalities to purchase
    directly from IPPs. The new generation regulations
    came into effect on 16 October 2020.
   The requirements linked to this new regulation to
    undertake a RE IPP procurement programme at the
    local level is highly challenging and complex.
   National procedures to support this new regulation is
    still under development by the National Ministry and
    Regulator
TOWARDS AN ENERGY SECURE AND CARBON NEUTRAL CAPE TOWN - Resilient Cities Network
• Collate Bid
                                         • Finalise
                                                                        POTENTIAL LARGE SCALE IPP
                                           Schedule 9
                                           agreements                   PROGRAMME TIMELINE                                   • Complete
                                         • Non-binding                                                                         permitting
                                           agreements        PREPATORY                                                         /licensing                  The process
          Go ahead
                                         • Bid bonds
          received                                            PROCESS
                                                                                                                             • Due Diligence               plan indicates
          Legal work                   Purchase Plan &
                                                               Year 2     Implementation Agreement
                                                                          Power Purchase Agreements
                                                                                                                             • Agree
                                                                                                                               Financing and
                                                                                                                                                           that from a
                                       Bid Structure
                                                                                                     Conditions
                                                                                                                               equity terms                positive
          City internal process        RFI developed
                                                                                                     Precedent
                                                                                                                             • Binding offers              confirmation of
                                                                                                                             • PPA signed
          MREIPPP/NT???                                    Legal
                                                                                                     Signature
                                                                                                     Internal MFMA
                                                                                                                                                           our
                                  Commercial
                                  Framework
                                                           Framework
                                                                            Terms of Reference       S33 Council                                           ‘determination
                                                           Grid Access
           IPP                    Budgeting
                                                           and              Technical Specifications Decision                    Year 5-6
                                                                                                                                  CLEAN
                                                                                                                                                           ’ to first power
                                  MFMA
                                  Requirements
                                                           Wheeling         Socio-Economic
                                                                            Requirements
                                                                                                                                 ENERGY
                                                                                                                                                Ongoing…
                                                                                                                                                           could take up
                                  Communication                                           Year 3 BID                                                       to 5 years
                     Year 1   INTERNAL
                               PROCESS
                                                                                                                                                           (more if doing
                                                                                                         Tender Evaluation
                                                                                                         Tender Award
                                                                                                                                                           a PPP).
                                                                  Tender Advertisement                                                                         Bid
                                                                                                               Year 4
                                 Challenges:                                                                  EXECUTE
                                                                                                                                                               Financial Close
                                                                                        IPP Tenders regulations that govern how municipalities
                                         National Government has not yet published the procurement
Ensure intention in IDP                  can buy electricity from IPPs.                                                                                        Construction,
                                                                                                                                                               Commissioning &
and linked budget
                                        Funding for renewable energy and carbon mitigation interventions compete with other developmental                     Connect
Determination
                                         priorities in the City fiscus.
approved
                                                                                                                                                                First Power
Official Programme                      COVID has had a significant impact on funding options going forward
kickoff                                                                                                                                                        Continuous process,
                                        Funding/technical support needed for feasibility studies to design specifications of appropriate systems.             next Bid preparation

                                        Funding/technical support needed to identify innovative financial mechanisms for implementation.
TOWARDS AN ENERGY SECURE AND CARBON NEUTRAL CAPE TOWN - Resilient Cities Network
EMBEDDED IPP PROCUREMENT
The City’s Small Scale procurement programme :
   1-10MW Renewable Energy Projects developed by IPPS and located in the City network
   Totaling 100MWs
   An RFP is under development and will be advertised shortly by the City. A preferred bidder status will be granted to bidders as a
    first stage where they will be given a grid connection cost and then a final bid will be negotiated which will develop into a n SLA
    and PPA over 20 – 25-year period.
   A Pre-feasibility study has been completed where the city will be divided into regions based on grid -capacity. This will form part
    the RFP specification.
TOWARDS AN ENERGY SECURE AND CARBON NEUTRAL CAPE TOWN - Resilient Cities Network
SOLAR PV & WASTE TO ENERGY DEVELOPMENT IN THE CITY                                                                                09
The City aims to develop, build, own and operate several
(3-7) Solar PV facilities of between 5 and 10MWp each
within the municipal boundaries with an aim of having a        Atlantis
total of 50MWp installed by 2030.                              Buffer
                                                               Zone – ERF
                                                               2756RE

 The land audit & initial grid connection
   assessment suggests development of Renewable
   Energy projects on City-land & assets will be
   constrained and is unlikely to exceed 50MW –
   70MW under current conditions.
                                                              Development expected to cover a land area of 10 to 20 Hectares;
 4 Waste-to-Energy generation sites are under                Expected installation size of 7 – 10 MWp dependent on final feasibility
   assessment and development and form part of a               designs;

   Cleaner Development Mechanism Programme.                   Expected to generate enough clean electricity to power the equivalent of
                                                               4000 low to middle income households every year;

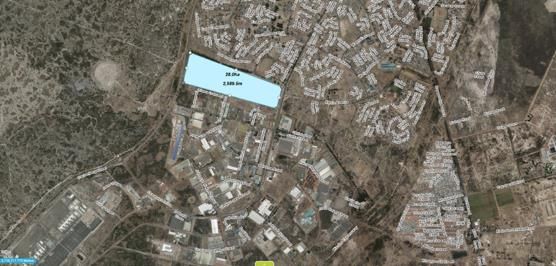

 The buffer region between Atlantis Industrial and           50 jobs expected to be created during construction phase of the project;
   Residential zones has been identified as a feasible        Increased security presence in vicinity hoped to result in decrease in rates
   site for one of the first 10MW PV installations.            of crime.
                                                              Tender awarded for EIA and Geotech assessment

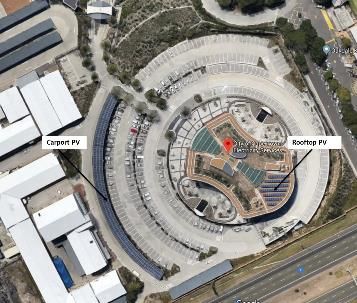

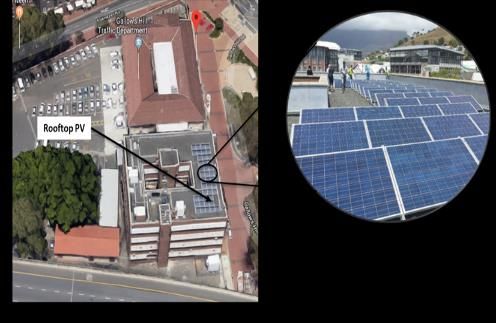

ELECTRICITY SERVICES HEAD                                   ROOFTOP SOLAR ON CITY
OFFICE (BLOEMHOF)
                                                            BUILDINGS
Description of    Three separate PV
PV System         systems installed
                  on the main office
                  building, carports
                  and the stores
                  building.
                  Office building and
                  carports first
                  installed in 2014
                  and the stores
                  rooftop PV only
                  added in late
                  2018.
Installed         260 kWp                                                         GALLOWS HILL TRAFFIC
                                                                                  DEPARTMENT (GREEN
Capacity
                                                                                  POINT) 10KWP
Construction      Staggered
Period
                                        Rooftop PV
Commissioning     First installation
Date              was on office
                  building and
                  carports
                  completed in 2014
Total Energy      1, 823 MWh
Generated Since
Installation*
Estimated         1 805 tonnes
                                                     ROYAL ASCOT ADMIN
Avoided CO2                                          BUILDING (MILNERTON)
                                                     20KWP                     OMNI FORUM MUNICIPAL
Emissions**
                                                                               BUILDING (KUILSRIVER)
                                                                                                  11 60KWP
WHEELING
 Wheeling is not about electrons                                                                                          07
Wheeling is the financial transactions representing the transportation of third party electrical energy (kWh) over
the City’s distribution network which allows for the third party supplier to sell this electrical energy to a City
customer at that customer’s point of supply.
 City of Cape Town Electricity Supply By-law of 2010
    Allows for retail wheeling of electricity through the City’s network by a third party licensed electricity supplier
      to customers within the City Supply Area.
  Tariffs approved, but not yet implemented. Tariffs are published on City’s web

  Date of implementation delayed due to back office work regarding billing requirements and SAP integration
                                 CITY/DISTRUBUTOR
         ESKOM/
         GENERATOR

                                                           THIRD PARTY SUPPLIER (RETAIL)
COCT IS A LEADER IN SSEG UPTAKE IN SOUTH AFRICA
       SSEG REGULATIONS
       1st municipality to develop
                                                                               WHAT DOES THE CITY OF CAPE TOWN ALLOW?
       SSEG guidelines in SA
                                                                                        Capacity: 1 MW       or less
       BI-DIRECTIONAL METERING
                                                                                        Note: 1 000 kVA = 1 MVA = 1 MW (for solar PV systems)
       Grid allows consumers to both
       import & export electricity                                                        Generation: Solar PV and small wind turbines

       AUTOMATED BILLING                                                            Grid-tied: Connected to the City’s electricity
                                                                                    grid (feed-in or reverse flow blocking)
       Billing system allows customers
                                                                                                               OR
       to purchase & sell electricity
                                                                                    Off-grid: physically disconnected from the grid
       SSEG TARIFFS                                                                 (i.e. no connection to electricity grid at all)

       City created a SSEG tariff to
       credit consumers for excess
                                                                                    Consumption: Supplies ‘a single customer’ – can be
       generation
                                                                                    residential, commercial or industrial & must be a net
                                                                                    consumer over a rolling 12-month period
i   Providing easy-to-use information and guidance booklets
    and videos to installers and residents

                                        Moving to an online registration process

                                                       Exploring innovative financing options (e.g. the PACE Model)

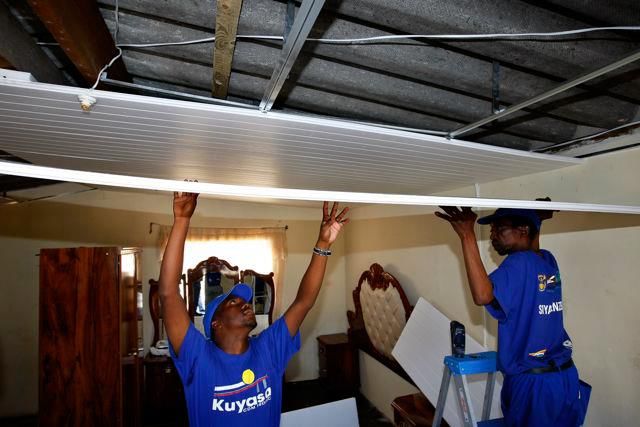

ENERGY EFFICIENCY IN MUNICIPAL OPERATIONS
 The City consumes 4% of all
   electricity used in Cape Town. As
   such, it is committed to improving
   the management of energy use in
   all its municipal operations with                                      34% of street
                                                        563 kWp               lights        155 staff trained
   the aim of improving resource
                                                      rooftop solar        retrofitted      on SmartFacility
   efficiency, reducing its carbon
   footprint and saving money.

 Between 2009/10 to 2019/20, this
   initiative saved over 231 GWh of         60                                          ±847
                                         buildings            ALL traffic lights        AMRs
   electricity, which translates to
                                        retrofitted             retrofitted           installed
   avoided emissions of 229 035
   tCO2e with a saving of R300
   million.
                                                                       Key achievements

                                                                                                                14
REACHING OUT TO OUR RESIDENTS TO CO-BUILD OUR RE-IMAGINED
ENERGY FUTURE
                                          The festival aims to spark conversations on climate action, energy efficiency, solar
                                          and wind power, water and waste efficiency, smart transport and sustainable living.
                                          This is happening through various sub-events such as:
                                              ✓   Watts In the Pot? Cooking Competition
                                              ✓   Green Maker Mania
                                              ✓   My Clean Green Home
                                              ✓   Smart City Kids
                                              ✓   Future Energy Conversations
                                           www.capetownfutureenergyfestival.co.za/

                                                                                                      ✓Smart Living Handbook
  A series of fun, family friendly virtual event experiences designed to                              ✓Smart Cooking and Home Safety Guide
   include you in your city’s future energy story. Join the movement                                  ✓Smart Office Handbook
         towards a safer, more resilient and sustainable future.                                      ✓Resource Efficiency for Development
                                                                                                                                     15
BUILDING PARTNERSHIPS AND OPPORTUNITIES WITH THE
   COMMERCIAL SECTOR
 Promotes resource efficiency in commercial
  buildings and operations.
 Forum members are owners and managers of
  commercial buildings, energy-efficiency-related
  service providers, policymakers and other
  stakeholders who share practical knowledge and
  support.
 Recently, the focus has been on disruptive
  technologies in the energy sector.

                                                      16
INNOVATIVE SUSTAINABLE ENERGY SOLUTIONS                                                     PROJECT SMART GEYSER
 In 2019, we embarked on a Request for Information (RFI) initiative to solicit the          A pilot project to convert household geysers
  industry for ideas pertaining to innovative sustainable energy solutions. A total of        into intelligent virtual batteries to reduce and
                                                                                              shift peak electricity demand
  123 submissions were received across the following categories:
      Energy trading/micro-grids/demand side management/storage;                            The aim is to offer smarter, cleaner and more
                                                                                              reliable energy to our residents and strengthen
      Energy efficiency and or renewable energy;                                             our electricity system
      Smart metering/smart grids/smart city/Internet of Things;                             A collaboration between GiZ, City of Cape Town
      Waste to energy/refuse-derived fuel;                                                   (SEM, Water & Sanitation and Facilities
                                                                                              Management) and Plentify:
      Alternate transport/biofuel/electric vehicles;
                                                                                                 100 HotBots installed in City-own houses
      Behavioural change;
                                                                                                 1 year pilot to develop business case for rollout and
      Biomass; and                                                                               identify and solve technical and operational
                                                                                                  challenges
      Other.

 The top five ideas were identified through an evaluation process and are
  currently being considered by SEM for possible implementation over the next
  three years.
  PV POWERED PUBLIC EV
  CHARGING STATIONS PILOT
   The City is actively preparing
   for the uptake of electric
   vehicles and the impact it will                                                       Bellville Civic Centre: Launched 2
   have on the grid.                                                                     December 2020 (UNIDO Funded)                           17
LOW INCOME ENERGY SERVICES
   Solar Water Heating (SWH): Previous installations include 2300 SWHs in Kuyasa (grant
    funding from the Department of Environmental Affairs NSWH Social Programme), and
    1500 SWHs in Joe Slovo (Danida Urban Environmental Management Programme funding)
    between 2008 and 2010.
   Ceilings Retrofit Program (2008-2017): The ceiling retrofit project in Cape Town has
    included to date the retrofit of 240 homes in Mamre, 2,300 homes in Kuyasa, and 8,001
    homes in various areas in Gordons Bay, Macassar, Wesbank, Sir Lowry’s Pass Village and
    Chris Nissan Village. A larger multi-community rollout will be implemented when funding
    is established.
   Solar lighting kits and wonderbags: In 2018, the City distributed 380 solar kits (each kit
    including three lights and a cell phone charging facility) and wonderbags to low-income
    households in four areas (Haasendal, Goliath, Gxagxa, Dassenberg).
   Knowledge Sharing: A LINES task team comprising of NGOs, academics and practitioners
    was hosted by the LINES team between 2014 and 2018 as a platform to share knowledge
    and promote collaboration in this field of work.
   Research: various studies over the last 3 years to understand electricity consumption in
    low income households, how to optimise the effectiveness of electricity services to these
    houses and financial modelling and risk and cost-benefit analysis of various scenarios.
    These form the basis of work going forward.
                                                                                                 18
Our Departmental Mission/Purpose

  To enhance the dignity and resilience of our
  citizens and transform our city by pioneering a
  new low-carbon energy future

                                                    19
SPEAKER SERIES
You can also read
