TIMELESS TOURING: THE LMC INNOVAN
INNOVAN MODEL YEAR 2022
                                                         EN

TIMELESS TOURING:
THE LMC INNOVAN

                    QUALITY. TRUST. AT HOME.
TIMELESS TOURING: THE LMC INNOVAN
THE NEW GENERATION CAMPER VAN
                       DISCOVER THE INNOVAN

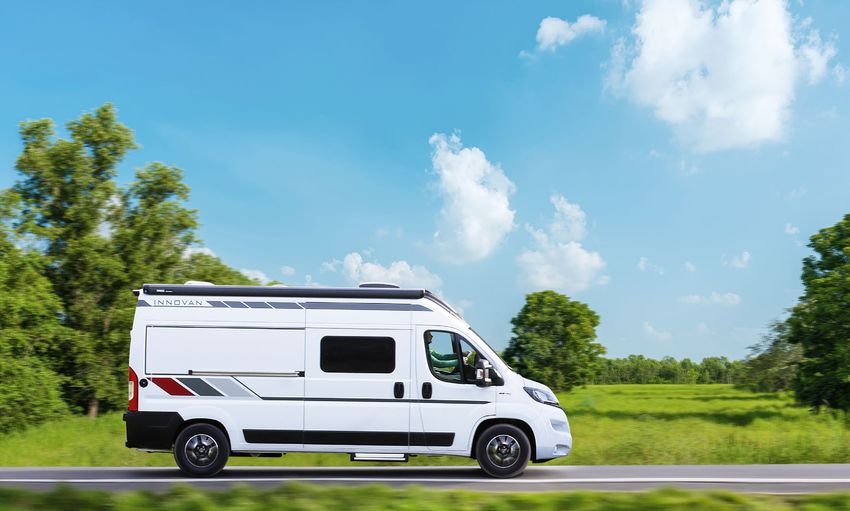

                       The Innovan is made for all those who love the
                       flexibility of being able to go on a short break or
                       on holiday at any time at the spur of a moment.
                       The most compact vehicle in the LMC product range
                       combines a dynamic performance with a sporty
                       design. The Innovan is available with three layouts.

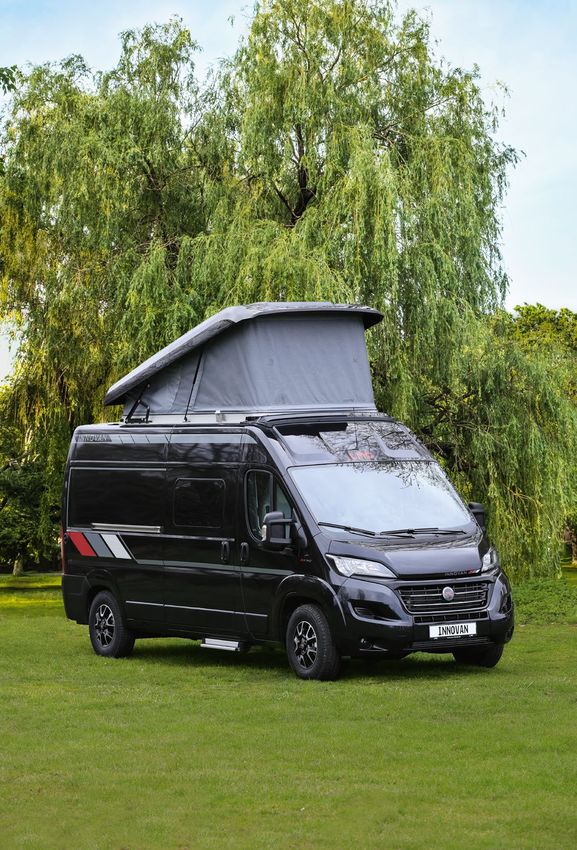

                       It offers two to five berths in a double bed, a single
                       bed or the pop-top roof. Up to four seats are
                       provided for the journey in your vacation dream.

                       With over 65 years of experience, we at LMC make
                       dream holidays come true. It is a matter of pride
                       for our highly-qualified employees to build you a
                       high-quality moving home from home that reflects
                       their expertise. Expert German engineering, coupled
ENJOY FREEDOM IN ITS   with a passion for caravanning. For the happiest
                       moments of the year. Take a seat in the Innovan.
MOST BEAUTIFUL FORM

2                                                                               3
TIMELESS TOURING: THE LMC INNOVAN
A COMBINATION OF MODERN DESIGN
    AND FUNCTIONAL FEATURES

    When our product designers came up with the Innovan,
    they consciously opted for a purist modern look and a
    clear, well-structured design language. The interior is
    mostly a contemporary taupe to add calmness to the
    space. The combination with a light oak finish invites
    you to add your own individual accents and to design
    the way you’d like to travel yourself.

    We at LMC think one step further and make every effort
    to turn each vehicle into a high-quality, practical and
    cosy mobile home from home for you. We want you to
    thoroughly enjoy your trips.

                                                                            FANTASTICALLY WELL THOUGHT
                                                                            OUT – FOR AMAZING HOLIDAYS
4                                                             Innovan 600                                5
TIMELESS TOURING: THE LMC INNOVAN
ACCENTS WITH CLEAR LINES

                                                                                                           Innovan 600                                                                          Innovan 600

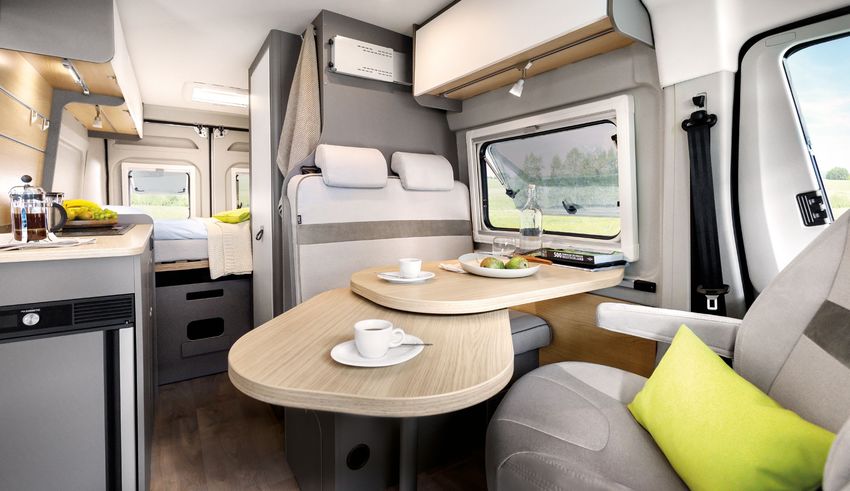

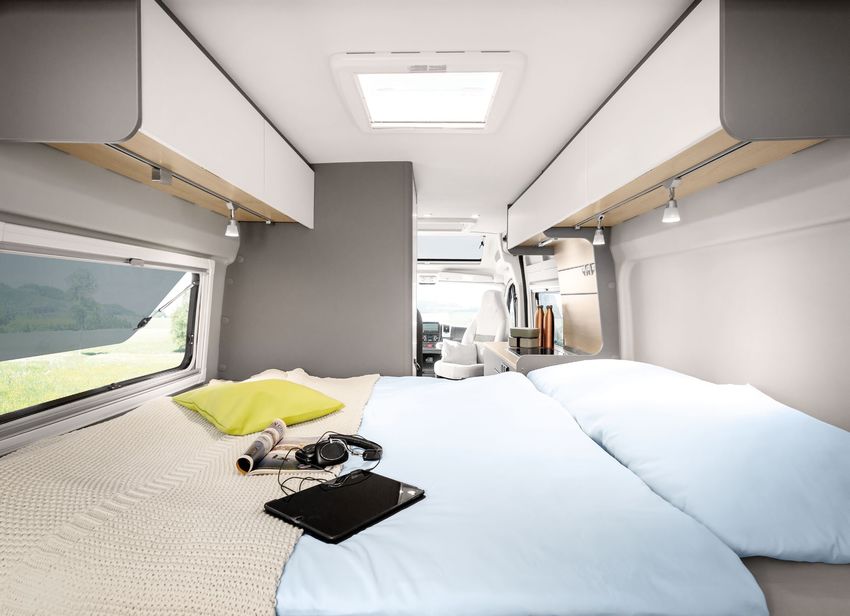

                                     THE INTERIOR HIGHLIGHTS

    A RELAXING START                 ■	The handleless design is stylish, practical and comfortable to use
                                     ■	The light oak and taupe interior is a timeless design choice
                                                                                                                         ■	The modern washroom features recessed LED spotlights and a fully-equipped
                                                                                                                            shower

    TO THE DAY                       ■	No finger marks on the surface finishes thanks to anti-fingerprint coating
                                     ■	All cupboard and locker doors close effortlessly and noiselessly thanks to a
                                                                                                                         ■	Fresh air in the washroom thanks to a roof vent with fly screen and blackout blind
                                                                                                                         ■	A swivel table extends the dinette table space
                                        soft-close mechanism                                                             ■	All seats are ergonomically shaped to support your back

6                      Innovan 600                                                                                                                                                                            7
TIMELESS TOURING: THE LMC INNOVAN
THE TASTE                  THE CLEVER WAY TO TRAVEL, COMFORTABLE AND PRACTICAL
    OF HOLIDAY

                                 1.                                                                 2.                                            3.

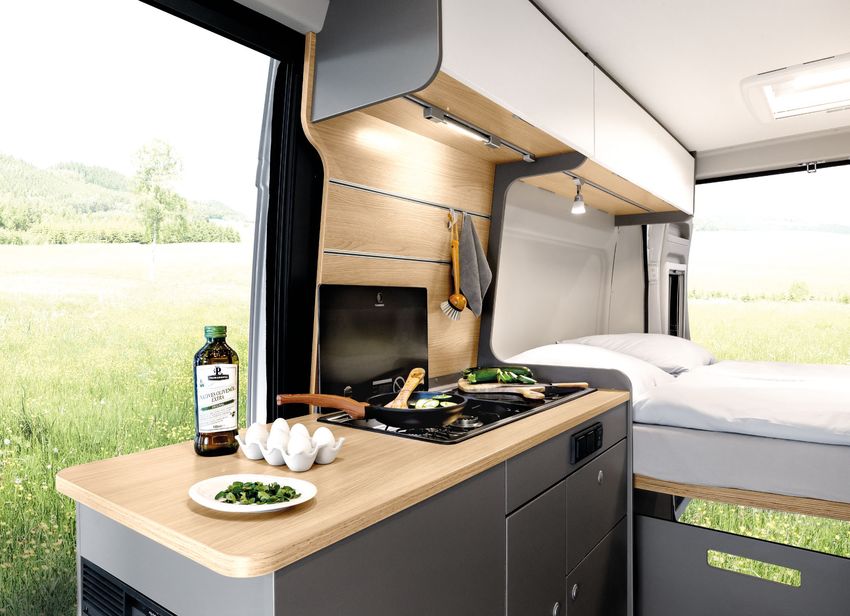

                               SMART SOLUTIONS

                               1.	Universal hook on tracks in the kitchen area keep your         ■	The 90 l grey water tank and the 100 l insulated and heated
                                   kitchen utensils in order                                         fresh water tank are mounted underneath the vehicle to
                               2.	The energy-saving compressor refrigerator offers flexible         save space, giving you more storage space inside
                                   access, can be opened from either side, is weight optimised,   ■	The power track allows you to position the lighting and
                                   takes only a few hours to cool down to the correct                the optional USB sockets flexibly inside the vehicle
                                   temperature and works reliably even in hot weather             ■	Two Isofix child seat fitting points for securing child seats
                               3.	Indirect lighting on the step in the seating area guides you   ■	Comfortable bed access thanks to a step in the partition
                                   safely in the dark                                                wall
                                                                                                  ■	Generously sized, easily accessed additional storage space
                                                                                                     underneath the dinette

8                Innovan 600                                                                                                                                         9
TIMELESS TOURING: THE LMC INNOVAN
COMPACT CAN BE THIS SPACIOUS

                                                                                                                                    8.
             3.                2.

              1.

                    5.                                                                                 6.
                                                                                                                                                       INNOVAN 540               INNOVAN 600
                                                                                                                                                       Total length mm   5,410   Total length mm           5,990
                                                                                                                                                       Total width mm    2,050   Total width mm            2,050
                                                                                                                                                       Sleeping spots    2 (5)   Sleeping spots            2 (5)

                   4.
                                                                                                            7.

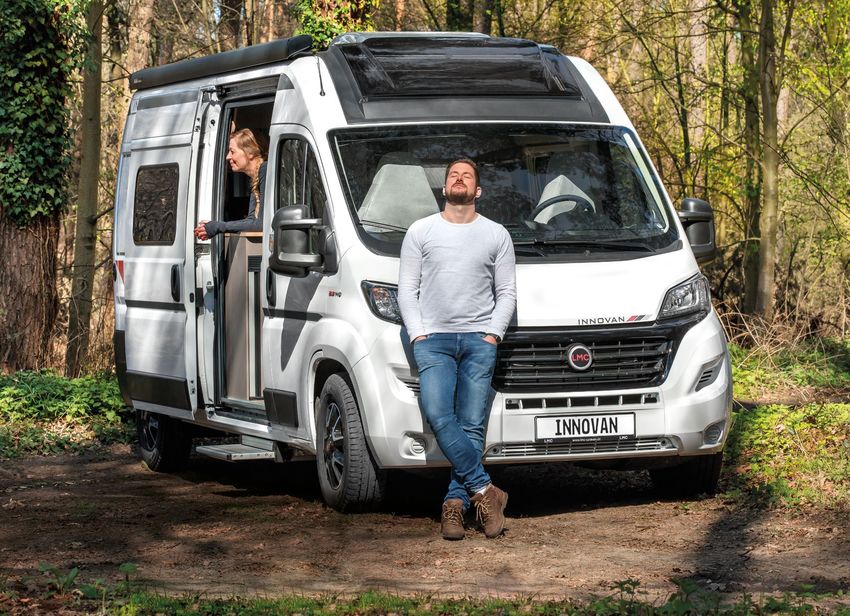

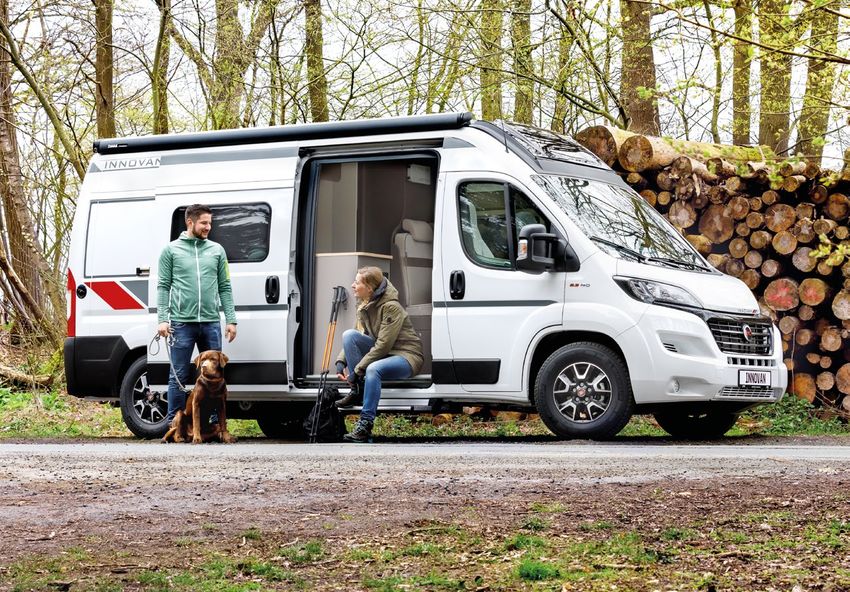

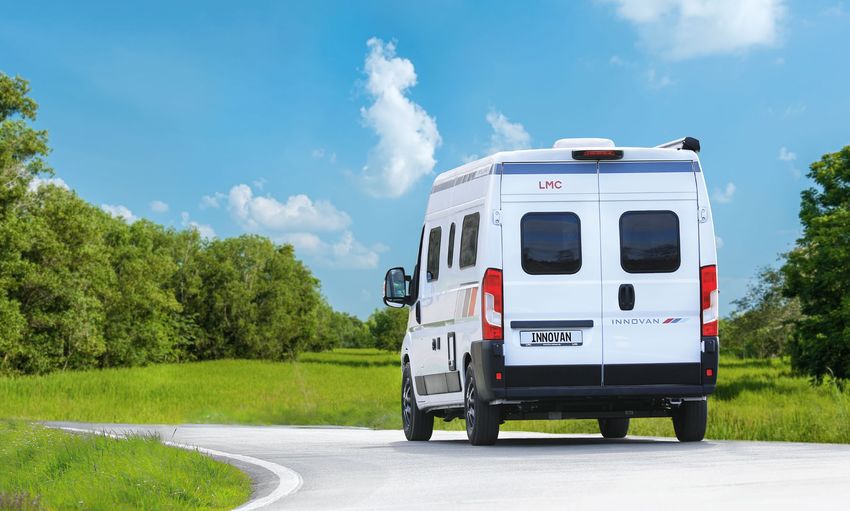

THE EXTERIOR HIGHLIGHTS   1.	The recessed framed windows provide stability, security       5.	The fly screen door keeps unwanted visitors at bay
                              and also add a sporty look                                    6.	The reduced exterior design underlines the Innovan’s
                                                                                                                                                                                 Follow this link to get
                          2.	The panoramic skylight with integrated fly screen floods          dynamic character
                                                                                                                                                                                 more information.
                              the interior with light and air                               7.	The alloy wheels underline the sporty design*
                          3. The awning creates additional space*                           8.	The rear view camera ensures a good overview when
                          4.	Comfortable access thanks to wide door step                       manoeuvring

UPHOLSTERY    FINISHES    OUTFITTING

                                       70 L       2–5    FROM                        12 YEAR
                                                        5.410 MM                    GUARANTEE
                            100 L                                                                                                                      INNOVAN 640
                                                                                                                                                       Total length mm   6,460
                                                                                                                                                       Total width mm    2,050
                                                                                                                                                       Sleeping spotss   2 (5)
                          * Depends on layout/extras

10                                                                                                                                                                                                                 11
TIMELESS TOURING: THE LMC INNOVAN
STANDARD FEATURES, PACKAGE, EXTRAS AND IMPORTANT INFORMATIONS

ENGINE VARIATION                                  EXTERIOR FEATURES                              KITCHEN                                         FIRST EDITION PACKAGE (FEP)                                          SPECIAL EXTRAS INCLUDED
■ Fiat 2,3 Multi-Jet - 88 kW (120 hp) - EURO 6   ■ Framed windows (with blinds)                ■ Two-burner cooker with                                                                                            Fiat 2,3 Multi-Jet -
                                                  ■ Framed windows (with blinds)                  Piezo electronic igniter                                                                                           103 kW (140 hp) - EURO 6                                                                                       Weight: 0 kg                         now included
                                                                                                                                                 ■     assenger airbag
                                                                                                                                                      P
CHASSIS                                             in both rear doors                           ■ 70 l compressor refrigerator                                                                                      Suspension upgrade
                                                                                                                                                 ■    LED daytime running lights
■ Daytime running lights                         ■ 400 × 400 mm roof vent above dinette           that opens either way                                                                                              from 3.5 t to 3.5 t                                                                                            Weight: 40 kg                        now included
                                                                                                                                                 ■     Gloss black radiator grille
■ Cab finish white/standard decals               ■ Roof vent with integrated                   ■ Suspension rail (except 540)                                                                                      Insulated and heated
                                                                                                                                                 ■      Electric adjustable and heatable wing mirrors
■ Chassis colour white                             fly screen roller blind                                                                                                                                           grey water tank                                                                                                Weight: 10,5 kg                      now included
                                                                                                                                                 ■       Cruise control
■ 75 l diesel tank                                                                              HEATING                                                                                                              TV-ready,
                                                                                                                                                 ■        Radio-ready including speakers in the cab
                                                                                                                                                                                                                      including TV bracket                                                                                           Weight: 3 kg                         now included
■ 15“ steel wheels including trims               INTERIOR FEATURES                              ■ Combi 4 gas heating system                             and DAB roof aerial
■ Power steering                                 ■ Isofix fitting points for two child seats                                                   ■         Automatic air conditioning in cab
■ Added comfort seat covers in the cab           ■ Storage shelf behind the cooker             WATER SUPPLY                                    ■          Captain seat with two armrests
■ 19 l AdBlue tank                                 (except 540)                                 ■ 100 l water tank                             ■           Leather steering wheel and gear knob
■ Breakdown kit („Fix & Go“)                     ■ Gpacious drawers with                       ■ 90 l grey water tank                         ■            Window in the washroom
■ Electric windows                                 soft-stop mechanism                                                                          ■             Clothes rail in the wet room
■ Fiat manual air conditioning                     in the kitchen area                          GAS / ELECTRICITY                               ■              Pleated blinds in cab
                                                                                                                                                 ■   Shower equipment: pull out hand held
■ Onboard computer                               ■ Ergonomically arranged kitchen              ■ Gas bottle crate (for 2 x 11 kg bottles)
                                                                                                                                                      shower head, shower curtain track,
■ ASR and EPS including hill holder                with generously sized worktop                ■ Recessed LED spotlights in the washroom
                                                                                                                                                      shower head bracket
■ ABS                                            ■ Generously sized shelves                    ■ Gas shut-off valves easily accessible                                                                             IMPORTANT INFORMATIONS
                                                                                                                                                 ■               700 x 500 mm Midi Heki roof light
■ Covered seat bases in cab                      ■ Fixed sink                                    and centrally positioned                                                                                           The “mass in running order” (MRO) is defined by VO (EU) 1230 / 2012. It refers to the basic version including basic equipment (75 kg for driver, filled diesel tank, filled water tank in driving position with
                                                                                                                                                                  above dinette
■ Driver/passenger swivel seats                  ■ Spacious wardrobe (except 540)              ■ Sockets 1 x 12 V, 3 x 230 V, 1 x twin USB                                                                         20 liters, gas in an aluminum bottle to 100 % and electrical connection cable). The “mass in running order” as well as the possible payload and the number of passengers may change due to different
                                                                                                                                                 ■                Wide access step                                   motorization or equipment version and by the installation of special equipment.
■ Drinks holder                                  ■ Storage compartments in the                 ■ External 230 V CEE socket                    ■                 Fly screen door                                   The technically permissible total mass and the permissible axle loads must not be exceeded. If you order your vehicle with additional equipment and / or travel with several people, you should check whether
■ Driver and passenger seat armrests               rear doors and the sliding door                with automatic circuit breaker                ■                  Swivel table for dinette table extension         it makes sense to increase the weight of the vehicle.

                                                  ■ Generous storage spaces and                 ■ Electric charger for habitation                                                                                   Some of the vehicles are shown with optional extras that are included in the respective valid price list and are available at an extra charge. The pictured decoration is not part of the LMC scope of delivery.
                                                                                                                                                 ■                   Black headlight rims                            All accessory prices are for factory installation. Additional costs must be expected for subsequent installations. Any change to the ‚factory condition‘ of your vehicle can lead to an impairment of the driving
                                                    compartments throughout                        and vehicle battery 12 V / 18 A               ■                    Original Fiat 16“ alloy wheels                 and road safety. Accessories recommended by us, original spare parts are specially developed for your vehicle. Accessories, attachments accessories, add-ons, conversions or installation parts not approved
                                                                                                                                                                                                                      by LMC can cause damage to the vehicle and impair road safety. Even if an expert opinion, a parts approval or a type approval is available for these parts, there is no presumption of the proper condition of
                                                  ■ Ergonomically shaped seats                  ■ Control panel shows all fill                 ■                     Awning                                        the product. Please understand that no liability can be accepted for damage caused by products not approved by LMC or by non-permitted modifications.
                                                    for more comfort                               and battery levels                            ■                      Skyroof in T-hood                            The information on the scope of delivery, appearance, performance, dimensions and weights of the vehicles correspond to the knowledge available at the time of printing - deviations within the factory
                                                  ■ Rear bed base partially slatted             ■ Powerful maintenance-free AGM                ■                       90 l fuel tank                              tolerances (+/- 5 % max.) are possible and permissible. Weight specifications correspond to the requirements of EC Directive 661/2009 and VO (EU) 1230/2012. Structure or colour deviations may be due to
                                                                                                                                                                                                                      printing or lighting technology, but also to the nature of the materials used and are therefore also reserved.The specifications correspond to the European homologation regulations; these may change until
                                                  ■ High-quality mattresses for increased         habitation battery (95 Ah)                    ■                        Bumper painted in the vehicle colour       the vehicle is purchased or delivered. Your LMC dealer will be happy to inform you about any changes and the standard scope of delivery.

                                                    sleeping comfort                               including charger (18 A)                      ■                         Traction+                                 The tightness guarantee conditions of LMC Caravan GmbH & Co.KG apply.
                                                                                                                                                 ■                          Steering wheel with controls for         This brochure contains the status at the time of going to press. Despite checking the contents, printing errors cannot be ruled out; errors excepted.
                                                  ■ Dinette base with integrated storage        ■ Individually adjustable LED reading lights                                                                        The copyright is owned by LMC Caravan GmbH & Co.KG. Valid from: April 2021
                                                                                                                                                                             radio (multifunctional steering wheel)
                                                    compartment                                  ■ Flexible lighting track
                                                                                                                                                 ■                           Rear view camera
                                                  ■ Partition wall includes step for access
                                                                                                                                                 ■                            Dashboard with aluminum applications
                                                    to rear double bed
                                                                                                                                                 ■                             Wooden shower inlay

                                                                                                                                                 Package weight 95 kg                                                 FOOTNOTES
                                                                                                                                                                                                                      1) General information on the permissible number of persons: With the installation of factory-fitted chassis options, special equipment and packages, the permissible number of persons may be reduced
                                                                                                                                                                                                                         or an additional load may be required.
                                                                                                                                                                                                                      2) For MAXI chassis - 3,000 kg / 750 kg.
                                                                                                                                                                                                                      3) Capacity of the fresh water tank according to VO (EU) 230 / 2012 taking into account the driving limit (valve on the fresh water tank): 20 litres (driving fill).

12                                                                                                                                                                                                                                                                                                                                                                                                                                      13
TIMELESS TOURING: THE LMC INNOVAN
TECHNICAL DATA

                                                       540               600               640

Chassis                                                Fiat Ducato       Fiat Ducato       Fiat Ducato
Basic engine version                                   2,3 l Multijet    2,3 l Multijet    2,3 l Multijet
Power output kW (hp)                                   88 (120)          88 (120)          88 (120)
Emissions standard                                     Euro 6d-TEMP      Euro 6d-TEMP      Euro 6d-TEMP
Tyres                                                  215/70 R 15 C     215/70 R 15 C     215/70 R 15 C
Overall length / overall width / overall height (cm)   541 / 205 / 265   599 / 205 / 265   636 / 205 / 265
Internal height (cm)                                   190               190               190
Wheel base (cm)                                        345               404               404
Weight in drivable condition (kg)                      2630              2700              2.790
Payload (kg)                                           670               600               510
Maximum permissible total weight (kg)                  3300              3300              3.500
Maximum towing capacity (kg)        2)
                                                       2500              2500              2.500
Max. number of passengers 1)                           4                 4                 4

Rear bed dimensions (cm)                               195 x 133 - 130   197 x 157 - 150   191 x 74 / 182 x 85 / 191 - 182 x 197 (optional)
Middle bed dimensions (cm)                             185 x 87 - 63     185 x 105 - 88    185 x 105 - 88
Pop-top roof bed dimensions (optional) (cm)            234 x 133         234 x 133         234 x 133
Beds minimum/maximum                                   2-5               2-5               2-5

Refrigerator (l)                                       70                70                70
Fresh water tank (l) 3)                                100               100               100
Fresh water tank on the road   3)
                                                       20                20                20
Grey water tank (l) 3)                                 90                90                90
12 V socket                                            1                 1                 1
230 V socket                                           3                 3                 3
USP sockets                                            2                 2                 2

14                                                                                                                                            15
TIMELESS TOURING: THE LMC INNOVAN
BORN FROM A PASSION FOR CARAVANNING                        WE MAKE IT EASY FOR YOU

     Simply taking off and enjoying the most wonderful          Our engineers rely on well-designed and light-weight         “At LMC, we do our best every day, because
                                                                                                                             we work with advanced production tech-
     moments of the year. With a vehicle from LMC, you          furniture and a carefully considered mix of materials
                                                                                                                             nologies, a lean management structure and
     can look forward to doing precisely that whenever          and special light engineered components to guarantee         highly motivated staff.”
     you want.                                                  that you benefit from a generous user payload.
                                                                                                                             BODO DILLER, Brand Manager LMC

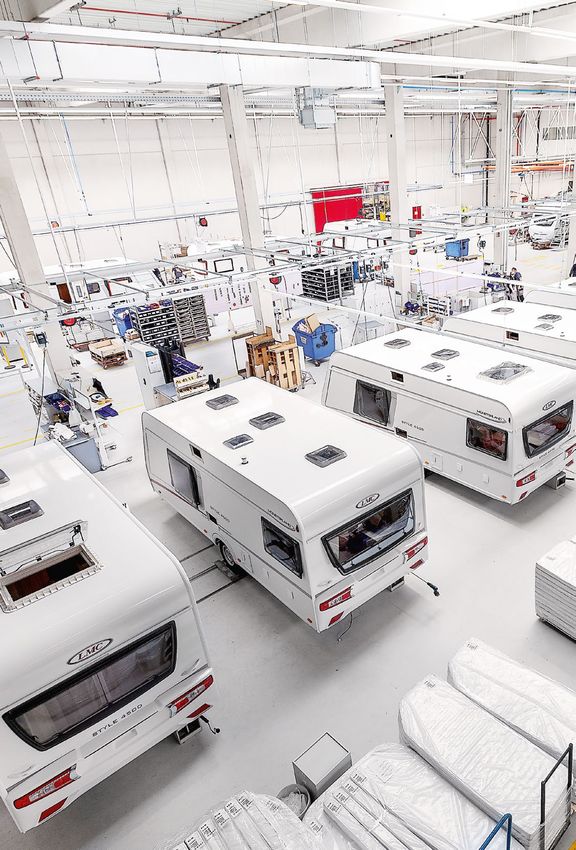

     At its production site in Sassenberg, Germany, the         Across all of our model ranges, we create clear structures
     creative caravan manufacturer builds modern, future-       and provide transparent information to make it as easy
     proof and light engineered caravans, motorhomes            as possible for you to choose the LMC that’s right for
     and camper vans with well thought out layout options       you.
     for all requirements, and plenty of typical German
     engineering features. Our highly-qualified staff know
     exactly what matters. As passionate campers, we
     make every effort to ensure that our vehicles are so
     well designed in terms of quality, safety and comfort
     that they meet our own high standards. To make
     sure that all you have to worry about is rest and
     relaxation, we include smart technology and functional
     solutions both inside and out. All LMC components are
     designed to be durable and to offer long-lasting value –
     which makes your investment into an LMC a safe bet.

16                                                                                                                                                                        17

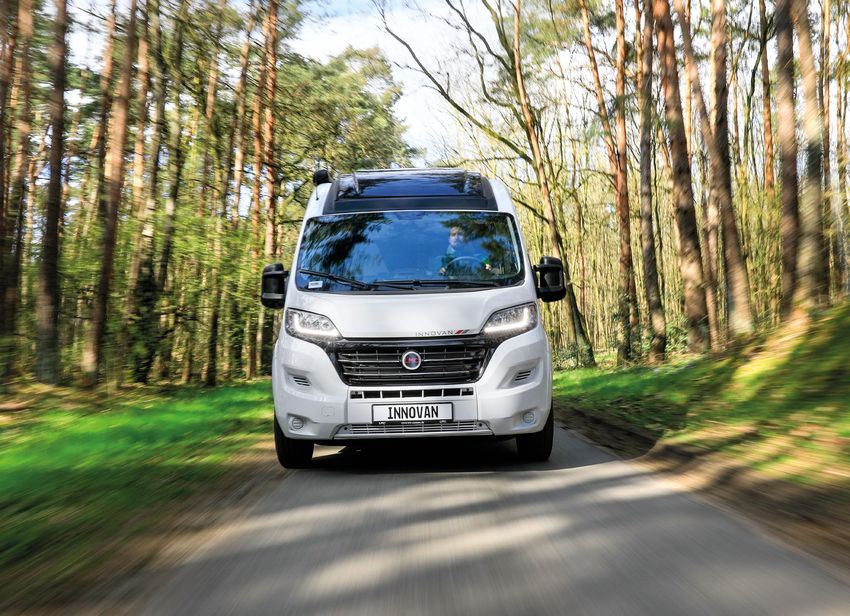

TIMELESS TOURING: THE LMC INNOVAN
QUALITY YOU CAN DEFINITELY RELY ON

     LMC stands for outstanding quality, reliability and long-lasting value. We use
     advanced production technologies to be able to guarantee all three. For added
     security, we give you our unique quality promise: a twelve-year ingress warranty.*

     See our homepage www.lmc-caravan.de/en for more information, or ask your retailer.

     * All LMC caravans come with a twelve-year water ingress warranty, provided the vehicle is serviced annually by an official LMC partner (service charges apply).

18                                                                                                                                                                       19
SEE YOU!

LMC CARAVAN GMBH & CO. KG Rudolf-Diesel-Straße 4 D-48336 Sassenberg
T +49 (0) 2583 / 27-0 E info@lmc-caravan.de H www.lmc-caravan.de/en
Münster (Westf.): HRB 9914 USt-IdNr. 126 733 941 General Managers: Ulrich Schoppmann, René Ricken   QUALITY. TRUST. AT HOME.
You can also read
