OPEN The urgency of resuming disrupted
dog rabies vaccination campaigns:
a modeling and cost‑effectiveness
analysis
Amber Kunkel1,2*, Seonghye Jeon3, Haim C. Joseph4, Pierre Dilius4, Kelly Crowdis5,
Martin I. Meltzer3 & Ryan Wallace1
Dog vaccination is a cost-effective approach to preventing human rabies deaths. In Haiti, the last
nation-wide dog vaccination campaign occurred in 2018. We estimated the number of human lives
that could be saved by resuming dog vaccination in 2021 compared to 2022 and compared the
cost-effectiveness of these two scenarios. We modified a previously published rabies transmission
and economic model to estimate trends in dog and human rabies cases in Haiti from 2005 to 2025,
with varying assumptions about when dog vaccinations resume. We compared model outputs to
surveillance data on human rabies deaths from 2005 to 2020 and animal rabies cases from 2018 to
2020. Model predictions and surveillance data both suggest a 5- to 8-fold increase in animal rabies
cases occurred in Haiti’s capital city between Fall 2019 and Fall 2020. Restarting dog vaccination in
Haiti in 2021 compared to 2022 could save 285 human lives and prevent 6541 human rabies exposures
over a five-year period. It may also decrease program costs due to reduced need for human post-
exposure prophylaxis. These results show that interruptions in dog vaccination campaigns before
elimination is achieved can lead to significant human rabies epidemics if not promptly resumed.
Rabies is a neglected disease with a nearly 100% fatality rate. Dog rabies vaccination is a cost-effective strategy
to prevent human rabies exposures and deaths1–3. However, vaccination campaigns need to be repeated annually
with at least 70% coverage among the susceptible dog population until elimination is achieved4–7. Vaccination
of humans with exposure to suspected rabid animals (post-exposure prophylaxis, or PEP) is also effective, but
it is more expensive than dog vaccination and requires robust surveillance and integration between animal and
human healthcare s ystems8,9.
Haiti is one of only four countries in the Western Hemisphere that reports dog-mediated human rabies
deaths. Expansions in Haiti’s dog vaccination programs, community bite surveillance systems, and PEP access
have increased rabies case detection in dogs 18-fold10 and decreased human rabies deaths by over 50%11 since
2013. In 2019, Haiti reported just two human rabies deaths. However, this progress is now threatened. In 2019
nearly 500,000 dogs were vaccinated against rabies, but funding limitations halted the campaign before reaching
Ouest Department, which is home to Haiti’s capital Port-au-Prince and nearly four million inhabitants. Haiti’s
2020 dog vaccination campaign was cancelled and funds were diverted to support the COVID-19 response; funds
for 2021 have not yet been identified. Similar COVID-19 related postponements to dog vaccination campaigns
have also been reported in other c ountries12.
The cessation of dog rabies vaccination programs raises concerns that Haiti could soon be facing a major
dog-mediated rabies epidemic. We compared animal rabies surveillance data with model-predicted trends in
dog rabies cases from 2018 to 2020 in Haiti. We then compared the human lives potentially saved and the cost-
effectiveness of restarting dog vaccination programs in either 2021 or 2022. These results show the impact that
1
Poxvirus and Rabies Branch, Division of High‑Consequence Pathogens and Pathology, National Center for
Emerging & Zoonotic Infectious Diseases, Centers for Disease Control and Prevention, Atlanta, GA, USA. 2Epidemic
Intelligence Service, Center for Surveillance, Epidemiology and Laboratory Services, Centers for Disease Control
and Prevention, Atlanta, GA, USA. 3Emergency Preparedness and Response Branch, Division of Preparedness
and Emerging Infections, National Center for Emerging & Zoonotic Infectious Diseases, Centers for Disease
Control and Prevention, Atlanta, GA, USA. 4Ministry of Agriculture, Rural Development, and Natural Resources,
Port‑au‑Prince, Haiti. 5Christian Veterinary Mission, Port‑au‑Prince, Haiti. *email: akunkel@cdc.gov
Scientific Reports | (2021) 11:12476 | https://doi.org/10.1038/s41598-021-92067-5 1
Vol.:(0123456789)www.nature.com/scientificreports/
even short-term (2018–2021) interruptions to dog vaccination campaigns could have on human rabies deaths
and progress towards elimination goals.
Methods
We modified the previously published RabiesEcon model to estimate dog and human rabies deaths in Haiti
from 2021 to 2025 under several vaccination program scenarios (see “Supplemental data”). We obtained input
values and ranges from the literature and unpublished program data from Haiti. We adjusted the most uncertain
parameter values within these ranges so that model estimates would match approximate trends in human rabies
deaths reported for 2005–2020 (Supplementary Appendix Tables S1 and S2). We assumed that 10% of human
rabies deaths in Haiti are detected through current surveillance systems, a value that is consistent with estimates
for other lower and middle income countries; even in upper income countries, approximately 50% of human
rabies cases may be m isdiagnosed13–17.
To further validate the model, we compared trends in model-estimated dog rabies cases from July
2018-November 2020 to animal rabies surveillance data. We then used the model to estimate future human
rabies deaths for the period 2021–2025, assuming dog vaccination programs are resumed in either 2021, 2022,
or never resumed. We estimated the cost-effectiveness of these vaccination scenarios compared to a baseline
scenario of no dog vaccination and no PEP for 2021–2025.
Model. RabiesEcon is a spreadsheet-based tool that models the spread of rabies among dogs using a sus-
ceptible, exposed (via bites from infected dogs), infected/ infectious, and removed/immune (SEIR) framework.
Humans become exposed through the bite of a rabid dog. Exposed humans who do not receive PEP are at risk
of developing rabies, with a mortality rate of 100%.
The original model was modified to allow for year-to-year changes in dog vaccination coverage. Vaccination
campaigns were assumed to occur in the middle of each year and last for 10 weeks, with coverages defined by
historical data and intervention scenarios.
We ran separate versions of the model for Ouest Department and the rest of Haiti. We added the results
to create country-wide estimates and did not address the potential movement of dogs between regions. Ouest
Department is the home of Port-au-Prince, the capital city, and more than one third of Haiti’s inhabitants. How-
ever, funding limitations prevented its inclusion in Haiti’s 2019 dog vaccination campaign; the last vaccination
campaign in Ouest occurred in early 2018.
We used a time horizon of 5 years (2021–2025) for all analyses. We computed total program costs for three
intervention scenarios with PEP coverage maintained at current levels: resuming dog vaccination in 2021, resum-
ing dog vaccination in 2022, and never resuming dog vaccination. We compared these to a “no intervention”
scenario with no dog vaccination and no PEP. The 5-year average cost-effectiveness ratios per human death
averted were calculated for each scenario by dividing total program costs by the reductions in human rabies
deaths compared to the no intervention scenario.
Data and input values. We used the same values of most rabies natural history parameters as previously
published versions of the model (Supplementary Appendix Table S1). However, we assumed a decay of immu-
nity after dog vaccination of 0.0096 per week, equivalent to an average duration of immunity of 2 years fol-
lowing primary vaccination3,18,19. To avoid artificially inflating vaccination coverage, we assumed vaccination
campaigns stop once the total proportion of immunized dogs (either newly vaccinated or previously vaccinated
and still immune) reaches the desired vaccination coverage. Essentially, we assumed vaccination campaigns
reach all previously vaccinated dogs first before reaching susceptible dogs with no history of vaccination. Vac-
cination coverage for 2005–2020 was based on data from past vaccination campaigns (Supplementary Appendix
Table S3). Once vaccination campaigns are restarted, we assume that they will recur annually with 70% coverage
(a target met or exceeded in the 2018 and 2019 campaigns).
Haiti-specific input values were based on both published and unpublished data (Supplementary Appendix
Table S1). We removed very low-density areas from population density estimates, as such regions may be unable
to sustain rabies transmission cycles in the absence of continued importation (see “Supplementary Appendix”
for details). We assumed 85% PEP coverage in Ouest Department and 80% coverage outside of Ouest11. We
also assumed that five total people are treated with PEP for each truly exposed case (Supplementary Appendix
Table S1).
The total program costs for each scenario were calculated by adding the costs of community bite surveillance
(such as lab tests and bite investigations), dog vaccination, and human PEP. We assumed average costs of $10.14
per suspect cases investigated20, $72.91 for PEP c osts20, and $2.92 per dogs vaccinated (data not yet published)
(Supplementary Appendix Table S1).
We adjusted input parameters so that model estimates would approximately match trends in surveillance-
detected human rabies deaths in Haiti from 2005 to 2020 (Supplementary Appendix Tables S1–S3), assuming
that 10% of human rabies cases in Haiti are detected through surveillance13–15. Human rabies surveillance in
Haiti is conducted by the Ministry of Public Health and Population and is based primarily on hospital-based
reporting of clinically suspected human rabies cases.
To further validate model outputs and assess the current rabies situation in Haiti, we compared model out-
puts of dog rabies cases from July 1, 2018-December 31, 2020 with animal surveillance data for the same period.
We obtained surveillance data on animals investigated for rabies in Haiti under the Ministry of Agriculture,
Natural Resources and Rural Development’s Haiti Animal Rabies Surveillance Program (HARSP) from July 1,
2018-November 19, 2020. Dogs and other animals that have been found dead or are suspected of rabies due to
illness or behavior are reported to HARSP by veterinarians, healthcare workers, or members of the public10. A
Scientific Reports | (2021) 11:12476 | https://doi.org/10.1038/s41598-021-92067-5 2
Vol:.(1234567890)www.nature.com/scientificreports/
Figure 1. Dog rabies cases in Haiti since July 2018, as total number of cases estimated by the model*† (left)
and number of surveillance investigations resulting in confirmed positive cases (right). *Results are presented
separately for Ouest Department (top), where the last vaccination campaign took place in 2018, and outside
Ouest Department (bottom), where the last vaccination campaign took place in 2019. †These plots show
estimated total dog rabies cases. Supplementary Appendix Table S4 compares model estimates of dog rabies
cases and with confirmed rabid animals detected through surveillance data. Note that typically only animals
with reported human bites are investigated.
standardized electronic case investigation form is used to document investigations, and provides near real-time
information on epidemiologic c hanges21.
Sensitivity analyses. In sensitivity analyses we assumed 1–10 total people receive PEP per true rabies
exposure. Furthermore, the RabiesEcon model has been shown to be most sensitive to values of the dog birth
rate, dog life expectancy, and basic reproductive number, R022. Therefore, we considered two additional scenar-
ios: a high turnover scenario using higher-than-baseline values for dog birth and death rates (which define dog
turnover rate) and lower R0 (number dogs infected per infectious dog); and, a low turnover scenario using lower
values defining dog turnover but a higher R0 (Supplementary Appendix Table S2). These parameter combina-
tions were selected to produce similar trends in human rabies deaths from 2005 to 2020 as the baseline scenario
(Supplementary Appendix Figs. S1–S3).
Disclaimer. The findings and conclusions in this article are those of the authors and do not necessarily rep-
resent the official position of the US Centers for Disease Control and Prevention (CDC).
Results
Dog rabies cases, 2018–2020. We compared model estimates of the number of dog rabies cases in
6-month intervals (Fig. 1, left hand side) with surveillance data on the number of confirmed rabid animals (Fig. 1,
right hand side). The comparisons are shown separately for Ouest Department and outside Ouest Department.
In Ouest Department, where the last vaccination campaign occurred in 2018, dog rabies cases declined and
remained low through 2019. However, there was a 5–8-fold increase in both model estimated and surveillance
detected cases between Fall 2019 and Fall 2020 following the cessation of annual vaccination campaigns (Fig. 1
and Supplementary Appendix Table S4). The estimated number of rabid dogs was 604 in fall of 2019 and 3030
in fall of 2020. Outside of Ouest Department, a peak in cases occurred before the 2019 vaccination campaign.
Model-estimated dog rabies cases subsequently declined to below 150 per 6-month period through Fall 2020.
The number of confirmed rabid animals per 6-month period ranged from 1 to 8 for Ouest Department and
0–17 for the rest of Haiti, suggesting case detection rates as low as 0.1% in Ouest Department (Supplementary
Appendix Table S4).
Predicted impact of delayed dog rabies vaccination from 2021 to 2022. We estimated that delay-
ing dog vaccination from 2021 to 2022 would result in a human rabies epidemic with 285 excess deaths through
2025, of which 28 would be detected by the healthcare system (Fig. 2). The corresponding number of dog rabies
cases is shown in Fig. S4.
Scientific Reports | (2021) 11:12476 | https://doi.org/10.1038/s41598-021-92067-5 3
Vol.:(0123456789)www.nature.com/scientificreports/

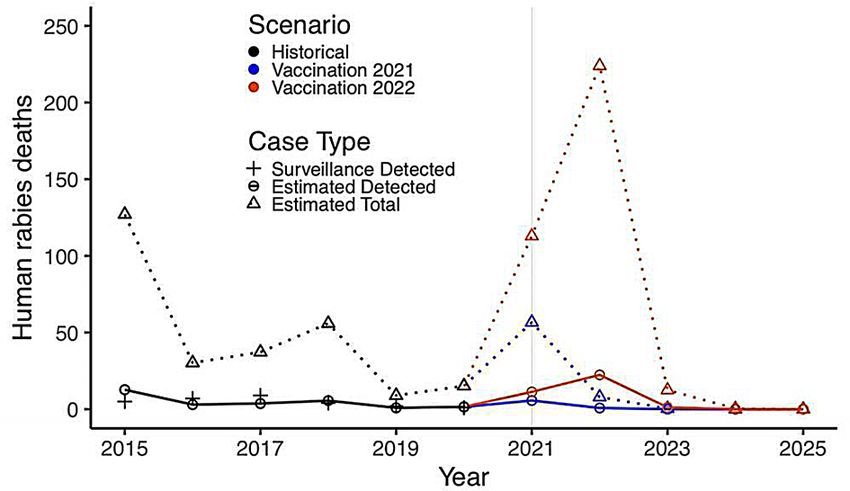

Figure 2. Historical and projected human rabies cases in Haiti, 2015–2025, and potential impact of delaying
restarting dog rabies vaccination until either 2021 or 2022. *Black+’s indicate human rabies deaths detected by
surveillance from 2015 to 2020. Circles (connected by solid lines) represent model estimates of detected human
rabies deaths. Triangles (connected by dotted lines) represent model estimates of total human rabies deaths.
We assume 10% of human rabies deaths are detected, which is consistent with estimates from other lower and
middle-income countries13. Colors compare historical data and estimates for 2015–2020 (black) with model
predictions if vaccination campaigns resume in 2021 (blue) or 2022 (orange).
No vaccination, No vaccination, Vaccination resumes Vaccination resumes
2021–2025 2021–2025 2021 2022
No PEPa Baseline PEPa Baseline PEPa Baseline PEPa
Total costs $0 $8,895,651 $7,966,175 $8,250,969
Community bite surveil-
$0 $165,759 $7885 $45,241
lance costsb
Dog vaccination costs $0 $0 $7,530,776 $5,757,508
PEPa costs $0 $8,729,893 $427,514 $2,448,219
Dog rabies cases 482,738d 482,738d 12,234 75,284
Human rabies exposures 29,021 29,027 1381 7922
PEPa courses required 0 119,735 5864 33,578
Reported human rabies
595 138 7 35
deaths
Human rabies deaths 5945 1383 65 350
Human rabies deaths
Ref. 4562 5880 5595
averted
Average cost per human
Ref. $1950 $1355 $1475
death avertedc
Table 1. Five-year cost and health outcomes associated with combinations of dog rabies vaccination programs
and human PEP: 2021–2025. a PEP = post-exposure prophylaxis. The baseline PEP assumption is that 80%
(outside Ouest Department) or 85% (Ouest Department) of humans exposed to a suspected rabid dog receive
PEP, and that 1/5 suspected exposures are true rabies exposures. In people with true rabies exposures, PEP
reduces the probability of death. PEP coverage is assumed to remain fixed throughout 2021–2025 in all
scenarios. b Community bite surveillance costs include costs associated with bite investigation and lab tests.
We assume these costs occur under all scenarios except the no-vaccination, no-PEP scenario. c The average
cost-effectiveness ratios were calculated by dividing the total program costs by the number of human deaths
prevented in each scenario, compared to the no-vaccination, no-PEP scenario. d With approximately 700,000
dog population at any time, 482,738 dogs over 5 years corresponds to about 8000 rabid dogs/month, equivalent
to an attack rate of approximately 1.1% dogs per month.
Restarting dog rabies vaccination in 2021 would have a five-year dog rabies vaccination cost of $7,530,776
(average annual cost $1,506,155) (Table 1), higher than the $5,757,508 if restarting vaccination were delayed
until 2022. However, resuming dog vaccination in 2021 compared to 2022 would result in 63,050 fewer dog
rabies deaths, 6541 fewer human rabies exposures and 285 fewer human rabies deaths (of which 28 would be
reported). It would also reduce the number of people needing PEP by 27,714 and lower PEP costs by $2,020,705
(Table 1). These effects would be even greater if dog vaccination is not resumed through 2025. Overall, restarting
dog vaccination in Haiti in 2021 could lead to substantial cost savings of $284,794 compared to delaying until
2022, and $929,476 compared to no dog vaccination through 2025. (Table 1). With reference to a no intervention
(no dog vaccination or PEP) scenario, resuming dog vaccination in 2021 would have an average cost per human
death averted of $1355, which is more cost-effective than either resuming dog vaccination in 2022 ($1475 per
Scientific Reports | (2021) 11:12476 | https://doi.org/10.1038/s41598-021-92067-5 4
Vol:.(1234567890)www.nature.com/scientificreports/
Number of suspect rabies exposures per true rabies
exposurec
Outcome Policy 1 2 5 (Baseline) 10
No vaccination
5945 5945 5945 5945
No PEPb
No vaccination
1383 1383 1383 1383
Baseline PEP
Human deathsa
Vaccination 2021
65 65 65 65
Baseline PEP
Vaccination 2022
350 350 350 350
Baseline PEP
No vaccination
0 0 0 0
No PEP
No vaccination
23,947 47,894 119,735 239,469
Baseline PEP
PEPb courses required
Vaccination 2021
1173 2345 5864 11,727
Baseline PEP
Vaccination 2022
6716 13,431 33,578 67,157
Baseline PEP
No vaccination
$0 $0 $0 $0
No PEP
No vaccination
$1,779,130 $3,558,260 $8,895,651 $17,791,302
Baseline PEP
Total costs
Vaccination 2021
$7,617,856 $7,704,936 $7,966,175 $8,401,574
Baseline PEP
Vaccination 2022
$6,256,200 $6,754,892 $8,250,969 $10,744,429
Baseline PEP
No vaccination
Ref. Ref. Ref. Ref.
No PEP
No vaccination
$390 $780 $1950 $3900
Baseline PEP
Average cost per human death averted
Vaccination 2021
$1296 $1310 $1355 $1429
Baseline PEP
Vaccination 2022
$1118 $1207 $1475 $1920
Baseline PEP
Table 2. Sensitivity analysis: 5-year health and cost effectiveness outcomes for different assumptions of PEP
use efficiency. a Total human rabies deaths; we assume only 10% of these would be reported. b PEP = post-
exposure prophylaxis. The baseline PEP assumption is that 80% (outside Ouest Department) or 85% (Ouest
Department) of humans exposed to a suspected rabid dog receive PEP, and that 1/5 suspected exposures are
true rabies exposures. In people with true rabies exposures, PEP reduces the probability of death. PEP coverage
is assumed to remain fixed throughout 2021–2025 in all scenarios. c The number of suspect rabies exposures
per true rabies exposure is a measure of PEP use efficiency. A value of 1 indicates that only individuals with
exposure to animals that are truly rabid receive PEP. Increasing levels imply decreasing PEP use efficiency.
human death averted) or performing no dog vaccination campaigns through 2025 ($1950 per human death
averted) (Table 1).
Sensitivity analyses. First, we compared different assumptions about PEP efficiency (Table 2). Resuming
dog vaccination in 2021 is the most cost-effective scenario if at least three people receive PEP for every true
rabies exposure. In a highly efficient healthcare system where fewer than three people get PEP per true expo-
sure, providing PEP only would be more cost-effective. Under all scenarios, substantially more PEP is needed
when vaccination is delayed past 2021 (5500–55,000 additional courses over five years when delayed to 2022;
23,000–230,000 when delayed past 2025). The average cost-effectiveness ratio of restarting dog vaccination in
2021 and providing PEP (compared to no vaccination and no PEP) is similar across all assumptions about PEP
use efficiency ($1296–$1429).
We then compared the three parameter combinations described in the “Methods”, under the baseline assump-
tion of PEP efficiency. In each scenario (Table S2), a large rabies epidemic is expected to begin in 2021. The
number of excess human deaths associated with delaying the next dog vaccination campaign from 2021 to 2022
was predicted to be 107 under the “high turnover” scenario and 217 under the “low turnover” scenario, compared
to 285 under the baseline scenario (Table 3). The average 5-year cost-effectiveness ratio per human death averted
is similar when vaccination is resumed in 2021 compared to 2022 under both the “high turnover ($1651 in 2021
vs. $1510 in 2022) and “low turnover” ($1323 in 2021 vs. $1377 in 2022) scenarios. (Table 2).
Scientific Reports | (2021) 11:12476 | https://doi.org/10.1038/s41598-021-92067-5 5
Vol.:(0123456789)www.nature.com/scientificreports/
Scenariosc
Outcome Policy Baseline High Turnover Low Turnover
No vaccination
5945 4811 5436
No PEPb
No vaccination
1383 1096 1267
Baseline PEP
Human deathsa
Vaccination 2021
65 16 28
Baseline PEP
Vaccination 2022
350 123 245
Baseline PEP
No vaccination
0 0 0
No PEP
No vaccination
119,735 100,908 109,618
Baseline PEP
PEPb courses required
Vaccination 2021
5864 1455 2523
Baseline PEP
Vaccination 2022
33,578 16,456 25,829
Baseline PEP
No vaccination
$0 $0 $0
No PEP
No vaccination
$8,895,651 $7,496,169 $8,144,086
Baseline PEP
Total costs
Vaccination 2021
$7,966,175 $7,915,145 $7,156,059
Baseline PEP
Vaccination 2022
$8,250,969 $7,078,203 $7,148,555
Baseline PEP
No vaccination
Ref. Ref. Ref.
No PEP
No vaccination
$1950 $2018 $1953
Baseline PEP
Average cost per human death averted
Vaccination 2021
$1355 $1651 $1323
Baseline PEP
Vaccination 2022
$1475 $1510 $1377
Baseline PEP
Table 3. Sensitivity analysis: 5-year health and cost effectiveness outcomes for different scenarios of dog
turnover and dog-to-dog rabies infectiousness. a Total human rabies deaths; we assume only 10% of these
would be reported. b PEP = post-exposure prophylaxis. The baseline PEP assumption is that 80% (outside
Ouest Department) or 85% (Ouest Department) of humans exposed to a suspected rabid dog receive PEP, and
that 1/5 suspected exposures are true rabies exposures. In people with true rabies exposures, PEP reduces the
probability of death. PEP coverage is assumed to remain fixed throughout 2021–2025 in all scenarios. c Baseline
scenario uses input values as in Table S1. High turnover scenario uses a higher-than-baseline values for dog
birth rate and mortality (which define dog turnover rate) and lower R0 (number dogs infected per infectious
dog). Low turnover scenario uses lower values defining dog turnover but a higher R 0 value (Supplementary
Appendix Table S2).
Discussion
Dog rabies vaccination campaigns may be disrupted for a variety of reasons including lack of funding, political
instability, or natural disasters; most recently, the COVID-19 pandemic has interrupted dog vaccination in Haiti
as well as other countries12. We adapted a mathematical model of dog rabies transmission to assess the urgency
of resuming dog vaccination campaigns in Haiti by comparing the human health and cost implications if vac-
cination is resumed in 2021 compared to 2022. In Ouest Department, home of the capital city and over four
million people, the last dog vaccination campaign occurred in 2018. Model estimates and current surveillance
data for this region show a 5- to 8-fold increase in dog rabies cases starting in the fall of 2020. In the absence of
resumed dog rabies vaccination programs, a dog-mediated human rabies epidemic is predicted to begin in 2021.
Implementing a dog vaccination campaign in 2021, compared to delaying until 2022, could save 285 human
lives and prevent 6541 human rabies exposures. Resuming dog vaccination in 2021 compared to 2022 would
also require 27,714 fewer courses of PEP, resulting in cost savings of $284,794. Although these benefits were
somewhat diminished in sensitivity analyses of different parameters for transmission and dog population turno-
ver, vaccinating in 2021 was still predicted to save at least 107 lives and have similar average cost-effectiveness
compared to delaying until 2022.
Dog vaccination is recognized as a cost-effective intervention to prevent human rabies deaths1–3. In this study,
we estimated that dog vaccination would be cost saving over a 5-year time frame if three or more people receive
PEP per true rabies exposure. If PEP is used very efficiently, providing PEP alone might appear more cost-effective
than dog vaccination over the short 5-year time frame shown here. However, substantially more people would
need to receive PEP for exposures to rabid dogs. This increased demand for PEP would need to be considered
Scientific Reports | (2021) 11:12476 | https://doi.org/10.1038/s41598-021-92067-5 6
Vol:.(1234567890)www.nature.com/scientificreports/
in PEP supply forecasts. Furthermore, this study does not consider the long-term effects of eliminating canine
rabies, which would greatly reduce the need for PEP.
Previous studies have shown that vaccination campaigns must be repeated annually for elimination to be
achieved, particularly when there is heterogeneity in vaccination coverage7,23. Though Haiti made great pro-
gress in rabies control from 2013 to 2019, our results show how fragile such progress can be until elimination
is achieved. Although the 2017–2018 vaccination campaign reached approximately 70% coverage throughout
the country, the 2019 campaign was not conducted in Ouest Department due to lack of funds. The impacts of
this one-year gap would have been minimal if the 2020 vaccination campaign had occurred as planned, but the
combination of missed campaigns in 2019 and 2020 now threatens Haiti’s previous gains in rabies control, as
shown by both surveillance data and model results.
Multiple researchers are raising concerns about the potential downstream impacts of the COVID-19 pan-
demic on the control of other diseases including HIV, tuberculosis, malaria, and neglected tropical diseases
besides rabies24,25. A previous modeling study predicted that declines in surveillance and paused dog vaccination
due to the impacts of COVID-19 could increase dog rabies cases in P eru12. In Haiti, the cancellation of the 2020
dog vaccination campaign was attributable to COVID-19 lockdowns and redirection of funds. However, the
impact of the missed 2020 vaccination campaign in Haiti could be mitigated by resuming dog vaccination in 2021,
which would save hundreds of lives and thousands of PEP courses compared to even one additional year of delay.
The increase in confirmed dog rabies cases in fall of 2020 in Ouest Department was immediately recognized
because of investments in laboratory capacity and real-time electronic rabies surveillance. Human and animal
rabies surveillance systems, particularly integrated bite case management (IBCM), can improve rabies case
detection. HARSP, Haiti’s IBCM program, is estimated to have increased case detection in both humans and
animals10,26. We estimate that the case detection rates increased about 10-fold (from 1 to 10%) with the estab-
lishment of HARSP (Table S3). However, challenges in human case detection remain including the difficulty
of laboratory diagnostics, lack of knowledge of both patients and providers, the long and variable incubation
period between exposure and disease, and time and cost barriers to accessing care. Since 2018, the Haiti Animal
Rabies Surveillance Program has used an app-based case investigation system that allows data to be recorded
and shared in real t ime21. The timing of the increase in confirmed cases detected through surveillance matched
that predicted by the model. However, our results suggest that the case detection of rabid dogs is still very low
(< 1%), particularly in Ouest Department. This may reflect the lower number of rabies investigator staff in Ouest
Department (4) compared to outside (33), despite higher predicted numbers of rabid dogs in Ouest Departments
for the period assessed.
The model used for this paper contains limitations. First, we assumed that the population within each region
(Ouest vs. outside Ouest) has a homogeneous density, despite large variations in population density. We partially
corrected for this by removing the lowest-density and most-remote areas from our estimates of population and
density. These areas are unlikely to have the dog populations necessary to sustain rabies transmission in the
absence of repeated importation27,28. Second, we treated the two regions as independent, and do not consider
the movement of dogs and humans between them. This could result in an under-estimation of the human and
animal rabies cases that could occur outside of Ouest Department in particular. Many input parameters, such
as the human-to-dog ratio and vaccination coverage, are challenging to estimate and may vary substantially
within small geographic areas and over time. These parameters were selected based on the best data available,
and sensitivity analyses around parameters noted as highly sensitive in previous publications resulted in similar
qualitative outcomes.
In summary, we predict that delays in dog vaccination resulting from COVID-19 lockdowns and lack of
consistent rabies control funds has brought Haiti to the brink of a potential dog-mediated human rabies epi-
demic. However, resuming dog rabies vaccination in 2021, compared to delaying until 2022, could save hundreds
human lives and reduce the need for PEP over the 5 years from 2021 to 2025. Despite the immediate threats
posed by COVID-19, it is essential that countries continue to invest in control of rabies and other neglected
communicable diseases.
Data availability
All data are available in the manuscript or supporting information files.
Received: 24 April 2021; Accepted: 25 May 2021
References
1. Cleaveland, S., Kaare, M., Tiringa, P., Mlengeya, T. & Barrat, J. A dog rabies vaccination campaign in rural Africa: Impact on the
incidence of dog rabies and human dog-bite injuries. Vaccine 21, 1965–1973. https://doi.org/10.1016/s0264-410x(02)00778-8
(2003).
2. Kaare, M. et al. Rabies control in rural Africa: Evaluating strategies for effective domestic dog vaccination. Vaccine 27, 152–160.
https://doi.org/10.1016/j.vaccine.2008.09.054 (2009).
3. Zinsstag, J. et al. Vaccination of dogs in an African city interrupts rabies transmission and reduces human exposure. Sci. Transl.
Med. https://doi.org/10.1126/scitranslmed.aaf6984 (2017).
4. Coleman, P. G. & Dye, C. Immunization coverage required to prevent outbreaks of dog rabies. Vaccine 14, 185–186. https://doi.
org/10.1016/0264-410x(95)00197-9 (1996).
5. Hampson, K. et al. Transmission dynamics and prospects for the elimination of canine rabies. PLoS Biol. 7, e53. https://doi.org/
10.1371/journal.pbio.1000053 (2009).
6. Putra, A. A. et al. Response to a rabies epidemic, Bali, Indonesia, 2008–2011. Emerg. Infect. Dis. 19, 648–651. https://doi.org/10.
3201/eid1904.120380 (2013).
Scientific Reports | (2021) 11:12476 | https://doi.org/10.1038/s41598-021-92067-5 7
Vol.:(0123456789)www.nature.com/scientificreports/
7. Townsend, S. E. et al. Designing programs for eliminating canine rabies from islands: Bali, Indonesia as a case study. PLoS Negl.
Trop. Dis. 7, e2372. https://doi.org/10.1371/journal.pntd.0002372 (2013).
8. WHO Rabies Modelling Consortium. The potential effect of improved provision of rabies post-exposure prophylaxis in Gavi-
eligible countries: A modelling study. Lancet. Infect. Dis 19, 102–111. https://doi.org/10.1016/s1473-3099(18)30512-7 (2019).
9. Shwiff, S. A., Elser, J. L., Ernst, K. H., Shwiff, S. S. & Anderson, A. M. Cost-benefit analysis of controlling rabies: Placing economics
at the heart of rabies control to focus political will. Revue scientifique et technique (International Office of Epizootics) 37, 681–689.
https://doi.org/10.20506/rst.37.2.2833 (2018).
10. Wallace, R. M. et al. Establishment of a high canine rabies burden in Haiti through the implementation of a novel surveillance
program [corrected]. PLoS Negl. Trop. Dis. 9, e0004245. https://doi.org/10.1371/journal.pntd.0004245 (2015).
11. Etheart, M. D. et al. Effect of counselling on health-care-seeking behaviours and rabies vaccination adherence after dog bites in
Haiti, 2014–2015: A retrospective follow-up survey. Lancet Glob. Health 5, e1017–e1025. https://doi.org/10.1016/s2214-109x(17)
30321-2 (2017).
12. Raynor, B. et al. The impact of the COVID-19 pandemic on rabies reemergence in Latin America: The case of Arequipa, Peru.
Medrxiv Preprint Server Health Sci. https://doi.org/10.1101/2020.08.06.20169581 (2020).
13. Blanton, R. M. W. A. J. Rabies: Scientific Basis of the Disease and Its Management, Ch. 4 4th edn. (Academic Press, 2020).
14. Petersen, B. W. & Rupprecht, C. E. Human Rabies Epidemiology and Diagnosis. in:Non-flavivirus Encephalitis (ed S. Tkachev)
Submitted: November 15th 2010Reviewed: August 16th 2011 Published: November 16th 2011https://doi.org/10.5772/21708.
15. Burton, E. C. et al. Rabies encephalomyelitis: Clinical, neuroradiological, and pathological findings in 4 transplant recipients. Arch.
Neurol. 62, 873–882. https://doi.org/10.1001/archneur.62.6.873 (2005).
16. Ly, S. et al. Rabies situation in Cambodia. PLoS Negl. Trop. Dis. 3, e511. https://doi.org/10.1371/journal.pntd.0000511 (2009).
17. Suraweera, W. et al. Deaths from symptomatically identifiable furious rabies in India: A Nationally Representative Mortality Survey.
PLoS Negl. Trop. Dis. 6, e1847. https://doi.org/10.1371/journal.pntd.0001847 (2012).
18. Mauti, S. et al. Factors associated with dog rabies immunisation status in Bamako, Mali. Acta Trop. 165, 194–202. https://doi.org/
10.1016/j.actatropica.2015.10.016 (2017).
19. Moore, M. C. et al. Comparison of anamnestic responses to rabies vaccination in dogs and cats with current and out-of-date vac-
cination status. J. Am. Vet. Med. Assoc. 246, 205–211. https://doi.org/10.2460/javma.246.2.205 (2015).
20. Jeon, S. et al. Determining the post-elimination level of vaccination needed to prevent re-establishment of dog rabies. PLoS Negl.
Trop. Dis. 13, e0007869. https://doi.org/10.1371/journal.pntd.0007869 (2019).
21. Adrien, J. et al. Notes from the field: A multipartner response to prevent a binational rabies outbreak—Anse-à-Pitre, Haiti, 2019.
MMWR Morb. Mortal. Wkly Rep. 68, 707–709. https://doi.org/10.15585/mmwr.mm6832a6 (2019).
22. Borse, R. H. et al. Cost-effectiveness of dog rabies vaccination programs in East Africa. PLoS Negl. Trop. Dis. 12, e0006490. https://
doi.org/10.1371/journal.pntd.0006490 (2018).
23. Ferguson, E. A. et al. Heterogeneity in the spread and control of infectious disease: Consequences for the elimination of canine
rabies. Sci. Rep. 5, 18232. https://doi.org/10.1038/srep18232 (2015).
24. Hogan, A. B. et al. Potential impact of the COVID-19 pandemic on HIV, tuberculosis, and malaria in low-income and middle-
income countries: A modelling study. Lancet Glob. Health 8, e1132–e1141. https://d oi.o
rg/1 0.1 016/s 2214-1 09x(20)3 0288-6 (2020).
25. Toor, J. et al. Predicted impact of COVID-19 on neglected tropical disease programs and the opportunity for innovation. Clin.
Infect. Diseases Off. Publ. Infect. Diseases Soc. Am. https://doi.org/10.1093/cid/ciaa933 (2020).
26. Undurraga, E. A. et al. Cost-effectiveness evaluation of a novel integrated bite case management program for the control of human
rabies, Haiti 2014–2015. Am. J. Trop. Med. Hyg. 96, 1307–1317. https://doi.org/10.4269/ajtmh.16-0785 (2017).
27. Knobel, D. L. et al. Re-evaluating the burden of rabies in Africa and Asia. Bull. World Health Organ. 83, 360–368 (2005).
28. Cleaveland, S. & Dye, C. Maintenance of a microparasite infecting several host species: Rabies in the Serengeti. Parasitology
111(Suppl), S33–S47. https://doi.org/10.1017/s0031182000075806 (1995).
Acknowledgements
We would like to acknowledge Benjamin Monroe, Yasmeen Ross, and Natael Fenelon for their contributions
to this paper.
Author contributions
Conceptualization: A.K., S.J., M.I.M., R.W. Data curation and parameterization: A.K., H.C.J., P.D., K.C., R.W.
Model design and analysis: A.K., S.J., M.I.M., R.W. Wrote first draft of manuscript: A.K. Provided edits and
feedback on manuscript: S.J., H.C.J., P.D., K.C., M.I.M., R.W.
Competing interests
The authors declare no competing interests.
Additional information
Supplementary Information The online version contains supplementary material available at https://doi.org/
10.1038/s41598-021-92067-5.
Correspondence and requests for materials should be addressed to A.K.
Reprints and permissions information is available at www.nature.com/reprints.
Publisher’s note Springer Nature remains neutral with regard to jurisdictional claims in published maps and
institutional affiliations.
Open Access This article is licensed under a Creative Commons Attribution 4.0 International
License, which permits use, sharing, adaptation, distribution and reproduction in any medium or
format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the
Creative Commons licence, and indicate if changes were made. The images or other third party material in this
article are included in the article’s Creative Commons licence, unless indicated otherwise in a credit line to the
material. If material is not included in the article’s Creative Commons licence and your intended use is not
permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from
the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.
© The Author(s) 2021
Scientific Reports | (2021) 11:12476 | https://doi.org/10.1038/s41598-021-92067-5 8
Vol:.(1234567890)You can also read
