Instrumentation for ESO’s Extremely Large Telescope
SUPER — AGN Feedback at Cosmic Noon
Mapping Stars in the Tarantula Nebula with MUSE-NFM                    The Messenger
                                                      No. 182 | 2021
The Messenger No. 182 | 2021 - European Southern Observatory
ESO, the European Southern Observa-                  Contents
tory, is the foremost intergovernmental
astronomy organisation in Europe. It is              ELT Instrumentation
supported by 16 Member States: Austria,              Ramsay S. et al. – Instrumentation for ESO’s Extremely Large Telescope          3
­Belgium, the Czech Republic, Denmark,               Thatte N. et al. – HARMONI: the ELT’s First-Light Near-infrared
 France, Finland, Germany, Ireland, Italy,             and Visible Integral Field Spectrograph                                       7
 the Netherlands, Poland, Portugal, Spain,           Ciliegi P. et al. – MAORY: A Multi-conjugate Adaptive Optics RelaY for ELT     13
 Sweden, Switzerland and the United                  Davies R. et al. – MICADO: The Multi-Adaptive Optics Camera for
 Kingdom, along with the host country of               Deep Observations                                                            17
 Chile and with Australia as a Strategic             Brandl B. et al. – METIS: The Mid-infrared ELT Imager and Spectrograph         22
 Partner. ESO’s programme is focused                 Marconi A. et al. – HIRES, the High-resolution Spectrograph for the ELT        27
 on the design, construction and opera-              Hammer F. et al. – MOSAIC on the ELT: High-multiplex Spectroscopy to Unravel
 tion of powerful ground-based observing               the Physics of Stars and Galaxies from the Dark Ages to the Present Day      33
 ­facilities. ESO operates three observato-          Kasper M. et al. – PCS — A Roadmap for Exoearth Imaging with the ELT           38
  ries in Chile: at La Silla, at P
                                 ­ aranal, site of
  the Very Large Telescope, and at Llano             Astronomical Science
  de Chajnantor. ESO is the European                 Mainieri V. et al. – SUPER — AGN Feedback at Cosmic Noon:
  ­partner in the Atacama Large Millimeter/           a Multi-phase and Multi-scale Challenge                                       45
   submillimeter Array (ALMA). Currently             Castro N. et al. – Mapping the Youngest and Most Massive Stars in the
   ESO is engaged in the construction of the          Tarantula Nebula with MUSE-NFM		                                              50
   Extremely Large ­Telescope.
                                                     Astronomical News
The Messenger is published, in hardcopy              Berg T. A. M., Ribas Á. – Fellows at ESO                                       55
and electronic form, four times a year.              Zerbi F. M., Fontana A. – In memoriam Nichi D’Amico                            57
ESO produces and distributes a wide                  Lyubenova M. – Message from the Editor                                         58
variety of media ­connected to its activi-           Personnel Movements                                                            60
ties. For further information, including
postal subscription to The Messenger,                Annual Index 2020 (Nos. 179–181)                                               61
contact the ESO Department of Commu-
nication at:

ESO Headquarters
Karl-Schwarzschild-Straße 2
85748 Garching bei München, Germany
Phone +498932006-0
information@eso.org

The Messenger
Editors: Mariya Lyubenova,
Gaitee A. J. Hussain
Editorial assistant: Isolde Kreutle
Copy-editing: Peter Grimley
Layout, Typesetting, Graphics:
Lorenzo Benassi
Graphics: Mafalda Martins
Design, Production: Jutta Boxheimer
­w ww.eso.org/messenger/

Printed by omb2 Print GmbH,
Lindberghstraße 17, 80939 Munich,
Germany

Unless otherwise indicated, all images in
The Messenger are courtesy of ESO,
except authored contributions which are
courtesy of the respective authors.

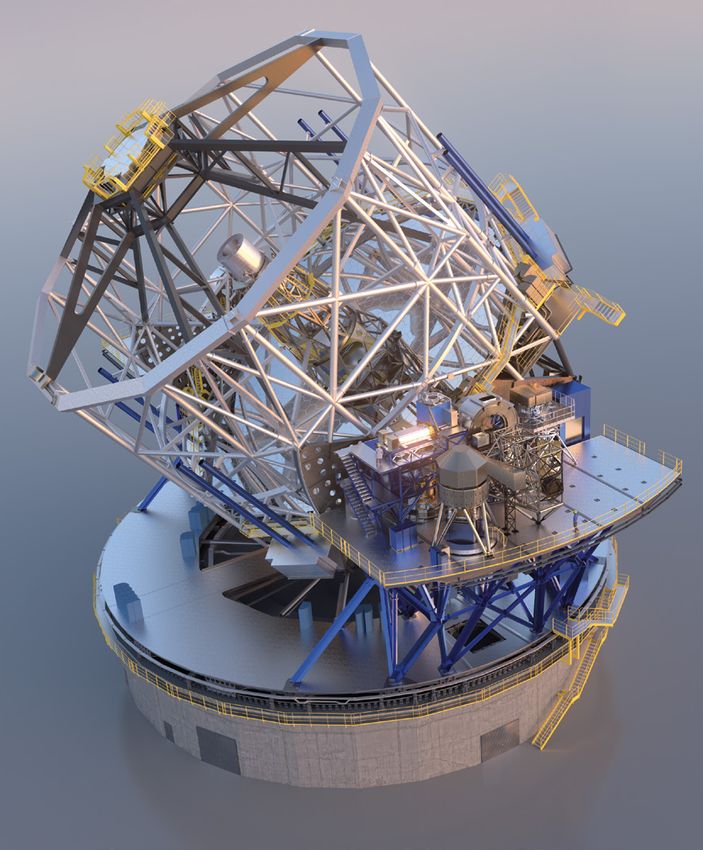

                                                     Front cover: Artist rendering of the instruments HARMONI,
                                                     MICADO, MAORY and METIS, together with the prefocal station A,
© ESO 2021                                           sitting on one of the Nasmyth platforms of ESO’s Extremely Large
ISSN 0722-6691                                       Telescope.

2            The Messenger 182 | 2021
The Messenger No. 182 | 2021 - European Southern Observatory
ELT Instrumentation                                                                                     DOI: 10.18727/0722-6691/5214

Instrumentation for ESO’s Extremely Large Telescope

Suzanne Ramsay 1                            The Messenger 140, 2010). While ESO is        approval of the next design phases and
Michele Cirasuolo 1                         ultimately responsible for delivering the     the construction of the LTAO module was
Paola Amico 1                               instruments to the scientific community on    signed in 2019 when funds for this module
Nagaraja Naidu Bezawada 1                   time and with the expected performance,       became available. It will now be delivered
Patrick Caillier 1                          an important feature of the Instrumentation   along with HARMONI for first light with the
Frédéric Derie 1                            Plan is that the instruments are being        spectrograph, ensuring optimised perfor-
Reinhold Dorn 1                             developed in collaboration between ESO        mance and increased sky coverage.
Sebastian Egner 1                           and consortia made up of universities
Elizabeth George 1                          and institutes in the Member States and       The instruments under construction have
Frédéric Gonté 1                            beyond. This model has worked very            now completed the important preliminary
Peter Hammersley 1                          successfully for the delivery of instru-      design phase, during which the basic
Christoph Haupt 1                           ments to the Very Large Telescope (VLT)       concept for the instrument is refined and
Derek Ives 1                                and is a key aspect of the interaction        compliance with the scientific and techni-
Gerd Jakob 1                                between ESO as an organisation and the        cal requirements is confirmed. The first
Florian Kerber 1                            astronomical community. Figure 1 shows        Preliminary Design Review (PDR) meet-
Vincenzo Mainieri 1                         a timeline for instrument development as      ing, for HARMONI, was held in November
Antonio Manescau 1                          it stands at the time of writing.             2017, those for MICADO and METIS
Sylvain Oberti 1                                                                          followed in October 2018 and May 2019,
Celine Peroux 1                             A pair of instruments was selected by         respectively. Everything about these pro-
Oliver Pfuhl 1                              the ELT Science Working Group to be           jects is on a very large scale, as befits the
Ulf Seemann 1                               delivered for first light: the High Angular   extreme size of the telescope. The effort
Ralf Siebenmorgen 1                         Resolution Monolithic Optical and Near-­      that goes into the PDRs is no exception.
Christian Schmid 1                          infrared Integral field spectrograph          The document package for each instru-
Joël Vernet 1                               (HARMONI) and the Multi-adaptive optics       ment amounts to more than one hundred
and the ESO ELT Programme                   Imaging CamerA for Deep Observations          documents and many thousands of
  and follow-up team                        (MICADO), a near-infrared camera. Adap-       pages. The design concepts have been
                                            tive optics systems tailored to meet the      reviewed by tens of engineers from ESO
                                            scientific goals of each of these instru-     with support from external experts from
1
    ESO                                     ments are also being developed. The           industry and from other extremely large
                                            HARMONI Consortium is building a laser        telescope projects, such as the Thirty
                                            tomographic adaptive optics (LTAO) mod-       Meter Telescope (TMT)2 and the Giant
Design and construction of the instru-      ule. A multi-conjugate adaptive optics        Magellan Telescope (GMT)3. Each of
ments for ESO’s Extremely Large Tele-       (MCAO) module, the Multi-conjugate            these instruments is now formally in the
scope (ELT) began in 2015. We present       Adaptive Optics RelaY (MAORY), is being       final design phase during which the
here a brief overview of the status of      developed as a facility adaptive optics       design is detailed to the level that manu-
the ELT Instrumentation Plan. Dedi-         system with two “clients” — MICADO            facturing of the key components can start
cated articles on each instrument are       and a future multi-object spectrograph.       after the Final Design Review (FDR) is
presented elsewhere in this volume.         Together this first light pair of workhorse   concluded. The design for MAORY has
                                            instruments will immediately exploit both     undergone significant revision since the
                                            the enormous collecting area and the          Phase A study; it has been optimised for
Instruments planned for ESO’s ELT           superb spatial resolution of the new tele-    manufacturability and ease of alignment,
                                            scope, enabling a wide range of scientific    compliance with the available volume and
When, in December 2014, the ESO             projects to be executed at first light. The   mass, and also to ensure that it provides
Council gave the green light for the con-   next instrument in the Instrumentation        a good interface for the two client instru-
struction of the 39-m Extremely Large       Plan is the Mid-infrared ELT Imager and       ments. The PDR for MAORY is planned
Telescope1 in two phases (de Zeeuw,         Spectrograph (METIS), working in the          for the second quarter of 2021.
Tamai & Liske, 2014), this triggered the    mid-infrared (3–14 µm) with single-­
final preparations to launch the design     conjugate adaptive optics (SCAO). All of      As the instrument designs have pro-
and construction of the powerful instru-    these instruments are formally part of        gressed, much has been learnt about the
ment suite for this telescope. The ELT      ESO’s ELT Construction Programme.             real resource requirements of these huge
Instrumentation Plan, to provide the        Agreements for the design, construction       systems with their challenging perfor-
instruments to meet the science case for    and commissioning of the three instru-        mance specifications. Mass and power
the telescope, had already been defined     ments plus MAORY were signed in 2015.         budgets, space envelopes, vibration con-
in consultation with ESO’s science com-     The LTAO module for HARMONI was one           trol and maintenance requirements are
munity and scientific and technical advi-   of the Phase 2 items whose funding was        major topics of discussion. Careful follow-­
sory committees. The instruments were       initially deferred (de Zeeuw, Tamai &         up and management of these items has
selected following a set of Phase A         Liske, 2014) and so only the work to carry    allowed MICADO, HARMONI and METIS
conceptual design studies that have been    out the preliminary design was included       to move into their FDR phases without
described previously (see papers in         in the agreement for HARMONI. Formal          any loss of functionality or performance,

                                                                                                   The Messenger 182 | 2021          3
The Messenger No. 182 | 2021 - European Southern Observatory
ELT Instrumentation                                                    Ramsay S. et al., Instrumentation for ESO’s Extremely Large Telescope

                                                                                                                                                          Figure 1. The ELT
     Instrument                                       Main specifications                                                   Schedule                      Instrumentation
                         Field of view/slit length/           Spectral              Wavelength
                                                                                                                                                          roadmap and timeline.
                                                                                                        Phase A   Project      PDR      FDR      First
                                pixel scale                  resolution            coverage (µm)                   start                         light
                       Imager (with coronagraph)          I, Z, Y, J, H, K +
                        50.5ಿ × 50.5ಿ at 4 mas/pix          narrowbands
      MICADO             19ಿ × 19ಿ at 1.5 mas/pix                                     0.8–2.45             2010     2015        2019

                                  Single slit                R ~ 20 000
                              AO Module
      MAORY                                                                           0.8–2.45             2010     2015
                             SCAO – MCAO
                        IFU 4 spaxel scales from:
                                                              R ~ 3200
    HARMONI +           0.8ೀ × 0.6ೀ at 4 mas/pix to
                                                             R ~ 7100                0.47–2.45             2010     2015        2018
      LTAO            6.1ೀ × 9.1ೀ at 30 × 60 mas/pix
                                                             R ~ 17 000
                            (with coronagraph)
                       Imager (with coronagraph)
                                                            L, M, N +
                     10.5ೀ × 10.5ೀ at 5 mas/pix in L, M
                                                           narrowbands
                      13.5ೀ × 13.5ೀ at 7 mas/pix in N
                                                          R ~ 1400 in L
       METIS                      Single slit             R ~ 1900 in M                3–13                2010     2015        2019
                                                           R ~ 400 in N

                      IFU 0.6ೀ × 0.9ೀ at 8 mas/pix          L, M bands
                          (with coronagraph)                R ~100 000

                               Single object
                                                             R ~100 000
       HIRES                    IFU (SCAO)                                     0.4–1.8 simultaneously      2018
                             Multi object (TBC)              R ~10 000
                            ~ 7-arcminute FoV             R ~ 5000–20 000          0.45–1.8 (TBC)
      MOSAIC               ~ 200 objects (TBC)                                                             2018
                               ~ 8 IFUs (TBC)             R ~ 5000–20 000           0.8–1.8 (TBC)
                        Extreme AO camera and
       PCS                                                       TBC                    TBC
                             spectrograph

1 milliarcsecond (mas) = 0.001ೀ

despite some greatly increased demands                                 first-light instruments. These instrument                   observing parameter space, allowing
on the telescope and the observatory.                                  studies concluded in 2018.                                  astronomers to tackle a very broad range
MAORY is also on track to meet its                                                                                                 of science cases that will fully exploit the
requirements as the PDR approaches.                                    The next stage of construction of                           collecting power and diffraction limit
The lessons learnt from these pioneering                               HIRES and MOSAIC, and the funding                           of the ELT. As shown in Figure 2, users
instruments are being applied to the                                   of the future ELT Planetary Camera and                      will have access to imaging and spec-
development of future instruments.                                     Spectrograph (ELT-PCS), fall outside                        troscopy, across a wide range of wave-
                                                                       the ELT Construction Programme and                          lengths and spectral resolving powers, in
In addition to the first three instruments                             within the Armazones Instrumentation                        a variety of observing modes, and includ-
and their adaptive optics modules, the                                 Programme (AIP). The AIP will manage all                    ing high-contrast, precision astrometry
ELT Construction Programme included                                    future instrument development during the                    and non-sidereal tracking.
two Phase A studies, for a multi-object                                lifetime of the ELT. The agreements for
spectrograph (named MOSAIC), and                                       the construction phase of MOSAIC and                        ELT-PCS is the planet hunter that will
a high spectral resolving power, high-­                                HIRES, including the detailed scientific                    deliver one of the highest priority and
stability spectrograph (named HIRES).                                  requirements, are being finalised now.                      most challenging science goals of the tel-
The original Phase A design studies car-                               ESO’s committees support the start of                       escope — the detection and characteri-
ried out from 2007 to 2010 included three                              the construction of these instruments                       sation of exo-Earths. Given the rapidly
separate concepts for a multi-object spec-                             once the resources (funding, effort and                     changing understanding of the popula-
trograph (OPTIMOS-EVE, Hammer, Kaper                                   Guaranteed Time) needed to complete                         tion of exoplanets and the many new
& Dalton, 2010; OPTIMOS-­DIORAMAS,                                     the first instruments are well understood                   facilities that are being developed to
Le Fèvre et al., 2010; and EAGLE, Morris                               and secured. This milestone is expected                     study them, it was decided in 2010 that
& Cuby, 2010) and two for a high resolv-                               when the last of the PDRs for the first                     ELT-PCS should start later in the overall
ing power spectrograph (CODEX,                                         instruments is complete. An important                       timeline in order to allow for develop-
Pasquini et al., 2010 and SIMPLE, Origlia,                             step towards the launch of the MOSAIC                       ments in the science case. Furthermore,
Oliva & Maiolino, 2010). In 2016 ESO                                   and HIRES construction phases was the                       achieving the extreme contrast ratios
issued a call for two Phase A studies for                              recent approval by the ESO Council for                      required for these observations requires
HIRES and MOSAIC in order to update                                    the procurement of the second prefocal                      research and development in the field of
and optimise the scientific scope and                                  station for the Nasmyth B platform that                     adaptive optics and coronagraphy. Proto-
specifications of these instruments, tak-                              will host MOSAIC and HIRES. Taken                           typing of components that are needed
ing into account how best to complement                                together, the instruments so far planned                    for ELT-PCS is part of ESO’s ongoing
the observing capabilities offered by the                              for the ELT offer excellent coverage of the                 Technology Development programme.

4                 The Messenger 182 | 2021
The Messenger No. 182 | 2021 - European Southern Observatory
The development of this instrument is                   HARMONI will use the Teledyne-e2V                                  being carried out under the Technology
linked to both the level of technical readi-            CCD231-84 deep-depletion silicon                                   Development Programme.
ness of these prototypes and the availa-                CCDs already used in the Multi Unit
bility of funding and effort.                           Spectroscopic Explorer (MUSE). Both                                Expertise in adaptive optics is also an
                                                        MICADO and HARMONI will use the                                    important input to the instrument consor-
In other articles in this issue details of              Hawaii 4RG detector from Teledyne-e2V                              tia. In this regard, ESO engineers and
the science case, operational modes and                 for their near-infrared modules. METIS                             physicists work within the instrument con-
instrument concepts are given for each                  will use near-infrared detectors from the                          sortia, fully integrated into the teams, pro-
of the instruments.                                     Hawaii “family”, the Hawaii 2RG, for its                           viding backup for simulating the telescope
                                                        LM-band imager and spectrometer.                                   behaviour and instrument performance,
                                                        A particularly exciting development for                            developing the calibration strategies for
Activities at ESO                                       METIS is that it will use a new detector                           the adaptive optics and contributing to the
                                                        for the N-band observations. The initial                           engineering design of the adaptive optics
The activities at ESO that support the                  plan was to use the Aquarius detector                              modules based on their knowledge of the
development of the instruments for the                  that has been used on-sky with the                                 ELT and experience from the Adaptive
ELT take a number of different forms. To                VLT Imager and Spectrometer for mid-­                              Optics Facility upgrade programme. ESO
ensure that ESO meets its commitments                   InfraRed (VISIR). However, the technology                          is also leading an effort to coordinate the
for the delivery of the instruments, a dedi-            of the new GeoSNAP detector from                                   expertise of all the groups working on
cated follow-up team of scientists, man-                Teledyne-­E2V is now sufficiently ready                            SCAO for the ELT, including for the tele-
agers and engineers across all disciplines              that the decision to switch to this detec-                         scope, to explore common solutions for
is assigned to work with each instrument                tor was taken after the METIS PDR. Sim-                            the calibration of these systems.
team. The role of this follow-up team is to             plifications to the instrument design come
support the consortia with their expertise              from this change but, most importantly,                            ESO maintains an overview of all of the
and also with understanding the interface               the observing efficiency in the N-band                             systems on the telescope to ensure a
to and performance of the telescope. This               imaging mode, where many of the impor-                             fully working system and is responsible
team also provides each instrument con-                 tant science cases in exoplanets will be                           for the interface from all instruments to
sortium with guidance on the application                tackled, is expected to be many orders of                          the observatory and between MAORY
of the ESO standards. Standardisation of                magnitude higher than with the design                              and its client instruments. One of the
hardware and software across the obser-                 using the Aquarius detector. ESO leads                             challenges facing both the instrument
vatories is crucial for cost- and time-­                the work package for the GeoSNAP                                   consortia and ESO is the parallel devel-
effective operation and maintenance of                  detector that will be tested at the METIS                          opment of the telescope and the instru-
the telescope(s) and instruments and is a               consortium partners the Max Planck                                 mentation. The agreements that have
significant development activity for ESO.               Institute for Astronomy and the University                         been signed with the instrument consor-
The ELT standards include cryogenic                     of Michigan. Finally, an update of the                             tia include formal documentation describ-
components, control and dataflow soft-                  standard detector controller, the Next                             ing the interface to the telescope systems
ware, instrument control electronics, real-             Generation Controller (NGC), to a new                              and the requirements for the instruments.
time computing and wavefront sensor                     edition (NGCII) with enhanced perfor-                              Progress with the construction of the tel-
cameras. The standards have been either                 mance and matching the interface                                   escope is continuing at our industrial
adopted or extended from the Paranal                    requirements of the new telescope is                               partners in Europe and in Chile. With over
Observatory standards, or are new devel-
opments that may also be adopted by
new instruments for Paranal when that is
                                                                                                             HIRES                          METIS (IFU)
                                                           Spectroscopy resolving power

technically feasible.                                                                     100 000

Engineers and scientists also work within
the consortia to deliver specific compo-                                                                                                      HARMONI
                                                                                                    MOSAIC
nents or expertise and so ESO is also an                                                                                                      (single IFU)
associate member of each instrument                                                        10 000
consortium. ESO has world-leading
expertise in detector technology and tra-                                                                      MICADO (single slit)

ditionally delivers the science detectors
                                                                                                                                            METIS (slit)          METIS (slit)
with standard detector controllers to the
instruments on the VLT, and the same                                                        1000
concept has been adopted for the
ELT instruments. For its optical mode,
                                                           Imaging

                                                                                                                     MICADO                   METIS                 METIS

Figure 2. Parameter space for astronomical observa-
tions provided by the first-light and planned instru-                                                 0.5     1.0              2.0                    5.0            10.0
ments on the Extremely Large Telescope.                                                                                   Wavelength (µm)

                                                                                                                                       The Messenger 182 | 2021                  5
The Messenger No. 182 | 2021 - European Southern Observatory
ELT Instrumentation                          Ramsay S. et al., Instrumentation for ESO’s Extremely Large Telescope

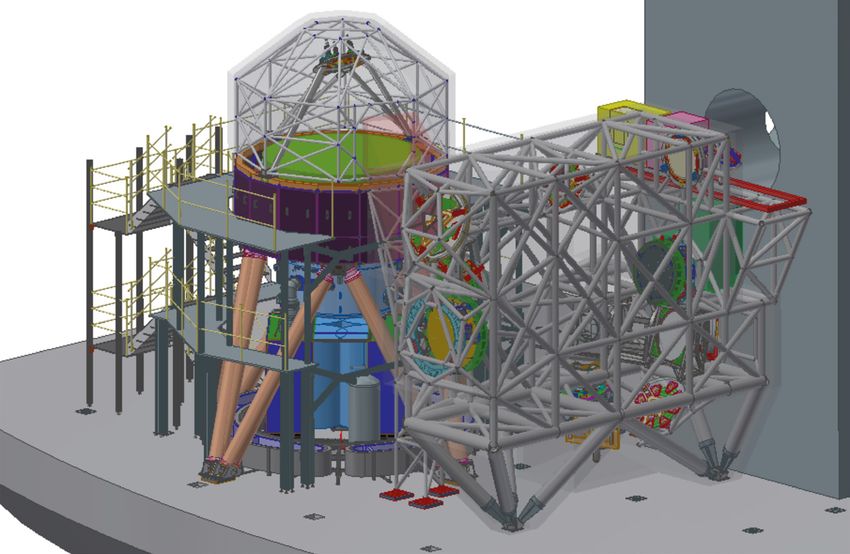

                                                                                                                         Figure 3. The instru-
                                                                                                                         ments on the Nasmyth
                                                                                                                         platform.

95% of the material budget spent, many       Part of the system-level activity at ESO       detector effect characterisation); and
components are in the manufacturing          is keeping an up-to-date model of the          end-to-end modelling.
phases, including the many mirror seg-       instruments on the Nasmyth platform, as
ments and their mechanical supports          the instruments themselves and the tele-
for the main mirror, the remaining opto-­    scope main structure and prefocal station      Acknowledgements
mechanical components and parts of           designs evolve. This model allows ESO          Many more people than those listed as authors on
the dome and main structure. Significant     and the instrument consortia to explore        this paper contribute to the development of the
work has been carried out on site, includ-   how to access various parts of the sys-        instruments for ESO’s ELT. In particular, the impor-
ing the dome foundations on Cerro            tem during installation and maintenance,       tance of the work of the > 50 members of the
                                                                                            follow-­up team at ESO should not be underesti-
Armazones and a new technical facility       permits the dynamical modelling of the         mated. The authors would like to acknowledge the
as part of the Paranal observatory. As the   system under earthquake conditions and         contribution of all those at ESO and in the commu-
telescope design evolves, a balance is       provides an all-important check that the       nity who are participating directly and indirectly in
sought between updating the interface        instruments and other items on the             this exciting endeavour.
information and maintaining the commit-      Nasmyth platform do not occupy the
ment to the numbers in the formal docu-      same physical space or attachment              References
mentation. An informal, but controlled,      points to the Nasmyth floor. The latest
exchange of information underpins the        version of this layout is shown in Figure 3.   De Zeeuw, T., Tamai, R. & Liske, J. 2014,
                                                                                              The Messenger, 158, 3
collaborative style that both ESO and the                                                   Hammer, F., Kaper, L. & Dalton, G. 2010,
consortia wish to maintain while develop-    Looking towards the future operation of          The Messenger, 140, 36
ing the most complex and costly instru-      the ELT, a number of working groups4 on        Le Fèvre, O. et al. 2010, The Messenger, 140, 34
ments yet built for the most ambitious       specific topics have been set up. Mem-         Morris, S. & Cuby, J.-G. 2010, The Messenger,
                                                                                              140, 22
ground-based telescope ever. Work-           bership of the working groups is open to       Origlia, L., Oliva, E. & Maiolino, R. 2010,
shops at ESO on the telescope and            anyone with an interest in contributing to       The Messenger, 140, 38
instrument operations concepts, on the       the future scientific success of the ELT,      Pasquini, L. et al. 2010, The Messenger, 140, 20
alignment and verification of the instru-    whether from ESO, from the instrument
ments and on instrument software (pipe-      consortia or from the community in gen-        Links
line, control and real-time control) have    eral. The topics so far under discussion
offered great opportunities for the          are: preparing for ELT observations (from      1
                                                                                              ESO’s Extremely Large Telescope (ELT): elt.eso.org
                                                                                            2
exchange of the most up-to-date infor-       observation preparation to execution);          The Thirty Meter Telescope (TMT): www.tmt.org
                                                                                            3
                                                                                             The Giant Magellan Telescope (GMT):
mation between experts on the ESO and        calibrations (including standard stars and      www.gmto.org
instrument teams.                            astro-weather); calibration improvements       4
                                                                                             ELT Working Groups: elt.eso.org/about/
                                             and post-processing (including point            workinggroups/
                                             spread function reconstruction and

6          The Messenger 182 | 2021
The Messenger No. 182 | 2021 - European Southern Observatory
ELT Instrumentation                                                                                                 DOI: 10.18727/0722-6691/5215

HARMONI: the ELT’s First-Light Near-infrared and Visible
Integral Field Spectrograph

Niranjan Thatte 1                                    performance and good sky coverage,              widths), chemical abundances and
Matthias Tecza 1                                     respectively (AO) capability has recently       composition (via emission and absorption
Hermine Schnetler 2                                  been added for exoplanet characterisa-          line ratios) and the physical conditions
Benoit Neichel 3                                     tion. A large detector complement               (temperature, density, presence of shocks)
Dave Melotte 2                                       of eight HAWAII-4RG arrays, four                of the emitting region (via line diagnostics).
Thierry Fusco 3, 4                                   choices of spaxel scale, and 11 grating         In addition, specialist capabilities such
Vanessa Ferraro-Wood 1                               choices with resolving powers ranging           as molecular mapping for high contrast
Fraser Clarke 1                                      from R ~ 3000 to R ~ 17 000 make                observations, or the use of deconvolution
Ian Bryson 2                                         HARMONI a very versatile instrument             with knowledge of the point spread func-
Kieran O’Brien 5                                     that can cater to a wide range of               tion (PSF) from AO telemetry extend the
Mario Mateo 6                                        observing programmes.                           areas where HARMONI will make a huge
Begoña Garcia Lorenzo 7                                                                              impact. Some examples are showcased
Chris Evans 2                                                                                        in the last section of this article.
Nicolas Bouché 8                                     About HARMONI
Santiago Arribas 9
and the HARMONI Consortium a                         HARMONI will provide the ELT’s work-            Spatial and spectral grasp
                                                     horse spectroscopic capability at first
                                                     light. A visible and near-infrared integral     Figure 1a shows the spatial layout of the
1
   epartment of Physics, University
  D                                                  field spectrograph (IFS), it provides a         HARMONI field of view (FoV) at its four
  of Oxford, UK                                      “point-and-shoot” capability to simultane-      different spaxel scales, one of which
2
  United Kingdom Astronomy Technology               ously obtain a spectrum of every spaxelb        may be selected on the fly. At any spaxel
   Centre (UKATC), Edinburgh, UK                     over a modest field of view. Several differ-    scale, HARMONI simultaneously observes
3
   L aboratoire d’Astrophysique                     ent flavours of adaptive optics ensure          spectra of ~ 31 000 spaxels in a con­
    de Marseille (LAM), France                       (near) diffraction-limited spatial resolution   tiguous rectangular field. The common
4
    Département d’Optique et Techniques             of ~ 10 milliarcseconds over most of the        wavelength range in each data cube is
     Avancées (DOTA), Office National                sky. ELT+HARMONI will transform the             ~ 3700 pixels long, after accounting for
     d’Etudes et de Recherches Aérospatial           landscape of observational astronomy            the stagger between adjacent slitlets and
     (ONERA), Paris, France                          by providing a big leap in sensitivity and      slit curvature. The spaxel scales range
5
     Physics Department, Durham                     resolution — a combination of the ELT’s         from 0.06 × 0.03 arcseconds per spaxel,
      University, UK                                 huge collecting area, the exquisite spatial     limited by the focal ratios achievable in
6
      Department of Astronomy, University           resolution provided by the AO, and large        the spectrograph cameras, to 4 × 4 milli-
       of Michigan, USA                              instantaneous wavelength coverage cou-          arcseconds per spaxel, set to Nyquist
7
       Instituto de Astrofísica de Canarias (IAC)   pled with a range of spectral resolving         sample the ELT’s diffraction limit in the
        and Departamento de Astrofísica,             powers (R ~ 3000 to 17 000).                    NIR H band. Two other intermediate
        Universidad de La Laguna, Tenerife,                                                          scales of 10 × 10 milliarcseconds per
        Spain                                        Over the last couple of years, HARMONI          spaxel and 20 × 20 milliarcseconds per
8
        Centre de Recherche Astrophysique           has added substantially to the core             spaxel allow the user to optimise for sensi-
         de Lyon (CRAL), France                      instrument. The LTAO capability is part         tivity, spatial resolution or FoV, as required.
9
         Centro de Astrobiología – Instituto        of the baseline, as is a high-contrast AO       A larger FoV is particularly desirable when
          Nacional de Técnica Aeroespacial,          (HCAO) mode that aims to enable direct          using the “nod-on-IFU” technique to
          Consejo Superior de Investigaciones        spectroscopy of extra-solar planetary           achieve accurate sky background sub-
          Científicas (CAB-INTA/CSIC), Madrid,       companions. The University of Michigan          traction, as it involves positioning the
          Spain                                      has joined as a new partner, providing          object alternately in each half of the FoV.
                                                     a much needed cash injection, while the
                                                     Institut de Planétologie et d’Astrophysique     The versatility in choice of plate scale
The High Angular Resolution Monolithic               de Grenoble (IPAG) is funding the hard-         is complemented by a large choice of
Optical and Near-infrared Integral field             ware for HCAO.                                  wavelength ranges and spectral resolving
spectrograph (HARMONI) is the visible                                                                powers, as shown in Figure 1b. HARMONI
and near-infrared (NIR), adaptive-­optics-           HARMONI is equally suited to spatially          uses Volume Phase Holographic (VPH)
assisted, integral field spectrograph for            resolved spectroscopy of extended tar-          gratings for high efficiency. Each grating
ESO’s Extremely Large Telescope (ELT).               gets and of point sources, particularly if      has a fixed wavelength range, so needs
It will have both a single-­conjugate                their positions are not precisely known         to be physically exchanged to change
adaptive optics (SCAO) mode (using                   (for example, transients), or if they are       observing band. One of eleven different
a single bright natural guide star) and              located in crowded fields. The data cube        gratings can be chosen, which between
a laser tomographic adaptive optics                  obtained from a single integral field expo-     them provide three different resolving
(LTAO) mode (using multiple laser guide              sure can yield information about the            powers (R ~ 3000, 7000 and 17 000)
stars), providing near diffraction-­limited          source morphology (via broad- or narrow-­       spanning the various atmospheric win-
hyper-spectral imaging. A unique high-­              band images), spatially resolved kinemat-       dows in the NIR (atmospheric transmis-
contrast adaptive optics with high                   ics and dynamics (via Doppler shifts and        sion is shown in grey in Figure 1b).

                                                                                                               The Messenger 182 | 2021           7
The Messenger No. 182 | 2021 - European Southern Observatory
ELT Instrumentation                                                                             Thatte N. et al., HARMONI

a)                               Spaxel                                                                                                                               c)                                                                     50
                                              30 mas                            20 mas                              10 mas                              4 mas
                                60 mas
     Field-of-view

                                                   6.12 arcsec

                                                                                                                                                                                                      0.3                                    40
                                                                                  4.08 arcsec

                                                                                                                                                        0.82 arcsec
                                                                                                                      2.04 arcsec
                                9.12 arcsec                             3.04 arcsec                          1.52 arcsec                          0.61 arcsec

                                                                                                                                                                       Declination + 2.17 (degrees)
                   For non-AO and visible                        For optimal sensitivity             Best combination for                     Highest spatial
                        observations                                  (faint targets)                   sensitivity and                           resolution

                                                                                                                                                                                                                                                  Strehl ratio (%)
                                                                                                       spatial resolution                   (diffraction limited)
      1 milliarcsecond (mas) = 0.001 arcsec                                                                                                                                                           0.2
                                                                          Grating resolutions
b)                     32 000

                                                                                                                                                   Atmosphere
                       16 000                                                                                                                      VIS                                                                                       20
     Resolving power

                                                                                                                                                   IzJ
                                                                                                                                                   HK                                                 0.1
                        8000                                                                                                                       Iz
                                                                                                                                                    J
                                                                                                                                                   H
                                                                                                                                                   K
                        4000                                                                                                                                                                                                                 10
                                                                                                                                                   z-high
                                                                                                                                                   H-high
                                                                                                                                                   K-high1
                        2000                                                                                                                       K-high2                                            0.0
                            0.4         0.6      0.8             1      1.2   1.4     1.6              1.8        2                 2.2   2.4                                                              0.0                0.1
                                                                          Wavelength (μm)                                                                                                               Right ascension + 150.05 (degrees)

Figure 1. a) Spatial layout of the HARMONI science                                              Adaptive optics flavours                                                 information from the six lines of sight to
field, showing the spaxel sizes and fields of view
                                                                                                                                                                         reconstruct the wavefront aberration for
at the four different spaxel scales. b) Spectral cover-
age and resolving power ranges for each of the                                                  The ELT is an adaptive telescope, with                                   the on-axis path, and commands M4 and
11 HARMONI grating choices. The atmospheric                                                     M4 (a deformable mirror with over 5000                                   M5 to the appropriate shapes to eliminate
transmission is shown in grey. c) Expected AO per-                                              actuators) and M5 (a fast tip-tilt mirror)                               the effect of the turbulence, providing a
formance (Strehl ratio) for the COSMOS deep field,
                                                                                                providing active correction of atmos-                                    near diffraction-limited corrected wave-
observed with HARMONI LTAO in good seeing con-
ditions (0.43 arcseconds), illustrating the sky cover-                                          pheric turbulence. The sensing of the                                    front to the IFS.
age achieved for a typical patch of sky.                                                        wavefront aberrations is done by the sci-
                                                                                                ence instruments — better rejection of                                   It is not possible to measure the image
                                                                                                common-mode disturbances such as flex-                                   motion with LGS, so a separate natural
A fixed-length spectrum implies a natural                                                       ure and vibrations is achieved by splitting                              guide star (NGS) is needed to sense tip-
compromise between instantaneous                                                                the wavefront sensing light as close to the                              tilt and focus. A single off-axis NGS is
wavelength coverage and resolving power.                                                        science focal plane as possible. The                                     sensed by HARMONI’s NGS System
One grating provides coverage at visible                                                        scheme used for wavefront sensing leads                                  (NGSS), with a probe arm that patrols a
wavelengths (V and R bands), requiring a                                                        to HARMONI’s four distinct operating                                     1-arcminute-radius field centred on the
different set of detectors (CCDs instead                                                        modes: LTAO, SCAO, HCAO, and noAO —                                      IFS FoV. The NGS position and focus are
of the HgCdTe arrays used in the NIR).                                                          the last providing no adaptive optics cor-                               sensed at several hundred Hz in the H
However, as AO correction works well                                                            rection of atmospheric turbulence.                                       and K bands, while a slow “Truth Sensor”
only at longer NIR wavelengths, the spatial                                                                                                                              uses the J-band light from the same star
resolution achieved at visible wavelengths                                                      In LTAO operation, six laser guide star                                  to eliminate any low-order wavefront
is close to seeing-limited, making the                                                          (LGS) sensors, each with 78 × 78 sub-­                                   errors introduced by the LGS. The NGSS
large spaxel count somewhat superflu-                                                           apertures, measure the wavefront aberra-                                 is able to operate with stars as faint as
ous. Consequently, only half the FoV is                                                         tions at 500 Hz from six sodium laser                                    HAB = 19, so that HARMONI’s LTAO sys-
offered at visible wavelengths, at all                                                          stars. The laser stars are located in an                                 tem can provide excellent sky coverage
spaxel scales.                                                                                  asterism with a diameter of ~ 1 arcminute,                               — 75% of the sky at the south Galactic
                                                                                                which provides the best compromise                                       pole (SGP) with Strehl exceeding 30% in
                                                                                                between peak performance and robust-                                     the K band under median conditions of
                                                                                                ness to changing atmospheric parame-                                     atmospheric turbulence (see Figure 1c for
                                                                                                ters. HARMONI’s AO Control System                                        an example of LTAO sky coverage).
                                                                                                (AOCS) stitches together the wavefront

8                               The Messenger 182 | 2021
The Messenger No. 182 | 2021 - European Southern Observatory
Even better performance may be                         combination of a pupil-plane apodiser           at half maximum (FWHM) of the seeing.
obtained by using HARMONI’s SCAO                       and a focal-plane mask. Because of              2 × 1 and 4 × 1 binning along the spatial
system, provided a single, bright, natural             uncorrected atmospheric differential            axis can be used to reduce readout times
guide star is present within 15 arcseconds             refraction (chromatic beam shift), it is not    for the CCD detectors, creating effective
of the science target of interest. SCAO                possible to use classical coronagraphs to       spaxels of 0.06 × 0.06 arcseconds and
can also deal with extended objects                    improve contrast. The novel design by           0.06 × 0.12 arcseconds, respectively, that
as AO reference “stars”, with slightly                 Carlotti et al. (2018) achieves good rejec-     are a better match to the seeing FWHM.
degraded performance, as long as the                   tion of starlight — the goal being (post-­
reference is less than 2.5 arcseconds                  processed) contrasts of > 10 6 at separa-
in diameter. Unlike the LTAO system                    tions < 0.2 arcseconds — whilst enabling        Instrument description
(which uses an off-axis NGS), SCAO                     inner working angles (IWA) of less than
uses a dichroic that sends light in the                100 milliarcseconds for IFS spectroscopy.       Figure 2b shows an overview CAD model
700–1000 nm range to a pyramid wave-                   HCAO works only with an on-axis NGS.            of the HARMONI instrument. The instru-
front sensor operating at 500 Hz, with                 It uses the pyramid wavefront sensor of         ment is ~ 8 m tall, and has a footprint of
longer wavelengths (1000–2450 nm)                      the SCAO system for sensing wavefront           5 × 6 m and a total weight of approxi-
available for spectroscopy with the IFS.               aberrations, with a second ZELDA wave-          mately 36 tonnes. The opto-mechanics
Both on-axis and off-axis NGS may be                   front sensor (N’Diaye et al., 2016) for         of the IFS consists of the pre-optics scale
used. Optimal performance is achieved                  improved sensitivity in the high-Strehl         changer, the integral field unit (IFU) and
for stars down to V = 12, with a limiting              regime. Angular Differential Imaging (ADI)      four spectrograph units. The IFU re-
magnitude of V ~ 17. A second SCAO                     will also be employed to reduce the             arranges the light from the field into four
dichroic is available, albeit with a reduced           impact of quasi-static speckles. Conse-         500-mm pseudo long slits, which form
patrol field of 4 arcseconds in diameter,              quently, the HCAO mode drives the IFS           the input to the four spectrograph units.
with a cut-in wavelength of 800 nm for                 rotator to track the pupil, rather than field   The IFS opto-mechanics resides in a
spectroscopy, allowing observations that               tracking as employed in all other modes.        large cryostat, about 3.26 m in diameter
use z-band stellar absorption features as                                                              and 4 m tall (a cutaway view is shown in
diagnostics.                                           At wavelengths where AO correction is           Figure 2a), at a constant operating tem-
                                                       expected to be poor, or when AO cannot          perature of 130 K to minimise thermal
The HCAO mode adds a high-contrast                     be used owing to weather or technical           background. The NIR detectors (eight
capability to HARMONI, using a                         constraints, HARMONI’s noAO mode can            4096 × 4096-pixel HAWAII 4RG arrays)
                                                       provide “seeing-limited” performance.           are operated at the lower temperature of
Figure 2. a) Cutaway CAD model of the HARMONI          The noAO mode utilises a faint (I < 23)         40 K. The instrument rotator and cable
cryostat (ICR), situated on the instrument rotator
and cable wrap (IRW). The view shows the main
                                                       natural star for slow (~ 0.1 Hz) secondary      wrap (IRW) allow the entire cryostat to
opto-mechanical components of the integral field       guiding, eliminating slow drifts of the         rotate about a vertical axis to follow field
spectrograph (IFS), namely the IFS pre-optics (IPO),   instrument focal plane and ensuring             rotation at the ELT’s Nasmyth focus. The
the integral field unit (IFU), and the spectrographs   accurate pointing. This mode is typically       vertical rotation axis guarantees an invari-
(ISP). b) overall CAD assembly of HARMONI, with the
various systems comprising the instrument coloured
                                                       expected to be used with the visible grat-      ant gravity vector, improving the instru-
differently. The LSS is the LGSS Support Structure.    ing and the coarsest spaxel scale, as all       ment’s stability by minimising flexure.
Other acronyms are explained in the text.              scales heavily oversample the full width

a)                                                                             b)                                         LGSS

                                     IPO

                                                                                                                                             LSS
                                                                                                           FPRS

      ICR                                              ICR cold structure                                                                    CM

                                                                                           ISS top frame
                                                              IFU
                                                                                                                   NGSS
IFS
rotating                                                         ISP
electronics                                                                                                                                  ISS
cabinets                                                                                                                                     main
                                                                                                                                             frame
                                                                                                                   ICR
                                                                                                                                             IFS
                                                                                                                                             electronics
                                                                                                                                             cabinets
                                                                       IRW
                                                                                                                   IRW

                                                                                                                  The Messenger 182 | 2021            9
The Messenger No. 182 | 2021 - European Southern Observatory
ELT Instrumentation                                                                                         Thatte N. et al., HARMONI

                                                                     1 × 10 7                                                                                                                        Figure 3. a) Reconstructed images of Io, observed
  a)
                                                                                                                                                                                                     with HARMONI at a scale of 4 × 4 milliarcseconds,
                                                                                                                                                                                                     without deconvolution. The bottom image shows
                                                                                                                                                                                                     two volcanic hot spots that dominate the NIR emis-
                                                                     8 × 10 8                                                                                                                        sion, while the top image is in a quiescent state.
                                                                                                                                                                                                     Simulated spectra of four hot-spots at different tem-
                                                                                                                                                                                                     peratures ranging from 600 K to 1200 K are also
                                                  Flux (electrons)

                                                                     6 × 10 8                                                                                                                        shown. b) Reconstructed image and spectrum
                                                                                                                                                                                                     of a simulated Type-Ia supernova in a z ~ 3 galaxy,
                                                                                                                                                                                                     located 0.2 arcseconds from the galaxy nucleus.
                                                                                                                                                                                                     c) z ~ 6 galaxy from the NEW HORIZON cosmologi-
                                                                     4 × 10 8                                                                                                                        cal simulation, and its mock observation with ELT+
                                                                                                                                                                                                     HARMONI. The spectrum shows a clear detection of
                                                                                                                                                                                                     the He II line from Pop III stars, in a 10-hr exposure.

                                                                     2 × 10 8

b)                                                                         0
                                                                                                     1.6               1.8           2.0                                     2.2           2.4
                                                                                                                             Wavelength (μm)

  b)                     log(Flux) in electrons
                10 2    101     10 0 10 –1 10 –2 10 –3 10 –4                                                         Rest wavelength (Å) at z = 3.0000
                                                                                                                  4000     4500      5000        5500                                 6000
           0

          10                                                                                       0.10

          20
                                                                                Fื (normalised)

                                                                                                   0.05
Pixels

          30

          40
                                                                                                   0.00

          50
                                                                                                  –0.05          sn_observed
          60                                                                                                     SN 1981B max

                0 10      20       30     40                50           60                                    1.6 × 104 1.8 × 104 2.0 × 104 2.2 × 104 2.4 × 104
                                    Pixels                                                                               Observed wavelength (Å)

                                Σgas (M๬ pc –2)                                                            N He II 1640 (electrons)
  c)
                          101        10 2             10 3                                            10 2                    10 3
          1.0                                                                                                                                                                                                                                          1.0
                                                                                                                                                                          25 000
                                                                                                                                                                                   G5, z = 6
                       G5, z = 6                                                                    Post – HSIM
                                                                                                                                                                                   FWHM = 80.7 ± 0.4 km s –1                                           0.8
                                                                                                                                             N (× 10 –5 electrons s –1)

          0.5                                                                                                                                                             20 000   Npeak /Ncont. = 15.49 ± .07
                                                                                                                                                                                                                                                             Transmission

                                                                                                                                                                                   Spaxel scale: 10 × 10
                                                                                                                                                                          15 000                                                                       0.6
y (kpc)

          0.0
                                                                                                                                                                          10 000                                                                       0.4

      –0.5
                                                                                                                                                                           5000                                                                        0.2
                                                                                                   50 mas

      –1.0                                                                                                                                                                    0                                                                        0.0
         –1.0            –0.5        0.0              0.5                 1.0 –1.0                    –0.5          0.0        0.5     1.0                                         1.149         1.150   1.151      1.152   1.153     1.154    1.155
                                                                          x (kpc)                                                                                                                                λ (μm)

The NGSS is located on top of the IFS                                                                       top of the cryostat and the NGSS. Both                                                   just past the instrument slow shutter,
cryostat and co-rotates with it. It houses                                                                  the FPRS and NGSS are maintained in a                                                    close to where telescope light enters the
the natural guide star sensors for all four                                                                 dry gas environment at a constant tem-                                                   instrument, at a beam height of 6 m
operating modes. As the telescope’s                                                                         perature of –15 degrees C, reducing                                                      above the Nasmyth platform. The first
back focal distance is insufficient to                                                                      thermal background for improved K-band                                                   element in the instrument light path is
relay the telescope light directly into the                                                                 sensitivity and minimising thermal drifts.                                               the LGS dichroic, which sends light at
upward-­looking cryostat, a focal-plane                                                                                                                                                              589 nm from the ELT’s six LGS to the
relay system (FPRS) re-images 2 arcmin-                                                                     The LGS System (LGSS) and the                                                            LGSS. As the LGS asterism is projected
utes of the telescope focal plane to the                                                                    Calibration Module (CM) are located                                                      from the periphery of the ELT primary

10                       The Messenger 182 | 2021
mirror (M1), it co-rotates with the tele-      non-destructive readout saved in the             required exposure time or even the feasi-
scope pupil, and the LGSS needs its own        archive. AO telemetry data, useful for           bility of the planned observation. It also
de-rotator to compensate. The CM can           reconstructing the PSF during the expo-          allows the user to develop and test the
insert light from calibration lamps via fold   sure, will also be archived.                     analysis tools required. The HSIM code is
mirrors into the beam path, mimicking                                                           publicly available2.
the telescope f-ratio and pupil location. It   Science calibrations needed by the data
provides line and continuum sources for        reduction pipeline, such as arc lamp             HSIM predicts point source sensitivities
all science and technical calibrations. The    exposures for wavelength calibration,            (5σ, 5 hr, 2 × 2-spaxel extraction aper-
Instrument Static Structure (ISS) provides     detector bias and dark frames, flat fields       ture) of JAB = 25.6, HAB = 26.8, KAB = 25.9
a robust mechanical structure and              and vertical line and pinhole masks, will        in LTAO mode, with SCAO performance
access to all instrument systems.              be carried out the morning after the             of JAB = 26.2, HAB = 27.0, KAB = 26.0 at
                                               observations, as is typical for VLT instru-      R ~ 3000. The point source sensitivities
                                               ments. ELT instruments are required to           do not convey the full picture, so we have
Operation and calibration                      be light-tight, so calibrations can happen       used HSIM to carry out detailed simula-
                                               in parallel for all instruments. With four       tions showcasing a few planned observa-
HARMONI is conceptually simple to oper-        observing modes, 4 choices of spaxel             tions with HARMONI. These range from
ate, as it provides a “point-and-shoot”        scale, and 11 grating settings, the number       objects in our own Solar System to the
capability. The user selects one of four       of distinct configurations needing calibra-      most distant galaxies at z ~ 6–10.
operating modes: noAO, SCAO, HCAO              tion exceeds 100. Consequently, only the
or LTAO. In addition, the user must            configurations used during the night will        Jupiter’s moon Io is the most volcanically
choose a setting that specifies a choice       be calibrated the following morning. Sci-        active body in the Solar System. Groussin
of spaxel scale, grating and, optionally,      ence calibrations and additional monitor-        et al. (in preparation) have simulated ELT
other user-selectable items (for example,      ing calibrations will be used for “health-       observations of Io’s hotspots. They show
SCAO dichroic, or apodiser) and the            checks” (to monitor trends in instrument         that it is possible to distinguish between
instrument is configured accordingly.          performance). Efforts will be made to mini-      sulphurous and ultra-mafic composition
Accurate pointing is assured by specify-       mise night-time calibrations (telluric or        of the ejecta by measuring the ejecta’s
ing offsets of the science field centre        flux standards) wherever possible. Meth-         temperature (see Figure 3a) from their
from the natural guide star. As a conse-       ods that use model-based calibrations            NIR spectra, using HARMONI’s SCAO
quence, the default acquisition sequence       instead are being actively investigated          mode providing near diffraction-limited
does not require an acquisition exposure       by a number of ESO working groups.               spatial resolution.
with the IFS — once the guide star is
acquired and all control loops are closed,                                                      Bounissou et al. (2018) have shown that
the first science exposure can commence        Performance                                      HARMONI LTAO can provide direct spec-
straight away. Thanks to the unprece-                                                           troscopic classification of a supernova
dented spatial resolution of the ELT, the      We have developed a python simulator,            in a galaxy at z ~ 3 in a 3-hr observation,
accuracy of information needed for guide       HSIM1, to provide prospective users with         up to 2 months past maximum light (see
stars (proper motion, colour, etc.) is much    the ability to quantitatively assess the effi-   Figure 3b), using the Si II feature (at
higher than for the Very Large Telescope       cacy of their proposed observing pro-            400 nm in the rest frame). Confirming
(VLT). With the faint guide stars which        gramme. HSIM (Zieleniewski et al., 2015)         type Ia supernovae spectroscopically for
can be used by HARMONI, catalogues             is a “cube-in, cube-out” simulator that          a small sub-sample will allow studies of
may not suffice and pre-imaging of the         mimics the effects of atmosphere, tele-          cosmic expansion rates to be pushed to
field might be needed in some cases.           scope, instrument and detector, including        substantially higher redshifts.
                                               the strongly wavelength-dependent, non-­
Observing templates will have a similar        axisymmetric AO PSF. The user can ana-           We have used the adaptive mesh refine-
look and feel to those of other VLT NIR        lyse the output cube as if it were the out-      ment cosmological simulations from the
IFS, and will include a variety of sky-­       put of the instrument pipeline for a real        NEW HORIZON suite (Dubois et al., 2020)
subtraction strategies such as “offset         observation, as it incorporates noise from       to simulate studies of high-z galaxies with
to blank sky”, “nod-on-IFU” or “stare”,        all sources, including shot noise from           HARMONI in a spatially resolved manner.
together with small jitters to work around     thermal background and night-sky emis-           Using cosmological simulations that cre-
bad or hot pixels. Mosaicking will also be     sion, detector readout noise and dark            ate galaxies at high spatial resolution
supported in the usual way, as will non-­      current. Detector systematics and the            commensurate with HARMONI’s observa-
sidereal tracking in LTAO and noAO             impact of sky subtraction can also be            tional capabilities (~ 100 pc at z ~ 2–10) is
modes (in SCAO and HCAO mode, the              included if desired. Through detailed            preferred because the objects have mor-
only non-sidereal observation possible         analysis of the output cube, the astrono-        phologies and kinematic and dynamical
is when the AO reference “star” is itself      mer can derive uncertainties and confi-          properties consistent with the ob­served
non-sidereal). NIR long exposures (typical     dence levels for the derived physical            ensemble population at high redshifts,
for spectroscopy of faint targets) will use    parameters from the observation, rather          and have well understood input physics
Sample-Up-The-Ramp (SUTR) readout              than just the signal-to-noise ratio per          consistent with known laws and cosmo-
to minimise readout noise, with every          spaxel (or pixel), thus quantifying the          logical evolution (Richardson et al., 2020).

                                                                                                         The Messenger 182 | 2021         11
ELT Instrumentation                              Thatte N. et al., HARMONI

                              Grisdale et al. (2020) have used NEW             from a substantial fraction of the mock               Olivier Groussin (Io simulations) and Kearn Grisdale
                                                                                                                                     (Pop III simulations). We are also grateful to James
                              HORIZON simulations, post-processed              galaxies in a 10-hr exposure (Figure 3c).
                                                                                                                                     Carruthers, Neil Campbell, and David Montgomery
                              using the CLOUDY radiative transfer              However, to be certain that the line                  for CAD views. Miguel Pereira-Santaella is the
                              code (Ferland et al., 2017) to show              indicates the presence of Pop III stars               author of HSIM and we thank him for the sen­s i­-
                              that HARMONI LTAO could detect the               would require ancillary observations of               tivity computations.
                              presence of the first stars (Pop III stars) in   the H-­alpha line from these objects to
                              galaxies at very high redshifts (z = 3–10).      measure the He II to H-alpha ratio, prob-             References
                              The existence of Pop III stars has not           ably using the James Webb Space
                              been observationally confirmed up to             Telescope, given the high redshifts                   Bounissou, S. et al. 2018, MNRAS, 478, 3189
                                                                                                                                     Carlotti, A. et al. 2018, Proc. SPIE, 10702, 107029N
                              now, although several attempts have              involved.
                                                                                                                                     Dubois, Y. et al. 2020, arXiv:2009.10578
                              been made and some excellent candi-                                                                    Ferland, G. J. et al. 2017, Revista Mexicana
                              dates have been identified. Given their                                                                   de Astronomía y Astrofísica, 53, 385
                              primordial composition with no heavy             Acknowledgements                                      Grisdale, K. et al. 2021, MNRAS, 501, 5517
                                                                                                                                     N’Diaye, M. et al. 2016, Proc. SPIE, 9909, 99096S
                              elements, Pop III stars are expected to          HARMONI work in the UK is supported by the            Richardson, M. et al. 2020, MNRAS, 498, 1891
                              be substantially more massive than their         Science and Technology Facilities Council (STFC)      Zieleniewski, S. et al. 2015, MNRAS, 453, 3754
                              metal-rich cousins. Consequently, they           at the UK Astronomy Technology Centre (UKATC),
                              should burn much hotter, and have a              Rutherford Appleton Laboratory (RAL), University of
                                                                               Oxford (grants ST/N002717/1 and ST/S001409/1)         Links
                              much higher ultraviolet flux, capable of         and Durham University (grant ST/S001360/1), as part
                              ionising not only hydrogen but also helium       of the UK ELT Programme. In France, the HARMONI       1
                                                                                                                                      HSIM simulator: https://harmoni-elt.physics.ox.ac.
                              in the surrounding gas (H II region). The        Project is supported by the CSAA-CNRS/INSU,            uk/Hsim.html
                              strength of the He II 164 nm line is thus        ONERA, A*MIDEX, LABEX LIO, and Université             2
                                                                                                                                      HSIM code: https://github.com/HARMONI-ELT/HSIM
                                                                               Grenoble Alpes. The IAC and CAB (CSIC-INTA)
                              a good observational diagnostic for the          acknowledge support from the Spanish MCIU/AEI/
                              presence of Pop III stars. Despite the           FEDER UE (grants AYA2105-68217-P, SEV-2015-           Notes
                              large luminosity distance of these very          0548, AYA2017-85170-R, PID2019-107010GB-100,
                              high-redshift star forming regions, the          CSIC-PIE201750E006, and PID2019-105423GA-I00)         a
                                                                                                                                      The full list of HARMONI Consortium members can
                                                                               and from the Comunidad de Madrid (grant 2018-T1/       be found at https://harmoni-elt.physics.ox.ac.uk/
                              ELT’s huge collecting area, coupled with         TIC-11035).                                            consortium.html
                              the exquisite spatial resolution provided                                                              b
                                                                                                                                      Spaxel stands for SPAtial piXEL, to distinguish it
                              by HARMONI LTAO, would detect the                The authors would like to acknowledge contributions    from a pixel of the spectrograph detector.
                              He II feature with good signal-to-noise          from Sophie Bounissou (supernova simulations),
ESO/SPECULOOS Team/E. Jehin

                                                                                                                                                                 If you had a brand new
                                                                                                                                                                 state-of-the-art tele-
                                                                                                                                                                 scope facility, what
                                                                                                                                                                 would you look at first?
                                                                                                                                                                 Researchers at the
                                                                                                                                                                 SPECULOOS Southern
                                                                                                                                                                 Observatory — which
                                                                                                                                                                 comprises four small tel-
                                                                                                                                                                 escopes, each with a
                                                                                                                                                                 1-metre primary mirror
                                                                                                                                                                 — chose to view the
                                                                                                                                                                 Lagoon Nebula. This
                                                                                                                                                                 magnificent picture is
                                                                                                                                                                 the result, and is one of
                                                                                                                                                                 the SPECULOOS’ first
                                                                                                                                                                 ever observations.

                              12          The Messenger 182 | 2021
ELT Instrumentation                                                                 DOI: 10.18727/0722-6691/5216

MAORY: A Multi-conjugate Adaptive Optics RelaY for ELT

Paolo Ciliegi 1          Andrew Rakich 1                              diameter ~ 60 arcseconds, with pretty
Guido Agapito 1          Patrick Rabou 3                              homogeneous performance over the
Matteo Aliverti 1        Edoardo Redaelli 1                           whole FoV.
Francesca Annibali 1     Matt Redman 2
Carmelo Arcidiacono 1    Marco Riva 1                                 MAORY is designed to support two dif-
Andrea Balestra 1        Sylvain Rochat 3                             ferent instruments, each with the same
Andrea Baruffolo 1       Gabriele Rodeghiero 1                        optical quality and with a gravity-invariant
Maria Bergomi 1          Bernardo Salasnich 1                         port. One of these two instruments will
Andrea Bianco 1          Paolo Saracco 1                              be the Multi-adaptive optics Imaging
Marco Bonaglia 1         Rosanna Sordo 1                              CamerA for Deep Observations (MICADO)
Lorenzo Busoni 1         Marilena Spavone 1                           near-infrared camera (Davies et al., 2018),
Michele Cantiello 1      Marie-Hélène Sztefek 3                       while the second one is as yet undefined.
Enrico Cascone 1         Angelo Valentini 1                           The SCAO module is being developed
Gaël Chauvin 3           Eros Vanzella 1                              within the MICADO consortium with con-
Simonetta Chinellato 1   Christophe Verinaud 4                        tributions from MAORY and is described
Vincenzo Cianniello 1    Marco Xompero 1                              in Davies et al. (p. 17). The MAORY pro-
Jean-Jacques Correia 3   Simone Zaggia 1                              ject is now in its Phase B stage and is
Giuseppe Cosentino 1                                                  progressing towards its Preliminary
Massimo Dall’Ora 1                                                    Design Review in early 2021.
Vincenzo De Caprio 1     1
                            INAF, Italy
Nicholas Devaney 2       2
                             NUIG, Galway, Ireland
Ivan Di Antonio 1        3
                              CNRS/INSU, Grenoble, France            Science drivers
Amico Di Cianno 1        4
                           ESO
Ugo Di Giammatteo 1                                                   The scientific application of the SCAO
Valentina D’Orazi 1                                                   mode will be limited by the need for a
Gianluca Di Rico 1       The Multi-conjugate Adaptive Optics          bright (approximately V ≤ 16 magnitudes)
Mauro Dolci 1            RelaY (MAORY) is the adaptive optics         star within few arcseconds of the scien-
Sylvain Doutè 3          (AO) module for the Extremely Large          tific target, while the MCAO mode will
Cristian Eredia 1        Telescope (ELT) that will provide two        make use of three natural guide stars
Jacopo Farinato 1        gravity-invariant ports with the same        (NGS) (with H ≤ 21.0 magnitudes) to be
Simone Esposito 1        optical quality for two different client     found within an annular patrol field with
Daniela Fantinel 1       instruments. It will enable high-angular­-   an inner radius of ~ 40 arcseconds and
Philippe Feautrier 3     resolution observations in the near-­        an outer radius of ~ 160 arcseconds. The
Italo Foppiani 1         infrared over a large field of view          three NGS will allow us to correct low-­
Enrico Giro 1            (~ 1 arcminute 2) by real-time compensa-     order modes of the wavefront distortions,
Laurance Gluck 3         tion of the wavefront distortions caused     while the six laser guide stars (LGS) will
Aaron Golden 2           by atmospheric turbulence. Wavefront         be used to correct for high-order modes.
Alexander Goncharov 2    sensing is performed using laser and         This will make it possible to get AO-­
Paolo Grani 1            natural guide stars while the wavefront      assisted observations over a large frac-
Marco Gullieuszik 1      sensor compensation is performed by          tion of the sky, meeting the system speci-
Pierre Haguenauer 4      an adaptive deformable mirror (DM) in        fication for sky coverage (≥ 50% over the
François Hénault 3       MAORY which works together with the          whole sky).
Zoltan Hubert 3          telescope’s adaptive and tip-tilt mirrors
Miska Le Louran 4        M4 and M5 respectively.                      Coupled with MICADO, MAORY will ena-
Demetrio Magrin 1                                                     ble the ELT to perform diffraction-limited
Elisabetta Maiorano 1                                                 observations in the near-infrared. In imag-
Filippo Mannucci 1       Introduction                                 ing mode MAORY + MICADO will provide
Deborah Malone 2                                                      an option with a wide FoV (50.5 × 50.5
Luca Marafatto 1         MAORY will provide the ELT with two          arcseconds) at pixel scale of 4 milli-
Estelle Moraux 3         adaptive optics modes: the single-­          arcseconds and a high-resolution option
Matteo Munari 1          conjugate adaptive optics (SCAO) mode,       with a 1.5-milliarcsecond pixel scale over
Sylvan Oberti 4          which provides a very high correction        19 × 19 arcseconds. This will represent a
Giorgio Pariani 1        over a field of view (FoV) of diameter       major step forward, with a significantly
Lorenzo Pettazzi 4       ~ 10 arcseconds, with performance rap-       better spatial resolution than that of the
Cédric Plantet 1         idly degrading with distance from the        Hubble Space Telescope (HST) and even
Linda Podio 1            bright natural star used to probe the        the James Webb Space Telescope
Elisa Portaluri 1        wavefront, and a multi-conjugate adap-       (which has a pixel scale ~ 30 milliarcsec-
Alfio Puglisi 1          tive optics (MCAO) mode, which provides      onds pixel ­–1). Long-slit spectroscopy will
Roberto Ragazzoni 1      a moderate correction over a FoV of          be covered with two settings: a short slit

                                                                               The Messenger 182 | 2021        13
ELT Instrumentation                                                    Ciliegi P. et al., MAORY: A Multi-conjugate Adaptive Optics RelaY for ELT

a)                                                                                                             b)
                                                                                                                       NGC 4472                         50ೀ               0.2ೀ
                 Terzan 5                                                      MAD 30ೀ × 18ೀ                                DSS2

                                                                                                                            HST
                                                                                                                                                                          MAORY
                                                                                                                                                  HST
                                                                               MAORY 1ೀ × 1ೀ                              MAORY

                                                                                                                                                                   1.0ೀ

                                                                                                                     DSS2

                                                                                                                                                                   MAORY

c)                              Age = 15 Myr                                                                           HST/F105W      Galfit model PSF          NGC1705 hosts
     YMC                                                                   1 px
                                                                                               39

                                                                                                                    + fake NGC1705    Muv = –15.6 (31.1)          (residuals)
                                                                                                          pc
                                Re = 4 pc (optical)                        130 pc
                                                                                                0

                           YMC:                                                                        38
                                                                                                  pc

                                Muv = 15.23
                                Mass = 7.1 × 10 5 M๬                        1 px
                                                                            13 pc

     8 pc
                                                                                                                          D1                                              D1

                                                                                                                                                     pc
                                                                                                                T1                                            T1

                                                                                                                                                    0
                                                                                                                                                  26
                                                                                    z = 6.1

                                                                              Lensed: HST 1 pix = 30 mas
                                                     z=0
                                                                              Lensed: ELT 1 pix = 4 mas
                                                                                                                            ELT (MAORY + MICADO)/H band

                                                                                    z = 6.1                                                                   PSF HST
                                                     Relative counts

       0
     200
      400
       600
                                05
     pc 800            UDC/NGC17                                            1 px                                                                               PSF ELT
        1000                              1200       1400                   17 pc
                                 800 1000
         1200       200 400 600
                                                                                                                                        pc

                0
                                                                                                                                                                                 pc
                                                                                               39

                                                                                                          pc

                              pc
                                                                                                                                      15

                                                                           1 px
                                                                                                                                                                            15
                                                                                                 0

                                                                                                       38
                                                                                                  pc

                                                                           1.7 pc

Figure 1. Combination of real and simulated images                     the MAORY science cases White Book                       resolved into individual stars. In many
from the MAORY science cases White Book.
                                                                       available on the MAORY website1.                         cases they will fall within the range of
a) Terzan 5 as imaged by MAD at VLT and by
MAORY + MICADO. b) NGC 4470 as imaged by                                                                                        resolved systems only thanks to the
HST and MAORY + MICADO. c) 2D and 3D HST                               Together the science cases address                       advent of MAORY + MICADO;
images of NGC 1705 and simulations at HST and                          many of the major questions in                        – The high-redshift Universe, with the sci-
MAORY + MICADO resolution lensed at z = 6.1.
                                                                       astrophysics:                                            ence cases addressing the formation of
                                                                       –P lanetary systems, including cases in                 structures and cosmology using the
of 0.84–1.48 μm, and a long slit of 1.48–                                our own Solar System, exoplanets and                   formidable sensitivity and resolution of
2.46 μm (see Davies et al., p. 17 for a                                  the formation of planetary systems;                    MAORY + MICADO to probe the very
detailed description of the MICADO                                     –N earby stellar systems, comprising                    distant Universe and consequently the
observing modes).                                                        stars and stellar systems within our own               earliest phases of galaxy formation, as
                                                                         Galaxy and its satellites;                             well as high-energy phenomena over
The science cases for MAORY + MICADO                                   –T he local Universe, with science cases                the range of cosmic distance and time
have been widely explored by the                                         aimed at studying the stellar content                  made accessible by the ELT.
MAORY science team. A preliminary col-                                   and the structure of distant stellar sys-
lection of the cases studied is reported in                              tems that can be at least partially

14           The Messenger 182 | 2021
You can also read
