The Infinity Range. Highly efficient glass-fronted gas fires with warmth, infinite style and vision
Welcome to Infinity Fires
British made for the British market, Infinity Gas Fires have the appearance of Continental fires
although they are designed to work in UK households. The Infinity brand of gas fires is part of the
Charlton & Jenrick group which has been manufacturing and supplying to the fireplace industry
since 1986.
The latest range of Infinity Classic and Infinity HD gas Choice of Firebox Liner Options
fires is the ultimate in realistic-looking gas fires from The Infinity Classic range comes with a choice of four
Charlton & Jenrick. firebox liner types: Rustic Brick, Ribbed Black, Beige
This latest range of fires builds on the looks and Vermiculite and Black Mirror Glass.
performance of the originals and now offers mains Please Note: not all fires are available with all liners and
electric power as standard and increased performance some are optional extras; please check with your retail
in the balanced flue models. showroom who will be able to give you more detail.
Mains Power The Infinity HD range featured in this brochure gives
Being mains powered offers a number of advantages you the choice of three firebox liner options. Choose
over the battery operated versions, most notably no from Beige Vermiculite, Red Brick or Black Mirror Glass.
need to be regularly replacing batteries; but the lack
Please Note: not all fires are available with all liners and
of batteries also means reduced metal work at the front
some are optional extras; please check with your retail
of the fire, meaning you see more flame and fuel bed
showroom who will be able to give you more detail.
and less metal work framing your fire.
Standard or Reduced (Anti-reflective Glass)
The mains power is provided by a lightweight 9V cable
All the Infinity HD gas fires are glass fronted to make
which will easily fit under skirting board or flooring and
them ultra efficient.
simply plugs into a standard plug socket. Should there
be a power cut to your home, the fire is supplied with You have a choice whether to have the standard glass
a battery pack (batteries not included) that can simply or the optional Anti-reflective glass. The reduced
be plugged into the fire’s power supply by removing reflectivity eliminates the majority of reflection to give
the cable from the transformer (at the plug socket) the appearance of an ‘open’ fire without any glass in.
and connecting to the battery pack instead.
Classic Infinity fires all come with standard glass.
Choice of Logs Black Glass Fascia Option
Choose from realistic effect Walnut or Silver Birch logs
The 480HD, 780HD and 800HD all
on your Infinity HD fire and Realistic Mixed
have the option of a modern stylish
Wood Effect on the Classics.
black glass fascia for the fires
when installed into the wall.
Highly efficient glass-fronted
gas fires with warmth,
infinite style and vision
2
Welcome...
FOR MORE INFORMATION CALL 0845 519 5991
Contents
Infinity 480HD 12
Infinity 480BF 14
Infinity 600HD 16
Infinity 600BF 18
Infinity 780HD 20
Infinity 780FL 22
Infinity 780BF 24
Infinity 620HD UBL 26
Infinity 890HD 28
Infinity 890BF 30
Infinity 800HD UBL 32
Infinity 800HD UBL BF 34
Dimensions & Specifications 36
Complete Suite Packages The two limestone materials are:
As well as the stunningly realistic gas fires, we offer Premium Portuguese Limestone
them in a range of limestone fireplaces to create the This is a cleaner whiter Portuguese limestone that
perfect suite. Our designers have worked to create has less of the markings of our traditional limestone.
packages that bring out the best in the fire and
also save you time and effort in sourcing Aegean Limestone
separately. This is a Turkish limestone that is whiter with less
marking than the Portuguese limestone.
There are two types of limestone fireplace
that we offer and this may vary depending PLEASE NOTE: these are still natural products so every one will
on model so please speak with your local be slightly different and there is a uniqueness to these products.
If you are looking for something that is uniform and exactly identical
Infinity retailer who will be able to give
in texture to the one you see in the showroom then limestone is not
you the full options. the material for you. Please speak with your retailer who will be able
to explain further.
WWW.CHARLTONANDJENRICK.CO.UK 3
Infinity features and options at a glance
= HD ONLY OPTIONS
GLASS TYPE LINER OPTIONS FEATURES
ANTI-REFLECTIVE RED
HIGH-EFFICIENCY BRICK
2.1 OUTPUT
GLASS LINER
kW
HIGH- RUSTIC NET
EFFICIENCY BRICK 86%
Efficiency EFFICIENCY
GLASS LINER
BLACK
REMOTE
MIRROR
CHIMNEY TYPE CONTROL
GLASS LINER
BEIGE SMART
TYPE 1 VERMICULITE CONTROL APP
1 LINER COMPATIBLE
RIBBED 5 GUARANTEED
YEAR
TYPE 2 BLACK QUALITY
2 LINER
WARRANTY
BALANCED
FLUE
(BF) FUEL TYPE
NATURAL
GAS
FUEL BED OPTIONS NG (NG)
LOG LIQUIFIED
FUEL PETROLEUM
BED LPG GAS (LPG)
SILVER BIRCH
LOG FUEL
BED
WALNUT
LOG FUEL
BED
UNDER BED
UBL LIGHTING
(UBL)
Features
and options...
4 FOR MORE INFORMATION CALL 0845 519 5991
Infinity Thermostatic Remote Control
Every fire comes with a temperature for your
thermostatic radio room and the fire can be
frequency remote set to regulate itself to
control that allows you achieve this.
to set the perfect
Infinity firebox liner options
BLACK MIRROR GLASS LINER BEIGE VERMICULITE LINER
DON’T FORGET TO
LOOK OUT FOR THE
ICONS TO SEE WHAT
FEATURES/OPTIONS
ARE AVAILABLE ON
YOUR CHOSEN MODEL
RED BRICK LINER RUSTIC BRICK LINER RIBBED BLACK LINER
Infinity fuel bed options
WALNUT LOGS OPTION SILVER BIRCH LOGS OPTION LOGS OPTION
UBL
Infinity Under bed lighting (UBL)
GAS FLAME ONLY UNDER BED LIGHTING ONLY GAS FLAME AND UNDER BED LIGHTING
WWW.CHARLTONANDJENRICK.CO.UK 5
All fires approved to latest efficiency
standards for UK inset gas fires.
As part of the continual improvement programme at Charlton & Jenrick,
we take pride in innovating & developing our fires, always striving for
improvements. Part of this process requires that we test all our gas fires
to the current efficiency standards, ensuring our customers always receive
up-to-date products.
All the open-flue inset fires (glass-front) in this The efficiencies quoted in this brochure are the Net
brochure have been independently certified efficiencies which are usually advertised in marketing
literature. A brief explanation is on the following spread
to the efficiency requirements of BS 7977-
and if you wish to see a copy of the standards we use,
1:2009+A1:2013 which came into force in
further details can be found at www.bsigroup.com.
late 2013 and included an amendment that
requires all gas fires to be tested without
excessive spillage on the efficiency test rig
to claim an efficiency. Balanced-flue fires and
direct connection open-flue fires are tested
to the latest revision of BSEN613: 2001.
Efficiency
standards...
6 FOR MORE INFORMATION CALL 0845 519 5991
SAP Rating
If you are buying a new home, the SAP rating will be
of importance and the efficiency of the fire can either
have a positive or negative effect on the rating. If
the efficiency is not certified as precisely to the latest
standards (detailed left) then it will be included in
the calculation at the minimum level for that class
of fire, not the one claimed by the manufacturer.
Here at Charlton and Jenrick we constantly strive to
maintain a high level of efficiency, with our most efficient
HIGH
EFFICIENCY fires achieving up to 92% efficiency. EXAMPLE USED: INFINITY 890BF
WWW.CHARLTONANDJENRICK.CO.UK 7
Net Efficiency v Gross Efficiency
Net efficiency calculations assume
that the energy contained in the water
vapour which is formed as a product of
combustion is recovered in some way, e.g.
into the fabric of the building, and is not lost
from the flue/chimney. Gross combustion
efficiency calculations assume that the
energy contained in the water vapour is not
recovered and is lost to the outside air.
Typically the difference between the value
of net combustion efficiency and the value
of gross combustion efficiency for a natural
gas fire is around 5 to 8 percentage points
with the net value being higher than the
gross value. Most gas fire manufacturers
quote their efficiencies based on the net
combustion efficiency, although the gross
value is often stated in the installation
instructions for Building Regulations
purposes.
Efficiency
explained...
8 FOR MORE INFORMATION CALL 0845 519 5991
Energy efficiency Tested and approved
for SAP ratings with guaranteed quality
in your home Every Infinity fire is designed to
The latest version of The Building the highest standards using only
Regulations call upon the mentioned the finest materials, as well as being
standard efficiency tests in relation to tested and approved to European
calculating the rating of your gas fire standards, meaning we can be
for SAP (Standard Assessment confident about every fire we make.
Procedure) purposes. If your fire has
So confident, in fact, each fire comes
not been approved to the correct
with a 5-year parts warranty.*
standards then an accurate calculation
cannot be made and a nominal low *Subject to terms and conditions
which you will find on our website.
standard figure from the SAP guide
will be used instead. For more details
please visit www.gov.uk/standard- 5
assessment-procedure. YEAR
When considering your purchase WARRANTY
of a gas fire it is important to ensure
you are comparing like for like. If
unsure, it is always worth confirming
with the staff in the showroom you are
using, or the manufacturer of the fire,
that the appliance has been tested
to the very latest version of BS7977
i.e. including +A1: 2013.
ISO27001:2005
ISO 9001:2015 ISO27001:2005
ISO 14001:2015
Member of SN Registrars (Holdings) Ltd 8327 Member of SN Registrars (Holdings) Ltd 8327
All Infinity gas fires are manufactured under a BS EN ISO 9001 quality system (registration number
5195), which covers all areas of product design, development, manufacture and service.
WWW.CHARLTONANDJENRICK.CO.UK 9
Infinity Smart Control Remote App
As well as the high- Illustrating C&J’s commitment to the environment and
quality radio long-term approach to the gas fire market, an important
enhancement to the new Infinity HD range is its
frequency remote
bespoke Smart App control featuring an all-new Eco
control that comes
mode. Designed to provide the triple benefits of
as standard with all economy, reduced CO2 emissions and the extra viewing
Infinity HD gas fires, interest of flame modulation, the Eco setting feature
there is the optional consumes 16% less fuel on average than the permanent
extra of controlling maximum mode.
the fires using your The major benefits to the user are that the attractive
phone or tablet. flames can be enjoyed to the full, reaching maximum
height on a programmed cycle every 100 seconds,
whilst simultaneously reducing the possibility of
Once installed on your phone or tablet, the Infinity overheating the living space and associated overuse
Smart Control Remote App acts as a remote control of fuel. The bespoke computerised control achieves
and connects via your WiFi internet router or can energy savings by electronically adjusting the gas flow
connect directly using WiFi to the fire. to the burners every 10 seconds on a rolling cycle basis
to vary flame height and gas consumption.
Using the App in FLAME mode you can manually
control the fire by lighting it and operating the fire
flames (and therefore the heat output) from low to
high in five stages. This intuitive design allows you to
easily scroll and set the flames to your desired level.
The App monitors the ambient room temperature
so you always have the current status and can easily
control the fire accordingly.
Alternatively you can use the TEMP STAT feature which
allows you to set the preferred ambient temperature
for the room and the fire will automatically adjust
between the five output settings to keep the room
at your desired level (the App will refresh and analyse
the ambient room temperature every minute and
adjust accordingly).
Smart control
remote app...
10 FOR MORE INFORMATION CALL 0845 519 5991LOOK OUT FOR
THIS ICON FOR
FIRES THAT WORK
WITH THE SMART
CONTROL REMOTE APP
When your Infinity gas fire is first installed,
you can use the App to go onto the online
warranty registration and register your 5-year
guarantee. From the App you can also gain
easy access to Charlton & Jenrick’s website
and social media channels for tips and advice
on running your fire and the latest news and
product updates.
Smart controls are becoming part of the everyday
operational enhancement of appliances and together
with the user convenience of remote control will
provide economy of fuel consumption and reduced
environmental impact whilst retaining the visual and
aesthetic pleasure of a highly attractive living flame
heating unit.
WWW.CHARLTONANDJENRICK.CO.UK 11Infinity 480HD
Infinity 480HD with Red Brick Liners and Silver Birch Infinity 480HD with Beige Vermiculite Liners and Walnut
Logs options shown in Stokesay Surround Logs options, fitted as a hole-in-the-wall fire with Black
Granite Slips
Firebed options:
Walnut Logs option shown with Beige Vermiculite Liners Silver Birch Logs option shown with Red Brick Liners
The size of the 480HD means that it will fit in most fireplaces and as such makes this a
very versatile fire. Although the smallest in the Infinity HD range, this fire still packs the
same power, performance and features normally associated with larger fires.
Features/Options
4.58 83% 5
YEAR
NG LPG kW Efficiency 1 2 WARRANTY
12 FOR MORE INFORMATION CALL 0845 519 5991Infinity 480HD with Black Mirror Glass Liners and Silver Birch Logs options shown in Beckford Surround
Product highlights
• Fits a Class 1 or Class 2 chimney. • Mains-powered radio frequency remote
control for ease of use.
• Ideal size for many fireplace surrounds.
• Available with anti-reflective viewing glass as
• Can also be fitted as a hole-in-the-wall
an optional extra. This reduces the majority of
either flush or with slips.
reflection and gives the fire an ‘open’ effect.
• Optional black glass fascia is available
• Optional 5" direct connection liner adapter
for hole-in-the-wall installations.
available.
• Choice of three firebox liners: Beige Vermiculite,
Red Brick or Black Mirror Glass.
WWW.CHARLTONANDJENRICK.CO.UK 13Infinity 480BF
Rustic Brick Liners Black Mirror Glass Liners Beige Vermiculite Liners
No flue no problem. The rear-venting flue enables the installation to be clean and neat on
an outside wall. In many cases this removes the need for additional building work and false
chimney breasts. This makes this fire extremely versatile and due to its size the fire will fit
into the majority of fireplace surrounds popular in the UK.
The 480BF has been upgraded and now comes with low-voltage mains power as standard.
The fire now benefits from improved heat output thanks to the new snorkel flue developed
for the fire.
Features/Options
3.1 86% 5
YEAR
NG LPG kW Efficiency WARRANTY
14 FOR MORE INFORMATION CALL 0845 519 5991Infinity 480BF with Black Mirror Glass Liners in Aylesbury Premium Limestone Surround
Product highlights
• Slim Firebox design. This allows the fire
to be installed within a standard cavity
wall space and again removes the need
for false chimney breasts and additional
building work.
• Glass-fronted high-efficiency fire that is
up to 86% efficient.
Infinity 480BF with Rustic Brick Liners in Stokesay Suite Infinity 480BF shown in Stokesay surround with black glass liner
WWW.CHARLTONANDJENRICK.CO.UK 15Infinity 600HD
Infinity 600HD hole-in-the-wall fire with Vermiculite Liners and Infinity 600HD with Black Mirror Glass Liners and Silver Birch Logs
Walnut Logs fuel bed shown in Graphite Trim fuel bed shown in Brushed Stainless Steel Trim
Walnut Logs option Silver Birch Logs option
Available trims:
Brushed Stainless Steel Piano Black Flat Trim Graphite Flat Trim
Flat Trim
The 600HD maintains the stunning looks of the 890HD landscape design but in a more compact package
which will fit in the smallest UK chimney catchment spaces. The new fire benefits from bespoke, realistic
high-definition log shapes and improved ember base plus a sparkling ember glow which is visible even
when the fire is set to the low gas input setting.
The gas operation offers five levels of flame effect with a maximum input rate of 5.2 kW producing a very
impressive 3.7 kW output, giving it an economical 79.5% efficiency.
Flexibility of the 600HD is also impressive, offering the options of fitting trimless or with a four-sided trim
option, of which there are up to three different trim colours and designs to blend into any room.
Alternatively you can fit the fire within a fireplace having a 2" to 3" rebated surround to produce a stunning
focal point to any living area.
Features/Options
3.7 79.5% 5
YEAR
NG LPG kW Efficiency 1 2 WARRANTY
16 FOR MORE INFORMATION CALL 0845 519 5991Infinity 600HD with Red Brick Liners and Walnut Logs fuel bed shown in Low Edgemond Suite
Product highlights
• Fits a Class 1 or Class 2 chimney. • Available with anti-reflective glass as an optional
extra. This reduces the majority of reflection and
• Choice of Beige Vermiculite, Red Brick or Black
gives the fire an ‘open’ effect.
Mirror Glass internal firebox liners.
• Optional Infinity Smart Control Remote App
• Mains power via a safe 9V low-voltage plug-in
for tablet or smart phone control.
transformer as standard. Backup battery option
in the case of mains power outage. • Optional 5" direct connection liner
adapter available.
• Radio frequency remote control which provides full
operation of the fire from the comfort of your chair. • Optional Fireplace and trimless frame Kit.
• Programmable thermostatic room temperature control • Three four-sided frame designs.
and optional day timer setting as standard.
WWW.CHARLTONANDJENRICK.CO.UK 17Infinity 600BF
No flue no problem. The rear-venting flue enables
the installation to be clean and neat on an outside
wall. In many cases this removes the need for
additional building work and false chimney breasts.
Product highlights
• Slim Firebox design. This allows the fire
to be installed within a standard cavity
wall space and again removes the need
for false chimney breasts and additional
building work.
• Glass-fronted high-efficiency fire that is up
to 86% efficient.
Available trims:
Brushed Stainless Steel Piano Black Flat Trim Graphite Flat Trim
Flat Trim
Available liners:
Rustic Brick Liners Black Mirror Glass Liners Beige Vermiculite Liners Ribbed Black Liner
Features/Options
2.3 90% 5
YEAR
NG LPG kW Efficiency WARRANTY
18 FOR MORE INFORMATION CALL 0845 519 5991Infinity 600BF with Black Ribbed Liners and Walnut Logs fuel bed shown in Graphite Flat Trim
WWW.CHARLTONANDJENRICK.CO.UK 19Infinity 780HD
Walnut Logs option Silver Birch Logs option
A great size fire for low and wide fireplaces or to install as a hole-in-the-wall fire. The fire
benefits from bespoke, realistic high-definition log shapes and improved ember base plus a
sparkling ember glow which is visible even when the fire is set to the low gas input setting.
The gas operation offers five levels of flame effect with a maximum input rate of 6.6 kW.
Features/Options
4.85 81% 5
YEAR
NG LPG kW Efficiency 1 2 WARRANTY
20 FOR MORE INFORMATION CALL 0845 519 5991Infinity 780HD with Black Mirror Glass Liners and Silver Birch Logs fuel bed shown in Wave Surround
Product highlights
• Fits a Class 1 or Class 2 chimney. • Mains-powered radio frequency remote
control for ease of use.
• Can also be fitted as a hole-in-the-wall
either flush or with slips. • Available with anti-reflective viewing glass as
an optional extra. This reduces the majority of
• Optional black glass fascia is available
reflection and gives the fire an ‘open’ effect.
for hole-in-the-wall installations.
• Optional 5" direct connection liner adapter
• Choice of three firebox liners: Beige Vermiculite,
available.
Red Brick or Black Mirror Glass.
WWW.CHARLTONANDJENRICK.CO.UK 21Infinity 780FL
Infinity 780FL with Black Mirror Glass Liners and Log Fuel Bed fitted as a hole-in-the-wall fire
Log Fuel Bed Black Mirror Glass Liners
A large hole-in-the-wall gas fire that offers a stunning centrepiece to
your room. The 780FL is an extremely popular gas fire due to the
dimensions which offer a wider fire than the norm. This fire set the
trend for luxury gas fires of these proportions, so much so that you will
now see imitation products appear on the market. The original and still
the best, the 780FL is a beautiful fire for any living room.
Features/Options
4.8 81% 5
YEAR
NG LPG kW Efficiency 1 2 WARRANTY
22 FOR MORE INFORMATION CALL 0845 519 5991Infinity 780FL with Black Mirror Glass Liners and Logs Fuel Bed shown in Edgemond Premium Limestone Surround
Product highlights
• Fits a Class 1 or Class 2 chimney. • Fits most chimneys and 5" flues so will fit
into existing fireplace openings.
• Can be fitted ‘frameless’ in the wall for the
ultra modern look or it can be incorporated • Glass-fronted high-efficiency fire that
into a fireplace to create a suite. is up to 81% efficient.
• Black Mirror Glass Liners.
• Designed to give a realistic flame picture
from a modest 6.6kW input, which usually
means no additional ventilation in the room.
WWW.CHARLTONANDJENRICK.CO.UK 23Infinity 780BF
Available liners:
Rustic Brick Liners Black Mirror Glass Liners Beige Vermiculite Liners
No flue no problem. The rear-venting flue enables the installation to be clean and
neat on an outside wall. In many cases this removes the need for additional building
work and false chimney breasts.
Features/Options
3.87 87% 5
YEAR
NG LPG kW Efficiency WARRANTY
24 FOR MORE INFORMATION CALL 0845 519 5991Infinity 780BF with Black Mirror Glass Liners and Logs Fuel Bed shown in Rembrandt Suite
Product highlights
• Slim Firebox design. This allows the fire to be installed choose the 780 fire. The balanced-flue version fits
within a standard cavity wall space and again removes with all the same fireplaces as the 780FL, giving you
the need for false chimney breasts and additional an impressive range of suites.
building work.
• Glass-fronted high-efficiency fire that is up
• Same look fireplace suites available. The 780BF is the to 87% efficient.
balanced-flue version of the 780FL on the previous
page, so even if you don’t have a chimney, you can still
WWW.CHARLTONANDJENRICK.CO.UK 25Infinity 620HD UBL
Infinity 620HD UBL with Black Mirror Glass Liners and Silver Birch Infinity 620HD UBL with Red Brick Liners and Walnut Logs fuel bed
Logs fuel bed shown in Wenlock Suite shown in Aylesbury Suite
Firebed options:
Underbed lighting only Walnut Logs option Silver Birch Logs option
Features/Options
4.8 82.8% 5
UBL kW 1 2
YEAR
NG LPG Efficiency WARRANTY
The 620HD UBL utilises the latest Charlton & Jenrick raised burner technology with the addition of a unique
under bed lighting system and has resulted in the most realistic wood-burning effect gas fire to date from
Infinity.
The under bed lighting can be used separately from the gas to provide a burning ember bed look with gently
flickering lights to give that warm and cosy focal point in your lounge even if heat from the fire is not required.
The fuel bed lighting system can also be used in conjunction with the powerful gas flames for the ultimate
realistic wood-burning effect. Gas operation offers five levels of flame height with a maximum input rate of
6.5kW, which in turn produces a very impressive 4.8kW output at an efficiency of 82.8%.
Specifically designed and tailored to fit the vast majority of fireplaces within UK homes.
The all-new 620HD UBL also comes with all the features and benefits of the Infinity High Definition (HD) range.
26 FOR MORE INFORMATION CALL 0845 519 5991W
IL
L
FI UI
T LD
B
IN E
TO RS
A OP
32 E
” NIN
ST G
A
N
D
A
RD
Infinity 620HD UBL with Vermiculite Liners and Walnut Logs fuel bed shown in Shawbury Suite
Product highlights
• Fits a Class 1 or Class 2 chimney and will fit • Radio frequency remote control which
into 32" (812mm) standard builder’s opening allows full operation of both flames and
without the need for additional building work. UBL ember/flicker effects from the comfort
of your chair.
• Choice of Beige Vermiculite, Red Brick
or Black Mirror Glass firebox liners. • Available with anti-reflective glass as an optional
extra. This reduces the majority of reflection and
• Mains power via a safe 9V low-voltage plug-in
gives the fire an ‘open’ effect.
transformer as standard. Backup battery option
in the case of mains power outage.
Scan QR code to view the Infinity
620HD UBL video on YouTube
• Programmable thermostat room control and
optional day timer setting as standard.
WWW.CHARLTONANDJENRICK.CO.UK 27Infinity 890HD
Infinity 890HD with Black Mirror Glass Liners and Silver Birch Logs
fuel bed shown with Limestone Slips
Walnut Logs option Silver Birch Logs option
Available trims:
Brushed Stainless Steel Flat Trim Piano Black Flat Trim Graphite Flat Trim Elite Fascia Trim
A stunning landscape hole-in-the-wall fire. Ideally proportioned, the 890HD is the perfect size hole-in-the-
wall fire that can be fitted with the optional trims offered, frameless in the wall or with slips as shown above.
Like the other HD fires in the range, the 780HD can be controlled using the Infinity Smart App. Once
installed on your phone or tablet, the Infinity Smart Control Remote App acts as a remote control and
connects via your WiFi internet router or can connect directly using WiFi to the fire.
Features/Options
4.85 82% YEAR
5
NG LPG kW Efficiency 1 2 WARRANTY
28 FOR MORE INFORMATION CALL 0845 519 5991Infinity 890HD with Vermiculite Liners and Silver Birch Logs fuel bed shown in Graphite Flat Trim
Product highlights
• Fits a Class 1 or Class 2 chimney. • Mains-powered radio frequency remote control
for ease of use.
• Can also be fitted as a fire into a wide fireplace
to create a suite. • Available with anti-reflective glass as an optional
extra. This reduces the majority of reflection and
• Gives the option to fit flush into the wall or with
gives the fire an ‘open’ effect.
slips depending on the look you are after.
• Choice of either Walnut or Silver Birch effect
• Choice of three firebox liners: Beige Vermiculite,
logs.
Red Brick or Black Mirror Glass.
WWW.CHARLTONANDJENRICK.CO.UK 29Infinity 890BF

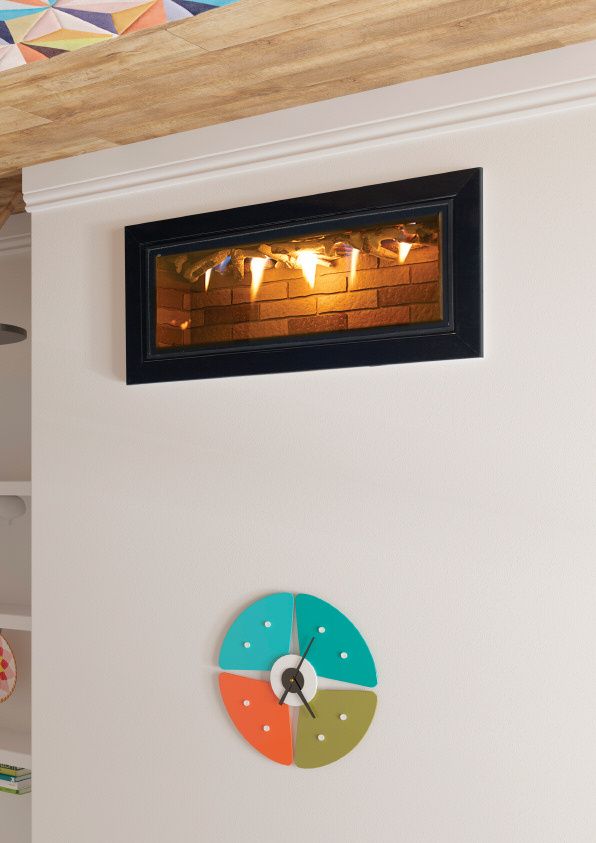

No flue no problem. The rear-venting flue enables the installation to be clean
and neat on an outside cavity wall. In many cases it does not involve additional
building work.
Product highlights
• Landscape hole-in-the-wall fire for homes without a chimney. This fire uses
a balanced-flue which makes the fire available to those who don’t have a
chimney.
• A choice of different trims to finish the look of your fire. The trims are
finished in a choice of Brushed Stainless Steel, Piano Black, Satin (Elite)
or Graphite Grey.
• Glass-fronted high-efficiency fire that is up to 92% efficient.
• Designed to give a realistic flame picture from the modest 3.4kW input,
which means lower running costs than larger gas input alternatives.
Available trims:
Brushed Stainless
Steel Flat Trim Piano Black Flat Trim Graphite Flat Trim Elite Fascia Trim
Available liners:
Rustic Brick Liners Black Glass Mirror Liners Beige Vermiculite Liners Ribbed Black Liner
Features/Options
2.8 92% 5
YEAR
NG LPG kW Efficiency WARRANTY
30 FOR MORE INFORMATION CALL 0845 519 5991Infinity 890BF with Rustic Brick Liners and Piano Black Trim
WWW.CHARLTONANDJENRICK.CO.UK 31Infinity 800HD UBL
Infinity 800HD UBL showing gas Infinity 800HD UBL showing under Infinity 800HD UBL showing gas
flame only bed lighting only flame and under bed lighting
Infinity 800HD UBL with Black Mirror Glass Liners Infinity 800HD UBL with Red Brick Liners and
and Walnut Logs options shown in Balmoral Surround Walnut Logs options shown in Stapleton Surround
Firebed options
Walnut Logs option Silver Birch Logs option
Features/Options
UBL
NG
5.6 81% 5
YEAR
LPG kW Efficiency 1 2 WARRANTY
Under Bed Lighting
Utilising the latest Charlton & Jenrick raised burner technology with the addition of a unique under bed
lighting system has resulted in the most realistic wood-burning effect gas fire to date from Infinity.
The under bed lighting can be used separately from the gas to offer a burning ember bed look with flickering
lights to give that warm and cosy focal point in your lounge even if heat from the fire is not required.
The fuel bed lighting system can also be used in conjunction with the powerful gas flames for the ultimate
realistic wood-burning effect. Gas operation offers five levels of flame effect with a maximum input rate
of 7.7kW, which in turn produces a very impressive 5.6kW output at an efficiency of 81%.
The all-new 800HD UBL also comes with all the features and benefits of the Infinity High Definition (HD)
range launched last autumn.
32 FOR MORE INFORMATION CALL 0845 519 5991VE
N IL A
N
O T
T
A IO
D N
D R
IT E
IO Q
N UI
A RE
L D
Infinity 800HD UBL with Vermiculite Liners and Walnut Logs options shown in Balmoral Surround
Product highlights
• Fits a Class 1 or Class 2 chimney and will fit • Radio frequency remote control which allows
into 32" and 36" standard chimney breast full operation from the comfort of your chair
without the need for additional building work. of both flames and UBL ember/flicker effects.
• Choice of Beige Vermiculite, Red Brick • Programmable thermostat room control and
or Black Mirror Glass internal firebox liners. optional day timer setting as standard.
• Plug-in transformer power as standard. • Available with anti-reflective glass as an optional
Backup battery option in the case of mains extra. This reduces the majority of reflection and
power outage. gives the fire an ‘open’ effect.
• Optional black glass fascia available for
Scan QR code to view the Infinity
800HD UBL video on YouTube
hole-in-the-wall.
WWW.CHARLTONANDJENRICK.CO.UK 33Infinity 800HD UBL BF
Infinity 800HD UBL BF with Black Glass Liners Infinity 800HD UBL BF showing under bed
lighting only
Features/Options
5.5 85% 5
UBL kW
YEAR
NG Efficiency WARRANTY
Using the latest raised burner technology with the addition of under bed lighting
makes this the largest and most realistic fire in the range.
The rear-vented snorkel balanced-flue system enables the installation to be clean and neat
on an outside wall. In many cases this removes the need for additional building work and
a false chimney breast.
This new fire produces outstanding heat output, efficiency and performance when required
but with the additional option of an ember or flicker light option when ambience is required
without the heat.
The gas operation has five levels of flame effect with a maximum input of 7.2kw.
This produces a very impressive 5.5kw output and 85% efficiency.
34 FOR MORE INFORMATION CALL 0845 519 5991Infinity 800HD UBL BF with Black Mirror Glass Liners and Walnut Logs options shown in Condover Surround
800HD UBL balanced-
flue within a cavity wall
Product highlights
• Choice of Beige Vermiculite, Red Brick
or Black Mirror Glass internal firebox liners.
• Mains power via a safe 9V low-voltage plug-in
transformer as standard. Backup battery option
in the case of mains power outage.
• Programmable thermostat room control and
optional day timer setting as standard.
• Anti-reflective glass as standard.
WWW.CHARLTONANDJENRICK.CO.UK 35Dimensions & Specifications
Gas type, heat inputs, outputs, efficiency and chimney type
INPUTS, OUTPUTS & EFFICIENCY FIREPLACE OPENINGS:
VISIBLE
INPUT OUTPUT NET INPUT DIMENSIONS HEIGHT HEIGHT WIDTH WIDTH DEPTH
CHIMNEY GAS HIGH HIGH EFFICIENCY LOW EFFICIENCY ENERGY WXH MIN MAX MIN MAX MIN
MODEL TYPE TYPE (kW) (kW) (%) (kW) CLASS CLASS (mm) (mm) (mm) (mm) (mm) (mm)
Class 1 & 2 NG 6.6 4.58 81 3.4 1 C 509 x 448 560 580 500 570 330
480HD
Class 1 & 2 LPG 4.4 3.3 84 3.3 1 C 509 x 448 560 580 500 570 330
Balanced Flue NG 4.2 3.13 82.5 2.4 1 C 441 x 569 650 N/A 560 575 170
480BF
Balanced Flue LPG 2.6 2.1 86 1.6 1 C 441 x 569 650 N/A 560 575 170
Class 1 & 2 NG 5.2 3.7 79.5 3.2 1 D 617 x 337 420 440 615 687 330
600HD
Class 1 & 2 LPG 4.3 2.9 76 2.9 2 D 617 x 337 420 440 615 687 330
Balanced Flue NG 2.6 2.3 90 1.5 1 B 657 x 356 460 N/A 660 N/A 170
600BF
Balanced Flue LPG 2.6 2.3 90 1.5 1 B 657 x 356 460 N/A 660 N/A 170
Class 1 & 2 NG 6.6 4.85 81 3.0 1 D 786 x503 635 620 800 880 330
780HD
Class 1 & 2 LPG 6.1 3.9 70.6 3.3 2 D 786 x503 635 620 800 880 330
780FL Class 1 & 2 NG 6.6 4.8 81 3.0 1 D 828 x 429 610 640 800 850 330
Balanced Flue NG 5.1 3.87 84.2 2.4 1 C 786 x 503 750 N /A 855 N/A 170
780BF
Balanced Flue LPG 3.2 2.0 87 1.6 1 C 786 x 503 750 N /A 855 N/A 170
Class 1 & 2 NG 6.5 4.8 82.8 4.0 1 C 623 x 621 735 770 605 740 330
620HD UBL
Class 1 & 2 LPG 6.1 4.5 82.7 4.3 1 C 623 x 621 735 770 605 740 330
Class 1 & 2 NG 6.6 4.85 82 4.3 1 C 911 x 339 425 445 910 990 330
890HD
Class 1 & 2 LPG 5.2 4.5 83.2 3.9 1 C 911 x 339 425 445 910 990 330
Balanced Flue NG 3.4 2.8 92 1.6 1 B 850 x 270 430 445 900 935 170
890BF
Balanced Flue LPG 3.2 2.8 92 1.6 1 B 850 x 270 430 445 900 935 170
Class 1 & 2 NG 7.7 5.6 81 4.7 1 C 790 x 700 820 840 795 860 330
800HD UBL
Class 1 & 2 LPG 7.1 5.9 84.4 5.7 1 C 790 x 700 820 840 795 860 330
800HD UBL BF Balanced Flue NG 7.2 5.5 85 3.8 1 B 674 x 562 1025 N/A 820 890 170
Please note: Our policy is one of constant development and improvement. We therefore reserve the right to revise the specification and design of
our fires without formal notice. This leaflet is presented as a guide to aid in your decision and does not replace the need for technical assessment
by your dealer. While the utmost care was taken in the preparation of this brochure, it is not intended to replace the installation manual which
provides more detailed information. Photography is for illustration purposes only and does not replace the need to see the fires in a showroom. We
accept no liability for any loss or damage arising either directly or indirectly from the use of this brochure. All designs in this brochure are design
or copyright registered. Infinity, without exception, will take action against any infringements of its designs.
36 FOR MORE INFORMATION CALL 0845 519 5991Options
REMOTE TRIM OPTIONS
LINER OPTIONS FUEL BED OPTIONS
OPTIONS (FOR HOLE-IN-THE-WALL FITTINGS)
BRUSHED STAINLESS STEEL TRIM
BLACK GLASS FASCIA OPTION
SMART REMOTE COMPATIBLE
PIANO BLACK FLAT TRIM
UNDER BED LIGHTING
GRAPHITE FLAT TRIM
BEIGE VERMICULITE
SILVER BIRCH LOG
SATIN ELITE TRIM
BLACK MIRROR
HAND REMOTE
RIBBED BLACK
RUSTIC BRICK
WALNUT LOG
RED BRICK
GLASS TYPE
(HE = HIGH
LOG
MODEL EFFICIENCY)
ANTI-REFLECTIVE
480HD • • • • • • • •
HE GLASS
480BF HE GLASS • • • • •
ANTI-REFLECTIVE
600HD • • • • • • • • • •
HE GLASS
600BF HE GLASS • • • • • • • • •
ANTI-REFLECTIVE
780HD • • • • • • • •
HE GLASS
780FL HE GLASS • • •
780BF HE GLASS • • • • •
ANTI-REFLECTIVE
620HD UBL • • • • • • •
HE GLASS
ANTI-REFLECTIVE
890HD • • • • • • • • • • •
HE GLASS
890BF HE GLASS • • • • • • • • • •
ANTI-REFLECTIVE
800HD UBL • • • • • • • •
HE GLASS
ANTI-REFLECTIVE
800HD UBL BF • • • • • • •
HE GLASS
WWW.CHARLTONANDJENRICK.CO.UK 37Dimensions & Specifications
Infinity 480HD
490
Aylesbury Surround
510mm Min.
Opening Depth
Opening Width
290mm Min.
220
410
510
277 290mm Min.
1370 Opening Depth
72
594
Opening Height
447
1160
545
735mm Min.
75
60
645 1370 410
Beckford Surround Stokesay Surround
510mm Min.
Opening Depth
510mm Min.
300mm Min.
Opening Width
Opening Depth
Opening Width
300mm Min.
150
245
410
410
300mm Min.
Opening Depth 300mm Min.
1220 Opening Depth
1375
Opening Height
1060
700mm Min.
1070
695mm Min.
Opening
Height
60
1220 410
60
1375 410
Glass Fascia
490
275
698
393
623
545
468 46
306
38 FOR MORE INFORMATION CALL 0845 519 5991Infinity 480BF
553 Aylesbury Surround
580mm Min.
Opening Depth
Opening Width
200mm Min.
220
568
410
100 min to 600mm Max Flue Length
100mm Min-600Max
1370
220
151
Opening Height
1160
860mm Min.
687
444
92
60
603 162 1370 410
Beckford Surround Stokesay Surround
Opening Depth
575mm Min.
Opening Depth
210mm Min.
580mm Min. Opening Width
200mm Min
Opening Width
245
150
410
Flue Length Flue Length
410
100mm Min - 600mm Max 100mm - 600mm Max.
1220 220 220
Opening Height
Opening Height
830mm Min.
830mm Min.
1070
1060
60
60
1220 410 1375 410
WWW.CHARLTONANDJENRICK.CO.UK 39Dimensions & Specifications
Infinity 600HD
600 600
Fireplace Four-Sided
Frame Trim
Option
780
618
277
277
57
364
482
414
453
337
414
662
59
738
Edgemond Surround
620mm Min.
Opening Depth
Opening Width
300mm Min.
160
380
300mm Min.
Opening Depth
1180
555mm Min.
840
Opening
Height
60
1220 380
Infinity 600BF
622
784 100 Min to 600mm Max
164
366
484
423
666
40 FOR MORE INFORMATION CALL 0845 519 5991Infinity 780HD
780 Edgemond Surround
800mm Min.
Opening Depth
Opening Width
160
787
380
277
330mm Min.
Opening Depth
1450
75
652
680mm Min.
975
501
603
Opening
Height
60
77
1520 380
932
Rembrandt Surround Wave Surround
800mm Min. 800mm Min.
Opening Depth
Opening Depth
Opening Width Opening Width
305mm Min.
295mm Min.
160
380
400
125
295mm Min.
305mm Min.
Opening Depth
Opening Depth 1272
1350
Opening Height
715mm Min.
985
690mm Min.
960
Opening
Height
70
60
1372 400
1370 380
Glass Fascia
780
275
982
450
680
603
46
752
306
WWW.CHARLTONANDJENRICK.CO.UK 41Dimensions & Specifications
Infinity 780FL
782
Edgemond Surround
810mm Min.
Opening Depth
Opening Width
320mm Min.
160
380
827 275
320mm Min.
75
Opening Depth
489 1500
602
653
670mm Min.
980
Opening
Height
90
60
1570 380
899
Rembrandt Surround
805mm Min.
Opening Depth
Opening Width
325mm Min.
380
125
325mm Min.
Opening Depth
1350
680mm Min.
960
Opening
Height
60
1370 380
42 FOR MORE INFORMATION CALL 0845 519 5991Infinity 780BF
842 Edgemond Surround
865mm Min.
Opening Depth
Opening Width
200mm Min.
160
380
827 100 min to 600mm Max Flue Length
100mm - 600mm Max.
1500 220
159
Opening Height
815mm Min.
980
494
742
60
89
1570 380
908 160
Rembrandt Surround
865mm Min.
Opening Depth
210mm Min.
Opening Width
380
Flue Length
125
100mm - 600mm Max.
1350 220
Opening Height
820mm Min.
960
60
1370 380
WWW.CHARLTONANDJENRICK.CO.UK 43Dimensions & Specifications
Infinity 620HD UBL
595 Aylesbury Surround
620mm Min.
Opening Depth
Opening Width
290mm Min.
220
622
410
277 290mm Min.
Opening Depth
83 1370
Opening Height
1160
786
620
723
820mm Min.
60
83
1370 410
769
Shawbury Surround Wenlock Surround
615mm Min. 615mm Min.
Opening Depth
Opening Depth
Opening Width Opening Width
275mm Min.
295mm Min.
240
290
410
410
295mm Min. 275mm Min.
Opening Depth Opening Depth
1360 1340
Opening Height
Opening Height
1105
820mm Min.
775mm Min.
1110
60
70
1360 410 1370 410
44 FOR MORE INFORMATION CALL 0845 519 5991Infinity 890HD
890
890
Fireplace Four-Sided
Frame Trim
Option
912 1048
277
277
57
354
472
453
411
337
414
59
1032
930
Infinity 890BF
895
1050
100 Min to 600mm Max
164
354
423
472
932
WWW.CHARLTONANDJENRICK.CO.UK 45Dimensions & Specifications
Infinity 800HD UBL (Under Bed Lighting)
782 Balmoral Surround
805mm Min.
Opening Depth
Opening Width
290mm Min.
790
215
380
277
290mm Min.
71
Opening Depth
1320
851
Opening Height
700
803
870mm Min.
1110
60
80
1320 380
884
Condover Surround Pontesbury Surround
805mm Min. 805mm Min.
Opening Depth
Opening Width
Opening Depth
Opening Width
280mm Min.
280mm Min.
290
310
410
410
280mm Min. 280mm Min.
Opening Depth Opening Depth
1465 1365
Opening Height
Opening Height
875mm Min.
880mm Min.
1100
1130
70
70
1370 410
1450 410
Stapleton Surround Glass Fascia
782
805mm Min.
Opening Depth
Opening Width
280mm Min.
275
270
380
964
280mm min.
Opening Depth
1510
Opening Height
637
867
803
895mm Min.
1270
60
47
1510 380 734
306
46 FOR MORE INFORMATION CALL 0845 519 5991Infinity 800HD UBL BF
812
Balmoral Surround
835mm Min.
Opening Depth
155mm Min.
Opening Width
46
215
790 100 min to 600mm Max
380
Flue Length
100mm - 600mm Max.
1320 220
186
Opening Height
1035mm Min.
1024
702
1110
136
60
970 155
1320 380
Condover Surround Pontesbury Surround
835mm Min.
Opening Depth
835mm Min.
Opening Depth
155mm Min.
Opening Width
155mm Min.
Opening Width
310
Flue Length Flue Length
290
410
410
100mm - 600mm Max. 100mm - 600mm Max.
1465 220 1365 220
Opening Height
Opening Height
1040mm Min.
1045mm Min.
1130
1100
70
70
1450 410 1370 410
Stapleton Surround Glass Fascia
782
835mm Min.
Opening Depth
Opening Width
155mm Min.
275
270
380
Flue Length 964
100mm - 600mm Max.
1510 220
Opening Height
1060mm Min.
637
867
803
1270
60
47
734
1510 380 306
WWW.CHARLTONANDJENRICK.CO.UK 47Accreditation
Charlton & Jenrick Company and Product Accreditations
Charlton & Jenrick have made a very substantial investment over the years in obtaining a wide
range of accreditations and trade body memberships to ensure that we are consistently offering
the best possible products and services to our customers. We not only manufacture appliances
but we also put in huge behind-the-scenes efforts to ensure that we input to and keep abreast
of impending legislation, standards, product performance and environmental requirements.
Currently we subscribe and contribute to the following accreditations:
CE marking of products is mandatory for all fuels today but
C&J have always voluntarily achieved this status long before it
became a requirement. We always invest in independent testing
and certification for Stoves, and Electric and Gas fires of all kinds.
HETAS approval is a national solid fuel appliance certification
scheme, recognised by Government, to demonstrate that our
solid fuel stoves meet the highest level of quality and performance.
It includes areas that are not covered by CE marking. C&J also
put their service and sales teams through HETAS solid fuel installer
training so their skills are up to scratch.
SIA Ecodesign Ready marking is an independent scheme run
by the Stove Industry Alliance to verify and independently
demonstrate that wood-burning stoves already meet the strict
requirements of the 2022 EU Ecodesign Directive for performance
and emissions. HETAS administer this on behalf of the SIA.
HHIC, the Heating and Hot Water Information Council
is a trade body representing the UK gas fire industry. As part
of the Energy and Utilities Alliance, within the HHIC we have an
input into EU and UK standards committees, communicate with
Government departments and keep abreast of serious issues
affecting the gas fire industry.
SIA, the Stove Industry Alliance is the UK trade body for the solid
fuel stove industry. C&J are members of the Executive Committee
and currently chair the Technical Committee enabling input into
UK and EU standards committees and lines of communication
into Government departments and keeping up to date on a wide
range of issues affecting the industry.
48 FOR MORE INFORMATION CALL 0845 519 5991DEFRA exemption is the mechanism where our wood-burning
stoves are checked and certified to comply with the Clean Air
Act and therefore allowed to be used in smoke control zones
throughout the UK. Involving a strict test programme and
independent report, this is then thoroughly assessed by DEFRA
advisers before being accepted.
Gas Safe Register is the mandatory national competent persons
scheme to allow work on gas fittings and appliances in customers’
homes. Our service and most of the sales team have completed
the regular training courses and sit the regular exams to ensure
our customers have the best support and service.
ISO9001 is the internationally recognised standard for Quality
ISO27001:2005
ISO 9001:2015
Management Systems which in our case includes the activity of
Member of SN Registrars (Holdings) Ltd 8327
product design and development as well as production, sale and
support functions. Annual independent audits and certification
ensure continued compliance in producing consistent quality
products.
ISO14001 is the internationally recognised standard for
ISO27001:2005
ISO 14001:2015 Environmental Management Systems. Once again this
Member of SN Registrars (Holdings) Ltd 8327
independently audited and certified system makes sure that
we are regularly monitoring and reviewing the impact of the
business and its products to ensure we minimise negative impacts
and promote best practice.
All Infinity gas fires are manufactured under a BS EN ISO 9001 quality
system (registration number 5195), which covers all areas of product
design, development, manufacture and service.
Please note: Our policy is one of constant development and improvement. We therefore reserve the right to revise the specification and design of
our fires without formal notice. This leaflet is presented as a guide to aid in your decision and does not replace the need for technical assessment
by your dealer. While the utmost care was taken in the preparation of this brochure, it is not intended to replace the installation manual which
provides more detailed information. Photography is for illustration purposes only and does not replace the need to see the fires in a showroom.
We accept no liability for any loss or damage arising either directly or indirectly from the use of this brochure. All designs in this brochure are
design or copyright registered. Infinity, without exception, will take action against any infringements of its designs.
WWW.CHARLTONANDJENRICK.CO.UK 49Notes 50 FOR MORE INFORMATION CALL 0845 519 5991
WWW.CHARLTONANDJENRICK.CO.UK 51
Designed and produced by 3sixty Creative Marketing Solutions 01384 355930. J/2257
Infinity Fires
Charlton & Jenrick Ltd, Unit D,
Stafford Park 2, Telford, Shropshire TF3 3AR
Tel: 0845 519 5991 Fax: 0845 519 5992
e-mail: sales@charltonandjenrick.co.uk
www.charltonandjenrick.co.uk
CONNECT WITH US: @cJfires cJfires 1CJGroup cJfires charltonandjenrickYou can also read
