SOJOURN SERIES
SOJOURN 80L/28" SOJOURN 60L/25" SOJOURN 45L/22"
Welcome to Osprey. We pride ourselves on creating the most functional,
durable and innovative carrying product for your adventures. Please refer to
this owner’s manual for information on product features, use, maintenance,
customer service and warranty.
OWNER'S MANUAL
ospreypacks.com
F16 - UPDATED 6/16
OVERVIEW
3
2
1
4 5
10 8 9
10
2
6
7
8 9
FEATURES FABRIC
1 Zippered top pocket provides easy access to toiletries and liquids MAIN 420 Nylon Shadow Box
2 Padded top and side handles provide comfortable carry ACCENT 1680D Ballistic Nylon
3 Dual tube extended handle for control of large loads on rough surfaces BOTTOM 900D Super Oxford
4 Large panel zip with lockable sliders access the main compartment
5 Rear panel pocket and ID card window with removable shoulder harness
6 Dual front panel daisy chains for additional gear attachment
7 Lightweight, high-rolling clearance HighRoad™ Chassis
8 Long haul capable deployable harness, hipbelt and backpanel
9 Removable suspension components for increased packing capacity
10 Dual StraightJacket™ compression straps to secure contents
+ Internal compression straps with fabric wings hold clothes securely
+ Four zippered pockets in main compartment keep gear organized
SOJOURN SERIES 2
OVERVIEW SOJOURN 80L/28" SPECS ONE SIZE Cubic Inches 4882 Liters 80 Pounds 8.97 Kilograms 4.07 Inches 28h x 14w x 14d Centimeters 71h x 36w x 35d SOJOURN 60L/25" SPECS ONE SIZE Cubic Inches 3661 Liters 60 Pounds 8.53 Kilograms 3.87 Inches 25h x 14w x 14d Centimeters 64h x 36w x 35d SOJOURN 45L/22" SPECS ONE SIZE Cubic Inches 2746 Liters 45 Pounds 7.93 Kilograms 3.60 Inches 22h x 14w x 9d Centimeters 56h x 36w x 23d SOJOURN SERIES 3
SUSPENSION
1 HIGHROAD™ SUSPENSION
+ Alloy peripheral frame and center handle stays
1
2 STOWAWAY TENSIONED BACKPANEL
+ Anti-GravityTM inspired tension lumbar surface
3
+ Tensioned air mesh-covered backpanel
+ Dual position extended adjustable torso*
*Single position on 22"
3 STOWAWAY VENTILATED HARNESS
+ Ventilated mesh-covered die-cut foam harness 2
+ Comfortable, ventilated air mesh-covered contact surfaces
+ Adjustable sternum strap with whistle
4 STOWAWAY PADDED HIPBELT
+ Padded air mesh-covered hipbelt
+ Single 25 mm webbing ErgoPull™ closure
4
SIZING / FIT
HARNESS FIT
The harness straps should wrap fully around your shoulders with no gaps
between the pack and your back. The padded part of the harness straps
should end 1"/2.5 cm- 2"/5 cm below the armpits and the sternum strap
adjusted to approximately 2"/5 cm below the collarbone.
SOJOURN SERIES 4FEATURE DETAILS
TOP LIQUIDS POCKET INTERNAL COMPRESSION STRAPS
80L / 60L / 45L 80L / 60L / 45L
The liquids pocket is located at the top of the luggage piece and provides quick Use the internal compression straps to maximize packing space, organize
and easy zip access to a toiletry kit or other small items. Its bellowed design and stabilize loads inside the main compartment. Unbuckle and loosen the
collapses to ensure the full main compartment volume is available for gear and straps before packing and hang the straps on the outside of either side of
clothing. It is conveniently sized to fit a variety of 1L/1 qt wash bags or Osprey's the pack. After packing, buckle the straps and cinch them evenly so that the
Airporter travel duffel and cover. buckle remains in the middle of the pack.
LARGE ACCESS MAIN COMPARTMENT
80L / 60L / 45L
A full front panel U-zip opening provides large access to gear, and a stiffened
zipper path provides structure to keep the main compartment open while
packing or unpacking. Bright internal liner materials make it easy to find both
small and large items stored within. For additional organization, the mesh
and solid side pockets provide convenient and private storage.
TOP AND SIDE LOW PROFILE CARRY HANDLES
80L / 60L / 45L
Two padded low profile handles provide an easy option to grab, pull and
maneuver your bag. Heavy duty fabric on the outside protects the handles,
and soft padded material underneath are comfortable and easy to use. A
third handle is molded into the front of the HighRoad™ Chassis and serves
DUAL FRONT DAISY CHAINS as both a handle and front bumper.
80L / 60L / 45L
Daisy chains provide multiple attachment points for
additional straps, attaching external gear and accessories.
SOJOURN SERIES 5FEATURE DETAILS
STRAIGHTJACKET TM COMPRESSION SYSTEM
80L / 60L / 45L
Osprey's StraightJacket™ compression system secures loads and adds
stability. External compression straps and padded side walls wrap and
protect the internal contents of the pack.
A When the pack is full, attach the compression straps to the buckles at
the front edge of the padded side wall.
B When packing smaller loads, attach the compression straps to the CONVERTIBLE BACKPACK-STYLE CARRY
hidden buckles along the right side of the pack, near the backpanel. 80L / 60L / 45L

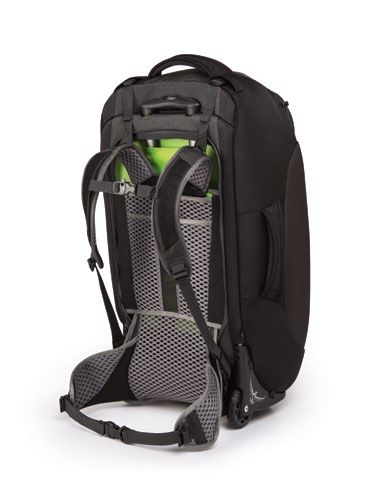

C Cinch down the padded side walls. The suspension on the Sojourn High Road™ Chassis provides a comfortable
backpack-style carry.

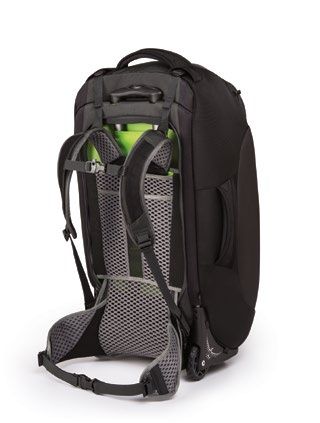

TO DEPLOY THE HARNESS AND HIPBELT
A Unzip the rear flap.
B Remove the hipbelt and harness from behind the backpanel.
C Tuck flap into the space behind the hipbelt to secure it away.
D Attach the hipbelt to the two buckles located on the bottom of the bag.
Attach the harness straps to the buckles on the side of the hipbelt.
E Reverse the steps to stowaway the backpanel.
LOCKABLE SLIDERS ON MAIN COMPARTMENT ZIPPER
80L / 60L / 45L TO REMOVE THE HARNESS AND HIPBELT
The main compartment features lockable zippers A Unzip the rear flap.
to secure your bag's contents. We recommend using B Remove the hipbelt from behind the backpanel.
TSA-approved locks. C Unclip the buckles located at the top of the harness straps.
D Slide your hand between the harness and backpanel to break
the hook and loop closure and remove the harness.
E Reverse the steps to reinstall the harness and hipbelt.

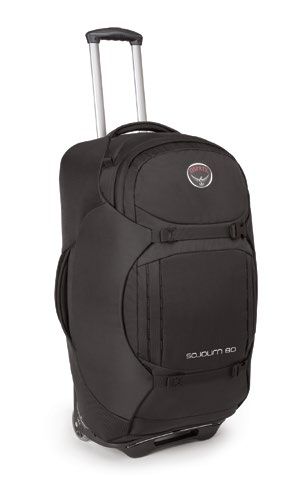

HIGHROAD™ CHASSIS DAYLITE COMPATIBLE
80L / 60L / 45L 80L / 60L / 45L
All Osprey wheeled travel packs utilize All Sojourn Series packs are compatible with our
Osprey’s proprietary High Road™ Chassis. Daylite daypack. Attach the Daylite using the
It features: four D-rings on the front of the pack.
A An ergonomic retractable
handle with integrated vent fins
B 6061 T6 aluminum frame
C Ultra-durable and lightweight composite
base with a fiberglass matrix inlay and
integrated foot/grab handle
D Oversized, high traction polyurethane
wheels with sealed bearings and a high
clearance design.
SOJOURN SERIES 6For more information on this product and others, pack care, how to pack your pack,
our lifetime guarantee, or to contact Osprey Customer Service, visit ospreypacks.com.
