SAM-MERCEDES 30D CC T1 PROTOTYPE DIESEL DAKAR 2014 PARTICIPATION OFFER
SAM-MERCEDES 30D CC
           T1 PROTOTYPE DIESEL

DAKAR 2014 PARTICIPATION OFFER

   We reserve the right of contingent falsity and typing errors. Offers are without engagement and subject to prior sale.
SAM-MERCEDES 30D CC T1 PROTOTYPE DIESEL DAKAR 2014 PARTICIPATION OFFER
Car specifications :
Engine             Type:            V 6 Mercedes Benz OM642LS, single turbo charged
                   Capacity:        3000 ccm
                   Performance:     > 320 HP , > 750 Nm torque (using 39mm air restrictor)
Drive train        Gearbox:         6 speed sequential gearbox by SADEV
                   Differentials:   Limited slip front, rear and centre differential by SADEV
                   Clutch:          AP-racing sinter metallic clutch, hydraulic command
Brake system       Disc:            Ventilated AP-racing brake disc, Diameter 320 mm
                   Caliper:         6 piston AP-racing
                   Connection:      Quick release by Stäubli

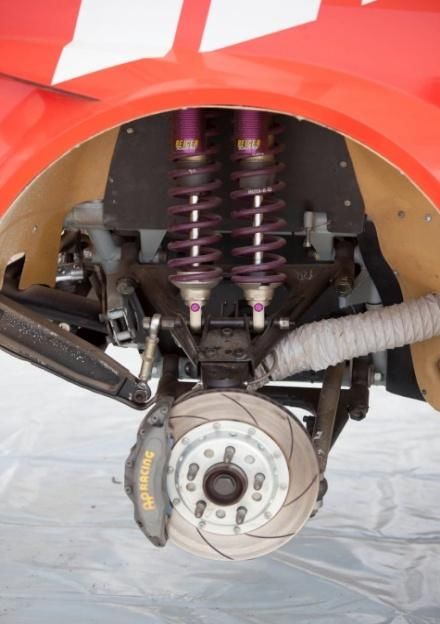

Suspension         Type:            Double wishbone with 2 dampers per wheel
                   Damper:          Reiger “Step 3” shock absorber, 250 mm wheel travel
Wheels             Rims:            16” aluminium rims
                   Tires:           Michelin / BF Goodrich

Safety Equipment   Seats:           OMP, FIA-Standard,Hans friendly,
                                    OMP seat dampers
                   Harness:         OMP, 6-point FIA standard
                   Extinguisher:    Automatic FIA homologated
                                    Additional hand-held extinguisher
Chassis            Frame:           Tubular frame, TIG-welded
                   Body:            Carbon – Kevlar
                   Paint:           Foliation

                                                                                                2
SAM-MERCEDES 30D CC T1 PROTOTYPE DIESEL DAKAR 2014 PARTICIPATION OFFER
Car specifications :
Dimensions           Length:     4620 mm
                     Width:      2000 mm
                     Height:     1840 mm
                     Empty weight: 1900 kg
                     Wheel base: 2910 mm

Standard Equipment   Driver:     Intercom Peltor FMT 200 or Stilo
                                 Gear display, Rear view camera
                                 Additional aeration
                                 Tool bags and holders for equipment integrated
                                 2 co-driver lights

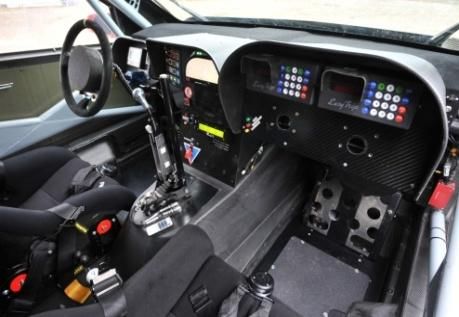

                                 Co-driver dashboard, wiper control, horn
                                 2 Easytrip Tripmaster
                     Others:     Compressed-air bottle (AFRP)
                                 4 Sand boards “Soltrack” including brackets
                                 2 shovels including brackets
                                 Tools and parts storage in side wing
                                 1 hydraulic jack fitted
                                 Doors designed for easy disembarking even in the dunes
                                 Plenty of space in the drivers compartment
                                 Door windows designed for all-round visibility
                                 3 spare wheels maximum capacity
                                 Reiger” Hydraulic lifting system
                                 Heated windscreen
SAM-MERCEDES 30D CC T1 PROTOTYPE DIESEL DAKAR 2014 PARTICIPATION OFFER
Participation offer - Dakar 2014:
RACE CAR RENTAL                                                  RACE CAR EXPENSES
Includes:                                                        Includes:
     Rental SAM- Mercedes 30 D CC diesel, complying T1                Entry fee (car, driver, co-driver), fuel for the
     Cross Country Regulations 285/ 2013, ready to race,              competition during event, accommodation, rental of
     partially advertising space, normal wear and tear                navigation equipment, satellite telephone, GSM,
     including fluids and parts consumption during event              transportation of the car to and from the race, snacks
                                                                      and drinks in the service area, ASO deposit
     Parts consumption: 2 sets of drive shafts for spare,
     under-body-protection normal wear, lubrification,           Excludes:
     bearings and rod ends, brake discs and pads, gearbox
     and differential exchange on SAM`s experience.                   Transport of race car and equipment by air flight,
                                                                      flights of race crew (driver and co‐ driver), satellite
     Tires consumption: 24 pieces                                     telephone and GSM used minutes, salary of driver and
Excludes:                                                             co‐driver, restaurants, insurance of the race crew, FIA
                                                                      approved overalls, underwear , helmets and hans.
     Parts and labour costs after damages caused by drivers
     error or misuse, parts and labour costs after damages
     caused by third parties, repatriation, race car insurance
     and deductible in case of total loss.

                                                                                                                                4
SAM-MERCEDES 30D CC T1 PROTOTYPE DIESEL DAKAR 2014 PARTICIPATION OFFER
Participation offer - Dakar 2014:

ASSISTANCE

   Entry fee
   Shared T5 service truck
   Shared T5 service car
   Transportation of assistance vehicles and parts to and from the event
   Fuel for the assistance vehicles
   Complete rally service with 2 mechanic per car, truck driver, parts manager
   Shared team manager
   Safety equipment, satellite telephone, GSM for assistance vehicles
   Accommodation, restaurants and flights for assistance crew
   Insurance for assistance crew

                                                                                  5
SAM-MERCEDES 30D CC T1 PROTOTYPE DIESEL DAKAR 2014 PARTICIPATION OFFER
Participation offer - Dakar 2014:
Further information:
Tires -
The quantity of tires prepared for the race depends on the experience of SAM. If the renter wants to have more tires available,
the deposit increases for the quantity of tires the renter orders additional. If new tires have not been used during the race, the
amount would be taken into account for the final balance of various costs.
Spare parts -
The quantity of spare parts depends on the experience of SAM. A list of the additional spare parts held ready in the assistance
can be requested. If the driver wants to exchange parts at his own preference, the amount should be charged from the deposit.
Parts used due to damages –
All parts used for repairs of damages caused by driver’s error, have to be stated in written form and must be signed by the
representatives of the race crew and SAM. The amount for parts used due to driver’s error would be charged immediately after
the race. If the amount of those parts exceeds the amount of the deposit, the amount would be taken into account for the final
balance of various costs.

                                                                                                                                6
SAM-MERCEDES 30D CC T1 PROTOTYPE DIESEL DAKAR 2014 PARTICIPATION OFFER
Participation offer - Dakar 2014:

TOTAL PRICE :

   365 000,00 EUR (NET – VAT excluded)

   RACE CAR INSURANCE IN CASE OF TOTAL LOSS (25.000,- Euro deductible) ~ 20 000,00 EUR

                                                                                         7
SAM-MERCEDES 30D CC T1 PROTOTYPE DIESEL DAKAR 2014 PARTICIPATION OFFER
Contact details:

          SPEED FACTORY GmbH
                IM GINSTERBUSCH 28,
              D-63225 LANGEN (HESSEN)
                      GERMANY

                   Sujit Angello Das
              s.das@speedfactory.eu.com
                Tel.: +48 790 569 229

                    Juergen Masal
            juergen.masal@speedfactory.eu.com
                Tel.: +49 172 819 84 40
