Reusing dependencies across ecosystems:
what stands in the way?
Todd Gamblin
Advanced Technology Office
FOSDEM 2021 Livermore Computing
Dependency Management Devroom
LLNL-PRES-811108
This work was performed under the auspices of the U.S. Department of Energy by Lawrence Livermore National Laboratory under contract DE-
AC52-07NA27344. Lawrence Livermore National Security, LLC
Software complexity is increasing dramatically
• Multi-physics § Applications today are highly integrated
Program • National Security — HPC simulations use many numerical libraries and
Drivers • UQ
• Cognitive Simulation
physics packages
— Increasingly, AI stacks are being integrated into
traditional physics workflows
Software AI and
• ML Stacks
• Containers
§ Getting performance requires us to use all the
Cloud
Complexity • Cloud APIs available hardware
— GPU, fast network, processor
• CPU Architectures
§ Frequently, we also want to reuse native
Hardware
• GPUs dependencies
Diversity
• Accelerators
— System libraries
— Vendor-supplied drivers, runtime libraries, compilers
Integrating at this scale requires reusing code from many software ecosystems
2
LLNL-PRES-811108
Some fairly common (but questionable) assumptions
§ 1:1 relationship between source code and binary (per platform)
— Good for reproducibility (e.g., Debian)
— Bad for performance optimization
§ Binaries should be as portable as possible
— What most distributions do
— Again, bad for performance
§ Toolchain is the same across the ecosystem
— One compiler, one set of runtime libraries
— Or, no compiler (for interpreted languages)
Outside these boundaries, users are typically on their own
3
LLNL-PRES-811108
High Performance Computing (HPC)
violates many of these assumptions Some Supercomputers
§ Code is typically distributed as source
— With exception of vendor libraries, compilers Current Summit Fugaku
§ Often build many variants of the same package Oak Ridge National Lab RIKEN
Power9 / NVIDIA Fujitsu/ARM a64fx
— Developers’ builds may be very different
— Many first-time builds when machines are new
§ Code is optimized for the processor and GPU NERSC-9
Upcoming Perlmutter Aurora
— Must make effective use of the hardware Lawrence Berkeley
— Can make 10-100x perf difference National Lab Argonne National Lab
AMD Zen / NVIDIA Intel Xeon / Xe
§ Rely heavily on system packages
— Need to use optimized libraries that come with machines
— Need to use host GPU libraries and network
§ Multi-language Oak Ridge National Lab
Lawrence Livermore
— C, C++, Fortran, Python, others AMD Zen / Radeon
National Lab
all in the same ecosystem AMD Zen / Radeon
4
LLNL-PRES-811108
Supporting accelerated architectures require more components,
and more complexity in the software stack
(pre) Exascale Machines
MFEM Finite Element Kernels Backends Hardware
Library
CUDA
Memory
linalg HIP
R RW W GPU
OCCA
mesh
libCEED
fem Kernel CPU
RAJA
Execution
OMP
Added for cross-platform
GPU support
§ MFEM has redesigned memory management and added 6 libraries
— MFEM has not yet started to support the Intel GPUs on Aurora
§ El Capitan will have a new, rapidly changing set of libraries, compilers, and language runtimes
5
LLNL-PRES-811108
HPC simulations rely on icebergs of dependency libraries
MFEM: LBANN: Neural Nets for HPC
Higher-order finite elements
mfem lbann
sundials petsc
31 packages,
cudnn cereal py-pandas
hypre superlu-dist hydrogen conduit py-matplotlib py-numexpr py-bottleneck py-onnx
hdf5 openblas parmetis
69 dependency edges aluminum cub opencv freetype py-python-dateutil py-numpy
openmpi metis nccl mpich libtiff ninja libpng py-pillow py-configparser py-graphviz py-kiwisolver py-pyparsing py-texttable py-setuptools-scm py-pytz py-cycler openblas py-cython py-protobuf py-typing py-typing-extensions
cmake python cuda findutils cnpy libjpeg-turbo py-setuptools py-six protobuf
hwloc openssl expat gettext libffi hwloc libtool automake texinfo nasm cmake python
autoconf openssl sqlite gettext expat libffi
sqlite perl libxml2 bzip2
zlib gdbm xz tar diffutils
m4 libxml2 perl hdf5 bzip2 71 packages
readline libiconv
libsigsegv zlib xz gdbm tar diffutils
188 dependency edges
readline libiconv
ncurses
ncurses
pkgconf
pkgconf
MuMMI: Cancer/drug interaction modeling
mummi gromacs mummi-macro
py-keras cudnn flux-sched talass fftw
py-scikit-learn py-mdanalysis-mummi py-theano py-matplotlib flux-core yaml-cpp openmpi
py-cython py-joblib py-biopython py-gsd py-griddataformats py-networkx py-scipy py-mock py-python-dateutil py-cycler py-pillow py-pyyaml py-jsonschema lz4 lua-luaposix py-cffi jansson faiss hwloc
py-mmtf py-numpy py-decorator py-msgpack py-keras-preprocessing py-keras-applications py-six py-setuptools-scm py-kiwisolver py-pyparsing libjpeg-turbo libyaml py-vcversioner py-pycparser lua czmq databroker swig cuda numactl libpciaccess
py-setuptools openblas nasm unzip libuuid libzmq redis cmake automake pcre libtool util-macros
python libsodium libevent autoconf
98 packages
gettext expat freetype libffi boost openssl perl m4
248 dependency edges
libbsd bzip2 sqlite libpng gdbm libxml2 libsigsegv
tar xz diffutils readline zlib
libiconv ncurses
pkgconf
6
LLNL-PRES-811108
Spack enables Software distribution for HPC
• Spack automates the build and installation of scientific software
• Packages are templated, so that users can easily tune for the host environment
No installation required: clone and go
$ git clone https://github.com/spack/spack
$ spack install hdf5
Simple syntax enables complex installs
$ spack install hdf5@1.10.5 $ spack install hdf5@1.10.5 cppflags="-O3 –g3"
$ spack install hdf5@1.10.5 %clang@6.0 $ spack install hdf5@1.10.5 target=haswell
$ spack install hdf5@1.10.5 +threadsafe $ spack install hdf5@1.10.5 +mpi ^mpich@3.2
github.com/spack/spack
• Ease of use of mainstream tools, with flexibility needed for HPC tuning
• Major victories:
• Fugaku OSS software stack deployment
• Deployment time for 1,300-package stack on Summit supercomputer reduced from
2 weeks to a 12-hour overnight build
• Used by teams across U.S. Exascale Computing Project to accelerate development
7
LLNL-PRES-811108
Spack environments enable users to build customized stacks
from an abstract description
Simple spack.yaml file
Dependency
packages
build
install
project
spack.yaml file with Lockfile describes
names of required exact versions installed
dependencies
§ spack.yaml describes project requirements
Concrete spack.lock file (generated)
§ spack.lock describes exactly what versions/configurations were
installed, allows them to be reproduced.
§ Frequently used to maintain configuration along with Spack
packages.
— Versioning a local software stack with consistent compilers/MPI
implementations
§ Allows users to specify external packages to integrate
8
LLNL-PRES-811108
Build integration complexity has caused large delays in the
MuMMI developer workflow SC ’19, November 17–22, 2019, Denver, CO, USA F. Di Natale et al.
§ LLNL’s MuMMI code is a used to model drugs,
including cancers and, more recently, COVID-19
Figure 1: Addressing many important biological questions requires large length- and time-scales, yet at the same time molec-
§ When standing up Sierra, the team was at the mercy of constant system updates ular level details. Here we showcase the Multiscale Machine-Learned Modeling Infrastructure (M�MMI) by simulating protein-
lipid dynamics for a 1 �m x 1 �m membrane subsection at near-atomistic resolution.
execution on heterogeneous resources. A central work�ow man- 1 INTRODUCTION
ager simultaneously allocates GPUs and CPUs while robustly han-
Determine Fix dling failures in compute nodes, communication networks, and
While supercomputers continue to provide more raw compute
�lesystems. A hierarchical scheduler controls GPU-accelerated MD Application
power, it is becoming increasingly di�cult for applications to fully
system library Build code bugs/configs Productivity!
simulations and in situ analysis. OS update exploit these resources. The challenge of building a multiscale mod-
We present the various M�MMI components, including the breaks
eling capability utilizing modern supercomputing architecture —
configurations based on errors macro model, GPU-accelerated MD, in situ analysis of MD data,
heterogeneous computing elements, deep memory hierarchies, and
complex network interconnects — can be decomposed along two
machine learning selection module, a highly scalable hierarchical thematic axes: (1) the algorithmic challenges in managing increas-
scheduler, and detail the central work�ow manager that ties these ing levels of parallelism within an application, and (2) the logistic
modules together. In addition, we present performance data from challenges of scheduling and coordinating the execution of multiple
our runs on Sierra, in which we validated M�MMI by investigating applications across such diverse resources.
an experimentally intractable biological system: the dynamic inter- The prototypical approach to the �rst challenge are monolithic
action between RAS proteins and a plasma membrane. We used up parallel applications able to simulate problems of unprecedented
to 4000 nodes of the Sierra supercomputer, concurrently utilizing size and scale using full-system runs [30, 34, 67]. Conversely, the
over 16,000 GPUs and 176,000 CPU cores, and running up to 36,000 work�ow challenge is often approached through massively parallel
di�erent tasks. This multiscale simulation includes about 120,000 ensembles [56], which execute a large number of small- or medium-
MD simulations aggregating over 200 milliseconds, which is orders scale instances simultaneously. Here, we describe the creation of
of magnitude greater than comparable studies. a novel simulation infrastructure that addresses both challenges
§ We use system dependencies (MPI, compilers) to:
and enables, as an example, the execution of a massively parallel,
CCS CONCEPTS multiscale simulation steered by a machine learning (ML) approach,
• Computing methodologies → Machine learning; Multiscale and orchestrated through a sophisticated work�ow governing thou-
— get the best performance from the machine. systems; Massively parallel and high-performance simula-
tions; Simulation tools; • Applied computing → Computational
sands of simultaneous tasks.
The scienti�c challenge to which we apply our novel infrastruc-
— avoid long build times biology. ture is an investigation of the interaction of RAS proteins with the
cell membrane. Mutations of RAS contribute to a wide range of
KEYWORDS cancers as RAS modulates the signaling pathways that control cell
Di Natale et al. A Massively Parallel Infrastructure for Adaptive Multiscale Simulations: Modeling RASmultiscale
Initiation Pathway
simulations, adaptivefor Cancer.
simulations, In Supercomputing
massively parallel, 2019 (SC ’19). 2019. Best paper.
division and growth. RAS activates signaling only when bound to
lipid bilayers that form cellular membranes. This membrane asso-
heterogenous architecture, machine learning, cancer research
ciation is an under-explored area of cancer biology that may be
ACM Reference Format: relevant to therapeutic intervention against cancer. We use M�MMI
Francesco Di Natale, Harsh Bhatia, Timothy S. Carpenter, Chris Neale, Sara to facilitate the better understanding of the mechanism and dynam-
9
LLNL-PRES-811108 Kokkila Schumacher, Tomas Oppelstrup, Liam Stanton, Xiaohua Zhang, Shiv ics of interaction between RAS, lipids, and other signaling proteins,
Sundram, Thomas R. W. Scogland, Gautham Dharuman, Michael P. Surh,
which requires molecular-level detail and cannot be obtained exper-
Yue Yang, Claudia Misale, Lars Schneidenbach, Carlos Costa, Changhoan
Kim, Bruce D’Amora, Sandrasegaram Gnanakaran, Dwight V. Nissley, Fred
imentally with current technologies. MD simulations can simulate
Streitz, Felice C. Lightstone, Peer-Timo Bremer, James N. Glosli, and Helgi I. such interactions with the appropriate detail, but only for micro-
Ingólfsson. 2019. A Massively Parallel Infrastructure for Adaptive Multiscale scopic length- and time-scales (even on the largest computers).
Simulations: Modeling RAS Initiation Pathway for Cancer. In The Interna- However, lipid concentration gradients and protein aggregation
tional Conference for High Performance Computing, Networking, Storage, and evolve over length- and time-scales hard to access through high-
Analysis (SC ’19), November 17–22, 2019, Denver, CO, USA. ACM, New York, resolution MD.
NY, USA, 14 pages. https://doi.org/10.1145/3295500.3356197
~ 100 lines, 20 pinned system dependencies
Build integration complexity has caused massive delays
configured in the
per machine
MuMMI developer workflow SC ’19, November 17–22, 2019, Denver, CO, USA F. Di Natale et al.
§ LLNL’s MuMMI code is a used to model drugs,
including cancers and, more recently, COVID-19
Figure 1: Addressing many important biological questions requires large length- and time-scales, yet at the same time molec-
§ When standing up Sierra, the team was at the mercy of constant system updates ular level details. Here we showcase the Multiscale Machine-Learned Modeling Infrastructure (M�MMI) by simulating protein-
lipid dynamics for a 1 �m x 1 �m membrane subsection at near-atomistic resolution.
execution on heterogeneous resources. A central work�ow man- 1 INTRODUCTION
ager simultaneously allocates GPUs and CPUs while robustly han-
Determine Fix dling failures in compute nodes, communication networks, and
While supercomputers continue to provide more raw compute
�lesystems. A hierarchical scheduler controls GPU-accelerated MD Application
power, it is becoming increasingly di�cult for applications to fully
system library Build code bugs/configs Productivity!
simulations and in situ analysis. OS update exploit these resources. The challenge of building a multiscale mod-
We present the various M�MMI components, including the breaks
eling capability utilizing modern supercomputing architecture —
configurations based on errors macro model, GPU-accelerated MD, in situ analysis of MD data,
heterogeneous computing elements, deep memory hierarchies, and
complex network interconnects — can be decomposed along two
machine learning selection module, a highly scalable hierarchical thematic axes: (1) the algorithmic challenges in managing increas-
scheduler, and detail the central work�ow manager that ties these ing levels of parallelism within an application, and (2) the logistic
modules together. In addition, we present performance data from challenges of scheduling and coordinating the execution of multiple
our runs on Sierra, in which we validated M�MMI by investigating applications across such diverse resources.
an experimentally intractable biological system: the dynamic inter- The prototypical approach to the �rst challenge are monolithic
action between RAS proteins and a plasma membrane. We used up parallel applications able to simulate problems of unprecedented
to 4000 nodes of the Sierra supercomputer, concurrently utilizing size and scale using full-system runs [30, 34, 67]. Conversely, the
over 16,000 GPUs and 176,000 CPU cores, and running up to 36,000 work�ow challenge is often approached through massively parallel
di�erent tasks. This multiscale simulation includes about 120,000 ensembles [56], which execute a large number of small- or medium-
MD simulations aggregating over 200 milliseconds, which is orders scale instances simultaneously. Here, we describe the creation of
of magnitude greater than comparable studies. a novel simulation infrastructure that addresses both challenges
§ We use system dependencies (MPI, compilers) to:
and enables, as an example, the execution of a massively parallel,
CCS CONCEPTS multiscale simulation steered by a machine learning (ML) approach,
• Computing methodologies → Machine learning; Multiscale and orchestrated through a sophisticated work�ow governing thou-
— get the best performance from the machine. systems; Massively parallel and high-performance simula-
tions; Simulation tools; • Applied computing → Computational
sands of simultaneous tasks.
The scienti�c challenge to which we apply our novel infrastruc-
— avoid long build times biology. ture is an investigation of the interaction of RAS proteins with the
cell membrane. Mutations of RAS contribute to a wide range of
KEYWORDS cancers as RAS modulates the signaling pathways that control cell
Di Natale et al. A Massively Parallel Infrastructure for Adaptive Multiscale Simulations: Modeling RASmultiscale
Initiation Pathway
simulations, adaptivefor Cancer.
simulations, In Supercomputing
massively parallel, 2019 (SC ’19). 2019. Best paper.
division and growth. RAS activates signaling only when bound to
lipid bilayers that form cellular membranes. This membrane asso-
heterogenous architecture, machine learning, cancer research
ciation is an under-explored area of cancer biology that may be
ACM Reference Format: relevant to therapeutic intervention against cancer. We use M�MMI
Francesco Di Natale, Harsh Bhatia, Timothy S. Carpenter, Chris Neale, Sara to facilitate the better understanding of the mechanism and dynam-
10
LLNL-PRES-811108 Kokkila Schumacher, Tomas Oppelstrup, Liam Stanton, Xiaohua Zhang, Shiv ics of interaction between RAS, lipids, and other signaling proteins,
Sundram, Thomas R. W. Scogland, Gautham Dharuman, Michael P. Surh,
which requires molecular-level detail and cannot be obtained exper-
Yue Yang, Claudia Misale, Lars Schneidenbach, Carlos Costa, Changhoan
Kim, Bruce D’Amora, Sandrasegaram Gnanakaran, Dwight V. Nissley, Fred
imentally with current technologies. MD simulations can simulate
Streitz, Felice C. Lightstone, Peer-Timo Bremer, James N. Glosli, and Helgi I. such interactions with the appropriate detail, but only for micro-
Ingólfsson. 2019. A Massively Parallel Infrastructure for Adaptive Multiscale scopic length- and time-scales (even on the largest computers).
Simulations: Modeling RAS Initiation Pathway for Cancer. In The Interna- However, lipid concentration gradients and protein aggregation
tional Conference for High Performance Computing, Networking, Storage, and evolve over length- and time-scales hard to access through high-
Analysis (SC ’19), November 17–22, 2019, Denver, CO, USA. ACM, New York, resolution MD.
NY, USA, 14 pages. https://doi.org/10.1145/3295500.3356197Transitive dependency requirements can cause cascading issues
mummi gromacs mummi-macro
py-keras cudnn flux-sched talass fftw
py-scikit-learn py-mdanalysis-mummi py-theano py-matplotlib flux-core yaml-cpp openmpi
py-cython py-joblib py-biopython py-gsd py-griddataformats py-networkx py-scipy py-mock py-python-dateutil py-cycler py-pillow py-pyyaml py-jsonschema lz4 lua-luaposix py-cffi jansson faiss hwloc
py-mmtf py-numpy py-decorator py-msgpack py-keras-preprocessing py-keras-applications py-six py-setuptools-scm py-kiwisolver py-pyparsing libjpeg-turbo libyaml py-vcversioner py-pycparser lua czmq databroker swig cuda numactl libpciaccess
py-setuptools openblas nasm unzip libuuid libzmq redis cmake automake pcre libtool util-macros
python libsodium libevent autoconf
gettext expat freetype libffi boost openssl perl m4
§ Team “just” needed a new version of Keras libbsd bzip2 sqlite libpng gdbm libxml2 libsigsegv
— which needed a new version of Theano
tar xz diffutils readline zlib
— which needed a new version of Numpy
libiconv ncurses
— which needed a newer version of OpenBLAS
pkgconf
> 70 packages
mummi
— But the team was using the system OpenBLAS, which was too old
— Team had to build several versions of OpenBLAS before they found py-mdanalysis-mummi py-scikit-learn py-keras
one compatible with all other packages in the DAG
— Then had to rebuild the entire stack for ABI compatibility faiss py-scipy py-gsd py-biopython py-griddataformats py-matplotlib py-theano
§ This particular issue consumed 36 person hours py-numpy gromacs
§ Frequent OS updates causing ABI incompatibilities between Flux, PMI, openblas
and the system MPI cost hundreds of person hours
11
LLNL-PRES-811108Other teams (Axom, Serac, xSDK, E4S) have similar issues
with managing configuration complexity

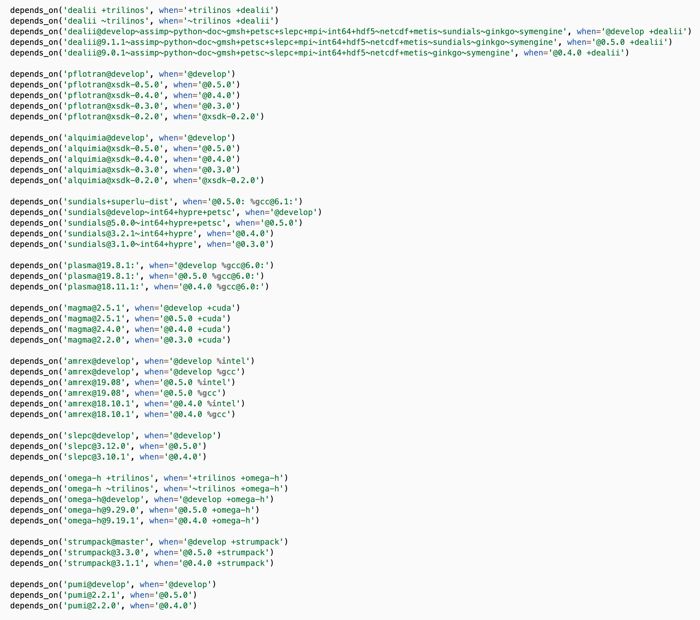

§ Teams really like to lock versions down for testing:
— Axom team tests on several systems and pins about 20
package versions to consistent (at the time) values
— Serac team pins more system versions than this
— xSDK and E4S stacks from ECP pin specific versions for each
package
§ Incompatibilities arise and builds fail in one or both
of two ways:
1. Spack upgrade leads to failure because new versions and
options enter the Spack repository that are incompatible
2. OS upgrades at a local site change local versions ~21 core libraries
underneath a package ~70 total packages
§ Inevitably, this version locking effort is spent over
and over again for subsequent releases Pinned versions and options from xSDK
12
LLNL-PRES-811108ers seem to struggle with estimating the impact of both types of
no_member_overloaded_arrow
init_conversion_failed Dependencies, especially in infrastructure, and testing ar
member_decl_does_not_match dependencies in the release planning. the top mentioned delay factors in rapid releases.
pp_file_not_found
Another factor which is perceived to prominently a�ect rapid
and non-rapid teams is security testing. For rapid teams, developers
expected_rparen
ovl_no_viable_member_function_in_call
typecheck_member_reference_suggestion report that security tests are almost always delayed because of an
typecheck_member_reference_arrow
unstable acceptance environment or missing release notes. They 4.3 RQ3: How do rapid release cycles a�ect
expected_expression
typecheck_invalid_operands further add that any software release needs to pass the required code quality?
non_virtual_dtor security penetration test and secure code review, which are centrally For this research question, we considered 202 survey responses
typename_nested_not_found
performed by the CIO Security department at ING. Respondents developers in rapid teams. We removed 165 non-rapid respon
Even outside of HPC, dependencies are the most frequent cause
expected_unqualified_id
typecheck_call_too_few_args report that they often have to delay releases because of “delayed next to 94 rapid respondents who did not identify as a develo
access penetration tests" [r66], “unavailability of security teams" [r133] and ING.
of build errors and software release delays “acting upon their �ndings" [r86].
incomplete_member_access
bound_member_function
0 10 20 30 40
Rapid teams also report delays related to infrastructure and 4.3.1 Developers’ Perceptions. Developers have mixed opi
Percentage of errors testing (in general). These factors do not feature in the top men- on how RRs a�ect code quality. A distribution of the e�ect o
(b) C++ tioned factors in�uencing non-rapid teams. Regarding infrastruc- (improve, degrade, no e�ect) on di�erent factors related to co
Types of errors in ture, respondents mention that issues
Factors perceived in infrastructure
to cause are related
release delays perceived by developers is shown in Figure 6. It shows resp
ons for build errors
to the failure of tools responsible for automation (such as Jenkins suggesting improvements in quality in green, degradation in q
26.6 million builds at Google among 491 developers at ING
in red and no e�ect in grey.
Quality improvement. A majority of developers perceiv
100% the small changes in RRs make the code easier to review, posi
90% impacting the refactoring e�ort (e.g., “It gets easier to review th
80% § Developers avoid updates to avoid
and address technical debt" [r16]). Developers also report th
Percentage of Build Errors
70%
problems with dependencies,
small deliverables simplify the process of integrating and me
60% code changes, and they lower the impact of errors in develop
50% leading to:
A few developers mention that RRs motivate them to write mo
and understandable code.
40%
30%
C++ — Security vulnerabilities
A large number of developers mention the bene�ts of
20%
Java
— Lack ofin performance
feedback RRs. Feedback from issue trackers and the end
10%
— allows teams
Stagnation to continuously
as upgrades refactorbecome
and improve their code
0% ity based on unforeseen errors and incidents in production.
harder
user feedbackand hardertoover
is perceived lead totime
a greater focus of devel
Y
H
X
C
ER
C
TA
C
TI
EN
TH
AT
AN
on customer value and software reliability (e.g., “[RRs] give
N
SY
M
O
D
M
IS
EN
SE
M
EP
insight in bugs and issues after releasing. [They] enable us to re
EP
D
TY
Category
Figure 6: Build error category (joins C++ and Java
more quickly to user requirements" [r232], “We can better m
data) the feedback of the customers which increased [with RRs]." [r
“our study clearly shows that better tools to resolve This enables teams to deliver customer value at a faster and
thatdependency
the developer errors have the
actually greatest
spent potential
addressing thepayoff”
problem
steady pace (e.g., “[With RRs] we can provide more value more
and waiting for compiles to complete; it is possible that the Figure 5: Factors perceived to cause delays in rapid and non-rapid to end users." [r65], “Features are delivered at a more steady
Surveyswitched
developer of 26.6Mtobuilds by 18Ktask
a di↵erent developers at Google.
or was away from her
teams Survey of 491 individuals from 691 teams at ING.
deskSeo
during [r16]).
et al.,some error fixing
Programmers’ sessions
Build Errors: we logged.
A Case Study To
(at re- Kula et al., Releasing fast and slow: an exploratory case
move extreme cases
Google). ICSE 2014. (e.g., the developer went home for the study at ING. ESEC/SIGSOFT FSE 2019.
day), we omitted any builds in which the resolution time
was greater than twelve hours. When multiple error kinds
are resolved at once, it is not easy to discriminate resolution 13
time perLLNL-PRES-811108
error kind. Dividing the total resolution time by 790
the number of error kinds is one possible approach but this
introduces further imprecision to the resolution time. In-
stead, we constrained our analysis to failing builds with one
kind of error message. This filter retains 60% of the Java
builds and 40% of the C++ builds, for a total of more than
10 million builds.Three main ways to deal with dependencies have emerged
in the past 10-20 years
Bundled Distribution Semantic Versioning Live at Head
Examples Linux distributions (Red Hat, Debian) Spack Google, Facebook, Twitter
E4S, xSDK, Anaconda NPM, Cargo, Go
Spack with locked versions Most language dependency managers
Idea Curate a large set of mutually compatible Use uniform version convention, Everything in one repository,
dependencies Solve for compatible set Developers test changes with all dependents
Pros Stability (if software is included) Frequent updates Frequent updates
Only relies on local information Stability, consistency
Works in theory All changes tested
Cons Infrequent updates Versions are coarse Doesn’t scale beyond a single organization
High packaging/curation effort Developers over-constrain/over-promise High computational cost of testing
Lack of flexibility Errors start to dominate at scale Lack of flexibility (typically just one target env.)
§ All of the approaches have serious drawbacks
§ Need a way to guarantee stability, frequent updates, and version/config flexibility
Taxonomy c/o T. Winters et al. Software Engineering at Google. 2020.
14
LLNL-PRES-811108The fundamental problem with integrating native dependencies
is lack of compatibility information
In workflows we’ve seen so far: MuMMI
E4S Serac
1. No information on how system libs were built
2. Build repeatedly to find compatible libraries Axom Conduit
3. Hard constraints (pinned versions, etc.) hide
information and limit choice Community
xSDK Package Others
Repository
Each team ends up curating its own configuration
with baked-in, incompatible assumptions
If all projects add restricted versions,
conflicts will eventually arise that prevent
all packages from building.
We need a way to reuse package builds among different communities of developers
15
LLNL-PRES-811108We’d really like to be able to reuse binary packages
as we find them
1. When OS updates happen underneath a stack:
— Know what changed by examining the binaries’ ABI
— Identify what in the stack is no longer compatible
— Rebuild compatible configurations
2. When user requirements change (e.g., due to a new version):
— Know which packages need to change to meet the new requirements
— Identify existing binaries (system or packaged) that satisfy the requirements
— Install binaries or rebuild as necessary
3. When information is not available:
— Extrapolate what and how to build based on past, similar builds
We will enable binary code reuse to reduce iteration in developer workflows
16
LLNL-PRES-811108We’re kicking off the BUILD project at LLNL
to address some of these issues
Models Binary Analysis Dependency Solvers
What makes How to
How to find
software packages assess compatibility
valid configurations?
compatible? automatically?
• What determines binary • How to reconstitute interface • Which NP-complete problem
compatibility of functions and information from binaries? solver should we use?
data structures? • ASP? SMT?
Research • How to know what data types
Questions • How can we model changes are used by other binaries? • How can we encode large
over time? problems for efficient solves?
• How to efficiently manage
• How do changes affect other debug information? • What heuristics can be used to
packages in a graph? accelerate the solve?
• How to associate ABI
• Which changes are breaking? information with versions? • Do we need to develop new
solver algorithms?
BUILD: Binary Understanding and Integration Logic for Dependencies
17
LLNL-PRES-811108What’s missing from current package ecosystems?
Current model is coarse
A version v1
§ Humans define rules like these:
— A version 1.0 depends on B version 2.0
— B version 2.0 depends on C version 3.0 or 4.0
C++ runtime
B version v2 version v4
(not modeled) § Humans update rules each time there is a new release
C version v3
§ Specification is incomplete
— Runtime libraries, compilers, etc. are not modeled
— Not clear whether updates to C require us to rebuild A
• no ABI information
§ No place for global constraints in the model, e.g.:
— e.g., “must link with C++ compiler if any dependency uses C++”
— “gcc and clang are ABI incompatible when …”
18
LLNL-PRES-811108Lack of ABI information about runtime libraries has bitten our
code teams over and over again
§ C++11 brought about binary incompatible
2
changes to the C++ runtime library 1
— All C++ codes had to be rebuilt with new compilers
to be compatible
— New builds could not be linked with old ones icpc@16 icpc@17
§ The C++ library version was not bumped, so
g++@4.4.7
strange runtime errors would happen
g++@7.3.0
§ ABI models would show us the differences in
data type definitions between old and new Old libstdc++
Incompatible! Already-installed
§ This type of error happens frequently when New libstdc++ dependency
mixing Fortran compilers, as well. Compiler-imposed,
implicit dependency
19
LLNL-PRES-811108Semantic versioning is the de-facto standard for conveying
compatibility information
Major Version
Increment only when changes break compatibility.
Minor Version
1.2.3
Increment for backward-compatible added functionality
Patch Version
Increment for backward-compatible bugfixes.
§ Pitfalls:
— Applies to the whole package, but packages may only depend on a subset of functions
— May over-promise: packages may break despite developers’ intentions
— May over-constrain: pinned dependency versions are common but lead to false unsatisfiable cases
§ Relies on developers to specify versions correctly
— Relies on broad community participation
https://semver.org/
20
LLNL-PRES-811108Humans dofornot
Fig. 4. Survival analysis accurately
event “the specify
dependency constraint version
is changed”, grouped information
by type of constraint (compliant, permissive or restrictive). The
survival probability for pre-1.0.0 constraints is shown with dotted lines, and with straight lines for post-1.0.0 constraints.
Rust (Cargo) NPM (JavaScript) PHP (Packagist) Ruby (Gems)
§Fig.Plots show version restrictions across 4 package ecosystems.
5. Proportion of required packages “specialized” towards a specific constraint type (compliant, permissive or restrictive) for its reverse
— Permissive
dependencies, based onleaves
monthly room foroflots
snapshots of room
the package for incorrect
dependency network. builds
— Restrictive rules out builds that would work
— Non-specialized (white) leaves everything open
TABLE(no
3 constraints)
Concrete examples of specialization analysis for some frequently used packages, and suggested recommendation for package maintainers
desiring to depend on these packages.
§ HPC ecosystem is most like Ruby (right) – dated, with many permissive constraints
— Most projects
package don’t use
ecosystem semantic
dependents versioningpermissive
compliant and0 won’trestrictive
switch decision
serde Cargo 592 575 (97.1%) 17 adhere to semantic versioning
Likelihood ofPackagist
—mage2pro/core build errors is51very high 1 50 (98.0%) 0 set permissive dependency constraint
react-scripts npm 57 1 0 56 (98.2%) impose restrictive dependency constraint
rails Rubygems 997 288 506 203 undecided
rest-client Rubygems Decan
387et al. What Do
173Package Dependencies
137 Tell Us
77 About Semantic Versioning? IEEE Trans. Software Eng. May 2019.
undecided
21
LLNL-PRES-811108
pessimistic strategy avoids breaking changes by preventing the cases of underscore and lodash. Both packages are dis-
newer minor releases or patches from being used. It should tributed on npm and provide similar features. While lodash
be followed if the required package regularly introduces claims to follow semver, underscore is known not to have
breaking changes in such minor or patch releases. The opti- respected semver in the past,13 notably in versions 1.7.0 and
mistic strategy corresponds to a reactive approach where the 1.8.0, respectively released in August 2014 and February
package maintainer allows for new releases of dependent 2015. An analysis of dependency constraints in the lastWhat if the package manager could model more aspects of ABI?
Current model is coarse Complete model represents how changes affect code
A version v1 A version v1
j(t1)
f(t1) g(t1, t2)
C++ runtime k(t1)
B version v2 C++ runtime version v4
version v4 B version v2, defines t2
(not modeled) defines t1
h(t3) i(t1, t3)
C version v3 l(t1)
C version v3, defines t3
§ Libraries at call granularity: § Runtime libraries behind compilers § Changes in the graph
— Entry calls — C++, OpenMP, glibc — “If C changes, what needs to be
— Exit calls — GPU runtimes rebuilt?”
— Data type definitions & usage
— We will model semantics of interfaces
— “If h(t3) changes, is B still correct?
This model allows us to reason about compatibility
22
LLNL-PRES-811108A common ABI issue: containers with hardware dependencies
§ Containers in industry are used in an isolated way Isolated container usage model
— No need (until recently) to use special hardware Host (RHEL7)
— Container has its own OS image Container (RHEL6)
Application
§ HPC containers assume tighter coupling between Container MPI
Host MPI
containers and host ABI Compatible
— Choose MPI or other layer as an interface glibc 2.17 glibc 2.12
• Omits transitive library considerations
• Works until it doesn’t – no way to check or warn
Attempt to use host MPI gone wrong
§ Example: glibc compatibility issue at NERSC (right) Host (RHEL7)
bindmount Container (RHEL6)
Application
§ We will build models to check configurations and
ensure binary compatibility in the full stack Host MPI Container
Host MPIMPI
ABI
— Here we could fix the problem by including glibc 2.17
glibc 2.17 Incompatible! glibc 2.12
— Our models will tell us that this is what is needed
23
LLNL-PRES-811108To reason about ABI, we need better binary tools
OS-provided libraries § Binaries are the ground truth for compatibility
— They contain the functions and data types we must link against
Stripped proprietary binaries — Can’t tell compatibility directly from source (depends on build)
— Binaries are final output
Prebuilt packages
§ We often want to be able to make use of existing binaries, but
it’s difficult to do in a cross-platform way
§ There aren’t tools that can tell us when the thing we’ll build or
link is actually compatible with an existing binary
— Metadata and OS conventions vary by system
— Debug information may not be available
— Other communities’ builds may be very different from ours
We need better debug information to rely on prebuilt packages.
24
LLNL-PRES-811108With the right tools, we can extract
more compatibility information from binaries
OS-provided libraries f(t1) g(t1, t2) entry points
data structures &
Stripped proprietary binaries Binary Analysis B version v2, defines t2
semantics
h(t3) i(t1, t3) exit points
Prebuilt packages
Compatibility Models
§ Libraries like libabigail and dyninst can do parts of this with debug information (DWARF)
— Typically requires accurate debug information, which is not always shipped with the system
§ Tools like debuginfod may allow us to look up debug information without having it installed
— Not available for all distros
— Needs to be on the critical path for package managers for broader availability
§ Still some gaps even with debug information:
— Dynamically loaded libraries
— Can’t tell statically which ones are used
25
LLNL-PRES-811108With compatibility information, we can improve the way
we do dependency solving
Human-generated constraints Compatibility Models
§ Package managers produce valid
f(t1) g(t1, t2)
but not sound graphs.
B version v2, defines t2
— ABI info gives us what we need for soundness
h(t3) i(t1, t3)
§ Solvers could use models generated by binary
analysis (ground truth)
Solver
§ Past 10-20 years have brought enormous
improvements in solver technology
— CDCL algorithms
mpileaks
version=v1
— Optimizing SMT and ASP solvers callpath
version=v3
mpi dyninst
Resolved Graph
§ Time is right to attack packaging with better solving
version=v2 version=v4
libdwarf
version=v6
We aim to integrate binary compatibility checks into dependency solvers libelf
version=v5
26
LLNL-PRES-811108Work on BUILD can be used across many package ecosystems
§ Currently, software curation effort is duplicated Linux Distributions
across packaging ecosystems
— Each has different assumptions that can affect
compatibility
— Each must be maintained in a different, closed world Monolithic repositories (Live-at-Head)
— Humans maintain metadata about packages for each
Pants
§ The C++ ecosystem suffers from many of the same
issues as HPC Language-specific package managers
§ The BUILD project aims to unify these domains Cargo Rubygems
— Build a model for binary dependency solving that can be
used by many package managers Scientific Software Ecosystem
— Initially implement in Spack
— Export tools and solvers for other packaging ecosystems Spack
§ Ideally, not every system will need its own strategy
for managing native dependencies xSDK
27
LLNL-PRES-811108Disclaimer This document was prepared as an account of work sponsored by an agency of the United States government. Neither the United States government nor Lawrence Livermore National Security, LLC, nor any of their employees makes any warranty, expressed or implied, or assumes any legal liability or responsibility for the accuracy, completeness, or usefulness of any information, apparatus, product, or process disclosed, or represents that its use would not infringe privately owned rights. Reference herein to any specific commercial product, process, or service by trade name, trademark, manufacturer, or otherwise does not necessarily constitute or imply its endorsement, recommendation, or favoring by the United States government or Lawrence Livermore National Security, LLC. The views and opinions of authors expressed herein do not necessarily state or reflect those of the United States government or Lawrence Livermore National Security, LLC, and shall not be used for advertising or product endorsement purposes.
You can also read
