RESIDENTIAL WATER FILTRATION GUIDE
LET’S MAKE ONE THING PERFECTLY CLEAR
Common disinfection methods can cause undesirable tastes and odors in tap water. And even water that meets all applicable standards
when it leaves the water plant can collect contaminants from outdated distribution systems and plumbing. If you get your water from a
private well, it could be influenced by groundwater contaminants and even issues on the surface that trickle below. But there’s no need to
worry when you have the proper water filtration system to protect you and your family.
OUR SYSTEMS ARE PERFECT FOR:
Drinking Water Fruits & Coffee & Tea
& Ice Vegetables
Cooking Pets & Plants Reducing Plastic
Waste

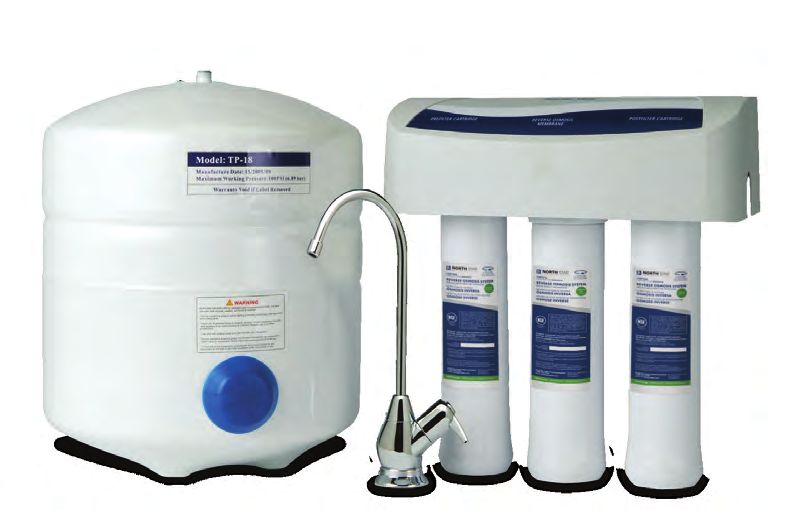

REVERSE OSMOSIS WATER FILTRATION SYSTEM
NSRO42C4
Triple Protection High Capacity Storage Tank
Your water goes through three separate Holds plenty of drinking water for
stages for the ultimate in cleanliness and today’s demanding families.
clarity.
Twist and Pull Sanitary Filters
1 Prefilter Easily replace filters without
Removes chlorine and sediment touching filter media.
down to 5 microns (1/16 th the
diameter of a human hair) Lead-Free Designer Faucet
Smooth ceramic disc design with
2 Reverse Osmosis Membrane adjustable flow. Available in
Removes inorganic contaminants, multiple finishes.
chemicals and metals for the 1 2 3
ultimate in protection Filter Life Monitor
3 Postfilter Alerts you when to replace filters.
Removes organic contaminants,
additional chemicals, and any
tastes or odors for a final polish
Pre/Post Filters OK Change Pre/Post Filters Change Membrane
DRINKING WATER SYSTEMS & FILTERS
DRINKING WATER FILTRATION
· Highest level of filtration
· Perfect for drinking water, ice, coffee, pets & plants
· Includes parts necessary for a quick installation
· Long-lasting encapsulated filters
SPECIFICATIONS
Model Number NSRO42C4 NSDW500 NSDW300 NSIF200 NSIF100
Part Number 7287695 7358187 7358276 7358315 7358488
Reverse Osmosis Dual-Stage 5-Year In-Line
Description Full-Flow System
System System Refrigerator Filter Refrigerator Filter
NSROF &
For Use with Filters NSDW500R NSDW300R N/A N/A
NSROM
Daily Production Rate (gal) 14.76 N/A N/A N/A N/A
Storage Tank Capacity (gal) 2.4 N/A N/A N/A N/A
Flow Rate (gpm) Up to 1.0 0.5 2.0 0.5 0.5
3/8” Quick 1/4” Quick
3/8” Quick 3/8” Quick 1/4” Quick
Inlet - Outlet Connect or 3/8” Connect & 1/4”
Connect Connect Connect
MIP Compression
750 gal or 6 270 gal or 6 2000 gal or 6 2500 gal or 5 1350 gal or 6
Filter Life
months months months years months
RO Membrane Life 2 years N/A N/A N/A N/A
NSF/ANSI 42 NSF/ANSI 42
NSF Certification NSF/ANSI 42 NSF/ANSI 42 NSF/ANSI 42
and 58 and 53
CONTAMINANT REDUCTION
Sediment - Sand, Dirt, Rust • • • • •
Chlorine Taste & Odor • • • • •
Cysts • •
Lead • •
Sodium •
Sulfates •
Nitrates/Nitrites •
Copper •
Zinc •
Barium •
Chromium •
Arsenic •
Radium •
TDS (Total Dissolved Solids) •
WARRANTY
1 year parts warranty • • •
10” STANDARD CAPACITY FILTERS
WHOLE HOME FILTRATION NSF Certified under NSF/ANSI 42 Carbon Block
Universal Fit · Improves taste and odor of drinking water
· Fits most major brands of whole home housings Premium Carbon with FACT®
®
Grooved · Low pressure drop allows for high flow rate
· Provides more surface area and greater capacity · High sediment filter - resistant to clogging
SPECIFICATIONS 10” STANDARD CAPACITY FILTERS
Model Number NS205 NS217 NSF217 NS225 NS250
Part Number 7358323 7358226 7358234 7358331 7358349
Premium Carbon
Description Grooved Carbon Block Grooved Grooved
with FACT®
Dimensions 2.5” x 10” 2.5” x 10” 2.5” x 10” 2.5” x 10” 2.5” x 10”
Micron Rating 5 5 0.7 25 50
Flow Rate (gpm) 9 4 5 9 9
Max Water Temperature 140°F/60°C 100°F/40°C 100°F/40°C 140°F/60°C 140°F/60°C
Filter Life 3 Months 3 Months 6 Months 3 Months 3 Months
NSV200T NSV200T NSV200T NSV200T NSV200T
Compatible with Systems
NS200 NS200 NS200 NS200 NS200
CONTAMINANT REDUCTION
Sediment - Sand, Dirt, Rust • • • • •
Chlorine Taste & Odor • •
10” LARGE CAPACITY FILTERS
NSF Certified under NSF/ANSI 42 Carbon Block
Universal Fit · Improves taste and odor of drinking water
· Fits most major brands of whole home housings Premium Carbon with FACT®
® Grooved · Low pressure drop allows for high flow rate
· Provides more surface area and greater capacity · High sediment filter - resistant to clogging
SPECIFICATIONS 10” LARGE CAPACITY FILTERS
Model Number NS905 NS917 NSF917 NS925 NS950
Part Number 7358365 7358200 7358242 7358373 7358381
Premium Carbon
Description Grooved Carbon Block Grooved Grooved
with FACT®
Dimensions 4.5” x 10” 4.5” x 10” 4.5” x 10” 4.5” x 10” 4.5” x 10”
Micron Rating 5 25 0.7 25 50
Flow Rate (gpm) 20 4 22 20 20
Max Water Temperature 140°F/60°C 100°F/40°C 100°F/40°C 140°F/60°C 140°F/60°C
Filter Life 3 Months 3 Months 6 Months 3 Months 3 Months
Compatible with Systems NS900 NS900 NS900 NS900 NS900
CONTAMINANT REDUCTION
Sediment - Sand, Dirt, Rust • • • • •
Chlorine Taste & Odor • •
20” STANDARD & LARGE CAPACITY FILTERS
NSF Certified under NSF/ANSI 42 Grooved
Universal Fit · Provides more surface area and greater capacity
· Fits most major brands of 20” whole home Carbon Block
housings · Improves taste and odor of drinking water
SPECIFICATIONS 20” STANDARD & LARGE CAPACITY FILTERS
Model Number NS2052 NS9052 NS9172 NS9252
Part Number 7358357 7358399 7358218 7358404
Description Grooved Grooved Carbon Block Grooved
Dimensions 2.5” x 20” 4.5” x 20” 4.5” x 20” 4.5” x 20”
Micron Rating 5 5 25 25
Flow Rate (gpm) 18 50 25 50
Max Water Temperature 140°F/60°C 140°F/60°C 100°F/40°C 140°F/60°C
Filter Life 3 Months 3 Months 3 Months 3 Months
Compatible with Systems NS2002 NS9002 & NS9003 NS9002 & NS9003 NS9002 & NS9003
CONTAMINANT REDUCTION
Sediment - Sand, Dirt, Rust • • • •
Chlorine Taste & Odor •
UNIVERSAL WHOLE HOME HOUSINGS
· NSF Certified under NSF/ANSI 42* · Easy-to-change filter cartridges
· Universal Fit - uses most major brands of · Ideal for point-of-entry applications
universal whole home filters
SPECIFICATIONS UNIVERSAL WHOLE HOME HOUSINGS
Model Number NSV200T NS200 NS900 NS2002 NS9002 NS9003
Part Number 7358420 7358438 7358454 7358446 7358462 7358470
10” Clear
10” Opaque 10” Opaque 20” Opaque 20” Opaque 20” Opaque
Description Housing, Valve in
Housing Housing Housing Housing Housing
Head
Inlet - Outlet 3/4” 3/4” 1” 3/4” 1” 1.5”
Product Dimensions 14” x 5.5” 13.5” x 4.5” 13.25” x 7.25” 23.5” x 7.25” 23.5” x 7.25” 23.5” x 7.25”
Uses Filter Size 2.5” x 10” 2.5” x 10” 4.5” x 10” 2.5” x 20” 4.5” x 20” 4.5” x 20”
NSF217, NS217, NSF217, NS217, NSF917, NS917, NS9172 NS9172
Compatible with Filters NS205, NS225 NS205, NS225 NS905, NS925 NS2052 NS9052 NS9052
& NS250 & NS250 & NS950 NS9252 NS9252
WARRANTY
1 year parts warranty • • • • • •
*Does not apply to model NS2002
PREMIUM CARBON WITH FACT® TECHNOLOGY
NSF917 & NSF217
®
Our Patented Flow And Capture Technology
filter media features a sub-micron, pleated carbon
design that delivers better flow, higher levels of
filtration and longer life than most universal whole
home filters.
NSF917 NSF217
NSORK100 EP2BR
ACCESSORIES
O-Ring Kit for 10” Sump ¾” Mounting Bracket
FEATURES FEATURES
• Part # 7363425 • Part # EP2BR00
• Replacement o-rings for NSV200T, NS200, • Bracket for 3/4” whole home housing
NS900 • Fits NSV200T and NS200
• Includes grease packet
EPUSW WHEFCHR & WHEFSAT
Universal Strap Wrench Designer Faucet with Air Gap
FEATURES FEATURES
• Part # EPUSW00 • 3/8” Tubing Connection
• Use with 12.5” or 14.25” whole home • Chrome Faucet # WHEFCHR
housings • Brushed Nickel Faucet # WHEFSAT
NORTH STAR QUALITY EASY TO INSTALL
North Star systems come with fittings needed for a simple
installation.
LOW MAINTENANCE
We incorporate high-efficiency technology and pro-grade
materials into our North Star systems, delivering an easy-to-
use solution you can count on.
WARRANTY PROTECTION
North Star Water Treatment Systems boast the most
comprehensive warranties in plumbing wholesale, proof of
our commitment to quality.
HIGH QUALITY MANUFACTURING
Our U.S. based manufacturing facilities ensure each North
Star system exceeds the strictest quality standards. Once our
products leave our doors, you can expect a reliable, long-
lasting solution.
PRODUCT INNOVATION
Our commitment to research and development provides a
constant stream of both products and technology, allowing us
to continually push the boundaries within the water treatment
industry.
WANT TO KNOW MORE?
If you need more information about North Star
Water Filtration Systems, contact us or get in
touch with your local North Star representative.
HOW TO CONTACT US
info@northstarwater.com | www.northstarwater.com
NORTH STAR ALSO OFFERS A COMPREHENSIVE LINE OF
RESIDENTIAL SOFTENING & COMMERCIAL PRODUCTS
