RES updates, resources and Access
European HPC ecosystem
Sergi Girona
RES Coordinator
RES: HPC Services for Spain
•The RES was created in 2006.
•It is coordinated by the Barcelona Supercomputing
Center (BSC-CNS).
•It forms part of the Spanish “Map of Unique Scientific
and Technical Infrastructures” (ICTS).
RES: HPC Services for Spain

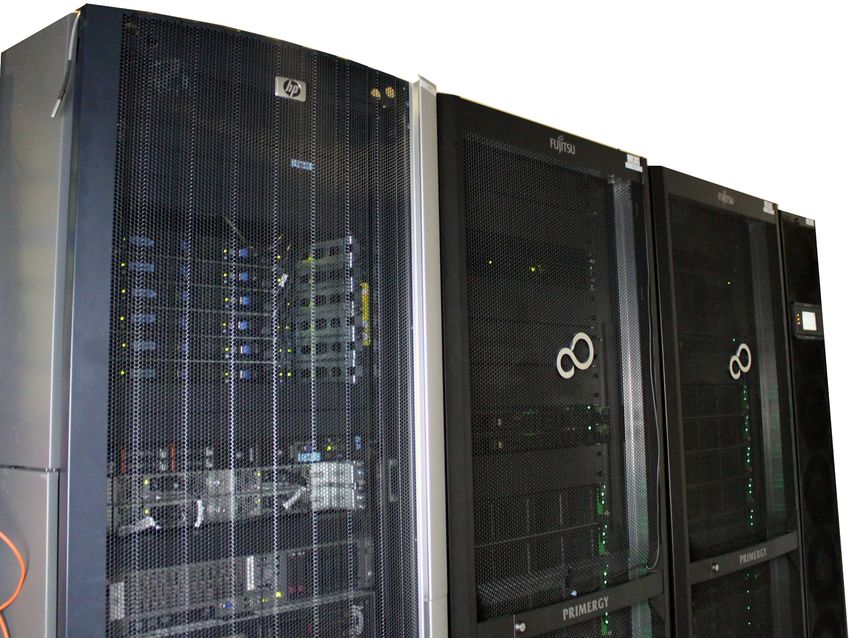

RES is made up of 12 institutions and 13 supercomputers.
BSC MareNostrum
CESGA FinisTerrae
CSUC Pirineus & Canigo
BSC MinoTauro
UV Tirant
UC Altamira
UPM Magerit
CénitS Lusitania & SandyBridge
UMA Picaso
IAC La Palma
UZ CaesarAugusta
SCAYLE Caléndula
UAM Cibeles
1 10 100 1000
TFlop/s (logarithmic scale)
RES: HPC Services for Spain
• Objective: coordinate and manage high performance computing services to promote
the progress of excellent science and innovation in Spain.
• It offers HPC services for non-profit, open R&D purposes.
• Since 2006, it has granted more than 1,000 Million CPU hours to 2,473 research
activities.
Research areas
Hours granted per area
23%
AECT 30% Mathematics, physics Astronomy, space
and engineering and earth sciences
BCV
FI
QCM 19%
28%
Life and health Chemistry and
sciences materials sciences
RES supercomputers BSC (MareNostrum 4) 165888 cores, 11400 Tflops Main processors: Intel(R) Xeon(R) Platinum 8160 Memory: 390 TB Disk: 14 PB UPM (Magerit II) 3920 cores, 103 Tflops Main processors : IBM Power7 3.3 GHz Memory: 7840 GB Disk: 1728 TB UMA (Picasso) 4016 cores, 84Tflops Main processors: Intel SandyBridge-EP E5-2670 Memory: 22400 GB Disk: 720 TB UV (Tirant 3) 5376 cores, 111,8 Tflops Main processors: Intel SandyBridge-EP E5-2670 Memory: 10752 GB Disk: 14 + 10 TB CSUC (Pirineus) 2784 cores, 283,66 Tflops Main processors: Intel(R) Xeon(R) Platinum 8160 Memory: 12000 GB Disk: 200 TB CSUC (Canigo) 384 cores, 33,2 Tflops Main processors: Intel(R) Xeon(R) Platinum 8160 Memory: 9000 GB Disk: 200 TB
RES supercomputers CénitS (Lusitania 2) 800 cores, 33,2 Tflops Main processors Intel Xeon E5-2660v3, 2.6GHz Memory: 10 GB Disk: 328 TB CénitS (SandyBridge) 2688 cores, 56 Tflops Main processors Intel Sandybridge Xeon Memory: 5376 GB Disk: 328 TB BSC (MinoTauro) 624 cores, 251 Tflops Main processor: 39x 2 Intel Xeon E5-2630 v3 Memory: 20 TB Disk: 14PB (shared with MN4) CESGA (FinisTerrae 2) 7712 cores, 328,3Tflops Main processor: Intel Xeon E5-2680v3 Memory: 40 TB Disk: 960 TB UC (Altamira 2+) 5120 cores, 105 Tflops Main processor: Intel SandyBridge Memory: 15,4 TB Disk: 2PB UZ (Caesaraugusta) 2014 cores, 80.5 Tflops Main processor: Intel E5-2680v3, 2.5GHz Memory: 5400 GB RAM memory Disk: 219TB
RES supercomputers SCAYLE (Caléndula) 2432 cores, 50,6 Tflops Main processor: Intel SandyBridge Xeon Memory: 4864 GB Disk: 600 TB UAM (Cibeles) 368 cores, 14,1 Tflops Main processor: Intel Xeon E5-2630 v3, 2.40GHz Memory: 896 GB Disk: 80 TB UAM (SandyBridge) – coming soon – 2688 cores, 56Tflops Main processor: Intel SandyBridge Xeon, 2.60GHz Memory: 5376 GB Disk: 80 TB IAC (LaPalma) 4032 cores, 83,85 Tflops Main processor: Intel SandyBrigde Memory: 8064 GB Disk: 60 TB
Resources granted: CPU hours
400.000
350.000
300.000
140mh available
250.000
Hours x 1000
200.000
150.000
100.000
50.000
0
2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017
Requested hours Awarded hours (A+B)
How to apply?
• RES resources are open to researchers and spin-offs:
o Computing resources: CPU hours and storage
o Technical support: application analysis, porting of applications, search for the
best algorithm… to improve performance and ensure the most effective use of
HPC resources.
o Free of cost at the point of usage
Nex
td
• Three open competitive calls per year. Janu eadline
ary
2019 :
Deadline for
Period Starting date
applications
P1 January 1st March
P2 May 1st July
P3 September 1st November
How to apply?
RES intranet: https://www.bsc.es/res-intranet
• Researchers present a proposal which includes research project description,
technical requirements and research group experience.
• Accepted proposals have access to RES supercomputers for 4 months.
• Granted time can be: hours with priority (hours A) or without priority (hours B)Proposal evaluation
Formal Technical
evaluation evaluation
Submit
Access committee Scientific experts panel
Final report of
accepted activitiesActivity length
• Accepted proposals have access to RES supercomputers for 4 months. If
your activity needs more time to be properly developed, you can ask for a
continuation activity:
New activity Report dissemination
(4 months) information
Continuation activity Report dissemination
(4 months) information
• The application form is simplified
• Are preferably allocated to the same machine
Continuation activities
• In the evaluation, one reviewer is kept from the
previous activity and the second reviewer changesRES Users’ Committee
• CURES aims to provide advice and feedback to RES coordinators:
o Promotes optimal use of high performance computing facilities
o Shares information about users’ experiences
o Voices user concerns
• You can contact CURES through RES intranet:Which is/could be the main impediment to
apply to RES resources?
Ø I don't know how to write a strong application
Ø I'm not sure if I can apply
Ø Lack of HPC expertise in my research group
Ø Too much paperwork
Ø Not enough resources for my projectTips to write a strong proposal
• Read carefully all the protocols, guides and FAQs in:
https://www.res.es/en/access-to-res
• Project description section: highlight the importance of your project, not
only from the scientific point of view but also from the return to society.
Ø Why do you think that your project should deserve the resources requested?Tips to write a strong proposal
• Activity description section: specify clearly why do you need
supercomputing resources. Write as accurate as possible the flowchart of
the simulations. Indicate that you have your own human resources in your
group to run and process the output of all the simulations you propose.
Ø Why do you need to carry out the simulations in the selected machine?
Ø Is the amount of computing resources requested adjusted to your needs and
properly justified?
• Doubts about software/HPC resources: ask support team!
Ø Are your jobs adequate for parallel computing?
support@bsc.esWhich is/could be the main impediment to
apply to RES resources?
Ø I don't know how to write a strong application
Ø I'm not sure if I can apply
Ø Lack of HPC expertise in my research group
Ø Too much paperwork
Ø Not enough resources for my projectWho can apply?
• RES resources are aimed at open R+D+I activities:
o Researchers from academia and public R&D institutions
o Spin-offs during their first 3 years from its creation
o Collaboration projects between private companies and research groups
from academia or public institutions
o Open to international applicants, but we recommend the collaboration
with researchers from Spanish institutionsWhich is/could be the main impediment to
apply to RES resources?
Ø I don't know how to write a strong application
Ø I'm not sure if I can apply
Ø Lack of HPC expertise in my research group
Ø Too much paperwork
Ø Not enough resources for my projectRES events: technical training These workshops are organized by the RES nodes and aim to provide the knowledge and skills needed to use and manage the supercomputing facilities. • Check the agenda in RES website: https://www.res.es/en/events?event_type=technical_training • PATC courses in BSC (PRACE Advanced Training Center): https://www.bsc.es/education/training/patc-courses
RES events: networking opportunities
Scientific seminars
The RES promotes scientific seminars which address supercomputing
technology applications in specific scientific areas. These events are mainly
organized by RES users and are open to the entire research community.
In 2017:
ü 5 scientific seminars
ü More than 300 attendees
Sep Next Generation Sequencing and Supercomputing: life as a couple
27 CBMSO-UAM (Madrid)
Agenda 2018: www.res.es/en/eventsRES events: networking opportunities
RES Users’ Meeting: 20 September 2018 - Valencia
The agenda includes:
• Information about RES and the European HPC ecosystem
• Plenary session: Research Open Data
• Parallel scientific sessions
• Poster session
• Networking opportunities
• Evening social event
www.res.es/users-conference-2018Funded by the EC: 2017 - 2021
ü Mobility grants for researchers using HPC resources
ü Short stays to visit scientific hosts (3 weeks – 3 months)
ü Funds for travel and living allowance
ü Access to European HPC facilities
Nex
td
20 S eadline
epte :
mbe
r
http://www.hpc-europa.eu/Which is/could be the main impediment to
apply to RES resources?
Ø I don't know how to write a strong application
Ø I'm not sure if I can apply
Ø Lack of HPC expertise in my research group
Ø Too much paperwork
Ø Not enough resources for my projectRES forms
In the RES we try to keep the administrative procedures short and simple for
researchers:
• New activity application form: 10 pages on average
• Continuation activity application form: simplified
• Dissemination form: 3 pages on average
o Brief description of results (1-2 paragraphs)
o Publications
o Figures / pictures
o Optional: patents, PhD students…
• Intermediate reports: 1-2 sentences (“Everything is ok”)
• Resubmission of non-accepted activities: one clickWhich is/could be the main impediment to
apply to RES resources?
Ø I don't know how to write a strong application
Ø I'm not sure if I can apply
Ø Lack of HPC expertise in my research group
Ø Too much paperwork
Ø Not enough resources for my projectPRACE HPC Access
• Call for Proposals for Project Access:
Nex
t de
30 O adline:
- 12, 24 or 36-month projects ctob
er
- Minimum request: 30 million core hours
• Call for Proposals for PRACE Preparatory Access:
- From 2 to 12 month projects
http://www.prace-ri.eu/EuroHPC
Distributed Supercomputing Infrastructure
24 members, including
5 Hosting Members
(Switzerland, France, Germany, Hazel Hen
Italy and Spain) JUQUEEN
SuperMUC
524 scientific projects
enabled Curie
70 PFlops/s of peak performance Piz Daint
on 7 world-class systems
Marconi
>10.000 people trained by 6 PRACE
MareNostrum
Advanced Training Centers and
others events
Access prace-ri.eu/hpc_accesTop500 (June 2018), European ranking
Cores & Rmax Rpeak
Europe Rank Name Computer Site Country
Accel. [PFlop/s] [PFlop/s]
Cray XC50, Xeon E5-2690v3 12C
361760
1 6 Piz Daint 2.6GHz, Aries interconnect , NVIDIA CSCS Switzerland 19,59 25,33
297920
Tesla P100
Proliant DL380 Gen10, Xeon Platinum
253600
2 13 HPC4 8160 24C 2.1GHz, Mellanox ENI Italy 12,21 18,62
177520
InfiniBand EDR, NVIDIA Tesla P100
Bull Sequana X1000, Intel Xeon Phi
3 14 Tera-1000-2 CEA France 561408 11,97 23,40
7250 68C 1.4GHz, Bull BXI 1.2
CINECA Cluster, Lenovo
SD530/S720AP, Intel Xeon Phi 7250
4 18 Marconi Intel Xeon Phi CINECA Italy 312936 8,41 16,21
68C 1.4GHz/Platinum 8160, Intel
Omni-Path
Cray XC40, Xeon E5-2695v4 18C
5 20 UKMET United Kingdom 241920 7,04 8,13
2.1GHz, Aries interconnect
Lenovo SD530, Xeon Platinum 8160
6 22 MareNostrum BSC Spain 153216 6,47 10,30
24C 2.1GHz, Intel Omni-Path
Bull Sequana X1000, Xeon Platinum
8168 24C 2.7GHz, Mellanox EDR
7 23 JUWELS Module 1 Juelich Germany 114480 6,18 9,89
InfiniBand/ParTec ParaStation
ClusterSuite
Cray XC40, Xeon E5-2680v3 12C

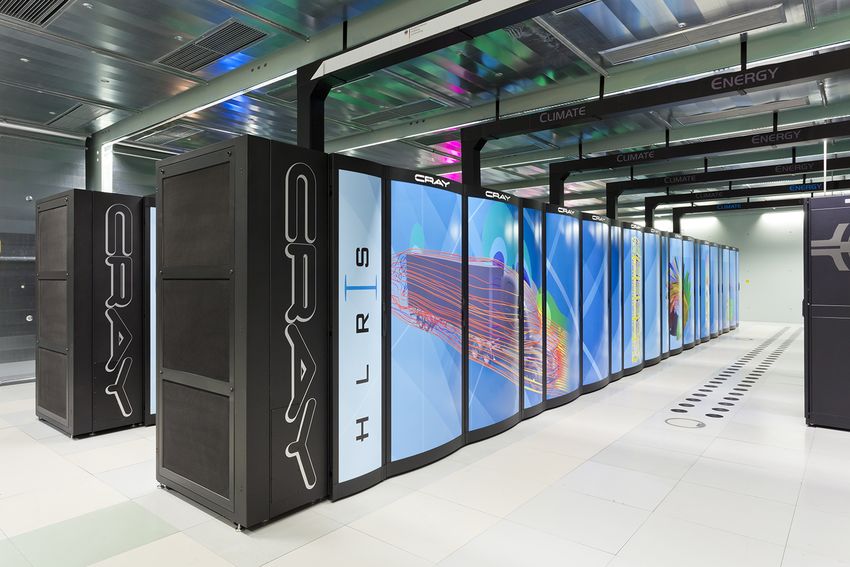

8 27 Hazel Hen HLRS Germany 185088 5,64 7,40
2.5GHz, Aries interconnect
Intel Compute Module HNS2600BP, Max-Planck-
9 28 COBRA Xeon Gold 6148 20C 2.4GHz, Intel Gesellschaft Germany 127520 5,61 9,79
Omni-Path MPI/IPP
SGI ICE X, Xeon Xeon E5-2670/ E5-
10 30 Pangea Total France 220800 5,28 6,71
2680v3 12C 2.5GHz, Infiniband FDRTop10 industrial machines (June 2018)
Cores & Rmax Rpeak
Rank Name Computer Site Country
Acc. [PFlop/s] [PFlop/s]
Proliant DL380 Gen10, Xeon Platinum 8160 24C 2.1GHz, Mellanox 253600
13 HPC4 Eni S.p.A. Italy 12,21 18,62
InfiniBand EDR, NVIDIA Tesla P100 177520
SGI ICE X, Xeon Xeon E5-2670/ E5-2680v3 12C 2.5GHz, Infiniband Total Exploration
30 Pangea France 220800 5,28 6,71
FDR Production
Petroleum Geo-
35 Abel Cray XC30, Xeon E5-2698v3 16C 2.3GHz, Aries interconnect United States 145920 4,04 5,37
Services
NVIDIA DGX-1/Relion 2904GT, Xeon E5-2698v4 20C 2.2GHz/ E5- 60512
45 Facebook United States 3,31 4,90
2650v4, Infiniband EDR, NVIDIA Tesla P100/Quadro GP100 55552
NVIDIA DGX-1, Xeon E5-2698v4 20C 2.2GHz, Infiniband EDR, NVIDIA 60512
46 DGX Saturn V NVIDIA Corporation United States 3,31 4,90
Tesla P100 55552
iDataPlex DX360M4, Intel Xeon E5-2680v2 10C 2.8GHz, Infiniband 72000
49 HPC2 Eni S.p.A. Italy 3,19 4,61
FDR, NVIDIA K20x 42000
Lenovo NeXtScale nx360M5, Xeon E5-2697v4 18C 2.3GHz, Infiniband Energy Company 66000
65 HPC3 Italy 2,59 3,80
EDR, NVIDIA Tesla K80 (A) 39000
PowerEdge R440/C6320p, Intel Xeon Phi 7250/Xeon Gold 6130 16C
78 Makman-3 Saudi Aramco Saudi Arabia 53300 2,32 3,58
2.1GHz, Intel Omni-Path
Inspur TS10000, Xeon Gold 6130 16C 2.1GHz, NVIDIA Tesla V100, 55104
79 Internet Service P China 2,29 4,89
25G Ethernet 52480
80 Makman-2 Dell PowerEdge R630, Xeon E5-2680v3 12C 2.5GHz, Infiniband QDR Saudi Aramco Saudi Arabia 76032 2,25 3,04Status of Signatory Countries
Countries
Signatory EuropeanEuroHPC mission and objectives
• To develop, deploy, extend and maintain in the Union an
integrated world-class supercomputing and data infrastructure
and to develop and support a highly competitive and innovative
High-Performance Computing ecosystem
R&I, Applications
Infrastructure &
• Provide European scientists, industry and the public sector with
the latest HPC and data infrastructure and support the
Operations
development of its technologies and applications across a wide
& Skills
range of fields
• Support an ambitious research and innovation agenda to develop
and maintain in the Union world-class High Performance
Computing ecosystem, exascale and beyond, covering all
scientific and industrial value chain segments, including low-
power processor and middleware technologies, algorithms and
code design, applications and systems, services and engineering,
interconnections, knowhow and skills, for the next generation HPC Ecosystem
supercomputing eraInfrastructure and Operation • Two exascale systems • Possibly one on 2022 and a second one in 2023 • At least one with European competitive technologies • Expected budget on TCO: 500 m€ each • Two pre-exascale systems • In operation in January 2021 • Expected budget on TCO: 240m€ each • At least 2 petascale systems • In operation in January 2021 • Budget: TBD • Next steps • Identify the hosting sites • User requirements to prepare RFP
EuroHPC Roadmap
HPC and Accelerator Chips &
Systems Gen 1 Gen 2
2018 2019 2020 2021 2022 2023 2024 2025
EuroHPC JU
Software
App & Software
Software
sw stack
Apps Applications
R&I
Co-Design
EsD Intg. Integration
Exascale technologies integration
Procurement 2 Pre-Exa 2 Exascale (1 EU)
2 PetaVisit our website: www.res.es
Subscribe to our newsletter
Contact us!
Follow us in Twitter:
@RES_HPC
applications@res.es
dissemination@res.esTHANK YOU!
You can also read
