Products 2018
www.anatomicsitt.com
1
Welcome to
Anatomic SITT AB
Since 1988 we have had a vision to create innovative equipment and solutions for all
those in need, relying on our specialist knowledge and expertise. At Anatomic Sitt
we are proud, passionate people eager to find solutions for the disabled. Many people have
helped in different ways to develop our products over the years, and we are delighted that
together we have improved the quality of many peoples lives.
We consider it essential to have well-trained personnel with specialist skills in various fields.
We know that sound knowledge often makes for a successful solution without compromise
for our clients. I speak for everybody in our company when I say that we will consider every
available option for our clients in our quest to meet their needs. Finally we wish to thank
everyone that has placed their trust in us over the years for their continued and ongoing
support, and we promise to always seek new and innovative solutions for you now and in
the future.
If we have not had the opportunity to work with you, we look forward to being able to do
so in the future, as together we can achieve far more.
Bo Eriksson
CEO Anatomic SITT AB
2 www.anatomicsitt.com
Sharky Pro 10 Carseat Pro 13 Underframes 16
Anatomic Sits/Soft Sits.....................................4 Underframes......................................................... 16
Dynamical seating principles.........................8 Pro Serie/HeadActive.....................................20
Zitzi Delfi Pro/ Zitzi Sharky Pro..................10 Support serie........................................................ 21
Zitzi Pengy............................................................ 12 Some of our extra products......................... 22
Zitzi Carseat Pro................................................. 13 Anatomic SITT world wide .......................... 23
Zitzi Starfish Pro................................................. 14
www.anatomicsitt.com
www.anatomicsitt.com
3

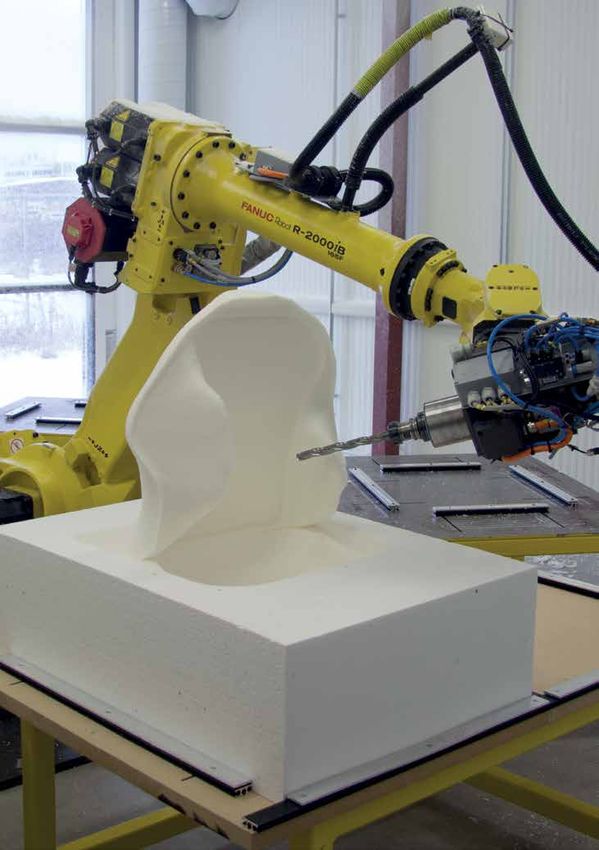

Solid craftmanship
complemented
with new methods
New times creates new ways of thinking
and new ways of thinking leads to new
development opportunities. The idea is,
as it has always been, to create resources
that helps You prevent severe seating
problems. The difference is that the
production capabilities have improved,
which in turn helps us manage both new
and previous users better.
4 www.anatomicsitt.com
2 804
individual seats since 1988 9
Many years of development resulted in Anatomic Soft Seat. The soft seat complements
our molded anatomical seat and its accessories with foam manufacturing technology.
The Soft Seat is a mix between positioning and pressure relief characteristics in the
foam, as well as ease of re-ordering and flexabilities with this manufacturing process.
An individually shaped seat gives the possibility of a functional posture. Our goal
is to give the user as good a seating position and social life as possible. We offer two
types of individual seats; Anatomic Soft Seat and Anatomic seat, as well as individual
backs and seat cushions. We also offer a kombiseat, this means that you can have a
hard back together with a soft seat.
The Anatomic seat are used for people who:
can be corrected to some extent and need solid support and bracing to counter
additional deformities.
The Anatomic soft seat used to those persons who:
is very pressure-sensitive and has high demands on pressure relief and comfort.
www.anatomicsitt.com
5
Anatomic Seats have been the backbone of the company since its start 1988. At date,
we have manufactured more than 28,000 seats, meaning we have gained a lot of
knowledge pertaining to more advanced seating problems. The seats have undergone
further development and improvements on all levels throughout the years, so that we
can continue to provide even better products to both new and familiar users.
Why choose an Anatomic
seat from Anatomic SITT?
1. Long solid knowledge and experience.
2. Quick deliveries to the specified date.
3. Nothing is impossible. Special solutions
are no obstacle.
4. Cooperation with consultant, occupational therapist
and physiotherapist is an important component.
5. The preparatory work of investigation and problem
location is essential for a good end result.
Anatomic Sits
Firm support
1. Stabilizing / positioning
2. Sustainable materials
3. Many accessories.
4. Crash tested and approved
5. Fire tested acc. EN 1021-1 / 2
6 www.anatomicsitt.com

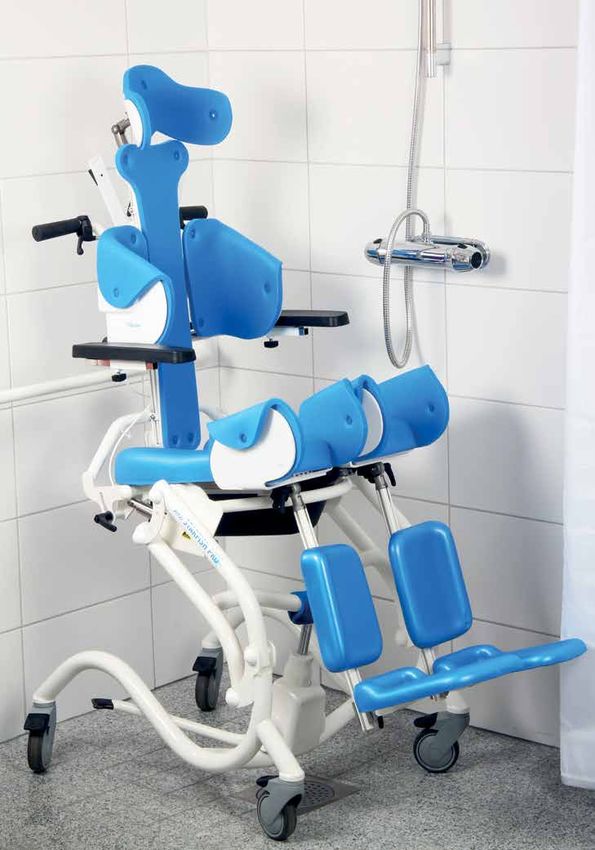

Hygienic seat
Individually designed
hygienic seat, removable
padding, height adjustable
headrest, seat with toilet
opening.
Anatomic Soft Sits
High pressure relief
1. High pressure relief
2. Sustainable materials
3. Many accessories
4. Coolmax-covers
5. A copy can be done without
further testing.
6. Crash tested and approved
7. Fire tested acc. EN 1021-1 / 2
www.anatomicsitt.com
7
Dynamical seating principles
Step 1. Positioning of the pelvis and the legs
An integrated seat pocket helps facilitate activity, postural control, and reduces shear. Other systems
using a flat surface leads inevitably to posterior tilt of the user’s pelvis. In order to create optimal
balance in the pelvis and a good basic position in the seating, one should be able to adjust the
leg sections to adduction, and abduction or windswept.
UTAN SITTGROP
MED SITTGROP
Abduction/Adduction/Windswept
Step 2. Choosing the right hip belt
2-point hip belt is designed specifically for the user backward tipped pelvis. 4-point belt fits all types of
users and is used for optimal positioning and fixation of the pelvis. We have four different sizes on our hip
belts. What separates our belts is the bandwidth, tongue size and strap length. To choose the right size for
each user you measure from each side of the hip.
4-point belt
2-point belt Anti-rotational belt
2 attachment
One attachment 2 attachment
points on
points on each points on each side
each side
side Correct pull direction
8 www.anatomicsitt.com
Step 3. Steg
Positioning of the chest
3. Trepunktspositionering
Adjustable chest supports
Justerbara for better
bålstöden positioning
tillsammans med t.ex.of the body
höftstöd which
skapar reduces
en bra deformities.
förutsättning Good positioning
för att positionera bålen vilketof
the chest leads to better
minskar head
risken för controlGod
felställning. andpostural
increases the leder
kontroll opportunities for activity och
till bättre huvudkontroll andökar
alertness. We thus
möjligheterna till have
aktivitet
the opportunity bothochto
vakenhet.
correctVi harmaintain
and därmed möjligheten att bådebased
the positioning korrigera
on samt bibehålla bålens
the conditions positionering utifrån
we face.
de förutsättningar vi ställs inför.
Kraftförhållanden vid
Kraftförhållanden vid
3 punktstöd
3 punktstöd
Justerbar ryggdel
Möjliggör trepunktsstöd för bättre postural kontrol
risken för felställningar samt ökar möjligheterna fö
här möjlighet att både korrigera samt bibehålla po
utefter de förutsättningar vi står inför.
We have two different types of harnesses, Sternum Support and H-strap. The Sternum support gives a
Positioneringsselar
Tillsammans
concentrated med höftbältet
support over ger selen
the sternum. The ett bra stöd
H-strap för att positionera
provides support forbålen och shoulders
both ge förutsättningar
and torso. It is
för bättre is
used when rotation huvudkontroll.
a problem andVi erbjuder två olika
fits users whopositioneringsselar;
needs good supportSternumstöd och
to both. H-strap isFlexrygg
H-sele.
The also suit-
Fast stöd behövs för att positionera brukaren och
able for users with eg. a button. tionell sittställning. Dynamiska stöd behövs för att
variation samt en lugnande effekt vid extensions-s
Delfi Pro är utrustad med en flex-led för att ge dyn
Sternumstöd H-sele vilket effektivt reducerar stress i höftled samt avlas
• Ger koncentrerat stöd över sternum • Ger bra uppsträck av axelpartiet samt
• Motverkar fall framåt motverkar rotation
Sternum support H-strap
• Passar bra till användare med tex. knapp
• Concentrated support of the sternum Justerbar sittgrop
• Prevent rotation effectively
• Prevent prolapse accession
• Suitable for users with eg. a button
En integrerad sittgrop underlättar för aktivitet, post
och minskar risken för skjuvning. Sittsystem med lit
Steg 4. Flex-funktion/Höftvinkeljustering sittgrop kan leda till bakåttippat eller roterat bäcken
Steg 1 justera bendelarna
Steg 2 optimera sittgropen med sittgropsjuster
Step 4. Dynamic seat system/Flex-joint
LÅST
FLEX
Justerbara bendelar
Man kan steglöst abducera eller adducera bendel
finns att justera sitsen 10 cm i sittdjup, för att upp
sittställning som möjligt och samtidigt låta brukar
Windswept
Dynamiska
LÅST
stöd ger rörelsefrihet, variation samt kan ge en lugnande effekt vid extensionsspasticitet.hjälpmedlet.
Sittsystemen är utrustade FLEX
med en flex-led som gör ryggstödet följsamt. Ryggen är ställbar i höftvinkeln vilket
bryter spasticiteten och flex-leden fångar upp kraften samt behåller positionering i sittandet.
Steg
Rigid supports are 5. Huvudpositionering/Exempel
needed to create a functional, seated position. Dynamic supports offer controlled
movement, variation, and dampen the effects of extension spasticity. Delfi Pro comes equipped with a flex-
joint to counteract spasticity and offer a dynamical seating position.
Step 5. Positioning of the head
Aktivt pannband HeadActive Heads Up Pro Serie
3
Active forehead strap HeadActive Heads Up Pro Serie
www.anatomicsitt.com
9

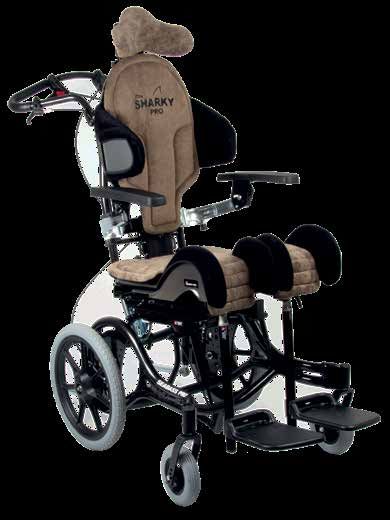

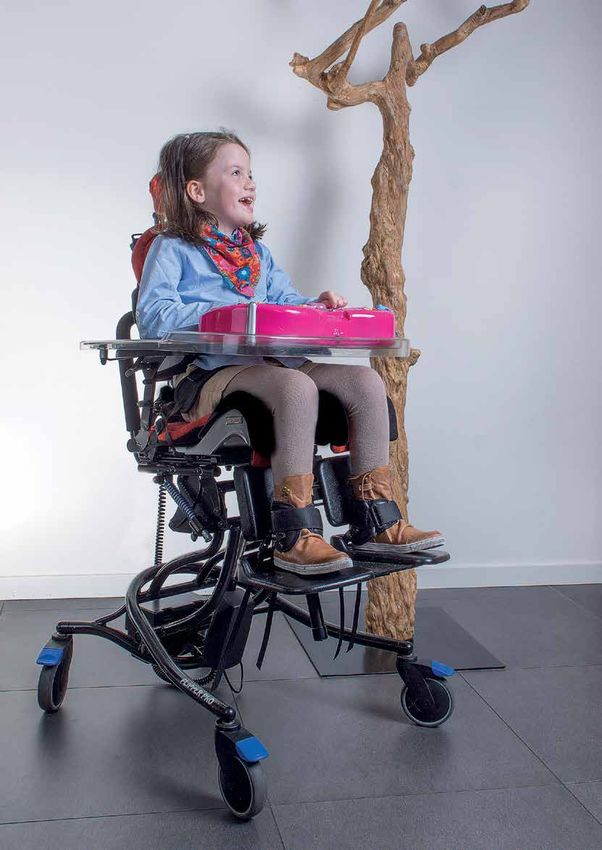

Zitzi Delfi Pro/Sharky Pro
Seating system for kids/youths/adults
The seating systems are specifically
designed for users with severe sitting
• Big selection of accessories
problems. Available in 7 sizes and
many choices to adapt to a wide range
• The seating system grows with
of users, including those who are thin
the user
and long. The seat grows with the user.
• Fits both indoor and outdoor chassis
Delfi Pro is available in 5 sizes and fits
patients from 60 to 170 cm
• User friendly
Sharky Pro is available in two sizes
• Crashtested and approved
fits patients from 150 to 195 cm.
• No tools needed for adjusting the
footrest, armrest and lateral support.
All fabrics are washable at 60°
i

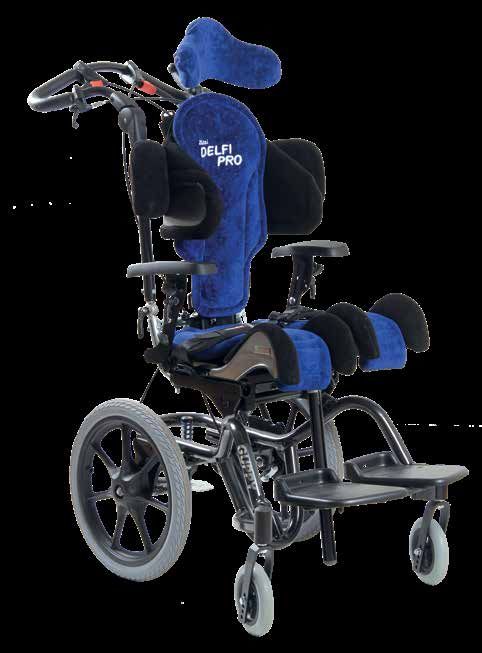

Zitzi Delfi Pro
What size of seating system shall I choose?
Size 0 - 14-20 cm seat depth / height 60-80 cm
Size 1 - 17-27 cm seat depth / height 70-100 cm
Size 2 - 23-33 cm seat depth / height 90-130 cm
Sizes .................................................... 5 Size 3 - 30-40 cm seat depth / height 120-160 cm
Abduction/Adduction............... -9/+18° Size 4 - 35-45 cm seat depth / height 140-170 cm
Max user height............................. 170 cm
Max user weight ........................... 90 kg What size of chassis shall I choose?
Axilla height................................17-40 cm Size 0 - Flipper Pro size 1 / Guppy size 1
Chest width...................................... 14-31 cm Size 1 - Flipper Pro size 1 / Guppy size 1
Seat width...................................24-38 cm Size 2 - Flipper Pro size 2 / Snapper / Guppy size 1
Seat depth........................................ 14-45 cm Size 3 - Flipper Pro size 3 / Snapper / Guppy size 1
Hip angle........................................... -12/+26° Size 4 - Flipper Pro size 3 / Snapper / Guppy size 2 /
Weight ca.......................................... 13,5 kg (size 2) Seabass size 1
10 www.anatomicsitt.comi
Sizes..................................................... 2
Abduction/Adduction............... -9/+18°
Zitzi Sharky Pro
Max user height ............................ 150-195 cm
Max user weight............................ 130 kg What size of seating system shall I choose?
Chest width...................................... 21-25 cm Size 1 - 45-55 cm seat depth / height 150-180 cm
Chest width...................................... 27-38 cm Size 2 - 50-60 cm seat depth / height 170-195 cm
Seat width........................................ 36-49 cm
Seat depth........................................ 37-55 cm What size of chassis shall I choose?
Hip angle........................................... -10/+25° Size 1 - Flipper Pro size 3 / Snapper / Seabass size 2
Weight ca.......................................... 24 kg Size 2 - Flipper Pro size 3 / Snapper / Seabass size 3
Crash tested.................................... Approved to 70 kg
www.anatomicsitt.com
11ed
Updat !
produ
ct Zitzi Pengy Pro
Stroller with well positioned seating
Simple folding
Zitzi Pengy folds through a
simple manipulation system and
stays in its folded
position automatically.
Zitzi Pengy chair is the sister chair to our
Delfi Pro and has been specially developed
to fit Zitzi Pengy buggy. Zitzi Pengy has
the same features as Delfi Pro. Features
include adjustable seatpocket, flex function,
adjustable lateral support along with a serie
of other features.
i PENGY SEATING SYSTEM
i PENGY SULKY
Sizes....................................................................................... 2 Sizes ............................................................................ 1
Abduction/Adduction................................................... -9/+18° Crash tested.............................................................. Approved to 43 kg
Crash tested....................................................................... Yes, approved Colour.......................................................................... Black
Colour................................................................................... Black, orange, blue Weight......................................................................... 12 kg
Weight.................................................................................. 7-10,5 kg Max load weight..................................................... 47 kg
Max user weight............................................................... 45 kg Tilt.................................................................................. -35° to +35°
Axilla height....................................................................... 16-26 cm / 20-35 cm Seat height................................................................ 54 cm
Chest width........................................................................ 17-26 cm / 19-28 cm Wheels......................................................................... 8”, 12”
Seat depth.......................................................................... 19-28 cm / 28-38 cm
Seat width........................................................................... >34 cm
Hip angle............................................................................. -10°/+30
-10°/+70°
12 www.anatomicsitt.comZitzi Carseat Pro

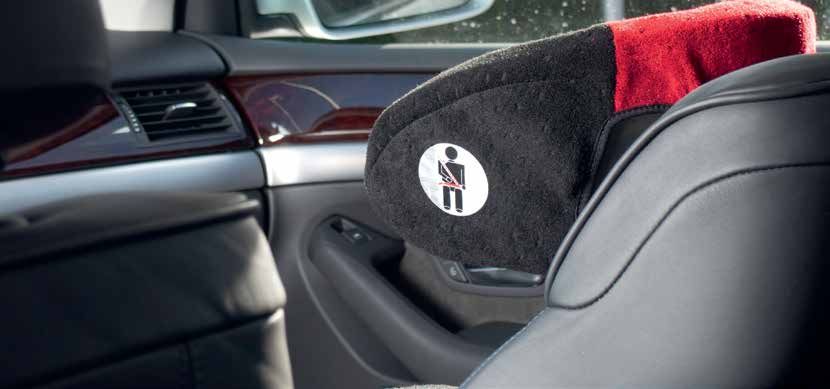

Carseat for children
Zitzi Carseat Pro, thoroughly crash tested and
approved, was developed especially for persons with
i
disabilities in need of support, positioning, and safety Sizes .......................................................................2
Abduction/Adduction.....................................-9/+18°
when travelling by car. Zitzi Carseat Pro is suitable for Crash tested.........................................................Yes, approved
users with increased/decreased muscle tone, scoliosis, Max user height ................................................90-160 cm
User weight .........................................................15-36 kg
hip dysplasia/dislocation, posterior tilt of the pelvis,
decreased postural control. On top of the numer- Axilla height.........................................................22-33 cm
ous adaptation possibilities already available with Chest width..........................................................14-26 cm
Seat width ...........................................................34 cm
the product, custom made modifications can also be Seat depth............................................................27-41 cm
requested.
Weight ca..............................................................7.5 kg
www.anatomicsitt.com
13NEW
UCT!
PROD
Zitzi Starfish Pro
Combined toilet- and shower chair
14 www.anatomicsitt.comStarfish Pro Starfish Pro Hydraulic Starfish Pro Electric
The seat height can be adjusted in Height adjustable hydraulic chassi Height adjustable electric chassi
fixed positions (without tools) for for a seat height ranging between for a seat height ranging
a seat height ranging between 53 53 and 78 cm. between 53 and 78 cm.
and 63 cm.
Adjustable back Cover material
This allows for a better postural Zitzi Starfish Pro series is equipped with a pressure relieving material in the co-
control which reduces the risk to vers. The covers are developed especially for the use in hygiene situations and
get malalignments and increases the are both fluid- and dirty fair at the same time it is very pleasant for the skin.
possibilities to do activities. In
Starfish Pro we are able
to both correct and Adjustable leg parts
keep the user in a good The leg parts can be adjustable stepless in length,
position depending width and in abduction/adduction individually. This
of course on the users is important to be able to get the most optimal sea-
possibilities. ting position for the user at the same time it allows
for the user to grow in the product. The seat part is
open in the middle, this allows for catheterisation.
Adjustable tilt and hip angle
Fixed supports is needed to position the user and
create a functional seating position. Movement
in the materials create a dynamic seat
i which allows for a certain amount of
movement and variation, this creates
Sizes:..............................3 a calming effect and works great
User length:..................120-200 cm if the user have extension
Tilt: ......................................-5-30 grader spasticity for example.
Hip-/back angle: ..........-10-35 grader
Max user weight:...........150 kg
www.anatomicsitt.com
15Underframes
Our frames are easy to adapt to various seating systems
and provides space for eg footrests, armrests and
backrest angles.
Zitzi Guppy Zitzi Pengy Zitzi Seabass Pro
Zitzi Flipper Pro Zitzi Flipper Pro Flex
16 www.anatomicsitt.comed
Updat !
ct
produ
Zitzi Guppy Zitzi Pengy
Small, light and flexible Freedom through combination
Zitzi Guppy is a small and easy-to-handle Finally a stroller with well positioned seating!
underframe. Zitzi Guppy is designed to fit Zitzi Pengy has a built-in dynamic suspension
most seating systems on the market and system that allows it to roll smoothly on
has many different sizes of wheels to uneven surfaces. Zitzi Pengy folds through
accomodate many needs. a simple manipulation system and stays in
its folded position automatically. It is crash
• Easy to balance tested and approved and can be equipped
• Many options with terrain wheels which is great during the
• Crashtested and approved winter or for walks in the forest.
Sizes 2 Sizes 1
Wheels 16”, 20”, 22”, 24” Crashtested Approved for 70 kg
Load weight 70 kg Colour Black
Weight 12 kg
Tilt 0-32°
Seat height 46 cm Load weight 50 kg
Colour Black Tilt -35° to +35°
Seat height 54 cm
Weight 14 kg Wheels 7”, 12”
Crashtested Approved
www.anatomicsitt.com

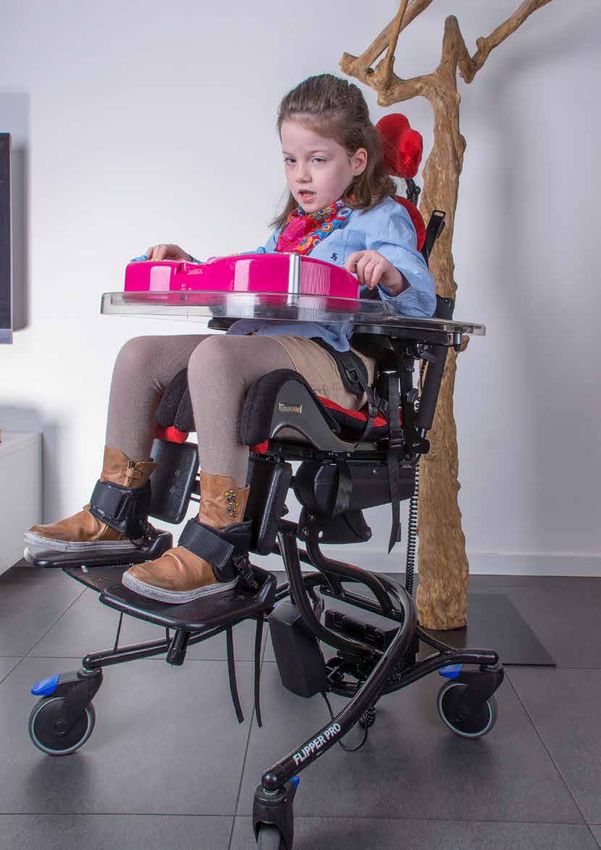

17Zitzi Seabass Pro Zitzi Flipper Pro
For larger seating systems Hi-low indoor chassi
Seabass Pro with its center of gravity in the The chassi is equipped with 125 mm
right place. Versatile wheel location plate wheels for easy rolling over carpet
for a big variety of wheels and wheel sizes. edges, thresholds and other obstacles.
This garantees perfect balance for every There are two options to choose
fitting regardless seating solution. between for the lift feature. The electric
motor is suitable for lifting larger weight
effortlessly while the manual hydraulic
Sizes 3 lift is a smooth solution that doesn’t
Wheels 12”, 16”, 20”, 22”, 24” require access to an electrical outlet for
Load weight 135 kg charging.
Tilt 35°
Seat height 41/46 cm Sizes 4
Colour Black Editions 6
Load weight 35 - 100 kg
Weight 20 kg
Crashtested Approved for 135 kg Tilt 30°
Height adjustable Yes
Seat height (min) 21 cm*
Seat height (max) 61 cm*
Wheels, standard 125 mm
* The dimensions above indicates the base
height and are change according to the seating
system you choose
18 www.anatomicsitt.comg
Comin
soon!
Zitzi Flipper Pro Flex
Hi-low indoor/outdoor chassi
Unique for Zitzi Flipper Pro Flex is its tilt in
space feature, allowing the seat to be tilted
without compromising the balance and
stability between the seat and the chassis.
New size! Approved Sizes 1
Editions 2
for 100 kg Load weight 75 kg
Tilt 30°
Height adjustment 29-65 cm*
Total width 63 cm
Total length 81 cm
Weight 31 kg
Crashtested Approved for 75 kg
* The dimensions above indicates the base
height and change according to the seating
system you choose
www.anatomicsitt.com
19ProSerie
Head support
Many people with disabilities need help
to stabilize and coordinate their head.
This may be due to low or increased
muscle tone in the muscles. Using any of
our headrest can make everyday situa-
The picture shows:
tions a little easier. 76001 Pro Adult
77101 Active forehead strap
Some common combinations of head support
Art. 76001 Pro Adult Art. 76005 Pro Junior Art. 76018 Pro Single low/Junior up. pad
Art. 77002 Pro Plush 14” Art. 77012 Pro Mini Medium Art. 770162 Pro Heads Up
HeadActive
HeadActive® is designed to ensure better living
quality for patients with reduced neck muscles.
HeadActive® gives the head properly position
and increases activity and alertness.
• Universal
• Easy to fit and adjust
• Ergonomic
• Made of lightweight, skin-friendly materials,
free from latex
• Adjustable
• Quick and easy assembly
• Safe and Comfortable
20 www.anatomicsitt.comed
Updat t
u c
prod
serie!
Support Pro
Universal support
The support serie has been developed for 16 years in order to provide the right amount of support. Has been
designed to withstand heavy strains, and is easily mounted on different seating systems and wheelchairs.
There is two different kinds of material to choose from.
• Exklusive has a leather look and is easy to wipe off.
• Soft/Pro has a neoprene-like material with stretch.
Sternum support H-strap Sittbelt Anti-rotational belt
All belts and harnesses can be
Ankle holder Bracelet Hand tourniquet washed at 60°. All material is
water and stain resistant and
easy to wipe clean.
Fmk®
The holder between the driving handles are mounted
around the wheelchair’s driving handles. They fit round
as well as square tubes with dimensions of 20.0-30.0 mm.
www.anatomicsitt.com
21Some of our other products
For more information visit our website anatomicsitt.com
BESTÄLLNINGSUNDERLAG Skriv gärna ut beställningsunderlagen från vår hems
eller Hinfo för att alltid få den senaste utgåvan!
Termopåse/Regnskydd
Plurimeter Pluridig
The problem to measure the angle rela- The PluriDig is a simpler tool to measure
UTGÅVA 4 - 131118
tive between different bodyparts can the angle between different bodyparts.
be solved by using a PluriMeter.
Order Kund Datum
Specialanpassad
Fakturerings-/leveransadress
Redan levererad
Offert Konsulent Utprovad av
Proforma
Förskrivare Brukare
Dagar
900003 Utprovning 900001 Restid
Tid Tid/dist.
Sittermo
Sittermo is a special clothing series for clients
with special needs. Fits perfect to clients in seat-
Termopåse
ing systems and wheelchairs. They can be used
at temperatures down to -20 degrees.
Termopåsen är svart och finns i två utföranden, med eller utan bakstycke.
Framstycket är öppningsbart för att underlätta av- och påklädning.
Storlek Med bakstycke Utan bakstycke Midjemått Benlängd
XS 99340 99330 60-75 cm 40-60 cm
The universal clamp
S 99341 99331 60-75
Example of area of application: cmuniversal
The 60-70 cm
clamp is easily mounted to round as well as square
M 99342 99332 75-90 cm 70-85 cm
tubes with dimensions of 20.0 – 30.0 mm. The
clamp is delivered either untreated ,with a black
L 99343 99333 90-110 cm 85-100 cm
surface treatment or stainless.
XL 99344 99334 110-130 cm 85-100 cm
Anatomic SITT uses the clamp in different ways.
For example together with holders between the
driving handles.
Regnskydd
Regnskyddet är tillverkat i ett slitstarkt och vattenavstötande material.
22 Är tvättbart i 40°C och utrustat med reflexband. Regnskyddet är
www.anatomicsitt.com
mörkt blått och finns i en storlek.Anatomic SITT world wide
• Sweden • Denmark • Norway • Finland • Holland • Malta • Great Britain
• Greece • Cyprus • Estonia • Ireland • Portugal • Germany • Belgium
• France • Italy • Czech Republic • Iceland • Slovenia • Spain
• United Arab Emirates • New Zealand • Australia • Poland
• Turkey • Israel • Malaysia • China • Russia • USA • Argentina
www.anatomicsitt.com
www.anatomicsitt.com
23Anatomic SITT AB
Box 6137, SE-600 06 Norrköping
Phone +46 11-16 18 00
Email info@anatomicsitt.com
Web www.anatomicsitt.com
24 www.anatomicsitt.comYou can also read
