EN PRODUCT PROGRAMME CONSTRUCTION 2021 Machines and Diamond Tools 2021 Premium grinding tools since 1919 www.tyrolit.com
THE TYROLIT GROUP2
The TYROLIT Group
TYROLIT is one of the world’s leading manufacturers
of grinding and dressing tools as well as a system
provider for the construction industry.
Since 1919, our innovative tools have made
an important contribution to the technological
development in many industries. TYROLIT offers
tailored grinding solutions for various applications, as
well as a comprehensive assortment of standard tools TYROLIT headquarters in Schwaz (Austria)
for customers all over the world.
Headquartered in Schwaz (Austria), the family-owned
business combines the strengths of being a part of
the dynamic Swarovski Group with a century’s worth
of individual corporate and technological experience.
Facts & Figures
80,000 + 29 4,400 +
products production sites employees worldwide
36 500 +
sales locations worldwide patents
Sales companies in Argentina, Australia, Austria, Belgium, Brazil, Canada, China, Czechia, Denmark, Estonia, Finland, France,
Germany, Hungary, India, Indonesia, Italy, the Netherlands, Norway, Poland, Portugal, Russia, South Africa, South Korea, Spain,
Sweden, Switzerland, Thailand, the UAE, the UK and the USA. Distributors in 65 other countries.
3 CONTENTS3 Contents Overview of technologies 4 Ring and hand sawing 16 - 17 Core drilling 5-7 Table sawing 18 - 19 Wall sawing 8-9 Floor grinding 20 Wire sawing 10 - 11 Slurry collectors and power packs 21 Floor sawing 12 - 13 Grooving & grinding 22 Dry cutting 14 - 15 Project Services 23

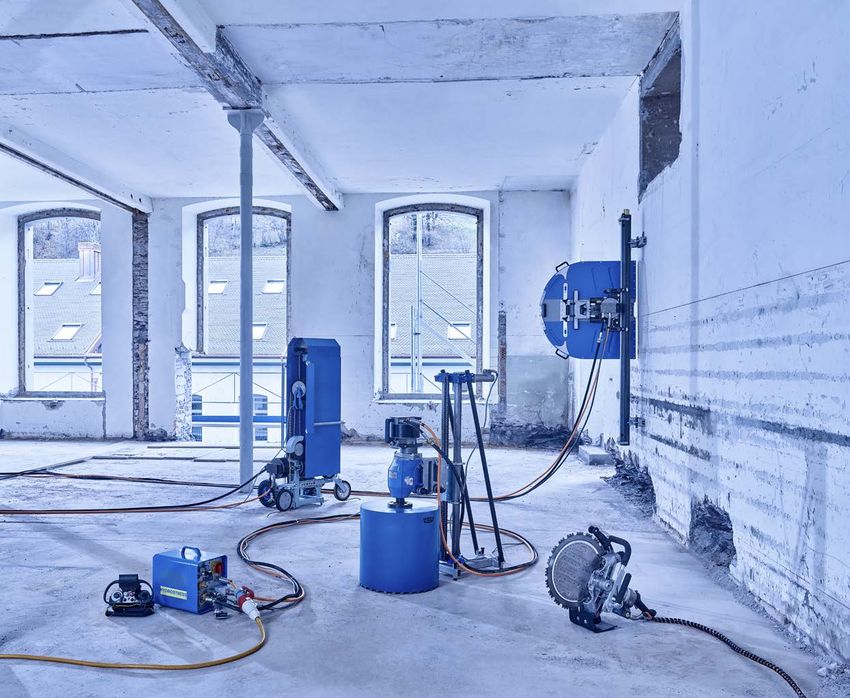

OVERVIEW OF TECHNOLOGIES4
Convincing, technologies
TYROLIT diamond tools with TGD® technology feature P2® – PERMANENT POWER – is a high-frequency techno-
intelligently distributed diamonds that enable even load logy registered by TYROLIT, which combines the compact
distribution, optimised cooling and a constantly high design of electrical systems with the reliability and perfor-
cutting performance. This significantly extends the tool mance of hydraulic systems in a single machine to optimum
lifetime and the load on the machines is reduced. effect. This innovative drive concept is based on the prin-
ciple of drive motors with permanent magnets and enables
Your advantages: operation at a high torque, with simultaneously reduced mo-
+ Long lifetime tor speeds. The maintenance-friendly layout of the compact
devices makes servicing easier and reduces costs.
+ High cutting ability
+ Enhanced efficiency TGD® Segment Your advantages:
+ High reliability
+ Powerful performance
+ Compact design
Conventional segment
Thanks to the TYROLIT Modular System, individual com- With the MoveSmart Technology, TYROLIT machines are
ponents can be used for the same area of application and connected to the Internet for the very first time. The techno-
for different applications. This not only makes the work logy processes real-time user data directly at the construc-
easier and more efficient, it also saves on costs. One part tion site and makes it available on various end-user devices.
of the TYROLIT Modular System is the ModulDrill™ quick The cloud-based MoveSmart Technology was developed in
clamping system, for example, which enables our drill collaboration with the Austrian start-up ToolSense and pro-
motors to be rapidly attached to different TYROLIT drill vides users and business owners with important machine
rigs. and usage data, helping them to get the most out of their
equipment. Service hours, error reports and pending soft-
Your advantages: ware updates, for instance, can be recalled anywhere and at
+ High cost efficiency any time. This enables better planning, as well as faster and
more cost-efficient operation based on real data.
+ Efficient working
+ Easy operation Your advantages:
+ Increased productivity
+ Reduced service times
+ Targeted product development
5
CORE DRILLING5
Drill motors
DME20PW/ DME24MW/
DME19DP DME17DP DME22SU
PU UW
Up to Ø 162 mm Up to Ø 200 mm Up to Ø 180 mm Up to Ø 180 mm Up to Ø 250 mm
1.8 kW 2.0 kW 2.2 kW 2.0 kW 2.2 kW
with percussion with percussion, 2 gears 3 gears 3 gears 3 gears
Drill hammer
NEW from summer 2021
DME33MW/
DME52UW DGB1000 DHE32
UW
Up to Ø 450 mm Up to Ø 500 mm Drilling gearbox Up to Ø 32 mm
3.3 kW 5.2 kW Up to Ø 1 000 mm Universal drill hammer
3 gears 3 gears Hydraulic and electric SDS-plus
incl. 16 mm drill
Core drill bits
Wet Deep Core Drills Dry
CD CD CDNX DDL
PREMIUM TGD®: STANDARD: CDL / CDM PREMIUM: CDNX-DCI PREMIUM TGD®: DDL / DDL-HH /
CDL / CDL-C2 / CDM BASIC: B1 / B1M ø 20 - 252 mm (300 mm on DDL-RM / DDE
TGD®-Technologie from Ø 47 mm request), extension rods 250, 500 STANDARD & BASIC: DDL
PREMIUM: CD660 / CD640 / Ø 12 – 1 500 mm
and 1 000 mm lengths Ø 32 – 300 mm
CD840 / CDXM/H Roof segments
Deep coring up to 40 m depths rig mounted (RM):
Ø 10 – 1 500 mm for reinforced concrete
roof segments from Ø 47 mm handheld (HH):
for brick materials
6
CORE DRILLING6
CDNX-DCI
+ Deep Core Drills in + Scarper as support for abrasive
interchangeable system materials
+ For deep hole drilling + Core catcher for removal of drill
up to 40 m cores
+ Ø 20 - 252 mm (300 mm on + Chain spanner for changing the
request) screwdrill bit
+ Complete system with 11/4" + Drill stand for deep hole drilling
holder
+ Extensions in 250, 500 and
+ Drilling direction stabilisers 1 000 mm
Segment overview for wet drilling
TECHNOLOGY EFFICIENCY CUTTING PERFORMANCE
TGD® – optimal grain distribution Perfect working results High cutting ability thanks to U-Cuts
PREMIUM CDL, CDM, CDL-C2 PREMIUM CDXH, CDXM PREMIUM CD840, CD640, CD660
STANDARD CDL, CDM BASIC B1M
BASIC B1
Segment diameter ranges [mm] Segment widths [mm]
10 42 47 76 289 1 500 2,5 3,0 3,5 4,0 5,0 5,5 6,5 7,5
CDL RING CDL CDL RING CDL-C2
CD660, CD640, CDXM CDL
CDXH CDM, CD660, CD840
CDL-C2 CD640
CDM, CD840 CDXH
CDXM
CDL RING CDL CDL RING CDL
CDM CDM
B1 B1
Low (< 2.4 kW) Medium (< 3.5 kW) High (> 3.5 kW)
7
CORE DRILLING7
Core drill rigs
DRS162 DRS250 DRA150 DRU160 DRA/U250
Up to Ø 162 mm Up to Ø 250 mm Up to Ø 150 mm Up to Ø 160 mm Up to Ø 250 mm
Drill system Drill system Clamping collar 60 mm Clamping collar 60 mm ModulDrill™
incl. 2.5 kW drill motor incl. 2.5 kW drill motor Dowel foot Dowel | Vacuum Dowel | Vacuum
DRU350 BY DRA/U400 DRA500 BC-2
Up to Ø 350 mm Up to Ø 350 mm Up to Ø 400 mm Up to Ø 500 mm Up to Ø 1 000 mm
360° rotation, ModulDrill™ ModulDrill™ ModulDrill™ ModulDrill™ 2-column-guiding
Telescoping system 2-column-guiding Dowel | Vacuum Extendable Modularity with wire saw
Tile drill-sets
Tile drill-sets Paraffin Tile drills
HEX Ø 5-14 M14 Ø20+ XL HEX Ø 5, 6, 8, 10, 12, 14 mm
Kit HEX M14 individual or as a set
8
WALL SAWING PRODUCT HIGHLIGHTS
Wall sawing
Product highlights
WSE1621
+ THE electric wall saw for everyday + USB interface
use at the construction site
+ Small and compact control unit
+ Quick assembly and disassembly
+ Redesigned, lightweight blade
thanks to tool-free motor
guard
fastening
+ Available with MoveSmart
+ Extremely compact motor
Technology
+ Radio remote control with display
Combination of drive holes
+ For all 12M109 TYROLIT wall saw heads in Central Europe
(except WSE811 MKII)
+ For all 6M207 HILTI and HUSQVARNA wall saw heads

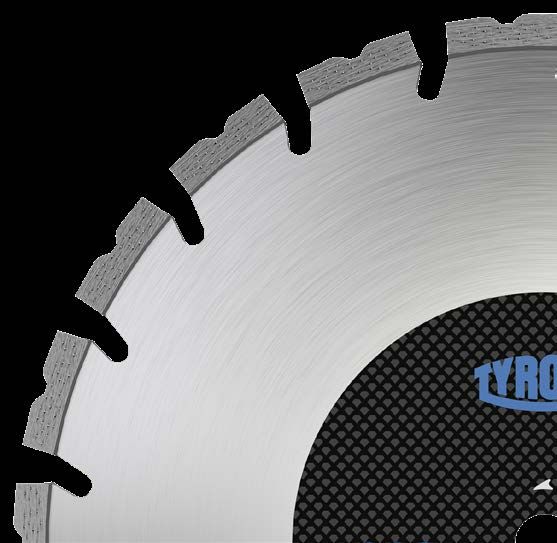

WSL-FAST CUT
+ Wide-tooth C7-version + Laser-welded segments
for highest security up to
+ TGD®-Technology for consistent
Ø 1 200 mm
cutting rate and smooth cutting
through rebar
9
WALL SAWING9
Wall saws
WSE811 MKII WSE1621 WSE2226 DZ-S2
Up to Ø 825 mm Up to Ø 1 600 mm Up to Ø 2 200 mm Up to Ø 1 200 mm
11 kW (P2®-Technology) 20 kW (P2®-Technology) 26 kW (P2®-Technology) Ideal for 20 kW power pack
Electric Electric Electric Hydraulic
MoveSmart Technology MoveSmart Technology
Wall saw blades
FZ-4S WS WS
Up to Ø 2 200 mm WSL-FC, WSL-FC-LL, WSL, WSL, WSM, WSM-FC
Ideal for 40 kW power pack WSL-SILENT, WSM, WSM-SILENT, Ø 600 – 1 200 mm
WSL-DC
Hydraulic TGD®-Technology
Ø 450 – 2 200 mm
TGD® up to Ø 1 200 mm
Wall saw accessories
Rails Trestles & Stopper Blade Guard Blade Guard WSE1621
Aluminium rails Swivel rail trestles, stopper Blade guard All-in-One Blade guard All-in-One linear
Steel rails
10
WIRE SAWING PRODUCT HIGHLIGHTS10
Wire sawing
Product highlights
WCU17
+ Universal wire saw
+ Simplified wire guidance
+ Ergonomic and light components
+ Reduced weight of components
DWL-CF
+ Vitrified wire for concrete
+ Very fast cutting performance
+ Noticeable smooth running due to optimized bead and wire construction
+ High level of safety due to robust construction11
WIRE SAWING11
Wire sawing
SB-E | SB WCU17 WCE18 WCE30 CCE/H25
Gross wire length 15.5 m Gross wire length 17 m Gross wire length 19 m Gross wire length 31,5 m Circular wire saw, Ø 500 –
Electric and hydraulic Electric and hydraulic Electric Electric 2,500 mm
SB: ATEX certified Electric and hydraulic
Diamond wire
Concrete Steel
DW DW DWH -S/S-ATEX/SL DWM-S/SL
DWM / DWL DWM / DWL DWH-S ATEX: ATEX certified For steel
For concrete For concrete For steel / non-ferrous metals Electroplated, also as loops (SL)
Electroplated and sintered Electroplated and sintered Electroplated, also as loops (SL) As loop in yellow rubber
Ø 10.2 and 8.5 / 11 mm Ø 10 / 11 mm Ø 11 mm Ø 10.2 mm
Wire saw accessories
Hand press Connections
80 kN Cardanic and repair connectors
Hydraulic12
FLOOR SAWING12

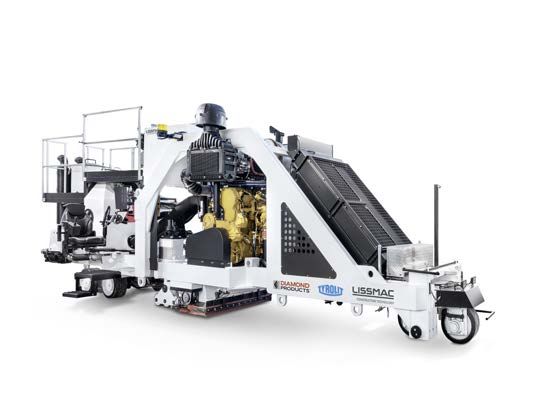

Floor saws
FSG513 FSG620 FSE811 FSD930
Up to Ø 450 mm Up to Ø 600 mm Up to Ø 800 mm Up to Ø 900 mm
8.2 kW 15 kW 7.5 kW 22 kW
Petrol Petrol Electric Diesel
NEW
NEU
FSD1049 FSE1022 FSE1240 FSD1274 3-GEAR
Up to Ø 1 000 mm Up to Ø 1 000 mm Up to Ø 1 200 mm Up to Ø 1 200 mm
36 kW 22 kW 30 kW 55 kW
Diesel Electric Electric Diesel13
FLOOR SAWING13
Floor saw blades
Cured concrete Asphalt
FS-C FSC FS-A FSA
FSL, FSM, FSH-C, FSX-C3 Ø 300 – 800 mm FSL-A, FSM-A, FSH-A Ø 300 – 800 mm
Ø 350 – 1 200 mm For low powered machines Ø 300 – 1 200 mm
TGD®-Technology
Green concrete
FS-G Chamfering
FSL-G3/G4 | FSM-G3/G4/G5 For various widths of joints
Ø 300 – 600 mm Chamfer cutter 45°
Diameter 280 mm, two-part14 DRY CUTTING14 The NEW Dry Cutting Assortment Increased performance by up to 30% New look + Powerful tools, extremely high cutting speeds + Re-designed segments, clear labels and updated and outstanding durability packaging Compact assortment Highest product safety + Streamlined product palette with solutions + Complete assortment in compliance with OSA for all common construction materials and EN13236 regulations Innovative and user-friendly + Entirely tailored to current market demands and today’s powerful machines Upgraded segments for outstanding results New, even more intelligent diamond pattern Increased cooling effect allows for more efficiency due to new U-shaped cuts Performance increase Reduced segment surface due to new segment shape ensures a higher cutting rate The composition of the segments is different for all quality lines. For more information on our new dry cut range, please see our range flyer.
15
DRY CUTTING15

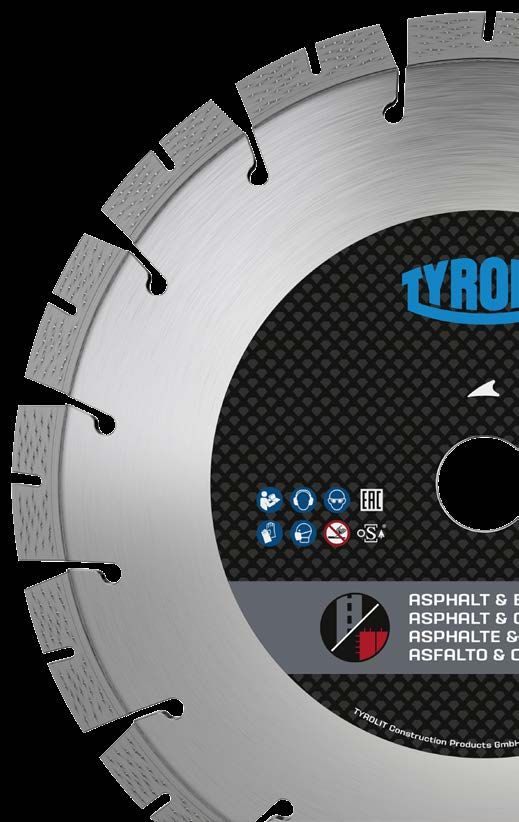

Dry cutting saw blades
NEW NEW NEW NEW
Universal Hard Stone Concrete Asphalt & Concrete
DCU TGD® Ø 230 – 400 mm DCH Ø 115 – 125 mm DCC DCA+C
DCU Ø 105 – 400 mm DCH TGD® Ø 230 – 400 mm Ø 115 – 400 mm Ø 115 – 450 mm
Ø 400 mm for flush cutting Ø 400 mm for flush cutting Also in FC & LL
Also in DCE-SILENT in TGD® Also in FC
NEW NEW NEW
Cut-All Universal Tiles & Marble DCP Porcelain stoneware
Cut-All Roofer’s PREMIUM: DCT, DCM Ø 115 – 125 mm
Ø 115 – 350 mm Ø 230 mm BASIC: DCT
For all materials Ø 100 – 350 mm
Cup grinder Specials Brick grinder
DCCI COMBI DGBM / H / X
PREMIUM: DGU / DGU Turbo DCCI Combi for plastic pipes Brick grinder for hollow bricks
STANDARD: Ø 125 Ø 500 – 900 mm
DGU double row / single row,
DGU Turbo, DGU-T Continuous, TGD®-Technology
DGU-FC L-Segment, DGAB,
DGC, DGH
Ø 100 – 180 mm16
RING AND HAND SAWING PRODUCT HIGHLIGHTS16
Ring and hand sawing
Product highlights

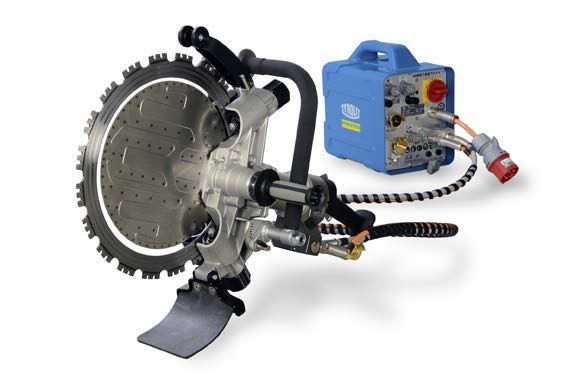

HRE410
+ 6.5 kW P2® motor
+ Intelligent ergonomics – handle can be rotated 90°
for horizontal cuts
+ Modular use with WSE1621 wall saw system
RSL-FC
+ For concrete and reinforced concrete
+ Universal use and very fast cutting performance
+ RSL without U-Cuts
+ Perfectly adapted for TYROLIT Hydrostress
ring saw HRE41017
RING AND HAND SAWING17
Hand saws
NEW from summer 2021 NEW from summer 2021
HBE400 HRE410 AGE125 AGE230
Up to Ø 405 mm Up to Ø 405 mm Up to Ø 125 mm Up to Ø 230 mm
Cutting depth up 150 mm Cutting depth up 300 mm 900 W 2.1 kW
Flush cutting function Modular use with WSE1621 Soft start Soft start
wall saw system
Hand saw blades
HS HSL-FAST CUT HSX-FAST CUT
HSL, HSM, HSX HSL-FC HSX-FC
Ø 405 – 416 mm Ø 350 mm Ø 416 mm
TGD®-Technology Pre-cutting blade TGD®-Technology
Ring saw blades
RS RSL
RSL & RSM RSL-FC & RSL-C
Ø 366 – 506 mm Ø 306 – 406 mm18
CELLULAR CONCRETE BAND SAW PRODUCT HIGHLIGHTS18
Cellular concrete band saw
Product highlights
TBS510
+ For processing of aerated concrete and for various
types of brick
+ Fast and hassle-free changing of saw bands
+ Automatic saw cut off
+ High lifetime and automatic saw band tensioner
+ Low maintenance intensity thanks to direct driver
of saw band rollers19
TABLE SAWING19
Table saws
TRE250 TBE400 TME700 TME1000
Tile saw Masonry saw Masonry saw Masonry saw
Up to Ø 250 mm Up to Ø 400 mm Up to Ø 700 mm Up to Ø 1 000 mm
Cutting length 1,050 mm Swivelling saw head Mitre stop Mitre stop
Table saw blades
TSU/TSU-SILENT TSH/TSH-SILENT DCT ES-T
Universal Hard stone Tiles Marble
Ø 250 – 1000 mm Ø 300 - 350 mm Ø 180 – 350 mm Ø 250 – 350 mm
Circular concrete
band saw
TBS510
Cutting height up to 510 mm
Quick fastening band saw change20
FLOOR GRINDING20
Floor grinding
FGE250 FGE400 FGE450 FGE530
Grinding width 250 mm Grinding width 400 mm Grinding width 450 mm Grinding width 530 mm
2.2 kW 4 kW 2.2 kW 4 kW
Swivelling grinding head Single grinding head 3 grinding heads 3 grinding heads
Floor grinding tools
S-LINE M-LINE H-LINE X-LINE C-LINE
Soft concrete Moderately hard concrete Hard concrete Extremely hard concrete Removing
Single- and double Single- and double Single- and double Single- and double Single- and double
segments segments segments segments segments
For Schwamborn ETX1 & For Schwamborn ETX1 & For Schwamborn ETX1 & For Schwamborn ETX1 & For Schwamborn ETX1 &
ETX2, HTC EZchange™, ETX2, HTC EZchange™, ETX2, HTC EZchange™, ETX2, HTC EZchange™, ETX2, HTC EZchange™,
Husqvarna REDI LOCK® Husqvarna REDI LOCK® Husqvarna REDI LOCK® Husqvarna REDI LOCK® Husqvarna REDI LOCK®
Grinding wheel depictions are sample images
For more information on our floor
grinding range, please see our
range flyers.
TYROLIT ASSORTMENT
FLOOR GRINDING
Machines for floor preparation
EN | 2021
Premium grinding tools since 1919
www.tyrolit.com21
OTHERS
Slurry collectors
SPP400 SPP600 SPP1200
Capacity 2.4 l Capacity 6.4 l Capacity 30 l
Recycling of 400 – 600 l/hr Recycling of 400 – 600 l/hr Recycling of 2,000 l/hr
Mobile solution for small Mobile and stationary use High filter capacity for industrial use
construction sites on large-scale construction sites
Power packs
PPH25 PPH25RR PPH40RR
25 kW 25 kW 40 kW
2 stages 4 stages 4 stages
Radio remote control Radio remote control
Presses Crushers
CP-110 / BTH350 Power pack AU Crusher BZ Power pack BW-2
Pressing force 108 / 260 t Up to 2,000 bar For wall thicknesses of Up to 750 bar
120 – 300 mm
3 / 2 cylinder strokes22
Grooving & grinding
PC4504CE BGX-C3 in TGD®
+ Bump grinder for concrete and asphalt + Exceptional and consistent cutting performance
+ Performance 426 kW / 575 PS + Very long life time
+ Blade shaft speeds: 1,315 RPM to 1,900 RPM + Noticeable smooth running with TGD® technology
+ Up to 250 diamond saw blades + Innovative diamond segment design
+ For blade diameters up to 485 mm (18"), bore 203.2 mm + Clean cutting edges
+ Width of the grinding shaft: 127 cm (50 inch) + Various specifications for different concrete
aggregates
+ 9 m lenght, 3 m hight, 25.4 t weight
+ CE certified
Find more products for grooving and grinding on www.tyrolit.com
Machine range
PC4504CE Groover & Grinder PC1504 Pavement Grinder & Groover PC6004EC Highway Grinder
CG-1 Mini Groover & Grinder CG-2E30 Walk Behind
Mini Groover & Grinder23 GROOVING & GRINDING / PROJECT SERVICES23 Your reliable partner for customized solutions Alongside the standard assortment, TYROLIT also offers machines, tools and project support for special construction projects like the controlled decommissioning of offshore facilities and nuclear power plants, as well as the construction and reconstruction of tunnels. Tailored products For special applications in small or large complex projects, the TYROLIT Project Service team delivers ingenious solutions that get our partners to their goals quickly and efficiently. In addition to a wide range of products, the TYROLIT Project Service Team supports its customers with: + Feasibility studies + Planning concepts + Principle sketches + Customised products for machines & tools + Project management + Training courses You can find even more information in our Project Services Brochure or at www.tyrolit.com
24
Tyrolit Construction Products GmbH
Swarovskistraße 33 | 6130 Schwaz | Austria
Tel +43 5242 606-0 | Fax +43 5242 63398
Our worldwide subsidiary companies can be found
on our website at www.tyrolit.com
20085851-EN-0521You can also read
